Comnet CWGE28FX4TX24MS User manual

INSTALLATION AND OPERATION MANUAL
CWGE28FX4TX24MS
(24) 10/100/1000 BASE-TX + (4) 1000BASE-FX
MANAGED ETHERNET SWITCH
The ComNet™CWGE28FX4TX24MS Layer 2 Managed 28 Port Ethernet Switch supports
twenty-four(24) 10/100/1000BASE-TX portsandfour(4)1000BASE-FXports ofEthernet
data. The four 1000BASE-FX ports are SFP configurable for fiber type (multimode or
single-mode), connector type and distance. The exclusive C-Ring redundant ring
feature protects networks from interruptions or temporary malfunctions with its fast
recovery technology. The electrical ports support the 10/100/1000 Mbps Ethernet IEEE
802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are included. The
CWGE28FX4TX24MS are optically (1000BASE-FX) and electrically compatible with any
IEEE 802.3 compliant Ethernet device.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 2
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Contents
About This Guide 3
Related Documentation 3
About ComNet 3
Website 3
Support 3
Safety 3
Overview 4
Introduction 4
Software Features 5
Hardware Features 6
Hardware Installation 7
Rear Panel 8
Rack mount kit assembly 8
Cables 10
Ethernet Cables 10
SFP (Small Form-Factor Pluggable) Optical Connectors 12
Console Cable 13
WEB Management 14
Configuration by Web Browser 14
Command Line Interface Management 102
About CLI Management 102
Commander Groups 106
Technical Specifications 114

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 3
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
About This Guide
This guide is intended for different users such as engineers, integrators, developers, IT managers,
and technicians.
It assumes that users have some PC competence and are familiar with Microsoft Windows
operating systems and web browsers such as Windows Internet Explorer and Mozilla Firefox, as
well as have knowledge of the following:
»Installation of electronic equipment
»Electrical regulations and guidelines
»Knowledge of Local Area Network technology
Related Documentation
The following documentation is also available:
»CWGE28FX4TX24MS Datasheet
About ComNet
ComNet develops and markets the next generation of video solutions for the CCTV, defense, and
homeland security markets. At the core of ComNet’s solutions are a variety of high-end video
servers and the ComNet IVS software, which provide the industry with a standard platform for
analytics and security management systems enabling leading performance, compact and cost
effective solutions.
ComNet’s products are available in commercial and rugged form.
Website
For information on ComNet’s entire product line, please visit the ComNet website at
http://www.comnet.net
Support
For any questions or technical assistance, please contact your sales person ([e-mail]) or
the customer service support center ([e-mail])
Safety
»Only ComNet service personnel can service the equipment. Please contact ComNet Technical
Support.
»The equipment should be installed in locations with controlled access, or other means of
security, and controlled by persons of authority.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 4
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Overview
Introduction
The ComNet CWGE28FX4TX24MS is a managed redundant ring Ethernet switch with
24x10/100/1000Base-(TX) ports and 4x1000Base-X SFP ports. The Ethernet Redundancy protocol,
C-Ring (Gigabit model recovery time < 30ms over 250 units of connection) and MSTP/RSTP/
STP (IEEE 802.1s/w/D) can protect your applications from network interruptions or temporary
malfunctions with its fast recovery technology.
ComNet’s Ethernet switches provide advanced IP-based bandwidth management which can limit
the maximum bandwidth for each IP device. The User can configure IP cameras and Network
Video Recorders with more bandwidth and limit other device’s bandwidth.
ComNet’s Ethernet switches also support application-based QoS. Application-based QoS can set
the highest priority for data stream according to TCP/UDP port number. The ComNet special IP
police function can permit only allowed IP address with MAC address to access the networking.
Unintended access is eliminated, as a user cannot access the IP surveillance network without
permission. Moreover, the ComNet CWGE28FX4TX24MS switch provides advanced DoS/DDoS
auto prevention. If an IP flow rises quickly, the CWGE28FX4TX24MS switch will lock the source IP
address for a certain time to prevent the attack. It is hardware-based prevention so it can prevent
DDOS attack immediately and completely. And all functions of the CWGE28FX4TX24MS can also
be centrally managed conveniently by eConsole, the Web-based interface, Telnet and console
(CLI) configuration. Therefore, the switch is one of the most reliable choices for highly managed
and Gigabit Fiber Optic Ethernet applications.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 5
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Software Features
»Industry’s fastest Redundant Ethernet Ring (Gigabit model recovery time < 30ms over 250 units
connection)
»Support for Ring Coupling, Dual Homing over Ring and standard STP/RSTP
»Support for SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN Network Management
»Event notification by Email and SNMP trap
»Windows Utility eConsole, Web-based ,Telnet and Console(CLI) configuration
»Enable/disable ports, MAC based port security
»Port based network access control (802.1x)
»VLAN (802.1q ) to segregate and secure network traffic
»RADIUS centralized password management
»SNMPv3 encrypted authentication and access security
»Quality of Service (802.1p) for real-time traffic
»VLAN (802.1q) with double tagging and GVRP supported
»IGMP Snooping for multicast filtering
»Port configuration, status, statistics, mirror, security
»Remote Monitoring (RMON)

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 6
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Hardware Features
»One 100~240VAC power input
»Operating Temperature: -10˚ to +60˚ C (+14˚ to +140˚ F)
»Storage Temperature: -40 to 85ºC (-40 to 185ºF)
»Operating Humidity: 5% to 95%, non-condensing
»Casing: IP-20
»24 x 10/100/1000Base –T(X) RJ-45 ports
»4 x 1000 Base-X SFP ports
»Console Port (DB9 Female connector)
»Dimensions (W × D × H): 17.50 × 7.88 × 1.75 inch (44.45 × 20.00 × 4.45 cm)

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 7
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Hardware Installation
12
547 3
6

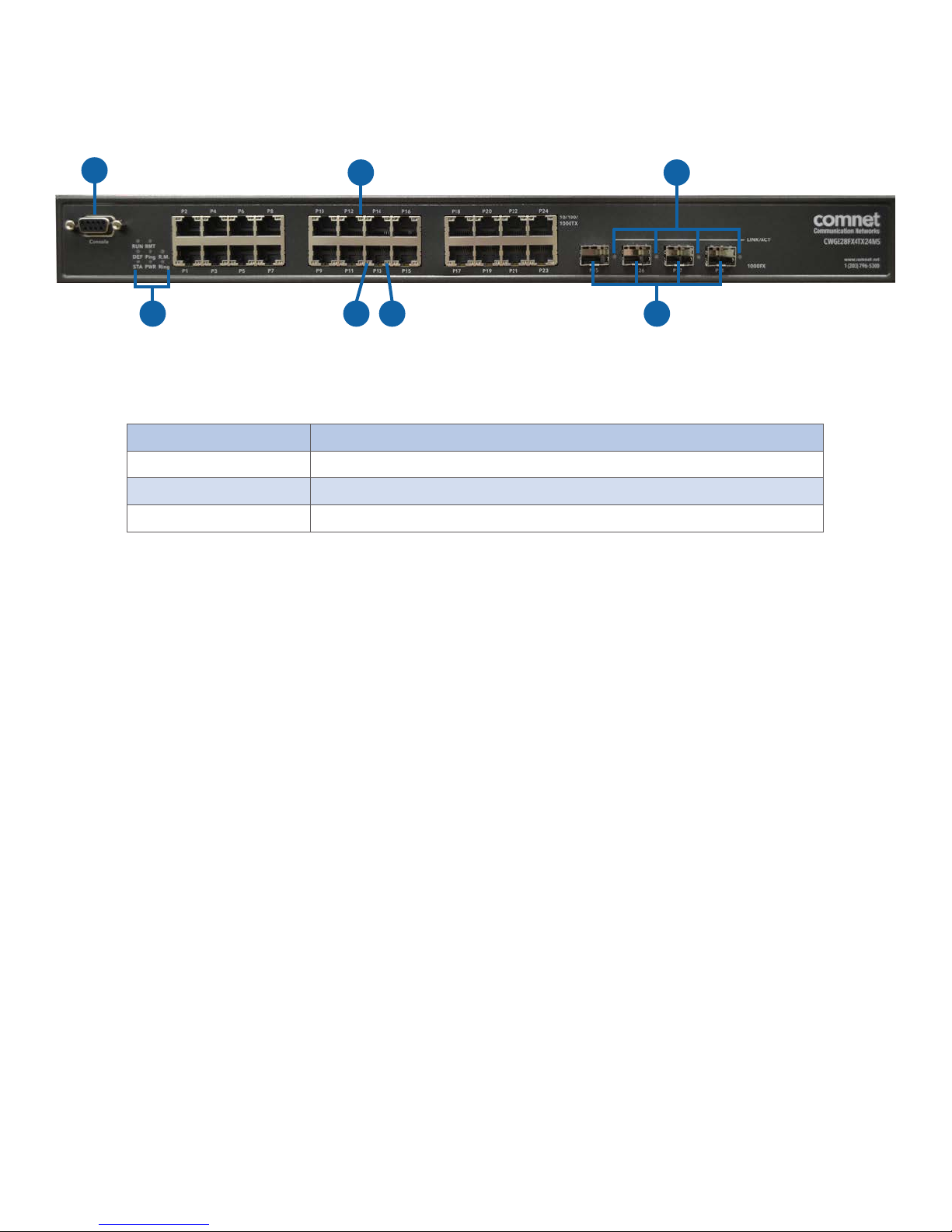

CWGE28FX4TX24MS Front Panel
The following table describes the labels that are on the CWGE28FX4TX24MS switch
Port Description
Gigabit SFP ports 4 × 1000Base-X on SFP port
Gigabit Ethernet Port 24 × 10/100/1000Base–T(X)
Console Use RS-232 with DB9 connecter to manage switch.
1. Console port (DB9 Female connector)
2. 10/100/1000Base-T(X) gigabits Ethernet port
3. 1000Base-X Fiber port on SFP port
4. LED for Ethernet ports Link/Act status: Left Green for 1000Mbps indicator, Amber for
10/100Mbps indicator
5. LED for Ethernet ports Duplex status.
6. LED for SFP ports Link/Act status.
7. Front panel Indicating LEDs:
› STA: Solid Green indicates that the system is ready. The LED is blinking when the system is
upgrading firmware
› PWR: The LED lights on when the power module is activated.
› R.M.: (Ring Master). When the LED light is on, the switch is the ring master of Ring.
› Ring: When the LED light is on, it means the C-Ring is activated.
› DEF: System resets to default configuration.
› Ping: System is processing “PING” request.
› RUN: System is operating continuously.
› RMT: System is accessed remotely.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 8
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427

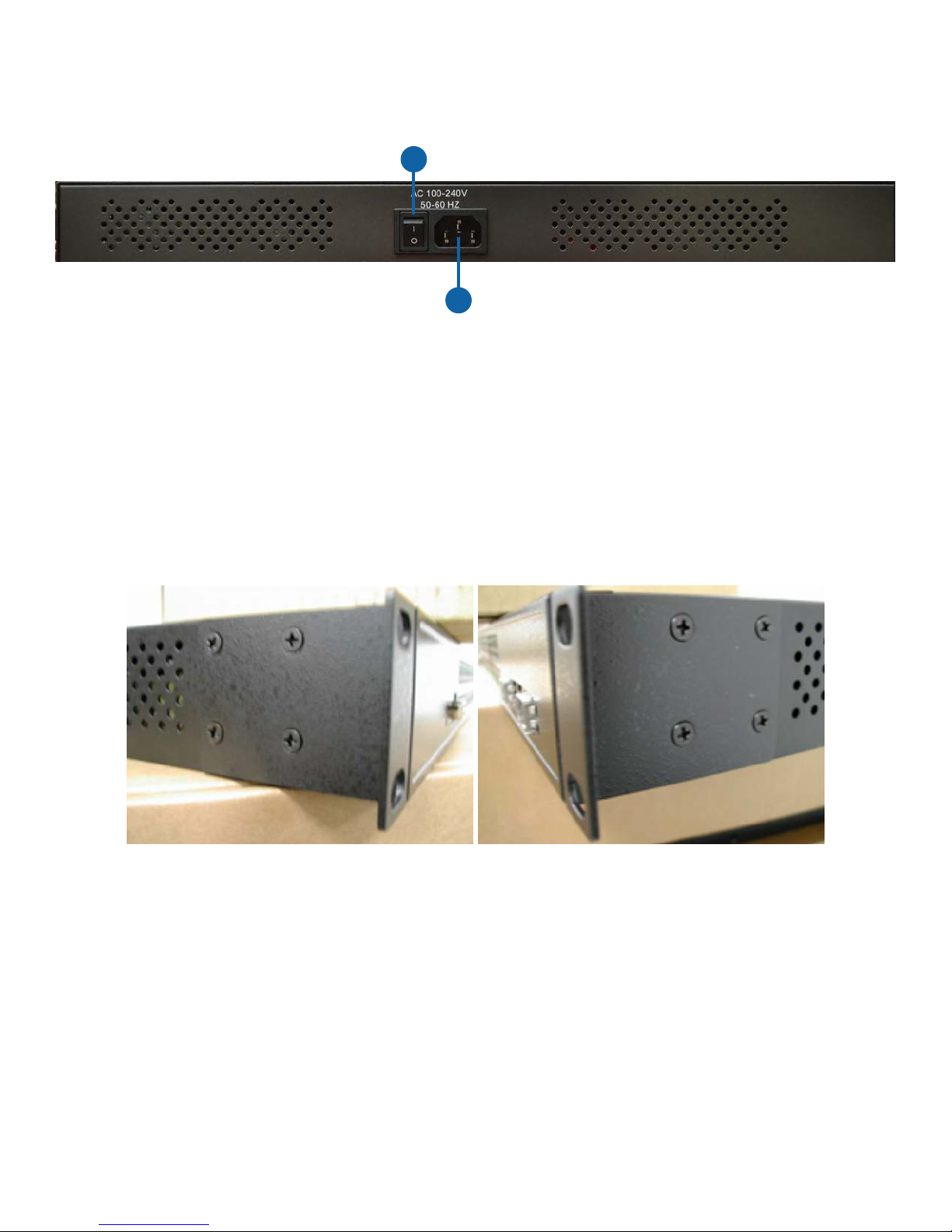

Rear Panel
1
2
CWGE28FX4TX24MS Rear Panel
1. Power Switch
2. Power input for AC 100V~240V / 50~60Hz
Rack mount kit assembly
You can find the rack mount kit and the screws in the packing box. Please assembly the rack
mount kit on the switch with screws as shown below:

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 9
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Front Panel LEDs
LED Color Status Description
PWR Green On DC power module activated.
STA Green On Power module is in PWR UP state
Blinking The system is upgrading firmware
DEF Green On System resets to default configuration.
RUN Green Slowly blinking System is operating continuously.
Ping Green Blinking System is processing “PING” request
RMT Green Blinking System is being accessed remotely.
Ring Green
On Ring enabled.
Slowly blinking Ring has only One link. (lacks one link to build the ring)
Fast blinking Ring work normally.
R.M Green On When the system is operating in C-Ring Master mode
Fault Amber On Indicates unexpected event occurred.
10/100/1000Base-T(X) Gigabit Ethernet ports
LINK/ACT
(Left)
Green On Port speed 1000M link up
Blinking Data Transmitted on 1000M
Amber On Port speed 10/100M link up
Blinking Data Transmitted on 10/100M
Full-
Duplex
(Right)
Amber
On Full-Duplex
Blinking Half-Duplex
SFP
LINK/ACT Green On Port link up.
Blinking Data transmitted

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 10
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Cables
Ethernet Cables
The CWGE28FX4TX24MS series switches have standard Ethernet ports. According to the link
type, the switches use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs,
servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications
Cable Type Max. Length Connector
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) RJ-45
1000BASE-TX Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328ft) RJ-45
100BASE-TX/10BASE-T Pin Assignement
With 100BASE-TX/10BASE-T cable, pins 1 and 2 are used for transmitting data, and pins 3 and 6
are used for receiving data.
10/100 Base-T RJ-45 Pin Assignments
Pin Number Assignment
1TD+
2TD-
3RD+
4Not used
5Not used
6RD-
7Not used
8Not used
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 11
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
1000 Base-T RJ-45 Pin Assignments
Pin Number Assignment
1BI_DA+
2BI_DA-
3BI_DB+
4BI_DC+
5 BI_DC-
6 BI_DB-
7BI_DD+
8 BI_DD-
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
The CWGE28FX4TX24MS switch support auto MDI/MDI-X operation. You can use a straight-
through cable to connect a PC to the switch. The following table below shows the 10BASE-T/
100BASE-TX MDI and MDI-X port pin outs.
10/100 Base-T MDI/MDI-X pins assignment
Pin Number MDI port MDI-X port
1TD+(transmit) RD+(receive)
2TD-(transmit) RD-(receive)
3RD+(receive) TD+(transmit)
4Not used Not used
5Not used Not used
6RD-(receive) TD-(transmit)
7Not used Not used
8Not used Not used
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 12
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
1000 Base-T MDI/MDI-X pins assignment
Pin Number MDI port MDI-X port
1BI_DA+ BI_DB+
2BI_DA- BI_DB-
3BI_DB+ BI_DA+
4BI_DC+ BI_DD+
5 BI_DC- BI_DD-
6 BI_DB- BI_DA-
7BI_DD+ BI_DC+
8 BI_DD- BI_DC-
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

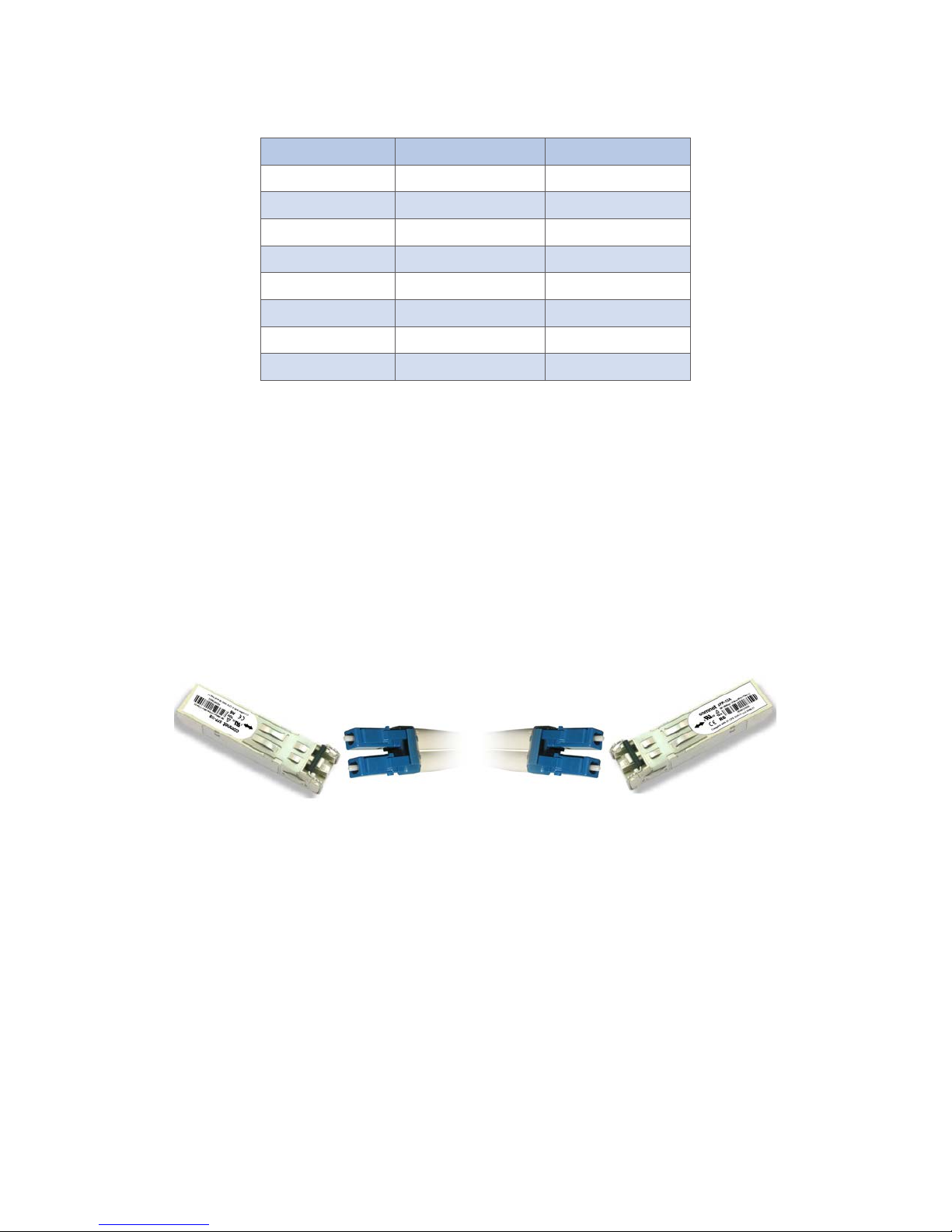

SFP (Small Form-Factor Pluggable) Optical Connectors
The Switch has fiber optic ports for use with with SFP connectors. There are many ComNet SFP
modules available with either multimode or single-mode fiber, connector type and distance
available. Contact ComNet for availability to meet your requirement. Please remember that the TX
port of Switch A should be connected to the RX port of Switch B.
Switch A Switch B

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 13
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Console Cable
CWGE28FX4TX24MS switch can be managed through the console port. The DB-9 to RJ-45 cable
can be found in the package. You can connect them to PC via a RS-232 cable with DB-9 female
connector and the other end (RJ-45 connector) connects to console port of switch.
5
9
1
6
1
6
5
9

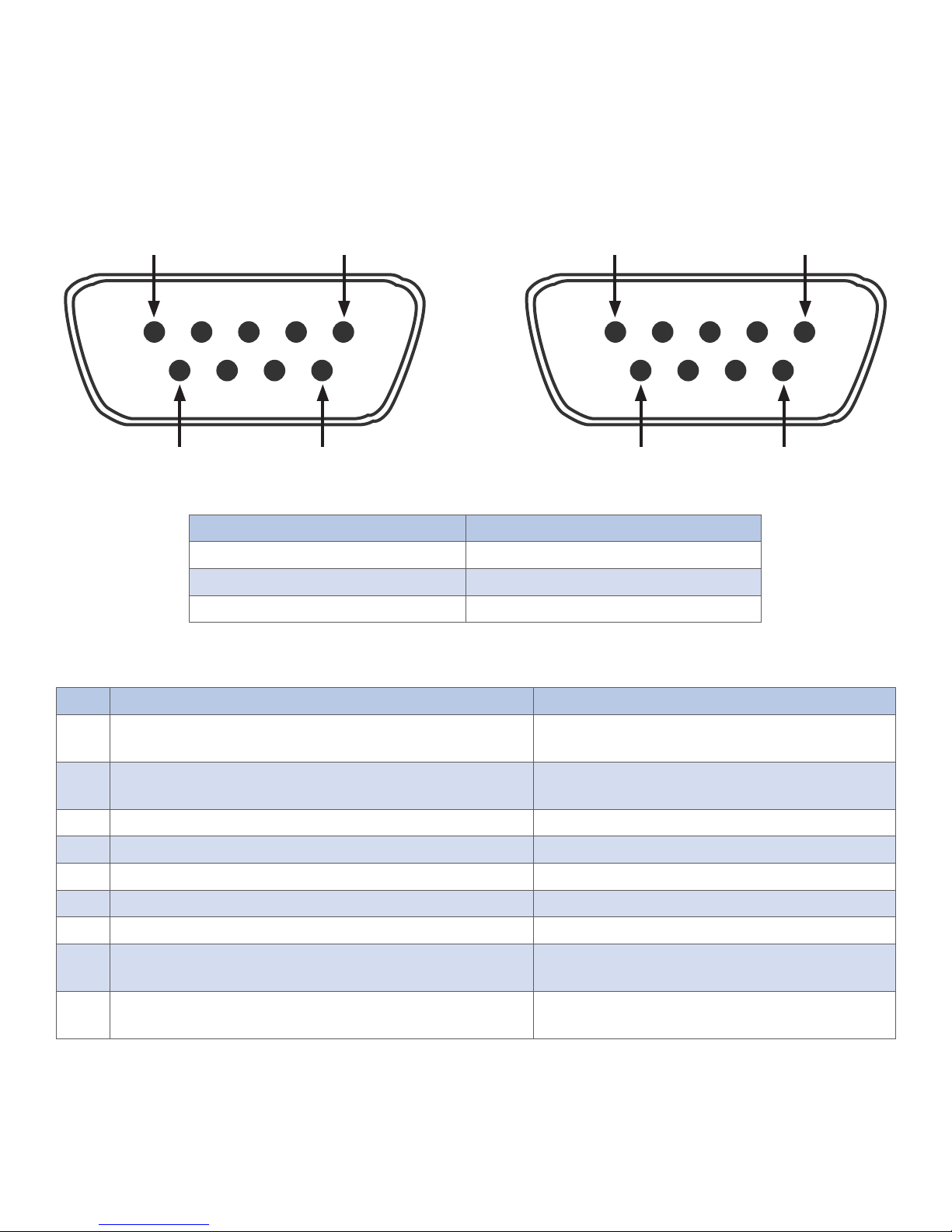

DB-9 Male DB-9 Female
PC pin out (male) assignment RS-232 with DB9 female connector
Pin #2 RD Pin #2 TD
Pin #3 TD Pin #3 RD
Pin #5 GD Pin #5 GD
Pin Male Connector Female Connector
1Received Line Signal Detect (Received by DTE
Device)
Received Line Signal Detect (Transmitted
from DCE Device)
2Received Data (Received by DTE Device) Transmitted Data (Transmitted from DCE
Device)
3Transmitted Data (Transmitted from DTE Device) Received Data (Received by DCE Device)
4DTE Ready (Transmitted from DTE Device) DTE Ready (Received by DCE Device)
5Signal Ground Signal Ground
6DCE Ready (Received by DTE Device) DCE Ready (Transmitted from DCE Device)
7Request to Send (Transmitted from DTE Device) Clear to Send (Received by DCE Device)
8Clear to Send (Received by DTE Device) Request to Send (Transmitted from DCE
Device)
9Ring Indicator (Received by DTE Device) Ring Indicator (Transmitted from DCE
Device)

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 14
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
WEB Management
Attention: While installing and upgrading firmware, please remove physical loop connection first.
DO NOT power off equipment while the firmware is upgrading!
Configuration by Web Browser
This section introduces the configuration by Web browser.
About Web-based Management
An embedded HTML web site resides in flash memory on the CPU board. It contains advanced
management features and allows you to manage the switch from anywhere on the network
through a standard web browser such as Microsoft Internet Explorer.
The Web-Based Management function supports Internet Explorer 5.0 or later. It is based on Java
Applets with an aim to reduce network bandwidth consumption, enhance access speed and
present an easy viewing screen.
Note: By default, IE5.0 or later version does not allow Java Applets to open sockets. You need
to intentionaly modify the browser setting in order to enable Java Applets to use network
ports.
Preparing for Web Management
The default value is as below:
IP Address: 192.168.10.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.10.254
User Name: admin
Password: admin
System Login
1. Launch the browser: Internet Explorer.

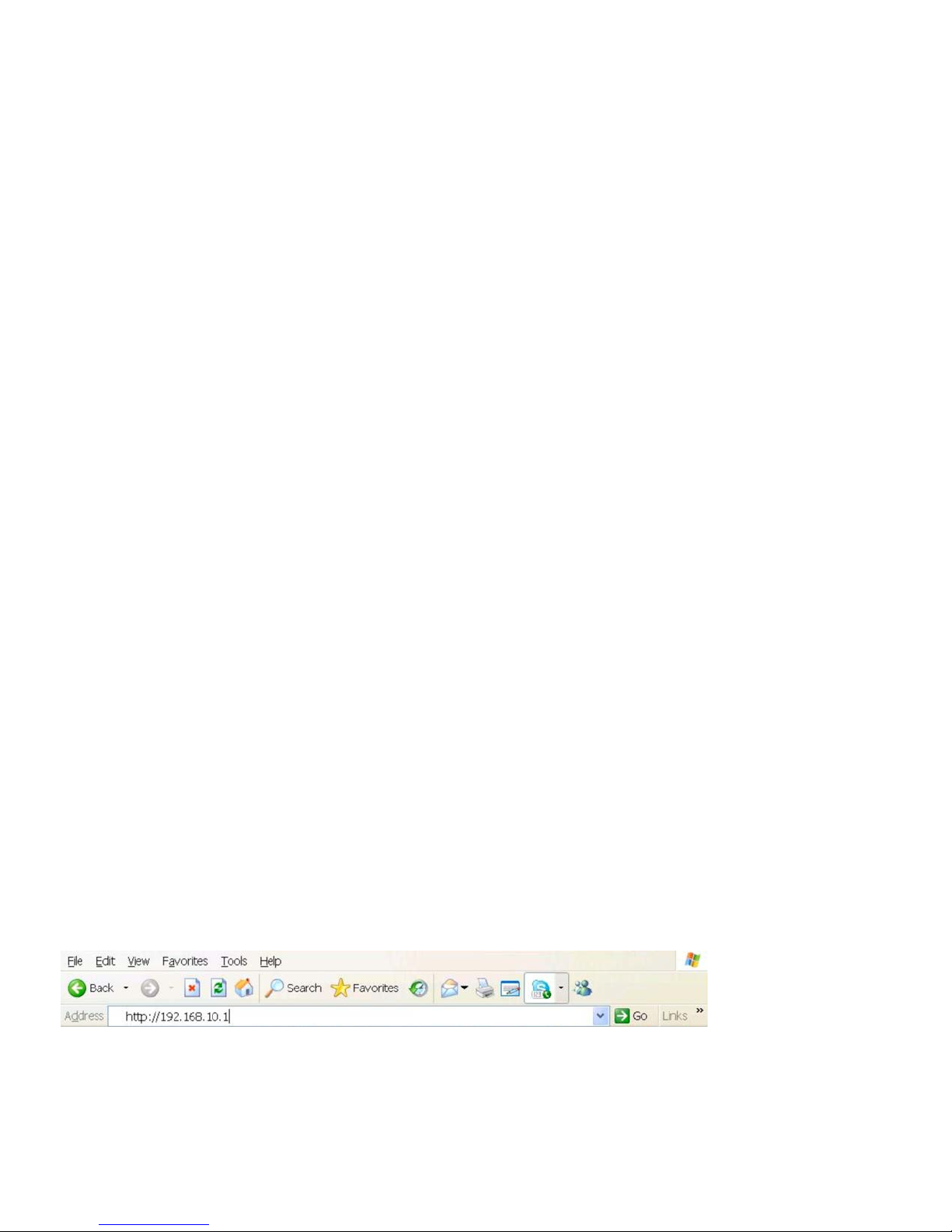

2. Type http:// and the IP address of the switch. Press “Enter”.
3. The login screen appears.
4. Key in the username and password. The default username and password is “admin”.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 15
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
5. Click “Enter” or ”OK” button, then the main interface of the Web-based management appears.
Login screen
Main Interface
Main interface

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 16
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Basic Setting
System Information
The switch system information is provided here.

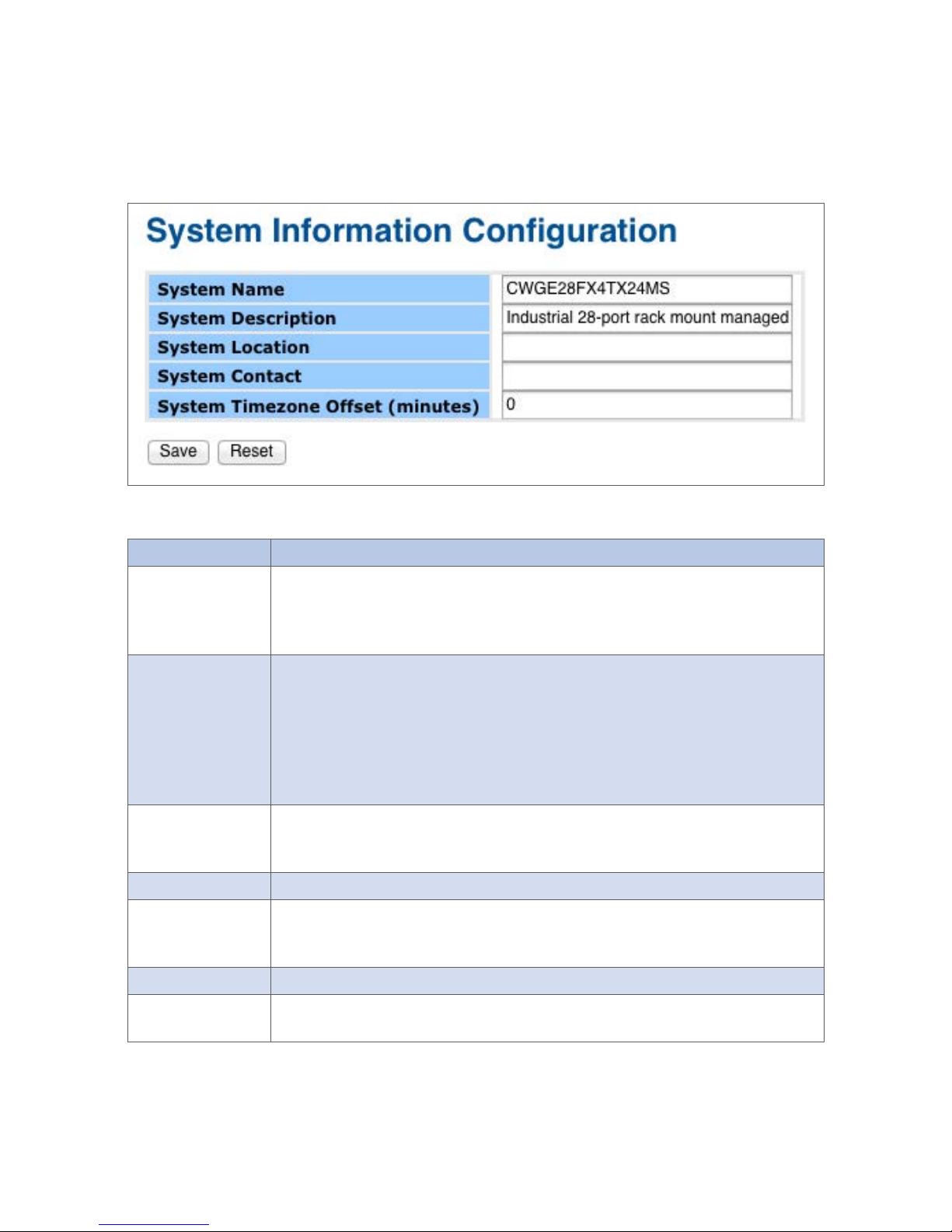

System Information interface
Label Description
System Contact The textual identification of the contact person for this managed
node, together with information on how to contact this person. The
allowed string length is 0 to 255, and the allowed content is the ASCII
characters from 32 to 126.
System Name A name must be assigned by the network administrator for this
managed node. By convention, this is the node’s fully qualified
domain name. A domain name is a text string drawn from the
alphabet (A-Za-z), digits (0-9), minus sign (-). No space characters are
permitted as part of a name. The first character must be an alpha
character. And the first or last character must not be a minus sign.
The allowed string length is 0 to 255.
System Location The physical location of this node (e.g., telephone closet, 3rd floor).
The allowed string length is 0 to 255, and the allowed content is the
ASCII characters from 32 to 126.
System Contact Enter the name of contact person or organization
Timezone Offset Provide the timezone offset relative to UTC/GMT.
The offset is given in minutes east of GMT. The valid range is from
-720 to 720 minutes.
Save Click to save changes.
Reset Click to undo any changes made locally and revert to previously
saved values.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 17
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
Admin Password

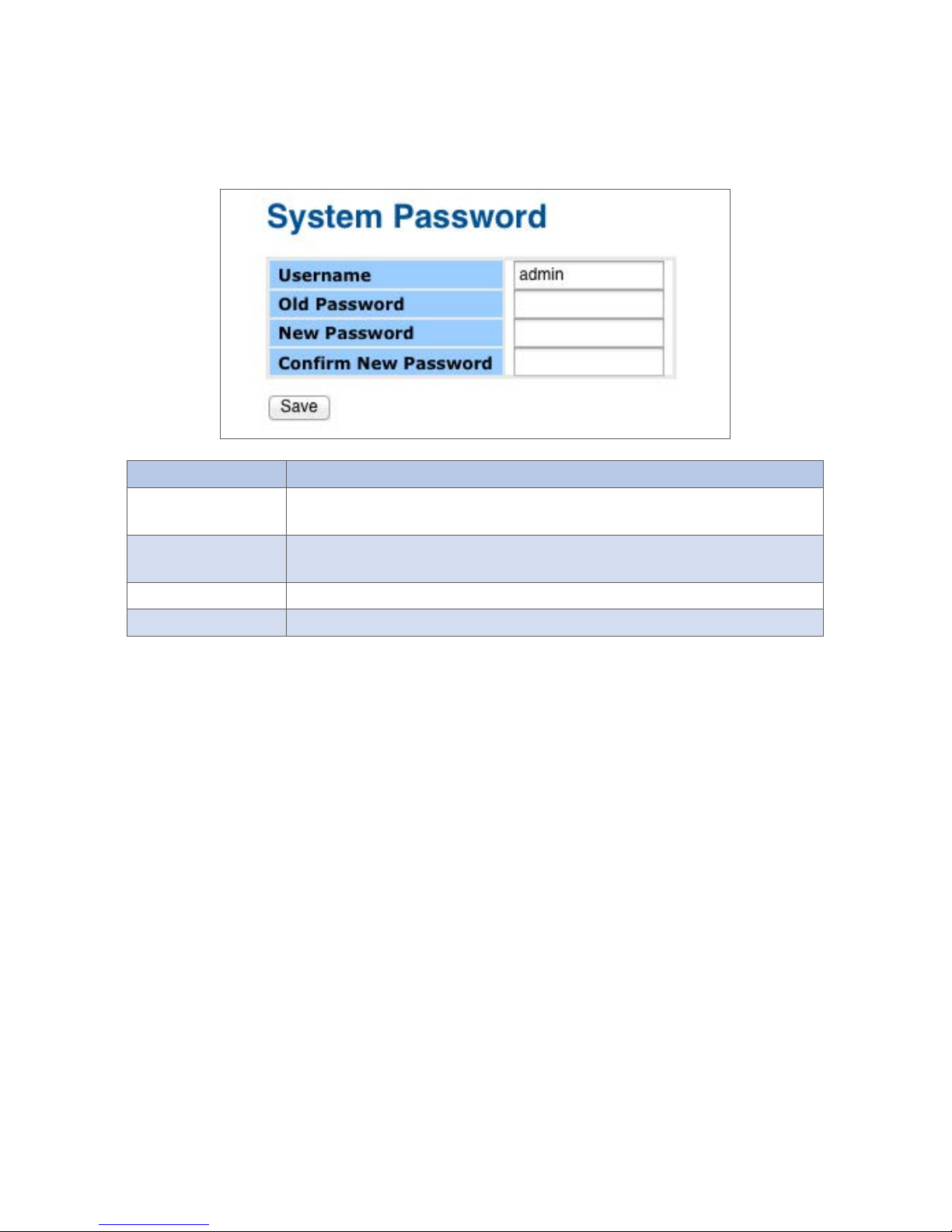

This page allows you to configure the system password required to access the web pages or log
in from CLI.
Label Description
Old Password Enter the current system password. If this is incorrect, the new
password will not be set.
New Password The system password. The allowed string length is 0 to 31, and the
allowed content is the ASCII characters from 32 to 126.
Confirm password Re-type the new password.
Save Click to save changes.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 18
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
IP Setting
Configure the switch-managed IP information on this page.
Label Description
DHCP Client Enable the DHCP client by checking this box. If DHCP fails and the
configured IP address is zero, DHCP will retry. If DHCP fails and the
configured IP address is non-zero, DHCP will stop and the configured
IP settings will be used. The DHCP client will announce the configured
System Name as hostname to provide DNS lookup.
IP Address Assign the IP address that the network is using. If DHCP client function
is enabling, you do not need to assign the IP address. The network
DHCP server will assign the IP address for the switch and it will be
display in this column. The default IP is 192.168.10.1
IP Mask Assign the subnet mask of the IP address. If DHCP client function is
enabling, you do not need to assign the subnet mask
IP Router Assign the network gateway for the switch. The default gateway is
192.168.10.254
VLAN ID Provide the managed VLAN ID. The allowed range is 1 through 4095.
SNTP Server SNTP is an acronym for Simple Network Time Protocol, a network
protocol for synchronizing the clocks of computer systems. SNTP uses
UDP (datagrams) as transport layer.
Save Click to save changes.
Reset Click to undo any changes made locally and revert to previously saved
values.
Renew Click to renew DHCP. This button is only available if DHCP is enabled.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 19
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
HTTPS
Label Description
Mode Indicates the HTTPS mode operation. Possible modes are:
Enabled: Enable HTTPS mode operation.
Disabled: Disable HTTPS mode operation.
Save Click to save changes.
Reset Click to undo any changes made locally and revert to previously saved values.
SSH
Label Description
Mode Indicates the SSH mode operation. Possible modes are:
Enabled: Enable SSH mode operation.
Disabled: Disable SSH mode operation.
Save Click to save changes.
Reset Click to undo any changes made locally and revert to previously saved values.

INS_CWGE28FX4TX24MS_REV– 08/31/12 PAGE 20
INSTALLATION AND OPERATION MANUAL CWGE28FX4TX24MS
TECH SUPPORT: 1.888.678.9427
LLDP
LLDP Configuration
This page allows the user to inspect and configure the current LLDP port settings.
Label Description
Port The switch port number of the logical LLDP port.
Mode Select LLDP mode.
Rx only The switch will not send out LLDP information, but LLDP information from neighbor
units is analyzed.
Tx only The switch will drop LLDP information received from neighbors, but will send out
LLDP information.
Disabled The switch will not send out LLDP information, and will drop LLDP information
received from neighbors.
Enabled The switch will send out LLDP information, and will analyze LLDP information
received from neighbors.
