QUICKSPECS

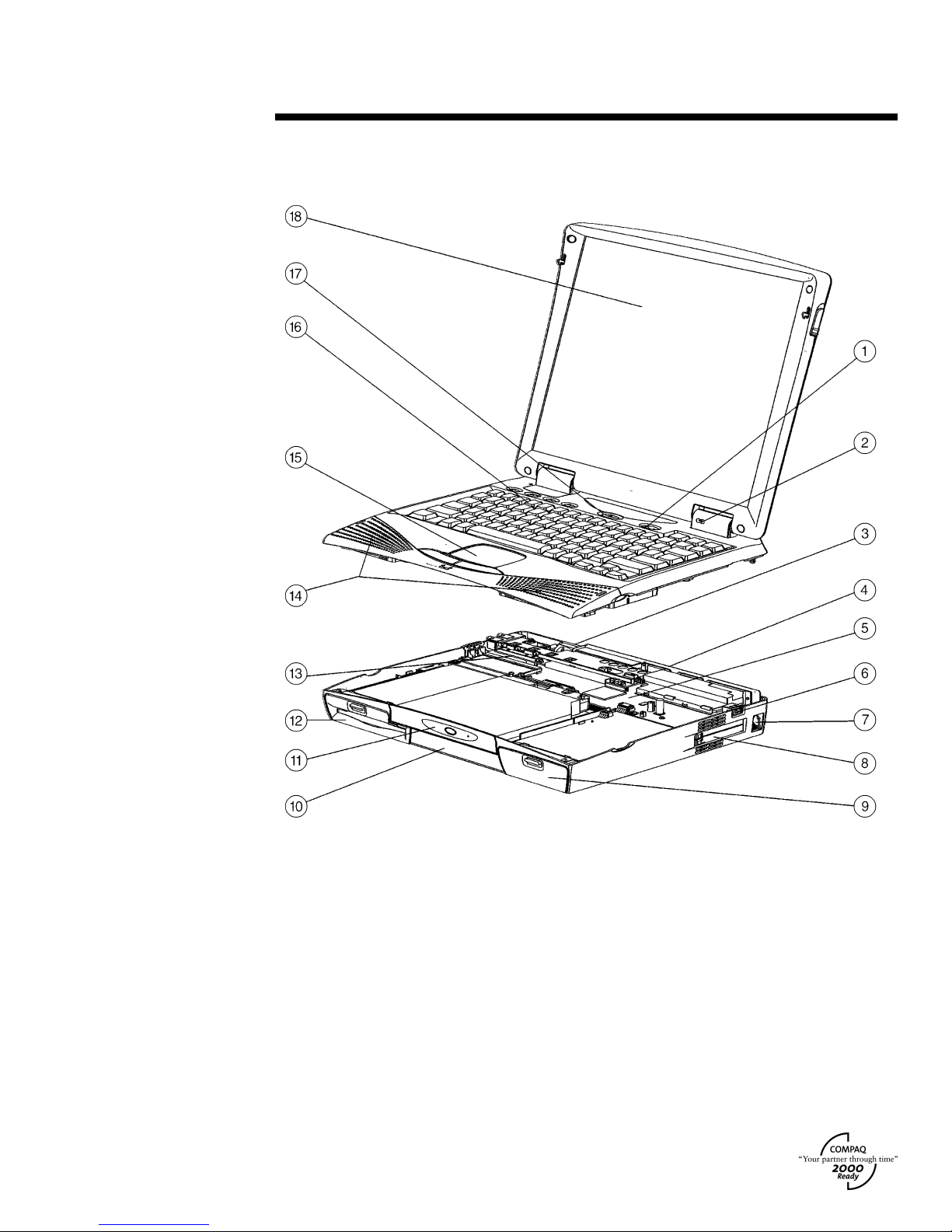

Overview
2-13 DA-10011-01-001
Compaq Armada 1700
1. Power Button
2. Microphone
3. 4 MB/s6Infrared Communication Port
4. Integrated AC Adapter
5. Processor Board
6. USB Port (model dependent)
7. Integrated 56Kflex3Data/14.4 Kb/s Fax Modem
(upgradable to V.90)
8. Two Type II/One Type III PC Card Slots; Card Bus-
capable7
9. Li-Ion Battery Pack
10. Upgradable SMART Hard Drive
11. 24 Max2CD-ROM Drive upgradable to
DVD-ROM Drive
12. MultiBay (supports additional battery, Second
Hard Drive, Zip Drive, SuperDisk LS-120 Drive)
13. Memory Slot
14. Stereo Speakers
15. Touchpad Pointing Device
16. Full-size Keyboard with Four
User-programmable Keys
17. Standby Button
18. Display
AT A
G
LANCE
•All-in-one form factor with three
spindle support
•Choice of Intel Pentium
processor up to300 MHz
•12.1-inch CSTN/CTFTdisplay
with resolutions up to800 x 600 or
13.3/14.1-inchCTFT display with
resolutions up to 1024 x 768
•32-MB standard SDRAM,
expandable up to160 MB
•MultiBaysupportsadditional
battery, second Hard Drive, floppy
diskette drive (standard),
SuperDiskLS-120.
•Up to 5-GB1Upgradable SMART
Hard Drives
•24X Max2CD-ROMDrive
upgradable to DVD-ROM
•Integrated K56flex3 data/14.4 Kb/s
fax modem (upgradable to V.90)
•Sound Blaster Pro-compatible
with 16-bit stereo Compaq
PremierSound™, integrated
speakers and microphone
•Intelligent Manageability for lower
total cost of ownership
•CompaqServices, including a one
year, Worldwide Limited
Warranty4with second business
day5expedited pick-up and repair
in North America.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
2-14 DA-10011-01-001
Compaq Armada 1700
All-in-one Design
All-in-one design includes integrated Diskette Drive, Hard Drive, CD-ROM Drive, modem and AC Adapter, providing
full functionality in the office or on the road. MultiBay supports diskette drive, second hard drive, second battery,
SuperDisk LS-120 Drive or Zip Drive for additional flexibility.
Processor
Intel Mobile Pentium II processor 300 MHz
6300/14T/5GB/D/M/3
6300/14T/5GB/D/M/1
Intel Mobile Pentium II processor 266 MHz
6266/13T/4GB/D/M/1
Cache Memory
Integrated 16 KB; 512-KB level 2
Memory
Standard 32 MB
Maximum 160 MB
Communications
K56flex3data/14.4 Kb/s fax modem, upgradable to V.90
Keyboard
101/102-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key, four user-
programmable keys, special feature hotkeys for instant access to power conservation, QuickLock/QuickBlank,
toggle between internal and external, or simultaneous displays, battery gauge, speaker volume control, brightness
and contrast
Pointing Device
Touchpad pointing device for intuitive use
PC Card Slots
Two Type II/One Type III PC Card Slot(s) which support both 32-bit CardBus7 and 16-bit PC Cards; zoomed video
support in bottom slot only
Storage
Removable Diskette
Drive 1.44 MB
CD-ROM 24X Max2
Hard Drives Up to 10 GB1
Multimedia
Compaq PremierSound for enhanced stereo audio, including integrated 16-bit Sound Blaster Pro-compatible
stereo audio, integrated acoustic bass reflex stereo speakers with 2 Watt/channel amplifier and 4 stage EQ,
software/hardware volume control, headphone out, microphone in jacks support, software MPEG1 support;
internal 24X Max2CD-ROM Drive
MODELS
Armada 1700
(12.1 CSTN)
Model
6233/S/3200/D/M/1
316200-002
Armada 1700
(12.1 CTFT)
Model
6233/T/4000/D/M/1
316300-002
Armada 1700
(13.3 CTFT)
Model
6266/T/4000/D/M/1
316400-002
Armada 1700
(14.1 CSTN)
Model
6300/T/5000/D/M/1
316330-002
MODELS
Windows NT
6300/14T/5GB/D/M/3
316330-006
Windows 95
6300/14T/5GB/D/M/1
316330-002
6266/13T/4GB/D/M/1
316400-002

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
2-15 DA-10011-01-001
Compaq Armada 1700
Interfaces
PC Card Two Type II/One Type III
Enhanced Parallel 1
Serial 1
External Monitor 1
External Keyboard/
Pointing Device 1
Convenience Base 1
Headphone/Line out 1
Microphone in 1
AC Power 1
RJ-11 1
Infrared 1 (4 Mb/s6support)
USB 1
Graphics
64-bit video graphics with 2-MB EDO DRAM for increased color depth and graphics performance
Display
14.1-inch color TFT with 1024 x 768 resolution (up to 64K colors internal)
6300/14T/5GB/D/M/3
6300/14T/5GB/D/M/1
13.3-inch color TFT with 1024 x 768 resolution (up to 64K colors internal)
6266/13T/4GB/D/M/1
Software
Windows 95
Compaq Intelligent Manageability
Microsoft Internet Explorer 4.01
CompuServe and AOL
Microsoft NetMeeting
Microsoft PC Card Manager
6300/14T/5GB/D/M/1
6266/13T/4GB/D/M/1
Windows NT Workstation 4.0
Insight Management Agents
Compaq Intelligent Manageability
Security 32
Diagnostics for Windows NT
Compaq Power Management
Online Safety and Comfort Guide
Reference Guide
6300/14T/5GB/D/M/3
OS Support
Windows NT Workstation 4.0
Windows 98
Windows 95
Intelligent Manageability
Lowers total cost of ownership by providing enhanced security, asset management, fault prediction with
SMART drives; also provides SMART drive alert, battery fault alert, thermal alert and memory alert for
investment and data protection

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
2-16 DA-10011-01-001
Compaq Armada 1700
Security
Cable lock support
Power-on password
Set-up passwords
Ability to disable serial port, parallel port, diskette drive, diskette drive boot sequence
Drive Lock for advanced data protection
Power Supply
Integrated AC Adapter for less bulky transportation and 10-foot power cord
Battery
Li-Ion providing up to two-and-a-half hours of battery life8supported with one battery; a second battery can be
supported in the MultiBay for additional battery life
Power Conservation
Hibernation, Instant-On via Standby; pop-ups with three presets and one custom level of power conservation,
ACPI hardware ready
Service and Support
Compaq Services provides a range of services for the Armada 1700, including a one-year, Limited Warranty4,
with 7 x 24 service line at 1-800-OK-Compaq (1-800-652-6672) and a free, one-year, second business day5pick-up
and delivery service from Compaq. All shipping and handling materials are supplied by Compaq.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
2-17 DA-10011-01-001
Compaq Armada 1700
Memory
128-MB Memory Upgrade 315177-B21
64-MB Memory Upgrade 314891-B21
32-MB Memory Upgrade 314890-B21
Monitors9
TFT8000 Flat Panel 307906-001
TFT5000 Flat Panel 325700-001
P110 Color10 325600-001
P75 Color 307806-001
V1000 Color10 351757-001
V900 Color10 303500-001
V700 Color (opal) 325800-001
V75 Color (carbon) 307710-002
V500 Color 325900-001
S900 Color10 360562-001
S700 Color 360512-001
Hard Drives
5-GB1 SMART Hard Drive 316248-B21
4-GB1SMART Hard Drive 316247-B21
MultiBay Options
Zip Drive 316311-B21
SuperDisk LS-120 Drive 316257-B21
DVD-ROM Drive Kit 316258-B21
PC Cards/Communications
Compaq Microcom Global 420 56K v.903
PC Card Fax Modem 317900-001
Compaq Microcom 550 56K v.903+
10/100 Ethernet Combo Card 321550-001
10/100 TX PC Card UTP Controller 335506-B21
10 T PC Card UTP Controller 292806-B21
100BaseTX Ethernet Upgrade 225435-001
16/4 TR PC Card IBM UTP/STP
Controller 301208-B21
USB CardBus7Card 296501-B21
For additional compatible PC Cards, view the Compaq
PC Card Solutions List on the Compaq website at
http://www.compaq.com/support/techpubs/pcmcia/
pccardlist.html.
Convenience Bases
Armada Convenience Base II with USB
(Ethernet)11 316239-001
Convenience Base II with USB
(Pass-Through)11 316238-001
Monitor Stand-Conversion Kit12 316246-B21
Power
Li-Ion Battery 254936-B21
External Battery Charger 254938-B21
Auto/Aircraft Adapter 296537-B21
AC Line Cord (10-ft) 217932-002
Input Devices
External Infrared Transceiver 220687-002
External Enhanced III Keyboard
(carbon) 118003-008
External Enhanced III Keyboard (opal) 294343-001
Compaq Mouse (carbon) 103180-B21
Compaq Mouse (opal) 143315-B21
Other
Security Lock 294316-B21
Portable Video Conferencing Kit 296954-001
Armada Headset with microphone 220460-001
Universal Monitor Stand 294315-B21
Carrying Cases
Compaq Value Case 294266-B21
Compaq Workstation Case 294267-B21
Compaq Global Case 294268-B21
Compaq Executive Case 294269-B21
For additional Compaq Brand cases, call
1-800-888-5903.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Memory
2-18 DA-10011-01-001
Compaq Armada 1700
Compaq Armada 1700
STANDARD MEMORY
32 MB Standard on System Board (1 slot available)
Standard Slot
1
32 MB Empty
STANDARD MEMORY PLUS
OPTIONAL MEMORY
Support for up to 160 MB of 60 ns SDRAM is available with the installation of optional
SDRAM Memory Upgrade.
Up To Slot
1
64 MB
96 MB
160 MB
Following are memory options available from Compaq:
•128-MB Memory Upgrade 315177-B21
•64-MB Memory Upgrade 314891-B21
•32-MB Memory Upgrade 314890-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Storage
2-19 DA-10011-01-001
Compaq Armada 1700
DRIVE SUPPORT Quantity
Supported Position Supported
Removable Media
1.44-MB Diskette Drive Up to 1 Dual Bay
24X Max2 CD-ROM Drive (optional DVD) Up to 1 CD-ROMDrive Bay
Hard Drives
5-GB1SMART Hard Drive Up to 1 UpgradableHard Drive
4-GB1SMART Hard Drive Up to 1 UpgradableHard Drive
1MultiBay
2 CD-ROM Drive Bay
3 Upgradable Hard Drive

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Technical Specifications
2-20 DA-10011-01-001
Compaq Armada 1700
System Unit Dimensions (HxWxD) 2.3 x 12.5 x 9.6 in/5.84 x 31.75 x 24.5 cm
Weight
Armada 1700 6266/13T/4GB/D/M/1 8.3 lbs/3.76 kg
Armada 1700 6300/14T/5GB/D/M/3 8.32 lbs/3.78 kg
Armada 1700 6300/14T/5GB/D/M/1 8.32 lbs/3.78 kg
Stand-Alone Power Requirements
Nominal Operating Voltage (Li-Ion) 14.2 VDC
Maximum Operating Power 45W
Peak Operating Power 50W
Temperature
Operating 50° to 95°F/10° to 35°C
Non-operating –4° to 140°F/–20° to 60°C
Relative Humidity (non-condensing)
Operating 10% to 90%
Non-operating 5% to 95%
Shock
Operating 10 G, 11 ms, half-sine
Non-operating 60 G, 11 ms, half-sine
Vibration
Operating 0.25 G, 1 Oct/Min sweep rate
Non-operating 1 G, 1 Oct/Min sweep rate
Maximum Altitude (unpressurized)
Operating 10,000 ft/3,048 m
Non-operating 30,000 ft/9,144 m
Dimensions (HxW) 8.92 x 11.75 in/22.66 x 29.84 cm
14.1-Inch Color TFT
1024 x 768 Display Diagonal Size 14.1 in/35.8 cm
Mounting Internal
Number of Colors 64K
Contrast Ratio Minimum 100:1
Brightness Over 120 cd/m2
Pixel Resolution
Pitch 0.279 x 0.279 mm
Format 1024 x 768
Configuration RGB Stripe
Backlight Edge Lit
Character Display 80 x 25
Total Power Consumption (maximum) 7W

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Technical Specifications
2-21 DA-10011-01-001
Compaq Armada 1700
Dimensions (HxW) 7.9 x 10.6 in/20.1 x 26.9 cm
13.3-Inch Color TFT
1024 x 768 Display Diagonal Size 13.3 in/33.8 cm
Mounting Internal
Number of Colors 64K
Contrast Ratio Minimum 100:1
Brightness Over 120 cd/m2
Pixel Resolution
Pitch 0.264 x 0.264 mm
Format 1024 x 768
Configuration RGB Stripe
Backlight Edge Lit
Character Display 80 x 25
Total Power Consumption (maximum) 4W
5 GB1Capacity 5 GB1Seek Time (typical reads, including settling)
Height 1 in/25.4 mm Single Track 4 ms
Size 2.5 in/63.5 mm Average 12 ms (read)
Interface ATA Full-Stroke 23 ms
Transfer Rate Rotational Speed 4,902 rpm
33.3 MB Physical ConfigurationSynchronous
(Maximum) Bytes/sector 512
Hard Drives
Operating Temperature 41° to 131°F/5° to 55°C
4 GB1Capacity 4 GB1Seek Time (typical reads, including settling)
Height 1 in/25.4 mm Single Track 4 ms
Size 2.5 in/63.5 mm Average 12 ms (read)
Interface ATA Full-Stroke 23 ms
Transfer Rate Rotational Speed 4,009 rpm
33.3 MB Physical ConfigurationSynchronous
(Maximum) Bytes/sector 512
Operating Temperature 41° to 131°F/5° to 55°C

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Technical Specifications
2-22 DA-10011-01-001
Compaq Armada 1700
Diskette Drive Diskette Size 3.5 in
Light None
Height 0.82 in/2.08 cm
Bytes per Sector 512
Sectors per track
High density 18 (1.44 MB)/15 (1.2 MB)
Low density 9
Tracks per side
High density 80 (1.44 MB)/80 (1.2 MB)
Low density 80
Read/Write heads 2
Access Times
Track-to track (high/low) 3 ms/6 ms
Average (high/low) 94 ms/174 ms
Settling time 15 ms
Latency average 100 ms
Integrated AC Adapter Weight 0.66 lb/0.3 kg
Power Supply (input)
Operating Voltage 90 to 260 VAC RMS
Operating Current 1.1 A RMS
Operating Frequency Range 47 to 63 Hz AC
Maximum Transient 4/50 kV
Li-Ion Battery Pack Dimensions (HxWxL) 0.82 x 3.2 x 5.8 in/2.08 x 8.13 x 14.73 cm
Weight 0.85 lb/0.39 kg
Energy
Voltage 14.4V
Amp-hour capacity 3.1 Ah
Watt-hour capacity 43Wh
Temperature
Operating 50° to 104° F/10° to 40° C
Non-operating –12° to 140°F/–25° to 60°C
Convenience Base Dimensions (HxWxD) 4.9 x 14.2 x 14.7 in/12.46 x 36.07 x 37.34 cm
Weight 4.25 lbs/1.93 kg
Power Supply (input)
Operating Voltage 100 to 240 VAC
Operating Current 1.1 Amp Maximum
Rated Voltage 100 to 240 VAC
Rated Current 1 Amp Maximum
Line Frequency 47 to 63 Hz
Temperature
Operating 50° to 95°F/10° to 35°C
Non-operating –4° to 140°F/20° to 60°C
Relative Humidity
Operating 10% to 90%
Non-operating 5% to 95%

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Technical Specifications
2-23 DA-10011-01-001
Compaq Armada 1700
Altitude
Convenience Base
(continued) Operating 10,000 ft/3,048 m
Non-operating 30,000 ft/9,144 m
Shock
Operating 10 G, 11 ms, half-sine
Non-operating 140 G, 2 ms, half-sine
Vibration
Operating 0.25 G, 5 to 500 Hz, 0.5 octave/min sweep rate
Non-operating 1 G, 5 to 500 Hz, 0.5 octave/min sweep rate
Monitor Support Up to 85 lbs/38.56 kg
10Base-T Categories 3, 4 or 5 UTP (2 or 4 pair); up to
328 feet (100 meters)
100Base-TX Category 5 UTP (2 pair); up to 328 feet (100 meters)
24X Max2CD-ROM Drive Applicable Disc CD-DA, CD-ROM, CD-R, CD-ROM XA (except ADPCM)
CD-1, Photo CD (Multi-session), Video CD, CD-Extra (CD+)
CD-G, CD-RW
Center Hole Diameter 15 mm
Disc Diameter 12 cm, 8 cm
Disc Thickness 1.2 mm
Track Pitch 1.6 µm
Laser
Output power 0.24 ±0.1 Mw
Type GaAiAS double hetero laser diode
Wave length 780 nm at Ph-2.7 mW
Access Times (typical reads, including settling) 150 ms
Audio Output Level
Line-out ±0.27 Vrms
Headphone None
Cache Buffer 128 KB
Data Transfer Rate (typical, including settling)
Sustained (16X) 3600 KB/s
150 KB/s
Normal PIO Mode 4 (single burst) 16.66 MB/s
Start Time < 8 sec
Stop Time < 4 sec
1For Hard Drives, GB = Billion Bytes.
2Data transfer rates will vary from 150 KB/s to 3600 KB/s.
3Designed only to allow faster downloads from K56flex compliant sources. Maximum achievable download transmission rates
currently do not reach 56 KB/s, and will vary with line conditions. Modem only supports Windows 9.x and Windows NT 4.0.
4Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
5Pick-up and delivery service is available in 48 contiguous US states and Canada. Eligibility for priority pick-up (2nd business day
return) is limited to certain geographic locations carry-in service available outside the US and Canada.
6IrDA 4 MB compliant. IR performance will vary depending on performance of IR peripherals and applications used.
7Full support in Windows 9.x.
8When tested in the standard configuration using the Ziff-Davis BatteryMark test version 1.0, the battery life of the Armada 1500
family will range from 2 hours and 0 minutes to 3 hours and 0 minutes depending on individual usage AssetControl monitor.
9AssetControl features are accessible with Compaq desktops featuring Intelligent Manageability.
10 May not be compatible with the ArmadaStation Monitor Support Stand, the Convenience Base I or the Convenience Base II due
to weight limitations.
11 Armada 1500 compatible.
12 Allows the Armada 1500 Convenience Base to support the Armada 1700.
