Compaq ProSignia 300 Manual

Notice
The information in this guide is subject to change without notice.
Compaq Computer Corporation shall not be liable for technical or editorial
errors or omissions contained herein; nor for incidental or consequential
damages resulting from the furnishing, performance, or use of this
material.
This guide contains information protected by copyright. No part of this
guide may be photocopied or reproduced in any form without prior written
consent from Compaq Computer Corporation.
Copyright 1994 Compaq Computer Corporation.
All rights reserved. Printed in the U.S.A.
Compaq, Systempro, Deskpro, Compaq Insight Manager,
Registered U.S. Patent and Trademark Office.
ProSignia, Systempro/XL, ProLiant, NetFlex, ROMPaq, and QVision are
trademarks of Compaq Computer Corporation.
The software described in this guide is furnished under a license agreement
or nondisclosure agreement. The software may be used or copied only in
accordance with the terms of the agreement.
Product names mentioned herein may be trademarks and/or registered
trademarks of their respective companies.
MAINTENANCE AND SERVICE GUIDE
COMPAQ PROSIGNIA 300 SERVERS
First Edition (December 1994)
Text Number 137786-001

Preface
This Maintenance and Service Guide is a troubleshooting guide that can be
used for reference when servicing the Compaq ProSignia 300 Server.
Compaq Computer Corporation reserves the right to make changes without
notice.
Symbols
The following text and symbols mark special messages throughout this guide:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Text set off in this manner indicates that failure to follow directions in
the warning could result in bodily harm or loss of life.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Text set off in this manner indicates that failure to follow directions
could result in damage to equipment or loss of data.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
IMPORTANT: Text set off in this manner presents clarifying information or
specific instructions.
NOTE: Text set off in this manner presents commentary, sidelights, or
interesting points of information.
Technician Notes
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Only authorized technicians trained by Compaq should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow
only subassembly/module level repair. Because of the complexity of the
individual boards and subassemblies, no one should attempt to make repairs
at the component level or to make modifications to any printed wiring
board. Improper repairs can create a safety hazard. Any indications of
component replacement or printed wiring board modifications may void any
warranty.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To properly ventilate your system, you must provide at least 12 inches
(30.48 cm) of clearance at the front and back of the computer.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer is designed to be electrically grounded. To ensure proper

operation, plug the AC power cord into a properly grounded AC outlet only.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Locating Additional Information
The following documentation is available to support these products:
o User Documentation
o Compaq Service Quick Reference Guide
o Service Training Guides
o Compaq Service Advisories and Bulletins
o Compaq QuickFind
o Compaq Insight Manager 2.0

Chapter 1. Illustrated Parts Catalog
Chapter 1.0 Introduction
This chapter provides the illustrated parts breakdown and a spares parts
list for the Compaq ProSignia 300 Server.

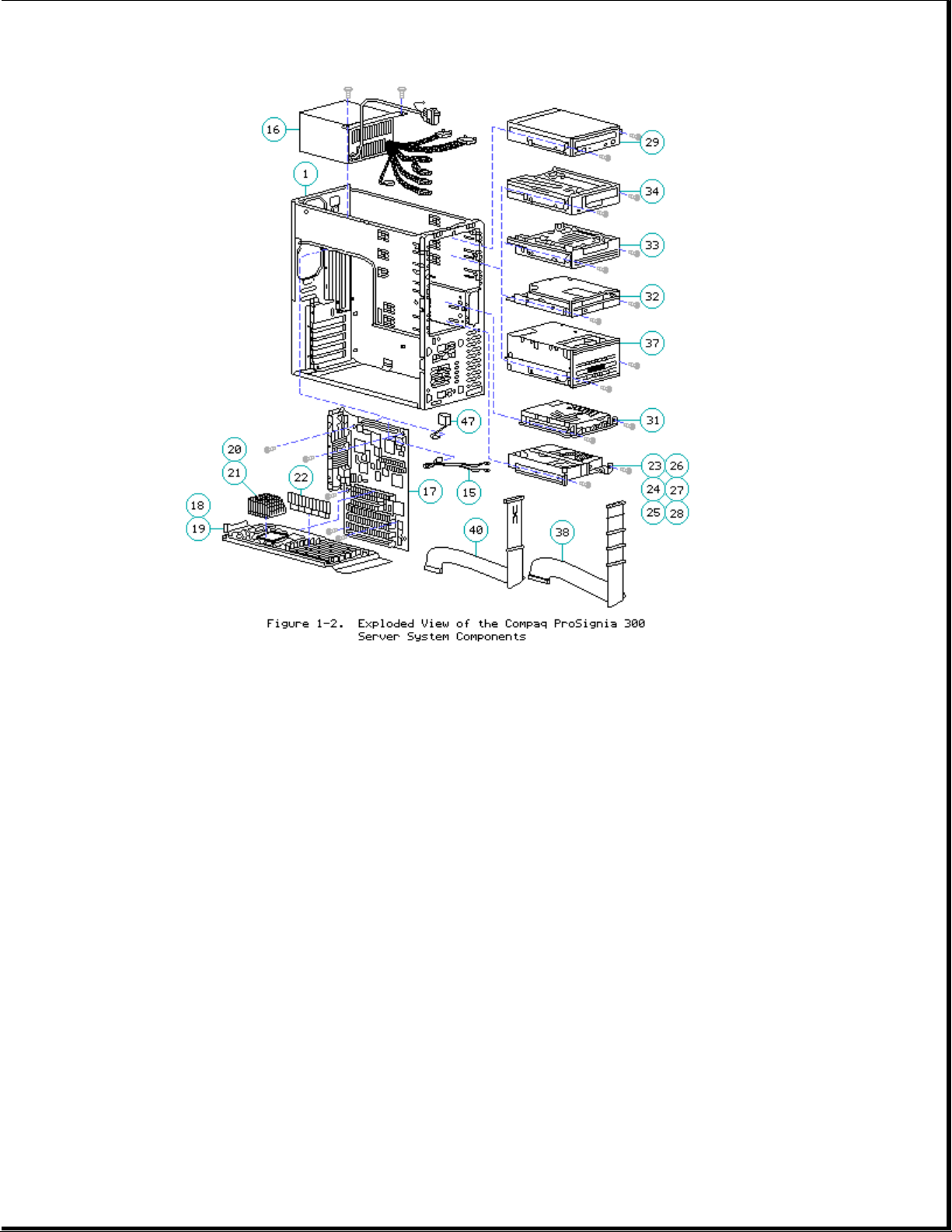

Chapter 1.1 Exploded View and Spares Parts List

Table 1-1. Spares Parts List - Compaq ProSignia 300
===========================================================================
Ref Description Part Number
===========================================================================
CHASSIS:
--------
1 Chassis 194491-001
2 J Hood 197836-001
3 Side Access Panel 194486-001
4 Front Bezel Door 194485-001
5 Speaker 197831-001
6 Bezel Kit (1/6, 1/3, 1/2 Height -
Quantity = 5 each/ Full Height - Quantity = 2) 211449-001
7 Miscellaneous Hardware (Foot, Thumbscrews,
R&L CD and Diskette Drive rails) 197841-001
8 System Fan with Bracket and Guard 211442-001
9 Board Guide and Speaker Holder 197835-001

10 Air Baffle (2 part) 211451-001
11 Security Bracket 199109-001
12 Logo Kit (Quantity = 2) 211445-001
13 5 1/4 and 3 1/2 Drive Mounting Kit 194493-001
14 Option Slot Cover (Quantity = 5) 141081-001
15 Power Switch and LED Bracket 197832-001
SYSTEM COMPONENTS:
------------------
16 Power Supply 200W 197416-001
BOARDS:
-------
17 System Board I/O 184359-001
18 Processor Board for 5/75 MHz Processor
(not included) 211454-001
19 Processor Board for 5/90 MHz Processor
(not included) 211450-001
20 5/75 MHz Processor Chip with Heatsink 211455-001
21 5/90 MHz Processor Chip with Heatsink 211452-001
MEMORY:
-------
22 4 MB Memory Module (60 ns) 139139-001
22 8 MB Memory Module (60 ns) 139140-001
22 16 MB Memory Module (60 ns) 139141-001
22 32 MB Memory Module (60 ns) 139142-001
22 4 MB Memory Module (70 ns) 141754-001
22 8 MB Memory Module (70 ns) 141755-001
22 16 MB Memory Module (70 ns) 149947-001
22 32 MB Memory Module (70 ns) 149948-001
---------------------------------------------------------------------------
Ref Description Part Number
---------------------------------------------------------------------------
MASS STORAGE:
-------------
23 535 MB Fast-SCSI-2 Drive 137730-001
24 1.05 GB Fast-SCSI-2 Drive 142039-001
25 2.1 GB Fast-SCSI-2 Drive 142272-001
26 4.3 GB Fast-SCSI-2 Drive 199585-001

27 2.1 GB Fast-Wide SCSI-2 Drive 199644-001
28 4.3 GB Fast-Wide SCSI-2 Drive 199599-001
29 Tray Load CD-ROM Drive (Internal) 142223-201
30 Tray Load CD-ROM Drive (External) 199430-001 *
31 1.44 MB, 3.5" Diskette Drive 112565-001
32 1.2 MB, 5.25" Diskette Drive 112566-001
33 2/8 GB DAT Drive with Compression 142074-001
34 525 MB ACA Tape Drive 142073-001
35 1.2 GB ACA Tape Drive 199615-001 *
36 4/16 GB TurboDAT Drive 199464-001 *
37 TurboDAT AutoLoader 199466-001
CABLE KITS:
-----------
38 Internal Fast-SCSI-2 HDD Cable 211448-001
39 Internal Fast-Wide SCSI-2 HDD Cable 211457-001 *
40 Diskette Cable (2-Device) 211447-001
41 External 100-Pin to 50-Pin Cable 142159-001 *
42 Loop Back Cable (2 CH NIC) 142254-001 *
43 Loop Back Cable (NetFlex) 142054-001 *
44 2 Channel Ethernet "Y" Cable 197134-001 *
KEYBOARDS/MOUSE:
----------------
45 Keyboard, U.S. English 160648-101 *
45 Keyboard, U.K. English 160648-103 *
45 Keyboard, German 160648-104 *
45 Keyboard, French 160648-105 *
45 Keyboard, Italian 160648-106 *
45 Keyboard, Spanish 160648-107 *
45 Keyboard, Danish 160648-108 *
45 Keyboard, Norwegian 160648-109 *
45 Keyboard, Swedish/Finnish 160648-110 *
45 Keyboard, Swiss 160648-111 *

45 Keyboard, French Canadian 160648-112 *
45 Keyboard, Portuguese 160648-113 *
45 Keyboard, Turkish 160648-114 *
45 Keyboard, Greek 160648-115 *
45 Keyboard, Latin American 160648-116 *
45 Keyboard, Arabic 160648-117 *
45 Keyboard, Belgian 160648-118 *
46 Mouse 141189-201 *
---------------------------------------------------------------------------
Ref Description Part Number
---------------------------------------------------------------------------
MISCELLANEOUS:
--------------
47 Battery 160274-001
48 Maintenance and Service Guide 211462-001 *
49 System ROMpaq 143198-001 *
50 Option ROMpaq 142207-001 *
51 Shipping Boxes 211444-001 *
52 Shipping Box & Buns 211446-001 *
OPTIONS:
--------
53 Rack Conversion Kit 187347-001 *
54 SMART Controller 142130-001 *
55 Fast-SCSI-2 Controller 142040-001 *
56 NetFlex-2 TR Controller 199521-001 *
57 DualPort Ethernet Controller 142151-001 *
58 NetFlex-2 ENET-TR Controller 142222-001 *
59 Fast-Wide SCSI-2 Controller/E 199634-001 *
60 Fast-Wide SCSI-2 Controller/P 199633-001 *
---------------------------------------------------------------------------
* Not Shown
===========================================================================

Chapter 2. Removal and Replacement Procedures
Chapter 2.0 Introduction
This chapter provides subassembly/module-level removal and replacement
procedures for the Compaq ProSignia 300 Server. After completing all
necessary removal and replacement procedures, run the DIAGNOSTICS program
to verify that all components operate properly.
NOTE: Refer to the support software guide for procedures on using the
Compaq System Configuration utility when installing or removing
expansion boards, mass storage devices, and Extended Industry
Standard Architecture (EISA) or Peripheral Component Interconnect
(PCI) options.
To service the Compaq ProSignia 300 Server, you will need the following:
o Torx T-15 screwdriver
o Ethernet loop back plug
o System Configuration software
o Diagnostics software
o Drive Array Advanced Diagnostics software
Chapter 2.1 Electrostatic Discharge Information
A discharge of static electricity can damage static-sensitive devices or
micro-circuitry. Proper packaging and grounding techniques are necessary
precautions to prevent damage. To prevent electrostatic damage observe the
following precautions:
o Transport products in static-safe containers such as conductive tubes,
bags, or boxes.
o Keep electrostatic-sensitive parts in their containers until they arrive
at static-free stations.
o Cover work stations with approved static-dissipating material. Provide a
wrist strap connected to the work surface and properly grounded tools and
equipment.
o Keep work area free of non-conductive materials such as ordinary plastic
assembly aids and Styrofoam.
o Always be properly grounded when touching a static sensitive component or
assembly.
o Avoid touching pins, leads or circuitry.
o Always place drives' PCB assembly side down on the foam.

o Use conductive field service tools.
Chapter 2.2 Preparation Procedures
Before beginning any of the removal and replacement procedures, complete
the following steps:
1. Turn the server and any peripheral devices off.
2. Disconnect the AC power cord from the AC outlet, then from the system
unit.
3. Disconnect all external peripheral devices from the server.
Chapter 2.3 Side Access Panel/Front Bezel
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
High voltage present. Extreme care must be taken when running the Compaq
ProSignia 300 Server without the system unit cover on.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

To remove the Side Access Panel
1. Loosen thumb screws (3) on back bezel.
2. Slide side access panel back and then out.
To remove the Front Bezel
1. Remove front bezel retaining screw (1).
2. Push friction tabs up (located underneath bottom edge of bezel) and pull
forward.
3. Pull bezel forward at the middle pressure points shown in figure above.

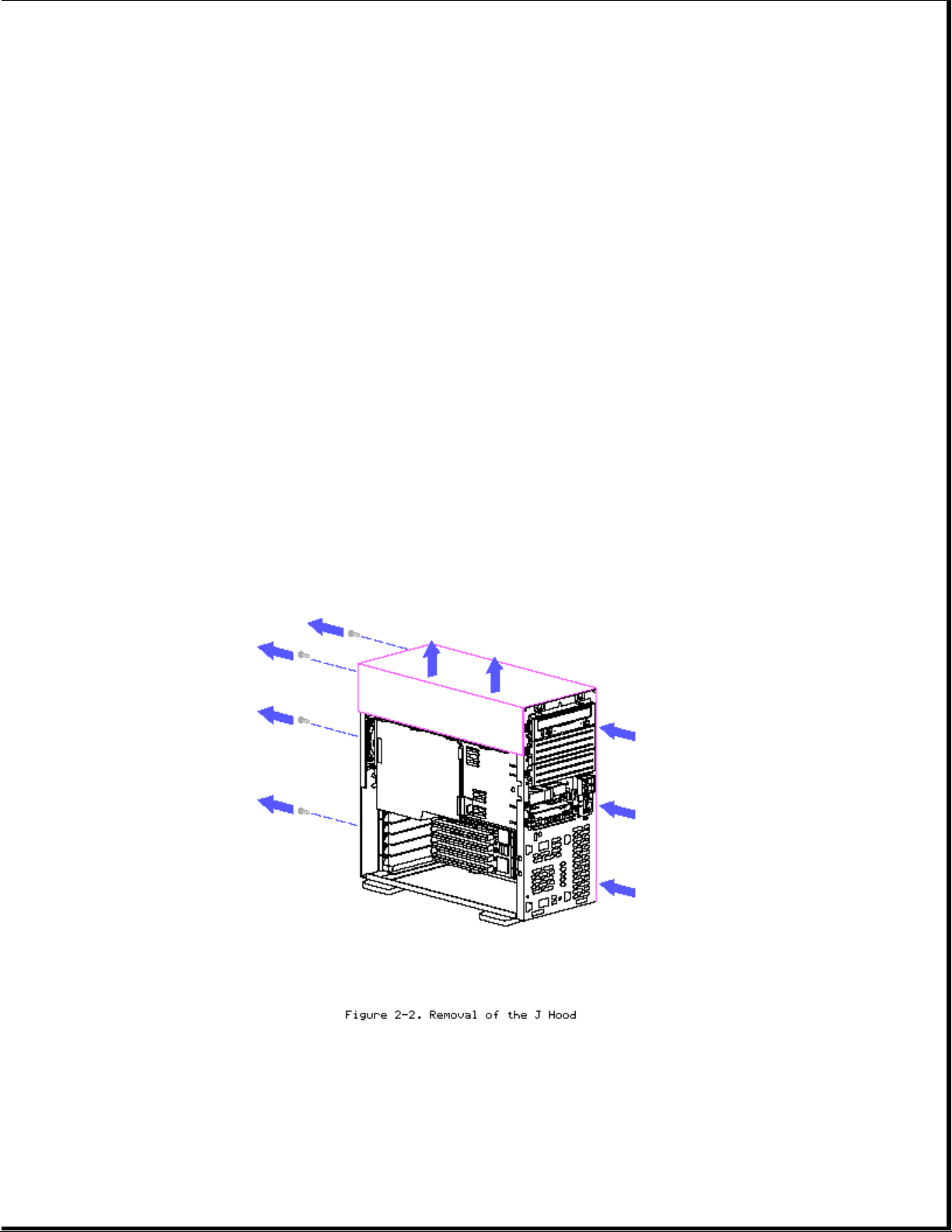

Chapter 2.4 J Hood
1. Remove side access panel.
2. Unscrew Torx T-15 screws (4) at back panel.

3. Slide hood cover backward and then up.
4. Reverse steps to replace the hood.
Chapter 2.5 Air Baffle
IMPORTANT: Never run the ProSignia 300 Server without the air baffle
installed.
NOTE: It is not necessary to remove the air baffle to remove any of the
server's components except the system I/O board.
1. Press the retaining latch (A) and swing the air baffle out away from
the chassis.
2. Place a flat bladed screw driver between the fan bracket and the air
baffles hinge as shown (B).
3. Gently pry the hinge pin out of the fan bracket and tilt the air baffle
away from the bracket.
Cha
p
ter 2.6 Mass Stora
g
e Devices

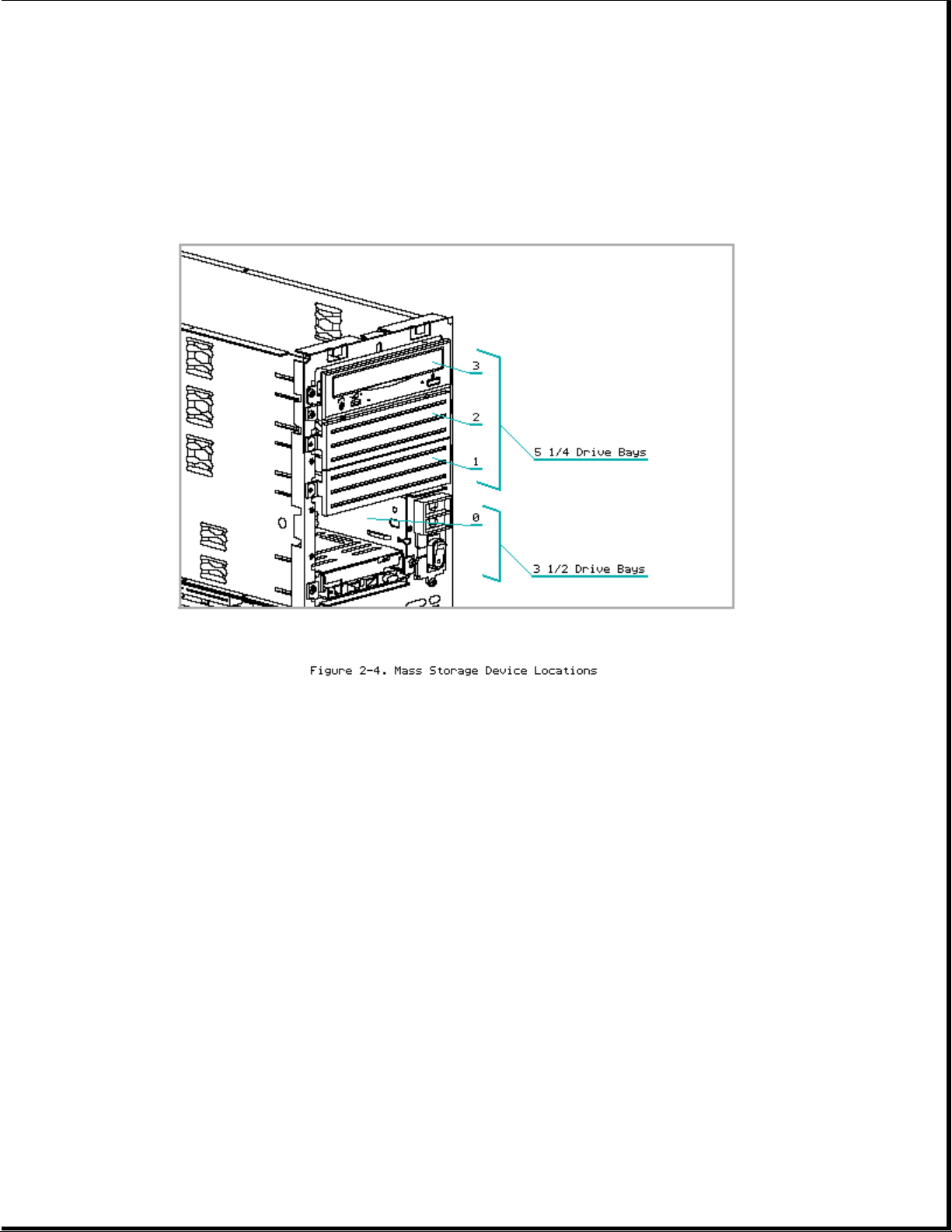

The ProSignia 300 Server has two 3 1/2 drive bays and three 5 1/4 drive
bays.

1. Remove side access panel and front bezel.
2. Disconnect power and signal cables from rear of drive.
3. Remove retaining screws (2).
4. Slide mass storage device out.
5. Reverse steps to install replacement.
IMPORTANT: When replacing hard drives remove rails before returning the
hard drive to Compaq. Replacement rails are not included in
hard drive spares kit.

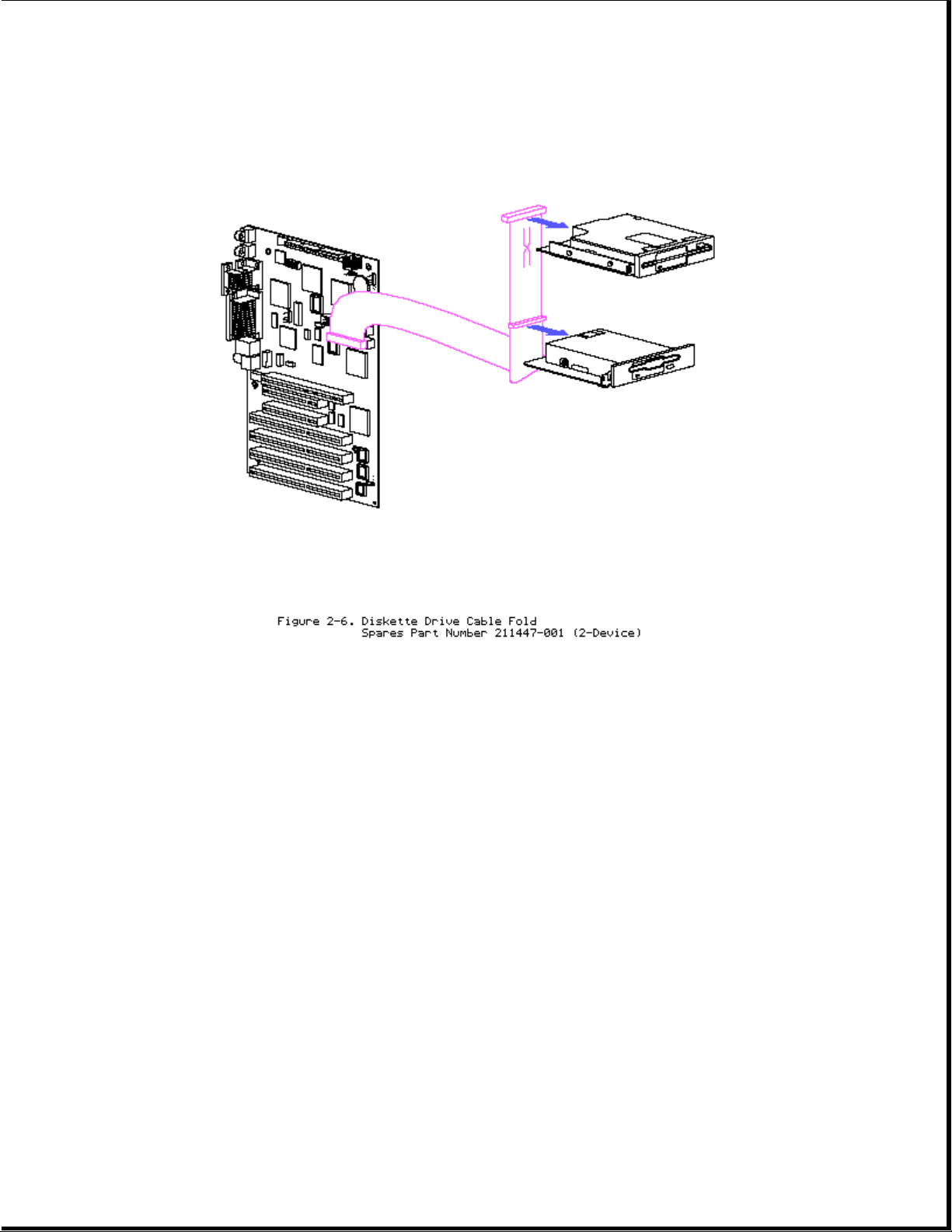

Cable Folding Diagrams for Removable Media Bays

Chapter 2.7 Boards
This section describes how to remove and replace the processor board,
memory modules, option boards, and the system board.
Processor Board

1. Remove retaining screw and pull board straight out.
2. Reverse steps for processor board installation.

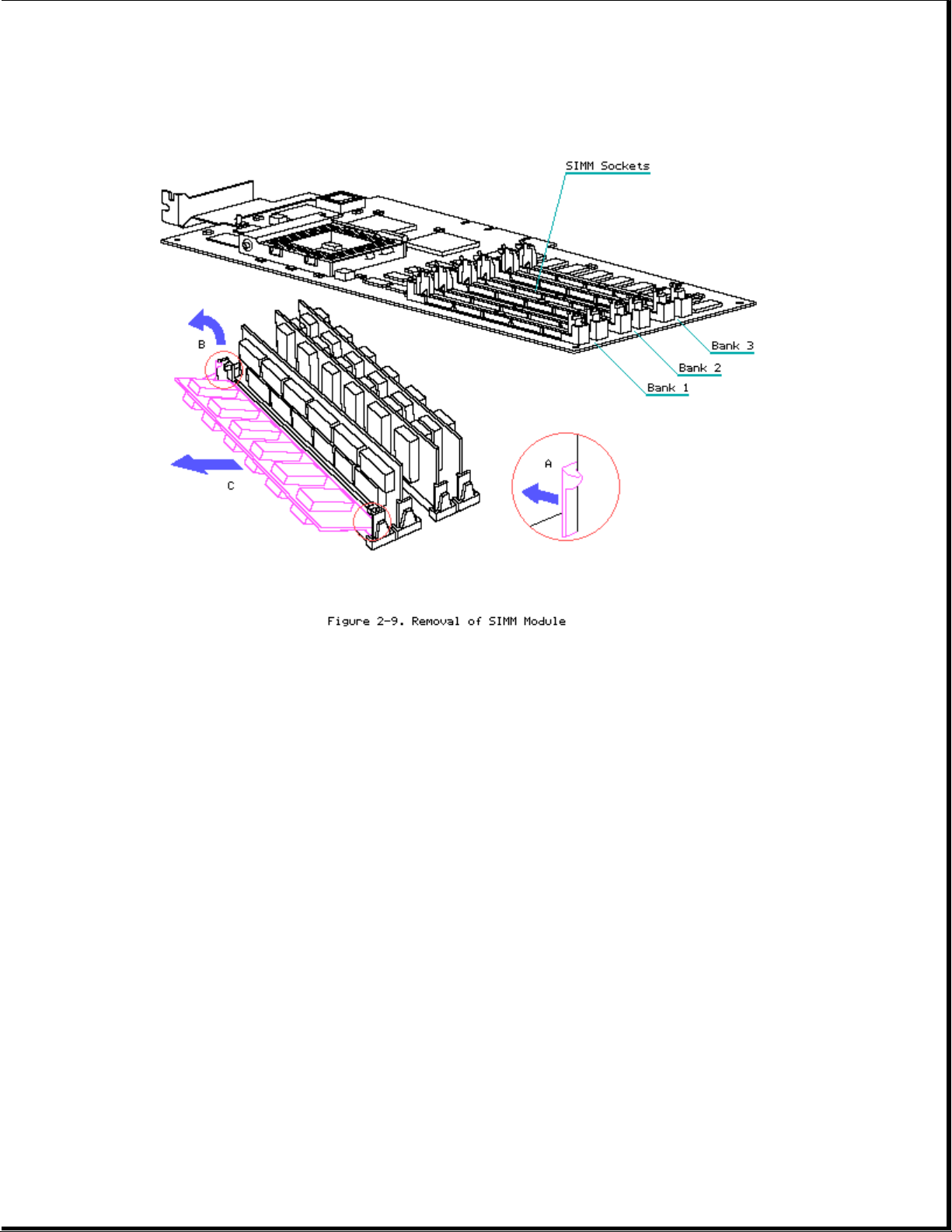

Memory

1. Remove processor board.
2. Press SIMM connector latches outward (A).
3. Tilt SIMM module forward (B).
4. Lift SIMM module out (C).
5. To replace SIMM module reverse steps.
6. Run Compaq System Configuration Utility if installed memory size has
changed.
The Compaq ProSignia 300 Server comes standard with 16 MB of ECC system
memory. Memory can be expanded to a maximum of 208 MB by installing
combinations of 4, 8, 16, or 32 MB 60 or 70 ns industry-standard SIMM
modules in the six SIMM sockets on the processor board. The following
guidelines MUST be followed when installing or replacing memory:
o SIMMs must be installed in matched pairs; for example: two 16 MB modules.
o Install SIMM pairs in banks 1, 2, or 3.
oSIMM modules must be 60 or 70 ns. Do notinstall 80 ns SIMMs in the server.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Use only JEDEC standard SIMMs. Non-JEDEC SIMMs may adversely affect data
integrity.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Table 2-1 shows a sample of typical memory configurations for the Compaq
ProSignia 300 Server.
Table 2-1. Example of SIMM Upgrade Combinations
===========================================================================
Processor Board
Total Memory * Bank 1 Bank 2 Bank 3
===========================================================================
24 MB 2x4 MB
32 MB 2x8 MB
48 MB 2x8 MB 2x8 MB
48 MB 2x16 MB
80 MB 2x16 MB 2x8 MB 2x8 MB
80 MB 2x32 MB 2x32 MB
112 MB 2x16 MB 2x16 MB 2x16 MB
208 MB 2x32 MB 2x32 MB 2x32 MB
---------------------------------------------------------------------------
* with system board memory (16 MB)
===========================================================================
Option Boards

1. Remove any cables connected to board.
2. Remove retaining screw and pull board straight out.
System Board
