Compaq ProLiant DL580 User manual

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Overview
1DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
W HAT
’
S N EW
• Intel Pentium®III Xeon
TM
700
MHz Processors (up to 4) with
1-MB, or2-MB L2 Cache
• ServerWorks Enterprise
ServerSet
TM
III HE chipset
• 512 MB PC100 Advanced ECC
SDRAM Memory standard,
expandable to 16 GB (Advanced
ECC Memory Technology – data
protection in the eventof an
SDRAM component failure)
• Integrated Smart Array Controller
• Compaq NC3134 Fast Ethernet
NIC 64 PCI DualBase 10/100
(upgradable to Gigabit)
• 64-bit/66-MHz slots for 64-bit/
66-MHz expansion card support
• Improved Serviceability and
Intelligent Manageability
A T A G LANCE
• Rack optimized (4U = 7″) 4-way
computing power for your data
center or ISP/ASP environments
• Six PCI slots, 4 Hot Pluggable:
2 64-bit/66-MHz Hot Plug
2 64-bit/33-MHz Hot Plug
1 64-bit/33-MHz Non-Hot Plug
1 32-bit/33-MHzNon-Hot Plug
• Standard Wide Ultra2/Ultra3-
ready Drive Cage (4 x 1”)
• Internal Hot Plug Drive Storageo
f
up to 145.6 GB with 36.4-GB 1″
Wide Ultra2/Ultra3 hard drives
• Uncompromising reliability
features:
Industry-Standard PCI Hot
Plug with push button
functionality
7 x 24 cooling provided by8
Hot Plug Redundant System
Fans
Hot Plug 450-Watt Power
Supply with optional redundant
hot plug power supplies
• Automatic Server Recovery2
(ASR-2 ), Integrated Remote
Console (IRC), Compaq Insight
Manager and SmartStart
• Toolless internal design for easy
access to system components
• Protected by Compaq Services,
including a limited three-year
parts, laborand on-site warranty
with optional four hour response.
Pre-Failure Warrantyand
Compaq Service and Support
Programsavailable on a
Worldwide basis— Certain
restrictionsand exclusionsapply.
Consultthe Compaq Customer
Support Center at 1-800-345-
1518 for details. In Canada,
consult the Product Information
Center at 1-800-567-1616 for
details.
7. 4 x 1″Wide Ultra2/Ultra3 Drive Cage
8. High Speed IDE CD-ROM
9. Power Supplies (2 shown above, 700-MHz
Models ship standard with one Power Supply)
10. Front Panel LED Display
11. Removable Center Wall
12. Additional Hot Plug Redundant Fans
1. Six PCI I/O Slots (Two 66-MHz, 4 hot
plug)
2. Peripheral Board
3. Redundant Hot Plug Fan
4. Memory Board
5. Processors (up to 4 supported)
6. 1.44-MB Diskette Drive

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
2DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Processor
Intel Pentium III Xeon processor 700 MHz
(Note: One or two processors ship standard depending on Model)
Cache Memory – One of the following:
2-MB level 2 writeback cache per processor standard
1-MB level 2 writeback cache per processor standard
Upgradability
Upgradable to quad processing
Support for future processor upgrades
Memory
Standard 512 MB (PC100-MHz Advanced ECC SDRAM memory)
Maximum 16 GB
Note: Advanced ECC Memory Technology protects the data even in the event of an entire SDRAM component
failure. Embedded in the chipset design, this feature allows the use of Industry-Standard Registered DIMMs.
Network Controller
Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100 (upgradable to Gigabit)
Expansion Slots
I/O (Total) 6, 5 available
64-bit/66-MHz PCI Hot Plug 2, 1 available
64-bit/33-MHz PCI Hot Plug 2, 2 available
64-bit/33-MHz PCI Non-Hot Plug 1, 1 available
32-bit/33-MHz PCI Non-Hot Plug 1, 1 available
Storage Controller
Integrated Smart Array Controller (supports Internal RAID 0, 1, 0+1, 5 and external tape devices)
Storage
Diskette Drives 1.44 MB
CD-ROM High Speed IDE CD-ROM Drive (slim line)
Hard Drives None
Maximum Internal Storage 145.6 GB (4 x 36.4 GB 1” drives) (internal hot plug drive cage)
Interfaces
Parallel 1
Serial 1 (Note: You can configure a second serial device to your ProLiant DL580 server
by installing the auxiliary serial connector that ships with the server. The
auxiliary connector attaches to a serial port B on the peripheral board and
exits the rear of the server through the auxiliary serial knockout located
directly above the redundant power feeds.)
Pointing Device (Mouse) 1
Graphics 1
Hot Plug Keyboard 1
External Wide Ultra2 SCSI 1
Network RJ-45 2
Graphics
Integrated 1280 x 1024, 256 color on PCI local bus, 2-MB video memory
Form Factor
Rack (4U = 7″), ships with sliding rails and cable management
M ODELS
Compaq ProLiant
TM
DL580
Available in multiple
configurations

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
3 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Compaq Software
Compaq Insight Manager™ The comprehensive system management tool that monitors the operation of
Compaq servers, workstations and clients
Compaq SmartStart
 The server configuration and software integration tool from Compaq
Array Configuration Utility
(ACU) with Smart Array
Controllers
Same easy to use yet powerful graphical user interface (GUI) configuration utility
and easy to navigate wizards for all Smart Array Controllers
Intelligent Manageability
Compaq Remote Insight Lights Out Edition support
Automatic Server Recovery-2 (ASR-2)
Compaq Insight Manager
Integrated Remote Console-IRC (with an internal modem)
Integrated Management Log (IML)
Server Health logging
Off-Line Backup Processor capability
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Redundant/adaptive load balancing NIC Support
Availability
PCI Hot Plug with push button functionality
7 x 24 cooling provided by 8 Hot Plug Redundant System Fans
Integrated Smart Array Controller for RAID data protection/performance and maximum data bandwidth
Advanced Error Checking and Correcting (ECC) SDRAM Technology
Hot Plug Ultra2/Ultra3 Drive Bays
Redundant Hot Plug Power Supplies (optional)
Redundant NIC support
Pre-Failure Warranty (covers processors, hard drives, and memory)
Serviceability
Internal Diagnostics Display (IDD) indicates specific DIMM or processor failure
LED display on front panel indicates interlock, fan, and power failures
Spring-loaded memory board release latches prevent unseating incidents
PCI Card Guide holds long PCI cards in place during transit
Customer driven interior system fan design (all system fans interior to chassis)
Removable, internal center panel eases access to the power supply and hard drive backplane boards
Optional High Voltage PDU cable exits chassis at a right angle to simplify cable management at rear of chassis
Security
Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Security Provision
Parallel and serial interface control
Administrator’s password
Disk configuration lock
Hot plug access security

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
4DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Power Supply
One 450-Watt Hot Plug Power Supply (optional Redundant Hot Plug Power Supply Option Kit)
Required Cabling
For required cabling information, refer to the Compaq web site at
http://www.compaq.com/products/servers/proliantDL580/.
Note: This web site available in English only.
OS Support
Microsoft Windows NT Server
Microsoft Windows 2000
Novell NetWare
SCO OpenServer
SCO UnixWare
IBM OS/2 Warp Family
LINUX (RedHat, S.U.S.E., TurboLinux Server, Caldera eServer)
Sun Solaris Intel Platform Edition
Banyan VINES
Note: For a more complete and up-to-date listing of supported OS’s and versions, please visit our OS Support Matrix
at: ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf.
Note: For an up-to-date listing of the latest drivers available for the Compaq ProLiant DL580, please see:
http://www.compaq.com/support/files/server/us/index.html.
Please note these web sites are available in English only.
Service and Support
Compaq Services provides a wide range of service offerings, including a three-year, limited warranty that is fully
supported by a worldwide network of resellers and service providers, lifetime toll-free 7 x 24 hardware technical
phone support and Pre-Failure Warranty coverage of hard drives, memory and processors. Disaster recovery
services are available through partnership with Comdisco.
Note: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for
details. In Canada, consult the Product Information Center at 1-800-567-1616 for details.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
5 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Models
DL580R01 X700-2MB,
512MB (2P)
155618-001
Processor(s) (2) Intel Pentium III Xeon 700 MHz
processors Network Controller Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100
Cache Memory 2-MB Level 2 writeback cache per
processor Storage Controller Integrated Smart Array Controller
Memory Hard Drive None
Standard 512 MB Internal Storage 145.6 GB maximum
Maximum 16 GB Optical Drive High Speed IDE CD-ROM Drive
Form Factor Rack 4U
DL580R01 X700-1MB,
512MB (1P)
155617-001
Processor(s) (1) Intel Pentium III Xeon 700 MHz Network Controller Compaq NC3134 Fast Ethernet NIC
64 PCI Dual Base 10/100
Cache Memory 1-MB Level 2 writeback cache per
processor Storage Controller Integrated Smart Array Controller
Memory Hard Drive None
Standard 512 MB Internal Storage 145.6 GB maximum
Maximum 16 GB Optical Drive High Speed IDE CD-ROM Drive
Form Factor Rack 4U

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
6DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Processor
Pentium III Xeon X7002MB Processor Option Kit 174449-B21
Pentium III Xeon X700-1MB Processor Option Kit 174448-B21
Note: The increasing power of new high-performance processor technology requires increased cooling efficiency for
rack-mounted servers. The new Compaq Rack 9000 series (120663-xx1 (42U), 120664-xx1 (36U), 120665-xx1
(22U)) provides enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using
the latest processors.
When installing a server with Pentium III Xeon processors running at speeds of 550 MHz or greater in Compaq
Rack 7000 series racks (165753-xx1 (42U), and 163747-xx1 (22U)), the new processor technology requires the
installation of Compaq’s new High Airflow Rack Door Insert (327281-B21 (42U) or 157847-B21 (22U)).

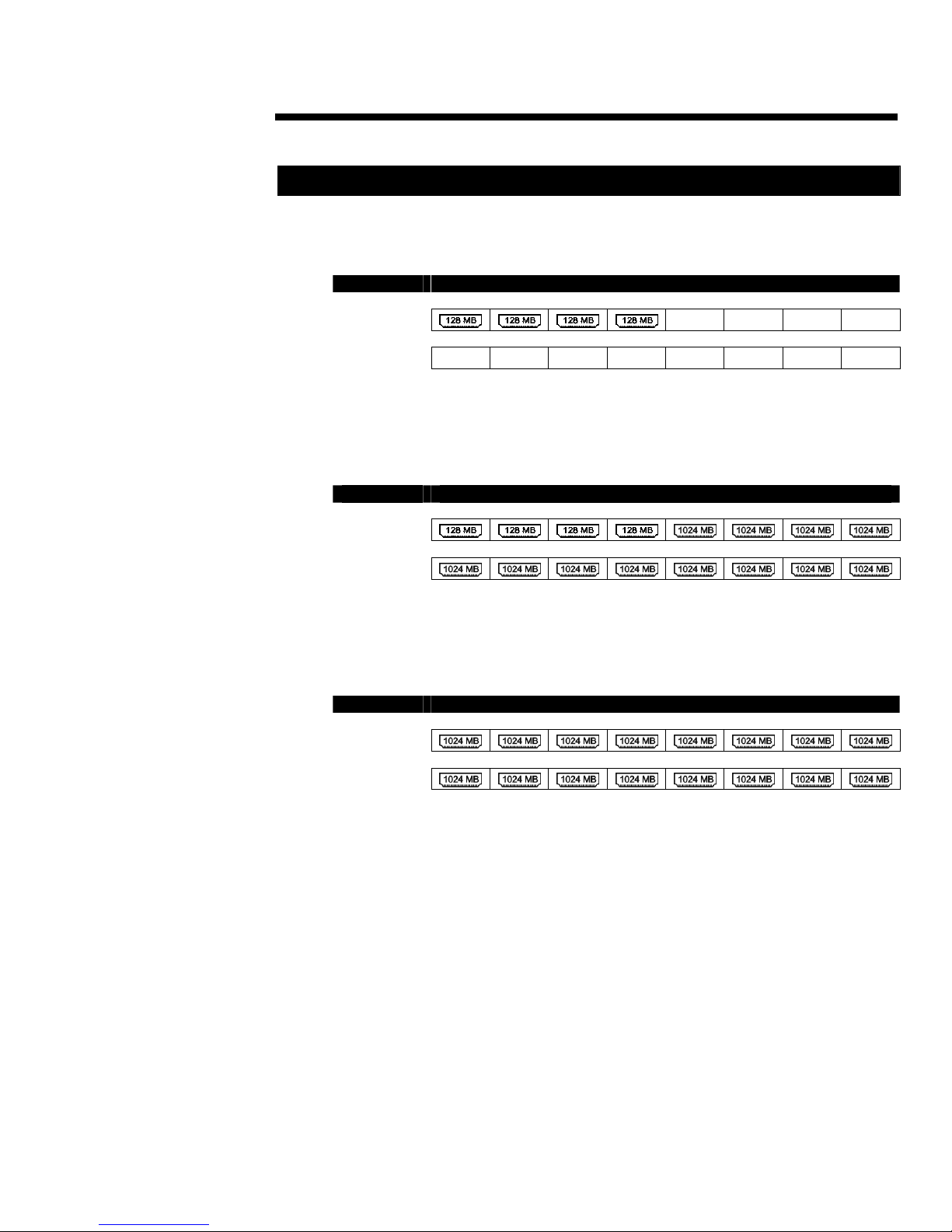

Memory
4096-MB PC100 Advanced ECC SDRAM Memory Kit (4 x 1024 MB) 189083-B21
2048-MB PC100 Advanced ECC SDRAM Memory Kit (4 x 512 MB) 189082-B21
1024-MB PC100 Advanced ECC SDRAM Memory Kit (4 x 256 MB) 189081-B21
512-MB PC100 Advanced ECC SDRAM Memory Kit (4 x 128 MB) 189080-B21
Hard Drives
Wide Ultra3 SCSI – Universal Hot Plug
36.4-GB Wide Ultra3 SCSI 10,000 rpm Drive (1″) 176496-B22
18.2-GB Wide Ultra3 SCSI 10,000 rpm Drive (1″) 142673-B22
9.1-GB Wide Ultra3 SCSI 10,000 rpm Drive (1″) 142671-B22
18.2-GB Wide Ultra3 SCSI 15,000 rpm Drive (1″) 188122-B22
9.1-GB Wide Ultra3 SCSI 15,000 rpm Drive (1″) 188120-B22
Note: Wide Ultra3 SCSI drives require the purchase and installation of Wide Ultra3 Controllers or Adapters to run at
Wide Ultra3 speeds.
Wide Ultra2 SCSI – Universal Hot Plug
18.2-GB Wide Ultra2 SCSI Drive (1″) 388144-B22
9.1-GB Wide Ultra2 SCSI Drive (1″) 123065-B22
Storage Controllers
Smart Array 431 Controller 127695-B21
Smart Array 3200 Controller 295643-B21
Smart Array 4200 Controller 295636-B21
Smart Array 5302/32 Controller 166207-B21
Smart Array 5302/64 Controller 124992-B21
Smart Array 5304/128 Controller 158939-B21
Ultra3 Channel Expansion Module for Smart Array 5300 Controller 153507-B21
64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter 154457-B21
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 129803-B21
Communications
Compaq NC3123 Fast Ethernet NIC PCI 10/100 WOL 174830-B21
Compaq NC3122 Fast Ethernet NIC PCI Dual 10/100 317450-B21
Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Port 10/100 138603-B21
Compaq NC3135 Fast Ethernet Module Dual 10/100 Upgrade Module for NC3134 and NC3131 138604-B21
Compaq NC6132 Gigabit Module 1000 SX Upgrade Module for NC3134 and NC3131 338456-B23
Compaq NC6133 Gigabit Module 1000 LX Upgrade Module for NC3134 and NC3131 338456-B24
Compaq NC3133 Fast Ethernet Module 100 FX Upgrade Module for NC3134 and NC3131 338456-B25
Compaq NC6134 Gigabit NIC 64 PCI 1000 SX 174818-B21
Compaq NC4621 Token Ring NIC PCI 4/16 WOL 379956-B21
IBM 16/4 Token Ring PCI Special 133749-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
7 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Communications (continued)
ServerNet PCI Adapter 309833-B22
4M Cable 309834-B23
30M Cable 309834-B22
ServerNet II PCI Adapter Card Kit 174736-B21
ServerNet II 12-Port Copper Serial Switch Kit 174739-001
ServerNet II 5-meter Copper Serial Cable Kit 174737-B21
ServerNet II 10-meter Copper Serial Cable Kit 174738-B22
Redundant Options
Compaq Hot Plug Redundant Power Supply Option Kit 105739-001
Management Options
Compaq Remote Insight (PCI) LAN + NA Modem 294013-002
Compaq Remote Insight Board (PCI) LAN/Serial without modem 294013-B24
Compaq Remote Insight Board (PCI) LAN only 294013-B25
Compaq Remote Insight Lights-Out Edition 157866-001
Monitors
TFT5010 15″Flat Panel Monitor (Opal) 104741-001
TFT5010 15″Flat Panel Monitor (Carbon) 154486-001
TFT5005 15″Flat Panel Monitor (Opal) 201431-001
TFT5005 15″Flat Panel Monitor (Carbon) 201430-001
TFT5000R Flat Panel 120207-001
P700 Color 17 Monitor 380207-001
V710 Color 17 Monitor (opal) 187895-001
V500 Color 15 Monitor 325900-001
S510 Color Monitor 168636-001
S710 Color 17 Monitor 152991-001
CRT Code Key
Dash # Description
-001 NA Kit with US Power Cord
-002 Carbon model with US Power Cord
-003 Touch Screen model with US Power Cord
-004 NAFTA model with US Power Cord
(Made in Mexico)
-005 NA Kit with Powered Speakers
-006 GSA model with US Power Cord
-007 NH MPR model with US power cord
(Made in Mexico)
-B24 TCO model without power cord (Digital
Classic)
Note: All models above are NH

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
8DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
External Tape Drives (Note: Only External Tape Drives supported by the ProLiant DL580)
External 20/40-GB DAT DDS-4 Tape Drive 157770-001
20/40-GB DAT 8 Cassette Autoloader External 166505-001
External 40/80-GB DLT Drive 146197-B21
External 35/70-GB DLT Drive 242521-B21
External 20/40-GB DLT Drive (Opal) 340744-B22
External AIT 50-GB Tape Drive 157767-001
External AIT 35-GB Tape Drive 388507-001
DDS-4 Media (10 pack) 152842-001
20/40-GB DAT 8 Cassette Magazine with Media 171532-B21
12-GB DDS-3 DAT Cassette (10 Pack) 295515-B21
DAT Cleaning Cassette 242781-001
AIT 35-GB Data Cassette (five pack) 402371-B21
AIT 50-GB Data Cassette (five pack) 152841-001
DLT IV Drive Cartridge (single) 295194-B21
DLT IV Drive Cartridge (seven pack) 295192-B21
DLT Cleaning Cartridge 199704-001
Note: Please see the Compaq 20/40-GB DAT Drive, Compaq 20/40-GB DAT DDS-4 8 Cassette Autoloader, Compaq
40/80-GB DLT Drive, Compaq 35/70-GB DLT Drive, Compaq 20/40-GB DLT Drive, Compaq AIT 50-GB Tape
Drive, or the Compaq AIT 35-GB Tape Drive for an up-to-date listing of the latest O/S Support details, please
see the following:
http://www.compaq.com/products/quickspecs/North_America/10233_na.html
Please note this web site is available in English only.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
9 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
External Storage - Rack
Compaq StorageWorks Enclosure Model 4214R (rack-mountable) 103381-001
Compaq StorageWorks Enclosure Model 4254R (rack-mountable) 138151-001
Compaq StorageWorks Enclosure Model 4314R (rack-mountable) 190209-001
Compaq StorageWorks Enclosure Model 4354R (rack-mountable) 190211-001
Note: The Compaq StorageWorks Enclosure 4200/4300 Family support the Wide Ultra2/Ultra3 1″Hot Plug Hard
Drives.
Rack-Mountable SCSI Storage Expander II 332607-001
Rack-Mountable ProLiant Storage System Model UE 348700-001
Rack-Mountable ProLiant Storage System Model U2 304100-B22
Note: The Compaq ProLiant Storage System Models UE and U2 support the Wide-Ultra SCSI-3 Drives.
ProLiant Storage System /U Redundant Power Supply 224206-001
StorageWorks Enclosure 4200 Redundant Power Supply Option 119826-B21
StorageWorks Enclosure 4200 Ultra2 Dual Bus I/O Module Option 119829-B21
StorageWorks Enclosure 4200 Ultra3 Single Bus I/O Module Option 190212-B21
StorageWorks Enclosure 4200 Ultra3 Dual Bus I/O Module Option 190213-B21
StorageWorks Enclosure Tower to Rack Conversion Kit 150213-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
10 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
StorageWorks DLT Departmental Library
TL895 (96 slot) library unit, 2 drive 349350-B22
TL895 (96 slot) library unit, 3 drive 349350-B23
TL895 (96 slot) library unit, 4 drive 349350-B24
TL895 (96 slot) library unit, 5 drive 349350-B25
TL895 (96 slot) library unit, 6 drive 349350-B26
TL895 (96 slot) library unit, 7 drive 349350-B27
TL891 DLT library unit, 1 drive Rack, FWD 120876-B21
TL891 DLT library unit, 2 drive
Rack, FWD 120876-B22
TL881 DLT Library, 1 drive Rack, FWD 128669-B21
TL881 DLT Library, 2 drive
Rack, FWD 128669-B22
Add-On 20/40-GB Drive for TL881 128671-B21
Add-On 35/70-GB Drive for TL891 120878-B21
DLT7000 drive upgrade kit
Note: Available for TL895 DLT Library only. 349351-B21
MiniLibrary Data Unit
Note: Available for TL881, TL891 DLT Libraries only. 128670-B21
MiniLibrary Expansion Unit
Note: Available for TL881, TL891 DLT Libraries only. 120877-B21
StorageWorks Dual Channel Ultra-Wide Differential Library Host Bus Adapter
Note: The StorageWorks Dual Channel Ultra-Wide Differential Library Host Bus Adapter is
required to support FWD-based tape libraries.
157229-B21
DLT IV Data Cartridges (single pack) 295194-B21
DLT IV Data Cartridges (7 pack) 295192-B21
DLT Cleaning Cartridge 199704-001
MiniLibrary pass-through Mechanism Kit
Note: Available for TL881, TL891 DLT Libraries only. 120880-B21
10 Slot Magazine
Note: Available for TL881, TL891 DLT Libraries only. 120881-B21
MiniLibrary Table Top to Rack Mount Conversion Kit, Metric/RETMA racks
Note: Available for TL881, TL891 DLT Libraries only. 120882-B21
MiniLibrary Table Top to Rack Mount Conversion Kit, Compaq racks
Note: Available for TL881, TL891 DLT Libraries only. 120883-B21
Note: Please see the TL881, TL891, or the TL895 Automated DLT Tape Library Solution QuickSpecs for additional
information including Upgrade Kits, Accessories, ProLiant Connectivity Kits, Host Bus Adapters, SCSI Cable Kits,
and Localization Kits and additional options needed for a complete solution at:
http://www.compaq.com/products/quickspecs/North_America/10233_na.html
Please note this web site is available in English only.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
11 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Automated AIT Tape Library Solution
SSL2020 AIT Mini-Library 1 drive, 20 slot Rackmount 175196-B21
SSL2020 AIT Mini-Library 2 drive, 20 slot Rackmount 175196-B22
SSL2020 AIT Library Pass Thru with Transport 175312-B21
SSL2020 AIT Library Pass Thru Extender 175312-B22
AIT 50GB Drive Add-On LVD Drive for SSL2020 AIT Library 175197-B21
19 Slot Magazine for SSL2020 AIT Library 175198-B21
AIT 50-GB Data Cassette (5 pack) 152841-001
AIT Cleaning Cassette 402374-B21
Tabletop to Rackmount Upgrade Kit for SSL2020 AIT Library, Compaq Rack 175199-B21
Tabletop to Rackmount Upgrade Kit for SSL2020 AIT Library, RETMA racks 175199-B22
Note: Please see the AIT Automated DLT Tape Library Solution QuickSpecs for additional information including
Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:
http://www.compaq.com/products/quickspecs/North_America/10233_na.html
Please note this web site is available in English only.
Tape Array Solution
TA1000 AIT Tape Array, Rackmount 175005-001
AIT 50-GB Data Cassette (5 pack) 152841-001
AIT Cleaning Cassette 402374-B21
DLT Tape Array III Model 40/80-4 161140-001
DLT Tape Array III Model 0 168047-001
DLT Tape Array Model 0 199860-001
DLT Tape Array II Model 35/70-4 no software 295165-001
DLT IV Data Cartridges (single pack) 295194-B21
DLT IV Data Cartridges (7 pack) 295192-B21
DLT Cleaning Cartridge 199704-001
DLT Library Tabletop Conversion Kit 350384-B21
Tape Array Cable Kit
Note: Available for the DLT Tape Array and DLT Tape Array II only. 242427-001
DLT Tape Array III Model 0, LVD Cable Kit
Note: Available for the DLT Tape Array III Model. 168048-B21
Note: Please see the Compaq TA1000 AIT Tape Array, Compaq DLT Tape Array III, or the Compaq DLT Tape Array II
QuickSpecs for additional information including Tape Drives, Cartridges, Controllers, and SCSI Cables and
additional options needed for a complete solution at:
http://www.compaq.com/products/quickspecs/North_America/10233_na.html
Please note this web site is available in English only.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
12 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
StorageWorks Enterprise Tape Library
ESL9236D Enterprise Library 6 35/70 Drive 146205-B23
ESL9236D Enterprise Library 8 35/70 Drive 146205-B24
ESL9236D Enterprise Library 10 35/70 Drive 146205-B25
ESL9236D Enterprise Library 12 35/70 Drive 146205-B26
ESL9236D Enterprise Library 14 35/70 Drive 146205-B27
ESL9236D Enterprise Library 16 35/70 Drive 146205-B28
Library Ready 35/80GB DLT Hot-Swap Drive for ESL9326D 146209-B21
ESL 9000 Pass Through Kit for Multi User Connectivity 161268-B21
StorageWorks Dual Channel Ultra-Wide Differential Library Host Bus Adapter
Note: The StorageWorks Dual Channel Ultra-Wide Differential Library Host Bus Adapter is
required to support the ESL9236D Library.
157229-B21
DLT IV Data Cartridges (single pack) 295194-B21
DLT IV Data Cartridges (7 pack) 295192-B21
DLT Cleaning Cartridge 199704-001
Note: Please see the Compaq StorageWorks Enterprise Backup Solution QuickSpecs for additional information
including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a complete
solution at:
http://www.compaq.com/products/quickspecs/North_America/10233_na.html
Please note this web site is available in English only.
StorageWorks RAID Array 4100
StorageWorks Raid Array 4100 (rack) 146013-001
Fibre Channel Storage Hub 12 295573-001
Fibre Channel Storage Hub 7 234453-001
Compaq Storage Hub 7 Universal Rack Mount Kit 136127-B21
Fibre Channel Storage Hub – 12 Port with 41U/42U Bracket 295573-B22
Compaq Storage Hub 12 Management Option 159262-B21
StorageWorks Raid Array 4000 Redundant Array Controller 223187-B21
StorageWorks Fibre Channel Arbitrated Loop Switch 8 177862-B21
StorageWorks Fibre Channel Arbitrated Loop 3-Port Expansion Module 177863-B21
64-bit/66MHz Fibre Channel Host Adapter 120186-B21
Fibre Channel Host Adapter Redundancy Kit 174681-B21
GBIC-SW Connector Kit (two each) 234459-B21
GBIC-LW Connector Kit (two each) 340412-B21
Fibre Channel Connection Kit, 3 SW GBICS, 2 Cables 380579-B21
Fibre Channel Connection Kit, 2 SW GBICS, 2 Cables 380596-B21
Fibre Channel short-wave GBIC 380561-B21
Fibre Channel long-wave GBIC 127508-B21
2m Multi-Mode Fibre Channel Cable 234457-B21
5m Multi-Mode Fibre Channel Cable 234457-B22
15m Multi-Mode Fibre Channel Cable 234457-B23

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
13 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
StorageWorks RAID Array 4000 (continued)
30m Multi-Mode Fibre Channel Cable 234457-B24
50m Multi-Mode Fibre Channel Cable 234457-B25
Raid Array 4000 Redundant Power Supply 224206-001
Raid Array 4000 Tower to Rack Conversion Kit 297162-B21
Raid Array 4100 Rack to Tower Conversion Kit 154253-B21
Upgrade Kit for ProLiant Storage System F and F1 296324-B21
Fibre Channel Array Controller 64-MB Cache Upgrade Kit 262398-B21
Raid Array 4100 Rack to Tower Conversion Kit 154253-B21
Fibre Channel Troubleshooting Kit 234468-B21
RAID Array 8000
Departmental Pedestal Models
RA8000 FC Single Controller (Opal) 400553-B22
RA8000 FC Dual Controller (Opal) 400552-B22
Expansion Cabinet 24-slot (Opal) 380570-B22
Rack Mountable Models
RA8000 FC Single Controller 400554-B21
RA8000 FC Dual Controller 400700-B21
Expansion Cabinet 24-slot 380568-B21
Note: Please see the Compaq StorageWorks Fibre Channel RAID Array 8000, ESA12000 QuickSpecs for FC Hubs,
FC switches, platform software, host adapters, disks and options for complete solutions at:
http://www.compaq.com/products/quickspecs/North_America/10418_na.html
Please note this web site is available in English only.
Enterprise Storage Array 12000
ESA Building Blocks
High-capacity/General Business – Dual Controllers 48 slots, 60 Hz (Opal) 400557-002
High bandwidth Quad controllers 48 slots, 60 Hz (Opal) 400555-002
Single expansion Dual controllers 24 slots, 25U extra cabinet space, 60 Hz (Opal) 400559-002
Expansion enclosure 48 slots, 60 Hz (Opal) 380640-002
Note: Please see the Compaq StorageWorks Fibre Channel RAID Array 8000, ESA12000 QuickSpecs for FC Hubs,
FC switches, platform software, host adapters, disks and options for complete solutions at:
http://www.compaq.com/products/quickspecs/North_America/10418_na.html
Please note this web site is available in English only.
StorageWorks Modular Array 6000
MA6000 D14 187738-B21
MA6000 S14 187739-B21
Note: Please see the Compaq StorageWorks MA6000 QuickSpecs for FC Hubs, FC switches, platform software, host
adapters, disks and options for complete solutions at:
http://www.compaq.com/products/quickspecs/North_America/10418_na.html
Please note this web site is available in English only.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
14 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
StorageWorks Modular Array 8000/Enterprise Modular Array 12000
EMA12000 D14 60 Hz 175990-B21
EMA12000 S14 60 Hz 175991-B21
MA8000 60 Hz 175992-B21
EMA12000 Blue 60 Hz 175993-B21
Note: Options include controller, solution kits, ACS. MA8000/EMA12000 includes controller shelf, drive shelves and
cabinet. Packaging upgrade to RA8000/ESA12000.
Note: Please see the Compaq StorageWorks MA8000/EMA12000 QuickSpecs for FC Hubs, FC switches, platform
software, host adapters, disks and options for complete solutions at:
http://www.compaq.com/products/quickspecs/North_America/10418_na.html
Please note this web site is available in English only.
StorageWorks Options
Fibre Channel Tape Controller – II 152975-001
Fibre Channel Storage Switch 16 380578-B21
Fibre Channel Storage Switch 8 380591-B21
Fibre Channel SAN Switch/8 with Fabric Operating Software 158222-B21
Fibre Channel SAN Switch/16 with Fabric Operating Software 158223-B21
F200 Clustering Kit 380357-B21
Uninterruptible Power Systems – Rack
Rack-Mountable UPS R1500 (100 to 127 VAC) 242704-001
Rack-Mountable UPS R3000 (100 to 127 VAC) 242705-001
Rack-Mountable UPS R3000h-NA (208 to 240 VAC) NDC (non-detached cord) 242705-003
Compaq UPS R3000 XR (120V) 192186-001
Compaq UPS R3000 XR (208V) 192186-002
Rack-Mountable UPS R6000 (208V) 347207-001
R6000 Extended Runtime Module
Note: Available for the UPS R6000 Models only. 347224-B21
Extended Runtime Battery, R3000 XR
Note: Available for the UPS R3000 XR Models only. 192188-B21
Six-Port Card
Note: Available for the UPS R3000 XR Models only. 192185-B21
SNMP/Serial Port Card
Note: Available for the UPS R3000 XR Models only. 192189-B21
SNMP-EN Adapter 347225-B21
High to Low Voltage Transformer (250VA) 388643-B21
Multi-Server UPS Card 123508-B21
Scalable UPS Card 123509-B21
Please see the Compaq Rack Builder for configuration assistance at
www.compaq.com/products/storageworks/rack_accessories/rackbuilderpro2.html.
Please note this web site is available in English only.
Compaq Rack 9000 Series (Opal)
Compaq Rack 9142 (42U) – Pallet 120663-B21
Compaq Rack 9142 (42U) – Shock Pallet 120663-B22
Compaq Rack 9142 (42U) – Crated 120663-B23
Compaq Rack 9136 (36U) – Pallet 120664-B21
Compaq Rack 9136 (36U) – Shock Pallet 120664-B22
Compaq Rack 9136 (36U) – Crated 120664-B23
Compaq Rack 9122 (22U) – Pallet 120665-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
15 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Compaq Rack 9000 Series (Opal) (continued)
Compaq Rack 9122 (22U) – Shock Pallet 120665-B22
Compaq Rack 9122 (22U) – Crated 120665-B23
Note:
-B22 part numbers are used to ship configured racks (by custom systems, VARs and Channels)
-B23 part numbers are used for air shipments
Rack Options for Compaq Rack 9000 Series
Baying/Coupling Kit 120669-B21
Rack 9142 Side Panel 120670-B21
Rack 9136 Side Panel 120671-B21
Ballast Option Kit 120672-B21
Stabilizer Option Kit 120673-B21
Rack Rail Adapter Kit (25″depth) 120675-B21
Fan (110 VAC) Roof Mount 120677-B21
Fan (220 VAC) Roof Mount 120678-B21
9142 Extension Kit 120679-B21
Grounding Rack Option Kit 120682-B21
Cable Management D-Rings Kit 168233-B21
Rack Blanking Panels (1U) 189453-B21
Rack Blanking Panels (2U) 189453-B22
Rack Blanking Panels (3U) 189453-B23
Rack Blanking Panels (4U) 189453-B24
Rack Blanking Panels (5U) 189453-B25
Rack Options for Compaq Rack 7000 Series
Rack Sidewall Kit (42U only) 165652-001
Coupling Kit (42U only) 165664-001
Stabilizing Feet (42U only) 189907-001
High Air Flow Rack Door Insert for 7122 157847-B21
High Air Flow Rack Door Insert for 7142 327281-B21
High Air Flow Rack Door Insert for 7142 (six pack) 327281-B22
Compaq Rack Extension Kit for 7142 154392-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
16 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Rack Options for Compaq Rack 7000 and 9000 Series
Sliding Shelf Kit 332564-B21
Monitor Utility Shelf 303606-B21
Rack Blanking Panel Kit for Rack 7000 series (Beach Gray) 169940-001
Rack Blanking Panel Kit for Rack 9000 series(Opal) 169940-B21
Compaq Networking Cable Management Kit 292407-B21
Compaq Networking Recessed Rail Management Kit 292406-B21
Compaq Power Distribution Unit-24A Low Voltage PDU 295363-001
Compaq Power Distribution Unit-16A High Voltage PDU (cord attached) 295363-002
Compaq Power Distribution Unit-16A High Voltage, 16A (detachable cord) 295363-B21
Compaq Power Distribution Unit-24A High Voltage 295363-003
Compaq Dual Input Power Distribution Unit-24A High Voltage 191186-001
Compaq High Voltage PDU Right Angled Cable Kit (IEC13-IEC14) 142257-004
Note: The 10-Amp AC cord which ships standard with the Compaq ProLiant DL580 utilizes a right angle plug on the
server side (the side that plugs into the server) to avoid interference with the Cable Management Arm. Compaq
High Voltage PDUs ship standard with 15-Amp AC cords that incorporate straight plugs on the server side. The
optional Compaq High Voltage PDU Right Angled Cable Kit (142257-004) provides a right angle version of the
15-Amp AC cord. When deploying Compaq High Voltage PDUs with the Compaq ProLiant DL580, you may
choose to simplify cable management at the rear of the server chassis by installing this option kit.
Server Console Switch 1 x 2 port (100 to 230 VAC) 120206-001
Server Console Switch 1 x 4 port (100 to 230 VAC) 400336-001
Server Console Switch 1 x 8 port (100 to 230 VAC) 400337-001
Server Console Switch 2 x 8 port (100 to 230 VAC) 400338-001
Server Console Switch 2 x 8 port (48 VDC) 400542-B21
CPU to Server Console Cable, 12′110936-B21
CPU to Server Console Cable, 20′110936-B22
CPU to Server Console Cable, 40′110936-B23
CPU to Server Console Cable, 3′110936-B24
CPU to Server Console Cable, 6′110936-B25
CPU to Server Console Cable (Plenum Rated) 20′149363-B21
CPU to Server Console Cable (Plenum Rated) 40′149364-B21
Switch Box Connector Kit (115 V) 144007-001
Switch Box Connector Kit (230 V) 144007-002
Rack Internal Trackball Keyboard (Opal) 185152-406
1U Rack Keyboard Drawer 338056-B21
Keyboard/Monitor/Mouse extension cables 169989-001
Rack Options for Third Party Rack Cabinets
Depth Adjustable Fixed Rails 332558-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
17 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Service Upgrades (CarePaqs)
Hardware Services 4-Hour On-site Service
4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (2-5-2 Part Number for U.S.) FM-MI4HR-36
4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (2-5-2 Part Number for Canada) FP-MI4HR-36
4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for U.S.) 401783-002
4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for Canada) 401783-122
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (2-5-2 Part Number for U.S.) FM-MI724-36
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (2-5-2 Part Number for Canada) FP-MI724-36
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for U.S.) 401782-002
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for Canada) 401782-122
Installation & Start-up Services
Hardware Installation (2-5-2 Part Number for U.S.) FM-MIINS-IN
Hardware Installation (2-5-2 Part Number for Canada) FP-MIINS-IN
Hardware Installation (6-3 Part Number for U.S.) 401793-002
Hardware Installation (6-3 Part Number for Canada) 401793-122
O/S & Hardware Installation (2-5-2 Part Number for U.S.)
(Hardware installation plus two days O/S start-up activity (installation, configuration, network
access & orientation.))
FP-CXHSI-03
O/S & Hardware Installation (6-3 Part Number for U.S.)
(Hardware installation plus two days O/S start-up activity (installation, configuration, network
access & orientation.))
160557-002
Business Solutions Priority Service Plan – Priority Level
5 x 9 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (2-5-2 Part Number for U.S.) FP-CX103-36
5 x 9 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (2-5-2 Part Number for
Canada) FP-CZ103-36
5 x 9 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (6-3 Part Number for U.S.) 155325-002
5 x 9 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (6-3 Part Number for Canada) 155325-122
Business Solutions Priority Service Plan – Priority 24 Level
7 x 24 4-hour H/W, 7 x 24 2-hour O/S (NT & NetWare), Three years (2-5-2 Part Number for U.S.) FP-CX203-36
7 x 24 4-hour H/W, 7 x 24 2-hour O/S (NT & NetWare), Three years (6-3 Part Number for U.S.) 155329-002
Business Solutions Priority Service Plan – Priority Plus Level
7 x 24 4-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS account review, Three Years
(2-5-2 Part Number for U.S.) FP-CX303-36
7 x 24 4-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS account review, Three Years
(2-5-2 Part Number for Canada) FP-CZ303-36
7 x 24 4-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS account review, Three Years
(6-3 Part Number for U.S.) 155333-002
7 x 24 4-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS account review, Three Years
(6-3 Part Number for Canada) 155333-122

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
18 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Service Upgrades (CarePaqs) (continued)
Business Solutions Priority Service Plan – Priority Premier Level
7 x 24 2-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (2-5-2 Part Number for U.S.) FP-CX503-36
7 x 24 2-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (2-5-2 Part Number for Canada) FP-CZ503-36
7 x 24 2-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (6-3 Part Number for U.S.) 155337-002
7 x 24 2-hour H/W, 7 x 24 1-hour O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (6-3 Part Number for Canada) 155337-122
Business Solutions Priority Service Plan – Priority Executive Premier Level
7 x 24 2-hour H/W, 7 x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (2-5-2 Part Number for U.S.) FP-CX703-36
7 x 24 2-hour H/W, 7 x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (2-5-2 Part Number for Canada) FP-CZ703-36
7 x 24 2-hour H/W, 7 x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (6-3 Part Number for U.S.) 155341-002
7 x 24 2-hour H/W, 7 x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive
Management Review, named S/w rep, Three Years (6-3 Part Number for Canada) 155341-122
Note: For more information, customer/resellers can contact www.Compaq.com/services. Please note this web site is
available in English only.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Memory
19 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
Compaq ProLiant DL580
S TANDARD M EMORY
512-MB PC100-MHz Advanced ECC SDRAM DIMM installed (4 x 128-MB SDRAM DIMM)
Standard Slot
1 2 3 4 5 6 7 8
512 MB
Empty Empty Empty Empty
9 10 11 12 13 14 15 16
Empty Empty Empty Empty Empty Empty Empty Empty
S TANDARD M EMORY P LUS
O
PTIONAL M EMORY
Up to 12,800-MB memory is available with the optional installation of PC100-MHz Advanced ECC
SDRAM DIMM memory kits.
Up To Slot
1 2 3 4 5 6 7 8
12,800 MB
9 10 11 12 13 14 15 16
S TANDARD M EMORY R EPLACED
WITH O PTIONAL M EMORY
Up to 16,384-MB of memory is available with the removal of the standard 512-MB of memory and
the optional installation of PC100-MHz Advanced ECC SDRAM DIMM memory kits.
Up To Slot
1 2 3 4 5 6 7 8
16,384 MB
9 10 11 12 13 14 15 16
Note: Memory must be added in banks of four DIMMS. This chart does not represent all possible
memory configurations.
Following memory options are available from Compaq:
• 4096-MB PC100-MHz Advanced ECC SDRAM Memory Option Kit (4 x 1024 MB) 189083-B21
• 2048-MB PC100-MHz Advanced ECC SDRAM Memory Option Kit (4 x 512 MB) 189082-B21
• 1024-MB PC100-MHz Advanced ECC SDRAM Memory Option Kit (4 x 256 MB) 189081-B21
• 512-MB PC100-MHz Advanced ECC SDRAM Memory Option Kit (4 x 128 MB) 189080-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Storage
20 DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
D RIVE S UPPORT
Quantity Supported Position Supported Controller
Removable Media
1.44-MB Diskette Drive Up to 1 C Integrated
IDE CD-ROM Drive Up to 1 B Integrated IDE
Hard Drives
Wide Ultra3 Hot Pluggable Drives
Note: Wide Ultra3 SCSI drives require the purchase and installation of Wide Ultra3 Controllers or Adapters to run at
Wide Ultra3 speeds.
1-inch
36.4-GB 10,000 rpm
18.2-GB 10,000 rpm
9.1-GB 10,000 rpm
18.2-GB 15,000 rpm
9.1-GB 15,000 rpm
Up to 4 0-3 Integrated SmartArrayController
Smart Array 431 Controller
Smart Array 3200 Controller
Smart Array 4200 Controller
Smart Array 5300 Controller
64-bit/66-MHzSingle Channel Wide Ultra3 SCSI
Adapter
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI
Adapter
Wide Ultra2 Hot Pluggable Drives
1-inch
18.2-GB
9.1-GB
Up to 4 0-3 Integrated SmartArrayController
Smart Array 431 Controller
Smart Array 3200 Controller
Smart Array 4200 Controller
Smart Array 5300 Controller
64-bit/66-MHzSingle Channel Wide Ultra3 SCSI
Adapter
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI
Adapter
External Storage
StorageWorks Enclosure 4200/4300
Family
(supports Ultra2/Ultra3 drives only)
Up to 10
(2 per channel
SCSI controller)
External Integrated Smart Array Controller
Smart Array 431 Controller
Smart Array 3200 Controller
Smart Array 4200 Controller
Smart Array 5300 Controller
64-bit/66-MHzSingle Channel Wide Ultra3 SCSI
Adapter
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI
Adapter
ProLiantStorage System Models UE
ProLiantStorage System Models U2
(supports Wide-Ultra SCSI-3 drives only)
Up to 10
(2 per channel
SCSI controller)
External Smart Array 3200 Controller
Smart Array 4200 Controller
Smart Array 5300 Controller
64-bit/66-MHzSingle Channel Wide Ultra3 SCSI
Adapter
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI
Adapter
SCSI Storage Expander II
Up to 10 (2 per channel
SCSI controller)
External Smart Array 3200 Controller
Smart Array 5300 Controller
64-bit/66-MHzSingle Channel Wide Ultra3 SCSI
Adapter
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI
Adapter
StorageWorks RAID Array4100 Kit Up to 11 External Fibre Channel Host Adapter
Key:
A Hot PlugPower Supplies
B High Speed IDE CD-ROM
C 1.44 MB Diskette Drive
0-3 Wide Ultra2/Ultra3 Drive Cage
(4 x 1″)
