COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
StorageWorks by Compaq
NAS Executor E7000
Release Notes version 1.1
Part Number 261259-002
(Second Edition) April 2002
Product Version: Version 2.0
These release notes are for the StorageWorksTM NAS Executor E7000 by
Compaq running version 2.0 of the Compaq NAS software image and
provide important information not covered in other documentation.

COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
© 2002 Compaq Computer Corporation
Compaq, the Compaq logo, SANWorks, and StorageWorks are trademarks of
Compaq Information Technologies Group, L.P.
[Microsoft, MS-DOS, Windows, Windows NT, and Windows-Powered Operating
System are trademarks of Microsoft Corporation.]
All other product names mentioned herein may be trademarks of their respective
companies.
Compaq shall not be liable for technical or editorial errors or omissions contained
herein. The information in this document is provided “as is” without warranty of any
kind and is subject to change without notice. The warranties for Compaq products
are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty.
StorageWorks by Comapq NAS Executor E7000 Release Notes
(Second Edition) April 2002
Part Number 261259-002

StorageWorks by Compaq NAS Exectutor E7000 Release Notes 3
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
Contents
Overview ...................................................................................................5
Software Updates................................................................................5
NFS Logging................................................................................5
NFS administrative shares support...............................................6
Volume Mount Points support .....................................................6
User name mapping Japanese characters .....................................7
NFS Share parameters cannot be changed after taking a group
offline ...........................................................................................7
Admin cannot list and map domain users and groups for SFU
mapping unless the SFU admin is logged into the domain ..........8
Password Synchronization will not work correctly on a Domain
Controller without an Admin UI ..................................................8
Disconnected Client Telnet Session can cause the SFU GUI to
hang ............................................................................................10
How to read SFU Help ...............................................................11
Storage, SAN, and Switching ...........................................................11
LUN Identification .....................................................................11
SAN Connection Process ...........................................................15
Hub and loop switch restrictions................................................17
Support For Enterprise Virtual Array.........................................18
Cluster Agent Activation............................................................18
Cluster Setup Tool ............................................................................19
Cluster Setup Tool screens lose focus........................................19
Cluster Setup Tool requires a Gateway......................................19
Quick Restore Process ......................................................................19
Quick Restore Removes all Data on the local disks...................19
SANworks Virtual Replicator...........................................................20
Disk Defragmenter does not work on SWVR volumes..............20
LVM Defaults to Dynamic Disk ................................................20
Network Disks............................................................................20

Contents
4 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
Lifeguard and Snapshots............................................................20
Snapshots Naming......................................................................21
SWVR and TaskScheduler.........................................................21
Using Virtual Replicator with Other Windows Tools................22
Segment Size..............................................................................23
Allocation Unit Size...................................................................23
SWVR Driver and Windows Powered Operating System Issue 23
VR Namespace Recovery ..........................................................24
NAS Web User Interface..................................................................24
WebUI hangs when moving the cluster group...........................24
Loading page malfunction .........................................................25
Web UI default page may change..............................................25
Terminal Services returns a VBScript error...............................25
Moving an owned Cluster resource should report an error........26
Managing NTFS Mountpoints ...................................................26
CIFS incorrectly allows 'Change' selection................................27
Microsoft Powered OS .....................................................................28
Event Log Messages in the Event Log.......................................28
Things that will cause the cluster to fail.....................................29

StorageWorks by Compaq NAS Exectutor E7000 Release Notes 5
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
Overview
These release notes are for the StorageWorksTM NAS Executor
E7000 by Compaq running version 2.0 of the NAS software
image. This document provides important information that is not
covered in other documentation.
IMPORTANT: Read this entire document before installing and
configuring the StorageWorks NAS Executor E7000.
Software Updates
The software that ships with the StorageWorks NAS Executor
E7000 includes a special build of Microsoft Windows-Powered
Operating System. Any software updates must be qualified
against the Windows-Powered Operating System.
IMPORTANT: Install only Compaq-approved patches or service packs.
To view the list of approved patches please see the
StorageWorks NAS Website at:
http://www.compaq.com/storage/nas_index.html.
NFS Logging
The maintenance of the NFS log through the web interface to the
E7000 does not allow the deletion of the log. The NFS log
delete option is located in the WebUI under Maintenance, Logs,
NFS Log, and then clicking the Clear button. After clicking the
Clear button, a confirmation screen appears. After clicking OK
to confirm the deletion, the following error message will appear:

Release Notes
6 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
"Error: There has been a sharing violation.
The source or destination file may be in use."
The administrator can delete the log after the Server for NFS
service is stopped.
Be aware that this will cause a service interruption to all users
trying to access NFS shares on the E7000.
1. Open the web user interface to the E7000.
2. Click Maintenance->Terminal Services and log in.
3. Right mouse click the My Computer icon and choose
Manage.
4. Open the Services portion of the management tree.
5. Select and stop the Server for NFS service.
You can now delete the log using the web interface as
instructed.
6. Start the Server for NFS service.
NFS administrative shares support
SFU does not work with administrative shares in the same
fashion as CIFS. By default, a volume drive such as C: is CIFS
shared as C$. This is an example of an administrative share and
is hidden from CIFS clients. If an NFS share is created and
named drive$, as in the example, the share will not be hidden
from NFS clients. This NFS share will act as a normal NFS
share.
Volume Mount Points support
Attempting to create an NFS share on a disk mounted on a
mount point will result in the error message:
“Cannot write IOCTL to NFS driver…”.

Release Notes
StorageWorks by Compaq NAS Exectutor E7000 Release Notes 7
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
StorageWorks NAS Executor E7000 supports many network-
sharing protocols, including the NFS protocol for UNIX and
Linux clients. Shares for which the NFS protocol will be
enabled must be created on Virtual Disks that are mounted on a
drive letter. Microsoft Windows-Powered OS supports
mounting virtual disks onto mount points or reparse points
created on another disk already mounted on a drive letter.
Mount points enable the administrator to mount many disk
devices under a single drive letter, creating the appearance and
behavior of a larger disk drive with a contiguous namespace.
However, the Microsoft Services for UNIX (SFU) NFS Server
does not yet support the functionality of mount points.
All virtual disks to be used for NFS sharing should be mounted
on a drive letter, not on a reparse or mount point. If no NFS
shares will be created on a particular virtual disk, that virtual
disk can be mounted on a mount point instead of a drive letter.
User name mapping Japanese characters
User name mapping for the network file system (NFS) server does not
support Windows or UNIX user names containing Japanese
characters.The name of NFS client groups that are used by the NFS
server cannot contain Japanese characters.
NFS Share parameters cannot be changed after
taking a group offline
NFS Share parameters cannot be changed after taking its group
offline. An error will appear when attempting to edit the NFS
parameters in this manner.
"Error: The Path entered does not exist."
Workaround:
NFS Share parameters can be modified if the NFS resource is
taken offline individually, rather than as a group.

Release Notes
8 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
Take only the NFS share that you want to edit offline and then
change parameters.
1. Select Cluster Management from the WebUI.
2. Click Resources.
3. Click the radio button for the NFS resource being edited.
4. Click Take Offline.
5. Return to the Resources page and click the radio button for
the NFS resource being edited.
6. Click Parameters from the NFS resource properties page.
7. Edit the parameters and click OK.
8. Using Cluster Management in the WebUI, turn the NFS
resource to online.
Admin cannot list and map domain users and
groups for SFU mapping unless the SFU admin
is logged into the domain
The administator must log into the domain before mapping
domain users and groups. If the admin is not logged into the
domain, the domain user or group is not on the list of Windows
users or groups and cannot be mapped.
Password Synchronization will not work
correctly on a Domain Controller without an
Admin UI
The sfucustom.msi file located on the StorageWorks NAS E7000
at c:\SFU does not install an Admin UI for password
synchronization on a DC.
The Admin UI is used to set up:
•=Direction of password synchronization

Release Notes
StorageWorks by Compaq NAS Exectutor E7000 Release Notes 9
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
•=Encryption Key
•=Port Number
•=Password Sync retries
•=Unix systems to sync with
NOTE: NFS Authentication Tools and Password Synchronization can
be installed separately or together. The instructions follow.
To install Password Synchronization on the DC by itself (no
NFS Authentication Tools):
1. Allow the c:\WINNT\bin\SFU directory of the E7000 to be
shared.
net share SFU=C:\WINNT\bin\SFU
2. On the DC, connect to the share.
net use Z: \\NAS_machine_name\SFU
3. Change directories from the DC to the root of the connected
E7000 share.
cd /d Z:\
4. Run the install program on the DC.
OemSetup.msi ADDLOCAL=PasswdSync
SFUDIR=C:\SFU OEMINSTALL=TRUE SOURCELIST=Z:\
/l*v %temp%\sfusetup.log /q
5. Reboot the DC.
The DC must be rebooted manually after installing the password
synchronization piece to run correctly.
6. Run the Admin UI on the DC and setup password
synchronization.
7. Click Start->Programs->Windows Services for Unix-
>Services for Unix Administration.

Release Notes
10 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
To install NFS Authentication Tools on the DC by itself (no Password
Synchronization),Use the instructions outlined in the E7000
Administration Guide.
To install NFS Authentication Tools and Password
Synchronization on the DC:
1. Allow the c:\WINNT\bin\SFU directory of the E7000 to be
shared.
net share SFU=C:\WINNT\bin\SFU
2. On the DC, connect to the share.
net use Z: \\NAS_machine_name\SFU
3. Change directories from the DC to the root of the connected
E7000 share.
cd /d Z:\
4. Run the install programs on the DC in the following order.
a. OemSetup.msi ADDLOCAL=NFSServerAuth
SFUDIR=c:\SFU OEMINSTALL=TRUE
SOURCELIST=Z:\ /l*v %temp%\sfusetup.log /q
b. OemSetup.msi ADDLOCAL=PasswdSync
SFUDIR=c:\SFU OEMINSTALL=TRUE
SOURCELIST=Z:\ /l*v %temp%\sfusetup.log /q
5. Reboot the DC. The DC must be rebooted manually after
installing the password synchronization piece to run
correctly.
Disconnected Client Telnet Session can cause
the SFU GUI to hang
If a client Telnet session is forcibly disconnected from the E7000
while the SFU GUI is open, the SFU GUI can hang and become
unusable. To get around this, stop the SFU GUI on the E7000
using Task Manager and reopen the SFU GUI.

Release Notes
StorageWorks by Compaq NAS Exectutor E7000 Release Notes 11
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
How to read SFU Help
When browsing to the SFU help under the documentation menu
branch, the browser prompts for action on downloading an
executable. Download this self-extracting zip file and allow it to
unzip to a temporary directory. Go to that directory and open the
svcsunix.chm file to view the help for Microsoft SFU.
Storage, SAN, and Switching
LUN Identification
To identify LUN - Pool mapping, the administrator should:
1. Open Snapshot Manager (SWVR).
2. Click Start->Programs->COMPAQ SANworks Virtual
Replicator->Snapshot Manager.
3. Select the pool. Right click and select Properties. Select the
Storage Units tab. Note the disk number(s) in the pool.

Release Notes
12 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM

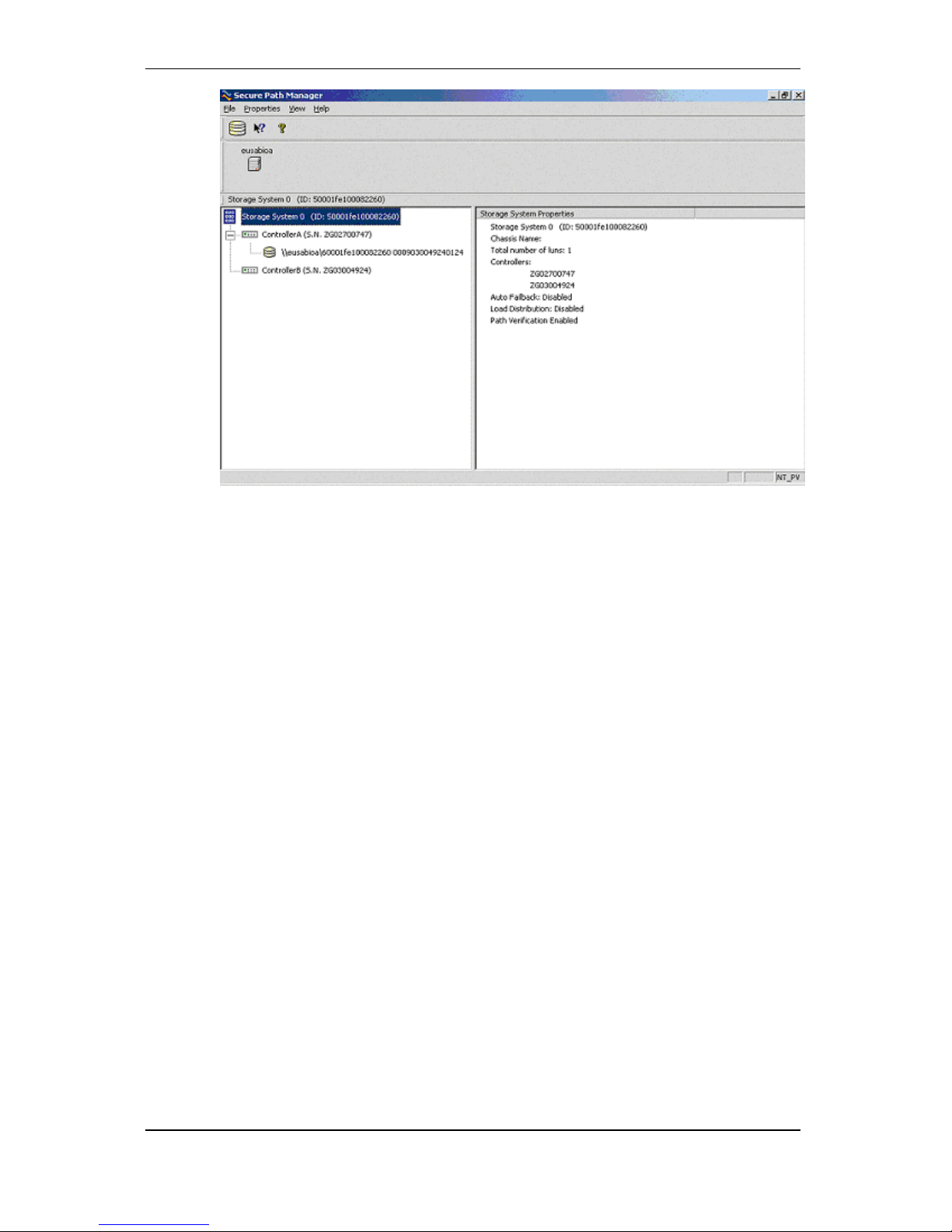

4. Open Secure Path.
5. Click Start->Programs->Secure Path->SPM.
6. Log in to Secure Path Manager.
7. Expand the tree by double clicking the Storage System icon
and clicking the + sign next to the controller icon.
All LUNs should now be present.
8. Click View->Device Identification->WINNT->Disk
Number.
This view displays the disk number that correlates to the disk
number previously noted. Make a note of where the LUN is
located within Secure Path that you are trying to track.

Release Notes
StorageWorks by Compaq NAS Exectutor E7000 Release Notes 13
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
9. Click View->Device Identification->WINNT->UUID.
This view displays the UUID that matches the LUN ID on the
SAN.

Release Notes
14 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
The first 16 digits refer to the WWN number of then SAN
that the LUN resides. The last 16 digits refer to the unique
LUN ID for that particular LUN. This number can be used to
track the LUN back to the SAN. First track the WWN of the
SAN. (First 16 digits if the UUID number) Keep in mind
that all SANs have a unique WWN number and that the
number will begin with a 6000. For example, the UUID is
6000 1fe1 0008 2260 0009 0300 4924 0124. The WWN for
the SAN correlates to the first 16 digits of the UUID, or
6000 1fe1 0008 2260. However, you need to change the
6000 to a 5000 so the WWN that you are looking for is 5000
1fe1 0008 2260. The final step will isolate the LUN within
the SAN, making the search simpler.

Release Notes
StorageWorks by Compaq NAS Exectutor E7000 Release Notes 15
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
10. Click View->Device Identification->WINNT-
>Bus,Target,LUN.
This view displays the target-bus-LUN for the LUNs. The last
number, the LUN, represents the unit number on the SAN. In the
screen below, the LUN is D1.
SAN Connection Process
The process of configuring the StorageWorks NAS E7000 with
the correct software for a particular SAN configuration is
accomplished via a WEB interface and an automated installation
process. This automated process and interface do not yet account
for updates or changes to the SAN configuration after the initial
setup.
IMPORTANT: If it becomes necessary to make updates, corrections, or
changes of any type to the SAN configurations originally specified in the
SAN Connect process of the WEB interface, the existing SAN drivers and
support software must be manually uninstalled before running the SAN
Connect process again.

Release Notes
16 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
To make changes to the SAN specifications, the administrator
must execute a manual process, outlined below, to remove all
SAN drivers and support software, not just the items that are
changing. This complete uninstall and reinstall process
guarantees compliance with the various dependencies and load
order rules among the software components and drivers.
The process for changing the SAN Connection settings is
summarized below:
1. Verify that there is a known good backup of the NAS
device's data.
2. Disconnect the fiber cable or cables from the NAS device's
HBAs.
3. Connect to the NAS device's WEB Interface.
(http://NASname:3201)
4. Select Maintenance from the WEB interface's left menu.
5. Select Terminal Services to launch a console window on the
NAS device.
6. Log in as administrator on the console of the NAS device.
7. Open the Control Panel using Start -> Settings->Control
Panel.
8. Open Add/Remove Programs.
9. Select StorageWorks Large LUN Utility and remove it.
10. Select Secure Path software and remove it.
11. Select StorageWorks FC Switch or Hub support software
and remove it.
12. At a Run command, type:
Regedit

Release Notes
StorageWorks by Compaq NAS Exectutor E7000 Release Notes 17
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
13. Navigate to the following drive:
Hkey_Local_Machine\Software\Compaq\StorageWorks
NAS.
14. Set the PRSState to –1.
15. Reboot.
After all software is uninstalled and the system is rebooted, re-
run the SAN Connect process, as outlined below and detailed in
the release notes section titled SAN Connection:
1. Verify that the SAN is not connected to the fiber HBAs in
the NAS device.
2. Connect to the NAS device's WEB interface
(http://NASname:3201).
3. Select the SAN Connect item from the left menu.
4. Answer questions about the specifics of the SAN.
5. Monitor the automated process that installs correct software
and reboots.
6. Physically connect the fiber cables to the NAS device when
prompted.
Hub and loop switch restrictions
Fibre channel hubs and loop switches are supported for use with
the StorageWorks NAS Executor E7000. However, there are two
restrictions that an administrator should be aware of.
1. LUNs that were created using the ACS 8.5 firmware are not
visible or manageable in SecurePath 3.1A. This means that
SecurePath cannot be used to administer these LUNs, and
that multiple data paths for a no single point of failure
(NSPOF) configuration will result in multiple instances of
the physical device.

Release Notes
18 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
To work around this, the administrator must delete all the
LUNs created with the ACS 8.5 firmware, then re-create
them using the ACS 8.6-1 firmware.
2. Using SecurePath 3.1A, fibre channel arbitrated loop
(FCAL), and ACS 8.6-1 firmware, LUNs cannot be
numbered higher than 63. LUNs D0 through D63 are
available for use, but LUNs D64 through D99 are not.
Support For Enterprise Virtual Array
To use Enterprise Virtual Array storage with the NAS Executor
E7000, you must download a softpaq and solutions paper from
www.compaq.com/products/storageworks/e7000/index.html
The softpaq includes updated support software for the Enterprise
Virtual Array;the solution paper describes how to install the
update, and details best practices for using the Enterprise Virtual
Array with the StorageWorks NAS Executor E7000.
After installing the SoftPaq, return to the SAN Connection
Wizard and finish the initialization.
Cluster Agent Activation
If the StorageWorks NAS Executor E7000 server is part of a
cluster, the Compaq Insight Manager Cluster Agent must be
activated. The Cluster Agent allows administrators to monitor
the state of the cluster and the cluster resources from Compaq
Insight Manager.
To activate the agent click Start->Settings->Control Panel-
>Compaq Management Agents and add the clustering agent to
the active agent list.

Release Notes
StorageWorks by Compaq NAS Exectutor E7000 Release Notes 19
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
Cluster Setup Tool
Cluster Setup Tool screens lose focus
The Cluster Setup Tool opens multiple screens during the
process of installing cluster software. The focus can get lost
when a new screen opens. Verify your screen by reading the
hostname or screen title at the top of the page before proceeding
to the next step in the Cluster Setup Tool.
Cluster Setup Tool requires a Gateway
The Cluster Setup Tool requires you to enter a Gateway when
entering a static IP address. Simply copy the current IP address
into the Gateway address field.
Quick Restore Process
Quick Restore Removes all Data on the local
disks
When Help is selected from the QR CD 1, the only text
displayed is:
Storage Works NAS Quick Restore - Compaq
Appliance : Storage Works NAS E7000 - Press C
to continue
After pressing C, the contents of the local drives will be erased.
The system is then be restored to factory state using the Quick
Restore process.

Release Notes
20 StorageWorks by Compaq NAS Exectutor E7000 Release Notes
COMPAQ CONFIDENTIAL
Writer: Doug Warren File Name: 261259-002.doc
Codename: Eusebio Part Number: 261259-002 Last Saved On: 4/29/02 9:42 AM
SANworks Virtual Replicator
Disk Defragmenter does not work on SWVR
volumes
A portion of the Windows 2000 operating system related to disk
access does not function with SWVR managed disks. This
includes the disk defragmenter program included with Windows
2000.
LVM Defaults to Dynamic Disk
Microsoft Logical Volume Manager (LVM)prompts you to
upgrade to Dynamic disk type. Do not upgrade any Virtual
Replicator created disks to Dynamic type. Press Cancel and
manage your volumes.
Network Disks
The current NAS Executor E7000 implementation of SWVR
does not support network disks. Do not attempt to install this
feature on top of the NAS Executor E7000 image.
Lifeguard and Snapshots
Lifeguard is a service that deletes snapshots automatically when
the amount of pool space in a pool has been exhausted. The
Lifeguard service is a safety mechanism that prevents pool space
depletion. If the pool's snapshot space is depleted because of a
heavy load, blue screens and data corruption could occur. A
snapshot should therefore be viewed as transitory because it can
be deleted at any time without user notification. Refer to the
StorageWorks NAS Executor E7000 by Compaq Administration
Guide for details about the Lifeguard service.
