COMPASS HEALTH TENS 7000 User manual

The purpose of this guide is to assist you in correctly operating your TENS 7000™ unit. Do not use
this device for undiagnosed pain symptoms until consulting a physician. This guide is not intended
to replace or substitute the TENS 7000™ Instruction Manual. PLEASE READ THE INSTRUCTION
MANUAL COMPLETELY BEFORE USING THIS DEVICE. Read, understand and practice the
contraindications, warnings, cautions and operating instructions found on pages 4 –5 of your instruction
manual. Always follow the operating instructions as listed in the manual.

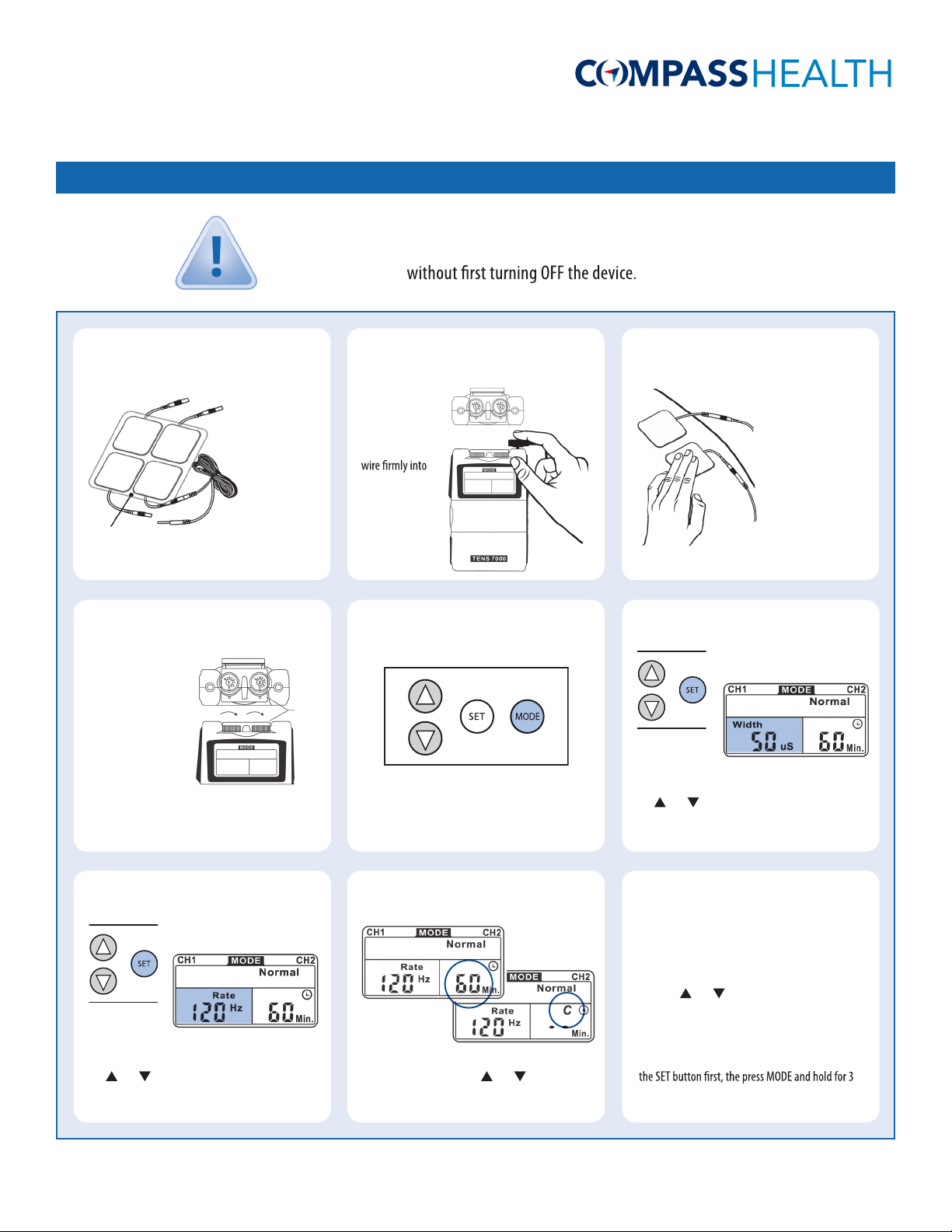

QUICK REFERENCE GUIDE PAGE 1
1
2
Top
Side
Front
3
4
5
6
7
8
9
10
Lead connector sockets - 2 channels
On / / intensity dial - 2 channels
Panel cover with reference guide
Liquid crystal display (LCD)
Mode selection button
Set selection button
Increment control / increase button
Increment control / decrease button
Protective cover
Belt clip
1
2
3
4
5
6
7
8
9
10
TENS 7000™UNIT
For more information about your TENS 7000™ unit, please visit us online at www.compasshealthbrands.com or call 1-800-376-7263.
*The battery included is designed to be a starter battery. This battery is only
intended to last 30 minutes to one hour before needing to be replaced.
The placement of electrodes can be one of the most
important parameters in achieving success with TENS
therapy. If the initial results are not positive, speak to
your physician about alternative stimulation settings
and/or electrode placement. Once desired results are
achieved, mark down the electrode sites and settings
for future reference.TheTENS 7000™ features two
protective covers that prevent unintentional changes
to settings.
Turn on device by rotating the dial clockwise and
select the desired intensity level.
device by turning dial counterclockwise to O.
Low battery indicator signals when battery is
low. Replace battery when stimulation feels weaker.
SPECIAL FEATURES INSERT BATTERY
Press arrow and slide
battery compartment
cover open. Insert
9V battery*, matching
the + and – ends to
those in unit.
The battery should be
placed on top of the
compartment ribbon
to allow easy battery
removal.
LEAD WIRES
ELECTRODES
TENS 7000™

2CONNECT LEAD WIRES
TO DEVICE 3PLACE ELECTRODES ON SKIN
4TURN DEVICE ON AND
SELECT INTENSITY 6SELECT PULSE WIDTH
The pulse width is adjusted from 50us to 300us.
Press the SET button to enter this menu, then press
the and buttons to adjust the setting.
Unless otherwise instructed, a setting of 70-120us
is suggested.
7SELECT PULSE RATE 8SET THE TIMER
The treatment time is adjustable from 1 to 60 minutes,
or Continuous (C). Press the and buttons to
adjust the setting.Your settings will be stored
permanently unless they are adjusted again.
5SELECT
THERAPY MODE
This unit can store 60 sets of operation records.The
total treatment time can store up to 999 hours.
To check and/or delete individual records, press
the MODE button as you turn on the device. The LCD
will show the number of records and operation time.
Press the and buttons to check each record.
To delete a record, press and hold the SET button for
3 seconds.
To check and/or delete the accumulative record,
press the MODE button to switch to this setting. Press
seconds; all of the records will be deleted, followed by
the sound of a beep.
COMPLIANCE METER
Please see page 26 of your TENS 7000™ Instruction Manual for troubleshooting tips.
PROBLEMS WITH YOUR DEVICE?
Steps 1–3 should be performed with the device turned OFF.
Once the unit has been turned ON, do not remove the belt
IMPORTANT!
QUICK REFERENCE GUIDE PAGE 2
There are 5 modes available: Burst, Normal,
Modulation, SD1 and SD2. Press the MODE button
and continue to press until you have reached your
desired setting.
1CONNECT LEAD WIRES
TO ELECTRODES
The stimulation output will increase as the dial is
turned clockwise or to a higher number.
1 = Weaker 8 = Stronger
By turning the
controls clockwise,
the appropriate
channel is switched
on and the indicator
of power (CH1 and
CH2) is revealed in
the LCD.
The pulse rate is adjusted from 2Hz to 150Hz.
Press the SET button to enter this menu, then press
the and buttons to adjust the setting. Unless
otherwise instructed, a setting of 70-120Hz
is suggested.
ON/
Increase
Select one of
the two available
channels and
insert the lead
the socket.
Firmly insert
the end of
the lead wire
pin into the
electrode
connectors.
Make sure the connection is complete and
no bare metal of the pins is exposed.
Remove electrodes
from protective
backing. Keep backing
to properly store
electrodes after use.
Before applying
electrodes, make
sure the skin at the
application site is
clean and dry.
See Electrode Placement Guide for more information.
TENS 7000™
3474.21.08.A ©2021 Compass Health Brands Corp.
