Compass Model SPORT X User manual

Compass Features :
-Precision 120° ECCPM swash plate
-Wear resistant parts
-Low parts count
-Simple maintenance with easy access
-80% preassembled kit
With features like, painted fiber canopy, Anti rotation guide, Aluminum hub, metal swash
plate the Sport X not only looks great but is a cheap way.
Copyright Compass Model 2008
As we continue to improve our products; this manual may not reflect all recent product amendments.
For more information, please refer to www.compassmodel.com
SportX
Assembly Manual
Version 1.0
Created : 06/24/2009

.

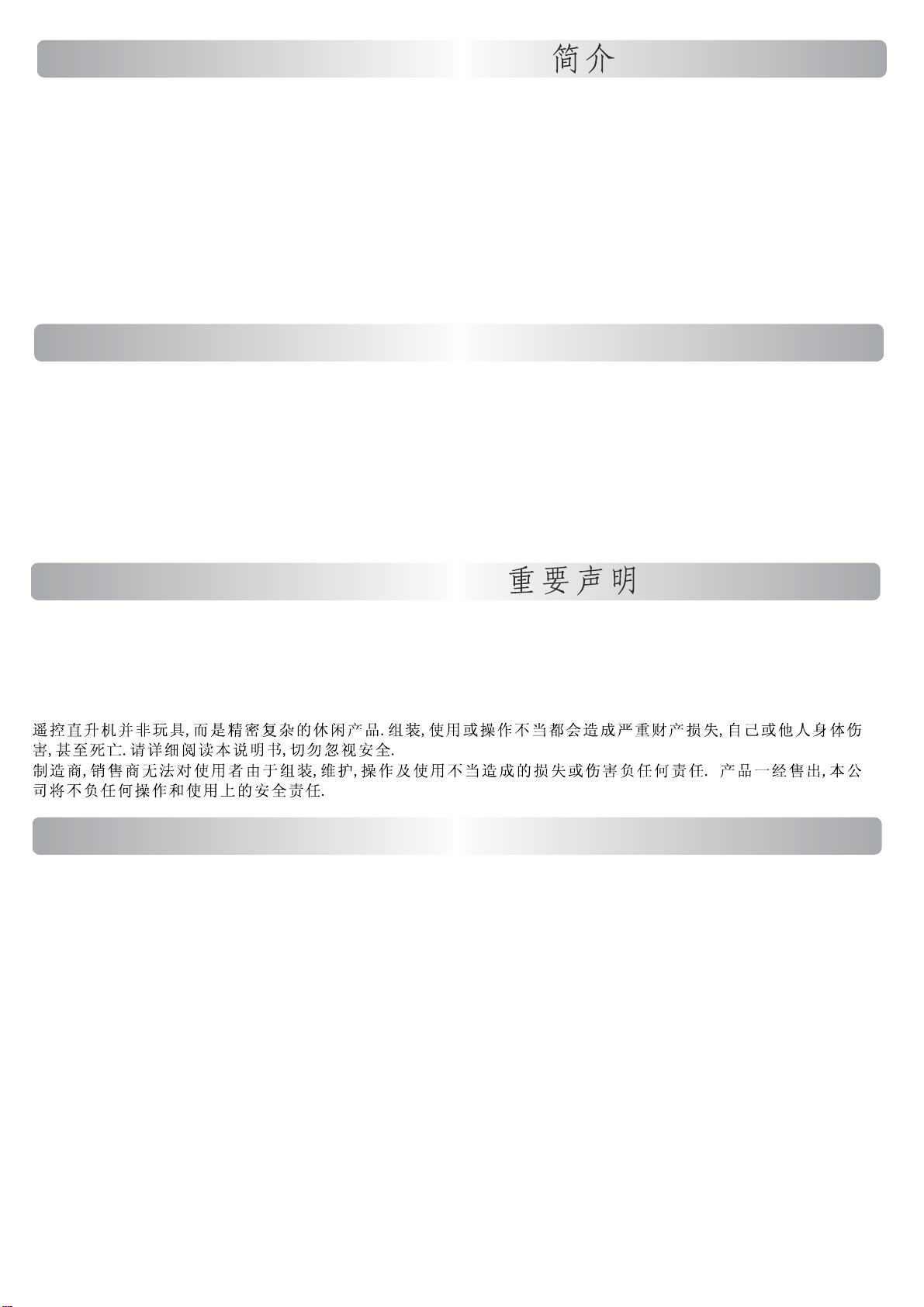

This radio controlled helicopter model is not a toy. It is a sophisticated piece of equipment for hobby use only.
Improper operation or assembly of this product can cause serious injury or death for both operator and spectators. This
product is not recommended for use by children.
Manufacturer and Sellers assume no responsibility for using and operating this product. The customer must take
full responsibility for the safe operation of this product.
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN47302
Introduction /
Warning /
Warranty / 
AMA Information
Compass Model Limited Warranty
The warranty covers defects in material or workmanship or missing components to the original purchaser for 30 days from
the date of purchase. Compass Model will replace or repair, at our discretion, the defective or missing component. Defec-
tive components must be returned to us prior to replacement. Any part, which has been improperly installed, abused, crash
damaged or altered by unauthorized agencies, is not covered. Under no circumstances will the buyer be entitled to conse-
quential or incidental damages. The components used in this kit are made from special materials designed for special
applications and designed strengths. We recommend that all replacement parts be original parts manufactured by Compass
Model, to ensure proper and safe operation of your model. Any part used which was manufactured by any other company
than Compass Model, VOIDS all warrantees of this product by Compass Model.
Compass Compass
Compass
Compass
Compass
 。30， 
。 。，，
， 。 ，。
， 。
We strongly encourage all prospective and current R/C aircraft pilots to join the Academy of Model Aeronautics. The AMA is a non-
profit organization that provides services to model aircraft pilots. As an AMA member, you will receive a monthly magazine entitled
Model Aviation, as well as liability insurance plan to cover against possible accident or injury. All AMA charter aircraft clubs require
individuals to hold a current AMA sporting license prior to operation of their models.
For further information, you can contact the AMA at:
1
Thank you for choosing the Sport X and welcome to Compass Model. The Sport X has been designed to offer outstanding
performance. Same as other compass products, Sport X is powerful, stable, agile as well as accurate. The frame layout has
been designed to create an extraordinarily rigid platform which is both durable and further improved control accuracy. The
simple layout features light weight, low parts count and raise the center of gravity. Please read the complete manual before
assembly. Please take careful note of all precautions and assembly tips. Please also keep the manual as a reference for part
numbers and reassembly following maintenance.
Compass compass 。  ，，，
。   。
，。
Sport X
Sport X

R/C Helicopter Safety / 
A model helicopter must be built exactly in accordance with the assembly instructions. The kit manufacturer has spent
much time and effort refining his product to make it reliable in operation and easy to build. Vibration and stress levels are
high and all fasteners and attachments must be secure for safe operation. Safe operation is the responsibility of the buil-
der/flyer and starts with careful construction and continues with selection and installation of reliable radio equipment and
engine. The need for safety is nowhere greater than at the flying field. A number of guidelines for safe flight have been
developed by experienced flyers and are set down here. It is urged that they be read, understood and followed.
Guidelines for Safe R/C Helicopter Flight
•Fly only at approved flying fields and obey field regulations.
•Follow frequency control procedures. Interference can be dangerous to all.
•Obtain assistance from experienced pilots.
•The Guidance provided by experienced pilots is valuable and sometimes necessary.
•Know your radio. Check all transmitter functions before each flight.
•Be aware that rotating blades are very dangerous and can cause serious injury.
•Never fly near or above spectators or other modelers.
•Do not fly r/c helicopter models near buildings, high voltage cables, trees or other obstacles.
•If a beginner, get help trimming the model first and flight training later.
•Don’t “track” the main blades by holding the tail boom. This is a temptation to builders who cannot hover yet
and is very dangerous.
•Follow all recommended maintenance procedures for model, radio and motor.
Warranty Procedures / 
If service is required, send the component in question (if not missing) together with a photocopy of your bill of
sale and an accurate description of the problem and part. Ship components fully insured and prepaid. Compass
Model is not responsible for any shipping damages. We will, at our discretion notify you of any costs involved
you are required to pay all postage, shipping and insurance charges.
Compass
compass
，  ，
 。 。
。 。
。。。 
。。
：
*，。
*， ，。
*，。
*。
*，。
*，。
*
*，，，
*，。
*。
*，。

In
,
Necessary items /
50 size Engine
50 
50 size Muffler
50 
A R C Heli Model used
Radio, 5 servos and 1 Gyro
is needed.
/



Length 600mm
Hole Diameter 4mm
Thickness 12mm

Standard Equipment 
Canopy Frame Set Rotor Head
Step 1 Step 5
Step7& 8
Long items
Step 2 Step 3
Step 6
Step 9
This model is packed according to assembling steps. Do not open all the bags at one ttime. Open only one bag for each step
of assembly when building. 。， 
。
Order of Switch on/off / 
When switching the R/C system On or Off, always proceed in the following order:
When switching On:
Place the throttle control stick into motor stop position.
Turn on the transmitter.
Turn on the receiver.
Start the engine.
Operate your model.
When switching Off:
Turn off the motor (place the throttle control stick into motor stop position.)
Shut down the engine
Wait until the rotor head has stopped spinning.
Turn off receiver.
Turn off transmitter.
:
:
.
.

.
.
:
.
.
.
.
.

010 20 30 40
Use AB Glue 
1Landing Gear / 
Skid Cap
A
B
M3x5 Set Screw X 4

A
B
M3x18 Cap Head Bolt
x4 
3mm Washer X 4
 M3x18 Cap Head Bolt

3mm Washer

010 20 30 40
2Main Gear / 

Skid
Struts

M3 Nylon Nut
M3x5 Set Screw


M3 Nylon Lock Nut
x4 
M3 Nylon Lock Nut
x1 
M3x28 Cap Head Bolt
x1 
Use Threadlock
Make sure mast collar is tightened
securely onto the mast. Double-check
to make sure the mast lock collar is
properly seated onto the mast and
main shaft can not move up or down.
Main Shaft

M3x 28 Cap Head Bolt
 MastCollar

M3Nylon Nut

M4x4 Set Screw

M4x4 Set Screw X 1


Paddle
Swash Plate
Main Grip
Apply Grease Here
Larger ID
(IN)
Smaller ID
(OUT)
Thrust Bearing Direction
Adjust so that each side has exactly the same length
010 20 30 40
M3x22 Cap Head
Bolt x1 
Use Threadlock
Main grips are factory preassembled, in case of reassem-
bling, be sure to note correct placement of large/small I.D.
washers during assembly.
3Rotor,Washout & Swashplate/
,.

M3x4 Set Screw

M3 Nylon Nut



M3x4 Set Screw x2

M3 Nut x1

Washout Link

B
A
B
A
M3x22 Cap Head
Bolt x1 
M3x10 Set Screw

Flybar Weight

M3x10 Set Screw x2


010 20 30 40
4Front Srvo Mount / 
Battery Tray

Front Servo Mount

M3x16 Self tapping bolt

M3x10 Self tapping bolt

M3x10 Self tapping bolt
x4 
M3x16 Self tapping bolt
x6 
M3x16 
a).M3x16 Self tapping bolts to fix the Battery Tray on the body
 M3x10
b).M3x10 Self tapping bolts to fix the Front Servo Mount on the body

010 20 30 40
Engine / 
Use Threadlock
5
M3x12 Cap Head Bolt
x2
Use AB Glue
A
B
M3 Washer x4

M3x16 Cap Head Bolt
x2 
M3x12Cap Head Bolt

Clutch
Nut from Engine

Pre Assembled inFactory

Engine Washer

Engine Mount

M3x16Cap Head Bolt

05-9001 Engine Tool

Hex Wrench

Compass Engine Tool is need to tight
the engine on the Fly Wheel
Note: Apply special engine tool when fixing Fan
Hub on he engine.And make sure Fan Hub Set is
Firmly tightened on the Engine.
t
,
.
Carburater 
3mm washer
M3x16 Cap Head
Bolt 

Insert the Engine set and fix the Engine
Mount with M3x16 Cap Head Bolt.
,
.
Finally install the Carburater.
.

010 20 30 40
Use AB Glue 
6Tail /
A
B
Blue Threadlock
 M3x30 Cap Head Bolt

M3 Nylon Nut

Vertical Fin Mount
 Tail Set 
Boom 
M3x35 Cap Head Bolt
x2 
Crimping belt damages the tensile cords and will result
in premature failure.
M3 Washer x4

M3 Nylon Lock Nut
x8 
M2.5x6 Cap Head Bolt
x2 
M3 Washer

M x Self-Tapping Bolt2.5 8

M3x30 Cap Head Bolt

Horizontal Fin

M3x40 Cap Head Bolt
x4 
M3x25 Cap Head Bolt
x4 
M2.5 x8 Self-Tapping
Bolt X 4 
A
B
Apply AB Glue on Boom Support .
!"#$%&'.
Team Tip :
Check tail rotor direction. Top
rotor blade moves to rear
At this point you will notice that the belt twists 90 degrees as it runs trough the tail
boom. Care must be taken to assure that the belt is twisted in the correct direction. The
key to this is to make sure the tail rotor rotates backward when the main rotor rotates
in the proper direction. If the tail rotor rotates incorrectly, twist the belt in the other
direction.
M3x35 Cap Head Bolt

M3 Washer

M3x30 Cap Head Bolt

M2.5 x8 Self-Tapping
Bolt X 4 
()，+,1467
Lug
9
Longer Groove
:
Tail Boom Gear Case
There are 2 grooves on the Boom. There is one
Lug on the Gear Case. Line Up the longer
groove with the Lug when assembling. ;
<=>?@DEIJKL.
 DEI
=>
KL
M3 Nylon Nut


010 20 30 40
7SERVO / 
M2.5x16 Self tapping
bolt x20 
Boom
Rudder Servo
.
2 5mm Washer.
M2.5x16 Self-Tapping Bolt
13.5mm
All control balls should to set at 13.5mm to
the center of the servo horn
 13.5
.


M2.5x16 Self tapping bolt

2.5mm Washer

010 20 30 40
8Equipment illustration / 


Regulator Gyro

/
/


 Ch6
Throttle

Receiver Battery

Throttle




Rudder Servo
Aileron Servo
Elevator Servo
Pitch Servo

Receiver

Battery

Gyro

010 20 30 40
9Phasing Setting / 
Main Grip
Phasing Control Ring 
Boom
Washout Arm 
Main Grip Washout Arm 
Parallel to the boom
.
.
.
Get the right phasing adjustment by turning the phasing control ring until the
Washout Arms and Main Grips both parallel to the Boom
Boom

Phasing Control Ring 

10 Electronic Setup/
Pitch

General Flight 
Throttle Pitch
5100% 10 deg
485%
370% 4~5deg
235%
10% -4deg
3D Style 3D 
Throttle Pitch
5 100% 10deg
4 6.5deg
3 0 deg
2 -6.5deg
1 100% -10deg
0%
20%
40%
60%
80%
100%
12345
0%
20%
40%
60%
80%
100%
12345
Throttle Curve
Throttle Curve
JR Futaba
Swash Type SWH
S3 120 SR3
Aile Elev Pitch
60% 60% 60%
Swash Type Setting

75%
75%
50%

The following linkage lengths indications are basic values which could vary
depend on used servos. Some fine adjustments are still needed in following setup
steps. ,.
11 Linkage/
26mm
4.5mm
Please cut mm from
each ball links.
4.5
4.5!.
If you find the Ball links are too tight
suggest use a Ball link sizing tool.
"#$%&',()*)+-
01.
49mm49mm
68mm 57mm
99mm 79mm
67mm
Do not apply plier to resize Ball
Links. Pliers could cause hidden
damage to Ball Links and hence result
in failure when operation.
，
。

E)Mixing Arm is set 3deg down to the flybar.
3
Flybar 
Mixing Arm
3
F) Install the main blade and set the Main Blade
to 0 pitch. 2 Ball Links might need to be cut
shorter to get the right pitch
Cut
Full
open
Full
close
Full
Throttle
Lowest
Throttle
90
G At the low throttle stick and the throttle trim
the carburetor hole should be completely close. At
full throttle stick, carburetor hole should be
completely open. Adjust the ATV in radio, or/and the
control horn position on the engine to achieve above
requirement. Make sure the servo does not bind at
any traveling point.
),
，。
 ，。。
H)At Rudder Middle Stick, Set Rudder Servo 90 degree to the tail link And Set Tail Blade to 7 deg Pitch.
,90,7.
， 0.


C) Adjust the link from the servo arms to the
swash plate to level the swash plate. Use a
compass swash Plate Tool as guide.
。
。
D) Set Washout Arms level. 
。
Washout Arm

SwashPlate

Horizontal

06-0501 Swash Plate
Tool 
Horizontal


00 10 20 30 40
00
Setup /
Parallel
Make sure the flybar control arm and paddle are in line as in the diagram.
Then start to setup.
Leave About 0.1mm Play between the
flybar collar and the flybar holder.
This could reduce the chance to snap
the flybar when flying.
0.1，
。
A) Turn on the radio, set throttle to middle position for 0 degree. Use the subtrim in radio program
to adjust all the servo to get control horn to the right angle.
SUBTRIM”,0,.“ 
。
B)Next is to adjust the links from servo to the L Arms (2on outisde of frame and 1in the middle of the
frame) so that the L arms are all Horizontal.
L，  ( ,)2L,
9
0
Parallel

Inner Arm
Outer Arm
Horizontal

Parallel


12

Aileron Check 
Mod 1 Mod 2 Swash PlateReaction
Tilt Left
Elevator Check 
Tilt Forward
Tilt Right
Tilt Backward
Rudder Check  Tail Pitch Plate
Slide left Slide Right
Pitch Check 
Swash Plate
Ascent 
Descent
00 10 20 30 40
00
13 Servo Direction Check/
Turn on the radio, position the heli tail point to yourself. Make sure radio
is set to 120 degree ccpm mode. Move the stick and check the reaction of the
Swash Plate, Throttle and Tail Pitch Plate.Adjust radio settings accordingly.
ccpm，。!" #$。%&'()*+
-34)5678。
9:;<=
9:;
&
>? @?
;
BE
FE
>E
@E

00 10 20 30 40
00
14
00 10 20 30 40
00
15 Rotor Direction /
When main blades turn clockwise, tail blades should turn clockwise when view from the tail fin side.
If not belt is installed incorrectly.
M3 Washer
M3x12 Socket
Head Bolt
Install the Canopy
onto the helicopter.




5. Check that main blades, paddles and tail blades are installed in the right direction.
6. Check that there are no missing or damaged parts, never fly with any damaged parts.
7. Make sure all electronic devices are firmly fastened and connected.
8. Before starting the motor, make sure the IDLE switch is OFF and throttle stick is in the low position.
9. Only turn off the transmisser after turning off the receiver.
ELDI
16
010 20 30 40
Tail blades rotation direction
1 . Ensure that receiver & transmitter battery are fully charged.
Checkallboltsandscrewsaretight
Repeat step 10 to check all servo functions are correct.
Ensuretailandgyrodirectionarecorrectlyset
Tail moving direction
Compass Model (Hong Kong Ltd)
www.compassmodel.com
