Comra Palm User manual
English Rev 1.1
Congratulations on your choice of coMra Palm –
the personal device for your daily health!
Over the following pages you will nd everything
you need to start using your new device. And no
worries – we promise it’s really simple!
OUR FUTURE OF HEALTH
coMra Palm
DRUG-FREE PAIN RELIEF
TISSUE REGENERATION
WHOLE BODY CONDITIONING
DEVICE LAYOUT AND TECHNICAL SPECIFICATIONS
TOP
REAR
BOTTOM
Start button/center point
Frequency button
Time button
Frequency and Time display area
Infrared laser
Colour LEDs
Magnets (internal)
Battery on/off switch
Battery charging LED
Micro USB charging port
1
1
2
3
4
5
6
7
8
9
10
5
6
7
9
8
2 3
4
10
23.5 mm
113.5 mm
63 mm
Power:5V --- 500 mA High Power USB port compatible
Battery: 450 mAh (lithium ion battery)
Low and over voltage protection circuit and special circuit
for battery efficiency and to preserve battery life & safety.
INFRARED LASER
Wavelength: 980 nm, Optical power: 5 mW (max)
LIGHT EMITTING DIODES
Wavelength: Red 650 nm, Indigo Violet 420 nm,
Yellow/Green 570 nm
Intensity: Red 300 mcd, Indigo Violet 240 mcd,
Yellow/Green 240 mcd
MAGNETIC FIELD STRENGTH:30 mT (max)
GETTING STARTED

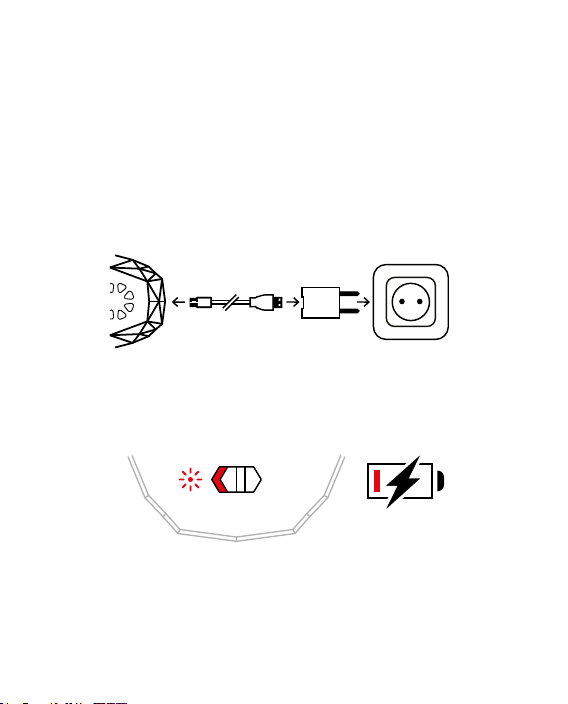

Plug the micro end of the USB cable into the
micro USB port at the rear of your coMra Palm,
and the other end into any powered USB port
(computer, laptop, powerbank, etc.), or a mains
electrical socket (using a suitable adaptor).
1hr
A red LED indicator next to the on/o switch
will light up and the battery will start charging.
1hr
When the battery is fully charged the red LED
indicator will switch o. A full battery charge
takes approximately 1 hour.
DOWNLOAD THE LATEST COMRA USER GUIDE
An app, listing over 200 treatable conditions,
can be downloaded for iOS and Android here:
x1
x1
2
sec
x2
x1
www.comra-palm.com/comra-app
Alternatively, you can get a printable PDF here:
x1
x1
2
sec
x2
x1
www.comra-palm.com/comra-userguide
Please read all the IMPORTANT information in
the coMra user guide, before using your coMra
Palm for the rst time.
USING YOUR COMRA PALM
Once you have downloaded the coMra user
guide to your smart phone, tablet or computer,
follow the instructions on the app (or search
the index on the PDF) to choose a treatment.
TREATMENTS
Enter dis-ease, condition or keyword
FOREWORD
BEFORE YOU START
OPERATING INSTRUCTIONS
COHERENT MULTI-RADIANCES
To power-up your coMra Palm, slide the on/o
switch to green.
1hr
Once on, the Frequency
1hr
and Time
1hr
buttons and corresponding display will light up.
1hr
Cycle through the two buttons to select the
time and frequency for your treatment as
shown in the coMra user guide.
Variable (V)
1K (1000 Hz)
50 Hz
5 Hz
10 mins
5 mins
2 mins
1 min
Start End1 min2 mins
5-4-3
mins
Variable 1000 Hz 50 Hz 5 Hz
1 min2 mins5 mins10 mins
Variable 1000 Hz 50 Hz 5 Hz
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U LTRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U LTRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50
Variable (V)
1K (1000 Hz)
50 Hz
5 Hz
10 mins
5 mins
2 mins
1 min
Start End1 min2 mins
5-4-3
mins
Variable 1000 Hz 50 Hz 5 Hz
1 min2 mins5 mins10 mins
Variable 1000 Hz 50 Hz 5 Hz
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U L T RASOUND (OFF)
Hz
1Top of sternum 1 50
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U L T RASOUND (OFF)
Hz
1Top of sternum 1 50
Place your coMra Palm onto the treatment
point, using the raised bump on the surface of
the Start
1hr
button as the centre point.
Variable (V)
1K (1000 Hz)
50 Hz
5 Hz
10 mins
5 mins
2 mins
1 min
Start End1 min2 mins
5-4-3
mins
Variable 1000 Hz 50 Hz 5 Hz
1 min2 mins5 mins10 mins
Variable 1000 Hz 50 Hz 5 Hz
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50
Press the start button to begin the program.
The sounder will beep and the start button
will light up and pulsate indicating that the
program is running.
x1
x1
2
sec
x2
x1
If you need to pause the program for any
reason, press the start button once. The start
button will ash on/o to indicate the program
has paused.
x1
x1
2
sec
x2
x1
To continue on from pause, press the start
button once again.
x1
x1
2
sec
x2
x1
When the selected time comes to an end,
two beeps will sound indicating the end of
the program.

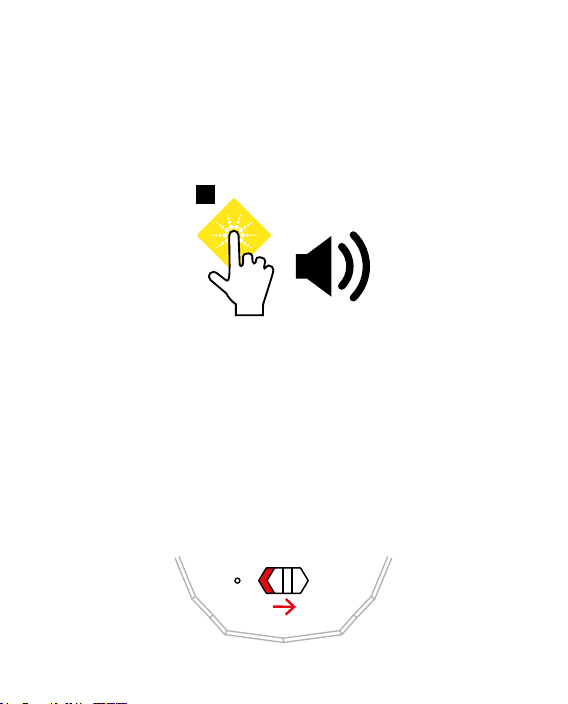

To terminate the program while the program
is running, press and hold the start button for
two seconds. Two beeps will sound, indicating
the termination of the program.
x1
x1
2
sec
x2
x1
Repeat the process for all the points on the
treatment plan.
When you have completed your treatment and
nished using your coMra Palm, slide the on/
o switch to red and power-down the device to
preserve battery life.
1hr

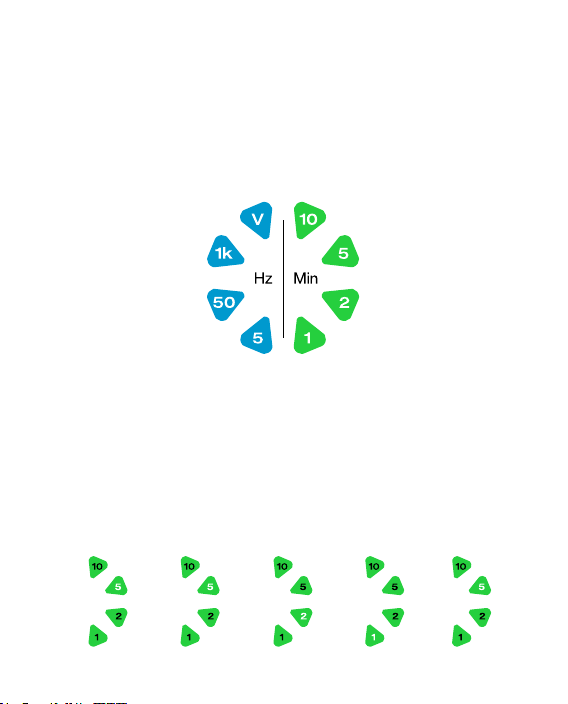

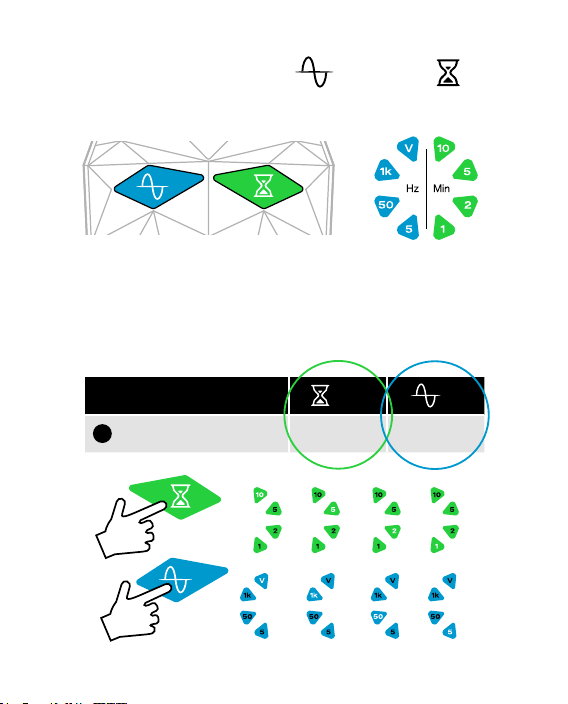

FREQUENCY AND TIME DISPLAY
There are four indicating triangles for the
frequency setting (hertz) and four indicating
triangles for the time setting (minutes).
Variable (V)
1K (1000 Hz)
50 Hz
5 Hz
10 mins
5 mins
2 mins
1 min
Start End1 min2 mins
5-4-3
mins
Variable 1000 Hz 50 Hz 5 Hz
1 min2 mins5 mins10 mins
Variable 1000 Hz 50 Hz 5 Hz
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U LTRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U LTRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50
Once a program has started, the in-built timer
will count-down and display the remaining
minutes left for the program. When nished,
two beeps will sound and the time indication
will revert back to the selected start time.
Variable (V)
1K (1000 Hz)
50 Hz
5 Hz
10 mins
5 mins
2 mins
1 min
Start End1 min2 mins
5-4-3
mins
Variable 1000 Hz 50 Hz 5 Hz
1 min2 mins5 mins10 mins
Variable 1000 Hz 50 Hz 5 Hz
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50
TREATMENT POINT
START/STOP FREQUENCYTIME U LTRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U LT RASOUND U LT RASOUND (OFF)
Hz
1Top of sternum 1 50

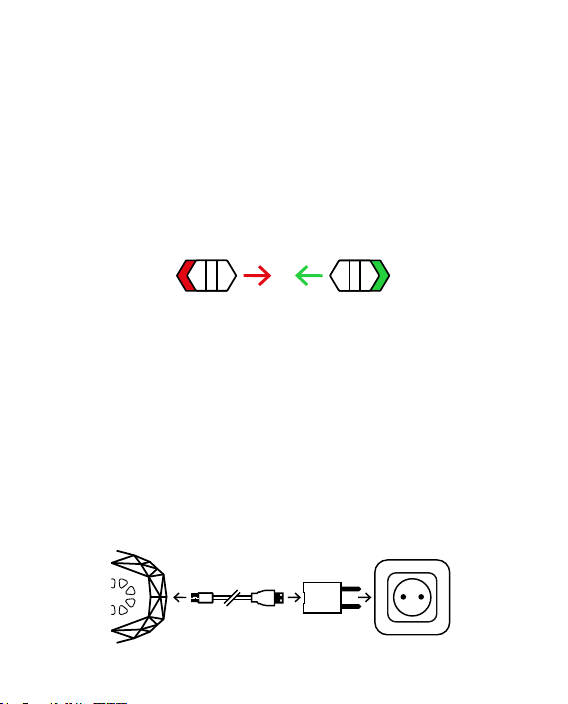

RECHARGING THE BATTERY
If your coMra Palm stops working during a
treatment program, it is an indication that
the battery is running out of charge. If this
happens, rst slide the on/o switch to red
and then slide back to green.
Variable (V)
1K (1000 Hz)
50 Hz
5 Hz
10 mins
5 mins
2 mins
1 min
Start End1 min2 mins
5-4-3
mins
Variable 1000 Hz 50 Hz 5 Hz
1 min2 mins5 mins10 mins
Variable 1000 Hz 50 Hz 5 Hz
TREATMENT POINT
START/STOP FREQUENCYTIME U L TRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U L T RASOUND U L T RASOUND (OFF)
Hz
1Top of sternum 1 50
TREATMENT POINT
START/STOP FREQUENCYTIME U L TRASOUND U L TRASOUND (OFF) EJECT
mins
S TART/STOP FREQUENCYTIME U L T RASOUND U L T RASOUND (OFF)
Hz
1Top of sternum 1 50
A three second continuous beep will conrm
if the battery needs charging. Slide the on/
o switch back to red and plug the micro end
of the USB cable into the micro USB port at
the rear of your coMra Palm, and the other
end into any powered USB port, or a mains
electrical socket (using a suitable adaptor).
1hr

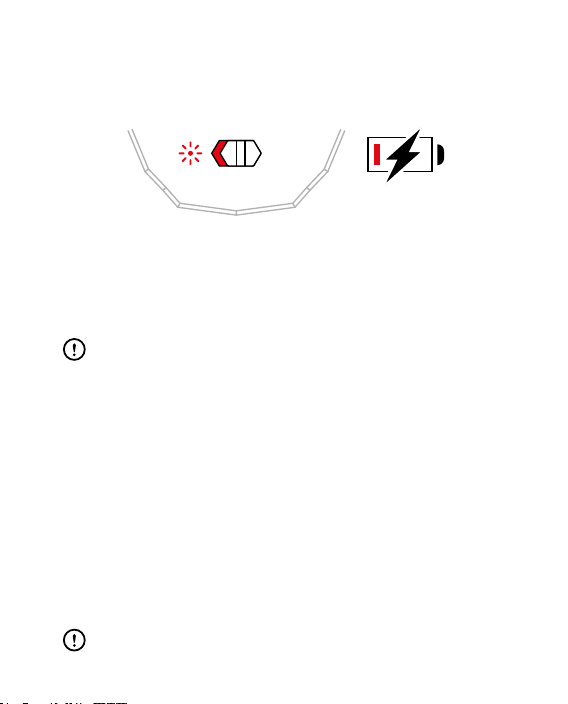

The red LED indicator next to the on/o switch
will light up and the battery will start charging.
1hr
When the battery is fully charged the red LED
indicator will switch o. A full battery charge
takes approximately 1 hour.
Your coMra Palm can be used while charging.
A full battery charge on your coMra Palm
should allow you approximately 30 mins of
daily treatment, for up to 10 days.
CLEANING YOUR COMRA PALM
Use a 3% solution of hydrogen peroxide, or
colloidal silver for disinfecting and cleaning
your coMra Palm.
Do not use alchohol for cleaning.
RADIANT LIFE TECHNOLOGIES®
INTERNATIONAL LIMITED WARRANTY
By this warranty, Radiant Life Technologies
guarantees this product to be free from defects
in design, material and workmanship at the
time of its original purchase by a consumer
and for a subsequent period of 18 months.
This guarantee does not cover damage or
defects caused by misuse or by failure to
comply with the product’s user guide.
REGISTER YOUR COMRA PALM TO ACTIVATE
YOUR 18 MONTH WARRANTY
x1
x1
2
sec
x2
x1
www.comra-palm.com/register
