COMSOL WMCS05 User manual

Model: WMCS05
4-in-1 Magnetic Wireless Charging Dock with
Removable 5000mAh Power Bank
AirPods must have
wireless charging
case
User Manual v1.1

Features
• Wirelessly charge an iPhone 14 / 13 / 12 series, Apple Watch,
AirPods or AirPods Pro.
Note: AirPods must have Wireless Charging Case
• MagSafe compatibility ensures perfect alignment of your
iPhone for optimum fast wireless charging every time
• Removable Apple Watch magnetic charger
• Removable 5000mAh MagSafe compatible wireless power
bank with kick stand can provide one full charge for an iPhone*
• Works with all MagSafe compatible iPhone cases
Note: Does not work with non-MagSafe cases
• Full safety protection with temperature control, voltage
regulation and short circuit protection
• Includes wall charger and 1.5m USB-C to USB-C cable

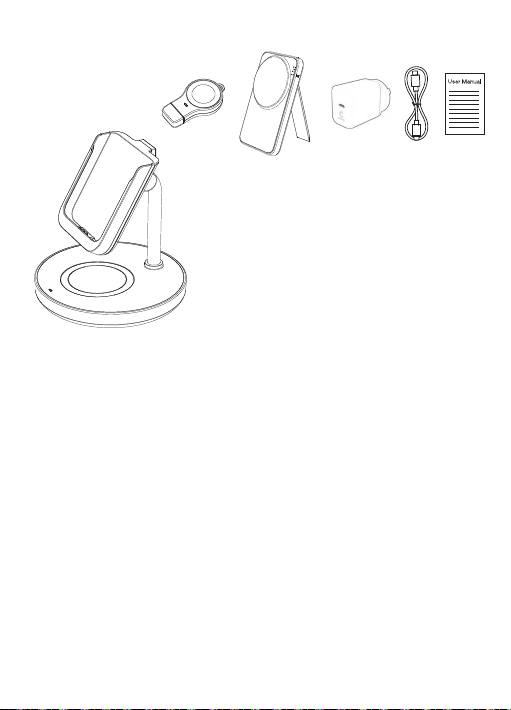

1 x Wireless Charging Dock
1 x Watch Magnetic Charger
1 x Wireless Magnetic Power Bank
1 x 30W USB-C PD Wall Charger
1 x USB-C to C Charge Cable
1 x User Manual
In the box
* One full charge based on an iPhone 12 Pro

2
1
3
4
5
6
7
89
10
11
12

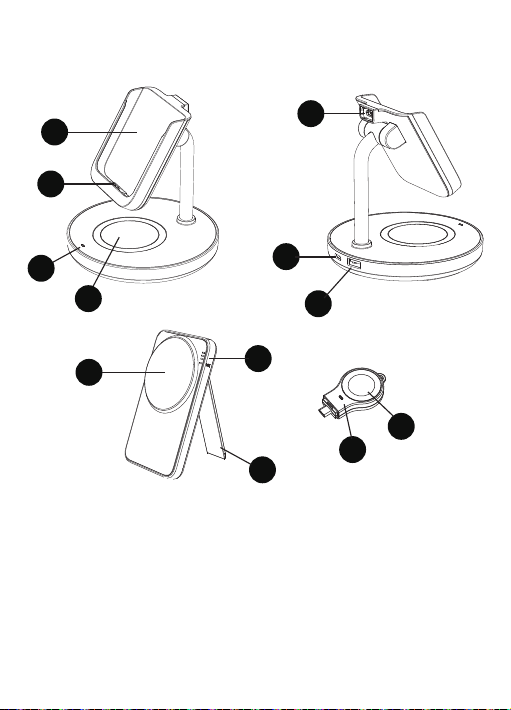

1. Wireless Charging Dock
2. Pogo-Pins
3. AirPods Charge Indicator LED
4. Wireless Charge area for AirPods
5. Watch Charging Input Port
6. USB-C Power Input Port
7. USB-A Output Port
8. Magnetic Phone charge area
9. Power Bank Capacity Indicator LEDs
10. Power Bank Kickstand
11. Removable Apple Watch Charger
12. Watch Charge Indicator LED
Product Diagram

Assembly
Out of the box assemble your wireless
charging stand and detachable Power
Bank. Simply insert the watch module
into the female USB-C port and
check the Power Bank is securely in
the dock and touching the Pogo-Pins
The magnetic phone charge module
should be facing outward. Connect one
end of the included USB-C cable to the
included wall charger. Connect the other
end to the USB-C Power Input Port on the
back of the dock Once power is
connected a steady Red LED will
illuminate on the base of the dock
and a steady green LED will illuminate
on the watch module to indicate the
dock is in standby
5
2
6
Charging Your Devices

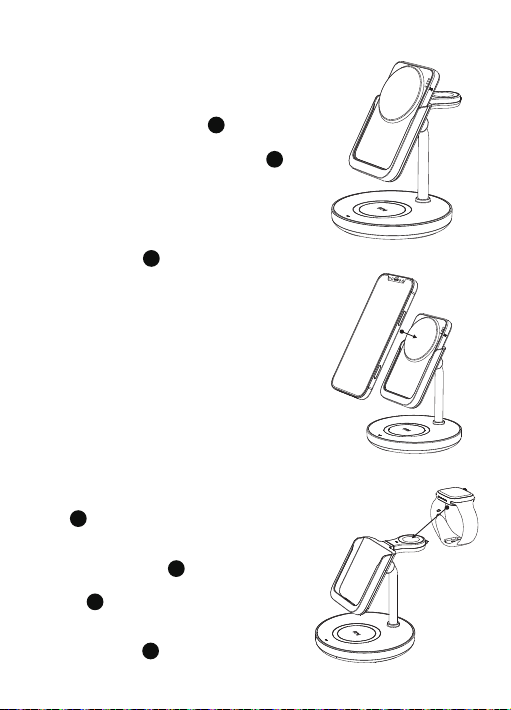

You can use the dock to charge your
iPhone, AirPods and Apple Watch at
the same time. Device charging starts
automatically once any device is
connected. To charge your iPhone,
simply place your iPhone near the
Magnetic charging area of the Power
Bank and the magnets will snap
your iPhone securely in place. Charge
your AirPods by placing them in the
Wireless charge area Charge your
watch by placing it on the watch
module You can also charge
another device using a USB-A cable
(not included) in the USB-A port on the
back of the dock
8
4
11
7

Removable Power Bank
When you are ready to go out, you can take the
Power Bank with you for on the go charging.
Simply slide the Power Bank out of the dock
The 5000mAh Power Bank can provide one full
charge to an iPhone before needing recharging*
The Power Bank can provide charge to your
iPhone using the MagSafe wireless charging
system. Place your iPhone near the Magnetic
charging area of the Power Bank and the
magnets will snap your iPhone securely in place
The Power Bank can also provide
charge via a cable to other mobile
devices (not included) using its
USB-C port.
The handy kick stand allows you
to use the power bank as a
portable phone stand while you
recharge. Your phone can be
charged in either Portrait or
Landscape orientation
Charging the Power Bank
At the end of the day, always place your Power Bank back in the
dock and it will automatically re-charge
The Power Bank can also be recharged separately using a USB wall
charger and USB-C cable connected to the top of the Power Bank
The Power Bank has an On/Off switch on the side. Press this button
once to turn the Power Bank On and Press the button twice to turn
the Power Bank Off

Docking Station Base LED
Solid Red: Powered Standby
Solid Green: AirPods Charging
Red / Green Flashing: Obstruction
Watch Charger LED
Solid Green: Powered Standby
Slow Pulsing Green: Watch Charging
Power Bank LED
3 x Solid Green: Power Bank Fully Charged
Flashing Green: Power Bank Charging
1st LED Flashing: 1% - 33% Charged
2nd LED Flashing: 33% - 66% Charged
3rd LED Flashing: 66% - 100% Charged
Power Bank Wireless Charging LED
Slowly Pulsing Blue: Wirelessly Charging iPhone
Flashing Blue: Obstruction
LED Status
• Battery Capacity: 5000mAh
• Watt Hour: 19.25Wh
• USB-C Input: 5V/2.4A 9V/2A 12V/1.5A
• USB-C Output: 5V/2.4A 9V/2.22A 12V/1.5A (Max 20W)
• Wireless iPhone Output: 10W / 7.5W / 5W
• Total Output: 20W
Power Bank Specifications

Docking Station Specifications
• Wireless Standard: WPC/Qi (v1.2.4)
• Input: USB-C 30W
• Wireless iPhone Output: 10W / 7.5W / 5W
• Apple Watch USB-C Input: 5V/1A (5W)
• Apple Watch Output: 2W
• Wireless AirPods Output: 5W
• USB-A Output: 5V/1A (5W)
• Total Output: 17W
• Working Frequency: 110 to 205KHz
• Charging Distance: Up to 6mm
• Charging Efficiency: >70%
• Size: 166mm (H) x 127mm (W) 127mm
• Weight: 556g
• Certifications: RCM, RoHS
• When wirelessly charging a device, the wireless charger and your
device may feel warm. This is a normal operating condition and
should not be cause for concern.
• Only use the original wall charger and cable that was supplied with
the charging dock
• Only use the product for the specified purpose of use
• Do not get wet to avoid causing short circuit damage and leakage
• Do not use in extreme hot, humid or corrosive environments to avoid
short circuit damage and leakage
• Do not place too close to magnetic strip or chip ID card to avoid
magnetic failure
• Do not place within 20cm of implantable medical devices
(pacemaker, cochlear implant etc.) to avoid potential interference
• Do not clean with harmful chemicals or detergents
• Misuse, dropping or excessive force may cause damage to the
charging dock
• Do not use the product if it is damaged or emits a suspicious odour
• Unplug the product from power sources when not in use
Important Safety Instructions

iPhone, AirPods and Apple Watch are
trademarks of Apple Inc., registered in the
U.S. and other countries.
USB-C is a trademark of USB
Implementers Forum.
Made in Chinawww.comsol.com.au
