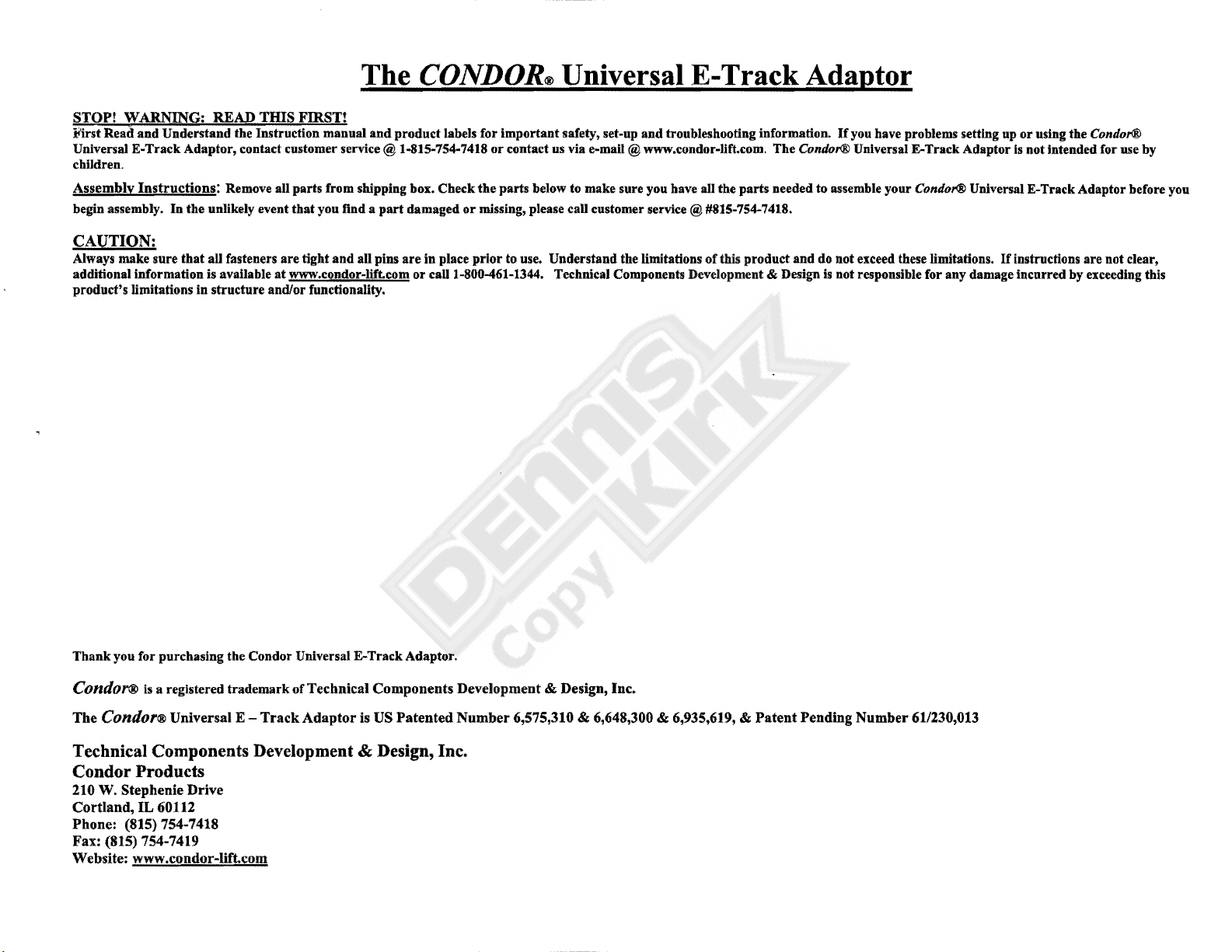

The
CONDOR®
Universal
E-
TrackAdaptor
STOP!
WARNING:
READ
THIS
FIRST!
ii'irst Read and Understand the Instruction manual and productlabels for important safety, set-up and troubleshooting information.
If
you have problems setting up
or
using the Condor®
Universal E-TrackAdaptor, contact customer service@ 1-815-754-7418
or
contact
us
via e-mail @www.condor-lift.com. The Condor® Universal E-Track Adaptor
Is
not intended for use by
children.
Assembly
Instructions:
Remove all parts from shipping box. Checkthe parts below to make sure you have all the parts needed to assemble your Condor® Universal E-Track Adaptor before you
begin assembly.
In
the unlikely event thatyou
find
a part damaged
or
miSSing,
please call customer service@#815-754-7418.
CAUTION:
Always make sure that all fasteners are tight and all pins are in place priorto use. Understand the limitations
of
this product and do notexceed these limitations.
If
instructions are not clear,
additional information is avallable
at
www.condor-lift.com or call 1-800-461-1344. Technical Components Development & Design is not responsible for any damage incurred
by
exceeding this
product's limitations in structure and/or functionality.
Thankyou for purchasing the Condor Universal E-TrackAdaptor.
Condor® is a registered trademark of
Technical
Components
Development
& Design,
Inc.
The
Condor®
Universal
E -
Track
Adaptor
is US
Patented
Number
6,575,310 & 6,648,300 & 6,935,619, &
Patent
Pending
Number
61/230,013
Technical Components Development & Design, Inc.
Condor Products
210
W.
Stephenie
Drive
Cortland,
IL
60112
Phone:
(815) 754-7418
Fax: (815) 754-7419
Website: www.condor-lift.com
User Instructions
Figure 2
Be sure
to
have your E-Track center-to-center
distances
no
less than the width
of
your Condor
Chock and
no
farther apart than 46". The
Universal E-Track Adaptor
is
capable
of
adjusting
Figure 1
The CONDOR Universal E-Track adaptor Includes.
(a)-(1) 22.5"
Large
Square
Tube
WlHoles
(b)-(1)
15"
Small
Square
Tube
No Holes
(c)-(3)
E-Track
Mounting
Brackets
(d)-(l)
Allan
Wrench
(e)-(2)
Shoulder
Bolts
(0-(4)
Button
Head
Screw
(g)-(4) 5/16-18
Flat
Head
Socket
Cap
Screw
(b)-(1)
Boomerang
Bar
(i)-(4)
E-
Track
Clips
(j)-(2) 1I2"x 5-1I4"Pins with Clips
(k)-(2) E-
Track
Brackets
Figure 4
Figure
3.
Insert the Small Square Tube (b) into the Large Square Tube
with holes (a).
If
the tube smaller does not slide all
the
way
into the larger tube, rotate the smaller tube 90 deg. And
attempt
to
insert it again.
Figure 6
Attach the clip assemblies
to
the end
of
the long tubes using
the two shoulder bolts (e) that came with your Universal
E-
Track. Place the shoulder bolt through either slot
of
the
E-
track Bracket vertical slot and thread into the end
of
the
square tube. Be sure
to
tighten securely using a
v..
"Alan
wrench (not inclUded).
to
a minimum width
of
27" and a maximum width
of
46".
Slide all three E-Track Mounting Brackets (c) over the large and
small tubes, making sure
to
have the bracket with the locking pin
on the end
of
the larger tube and the smallest bracket over the
smallest tube on the opposite end.
Figure 5
Next, insert the
v,
" pin (j) into the
E-Track Clips (i) and bracket (k) as
shown above. Be sure that one clip
is
placed on each side
of
the bracket
facing the same direction and that
the pin clip
is
inserted into the pin
as
well. Repeat this process for
each end.

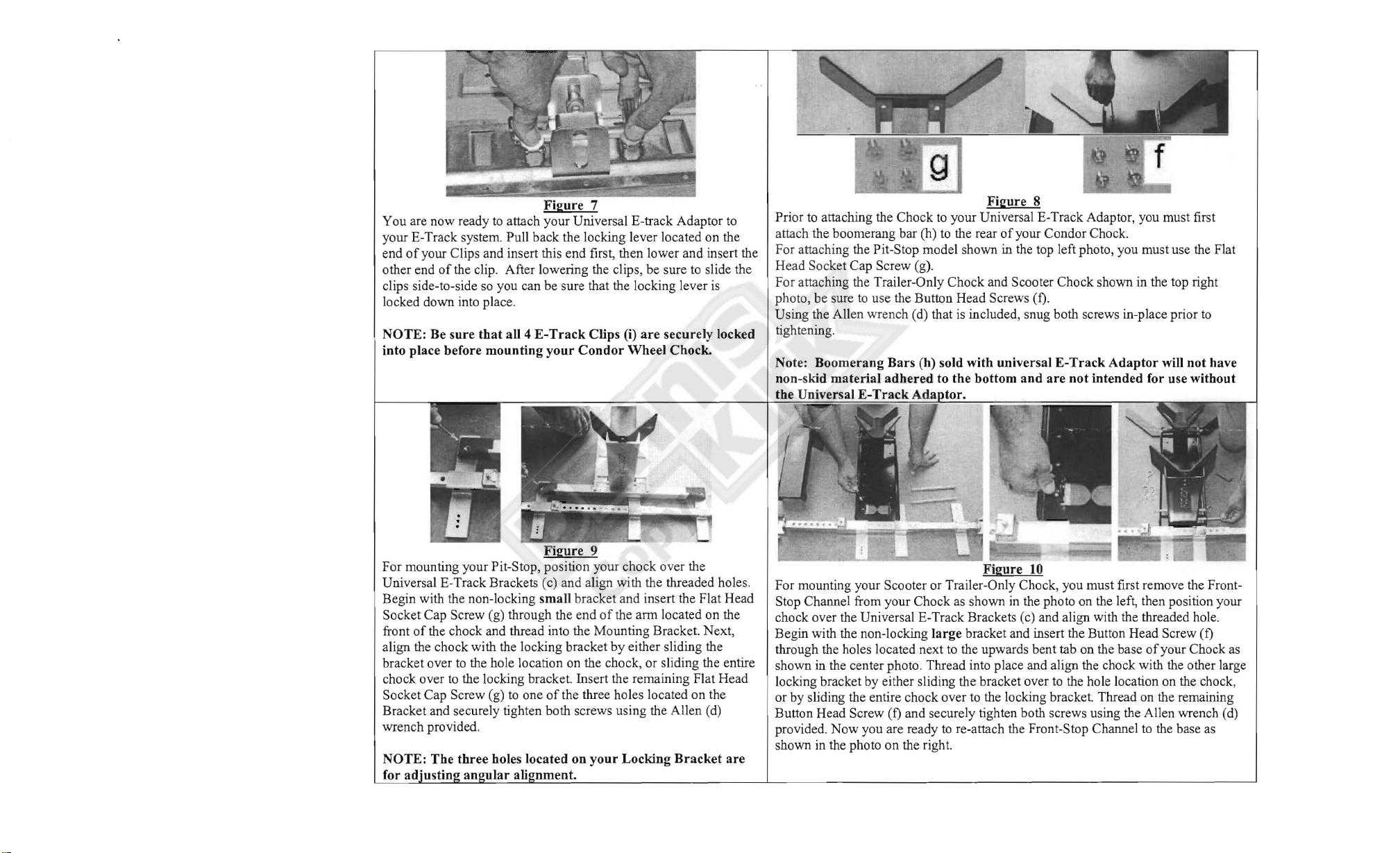

Figure 7
You are now ready
to
attach your Universal E-track Adaptor
to
your E-Track system.
Pull
back the locking lever located on the
end
of
your Clips and insert this end first, then lower and insert the
other end
of
the clip. After lowering the clips, be sure
to
slide the
clips side-to-side
so
you can be sure that the locking lever
is
locked down into place.
NOTE: Be sure that
aU4
E-Track Clips (i) are securely locked
into place before mounting your Condor Wheel Chock.
Figure 9
For mounting your Pit-Stop, position your chock over the
Universal E-Track Brackets (c) and align with the threaded holes.
Begin with the non-locking small bracket and insert the Flat Head
Socket Cap Screw (g) through the end
of
the
ann
located on the
front
of
the chock and thread into the Mounting Bracket. Next,
align the chock with the locking bracket by either sliding the
bracket over
to
the
hole location
on
the chock, or sliding the entire
chock over
to
the locking bracket. Insert the remaining Flat Head
Socket Cap Screw (g)
to
one
of
the three holes located on the
Bracket and securely tighten both screws using the Allen
(d)
wrench provided.
NOTE: The three holes located on your Locking Bracket are
for
attach the boomerang bar (h)
to
the rear
of
your Condor Chock.
Head Socket Cap Screw (g).
photo, be sure
to
use
the
Button Head Screws (t).
Using the Allen wrench (d) that
is
included, snug both screws in-place prior
to
tightening.
Note:
the U
Figure 8
Prior
to
attaching the Chock
to
your Universal E-Track Adaptor, you must first
For attaching the Pit-Stop model shown in the top left photo, you must use the Flat
For attaching the Trailer-Only Chock and Scooter Chock shown
in
the top right
Boomerang Bars (h) sold with universal E-Track Adaptor will not have
non-skid material adhered to the bottom and are not intended for use without
shown
in
the photo on the right.
Figure
10
For mounting your Scooter or Trailer-Only Chock, you must first remove the Front-
Stop Channel from your Chock
as
shown
in
the photo
on
the left, then position your
chock over the Universal E-Track Brackets (c) and align with the threaded hole.
Begin with the non-locking large bracket and insert the Button Head Screw (t)
through the holes located next
to
the upwards bent tab on the base
of
your Chock as
shown in the center photo. Thread into place and align the chock with the other large
locking bracket by either sliding the bracket over
to
the
hole location
on
the chock,
or by sliding the entire chock over
to
the locking bracket. Thread
on
the remaining
Button Head Screw (t) and securely tighten both screws using the Allen wrench (d)
provided. Now you are ready
to
re-attach the Front-Stop Channel
to
the base as
Tying
Down
Your Motorcycle
Your Condor Universal E-Track and Wheel Chock are not designed
to
hold your motorcycle in-place during transportation without the use
of
Ratchet Tie Downs. When using the Universal E-Track Adaptor, be sure to use 4 straps when tying down your motorcycle.
