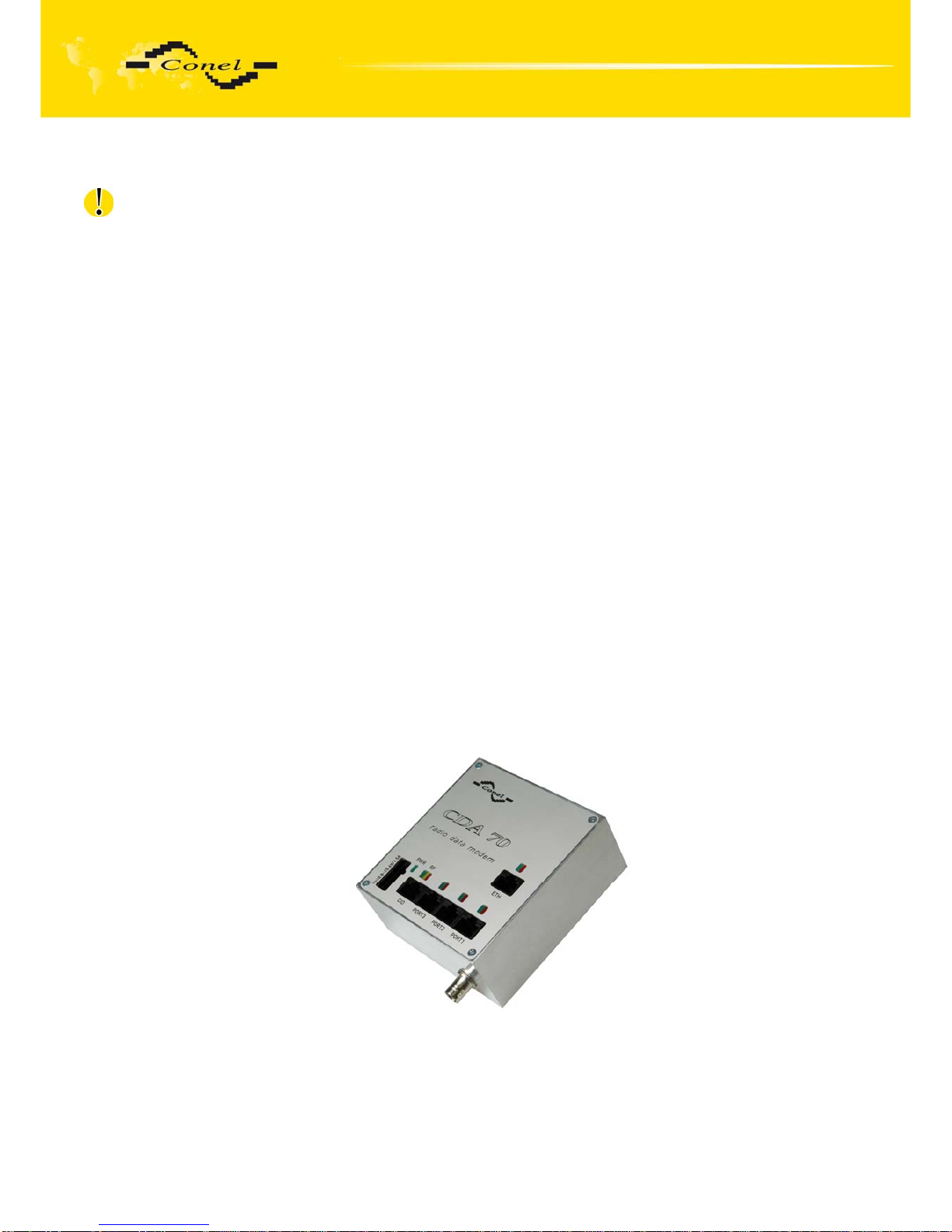

The CDA70 radio modem is a device for wireless data transmission. Communication

between two radio modems is a simplex one and is carried out on a single frequency. Modems

work in frequency band of 143 to 174 MHz (CDA70V) and 403 to 470 MHz (CDA70U).

Transmission rate is 21.7 kbit/sec when using the FFSK modulation and channel spacing 20

and 25 kHz or 10.8 kbit/sec when using channel spacing 12.5 kHz. Transmission rate is 10.8

kbit/sec when using the GMSK modulation and channel spacing 20 and 25 kHz or 5.4 kbit/sec

when using channel spacing 12.5 kHz. Transmission power output of the radio modem is

adjustable from 10 mW to 3 W for CDA70V and from 10 mW to 5 W for CDA70U.

The CDA70 radio data modem is controlled by a 32-bit communication processor

providing communication on the radio channel and individual interfaces. The CDA70 modem

has four serial data interfaces (communication ports) and one with direct attachment

of input/output peripherals for data collection and CIO technological process control. It is

possible to set transfer parameters and communication protocol separately for each port.

As a result, you may use the radio modem to communicate with various user interfaces using

different communication protocols on the serial interface.

The communication protocol used for communication between modems on the radio

channel provides for access of the modem to the radio channel, collision solving,

retranslations and other functions necessary for cooperation of modems within a radio data

network. It allows creating of a large network on a single radio channel and independent

operation of multiple radio networks on a single frequency. The radio data modem CDA-70 is

possible to use in combination with other modems of the system AGNES. Description

of the system AGNES is in reference [2].

2.2. Examples of possible applications

•Security systems

•Telematics

•Telemetry

•Vending and dispenser machines

2.3. Description of individual components

2.3.1. Radio component

Working frequency of the radio component is synthetizer-controlled separately for

reception and transmission. It is tuneable within a broad frequency band (see Technical

parameters table). Several levels of the radio module transmitter power output can be set

(from 10 mW to 5 W). The controlling microcomputer program controls setting of the working

frequency and transmitting power output. The radio module supplies the microcomputer

with information on the radio signal level being received (RSSI – Received Signal Strength

Indicator). This information is used for measuring of the signal strength between individual

nodes of the radio network.

CDA70 MODEM DESCRIPTION

2.3.2. Modem component

The modem part converts digital bit flow from the microcomputer to the FFSK or GMSK

analogue modulation, which is brought to the transmitter of the radio data module. And vice

versa, it converts analogue signal from the receiver to digital bit flow to the microcomputer.

The modem part is designed on the basis of a CML integrated circuit.

2.3.3. Microcomputer

The base of the radio data modem controlling microcomputer is represented by a 32-bit

processor with 1 MB of RAM, 512 kB of FLASH ROM and real time clock circuit with a back-up

power supply.

On one side, the microcomputer is connected to the radio data module via the modem

component; on the side of user interface, it is connected to circuits generating signals within

the RS232, RS485, M-BUS or Ethernet standard levels. The microcomputer provides for

connection of up to four user interfaces. All ports are terminated by RJ45 connectors marked

PORT1, PORT2, PORT3 and ETH. All RS232 ports are protected against overvoltage

incoming via data cable. If a device with RS485 interface is to be connected, a level converter

suitable for the appropriate application can be connected to the serial port. Different converters

will be used in case of connection on a short distance or in case galvanic separation is

necessary. The modem's microcomputer can be set for necessary control of the converter

(RS485). To each interface, a device with different communication protocol can be connected -

i.e. the microcomputer can also work as a converter of protocols between individual serial

ports. The wide range of radio modem functions can be set via any of RS232 communication

ports. In addition, the microprocessor manages numerous functions of servicing

and installation purposes. Apart from other important information, the microcomputer memory

records data transmission statistics, strength of signals from individual radio modems,

statistics of communication on individual serial ports, power failures, voltage of backup power

source and temperature inside the radio data modem. See Service manual for description

of service functions.

Configuration of the CDA70 radio data modem is stored in the permanent FLASH ROM

memory. See the Configuration of radio modem chapter for description of its settings.

2.3.4. Inputs and outputs for telemetry

As an option, customers may wish to install inputs and outputs for data collection

and controlling of technological processes in the radio modem. These signals are then led

to an RJ45 connector marked I/O. Five signals are led to this connector. Each of them can be

used either as input or output. Input is analogue 0 to 5V or digital with adjustable threshold.

The output is an open collector able to switch up to 500 mA. Reading and control of I/O signals

is possible both via the radio data network and from any serial RS232 interface. Two radio

data modems can make up a simple technology control, where changes on one modem input

signals can control remote output signals of the other modem and vice versa.

For multi-purpose usage, we supply an interface between the I/O connector

and the technology providing configurable voltage and current inputs, inputs for resistance

measurement (thermometers, barometers etc.), binary inputs with optical isolation and relay

CDA70 MODEM DESCRIPTION

outputs. With the equipment you may establish simple telemetry at low cost, without the use

of industrial control automat.

2.3.5. User interface protocols

For user interface, a range of standard protocols is implemented:

•AT modem

•PROFIBUS

•M-BUS

•MODBUS

•Asynchronous transparent line

•Transparent bus

•Sauter

•IWKA

•SBUS

•RADOM

•RDS

New protocols, currently not supported by the radio modem, can be implemented

according to the customer's needs.

CDA70 MODEM DESCRIPTION

2.3.6. Technical parameters

Frequency band 143 – 174 MHz (CDA70V version)

403 – 470 MHz (CDA70U version)

Adjustment of working frequency program setting

Adjustment of working frequency of

receiver and transmitter separate for each part

Adjustment of channel spacing program setting

12,5; 25 kHz (CDA70V version)

12,5; 20; 25 kHz (CDA70U version)

Output power program setting

0.5;1;2;3 W (CDA70V version)

0,01;0,05;0,1;0,25;0,5;1;2;3;4;5 W (CDA70U

version)

Receiver sensitivity for 10 dB SINAD <-111 dBm (12 dB SINAD) for channel 25/20 kHz

<-117 dBm (12 dB SINAD) for channel 12,5 kHz

Reception / transmission switching time < 4 msec

Maximum transmission rate 21.7 kbit/sec for channel spacing of 20 and 25 kHz

10.8 kbit/sec for channel spacing of 12.5 kHz

Type of modulation 4-FSK, GMSK

Radio modem

complies with

standards:

Radio parameters

EMC

Power safety

EN 300 113-1: V1.5.1

EN 300 113-2: V1.2.1

EN 301 489-5: V1.3.1

EN 60 950-1:2001

Temperature range Operation

Storage -20 °C to +55 °C

-40 °C to +85 °C

Supply voltage (car dashboard) +10.8 to +15.6V DC

Current Reception

Transmission 1 W

Transmission 5 W

<200 mA

<900 mA

<1500 mA

Dimensions 43x104x98 mm (DIN35 attachment to board)

Weight 600g

Antenna connector BNC – 50 Ohm

User interface PORT1

PORT2

PORT3

ETHERNET

I/O

See. chapter 2.5.1

See. chapter 2.5.2

See. chapter 2.5.3

See. chapter 2.5.4

See. chapter 2.5.5

CDA70 MODEM DESCRIPTION

2.4. Radio modem status indication

Seven LED status indicators informing of the radio data modem status are located

on the front panel. They are arranged in three arrays:

Colour Group Meaning

GREEN PWR

Blinking 1:9…..……..proper function

Blinking 9:1…..……..RF monitoring

Permanently on ...... error

Permanently off ..... no power +12V

Double flashing …...data reception on VF channel,

level <-100dBm

RED RF

TX Modem is sending data to radio channel

YELLOW RX Receiving synchronisation or data from radio channel

GREEN DATA Data received from radio channel are intended for this modem

RED PORT1-

PORT3

TX Transmission to one of ports (PORT1 ... PORT3)

GREEN DATA Modem is receiving correct data from one of ports

(PORT1 .. PORT3)

YELLOW

ETH

LINK Permanently on ........... selected 100 Mbit/s

Permanently off ........... selected 10 Mbit/s

GREEN ACT Permanently on............ the network cable is connected

Blinking ……………......data transmission

Permanently off............ the network cable is not connected

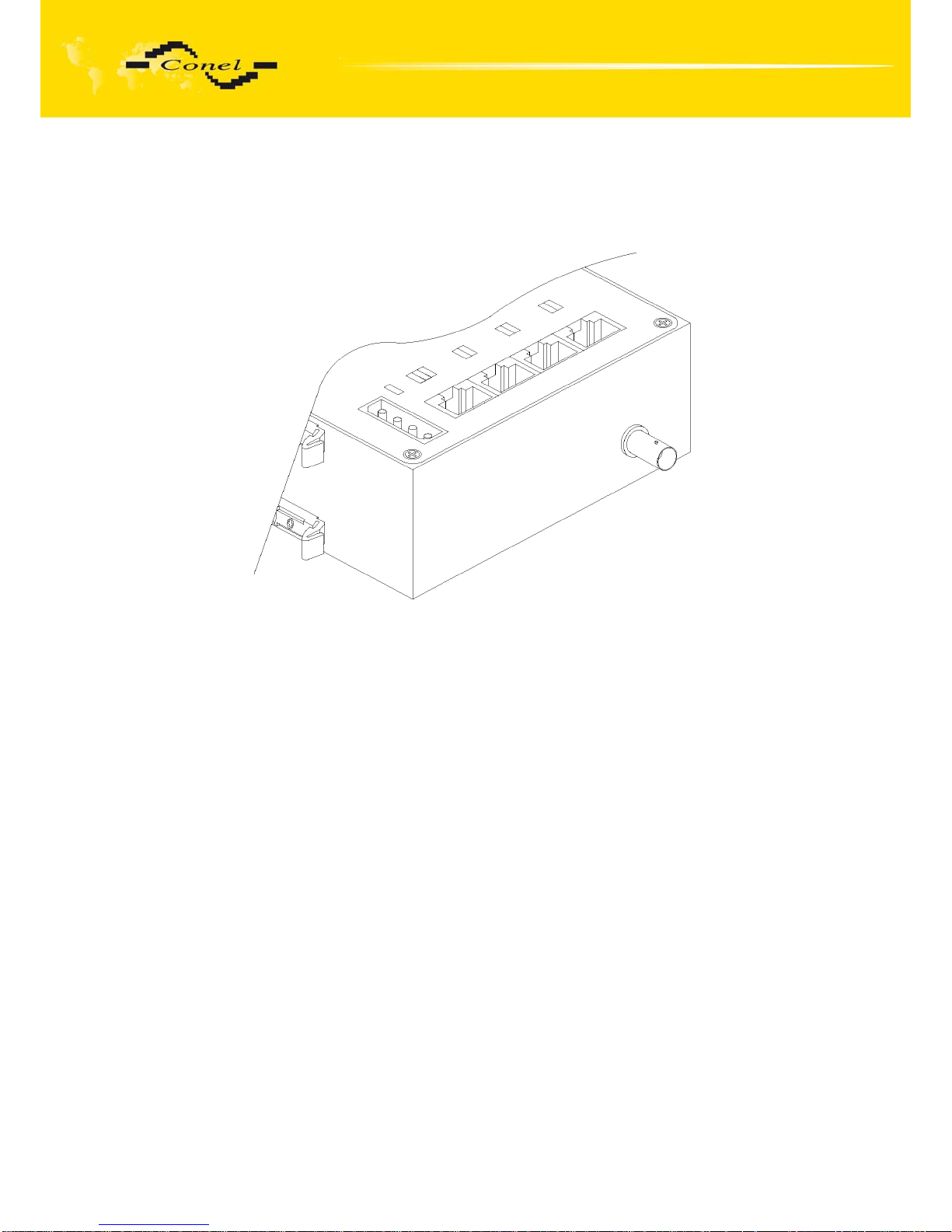

2.5. User interfaces (connectors)

The rear panel of the radio modem contains up five RJ45 connectors. Four data

interfaces are labelled PORT1, PORT2, PORT3 and ETH. The fifth connector with I/O label is

intended for direct connection of inputs/outputs for data collection and technology control.

The technology control and data collection can be supplied as an optional accessory upon

request of the customer.

CDA70 MODEM DESCRIPTION

2.5.1. Connection of PORT1, PORT2 and PORT3 connectors (RS232)

(RS232 – DCE – Data Communication Equipment)

number Signal

mark Description Data flow direction

1 RTS Request To Send Input

2 CTS Clear To Send Output

3 DTR Data Terminal Ready Input

4 DSR Data Set Ready - connected to +12V through

1k8 Ohm resistor Output

5 GND GROUND - signal ground

6 RXD Receive Data Output

7 CD Carrier Detect Output

8 TXD Transmit Data Input

Circuit example of the meter with modem CDA70:

Circuit example of the PC with modem CDA70:

•the cable KD2 is connected to serial PC port (example COM1)

Modem CDA70

PWR

CIO

PORT3

PORT2

PORT1 ETH

Cable KD-2

Pin 1 – RTS

Pin 2 – CTS

Pin 3 – DTR

Pin 4 – DSR

Pin 5 – GND

Pin 6 – RXD

Pin 7 – CD

Pin 8 – TXD

Modem CDA70

Meter GND

RXD

TXD

CDA70 MODEM DESCRIPTION

Circuit example of the RS232 equipment with modem CDA70:

2.5.2. Connection of PORT1 connectors (M-BUS)

Panel socket RJ45

number Signal

mark Description Data flow direction

1 SGND Signal and supply ground

2 SGND Signal and supply ground

3 TxRx- M-BUS B (-) Input/Output

4 TxRx+ M-BUS A (+) Input/Output

5 TxRx- M-BUS B (-) Input/Output

6 TxRx+ M-BUS A (+) Input/Output

7 +12V EXT External power supply +10,8 ÷ +15,6V

8 +12V EXT External power supply +10,8 ÷ +15,6V

ATTENTION! External supply is for converter M-BUS!

The converter must have external power supply because of galvanic separated.

Circuit example of the meter with modem CDA70 with data cable length less than 10 m:

Meter SGND

MBUS (-)

MBUS (+)

Meter SGND

MBUS (-)

MBUS (+)

Modem CDA70

Pin 1 – SGND

Pin 2 – SGND

Pin 3 – MBUS (-)

Pin 4 – MBUS (+)

Pin 5 – MBUS (-)

Pin 6 – MBUS (+)

Pin 7 – +12V EXT

Pin 8 – +12V EXT

Modem CDA70

Cable KD-2 PWR

CIO

PORT3

PORT2

PORT1 ETH

CDA70 MODEM DESCRIPTION

Circuit example of the meter with modem CDA70 with data cable length more than 10 m:

M-BUS data cable more than 10 m it is need to use over-voltage protection on CDA 70

modem side!

External or internal power supply of expansion port M-BUS it is can evoke by wiring

of the jumper. For details see chapter 2.8.

2.5.3. Connection of PORT2 connectors (RS485G)

Panel socket RJ45

number Signal

mark Description Data flow direction

1 GND Signal and supply ground

2 GND Signal and supply ground

3 TxRx- RS485 B (-) Input/Output

4 TxRx+ RS485 A (+) Input/Output

5 TxRx- RS485 B (-) Input/Output

6 TxRx+ RS485 A (+) Input/Output

7 +12V EXT External power supply +10,8 ÷ +15,6V

8 +12V EXT External power supply +10,8 ÷ +15,6V

ATTENTION! External supply is for converter RS485G!

The converter must have external power supply because of galvanic separated.

Meter SGND

MBUS (-)

MBUS (+)

Meter SGND

MBUS (-)

MBUS (+)

Modem CDA70

Pin 1 – SGND

Pin 2 – SGND

Pin 3 – MBUS (-)

Pin 4 – MBUS (+)

Pin 5 – MBUS (-)

Pin 6 – MBUS (+)

Pin 7 – +12V EXT

Pin 8 – +12V EXT

OVPM-21

CDA70 MODEM DESCRIPTION

Circuit example of the meter with modem CDA70 with data length less than 10 m:

Circuit example of the meter with modem CDA70 with data length more than 10 m:

At RS485 data cable more than 10 m it is need to use over-voltage protection on

CDA 70 modem side!

External or internal power supply of expansion port RS485 it is can evoke by wiring

of the jumpers. For details see chapter 2.8.

Meter SGND

RS485 (-)

RS485 (+)

Meter SGND

RS485 (-)

RS485 (+)

Modem CDA70

Pin 1 – SGND

Pin 2 – SGND

Pin 3 – RS485 (-)

Pin 4 – RS485 (+)

Pin 5 – RS485 (-)

Pin 6 – RS485 (+)

Pin 7 – +12V EXT

Pin 8 – +12V EXT

OVPM-21

Meter SGND

RS485 (-)

RS485(+)

Meter SGND

RS485 (-)

RS485(+)

Modem CDA70

Pin 1 – SGND

Pin 2 – SGND

Pin 3 – RS485 (-)

Pin 4 – RS485 (+)

Pin 5 – RS485 (-)

Pin 6 – RS485 (+)

Pin 7 – +12V EXT

Pin 8 – +12V EXT

CDA70 MODEM DESCRIPTION

2.5.4. Connection of ETH connectors (ETHERNET)

Panel socket RJ45

number Signal mark Description Data flow

direction

1 TXD+ Transmit Data Input/Output

2 TXD- Transmit Data Input/Output

3 RXD+ Receive Data Input/Output

4 DNC ---

5 DNC ---

6 RXD- Receive Data Input/Output

7 DNC ---

8 DNC ---

ATTENTION! Port ETH is not with POE (Power Over Ethernet) compatible!

Circuit example of the CDA70 with to equipment with Ethernet:

2.5.5. Connection of I/O connector

Panel socket RJ45

number Signal mark Description Data flow

direction

1 I/O 5 Input/Output - analogue or binary input or binary
