Conhersa ET-1000 User manual

ALL-TERRAIN ELECTRIC LIFTER ET-1000
USER’S MANUAL
Edition: December 2009

USER’S MANUAL
INDEX
1. MAIN COMPONENTS 1.1
2. SAFETY INSTRUCTIONS 2.1
3. CONTROL SWITCHES AND INDICATORS 3.1
4. SWITCH ON AND WORK 4.1
5. LOADING AND UNLOADING 5.1
6. SERVICE AND CARE 6.1
7. LONG WAREHOUSING 7.1
8. TECHNICAL SPECIFICATIONS 8.1
2008 CONHERSA

1.1

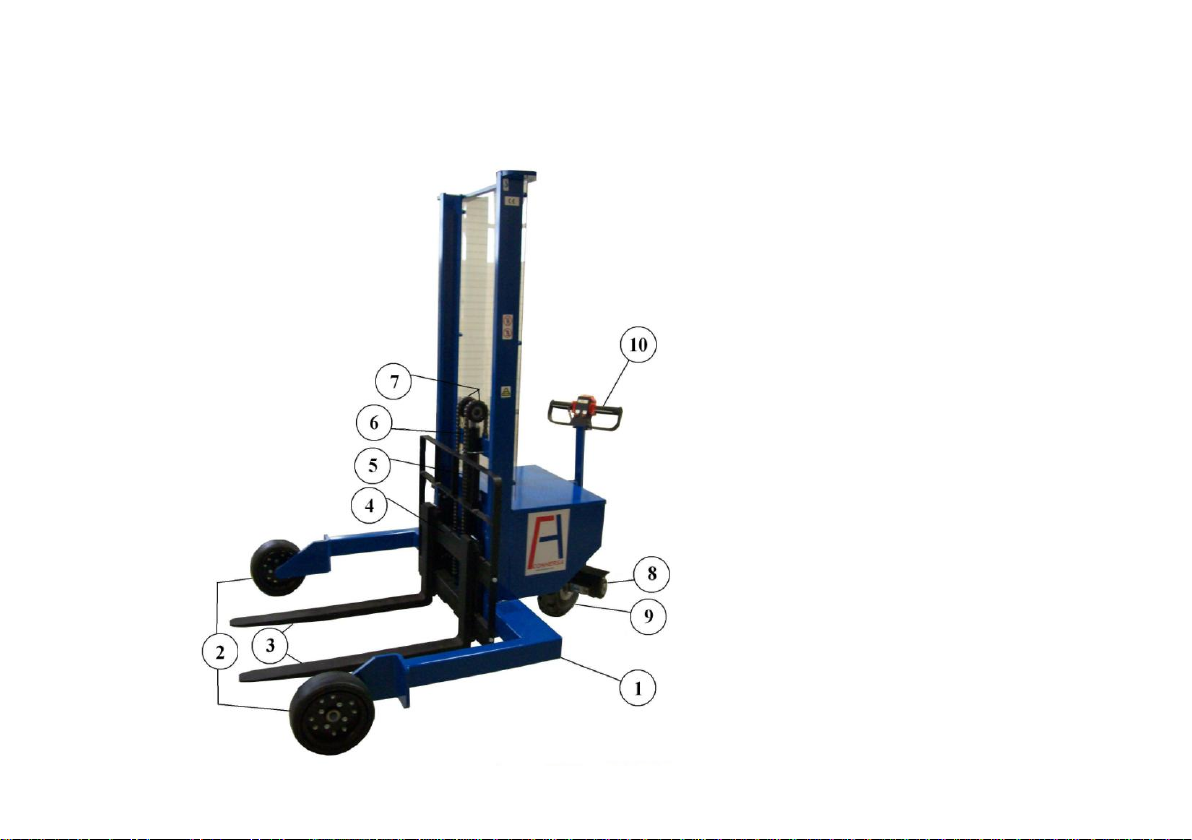

1. MAIN COMPONENTS
1. Chassis
2. Front wheels
3. Fork Grouping
4. Fence
5. Hydraulic Cylinder
6. Chains
7. Pulley
8. Electric braking
9. Motor drive wheel
10. Handle

1.2
11. Batteries
12. Batteries charger
13. Hydraulic pump
14. Main contactor
15. Electronic controller
16. Load indicator
17. Plug
18. Emergency stop


2.1
2. SAFETY INSTRUCTIONS
Etiquettes 2.2
All-terrain lifter: safety 2.4
Daily inspections 2.5
All-terrain lifter operator 2.9
Movement in ramps and special areas 2.10
All-terrain lifter transportation 2.12
Testing 2.13
Noise level 2.13
Dangerous environment 2.13

2.2
ETIQUETTES

2.3
WARNING
Do not stand on nor under the
forks.
WARNING
Keep hands, feet and body
away from masts and forks.
Danger of trapping betwee fix
and mobile parts.
CAUTIONS WHILE CHARGING
BATTERIES
1.Charge batteries at an open-air
area, away from flames, fumes
and sparks. Batteries’ gasses
may be explosives
2.Do not smoke around the
charging area.
3.Do not disconnect the
connector during the process of
charging. Danger of sparks.

2.4
ALL-TERRAIN LIFTER:
SAFETY
USE UNDER INSTRUCTIONS
The All-terrain Lifter may only be
used under instructions included
in this manual.
WARNING
This Lifter may only be used to
transport and placement of
charges and palletised
materials, as per the
instructions of this Manual.
WARNING
Should you wish to use it for
different purposes, you may
ask for CONHERSA’S
agreement and, if necessary,
your local authorities in order
to avoid risks.
WARNING
In case of malfunction, switch
off and contact our technical
service.

2.5
DAILY INSPECTIONS
Befote using, following
inspections shall be followed:
1.Brake: When releasing handle,
make sure that the machine is
restrained and you can not
move it.
2.Forks: Visual inspection. Verify
correct lift and descent. No
damage in forks.
3.Hydraulic circuit: Verify possible
looses (leaks) in pipe and
cylinder.
4.Wheels: Verify tyres state.
Tigthen bolts. Verify wheels
pressure.
5.Control instruments: Switch on
key. Verify batteries’ light
indicatiors lights on.
6.Bettery: Correct battery charge
level: >20%.
7.Horn: check..
8.Lifting: With forks unloaded,
verify correct lifting and
descent.
9.Travel: Pressing the death-
man, verify correct movement
forward and reverse.
10. Visual inspection of chains
and pulleys. Verify unloaded
that the stress is equal in both
chains.
WARNING
In case of malfunction, switch
off, inform to whom it may
concerní, and contact the
technical service.
BRAKE
When releasing handle, verify
that speed controller returns to
neutral position and brake is
inmediately actioned. A clicking
sound will be noticed.
Push the Lifter to make sure that
it is well braked and you can not
move it.

2.6

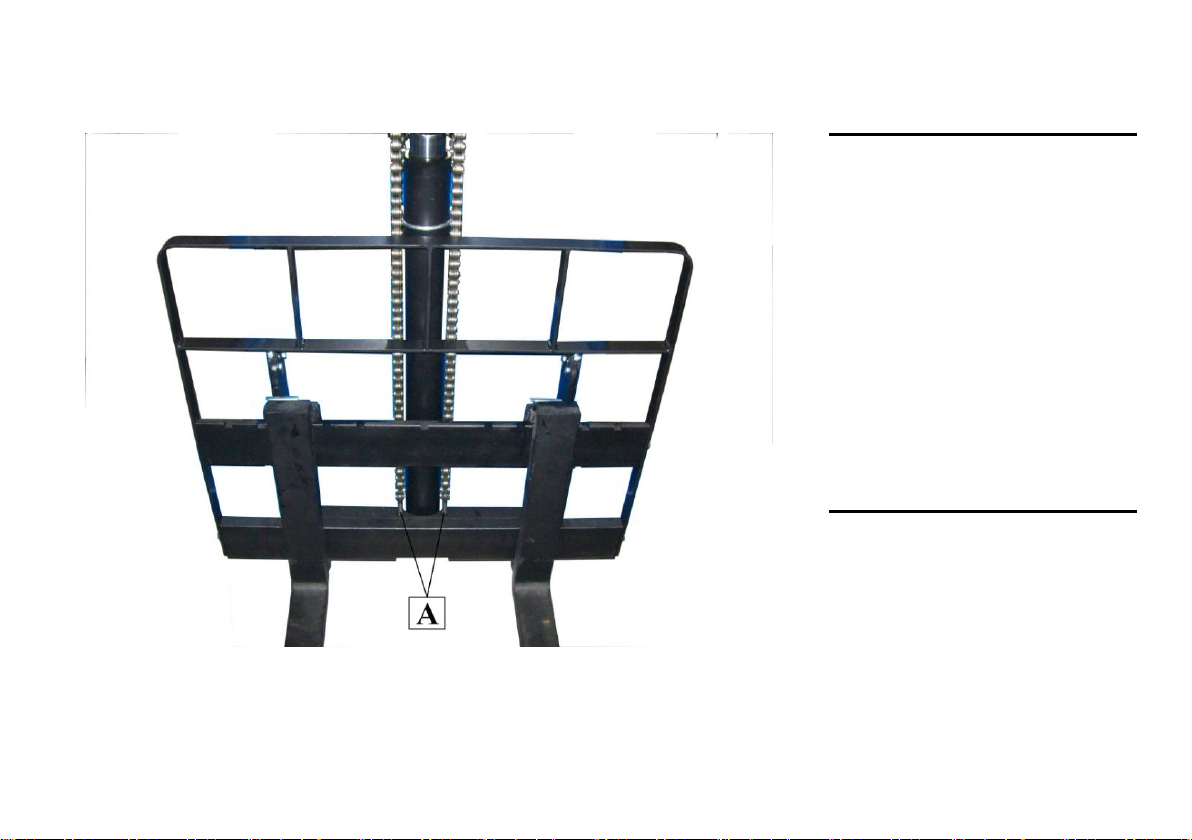

FORKS AND CHAINS
Lift the security bolt by hand. Put
it down back again, and verify
that it stays well placed over the
security fence and can not be
moved unintentionally.
Forks must be placed in
symmetry as per the axe.
To tighten the chains, adjust the
screw placed at the end of the
chains (A) with its bolts.
WARNING
In case of adjusting the chains,
verify that bolts are well tighten
(A)

2.7
HYDRAULIC CIRCUIT
Verify oil level in the deposit.
Verify in case of possible oil
losses (leaks)
RUEDAS
DELANTERAS
TRASERA
Size
3.00-8”
4.00-8”
Solid
Superelastic
Superelastic
BATTERY CHARGE LEVEL
Turn the key to ON position.
Verify charge level in the
indicador. If level is under 20%,
charging is needed.
Charge during approximately 10
hours (See procedure on page
5.1).
front
rear

2.8

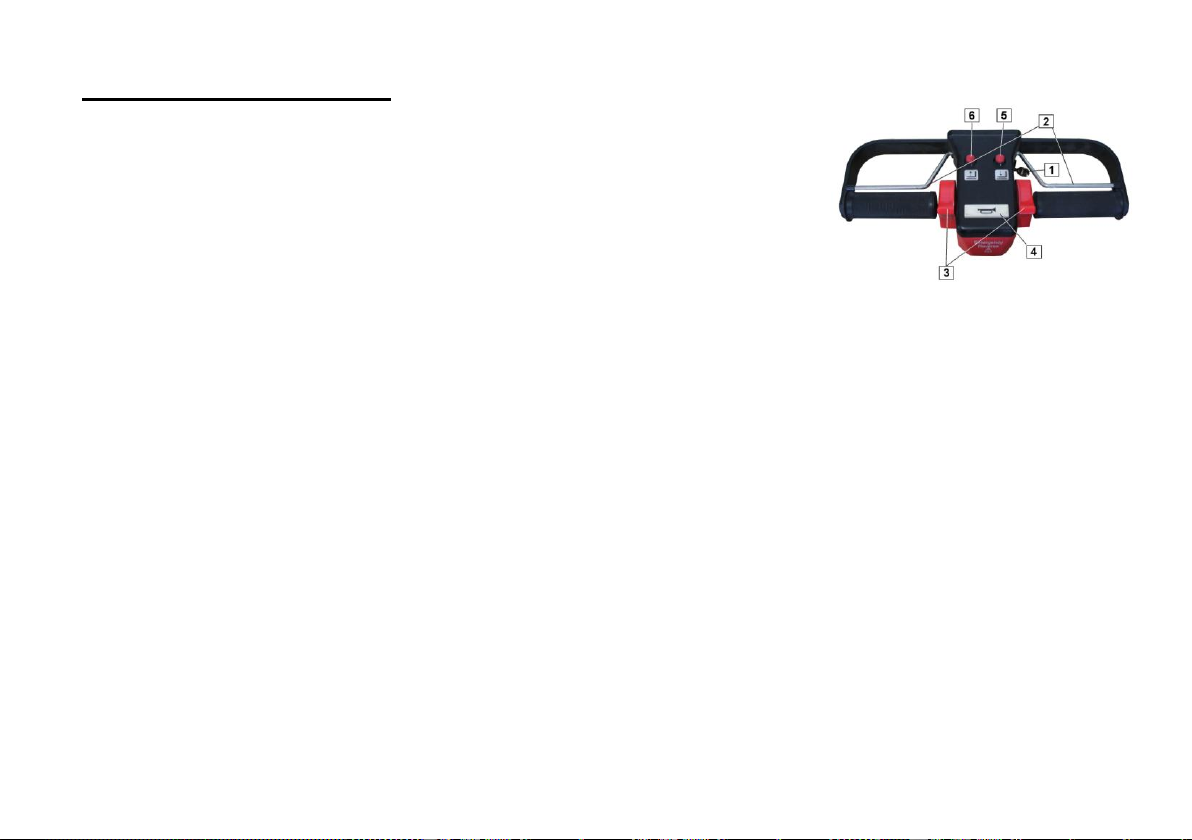

CONTROL INSTRUMENTS AND
CLAXON
Turn on the key. Verify light
indicador i son.
Verify correct claxon function
.
HANDLE
Unloaded, press lifting button to
verify that forks go up correctly.
Press down button to verify that
forks go down smoothly.
Pressing the death-man system,
turn slighty the hanle to verify that
the blocked brake is self-released
(an audible clicking sound must
be heard), and that the Lifter
comences to move gentil.
Verify both, forward and reverse.
Contact key
Death-man system.
Forward-reverse.
Claxon.
Down-forks button.
Up-forks button.

2.9
LIFTER OPERATOR
USER’S KNOWLEDGE
WARNING
While using, this manual’s
instructions shall be observed,
as well as local/national legal
dispositions.
SAFETY CLOTHING
Each site’s observations should
also be observed while using the
lifter.
For example:
WARNING
For clothing, observation of the
national rules and obligations
is as must.
Clothes should be tight enough
to avoid traps. If necessary in
the working site, user should
also wear protective glasses,
helmet, gloves, and whatever
required.

2.10
MOVEMENT IN RAMPS
AND SPECIAL AREAS
WARNING
Using the lifter et-1000 for
transporting goods in ramps is
strictly forbidden.
Only permitted with the lifter
unloaded, if necessary.
WARNING
Do not turn in ramps.
Movement in ramps is delicate:
pay maximum attention and
care.
WARNING
Caution when moving on the
truck surface. Please make
sure that the truck is stopped.
The ramp used to place the
lifter onto the truck must be
resistant enough to bear the
lifter, taking into account the
vertical movement of the lifter.
Ramp should be firmly placed
on the ground in order to avoid
unexpected movements.
Pay maximum attention during
the loading and unloading of
the lifter on the truck.

2.11
MOVEMENT
Visibility
Do not drive forward when the
load does not permit complete
visibility. In that case, drive
backward, except when driving
into a service lift, where entering
backwards is forbidden.
If visibility difficulties remain,
another operator should indicate
the correct direction. In this case,
drive slowly and handle with care.
Verify that working area is
lightened enough.

2.12

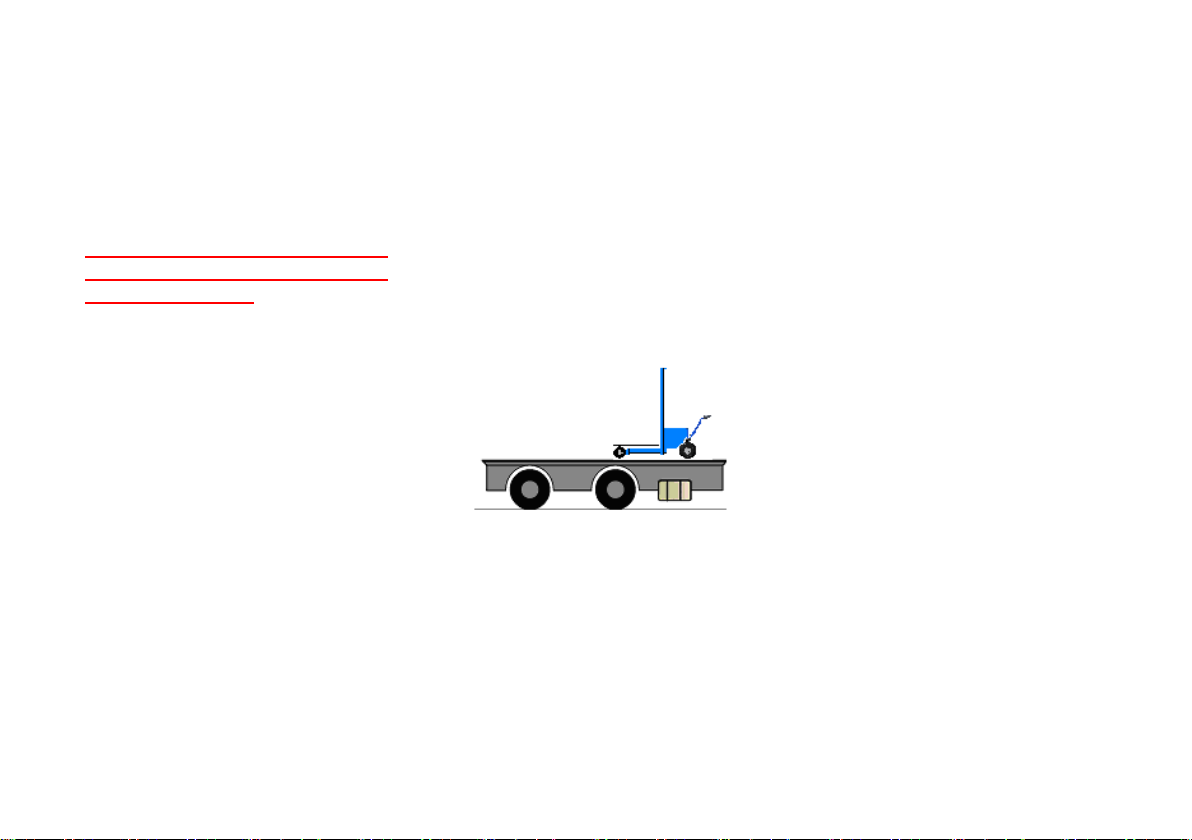

TRANSPORT OF THE
LIFTER
WARNING
1.Unloaded, put forks in the
upper position.
2.Confirm that in and out
angles do not interfere with
the ground or transport
platform.
3.When using a wooden made
bridge between platform and
dock, make sure that the
planks can bear the lifter.
4.Use only the lifting hangers
to lift the lifter. (see picture)
6.Switch off and release
contact key.

2.13
TESTING
After transport or a long
warehousing period, functional
testing is necessary.
Three tests:
1.Daily inspection test. (See page
2.5), to be made by users.
2.Dynamic tests, to be made by
the technical service.
2.1.Movement test.
Confirm that the lifter moves
towards the correct forward-
reverse switch, and confirm
that the blocking brake works
properly.
With the lifter loaded, press
up and down buttons to make
sure of correct work.
2.2.Piling test.
Lift completely and descent
the load at maximum speed
several times.
2.3.Descending speed test.
Confirm that descending
speed is not more than 0.6
m/s.
3. Hold load test.
With the machine off, fully loaded
with the forks up, confirm that the
forks don’t move down at all, or
they move down but not faster
than 10mm/min.
NOISE LEVEL
NOISE LEVEL
Less than 70 dB (A)
DANGEROUS
ENVIRONMENT
WARNING
Use of lifter in dangerous
environment is strictly
forbidden.
A dangerous environment may
cause fire or explosions
because of dust, fumes or
gasses.

3.1
3. CONTROL SWITCHES AND INDICATORS
Contact key
Handle
Security anti-trapping button
Battery charge indicator
Emergency stop

3.2

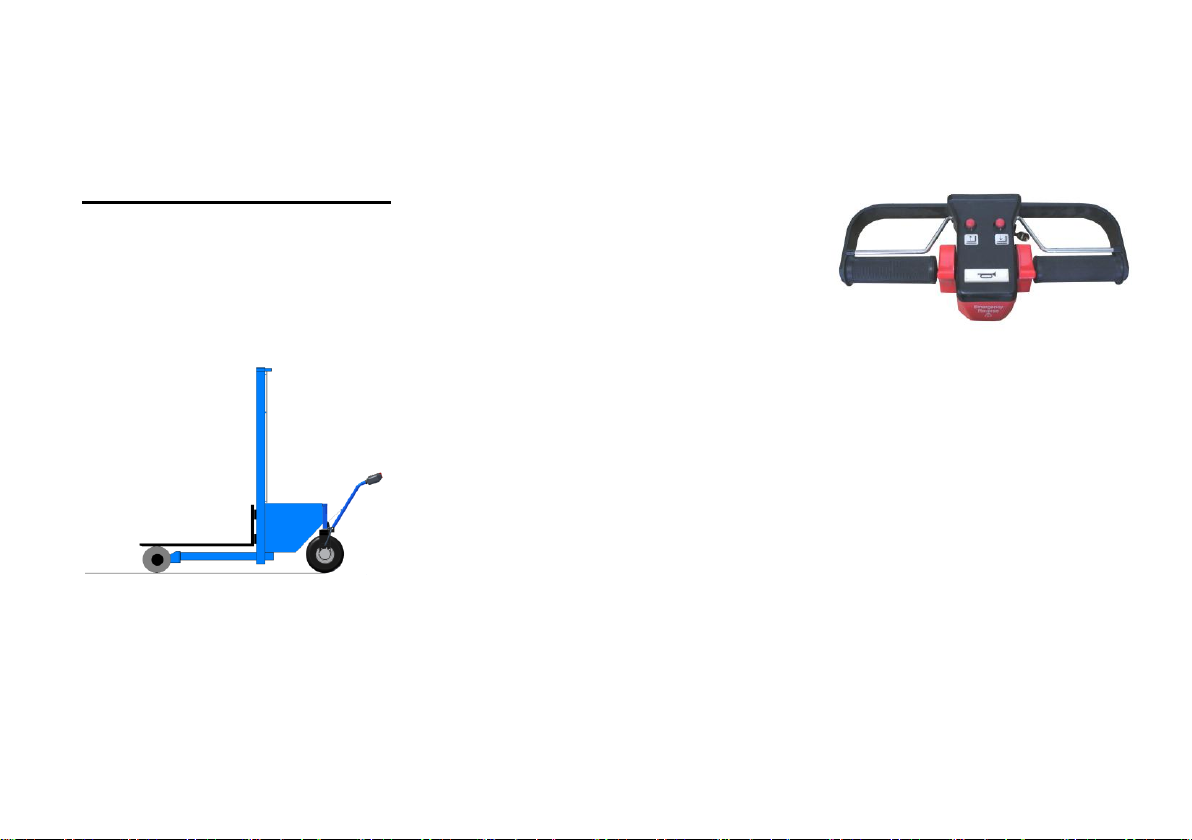

HANDLE SWITCHES
Contact key
Contact key is located at the
lower part of the handle.
It has two positions:
-Connected
-Disconnected
When connected, the batteries
light indicator will turn on.
When disconnected, all circuits
are off.
Dead-man function
Placed at both sides of the
handle. Must be pressed to allow
the machine moving forward-
reverse.
Forward-reverse switch.
It is the red switch. It may be
pressed either with the left or the
right hand.
When releasing, it comes back to
the neutral position.
Buttons for lifting and descending
the forks.
They are located at the centre of
the handle.
When pressing, the forks start to
move, and they stop just when
buttons are released.
Contact key
Dead-man function
Forward-reverse throttle
Claxon
Forks down button
Forks up button
