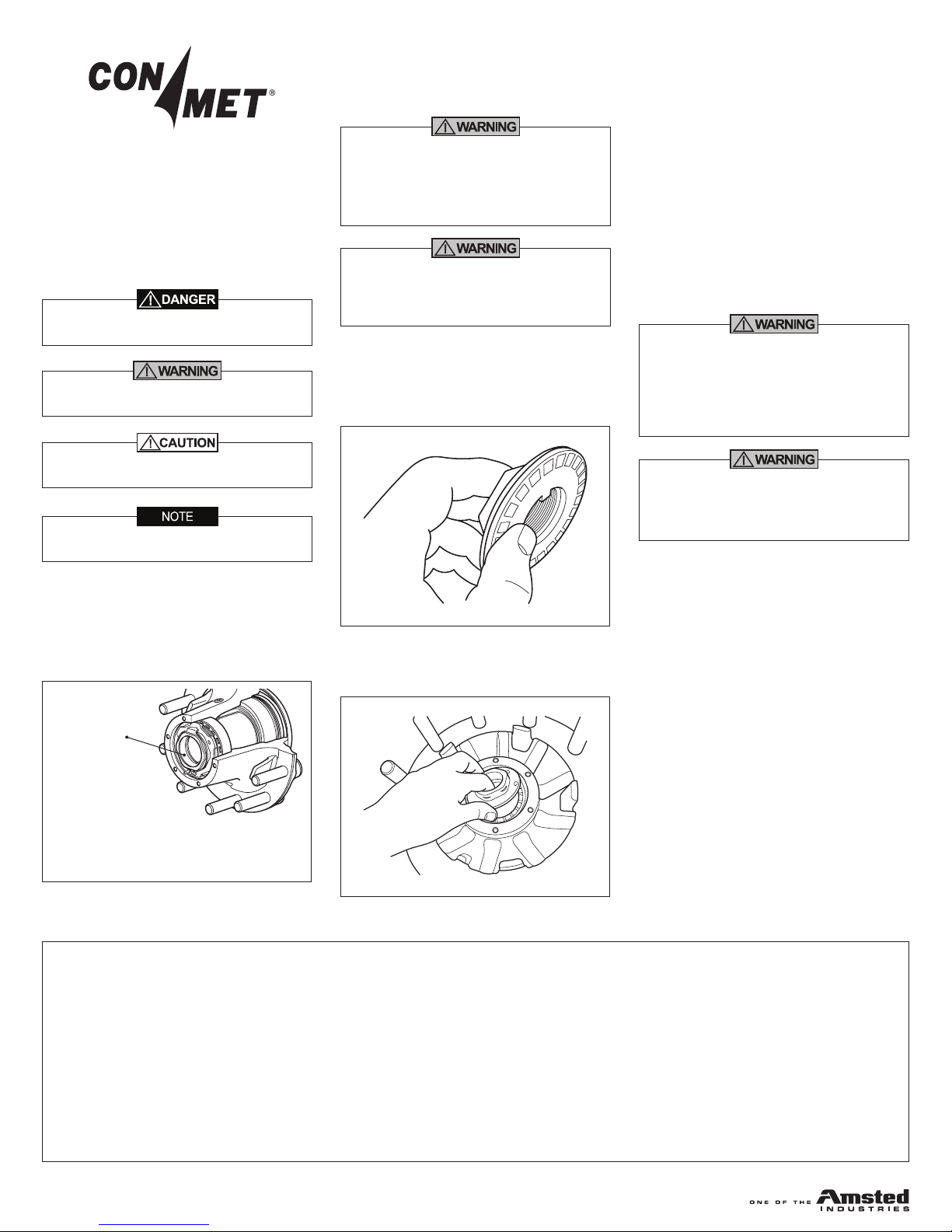

Conmet PreSet Service manual

PreSet®Spindle Nut
Installation Instructions
Hazard Alert Messages
A Danger alert indicates a hazardous situation which
if not avoided, will result in death or serious injury.
A Warning alert indicates a hazardous situation which
if not avoided, could result in death or serious injury.
A Caution alert indicates a hazardous situation which if
not avoided, could result in minor or moderate injury.
A note includes additional information that may assist
the technician in service procedures.
This spindle nut is intended for use with a traditional
PreSet hub. If you have a PreSet Plus®hub with
integrated spindle nut (see figure 1), you should be able
to reuse the spindle nut. See the back of these
instructions for listing of PreSet Plus spindle nut part
numbers.
Figure 1
PreSet Plus™
PreSet Plus
hubs feature
an integrated
spindle nut
held in place
with a retaining
ring.
This kit includes a Spindle Nut engineered specifically
for use with PreSet wheel hubs. PreSet spindle nuts
offer the best solution for optimized service life of your
PreSet hub.
Use this kit only with ConMet PreSet hubs. Only Pre-
Set hubs are designed to utilize these components
and function properly. Use of the kit components
in hubs other than ConMet PreSet could result in
catastrophic wheel end failure.
The PreSet spindle nut is not intended for use when
manually adjusting wheel bearings. Using this
spindle nut on hubs with manually adjusted bearings
could result in catastrophic wheel end failure.
Installation
1. Seat the flat inner washer into the back of the
spindle nut (see Figure 2).
Figure 2
2. Align the key or flat on the washer with the keyway or
flat on the spindle, and position the spindle nut and
washer against the outer bearing (see Figure 3).
Figure 3
3. Install the spindle nut by rotating the nut in a
clockwise direction to fully engage the threads. Torque
the spindle nut to 300 ft. lbs. while rotating the hub.
DO NOT BACK OFF THE SPINDLE NUT.
4. Visually examine the three holes in the face of the
spindle nut. One of the holes will line up with the holes
in the inner washer. Install the tab of the red locking
snap ring through the hole in the nut and washer
that are aligned. Spread the locking ring, push it over
the spindle nut and into the machined grooves in the
spindle nut. Use caution not to bend the locking ring
permanently.
5. Rotate the hub assembly checking for smooth and
free rotation.
Verify the hub will rotate by hand before placing it in
service. Some drag is normal for a new seal, but exces-
sive drag or roughness may indicate excessive bearing
preload which could result in premature seal failure. An
incorrect combination of parts or the use of one or more
non-PreSet parts may cause this condition.
Failure to fill the hub with the correct amount of
lubricant can cause premature failure of the
PreSet hub assembly, which could result in a
wheel loss and possible death or serious injury.
For proper lubrication requirements refer to ConMet
service manuals which can be found online at
www.conmet.com.
Consolidated Metco, Inc.
5701 SE Columbia Way, Vancouver, WA 98661 [phone] •www.conmet.com
Part No. 10081722 1-2016 rev. A
©2016 Consolidated Metco Inc.
Notes

ConMet, PreSet, and PreSet Plus are registered trademarks of Consolidated Metco Inc. All other trademarks are the property of their respective owners. ©2016 Consolidated Metco Inc. All Rights Reserved.
PreSet®Spindle Nut Kits (kit includes lock ring, nut and washer)
Part No. Spindle Nut Assembly Description
10080652 FF PreSet®Spindle Nut Assy - Keyway (Type Commonly used on Dana®axles)
10080653 FF PreSet®Spindle Nut Assy - D Flat (Type Commonly used on Meritor®Axles)
10080654 FL PreSet®Spindle Nut Assembly
10080655 R Drive PreSet®Spindle Nut Assembly
10080656 TN PreSet®Spindle Nut Assembly
10080657 TP PreSet®Spindle Nut Assembly
PreSet®/ PreSet Plus®Hub Service & Rebuild Kits
PreSet®Complete Hub Rebuild Kits
(includes bearings, bearing spacer, seal and spindle nut) Bearing Combination Cross Reference
Part No. Application Inner Cup/Cone Outer Cup/Cone
10045871 FF w/ Keyway HM212011 PS / HM212049 PS 3720 PS / 3782 PS
10045872 FF w/ D-Flat HM212011 PS / HM212049 PS 3720 PS / 3782 PS
10045873 FL Front 6420 PS / 6461A PS 552A PS / 555S PS
10045874 R Drive 592A PS / 594A PS 572 PS / 580 PS
10045875 TN Trailer HM218210 PS / HM218248 PS HM212011 PS / HM212049 PS
10045876 TP Trailer HM518410 PS / HM518445 PS HM518410 PS / HM518445 PS
PreSet®/ PreSet Plus®Hub Seal & Spacer Kits Bearing Combination Cross Reference
Part No. Application Inner Cup/Cone Outer Cup/Cone
10081518 FF Front HM212011 PS / HM212049 PS 3720 PS / 3782 PS
10081519 FL Front 6420 PS / 6461A PS 552A PS / 555S PS
10081520 R Drive 592A PS / 594A PS 572 PS / 580 PS
10081521 TN Trailer HM218210 PS / HM218248 PS HM212011 PS / HM212049 PS
10081522 TP Trailer HM518410 PS / HM518445 PS HM518410 PS / HM518445 PS
PreSet®/ PreSet Plus®Hub Rebuild Kits
(includes bearings, bearing spacer and seal) Bearing Combination Cross Reference
Part No. Application Inner Cup/Cone Outer Cup/Cone
10081727 FF Front HM212011 PS / HM212049 PS 3720 PS / 3782 PS
10081728 FL Front 6420 PS / 6461A PS 552A PS / 555S PS
10081729 R Drive 592A PS / 594A PS 572 PS / 580 PS
10081730 TN Trailer HM218210 PS / HM218248 PS HM212011 PS / HM212049 PS
10081731 TP Trailer HM518410 PS / HM518445 PS HM518410 PS / HM518445 PS
