Connect Tech Xtreme/GPU User manual
Xtreme/GPU
Users Guide
Connect Tech Inc. Tel: 519-836-1291
42 Arrow Road Toll: 800-426-8979 (North America only)
Guelph, Ontario Fax: 519-836-4878
N1K 1S6 Email: sales@connecttech.com
www.connecttech.com support@connecttech.com
CTIM-00410 Revision 0.02 2017/08/04
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 2 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Table of Contents
Table of Contents...................................................................................................................................2
Preface...................................................................................................................................................3
Disclaimer .......................................................................................................................................................3
Customer Support Overview...........................................................................................................................3
Contact Information ........................................................................................................................................3
Limited Product Warranty...............................................................................................................................4
Copyright Notice.............................................................................................................................................4
Trademark Acknowledgment..........................................................................................................................4
ESD Warning ..................................................................................................................................................5
Revision History ....................................................................................................................................5
Introduction...........................................................................................................................................6
Product Features and Specifications ......................................................................................................6
Part Numbers ........................................................................................................................................7
Product Overview..................................................................................................................................8
Block Diagram ................................................................................................................................................8
Connector Locations –Top Side.....................................................................................................................9
Connector Locations –Bottom Side..............................................................................................................10
Connector Summary......................................................................................................................................11
Detailed Feature Description................................................................................................................11
MXM 3.0 GPU Connector ............................................................................................................................12
DisplayPort/HDMI/DVI Connector ..............................................................................................................13
Typical Installation..............................................................................................................................14
On-Board Indicator LED’s ..................................................................................................................14
Current Consumption Details ..............................................................................................................15
Mechanical Details...............................................................................................................................16
Top View.......................................................................................................................................................16
Cables..................................................................................................................................................17
Cable Kits......................................................................................................................................................17
Thermal Solutions................................................................................................................................18
XHG001 - Active Thermal Solution .............................................................................................................18
XHG002 - Passive Thermal Solution............................................................................................................19
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 3 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Preface
Disclaimer
The information contained within this user’s guide, including but not limited to any product specification, is
subject to change without notice.
Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or
typographical errors or omissions contained herein or for discrepancies between the product and the user’s
guide.
Customer Support Overview
If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech
reseller from which you purchased the product. In most cases the reseller can help you with product installation
and difficulties.
In the event that the reseller is unable to resolve your problem, our highly qualified support staff can assist you.
Our support section is available 24 hours a day, 7 days a week on our website at:
www.connecttech.com/sub/support/support.asp. See the contact information section below for more
information on how to contact us directly. Our technical support is always free.
Contact Information
Mail/Courier
Connect Tech Inc.
Technical Support
42 Arrow Road
Guelph, Ontario
Canada N1K 1S6
Email/Internet
www.connecttech.com
Note:
Please go to the Download Zone or the Knowledge Database in the Support Center on the Connect Tech
website for product manuals, installation guides, device driver software and technical tips.
Submit your technical support questions to our customer support engineers via the Support Center on the
Connect Tech website.
Telephone/Facsimile
Technical Support representatives are ready to answer your call Monday through Friday, from 8:30 a.m. to
5:00 p.m. Eastern Standard Time. Our numbers for calls are:
Toll Free: 800-426-8979 (North America only)
Telephone: 519-836-1291 (Live assistance available 8:30 a.m. to 5:00 p.m. EST, Monday to Friday)
Facsimile: 519-836-4878 (on-line 24 hours)
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 4 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Limited Product Warranty
Connect Tech Inc. provides a Limited one-year Warranty for the Xtreme/GPU. Should this product, in
Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc.
will, at its option, repair or replace this product at no charge, provided that the product has not been subjected
to abuse, misuse, accident, disaster or non-Connect Tech Inc. authorized modification or repair.
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business
partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must be
pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on the
outside of the package and sent prepaid, insured and packaged for safe shipment. Connect Tech Inc. will
return this product by prepaid ground shipment service.
The Connect Tech Inc. Limited Warranty is only valid over the serviceable life of the product. This is defined
as the period during which all components are available. Should the product prove to be irreparable, Connect
Tech Inc. reserves the right to substitute an equivalent product if available or to retract the Warranty if no
replacement is available.
The above warranty is the only warranty authorized by Connect Tech Inc. Under no circumstances will
Connect Tech Inc. be liable in any way for any damages, including any lost profits, lost savings or other
incidental or consequential damages arising out of the use of, or inability to use, such product.
Copyright Notice
The information contained in this document is subject to change without notice. Connect Tech Inc. shall not
be liable for errors contained herein or for incidental consequential damages in connection with the furnishing,
performance, or use of this material. This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to
another language without the prior written consent of Connect Tech, Inc.
Copyright
2017 by Connect Tech, Inc.
Trademark Acknowledgment
Connect Tech, Inc. acknowledges all trademarks, registered trademarks and/or copyrights referred to in this
document as the property of their respective owners. Not listing all possible trademarks or copyright
acknowledgments does not constitute a lack of acknowledgment to the rightful owners of the trademarks and
copyrights mentioned in this document.
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 5 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04

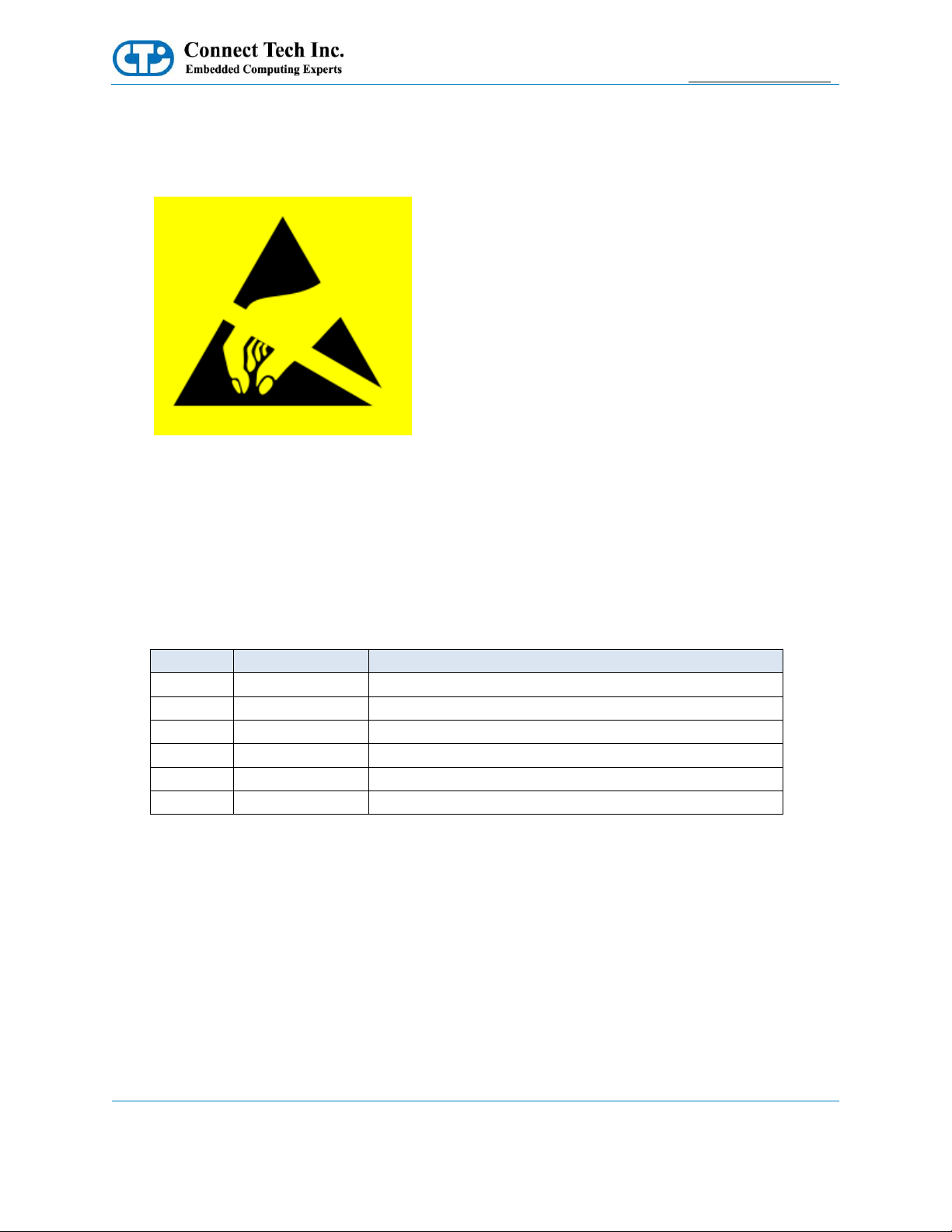

ESD Warning
Electronic components and circuits are sensitive to
ElectroStatic Discharge (ESD). When handling any circuit
board assemblies including Connect Tech carrier
assemblies, it is recommended that ESD safety
precautions be observed. ESD safe best practices include,
but are not limited to:
Leaving circuit boards in their antistatic packaging
until they are ready to be installed.
Using a grounded wrist strap when handling circuit
boards, at a minimum you should touch a grounded
metal object to dissipate any static charge that may be
present on you.
Only handling circuit boards in ESD safe areas, which
may include ESD floor and table mats, wrist strap
stations and ESD safe lab coats.
Avoiding handling circuit boards in carpeted areas.
Try to handle the board by the edges, avoiding contact
with components.
Revision History
Revision
Date
Changes
0.00
2016/08/30
Initial Release
0.01
2016/10/31
Updated warranty policy
0.02
2017/08/04
Added cable drawing links, removed drawings from doc
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 6 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Introduction
Connect Tech’s Xtreme/GPU brings exceptional desktop-level graphics, outstanding multimedia features, and
GPU processing power to the PCIe/104 form factor; with the ability to select either AMD or NVIDIA
graphical solutions.
Connect Tech’s AMD version of the Xtreme/GPU is a high end graphics unit, used to drive up to four video
connections for either independent use, or leveraging AMD Eyefinity technology, as a single large surface. On-
board passive circuitry allows for the use of HDMI, or Dual-Mode DisplayPort, enabling the use of DVI
dongles if DisplayPort or HDMI is not preferred.
With Connect Tech’s NVIDIA solution, the Xtreme/GPU transforms into a processing powerhouse. With
access to the NVIDIA CUDA™ Cores, the GPU can become a parallel computational CPU for non-graphical
applications.
Product Features and Specifications
Feature
Xtreme/GPU
PCB Size / Overall Size
95.89mm x 101.6mm (3.775” x 4.000”) –PCIe/104 Compliant
Maximum Top Side Assembly Height (Attached Thermal Plate): 11.75mm
Maximum Top Side Assembly Height (Active Heat Sink): 21.75mm
Maximum Top Side Assembly Height (Passive Heat Pipe): 20.75mm
3D STEP Model: download here
Display
4x DisplayPort/HDMI/DVI (Output Selected by Attached Cable)
GPU Compatibility
MXM 3.0
PCIe/104
PCIe/104 Top Stacking Only (No Top PCIe/104 Connector Present)
PCI Express
Default Linking at x16 PCIe Gen 3.0 Link
Optional Ordering Variant for Linking at x1 PCIe Gen 3.0 Link
Power Requirements
+12V ± 5%
+5V ± 5% (Sourced from PCIe/104 Bus)
Embedded Power
+3.3V @ 6A
Operating Temperature
GPU Dependent (Please Contact to Sales for Additional Information)
Accessories
Cable Kit
Active Heat Sink (XHG001)
Passive Heat Pipe (XHG002)
Warranty and Support
Limited one-year Warranty and Support
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 7 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Part Numbers
Part Number
Feature Set
XGG014
Commercial: AMD Radeon E6760
Temperature Range: -10°C to +70°C
Processor Clock: 600MHz
Memory: 1GB GDDR5
Interface: PEG (x16 PCIe)
Display Outputs: Up to 4 displays
Additional Features: OpenGL 4.1, OpenCL 1.1, AMD Eyefinity
XGG015
Commercial: NVIDIA GeForce GTX 950M
Temperature Range: 0°C to +70°C
Processor Clock: 914MHz
Memory: 2GB DDR3
Interface: PEG (x16 PCIe)
Display Outputs: Up to 3 displays
Additional Features: OpenGL 4.5, OpenCL 1.2
XGG018
Industrial: NVIDIA GeForce GTX 950M
Temperature Range: -40°C to +70°C
Processor Clock: 914MHz
Memory: 2GB DDR3
Interface: PEG (x16 PCIe)
Display Outputs: Up to 3 displays
Additional Features: OpenGL 4.5, OpenCL 1.2
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 11 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04

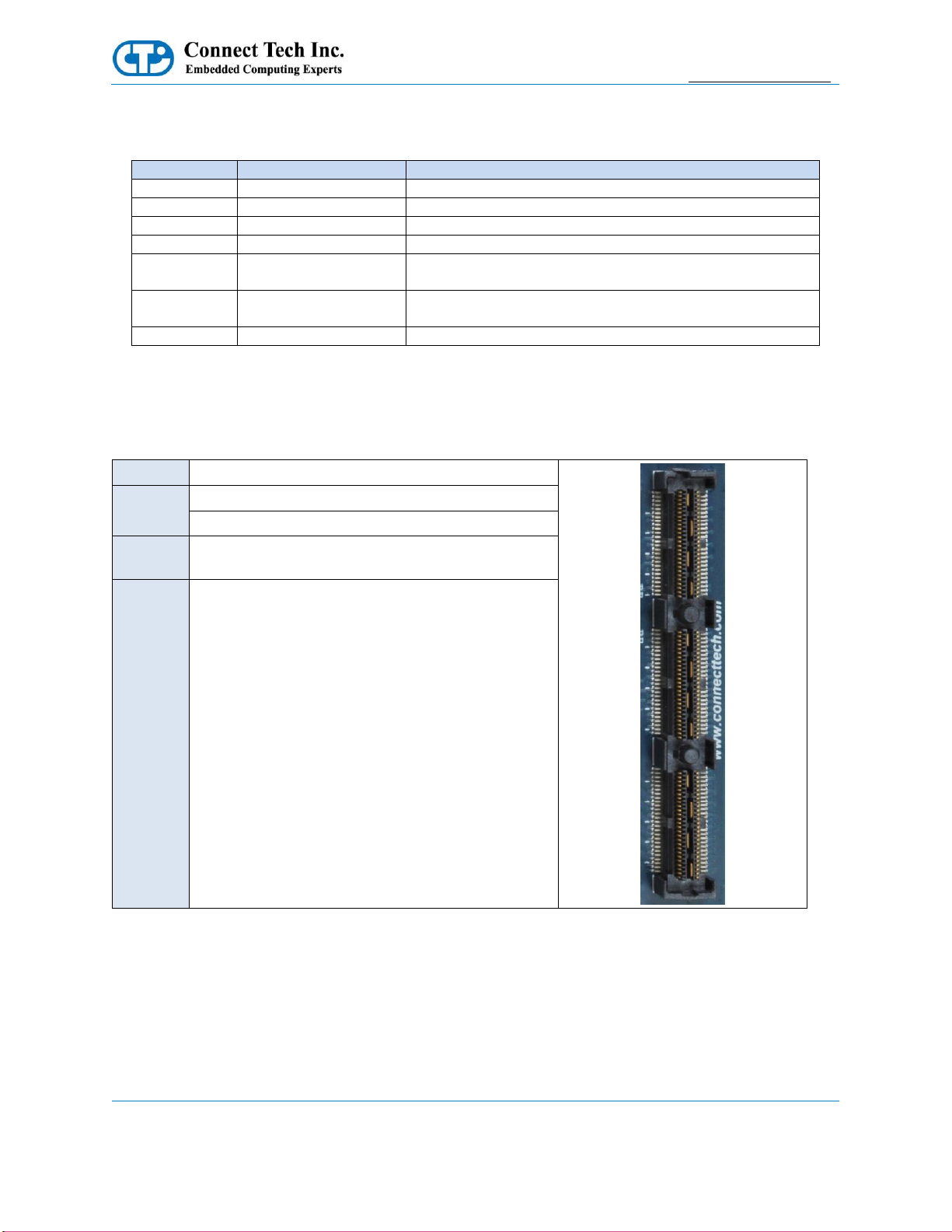

Connector Summary
Designator
Connector
Description
P1A
GPU Output A
DisplayPort/HDMI/DVI GPU Output A
P1B
GPU Output B
DisplayPort/HDMI/DVI GPU Output B
P1C
GPU Output C
DisplayPort/HDMI/DVI GPU Output C
P1D
GPU Output D
DisplayPort/HDMI/DVI GPU Output D
P2
MXM 3.0 GPU Card
Connector
MXM 3.0 GPU Card Slot for MXM 3.0 GPU Cards
P3
PCIe/104 Bottom
Connector
PCIe/104 Bottom Connector to allow for Xtreme/GPU to be on
top of PCIe/104 Stack
J1
GPU Fan Connector
Fan Connector for Controlling GPU Fan
Detailed Feature Description
PCIE/104 Bottom Connector
Function
PCIe/104 Stack Interface
Location
P3
Type
Samtec Fine Pitch Stacking Connector
Connector
P/N
ASP-129646-03
Manufacturer: Samtec
Pinout
Refer to PCI/104-Express & PCIe/104 Specification, Rev
2.01
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 12 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04

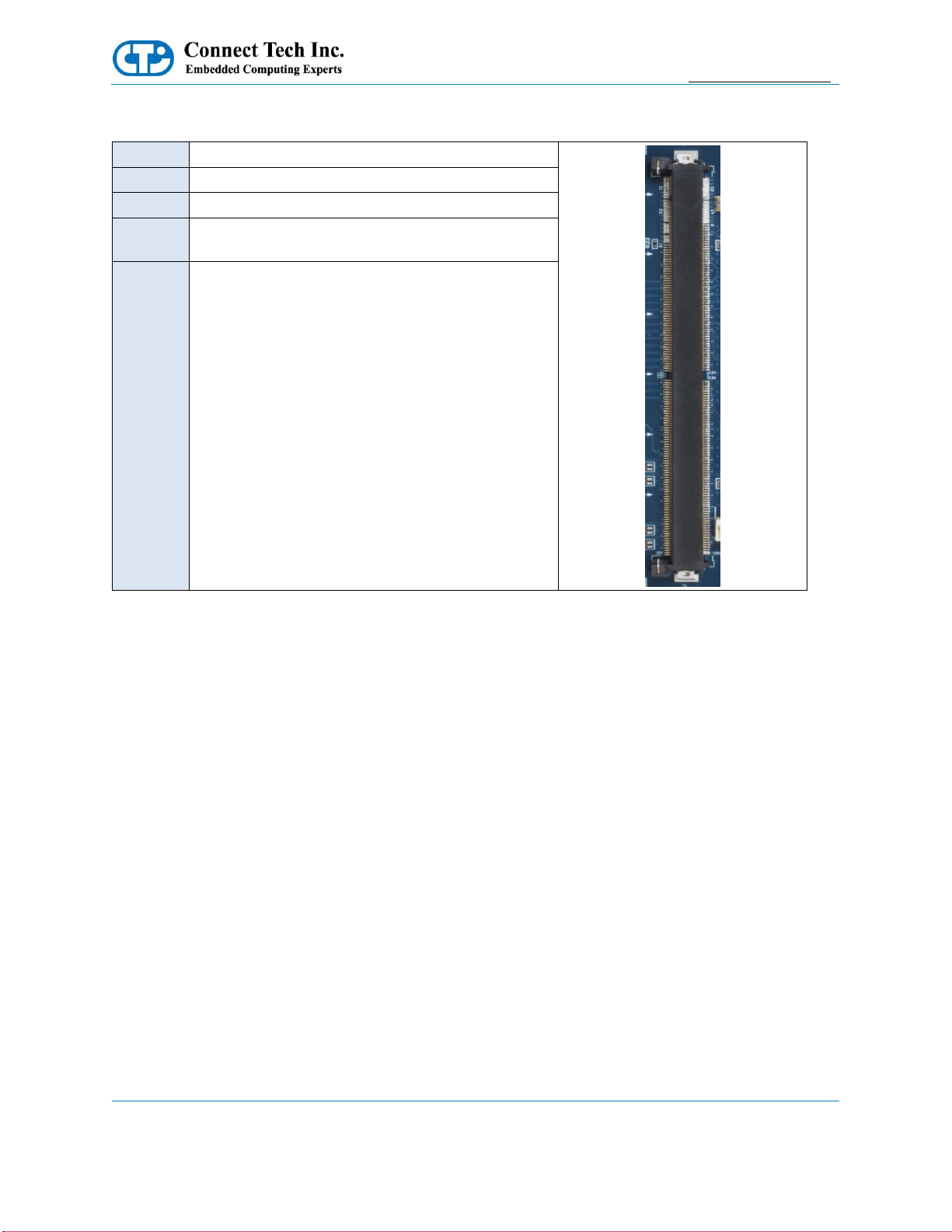

MXM 3.0 GPU Connector
Function
MXM 3.0 GPU Module Connector
Location
P2
Type
JAE Electronics Fine Pitch MXM 3.0 Connector
Connector
P/N
MM70-314-310B1-2-R300
Manufacturer: JAE Electronics
Pinout
Refer to MXM Graphics Module Mobile PCI Express
Module Electromechanical Specification Version 3.1,
Rev 1.0
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 13 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
DisplayPort/HDMI/DVI Connector
Function
DisplayPort/HDMI/DVI Connector
Location
P1A, P1B, P1C, P1D
Type
FCI Minitek Double Row 10 x 2
P/N
98414-G06-20LF
Mating
10073599-020LF
Cable
CBG113, CBG145
Pinout
Pin
Description
Pin
Description
1
DP0+/TMDS2+
2
DP3+/
TMDS CLK+
3
DP0-/TMDS2-
4
DP3-/
TMDS CLK-
5
GND
6
GND
7
DP1+/TMDS1+
8
DP_AUX-/
DDC DATA
9
DP1-/TMDS1-
10
DP_AUX+/
DDC CLK
11
GND
12
GND
13
DP2+/TMDS0+
14
Hot Plug Detect
15
DP3-/TMDS0-
16
GND
17
GND
18
GND
19
+3.3V
20
DP/TMDS SEL
MXM 3.0 GPU Fan
Function
MXM 3.0 GPU Fan Control
Location
J1
Type
Molex Pico-SPOX Header
P/N
87437-0343
Mating
87439 Series Connector
Pinout
Pin
Description
1
+12V
2
-
3
GND
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 14 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Typical Installation
1. Ensure all external system power supplies are off.
2. Ensure that the MXM Module is correctly seated and held in place by the provided M3 screws; as well,
check that the provided Thermal Solution (If one was requested) is firmly in place.
a) Active Thermal Solution: Please make sure that the three pin connector for the Fan is plugged in
3. Install the Xtreme/GPU on to the PCIe/104 stack.
4. Install the necessary cables for the application.
For the relevant cables, see the Cables & Interconnect section of this manual
5. Switch on the power for the PCIe/104 stack. DO NOT power up your system by plugging in live power.
Please ensure that all three blue power LED’s are lit before using the product.
On-Board Indicator LED’s
The Xtreme/GPU has 3 on-board indicator LEDs.
LED
Description
D1
+3.3V
D2
+5.0V
D3
+12.0V
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 15 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Current Consumption Details
Below are the maximum ratings of the Xtreme/GPU.
Maximums
Amps
Watts
Theoretical absolute maximum total draw of all functionality on the
board
10.00 A
120 W
Below are measurements taken with the Xtreme/GPU running in various configurations. These values also include
the power consumption of the test system that the Xtreme/GPU was installed in. Some values will change depending
on what mode the Xtreme/GPU is running in and what MXM Module is installed.
Actual Measurements
Amps
Watts
Commercial AMD Radeon E6760 Single DisplayPort8
1.92 A
23.10 W
Commercial AMD Radeon E6760 Single DisplayPort under Stress8,9
5.19 A
62.34 W
Commercial AMD Radeon E6760 Dual DisplayPort8
2.49 A
29.90 W
Commercial AMD Radeon E6760 Dual DisplayPort under Stress8,10
5.41 A
64.94 W
Commercial AMD Radeon E6760 Triple DisplayPort8,11
2.66 A
31.89 W
Commercial AMD Radeon E6760 Triple DisplayPort under Stress8,11
5.92 A
71.07 W
Commercial NVIDIA GeForce GT745M Single DisplayPort8
1.67 A
19.99 W
Commercial NVIDIA GeForce GT745M Single DisplayPort under
Stress8,9
4.84 A
58.09 W
Commercial NVIDIA GeForce GT745M Triple DisplayPort8
1.78 A
21.40 W
Commercial NVIDIA GeForce GT745M Triple DisplayPort under
Stress8,10
4.87 A
58.48 W
Note [8]: System Specs/Testing Configuration: Intel i7-3615, 4GB RAM, Windows 7 Enterprise N (32-Bit), XGG PCIe x16 Connection
Note [9]: Stress test was performed using 3DMark 1.10 Software.
Note [10]: Stress test was performed using 3DMark 1.10 Software on Primary Display.
Note [11]: Stress test was performed using 3DMark 1.10 Software on 3x1 Portrait Eyefinity Display Setup (3240x1920 Resolution).
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 16 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Mechanical Details
A complete 3D STEP Model file of Xtreme/GPU can be downloaded here:
http://www.connecttech.com/ftp/3d_models/XGG014_3D_MODEL.zip
2D Mechanical Dimensioned Drawing (Top View) - PCB and Mounting Hole Dimension are in mil.
Top View
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 17 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Cables
The following table summarizes the Xtreme/GPU cables available.
Cable Kits
Drawing No.
Part No.
Description
CTIC-00432
CBG113
DisplayPort Female Panel Mount to 20-Pin
MiniTek
CTIC-00461
CBG145
HDMI Female Panel Mount to 20-Pin
MiniTek
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 18 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
Thermal Solutions
The following are thermal solutions for the Xtreme/GPU.
XHG001 - Active Thermal Solution
Active Heat Sink
Function
Active Cooling of
Xtreme/GPU
Type
Active
Fan Power
+12V
Xtreme/GPU
Users Guide
www.connecttech.com
Document: CTIM-00410
Revision: 0.02
Page 19 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2017/08/04
XHG002 - Passive Thermal Solution
Passive Heat Sink
Function
Passive Cooling of
Xtreme/GPU
Type
Passive
Heat Pipe
Spec
8mm Copper Heat
Pipe
Min Bend Radius:
24mm
Min Bend Angle:
90 Degrees
Other manuals for Xtreme/GPU
1
This manual suits for next models
3
Table of contents
