CONQUEST Magna BS Basic User manual

CONQUEST MAGNA
FLOOR SCUBBER
OPERATOR MANUAL
T: 1800 826 789
E: [e-mail]
W: conquestequipment.com.au
FIMAG-OM-V01

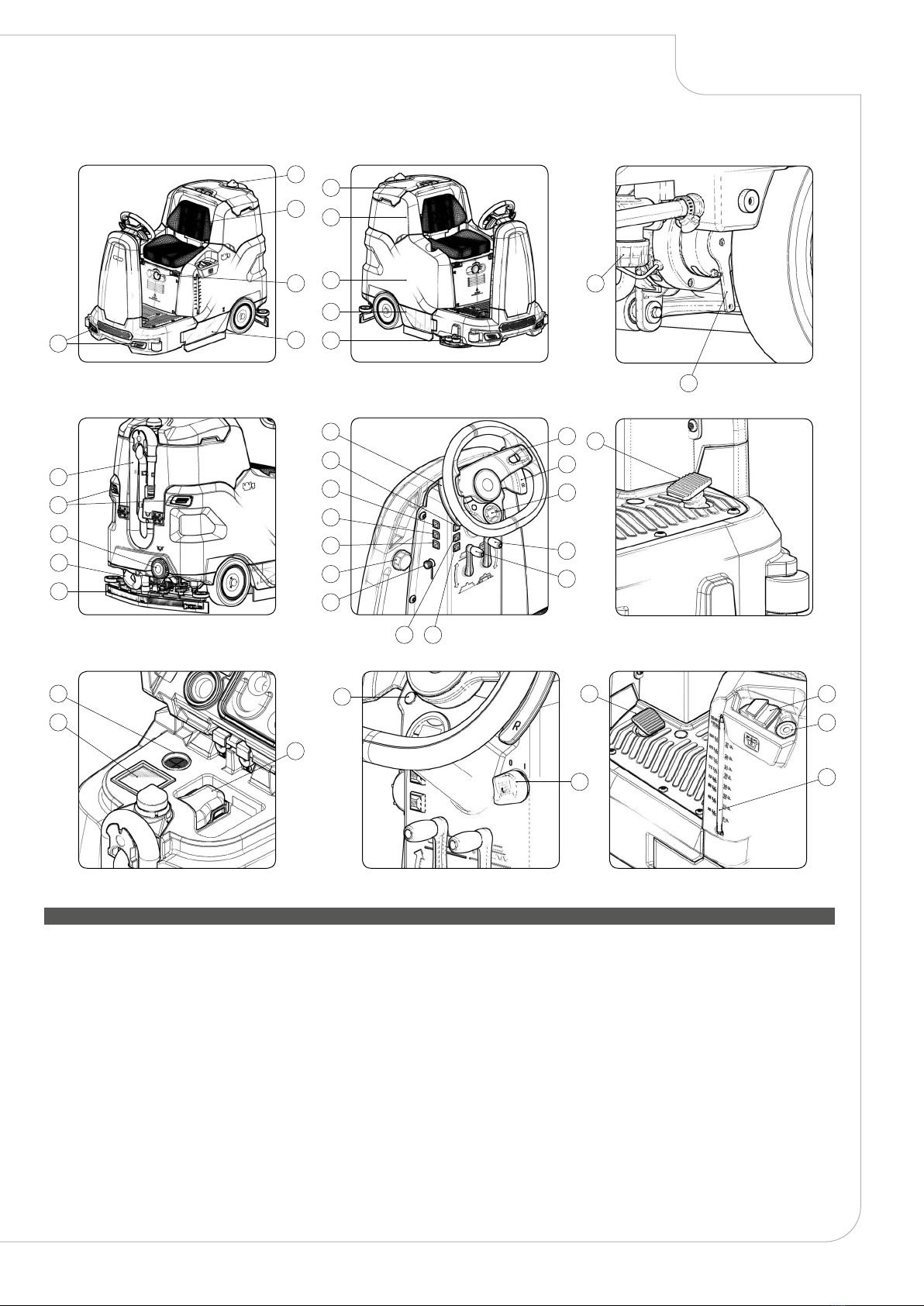

The machine's main components are the following:
1. Lateral scrubbing brush head (optional).
2. Scrubbing brush head.
3. Squeegee body.
4. Hour meter display – battery charge level.
5. Headlights (optional).
6. Tail lights (optional).
7. Vacuum motor air intake lter.
8. Vacuum motor air duct lter.
9. Recovery tank lter.
10. Detergent solution lter.
11. Main key switch.
12. Blinking light (optional).
13. Brush head extra pressure LED indicator.
14. Brush head control lever.
15. Electric brake control lever.
16. Detergent solution tap control lever.
17. Squeegee control lever.
18. Brush head extra pressure selection lever.
19. Reverse gear selection lever.
20. Service brake pedal.
21. Drive pedal.
22. Horn button.
23. Button for activating the automatic dosing system or the automatic recycle system (optional).
24. Lateral brush control button (optional).
25. Emergency button.
26. Operator seat
27. Recovery tank lid.
28. Recovery tank.
29. Solution tank.
30. Right hatch.
31. Left hatch.
32. Squeegee support.
33. Solution tank drainage shaft cap.
34. Solution tank cap.
35. Squeegee vacuum hose.
36. Solution tank rapid lling hose.
37. Solution tank level hose.
38. Recovery tank drainage hose.
39. Steering wheel.
40. Detergent canister cap (version with automatic dosing system).
41. Button activating the spray gun (optional).
42. Button adjusting the automatic dosing system (optional).
43. Button activating the vacuum wand (optional).
MAIN MACHINE COMPONENTS
3
4
19
17
39
14
1
30
29
28
27
12
26
31
25
3
35
33
5
6
38
16
24 43
42
23
22
18
41
40
9
11
34
36
37
20
13
15
21
10
8
7

CONTENTS
MAIN MACHINE COMPONENTS..............................................3
CONTENTS................................................................................4
GENERAL SAFETY REGULATIONS........................................5
RECHARGING THE BATTERIES ....................................................... 5
USING THE MACHINE ....................................................................... 6
DEACTIVATION OF THE MACHINE................................................... 8
MAINTENANCE .................................................................................. 8
TRANSPORT .................................................................................... 10
SYMBOLS USED IN THE MANUAL .......................................11
PURPOSE AND CONTENT OF THE MANUAL ......................11
TARGET GROUP.....................................................................11
PRESERVATION OF THE USER ............................................11
ON CONSIGNMENT OF THE MACHINE ................................11
INTRODUCTORY COMMENT .................................................11
IDENTIFICATION DATA...........................................................11
TECHNICAL DESCRIPTION ...................................................11
INTENDED USE.......................................................................11
SAFETY ...................................................................................11
REGULATIONS........................................................................11

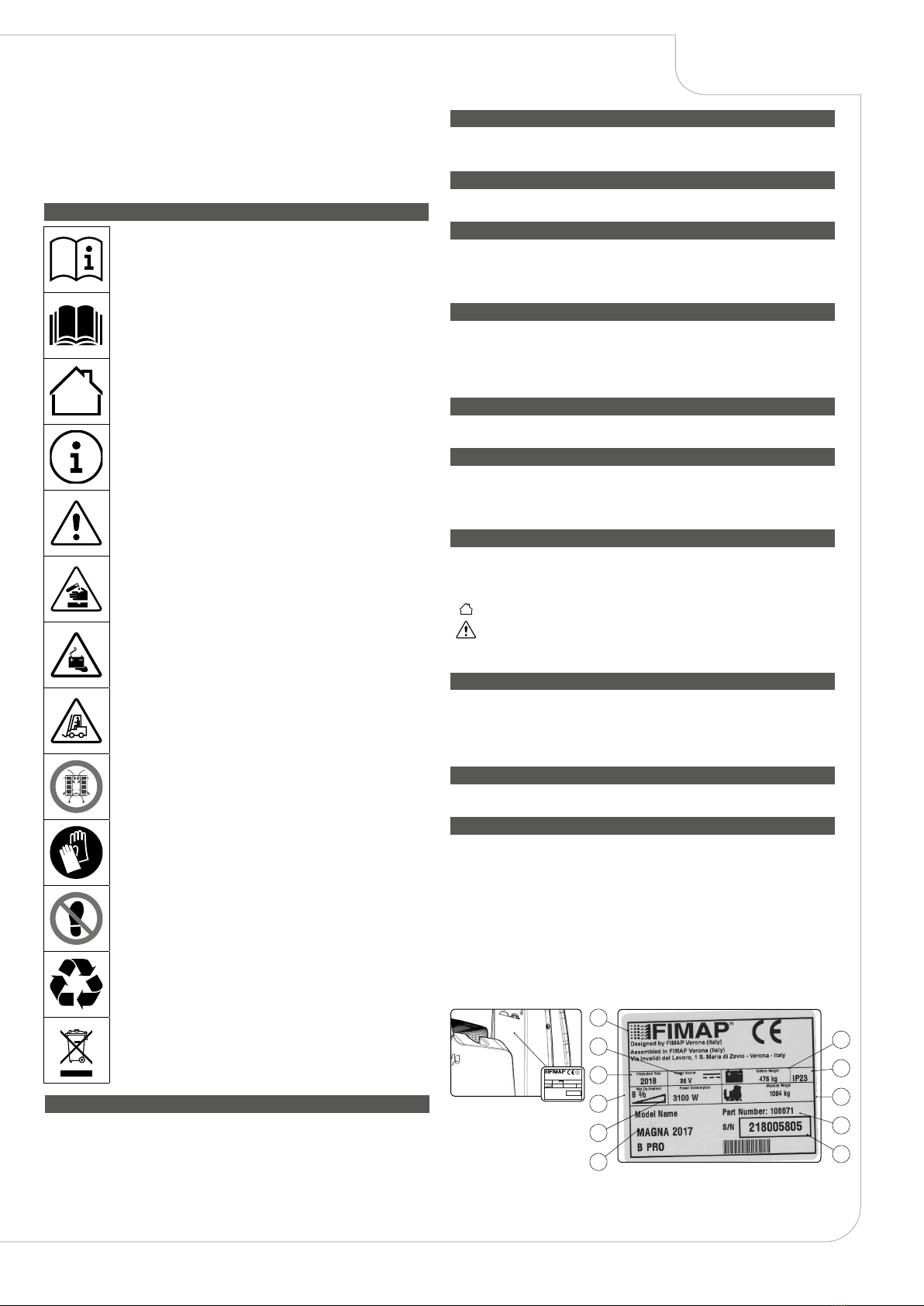

SERIAL NUMBER PLATE .......................................................11
TECHNICAL DATA ..................................................................12
TYPE OF BRUSHES (SCRUBBING VERSION) .....................12
TYPE OF BRUSHES (SWEEPING VERSION)........................13
SYMBOLS USED ON THE MACHINE ....................................14
LABELS USED ON THE MACHINE........................................14
PREPARATION OF MACHINE ................................................15

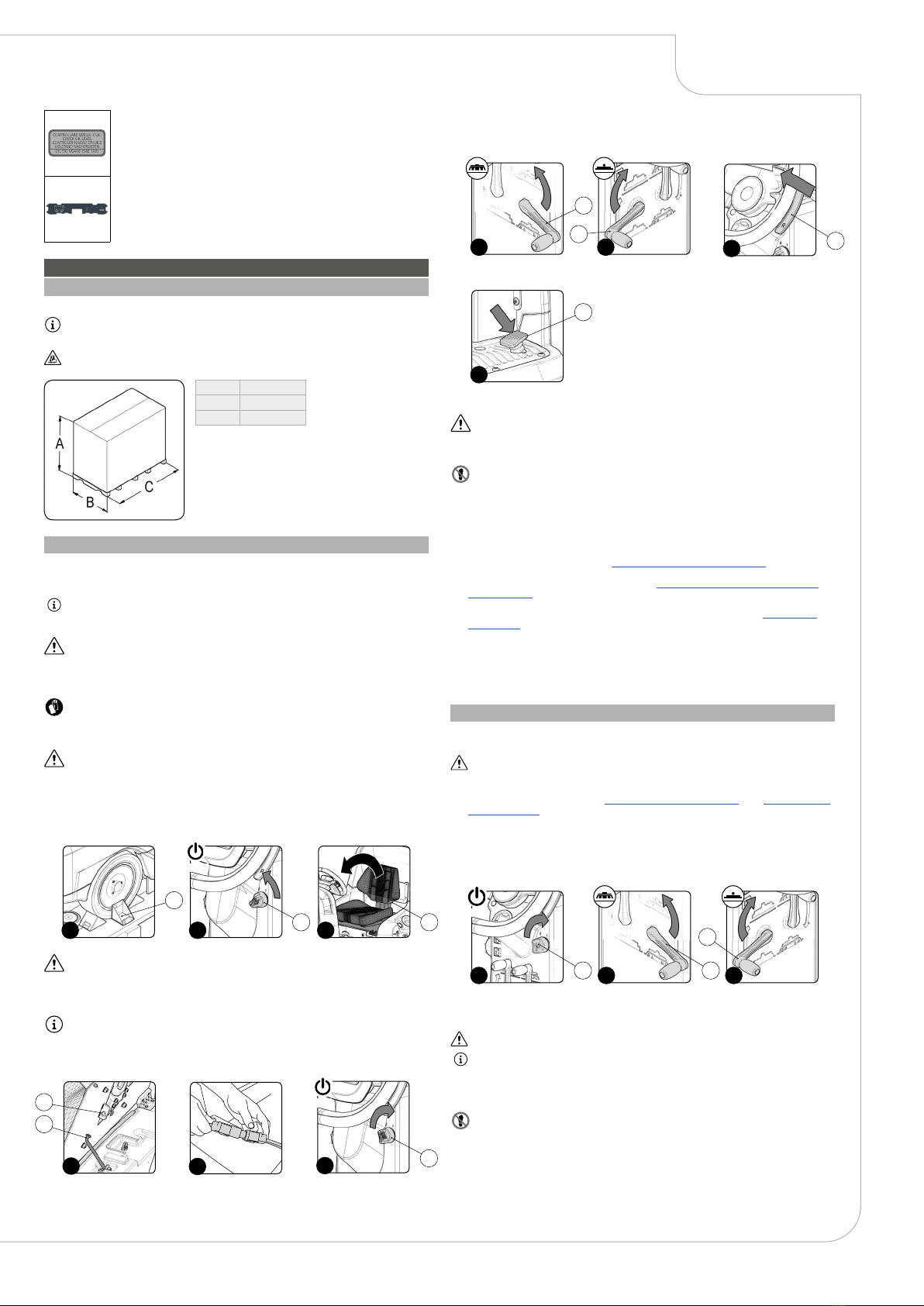

HANDLING THE PACKAGED MACHINE ......................................... 15
HOW TO UNPACK THE MACHINE .................................................. 15
HOW TO MOVE THE MACHINE ...................................................... 15
MACHINE SAFETY........................................................................... 16
BATTERY MAINTENANCE AND DISPOSAL.................................... 16
INSERTING THE BATTERIES INTO THE MACHINE....................... 16
CONNECTING BATTERIES TO THE MACHINE.............................. 17
RECHARGING THE BATTERIES ..................................................... 17
FILLING THE SOLUTION TANK....................................................... 17
DETERGENT SOLUTION................................................................. 17
ADJUSTMENT OF DRIVING POSITION .......................................... 18
INSERTING WATER SYSTEM FILTER ............................................ 18
ASSEMBLING THE BRUSH HEAD BRUSHES
(SCRUBBING VERSION) ................................................................. 18
FITTING LATERAL BRUSH 1SL (SCRUBBING ) ............................. 18
FITTING THE BRUSH HEAD BODY SIDE SPLASHGUARDS
(WASHING VERSION)...................................................................... 18
ASSEMBLING THE BRUSH HEAD BRUSHES
(SWEEPING VERSION) ................................................................... 19
ASSEMBLING SIDE BRUSH 2SL (SWEEPING VERSION)............. 19
ASSEMBLING THE SQUEEGEE BODY........................................... 19
PREPARING TO WORK ..........................................................19
WORK ......................................................................................20
SCRUBBING WITH DRYING ............................................................ 20
SCRUBBING WITHOUT DRYING .................................................... 20
DRYING............................................................................................. 20
REGULATING THE DETERGENT SOLUTION................................. 21
REVERSE GEAR .............................................................................. 21
EXTRA BRUSH HEAD PRESSURE ................................................. 21
BUZZER ............................................................................................ 21
WORKING HEADLIGHTS (OPTIONAL) ........................................... 21
EMERGENCY BUTTON.................................................................... 21
HOUR METER .................................................................................. 22
BATTERY CHARGE LEVEL INDICATOR ......................................... 22
ACTIVATING THE SIDE BRUSH (VERSION 1SL OR 2SL) ............. 22
ACTIVATING DETERGENT SOLUTION RECYCLING
(FLR VERSION) ................................................................................ 22
AUTOMATIC DETERGENT MEASURING SYSTEM
(FSS VERSION)................................................................................ 22
AUTOMATIC REQUEST FOR TECHNICAL ASSISTANCE
(OPTIONAL) ..................................................................................... 22
EMERGENCY BUTTON.................................................................... 22
ALARM SCREEN .............................................................................. 23
VACUUM WAND KIT (OPTIONAL)................................................... 23
BRAKING CONTROL........................................................................ 23
OVERFLOW DEVICE ....................................................................... 23
AT THE END OF THE WORK..................................................23
RECOMMENDED MAINTENANCE OPERATIONS ................24
DRAINING THE RECOVERY TANK ................................................. 24
EMPTYING THE DEBRIS HOPPER (SWEEPING VERSION)......... 24
CLEANING THE SQUEEGEE BODY................................................ 24
CLEANING THE BRUSH HEAD BRUSHES
(SCRUBBING VERSION) ................................................................. 25
CLEANING THE BRUSH HEAD BRUSHES
(SWEEPING VERSION) ................................................................... 26
CLEANING THE LATERAL BRUSH (SCRUBBING VERSION)........ 26
CLEANING THE LATERAL BRUSH (SWEEPING VERSION).......... 27
CLEANING THE RECOVERY TANK FILTERS ................................. 28
CLEANING THE RECYCLE FILTER (FLR VERSIONS)................... 29
EMPTYING THE SOLUTION TANK.................................................. 29
CLEANING THE WATER SYSTEM FILTER ..................................... 29
CLEANING THE DEBRIS HOPPER (SWEEPING VERSION) ......... 30
CLEANING THE VACUUM TUBE..................................................... 30
EXTRAORDINARY MAINTENANCE.......................................31
REPLACING THE SQUEEGEE BODY RUBBER BLADES.............. 31
REPLACING THE BRUSH HEAD SPLASH GUARD........................ 31
REPLACING THE SIDE SQUEEGEE SPLASHGUARD
RUBBER BLADES ............................................................................ 31
FILLING BRAKING SYSTEM OIL BASIN ......................................... 32
ADJUSTMENT INTERVENTIONS...........................................32
ADJUSTING THE SQUEEGEE BODY'S RUBBER BLADES ........... 32
ADJUSTING BRUSH HEAD BODY SIDE SPLASHGUARDS .......... 32
ADJUSTING THE SIDE BRUSH (SWEEPING VERSION)............... 33
DISPOSAL ...............................................................................33
EC DECLARATION OF CONFORMITY ..................................33
LIST OF ALARMS ...................................................................34
LOCK ALARMS ................................................................................. 34
MANUAL RESET ALARMS............................................................... 34
AUTOMATIC RESET ALARMS......................................................... 34
TROUBLESHOOTING.............................................................35
4

GENERAL SAFETY REGULATIONS
The following symbols are used to indicate any potentially hazardous situations. Always read
this information carefully and take the necessary precautions to protect any people and/or
objects that may be present.
Operator cooperation is paramount for accident prevention. No accident prevention programme
can be e󰀨ective without the full cooperation of the person directly responsible for the machine's
operation. Most accidents that occur at the workplace, during work activities, or while in transit,
are caused by the failure to respect the most basic safety regulations. An attentive, careful
operator is most e󰀨ective guarantee against accidents and is fundamental in order to implement
any prevention programme.
DANGER: Indicates an imminent danger that could cause serious injury or death.
WARNING: Indicates a probable dangerous situation that could cause serious injury or
death.
CAUTION: Indicates a probable dangerous situation that could cause minor injuries.
ATTENTION: Indicates a probable dangerous situation that could damage objects.
N.B.: Indicates a note regarding essential or useful functions.
CONSULTATION: Indicates the need to consult the Operator's Manual before performing
any operation.
RECHARGING THE BATTERIES
DANGER:
• If the battery charger power cable is damaged or broken, it should be replaced by the
manufacturer, by authorised service personnel or else by a qualied person, in order to
protect against hazards.
• The socket for the battery charger cable must have a prescribed earth connection.
•Keep sparks, ames, and incandescent materials at a safe distance from the batteries.
Explosive gases are emitted during the charging phase.
• highly explosive hydrogen gas is generated while charging the batteries. Keep the recovery
tank in a maintenance position during the entire battery recharging cycle, and only perform
the procedure in well-ventilated areas at a safe distance from any open ames.
• Before charging, make sure the electric cable that connects the machine's electrical system
to the batteries is not damaged. If it is, don't use it; contact technical assistance.
• Before charging check that the electric cable that connects the battery charger to the mains
is not damaged, and if it is damaged do not use it and contact technical assistance.
• Do not disconnect the battery charger cable from the cable connected to the batteries when
the battery charger is in operation. This is to prevent electric arcs from forming. To connect
the battery charger while charging, the battery charger must rst be switched o󰀨 and then
the power supply cable must be disconnected from the mains socket (read the Use and
Maintenance Manual for the battery charger itself).
5

WARNING:
• Do not use incompatible battery chargers since they could damage the batteries and
potentially cause a re.
•The batteries emit hydrogen gas. This gas can cause explosions or res. Keep a safe
distance from ames or sparks. Keep the recovery tank open for the duration of the battery
recharging.
• the room used to recharge the batteries must be adequately ventilated to prevent the
accumulation of gases that leak from batteries.
• For versions with a battery charger on-board, before charging make sure that the frequency
and the voltage indicated in the battery charger user manual, (enclosed with the machine
documentation) match the mains voltage.
• Keep the battery charger's cable at a safe distance from any hot surfaces.
• Never smoke in the machine's vicinity while the batteries are charging.
• Carefully read the user manual of the battery charger you want to use before recharging.
USING THE MACHINE
DANGER:
• The machine may be used by children over the age of 8 and by people with limited
physical, sensorial or mental capacity, or people without experience or the required
knowledge, as long as they are supervised or have been instructed about safe
machine use and the inherent dangers. Children must not play with the machine. The
cleaning and maintenance that should be carried out by the user should not be done
by unsupervised children.
• In the event of danger, take prompt action by pressing the emergency button near the
operator's seat.
•Never collect gases, explosive/inammable liquids or powders, nor acids and solvents!
These include gasoline, paint thinners and fuel oil (which, when mixed with the vacuum air,
can form explosive vapours or mixtures), and also non-diluted acids and solvents, acetones,
aluminium and magnesium powders. These substances may also corrode the materials
used to construct the machine.
• If the machine is used in dangerous areas (e.g. petrol stations), the relative safety standards
must be observed. It is forbidden to use the machine in environments with a potentially
explosive atmosphere.
• Never use the machine with the electro-magnetic brake disengaged.
WARNING:
• The machine must be exclusively used by authorised, trained personnel.
• Do not use the machine on surfaces with a slope greater than the one indicated on the serial
number plate.
•The machine is not suitable for cleaning rough or uneven oors. Do not use the machine on
slopes.
•In the event of a re, use a powder extinguisher. Do not use water.
• Adapt the speed to the adhesion conditions.
• In order to prevent the unauthorised use of the machine, the power supply must be
disconnected: switch the machine o󰀨 using the main switch (by removing the key from the
block) and disconnect the battery's connector from the electrical system's connector.
6

• Do not use the machine without the requisite knowledge and authorisations.
• Do not use the machine if you have not read and understood the following user manual.
•Do not use the machine under the inuence of alcohol or drugs.
• Do not use the machine when using a mobile phone or other types of electronic devices.
• Do not use the machine if it is not working correctly.
•Do not use the machine in areas where there are inammable vapours or liquids or
combustible powders.
• Do not use the machine in areas that are too dark to see the controls or operate the
machine safely, unless the work lights or the front headlights are on.
CAUTION:
• Children must be supervised to ensure they do not play with the machine.
• During the working of the machine, pay attention to other people and especially to children.
• The machine must only be powered with a voltage equal to that shown on the serial number
plate.
• Read the labels on the machine carefully. Do not cover them for any reason, and replace
them immediately if they become damaged.
• The machine must only be used and stored in an enclosed or covered environment.
• The machine must not be used or stored outdoors in damp conditions or directly exposed to
rain.
• The machine does not cause harmful vibrations.
• Use the machine only in the way described in this manual.
• Do not pick up anything that is burning or smouldering, like cigarettes, matches or glowing
embers.
• Reduce speed on slopes and dangerous corners.
• Reduce speed before making a turn.
• Keep all parts of your body inside when the machine is moving.
• Be careful when reversing.
• Do not transport passengers.
• Always follow the instructions for mixing, use and disposal on the containers of the chemical
substances.
ATTENTION:
• The machine is not suitable for use by people (including children) with limited physical,
sensorial or mental, or by people who have no experience or the required knowledge,
unless they are supervised or after they have been given instruction regarding using the
machine by a person responsible for their safety.
• If the machine is to be used in the presence of other individuals, aside from the operator, the
beacon light must be utilized.
• Always take appropriate measures to protect any individuals and/or objects that may be
present while using this machine.
•Be careful to avoid collisions with shelving or sca󰀨olding, above all if there is a risk of
objects falling from heights.
• Do not place any liquid containers on the machine.
•The machine must only be used under temperature conditions ranging from +0 °C to +40 °C.
•When using detergents to clean the ooring, always follow the instructions and respect the
warnings indicated on the containers' labels.
7

• Always use appropriate gloves and protective equipment when handling the detergents
used to clean the oor.
• Do not use the machine as a means of transport.
• Avoid working with the brushes when the machine is standing still, so as not to damage the
oor.
•In the event of a re, use a powder re extinguisher if possible, and avoid the use of water.
• Do not allow any objects to penetrate into the machine's openings. Do not use the machine
is the openings are obstructed.
• Keep the machine's openings free of any dust, lint, hairs, or any other foreign materials that
could reduce the airow.
•Do not remove or alter any labels a󰀩xed to the machine.
• This machine has not been approved for use on public streets or roadways.
• Only use the brushes and pad holders that have been supplied along with the machine
or those specied in the Operator's Manual. The use of other brushes or felt pads could
compromise the machine's safety conditions.
• Before starting to work check that there are no leaks.
• Before starting to work check that all the safety devices have been installed and are working
correctly.
• Take all due precautions so that hair, jewellery, loose clothing do not get entangled in the
machine's moving parts.
• Only use the machine in well-lit areas.
DEACTIVATION OF THE MACHINE
WARNING:
• Always protect the machine against sunlight, rain, and other atmospheric agents, both
while it is stationary and while it is in function. Store the machine in a dry, sheltered place:
this machine is only designed for use under dry conditions, and must not be used or stored
outdoors under humid conditions.
• Do not park the machine near combustible materials, powders, gases or liquids.
•Stop the machine on a at surface.
•Switch o󰀨 the machine and remove the key from the instrument panel.
• If the machine is left unattended, it must be protected from any accidental movements
CAUTION:
• In order to prevent the unauthorised use of the machine, the power supply must be
disconnected: switch the machine o󰀨 using the main switch (by removing the key from the
block) and disconnect the battery's connector from the electrical system's connector.
ATTENTION:
• The machine must only be stored under temperature conditions ranging from +0 °C to +40
°C. The humidity level must be between 30% and 95%.
MAINTENANCE
DANGER:
• In order to avoid short-circuits when working in the vicinity of electrical components, do the
following: avoid the use of non-insulated tools; do not place or allow metallic objects to fall
8

upon the electrically powered components; remove any rings, watches and/or clothing with
metallic parts that might come into contact with the electrically powered components.
•do not work underneath the raised machine without adequate xed safety supports.
WARNING:
• Read all the relevant instructions carefully before performing any maintenance/repair
operations.
• If the machine does not work properly, check this is not caused by failure to carry out routine
maintenance. Otherwise, ask for intervention of the authorised technical assistance centre.
• Restore all electrical connections after any maintenance interventions.
CAUTION:
•When doing maintenance work, switch o󰀨 the machine using the main switch. Remove the
key from the instrument panel and remove the battery connector from the electrical system
connector.
• Avoid contact with moving parts. Do not wear loose clothing or jewellery and tie long hair
back.
• Block the wheels before lifting the machine.
• Lift the machine with equipment that can sustain the weight to be lifted.
ATTENTION:
• Never tamper with the machine's protection devices for any reason; always follow the
supplied routine maintenance instructions scrupulously.
• The electro-magnetic brake must be released in order to move the machine manually. Once
the manual movement operations have been completed, the electro-magnetic brake must be
re-engaged. Never use the machine with the electro-magnetic brake disengaged.
• If the machine needs to be pushed for maintenance purposes (batteries absent; discharged
batteries; etc.), never go faster than 4km/h.
• If any issues are encountered while using the machine, check to make sure that these are
not due to a lack of proper maintenance. Otherwise, request the intervention of authorized
personnel or an Authorized service centre.
• If any parts need to be replaced, always request ORIGINAL spare parts from an authorized
Dealer or Retailer.
• In order to ensure the machine's safety and proper functionality, always have the scheduled
maintenance interventions (specied in the appropriate section of this Manual) performed by
authorized personnel or by an authorized Service Centre.
• Do not clean the machine with direct or pressurized jets of water, or with corrosive
substances.
• If lead batteries (WET) have been installed on the machine, avoid tilting it beyond 86° in
relation to the horizontal plane, as this could cause the highly corrosive liquid to leak out of
the batteries.
• Avoid contact with the battery acid.
• Keep all metal objects away from the batteries.
• Use a non-conductive device for removing the battery.
• Use a hoist and suitable equipment when lifting the batteries.
•The battery must be installed by qualied personnel.
• Always observe the safety measures of the site regarding removing the battery.
9

• Remove the batteries if the machine needs to be tilted in order to perform maintenance
procedures.
• Have the machine checked by an authorised technical assistance centre every year.
• When disposing of consumable materials, observe the laws and regulations in force. Once
the machine has reached the end of its service life, the materials contained within it must be
disposed of in an appropriate manner, keeping in mind that the machine itself has been built
using fully recyclable materials.
• Do not push or tow the machine without an operator on the seat who can control the
machine.
• Do not wash the machine with pressurised water or wet the machine near electrical
components.
•All repairs must be carried out by qualied personnel.
• Do not physically change the design characteristics of the machine.
• Use spare parts supplied by FIMAP or by FIMAP service centres.
• Wear personal protective equipment as required and as suggested in the manual.
TRANSPORT
WARNING:
• Drain both tanks before transport.
• Bring both the squeegee and the brushes to a working position before securing the machine
to the transport vehicle.
• Use a ramp, a truck or a trailer that can support the weight of the machine and the operator.
• To place the machine on the transport vehicle use a pulley. Do not drive the machine on or
o󰀨 a truck or trailer.
• The ramp for placing the machine on the transport vehicle should have such a slope that the
machine does not get damaged.
• Engage the parking brake after loading the machine onto the transport vehicle.
• Secure the device according to the directives in force in the country of use, so that it cannot
slide or tip over when being transported.
ATTENTION:
• Use caution when moving the machine under temperatures below freezing. The water
contained in the water recovery tank or in the pipes could freeze, and could seriously
damage the machine itself.
10

The descriptions contained in this document are not binding. The company therefore reserves the
right to make any modications at any time to elements, details, or accessory supply, as considered
necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction,
even partial, of the text and drawings contained in this document is prohibited by law.
The company reserves the right to make any technical and/or supply modications. The images
are shown as reference only and are not binding as to the actual design and/or equipment.
SYMBOLS USED IN THE MANUAL
PURPOSE AND CONTENT OF THE MANUAL
The aim of this manual is to provide customers with all the information needed to use the machine
in the safest, most appropriate and most autonomous way. This includes information concerning
technical aspects, safety, operation, downtime, maintenance, spare parts and scrapping. The
operators and qualied technicians must carefully read the instructions in this manual before carrying
out any operations on the machine. If in doubt about the correct interpretation of instructions, contact
your nearest Customer Service Centre to obtain the necessary clarications.
TARGET GROUP
This manual is written both for operators and for qualied machine maintenance technicians.
Operators must not perform operations that should be carried out by qualied technicians. The
manufacturer is not liable for damages resulting from failure to comply with this veto.
PRESERVATION OF THE USER
The Use and Maintenance Manual must be stored in its special pouch close to the machine, protected
from liquids and anything else that could compromise its legibility.
ON CONSIGNMENT OF THE MACHINE
When the machine is consigned to the customer, an immediate check must be performed to ensure all
the material mentioned in the shipping documents has been received, and also to check the machine
has not su󰀨ered damage during transportation. If this is the case, the carrier must ascertain the extent
of the damage at once, informing our customer service o󰀩ce. It is only by prompt action of this type
that the missing material can be obtained, and compensation for damage successfully claimed.
IDENTIFICATION DATA
For technical assistance or to request replacement parts, always give the model, the version and the
serial number (written on the relevant plate).
TECHNICAL DESCRIPTION
The Magna Basic is a oor scrubbing machine that's capable of handling a wide variety of oors and
types of dirt thanks to the mechanical action of two or three brushes and the chemical action of a
water-detergent solution. As it advances, it collects the dirt removed, as well as the detergent solution
not absorbed by the ooring itself. The machine must only be used for this purpose.
INTENDED USE
This scrubbing machine was designed and built for the cleaning (scrubbing and drying) of smooth,
compact ooring in the commercial, residential and industrial sectors by a qualied operator in proven
safety conditions. The scrubbing machine is not suitable for cleaning rugs or carpet oors. It is only
suitable for use in closed (or at least covered) places.
ATTENTION: the machine is not suitable for use in the rain, or under water jets.
IT IS FORBIDDEN to use the machine for picking up dangerous dusts or inammable liquids
in places with an explosive atmosphere. In addition, it is not suitable as a means of transport
for people or objects.
SAFETY
Operator cooperation is paramount for accident prevention. No accident prevention programme can
be e󰀨ective without the full cooperation of the person directly responsible for machine operation. The
majority of occupational accidents that happen either in the workplace or whilst moving are caused by
failure to respect the most basic safety rules. An attentive, careful operator is most e󰀨ective guarantee
against accidents and is fundamental in order to implement any prevention programme.
INTRODUCTORY COMMENT
Any oor scrubbing machine can only work properly and e󰀨ectively if used correctly and kept in full
working order by performing the maintenance operations described in the attached documentation.
We therefore suggest you read this instruction booklet carefully and read it again whenever di󰀩culties
arise while using the machine. If necessary, remember that our assistance service (organised in
collaboration with our dealers) is always available for advice or direct intervention.
REGULATIONS
All references to forwards and backwards, front and rear, right and left indicated in this manual should
be understood as referring to the operator in a driving position with his hands on the steering wheel.
SERIAL NUMBER PLATE
The serial number plate is located at the rear of the steering column, and indicates the machine's
general characteristics, including its serial number. The serial number is a very important piece
of information and should always be provided together with any request for assistance or when
purchasing spare parts. The serial number plate contains the following:
1. The weight of the batteries used to power the appliance (expressed in Kg).
2. The IP protection rating of the appliance.
3. The gross weight of the appliance (expressed in Kg).
4. The identication code of the appliance.
5. The serial number of the appliance.
6. The name of the appliance.
7. The nominal power consumed by the appliance (expressed in W).
8. The maximum grade that the appliance can handle during work activities (expressed in %).
9. The year in which the appliance was manufactured.
10. The nominal voltage of the appliance (expressed in V).
11. The commercial name of the appliance and the manufacturer's address.
Designby FIMAP Verona (Italy)
Assembledin FIMAP Verona (Italy)
ViaInvalidi del Lavoro, 1 S. Maria di Zevio - Verona - Italy
11
10
9
8
7
6
1
2
3
4
5
11
Symbol of the open book with i:
Indicates the need to consult the instruction manual.
Symbol of the open book:
Tells the operator to read the user manual before using the device.
Covered place symbol:
The operations preceded by this symbol must always be carried out in a dry,
covered area.
Information symbol:
Indicates additional information for the operator, to improve the use of the device.
Warning symbol:
Carefully read the sections preceded by this symbol meticulously following the
instructions indicated for the safety of the operator and the device.
Danger symbol (corrosive substances):
The operator should always wear protective gloves to avoid the risk of serious
injury to the hands caused by corrosive substances.
Danger symbol (battery acid leakage):
Indicates the danger of leaking acid or acid fumes from the batteries while they
are being recharged.
Danger symbol (moving carriages):
Indicates that the packed product should be handled with suitable carriages that
conform to legal requirements.
Mandatory room ventilation symbol:
Informs the operator that the room must be ventilated while the batteries are
being recharged.
Symbol indicating the compulsory use of protective gloves:
Indicates that the operator should always wear protective gloves, to avoid the risk
of serious injury to his hands from sharp objects.
Symbol indicating a treading ban:
Informs the operator that it is forbidden to tread on machine components, as this
could lead to serious injury.
Recycling symbol:
Tells the operator to carry out the operations in compliance with environmental
regulations in force in the place where the appliance is being used.
Disposal symbol:
Carefully read the sections marked with this symbol for disposing of the appliance.

TECHNICAL DATA
Remarks:
(1) Machine weight: refers to the overall weight of the machine; without the battery box; with no operator on board, and with both tanks empty.
(2) Machine weight during transport: refers to the overall weight of the machine; with the battery box inserted; with no operator on board, and with both tanks empty.
(3) Machine weight during work operations: refers to the overall weight of the machine; with the battery box inserted; with addition of 70kg operator on-board; with the solution tank full; with the detergent
canister full; with the safety kit tted.
TYPE OF BRUSHES (SCRUBBING VERSION)
CODE QTY Ø
EXTERNAL
TYPE OF
BRISTLE NOTES
447244 2 Ø460mm PPL Ø0.6 WHITE CENTRAL BRUSH
447246 2 Ø460mm PPL Ø0.9 BLACK CENTRAL BRUSH
447248 2 Ø460mm ABRASIVE CENTRAL BRUSH
447251 2 Ø440mm - CENTRAL PAD HOLDER
427709 1 Ø290mm PPL Ø0.3 BLUE SIDE BRUSH
427710 1 Ø290mm PPL Ø0.6 WHITE SIDE BRUSH
427711 1 Ø290mm PPL Ø0.9 BLACK SIDE BRUSH
427712 1 Ø290mm ABRASIVE SIDE BRUSH
427713 1 Ø280mm - SIDE PAD HOLDER
TECHNICAL DATA SI
[KMS] Magna Basic Magna 1SL Basic
Rated machine power W 3050 3250
Working capacity up to m2/h 5400 5400
Working width mm 900 900
Working width with the lateral brush mm - 1050
Squeegee width mm 1045 1045
Central brush head brushes (number -Ø external bristles) Nr - mm 2 - Ø460 2 - Ø460
Central brush head motor (voltage - nominal power rating) V - W 36 - 750 36 - 750
Rpm of the individual brush on the central brush head rpm 180 180
Lateral brush head unit motor (voltage - nominal power rating) V - W - 36 - 200
Lateral brush head brush rotations rpm - 140
Side brushes (number -Ø external bristles) Nr - mm - 1 - Ø290
Lateral brush head unit lateral movement mm - 65
Maximum weight exerted upon the central brush head kg 150 150
Maximum weight exerted upon the lateral brush head kg - 10
Traction motor (voltage / rated power) V - W 36 - 900 36 - 900
Maximum negotiable slope (“transport” working program and empty tanks) % 18 18
Maximum speed (with transport program) Km/h 9 9
Vacuum motor (voltage - nominal power rating) V - W 36 - 650 36 - 650
Vacuum head vacuum (versions with one motor - versions with two motors) mbar 190 190
Wand kit vacuum mbar - -
Maximum solution tank capacity l 190 190
Maximum recovery tank capacity l 200 200
Maximum capacity of the detergent canister (versions with automatic detergent dosing system) l 15 15
Turning circle (without front bumpers it and without roof) mm 986 986
Machine dimensions (length - width - height) mm 1840 - 1085 - 1375 1840 - 1085 - 1375
Machine dimensions with front bumpers kit and roof (length - width - height) mm 1895 - 1085 - 1950 1895 - 1085 - 1950
Battery compartment dimensions (length - width - useful height) mm 960 - 400 - 505 960 - 400 - 505
Machine weight(1) kg 450 460
Machine weight during transport(2) kg 865 875
Machine weight during work operations(3) kg 1055 1065
Weight of the front bumpers kit and roof kg 63 63
Maximum weight of the battery box (recommended) kg 415 415
Sound pressure level (ISO 11201) - Lpa dB (A) <70 <70
Uncertainty Kpa dB (A) 1.5 1.5
Body vibration level (ISO 2631) m/s20.5 0.5
12

Remarks:
(1) Machine weight: refers to the overall weight of the machine; without the battery box; with no operator on board, and with both tanks empty.
(2) Machine weight during transport: refers to the overall weight of the machine; with the battery box inserted; with no operator on board, and with both tanks empty.
(3) Machine weight during work operations: refers to the overall weight of the machine; with the battery box inserted; with addition of 70kg operator on-board; with the solution tank full; with the detergent
canister full; with the safety kit tted.
TYPE OF BRUSHES (SWEEPING VERSION)
CODE QTY Ø
EXTERNAL LENGTH TYPE OF BRISTLE NOTES
447963 2 200mm 856mm PPL 0.6mm CENTRAL BRUSH
447964 2 200mm 856mm PPL 0.9mm CENTRAL BRUSH
447965 2 200mm 856mm ABRASIVE CENTRAL BRUSH
437874 2 450 - PPL 1mm SIDE BRUSH
TECHNICAL DATA SI
[KMS]
Magna BS
Basic
Magna BS 2SL
Basic
Rated machine power W 3050 3230
Working capacity up to m2/h 5000 5000
Working width mm 825 1225
Working width with the lateral brush mm - 1050
Squeegee width mm 1045 1045
Central brush head brushes (number -Ø external bristles-length) Nr - (Ømm - mm) 2 - (Ø200 - 856) 2 - (Ø200 - 856)
Central brush head motor (voltage - nominal power rating) V - W 36 - 750 36 - 750
Rpm of the individual brush on the central brush head rpm 550 550
Lateral brush head unit motor (voltage - nominal power rating) V - W - 36 - 90
Lateral brush head brush rotations rpm - 75
Side brushes (number -Ø external bristles) Nr - mm - 2 - Ø450
Maximum weight exerted upon the central brush head kg 60 60
Maximum weight exerted upon the lateral brush head kg - 5
Traction motor (voltage / rated power) V - W 36 - 900 36 - 900
Maximum negotiable slope (“transport” working program and empty tanks) % 18 18
Maximum speed (with transport program) Km/h 9 9
Vacuum motor (voltage - nominal power rating) V - W 36 - 650 36 - 650
Vacuum head vacuum (versions with one motor - versions with two motors) mbar 190 190
Wand kit vacuum mbar - -
Maximum solution tank capacity l 190 190
Maximum recovery tank capacity l 200 200
Maximum capacity of the detergent canister (versions with automatic detergent dosing system) l 15 15
Debris hopper volume l 16 16
Turning circle (without front bumpers it and without roof) mm 986 986
Machine dimensions (length - width - height) mm 1840 - 1085 - 1375 1840 - 1085 - 1375
Machine dimensions with front bumpers kit and roof (length - width - height) mm 1895 - 1085 - 1950 1895 - 1085 - 1950
Battery compartment dimensions (length - width - useful height) mm 960 - 400 - 505 960 - 400 - 505
Machine weight(1) kg 440 445
Machine weight during transport(2) kg 855 860
Machine weight during work operations(3) kg 1045 1050
Weight of the front bumpers kit and roof kg 63 63
Maximum weight of the battery box (recommended) kg 415 415
Sound pressure level (ISO 11201) - Lpa dB (A) <70 <70
Uncertainty Kpa dB (A) 1.5 1.5
Body vibration level (ISO 2631) m/s20.5 0.5
13

SYMBOLS USED ON THE MACHINE LABELS USED ON THE MACHINE
14
Filter body position symbol:
Applied to the left-hand side of the machine to indicate the position of the solution
tank's lter.
PExtra pressure activation/deactivation lever position symbol:
Applied to the central brush head's extra pressure activation/deactivation lever.
RReverse gear activation/deactivation lever position symbol:
Applied to the reverse gear activation/deactivation lever.
Brush head body working position symbol:
Applied to the steering column to indicate the brush head control lever direction of
rotation for bringing the brushes to their working position.
Brush head body standby position symbol:
Applied to the steering column to indicate the brush head control lever direction of
rotation for bringing the brushes to their standby position.
Squeegee body working position symbol:
Applied to the steering column to indicate the squeegee control lever direction of
rotation for bringing the squeegee to its working position.
Squeegee body standby position symbol:
Applied to the steering column to indicate the squeegee control lever direction of
rotation for bringing the squeegee to its standby position.
Symbol for activation/deactivation of the blinking lights:
Applied to the front of the machine, to indicate the blinking lights switch.
Recovery tank drainage hose symbol:
Applied to the back of the machine to identify the recovery tank's drainage hose.
Solution tank drainage cap symbol:
Applied to the back of the machine to identify the solution tank's drainage cap.
Battery connection symbol:
Applied beneath the recovery tank to indicate how to connect the 6V or 18V
batteries in order to obtain a total voltage of 36V.
Symbol for maximum temperature for lling the solution tank:
Applied to the left-hand side of the machine's solution tank to indicate the
maximum temperature of the water that can be used to safely ll the solution tank.
Solution tank lling symbol:
Located on the left side of the machine's solution tank to indicate the amount of
water or detergent solution in the tank. The symbol on the side indicates that the
tank is full to about a quarter of its capacity.
Solution tank lling symbol:
Located on the left side of the machine's solution tank to indicate the amount of
water or detergent solution in the tank. The symbol on the side indicates that the
tank is full to about a half of its capacity.
Solution tank lling symbol:
Located on the left side of the machine's solution tank to indicate the amount of
water or detergent solution in the tank. The symbol on the side indicates that the
tank is full to about three-quarters of its capacity.
Solution tank lling symbol:
Located on the left side of the machine's solution tank to indicate the amount of
water or detergent solution in the tank. The symbol on the side indicates that the
tank is full.
Main switch symbol:
Applied to the control panel, positioned on the front of the machine, to indicate
the main switch.
Acoustic signalling device control label:
Applied in the vicinity of the steering column to indicate the acoustic signalling
device's control button.
Vacuum wand control label (optional):
Applied near the steering column to indicate the control button for the optional
vacuum wand kit.
Spray gun control label (optional):
Applied near the steering column to indicate the control button for the optional
spray gun kit.
Label for the automatic detergent dosing system (optional):
Applied near the steering column to indicate the button for activating or switching
o󰀨 the optional detergent dosing system.
Label for adjusting the automatic detergent dosing system (optional):
Applied near the steering column to indicate the button for adjusting the automatic
detergent dosing system.
Label for the detergent solution automatic recycling system control
(optional):
Applied near the steering column to indicate the button for activating or switching
o󰀨 the optional detergent solution automatic recycling system kit.
Label for the side brush control (optional):
Applied near the steering column to indicate the button for activating or switching
o󰀨 the side brush control system.
Label for detergent solution tap command:
Applied in the vicinity of the control column to identify the detergent solution tap's
control lever.
FFM alarm activation label (optional):
Applied in the vicinity of the emergency mushroom button, to identify the button
activating a request for assistance.
Label indicating the need to read the Use and Maintenance Manual:
Applied in the vicinity of the steering column in order to remind the operator to
read the user and maintenance manual before using the machine.
Treading ban label:
Located on the machine, to identify the surfaces that must not be trodden on (risk
of personal injury or damage to the machine).
Label warning about the risk of crushed hands:
Indicates danger to hands due to crushing between two surfaces.
Warning label:
A󰀩xed to the machine in order to warn the operator to read the user and
maintenance manual (this document) before using the machine for the rst time.
Also indicates the applicable procedures for properly caring for the machine itself.
Solution tank lter daily care warning label:
Applied to the machine to remind the operator to clean the solution tank after
each use.
Vacuum motor lter label:
Applied inside the vacuum cover to identify the vacuum motor intake air lter, and
also serves to remind the operator to clean the lter after each machine use.

PREPARATION OF MACHINE
HANDLING THE PACKAGED MACHINE
The machine's overall weight including packaging is 535Kg.
N.B.: it is recommended that all the packaging components be kept for any future machine
transportation.
DANGER: move the packaged product with handling equipment that complies with legal
requirements regarding size and mass of the packaging.
A1605
B1280
C2030
HOW TO UNPACK THE MACHINE
The machine is shipped in specic packaging. To remove it, proceed as follows:
1. Place the lower part of the outer packaging in contact with the oor.
N.B.: use the pictograms printed on the box as a reference.
2. Remove the outer package.
WARNING: the machine is contained in specic packaging materials, whose elements (plastic
bags, staples, etc.) can pose potential hazards, and must not be left within reach of children,
disabled persons, etc.
3. Remove the boxes containing the disc brushes and squeegee body from the machine.
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
4. At the rear of the machine position the three ramps present in the package.
ATTENTION: the three ramps should be positioned so they are centred with the wheels of the
machine, so that the machine is not damaged during its descent.
5. The machine is xed to the pallet with wedges (1) that block the wheels (Fig.1). Remove these
wedges.
6. Check that the main switch on the control panel has been set to “0”. If this is not the case, turn
the key (2) a quarter turn anti-clockwise (Fig.2). Remove the key from the main switch.
7. Grip the back of the seat (3) and turn the seat support plate to its maintenance position (Fig.3).
ATTENTION: to prevent the seat from rotating, insert the retainer (4) into the slot (5) (Fig.4).
8. Connect the backup battery carriage's connector to the machine's main system connector
(Fig.5).
9. Grip the back of the seat (3) and turn the seat support plate to the working position.
NB: before rotating the seat support plate, remove the retainer (4).
10. Sit on the driver’s seat.
11. Insert the key (2) into the main switch on the control panel. Set the main switch to “I”, turn the key
a quarter turn clockwise (Fig.6).
2 31
1
2 3
OFF
62
ON
4
4
5
5
12. Turn the brush head control level (6) anti-clockwise (Fig.7); in this way the brush head body will
be raised o󰀨 the pallet.
13. Turn the squeegee control lever (7) clockwise (Fig.8) to raise the squeegee body o󰀨 the pallet.
14. Engage the reverse gear using the reverse gear activation - deactivation lever (8) (Fig.9).
15. Press the drive pedal (9) (Fig.10) to begin moving the machine.
16. Drive the machine down the ramp.
ATTENTION: during this operation, check there are no people or objects near the machine.
17. Set the main machine switch to “0” (Fig.2). Remove the key from the main switch.
18. Get o󰀨 the machine.
CAUTION: when getting down from the machine, do not place your foot on the scrubbing brush
head or side brush head brush.
19. Grip the back of the seat (3) and turn the seat support plate to the maintenance position.
20. Grip the handle (4) and lift the recovery tank to its maintenance position.
21. Disconnect the backup battery carriage connector from the main machine system connector.
22. Grip the handle (4) and lower the recovery tank to its working position.
23. Grip the back of the seat (3) and turn the seat support plate to the working position.
24. For reasons of packaging, the brushes are supplied not tted on the machine, to t them to the
brush head body read the paragraph “FITTING THE BRUSH HEAD BRUSHES”.
25. For reasons of packaging, the splash guard s are supplied not tted on the machine, to t
them to the brush head body read the paragraph “FITTING THE BRUSH HEAD BODY SIDE
SPLASHGUARD”.
26. For reasons of packaging, if the machine version provides for it, the side brush is supplied not
tted on the machine, to t it to the side brush head body read the paragraph “FITTING THE
SIDE BRUSH”.
7 8
6
7
98
10
9

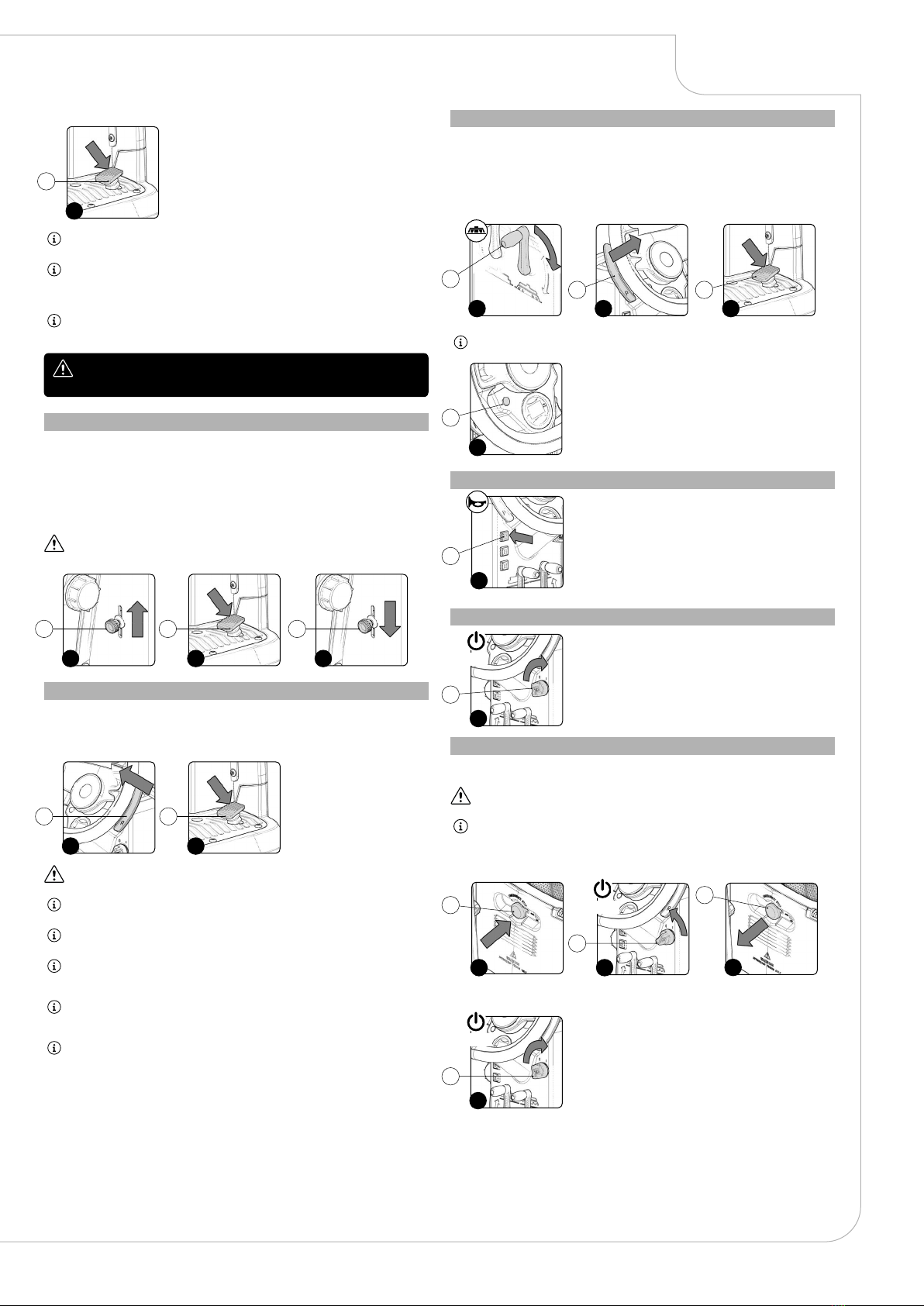

HOW TO MOVE THE MACHINE
To transport the machine safely, proceed as follows:
DANGER: before starting any task, make sure the current regulations concerning the safe
transport of dangerous substances are scrupulously observed.
1. Check to make sure that the solution tank and the recovery tank are empty. If this is not the case,
empty them (see the sections titled “EMPTYING THE SOLUTION TANK” and “EMPTYING THE
RECOVERY TANK”).
2. Sit on the driver’s seat.
3. Insert the key (1) into the main switch on the control panel. Bring the main switch to its "I" position
by turning the key (1) a quarter turn clockwise (Fig.1).
4. Turn the brush head control lever (2) anti-clockwise (Fig.2); in this manner the brush head body
will be raised o󰀨 the oor.
5. Turn the squeegee control lever (3) clockwise (Fig.3) to raise the squeegee body o󰀨 the oor.
6. Press the drive pedal (4) (Fig.4) to begin moving the machine.
7. Use a ramp to move the machine up onto the transport vehicle.
CAUTION: during this operation, check there are no people or objects near the machine.
N.B.: the ramp gradient must not be such as to cause damage to the machine as it goes up.
8. Position the machine on the means of transport, and set the main switch to “0” by turning the key
(1) a quarter turn anti-clockwise (Fig.5). Remove the key from the main switch.
9. Get o󰀨 the machine.
CAUTION: when getting down from the machine, do not place your foot on the scrubbing brush
head or side brush head brush.
321 1 2
3
ON
15
Braking system oil level check label:
Located near the braking system oil basin, to remind the operator to check the
level of oil in the basin.
The bottom part of the label shows the recommended oil for the braking system.
1
112
2
3
3
4
4
Vacuum wand optional accessories kit position label:
Applied above the recovery tank cover to identify and position the accessories of
the vacuum wand optional kit.

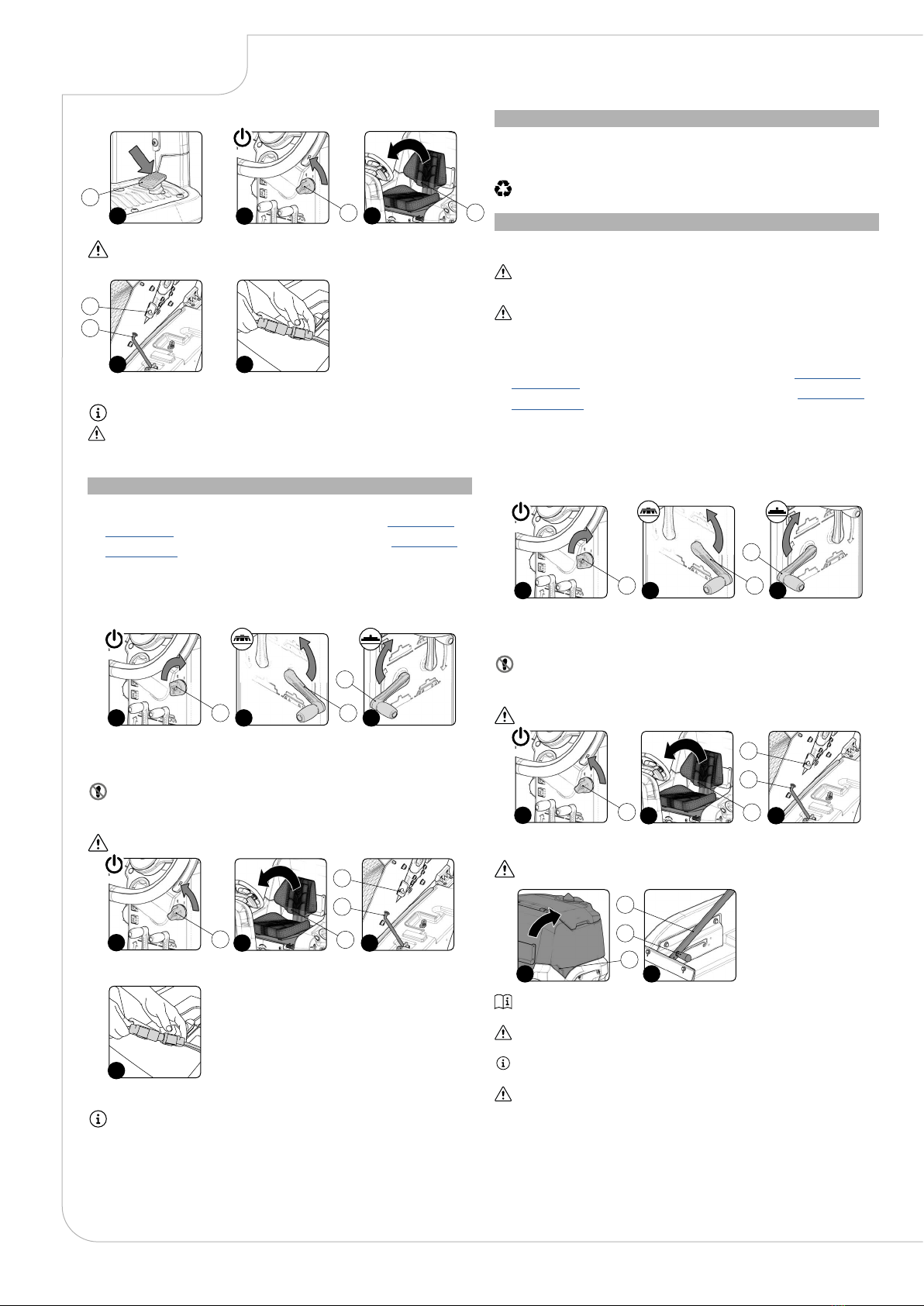

MACHINE SAFETY
To ensure that work is carried out in the best safety conditions, proceed as follows:
1. Make sure the solution tank is empty. If this is not the case, empty it (read "EMPTYING THE
SOLUTION TANK").
2. Make sure the recovery tank is empty. If this is not the case, empty it (read "EMPTYING THE
RECOVERY TANK").
3. Sit on the driver’s seat.
4. Insert the key (1) into the main switch on the control panel. Set the main switch to "I" by turning
the key (1) a quarter turn clockwise (Fig.1).
5. Turn the brush head control lever (2) anti-clockwise (Fig.2); in this manner the brush head body
will be raised o󰀨 the oor.
6. Turn the squeegee control lever (3) clockwise (Fig.3) to raise the squeegee body o󰀨 the oor.
7. Set the main switch to “0" (Fig.5) by turning the key (1) a quarter turn anti-clockwise. Remove the
key from the instrument panel.
8. Get o󰀨 the machine.
CAUTION: when getting down from the machine, do not place your foot on the scrubbing brush
head or side brush head brush.
9. Grip the back of the seat (4) and turn the seat support plate to its maintenance position (Fig.5).
ATTENTION: to prevent the seat from rotating, insert the retainer (5) into the slot (6) (Fig.6).
10. Disconnect the battery connector from the machine's main system connector (Fig.7).
11. Grip the back of the seat (4) and turn the seat support plate to the working position.
N.B.: before rotating the seat support plate, remove the retainer (5).
321 1 2
3
ON
65
5
6
4
41
OFF
7
BATTERY MAINTENANCE AND DISPOSAL
For battery maintenance and recharging, respect the instructions provided by the battery manufacturer.
When the batteries reach the end of their service life, they must be disconnected by specialized and
properly trained personnel, and must be subsequently removed from the battery compartment using
suitable lifting devices.
N.B.: dead batteries are classied as dangerous waste and as such must be delivered to an
authorised body for disposal.
INSERTING THE BATTERIES INTO THE MACHINE
The batteries must be housed in the special compartment beneath the recovery tank and should be
handled using lifting equipment that is suitable in terms of both weight and its coupling system.
DANGER: make sure that you comply with the accident prevention regulations in force in the
country where you work or with DIN EN 50272-3 and DIN EN 50110-1, before any handling of
the batteries.
CAUTION: to prevent an accidental short circuit use insulated tools to connect the batteries, and
do not place or drop metal objects on the battery. Remove rings, watches and any clothing with
metal parts that may come into contact with the battery terminals.
The various phases for inserting the batteries in the battery compartment are as follows:
1. Make sure the solution tank is empty. If this is not the case, empty it (read "EMPTYING THE
SOLUTION TANK").
2. Make sure the recovery tank is empty. If this is not the case, empty it (read "EMPTYING THE
RECOVERY TANK").
3. Make sure the electronic brake is engaged. If this is not the case, turn the lever (1) clockwise. The
traction gear motor is located on the rear left-hand side of the machine (Fig.1)
4. Sit on the driver’s seat.
5. Insert the key (1) into the main switch on the control panel. Set the main switch to "I" by turning
the key (1) a quarter turn clockwise (Fig.1).
6. Turn the brush head control lever (2) anti-clockwise (Fig.2); in this manner the brush head body
will be raised o󰀨 the oor.
7. Turn the squeegee control lever (3) clockwise (Fig.3) to raise the squeegee body o󰀨 the oor.
8. Set the main switch to “0" (Fig.5) by turning the key (1) a quarter turn anti-clockwise. Remove the
key from the instrument panel.
9. Get o󰀨 the machine.
CAUTION: when getting down from the machine, do not place your foot on the scrubbing brush
head or side brush head brush.
10. Grip the back of the seat (4) and turn the seat support plate to its maintenance position (Fig.5).
ATTENTION: to prevent the seat from rotating, insert the retainer (5) into the slot (6) (Fig.6).
11. Grip the handle (7) and raise the recovery tank to the maintenance position (Fig.7).
ATTENTION: to prevent the recovery tank from rotating, grip the handle (8) on the safety stop
lever (9) and position the lever in the second stop slot (Fig.8).
N.B.: for battery maintenance and daily recharging, you must fully respect the indications
provided by the manufacturer or retailer.
CAUTION: all installation and maintenance operations must be carried out by specialised
personnel.
N.B. : before installing the battery, clean the battery compartment. Check that the connectors on
the cables supplied are functioning correctly.
ATTENTION: check that the characteristics of the battery that you are looking to use are
appropriate for the type of work to be performed. Check the battery charge and the condition of
the contacts on the battery.
321 1 2
3
ON
65
5
6
4
41
OFF
7 8
7
9
8
10. Grip the back of the seat (5) and turn the seat support plate to its maintenance position (Fig.6).
ATTENTION: to prevent the seat from rotating, insert the retainer (6) into the slot (7) (Fig.7).
11. Disconnect the battery connector from the machine's main system connector (Fig.8).
12. Grip the back of the seat (5) and turn the seat support plate to the working position.
N.B. : before rotating the seat support plate, remove the retainer (6).
WARNING: secure the device according to the directives in force in the country of use, so that it
cannot slide or tip over.
4
4
65
51
OFF
87
6
7
16

N.B.: you are advised to only lift and move the batteries with lifting and transportation means
suitable for the specic weight and size
CAUTION: the lifting hooks must not damage the blocks, connectors or cables.
12. Place the batteries or battery box in the dedicated compartment under the operator's seat.
CONNECTING BATTERIES TO THE MACHINE
The batteries should be connected so as to obtain a total voltage of 36V.
ATTENTION: it is recommended that all installation and maintenance operations be carried out
by expert personnel, trained at the specialised assistance centre.
CAUTION: to prevent an accidental short circuit use insulated tools to connect the batteries, and
do not place or drop metal objects on the battery. Remove rings, watches and any clothing with
metal parts that may come into contact with the battery terminals.
The stages for connecting the batteries to the machine's
electrical system are as follows:
1. Using the supplied jumper cable (1), connect the
batteries to the "+" and "-" poles in sequence.
2. Connect the battery connector cable (2) to the
“+” and “-“ poles to obtain a voltage of 36V at the
terminals.
3. Connect the electric system connector (3) to the
battery connector (2).
3
2
1
RECHARGING THE BATTERIES
The batteries must be charged prior to rst use, and whenever they no longer provide su󰀩cient power.
N.B.: Carefully read the Use and Maintenance Manual for the batteries you wish to use before
charging.
1. Bring the appliance to the zone where the batteries are charged.
2. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
ATTENTION: park the appliance in an enclosed place, on a at surface; near the appliance there
must be no objects that could either damage it, or be damaged through contact with it.
ATTENTION: the room used to recharge the batteries must be adequately ventilated to prevent
the accumulation of gases that leak from batteries.
3. Get o󰀨 the machine.
CAUTION: when getting down from the machine, do not place your foot on the scrubbing brush
head or side brush head brush.
4. Grip the back of the seat (1) and turn the seat support plate to its maintenance position (Fig.1).
ATTENTION: to prevent the seat from rotating, insert the retainer (2) into the slot (3) (Fig.2).
5. Disconnect the battery connector from the machine's main system connector (Fig.3).
ATTENTION: the following operations must be carried out by qualied personnel. An incorrect
connection of the connector may cause a malfunction of the device.
6. Connect the external battery charger cable to the battery connector.
N.B.: the coupling connector of the battery charger is consigned inside the bag containing this
instruction booklet, and must be assembled on the cables of the battery charger as indicated in
the instructions.
ATTENTION: Before connecting the batteries to the battery charger, make sure it is suitable for
the batteries you want to use.
N.B.: carefully read the use and maintenance instructions of the battery charger that is used for
charging.
CAUTION: keep the recovery tank open for the duration of the battery recharging cycle to allow
gas fumes to escape.
7. Once the recharge cycle has been completed, disconnect the battery charger's cable from the
battery connector.
8. Connect the electrical system connector to the battery connector (Fig. 3).
9. Grip the back of the seat (1) and turn the seat support plate to the working position.
1 2 3
1
3
2
10. Grip the handle (4) and lower the recovery tank to the maintenance position (Fig.4).
ATTENTION: to prevent the recovery tank from rotating, grip the handle (5) on the safety stop
lever (6) and position the lever in the stop slot (Fig.5).
4 5
4
6
5
FILLING THE SOLUTION TANK
Before lling the solution tank, carry out the following steps:
1. Take the machine to the usual place for lling the solution tank.
2. Perform the procedure for securing the machine ( see the section titled “SECURING THE
MACHINE”).
3. Check to make sure that the solution tank drainage cap (1) is closed. If this is not the case, close
it (Fig.1).
4. Move to the left side of the machine and open the left side casing (2) (Fig.2).
5. Check to make sure that the water system's lter cap (3), located on the rear left side of the
machine, is closed, and close it if necessary (Fig.3).
The solution tank can be lled with water in two di󰀨erent ways:
• Removing the cap (4) and lling the solution tank by means of a rubber hose or a bucket (Fig.4).
N.B. : Check that the lter (5) under the ller cap (4) is positioned correctly; this is to prevent
impurities and dirt causing the appliance's water system to malfunction ( Fig.4).
•Using the ller hose (6) (Fig.4). This supports the water hose on its own, but be sure to remove the
cap (4) to allow adequate air venting.
6. Fill with clean water, at a temperature not higher than 50°C and not lower than 10°C. The amount
inside the tank can be seen by means of the level tube (7) on the front left of the seat (Fig.4).
2 31
1 2 3
4
7
5
6
4
DETERGENT SOLUTION
For the versions without automatic detergent dosing system, after lling the solution tank with clean
water, add the liquid detergent to the tank in the concentration and manner indicated on the detergent
manufacturer's label. To prevent the formation of an excessive amount of foam that could damage the
vacuum motor, use the minimum percentage of detergent required.
CAUTION: protective gloves should always be worn before handling detergents or acidic or
alkaline solutions, to avoid serious injury to the hands.
ATTENTION: always use detergents whose manufacturer's label indicates their suitability for
scrubbing machines. Do not use acid or alkaline products or solvents without this indication.
ATTENTION: always use low-foam detergent. To avoid the production of foam, put a minimum
quantity of anti-foam liquid in the recovery tank before starting to clean. Do not use pure acids.
For versions with automatic detergent dosing system, ll the solution tank with clean water and then
proceed as follows:
1. Make sure the machine is in a safe condition (read “MACHINE SAFETY”).
CAUTION: protective gloves should always be worn before handling detergents or acidic or
alkaline solutions, to avoid serious injury to the hands.
2. Remove the cap (1) of the detergent canister (Fig.1).
3. Fill the canister with the desired detergent; it is possible to see the quantity ion the detergent
canister using the level tube (2) on the front left of the canister (Fig. 1).
ATTENTION: always use detergents whose manufacturer's
label indicates their suitability for scrubbing machines. Do
not use acid or alkaline products or solvents without this indication.
ATTENTION: the dosing system is suitable for frequent
maintenance cleaning. Acid or alkaline maintenance
detergent tank be used with pH values between 4 and 10
and that do not contain: oxidising agents, chlorine or bromine,
formaldehyde, mineral solvents. The detergents used must be suitable
for use with scrubbing machines. Wash the circuit with water after use
1
2
1
17

ADJUSTMENT OF DRIVING POSITION
The proper adjustment of the driving position provides a greater sense of comfort when using the
machine.
Correct position on the seat: make sure you sit upright and that your back and that your lower back
and spine are at 90°.
Seat adjustment: The seat should always be positioned using the pedals as a reference. To adjust
the seat use the lever (1) under it (Fig.1).
N.B.: The distance should be adjusted so that with the
pedals fully pressed to the oor the knees are slightly bent
(about 120°).
N.B.: Adjust the distance of the seat so that when pressing
the brake pedal it goes as far as it can. This operation
should be done with the machine running so as to pressurise the
braking system.
N.B.: If the knee is not bent enough, it is too far from the
steering wheel, if however the knee is bent almost 90°then it is
too close to the steering wheel.
N.B.: The feet should be positioned keeping the heels on the footrest, the sole of the foot
directly below the ngers should push the pedals.
N.B.: The ideal position is that which allows you to grip the steering wheel correctly with the
palms slightly lower than the shoulders. With a good grip on the steering wheel, the elbows
should be bent by about 120°. They should be at least 30 cm between the middle of the
steering wheel and our breastbone. In any case, this distance should be no more than 45 cm.
Adjusting the armrests (optional): the armrests should be inclined to make using the machine
comfortable.
N.B.: To adjust the armrest use the runner (2) under it (Fig.2).
N.B.: Taking the right armrest as a reference, if the wheel is
turned outwards the inclination of the armrest is increased.
Taking the left armrest as a reference, if the wheel is turned inwards
the inclination of the armrest is increased.
Wear the seatbelt correctly (optional): The machine has a sub-abdominal safety device that allows
the operator to be anchored to the driver's seat. To secure the safety belt, rst of all you need to be
sitting in the drier's seat, take the mobile part (3) of the belt, wrap it round the abdomen and insert the
mobile part (3) in the slit in the xed part (4) (Fig.3).
N.B.: Adjust the horizontal part of the belt so it is as tight
as possible on the pelvis. The belt should be pulled and
put as low as possible on the pelvis bone, and not on the belly.
1
1
1
2
1
3
4
INSERTING WATER SYSTEM FILTER
Before using the machine for the rst time the water system lter needs to be reset, for shipping reasons
the lter cartridge and the cap have been removed. To insert the lter cartridge in the water system
lter body proceed as follows:
1. Take the machine to the maintenance area.
2. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: users are advised to always wear protective gloves, to avoid the risk of serious injury
to hands.
3. Close the tap's output ow, and shift the knob (1) on the left hand side of the steering column
(Fig.1) downward.
4. Open the machine's left lateral hatch (2) (Fig.2).
5. Insert the lter cartridge (3) in the housing on the cap (4) (Fig.3).
N.B.: The O-ring gasket in the lter cartridge should be inserted into its seat in the cap.
2 31
1
2
3
4
ASSEMBLING THE BRUSH HEAD BRUSHES (SCRUBBING VERSION)
To t the brush on the brush head body, proceed as follows:
1. Take the machine to the maintenance area.
2. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
3. Open the machine's left lateral carter (1) (Fig.1).
4. Remove the left-hand splash guard (2) and move the xing anchors (3) on the brush head body
into the maintenance position (Fig.2).
5. With the brush head UP, insert the brush in the plate housing underneath the brush head, turning
it until the three buttons engage with the niches on the plate itself.
6. Turn in increments until the button is pushed towards the coupling spring and is locked in place
(Fig.3).
NB: The image in Fig.3 indicates the direction of rotation for coupling the left brush; the right
brush must be turned in the opposite direction.
31 2
1
2
3
FITTING THE BRUSH HEAD BODY SIDE SPLASHGUARDS (WASHING
VERSION)
To t the side splash guards on the brush head body, proceed as follows:
1. Take the machine to the maintenance area.
2. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
3. Open the machine's left lateral carter (1) (Fig.1).
4. With the brush head raised from the oor, position the side splash guard casing on the brush head
body, insert the pins (2) in the brush head in the slots (3) in the casing (Fig.2).
N.B. : Before inserting the pins (2) in the slots (3) remember to put the xing anchors (4) in the
brush head body in the maintenance position (Fig.3).
5. When the side splash guard casing is in position turn the xing anchors (4) to the work position.
6. Close the left side casing (1) and repeat everything for the right side casing.
31 2
1
2 4
3
FITTING LATERAL BRUSH 1SL (SCRUBBING )
To t the side brush on the brush head body, proceed as follows:
1. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. With the brush head in its resting position, insert the brush into the plate housing underneath the
brush head, and turn it until the two buttons engage with the niches on the plate itself (Fig.1).
3. Push the brush until the stopper spring on the brush itself has engaged with the niche present on
the gear motor’s pin.
1
1
if the system is not used daily. The system can be excluded. In case of sporadic use of
detergents with pH between 1-3 or 11-14, use the oor scrubbing machine in the traditional way
by adding the detergent in the clean water tank and excluding the dosing circuit.
ATTENTION: always use low-foam detergent. To avoid the production of foam, put a minimum
quantity of anti-foam liquid in the recovery tank before starting to clean. Do not use pure acids.
4. Close the cap (1) correctly to prevent liquid coming out when working.
6. Screw on the cap (4) to the body of the detergent solution lter (5) (Fig.4).
N.B.: For the sweeping versions, the water system lter is located on the right of the machine.
4
5
4
18

ASSEMBLING SIDE BRUSH 2SL (SWEEPING VERSION)
To t the brush on the brush head body, proceed as follows:
1. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Stand on the right side of the machine.
3. With the brush head in its raised position, remove the knob (1) that secures the lateral brush to the
gear motor, by turning it clockwise for the right brush, and anti-clockwise for the left brush (Fig.1).
4. Remove the washer (2) holding the side brush in place (Fig.1).
5. Insert the side brush, being careful to position the centring hex (3) correctly in the slot (4) (Fig.2).
6. Fix the brush to the ange using the knob (1), remembering to put the washer (2) in between the
knob and the brush (Fig.3).
7. Once the brush has been tted, move on to the one on the left.
8.
1 32
2
1
3
4
ASSEMBLING THE SQUEEGEE BODY
For packaging reasons, the squeegee body comes disassembled from the machine. In order to mount
it on the squeegee support, do the following:
1. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Unscrew the knobs (1) in the squeegee body pre-assembly (Fig.1).
3. First, insert the left pin (2) on the squeegee body into the left slit (3) in the squeegee support
(Fig.2), so that the bushing adheres to the walls of the slit in the squeegee support.
4. Repeat the same operation for the right pin.
5. Insert the vacuum tube (4) in the sleeve (5) in the squeegee body (Fig.3).
NB: Although the squeegee comes pre-adjusted, it is nevertheless recommended to read the
section titled “ADJUSTING THE SQUEEGEE BODY'S RUBBER BLADES”.
123
5
4
1
3
2
PREPARING TO WORK
Before beginning to work, it is necessary to:
1. Make sure the recovery tank is empty. If this is not the case, empty it (read “EMPTYING THE
RECOVERY TANK”).
2. Check that the amount of detergent solution present in the solution tank is su󰀩cient for the type
of work to be performed. If this is not the case, top up the solution tank (see the sections titled
“FILLING THE SOLUTION TANK” and “DETERGENT SOLUTION”).
3. Check that the squeegee rubbers are in good working condition. If not, carry out maintenance (see
“REPLACING THE SQUEEGEE BODY RUBBER BLADES”).
4. Check that the condition of the brushes is suitable for the work to be carried out; if not, carry out
the necessary maintenance (see “FITTING THE BRUSH HEAD BRUSHES” or “FITTING THE
SIDE BRUSH)”).
5. Set the main machine switch to “0” (Fig.1). Remove the key from the instrument panel.
6. Get o󰀨 the machine.
CAUTION: when getting down from the machine, do not place your foot on the scrubbing brush
head or side brush head brush.
7. Grip the back of the seat (2) and turn the seat support plate to its maintenance position (Fig.2).
ATTENTION: to prevent the seat from rotating, insert the retainer (3) into the slot (4) (Fig.3).
8. Connect the battery connector from the main machine system connector (Fig.4).
9. Grip the back of the seat (2) and turn the seat support plate to the working position.
10. Move to the left side of the machine and open the left side casing (5) (Fig.5).
11. Make sure the electronic brake is engaged. If it isn't, turn the lever (6) in the direction of the arrow
(Fig.6). The traction gear motor is located on the rear right-hand side of the machine.
12. Make sure the water system lter cap (7) is closed. If it isn't, close it (Fig.7).
N.B.: For the sweeping versions, the water system lter is located on the right of the machine.
13. Close the left side casing of the machine.
14. Check that the water tap is fully open, move the water adjustment knob (8) in the direction shown
by the arrow (Fig.8).
15. Stand at the back of the machine.
16. Check that the solution tank drainage cap (9) is closed. If this is not the case, close it (Fig.9).
17. Make sure the cap of the recovery tank drainage tube (10) is closed. If it isn't, close it (Fig.10).
18. Make sure the vacuum tube (11) is correctly connected to the sleeve in the squeegee body. If it
isn't, connect it (Fig.11).
19. Grip the handle (12) and raise the recovery tank's lid to its maintenance position (Fig.12).
ATTENTION: to prevent the cover from rotating, insert the pin (13) into the support (14)
(Fig.13).
20. Make sure the vacuum motor lter (15) is correctly connected and is clean (Fig.14). If it isn't,
clean it (see “CLEANING THE RECOVERY TANK FILTERS”).
21. Make sure the vacuum duct lter (16) is correctly connected and is clean (Fig.15). If it isn't, clean
it (see “CLEANING THE RECOVERY TANK FILTERS”).
3
3
4
22
11
OFF
5 64
5
6
8 97
8
7
9
11 1210
10 11 12
ASSEMBLING THE BRUSH HEAD BRUSHES (SWEEPING VERSION)
To t the brush on the brush head body, proceed as follows:
1. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Open the machine's left lateral carter (1) (Fig.1).
3. With the brush head in its resting position, turn the knobs (2) that hold the left lateral carter (3) in
place anti-clockwise (Fig.2).
4. Remove the left lateral carter (4) (Fig.3).
5. Insert the brush into the tunnel (Fig.4), taking care to make sure that the gear motor’s drive shaft
enters the slit in the brush itself.
6. Repeat the previously described operations for the right-hand side as well.
N.B. : In order to be installed correctly, the brushes must form an X when viewed from above in
the forward direction of movement (Fig.5).
1
1
2
2
3
3
4
5
4
19

WORK
SCRUBBING WITH DRYING
To carry out “SCRUBBING AND DRYING” tasks, proceed as follows:
1. Make all the checks listed in “PREPARING TO WORK”.
2. Sit on the driver’s seat.
3. Insert the key (1) into the main switch on the control panel. Bring the main switch to its "I" position
by turning the key (1) a quarter turn clockwise (Fig.1).
N.B. : As soon as the machine turns on, the control board will perform a diagnostics procedure,
during which the red LED indicator (2) on the control panel (Fig.2) will remain on.
N.B. : If the control board's diagnostics procedure returns a positive outcome, the red LED
indicator (2) on the control panel (Fig.2) will turn o, and an acoustic signal will sound indicating
that the work operations may be initiated.
4. Lower the brush head body by turning the brush head control lever (3) on the rear part of the
steering column (Fig.3).
5. Lower the squeegee body by turning the squeegee control lever (4) on the rear part of the steering
column (Fig.4).
6. Check to make sure that the detergent solution tap is completely open. If this is not the case, adjust
the lever (5) on the left-hand side of the steering column (Fig.5).
7. Press the drive pedal (6) (Fig.6) to begin moving the machine.
N.B. : Once the drive pedal is pressed, the brush head body and the squeegee body will begin
to descend into their working positions.
N.B. : Once the brush head body and the squeegee body have reached their working positions,
the relative motors will enter into function, and the solenoid valve will dispense the detergent
solution.
8. During the rst few metres, check that the detergent solution coming out is suitable for the task in
hand. If it isn't, adjust it after reading the section "REGULATING THE DETERGENT SOLUTION".
The appliance will now begin to work with full e󰀩ciency until the battery is at or until the detergent
solution has nished. During the rst few metres, check that there is su󰀩cient solution and that the
squeegee is drying correctly.
N.B. : If the drive pedal is released during the scrubbing/drying operation, the brush motor and
the solenoid valve will be deactivated, and the vacuum motor will continue to function for a few
seconds in order to ensure that all the liquid present in the vacuum hose is extracted.
N.B.: when lling the solution tank, it is good practice to empty the recovery tank using the
special drainage hose.
2 31 1
2
3
ON
4
4
65
5
6
SCRUBBING WITHOUT DRYING
To carry out “SCRUBBING WITHOUT DRYING” tasks, proceed as follows:
1. Make all the checks listed in “PREPARING TO WORK”.
2. Sit on the driver’s seat.
3. Insert the key (1) into the main switch on the control panel. Bring the main switch to its "I" position
by turning the key (1) a quarter turn clockwise (Fig.1).
N.B.: As soon as the machine turns on, the control board will perform a diagnostics procedure,
during which the red LED indicator (2) on the control panel (Fig.2) will remain on.
N.B.: If the control board's diagnostics procedure returns a positive outcome, the red LED
indicator (2) on the control panel (Fig.2) will turn o, and an acoustic signal will sound indicating
that the work operations may be initiated.
4. Lower the brush head body by turning the brush head control lever (3) on the rear part of the
steering column (Fig.3).
5. Check to make sure that the detergent solution tap is completely open. If this is not the case, adjust
the lever (4) on the left-hand side of the steering column (Fig.4).
6. Press the drive pedal (5) (Fig.5) to begin moving the machine.
N.B. : Once the drive pedal has been pressed, the brush head body will begin to descend into
its working position.
N.B. : Once the brush head body has reached its working position, the brush gear motors will
enter into function and the solenoid valve will begin to dispense the detergent solution.
7. During the rst few metres, check that the detergent solution coming out is suitable for the task in
hand. If it isn't, adjust it after reading the section "REGULATING THE DETERGENT SOLUTION".
The appliance will now begin to work with full e󰀩ciency until the battery is at or until the detergent
solution has nished. During the rst few metres, check that there is su󰀩cient solution.
N.B.: If the drive pedal is released during the scrubbing without drying operation, the brush
motor and the solenoid valve will be deactivated.
N.B.: when lling the solution tank, it is good practice to empty the recovery tank using the
special drainage hose.
2 31 1
2
3
ON
5
4
55
DRYING
To carry out “DRYING WITHOUT SCRUBBING” tasks, proceed as follows:
1. Make all the checks listed in “PREPARING TO WORK”.
2. Sit on the driver’s seat.
3. Insert the key (1) into the main switch on the control panel. Bring the main switch to its "I" position
by turning the key (1) a quarter turn clockwise (Fig.1).
N.B. : As soon as the machine turns on, the control board will perform a diagnostics procedure,
during which the red LED indicator (2) on the control panel (Fig.2) will remain on.
N.B.: If the control board's diagnostics procedure returns a positive outcome, the red LED
indicator (2) on the control panel (Fig.2) will turn o, and an acoustic signal will sound indicating
that the work operations may be initiated.
4. Lower the squeegee body by turning the squeegee control lever (3) at the rear of the steering
column (Fig.3).
2 31 1
2
3
ON
22. Make sure the lter-strainer (17) is correctly connected and is clean (Fig.16). If it isn't, clean it
(see “CLEANING THE RECOVERY TANK FILTERS”).
14 1513
14
13 15 16
16
17
20

5. Press the drive pedal (4) (Fig.4) to begin moving the machine.
N.B. : Once the drive pedal has been pressed, the squeegee body will begin to descend into its
working position.
N.B. : Once the squeegee body has reached its working position, the vacuum motor will enter
into function.
The machine will now work at its maximum e󰀩ciency level until the batteries run down.
N.B. : If the drive pedal is released during the drying operation, the vacuum motor will continue
to operate for a few seconds in order to ensure that all the liquid present in the vacuum hose is
extracted.
ATTENTION: The drying without scrubbing operation should only be
carried out if the machine was previously used to carry out a scrubbing
without drying operation.
4
4
REGULATING THE DETERGENT SOLUTION
To adjust the amount of detergent solution on the brush, proceed as follows:
1. Open the tap's output ow to maximum, and shift the knob on the left hand side of the steering
column (1) (Fig.1) upward.
2. When the drive pedal is pressed (2) (Fig.2), the brush gear motors will enter into function and the
solenoid valve will distribute detergent solution to the brushes.
3. During the rst few metres, check to make sure that the quantity of solution is su󰀩cient to wet the
oor, but not so much as to come out of the splash guard. The detergent leakage can be adjusted
using the knob (1) on the steering column.
N.B. : When the knob (1) (Fig.1) is moved upwards, the amount of detergent solution distributed
to the brushes increases. When the knob (1) (Fig.3) is moved downwards, the amount of
detergent solution distributed to the brushes decreases.
321
1 12
REVERSE GEAR
This machine is equipped with electronic traction control. To reverse, proceed as follows:
1. Engage the “REVERSE GEAR ACTIVATION/DEACTIVATION” lever (1) underneath the steering
wheel (Fig.1).
2. Press the drive pedal (2) (Fig.2); in this manner the machine will begin to move in reverse.
CAUTION: the reverse speed is lower than the forward speed to comply with current health and
safety standards.
N.B. : In order to disengage the reverse gear, disengage the lever (1) underneath the steering
wheel (Fig.1).
N.B. : Once the lever has been engaged (1), the acoustic signalling device will be activated in
order to signal that the machine's reverse gear has been engaged.
N.B. : If the reverse gear is engaged with the squeegee in its working position, once the drive
pedal is pressed, the machine will begin to move in reverse and the squeegee body will be
raised into its resting position.
N.B.: If the reverse gear is engaged with the brush head in its working position, once the drive
pedal is pressed, the machine will begin to move in reverse and the brush head will remain in its
working position, but the solenoid valve will stop dispensing detergent solution to the brushes.
N.B.: if you reverse using the anti-collision system (optional) a special function activates that
manages the ON/OFF frequency of the buzzer. Every 50ms a trigger signal is sent to the
ultrasound sensor, the sensor returns a signal that remains active for a period that is inversely
proportional to the distance of the reecting object.
21
1 2
EXTRA BRUSH HEAD PRESSURE
This machine is capable of increasing the pressure exerted upon the brushes during the work cycle.
This can be done in the following manner:
1. Check to make sure that the brush head body is in contact with the oor. If this is not the case,
adjust the brush head control lever (1) on the steering column (Fig.1).
2. Engage the “EXTRA-PRESSURE ACTIVATION/DEACTIVATION” lever (2) underneath the
steering wheel (Fig.2).
3. Press the drive pedal (3) (Fig.3) to initiate the machine's working cycle.
N.B. : Once the lever (2) (Fig.4) has been engaged, the red indicator light (4) on the steering
column will turn on to indicate that the extra-pressure function has been enabled.
2 31
1
2 3
4
4
BUZZER
The machine is equipped with an acoustic signalling device. If an
acoustic signal needs to be emitted, simply press the button (1) on the
control panel (Fig.1).
1
1
WORKING HEADLIGHTS (OPTIONAL)
Upon request, the machine can be equipped with front and rear
working lights.
These lights can be turned on by setting the main switch to “I”, namely
turning the key a quarter turn to the right (Fig.1).
1
ON
1
EMERGENCY BUTTON
If any problems are encountered during the work operations, press the emergency button (1) on the
electrical system's cover carter (Fig.1).
CAUTION: This command interrupts the electrical circuit between the batteries and the machine
system.
NOTE: After having stopped and resolved the problem, the work operations can be resumed by
doing the following:
•Bring the main switch to its "0" position by turning the key (2) a quarter turn anti-clockwise
(Fig.2).
• Disengage the mushroom-head emergency button (1) (Fig.3).
•Bring the main switch to its "I" position by turning the key (2) a quarter turn clockwise (Fig.4).
13
11
2
2
OFF
4
2
ON
21
