Contacta STS-K015-01 Operation manual

Speech Transfer System
STS-K015-01
Installation &
User Guide
August 2016 v1.0

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat risters,
stoves, or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug the apparatus during lightning storms or when unused for long
periods of time.
14. Refer to all qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

Safety Precautions
• Ensure that you only use the supplied power supply. Do not
attempt to install your own power supply system otherwise
damage may occur.
• Do not attempt to dismantle or modify any parts of the unit.
No user serviceable fuses or parts are included.
• Ensure the system is not installed in areas of high ambient temperatures
or high levels of humidity or dust.
• It should not be exposed to direct sunlight or be placed next to vibrating
or heat generating equipment.
• This system is designed for indoor use only.
• Do not place the unit on an unstable surface.
• Do not insert liquids or foreign objects. This could result in re or
electrical shock. If liquids or foreign objects should enter,
immediately turn o the power switch, disconnect the power plug from
the power outlet and contact your local dealer.
• Ensure the aerial is taped down securely. Do not leave any trailing leads
that may cause a trip hazard.
Thank you for purchasing this system. Before using, please read the following
guide to ensure correct usage. After reading, store this guide in a safe
place for future reference. Incorrect handling of this product could possibly
result in personal injury or physical damage. The manufacturer assumes no
responsibility for any damage caused by mishandling that is beyond normal
usage dened in this manual.
If a problem occurs with the equipment, rst refer to the Troubleshooting
section of this guide, and run through the suggested checks. If this does not
resolve the problem contact your dealer. They will tell you what warranty
condition is applied.
!
This symbol is used to alert you to
important instructions within this manual.
This symbol is used to alert you to the
dangers of getting an electric shock.
!

Contents
Product Overview
Components
Tools Required
Installation Instructions
Connections
Engineer Mode
Initial Set-Up
Troubleshooting
5
5
6
7
10
11
13
14
Contacta has a policy of continuous product development, and therefore small specication changes may not
be reected in this manual. Images, labels, packaging, accessories and product colours are subject to change
without notice.

5
2
3
6
7
Product Overview
Components
Speech transfer systems provide assistance for clear communication where
normal speech is impaired by use of glass, a security screen or other similar
barriers.
There is also a hearing loop facility included which provides additional
assistance for hearing device wearers.
1. Installation and User Manual
2. Amplier
3. Overhead Speaker x2
4. Bridge Bar Unit
5. Sta Microphone
6.
7.
8.
9.
10.
Hearing Loop Sticker
IEC Lead
Hearing Loop Aerial
Power Supply
Mounting Bracket
1
4
9
1. Adhesive Clip x10
2. No.6 x 1/2” Countersunk Screws x15
3. P-Clips x6
Also included is a Fixing Kit, which contains:
5
8
10

6
Tools Required
Your basic toolkit will include:
• Screwdrivers (Flat or Blade 2.5mm
and Phillips Head PH2)
• Battery or Mains Drill
• Drillbits: 2mm, 3mm, 5mm and 7mm
• Allen Key Set
• Cable Tacking Gun (10mm)
• Wire Cutters/Strippers
• Pliers
• Tape Measure
• Pencil or Marker Pen
• Torch
• Cable Ties
• Electrical Insulation Tape
• Trunking

7
1. Place the sta microphone on the sta side of the counter top, ensuring
that it does not cause an obstruction and is as close to sta as possible.
2. Place the amplier under the sta counter, ensuring that it will not
obstruct sta when they are sitting.
3. Mark the 4 xing points for the amplier under the counter.
4. Drill and x the amplier in place using the supplied screws.
5. Use the cable management hole to run the sta microphone cable back
to the amplier. If there is not already a cable management hole, one will
need to be drilled in a suitable location near the rear of the counter.
Sta Microphone, Amplier and Overhead Loudspeakers
Installation Instructions
Install the Sta Microphone, Amplier, Overhead Loudspeakers, Bridge Bar
Unit and Surface Mic in the order described below. If you have followed
the steps closely and the system is not functioning as intended, consult
Troubleshooting on page 14.
Fixing points

8
b. Check the cable route to the amplier situated under the counter.
Ensure access through the counter top and suitable cable length.
Drill a cable hole through the rear of the counter if neccesary.
c. Mark 2x xing points to attach the overhead speakers.
d. Drill pilot holes and attach the loudspeaker bracket assembly using
supplied screws.
e. Route the cable from the loudspeaker back to the amplier in a
neat and tidy fashion, using cable containment where required.
f. Repeat the above steps on the customer side of the counter.
6. Install the power supply close to a power socket outlet using the supplied
mounting bracket and xing screws.
4. Drill pilot holes and a cable hole
and attach the assembly with the supplied screws.
6. Feed wiring through the cable hole back to the amplier. Using provided
xing holes and screws, attach the bridge bar cover carefully to avoid
damage to wiring.
Bridge Bar Unit and Surface Mic
1. Position the bridge bar unit on
the customer side of the counter
top in a central location or
around the pass-through tray if
present.
2. Ensure the microphone and
bridge bar are at against the
screen.
3. Mark the 2 xing points and
1 cable route hole ready for
drilling.
Fixing
points
Bridge Bar cover
xing holes
Fixing
points
5. Install the overhead loudspeakers:
a. Find a location on the sta side
directly above the pass-through
tray. Ensure there is suicient
space and there is no glass
behind where you want to drill.
Cable
hole

9
Hearing Loop Installation
The aerial should be xed under the desk-top or counter centrally on the
customer side, one half mounted horizontally under the counter and the other
half mounted vertically, facing the customer (as in the rst scenario below).
Position the aerial under the counter using either the provided P-clips

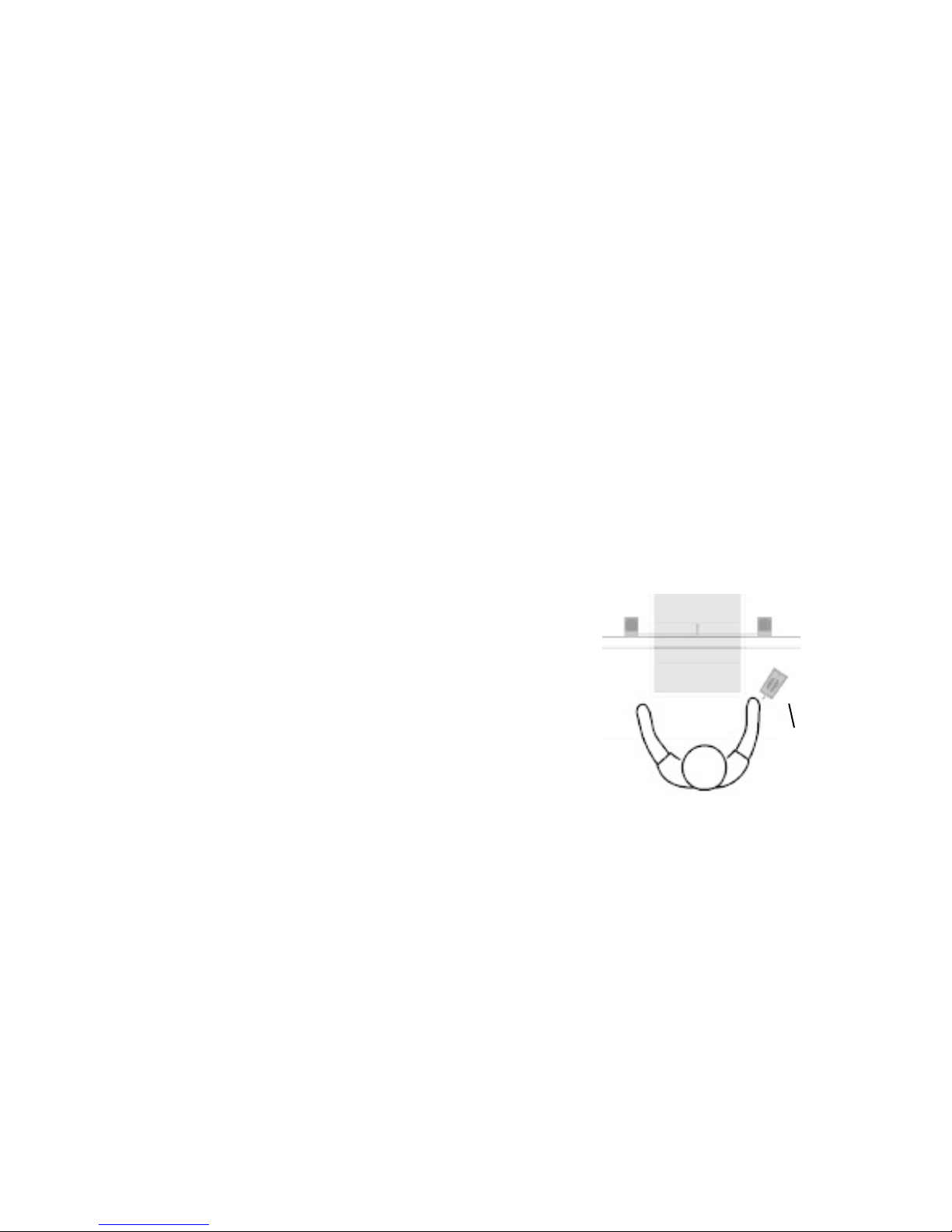

or another xing method of your choice. See the diagram below for
recommended positioning.
Ensure all hearing loop signage is displayed clearly.
X
X

10
Connections

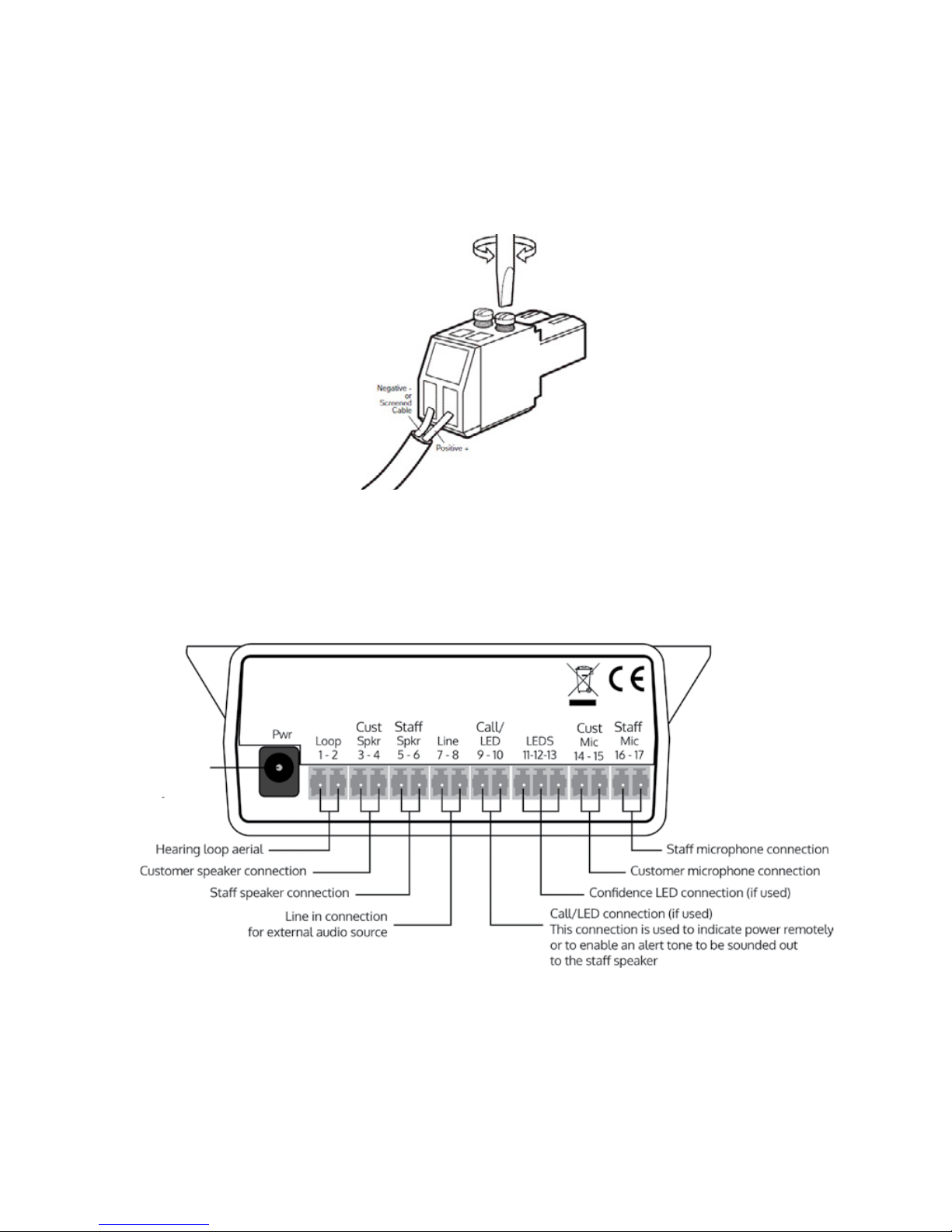

Trim the cables if necessary (apart from the power supply) to the required
length for connection to the back of the amplier. Bare approximately 6mm
of the cable ends for connection to the 2 pin plugs (see diagram below).
Rear Amplier Connections
Connect all green plugs to the back of the amplier, observing the correct
locations printed about the sockets (see below diagram).
Power input
connection for
the provided
power supply

11
Save and exit Engineer Mode
Move to the next Setup Area
Vol In Status
8
7
6
5
4
3
2
1
Vol Out STS-A31
CO2
contacta
Vol In Status
8
7
6
5
4
3
2
1
Vol Out STS-A31
CO2
contacta
Engineer Mode
To enter Engineer Mode, cycle the power.
To do this either:
• Switch the power o at the wall socket and back on again.
or
• Remove the power connector and re-insert it.
1. Simultaneously press and release:
• Settings button
• Volume In increase button
• Volume Out increase button
Overview of Front Panel Buttons
Volume In
Increase and decrease
Volume Out
Increase and decrease
The on/o and settings buttons in Engineer Mode operate as follows:
Settings
On/O

12
Please note:
• If the amplier detects an error in its’ settings memory it will restore itself
to factory default settings.
• The amplier will exit Engineer Mode if the “On/O” button is pressed at
any time or if no button has been pressed for a period of 2 minutes.
Status
8
7
6
5
4
3
2
1
Vol Out
Increase drive
Decrease drive
Setup area 3:
Hearing loop drive adjustment
Drive level increase/decrease
using the below buttons
The drive level should be adjusted so
the red LED 8 is illuminated only when
there are peals in the speech volume
(once every few minutes max.)
If the amplifier does not have a loop
attached you can turn off the red
loop fault LED 8 by adjusting the drive
down to off
The drive level should be adjusted so the red LED 8 is illuminated only when
there are peaks in the speech volume.
If the amplier does not have a loop attached, you can turn o the red loop
fault LED 8 by adjusting the drive down to o.
Setup Area 3:
Hearing Loop Drive Adjustment
Drive level increase/decrease using
the below buttons.

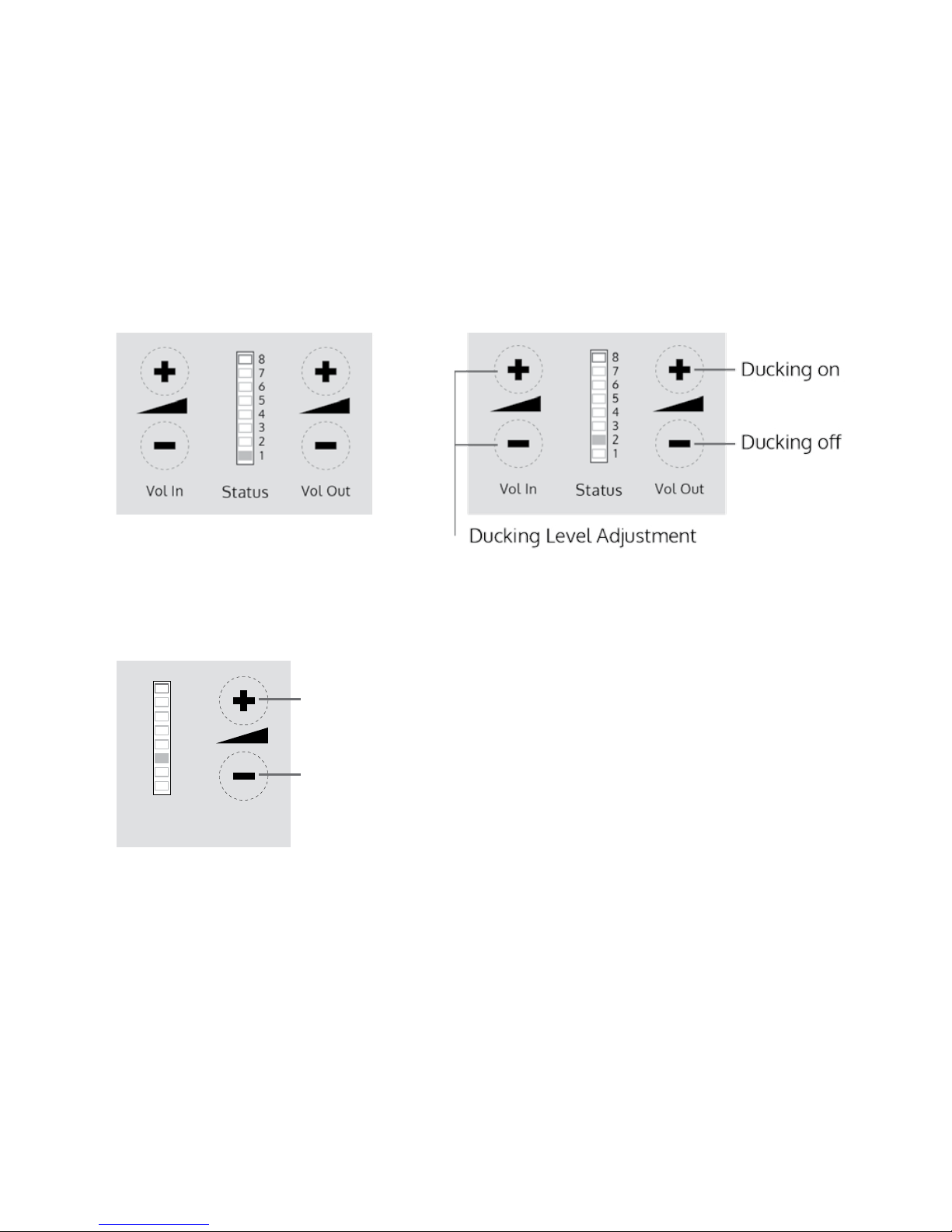

Whilst in Engineer Mode, there are 3 editable Setup Areas. You will always
enter Setup Area 1 rst. The green LED will ash to indicate which Setup Area
you are in.
Setup Areas
Setup Area 2:
Ducking Adjustment
Turn on/o and increase/decrease
ducking levels using the below buttons.
Setup Area 1:
Maximum Volume Adjustment
Set the maximum volume using
the below buttons.

13
Once you have followed the above steps:
1. Ensure sta microphone is no more than
300mm away from the sta member when
sitting.
2. Check amplier is fully functional by ensuring
the red ‘fault’ light is NOT showing on the front.
Initial Set-Up
To achieve the best possible performance, we recommend following the
below steps:
1. Ensure the customer and sta volumes are turned completely down
2. Adjust sta (Volume In) volume to a comfortable level
3. Increase customer (Volume Out) volume until feedback is heard
4. Decrease customer (Volume Out) volume until feedback is just eliminated
Factory Default Settings
To return to the factory default settings:
1. Unplug the power supply and then reconnect it.
2. Press the “On/O” button and Volume In - button together, then release.
3. The status LED bar graph will show a xed pattern of LEDs indicating the
rmware revision number, followed by all LEDs illuminated - this
indicates that the default settings have been restored.
If there is insuicient volume, enter Engineer Mode and raise max volume
settings, then exit Engineer Mode and repeat initial setup.
The system is now ready to use. Speak into the microphone to converse easily
through glass.
Sta
microphone

14
Troubleshooting
If no action is successful please seek assistance from
your distributor or a Contacta installer.
1) Power jack not plugged in or
faulty.
2) Plug fuse has blown.
3) Faulty power supply unit.
4) Faulty amplier.
1) Check power jack is rmly plugged in.
2) Replace fuse, but if it blows again
contact your supplier.
3) Replace the power supply unit.
4) Replace amplier.
1) Ensure microphone is wired correctly
and rmly plugged in. Try alternative
microphone to ensure port is working.
2) Ensure induction loop connector is
wired correctly and rmly plugged in.
1) Constant red LED:
Sta or customer microphone fault.
2) Red LED comes on after speech:
Induction loop fault.
1) Induction loop or microphone is
disconnected.
2) Faulty loop tester.
1 ) Check instructions for correct
connections and, if possible, check the
hearing device with a known working
hearing loop.
2) Ensure loop tester has a new set of
batteries.
1) Unscreened or poorly earthed
third party equipment is being used
in close proximity.
2) Internal volume gain set to high.
3) Incorrect power supply being
used.
1) Switch o any third party equipment to
identify the source of interference.
2) Access the amplier Engineer Mode to
adjust the internal settings.
3) Ensure that our grounded power supply
unit is connected.
1) Ambient noise in area is too high. 1) Switch o any air con systems, desktop
fans and or computers to reduce ambient
noise.
I can hear
interference
through speakers
(buzzing / whistling
/ hissing).
Amplier goes
into feedback.
Unit does not go
into power saving
mode.
I can’t hear audio
through the
induction loop.
The red LED is
lluminated on front
panel.
There is no power
detected through
amplier (and there
is power at the
socket).
1) Internal volume gain set to high.
2) Microphone positioned too close
to speaker.
1) Access the amplier Engineer Mode to
adjust the internal settings.
2) Move the microphone to a location
further from the speaker.
Symptom Possible Fault Action

15

Contact your local
distributor for further
information.
www.contacta.co.uk
