VSCC Installation Manual
S-Video Closed Caption Decoder
CRSystem Tools
The VSCC S-Video Closed-Caption decoder gives integrators a simple, reliable way to decode and display closed caption
text in both S-Video and composite video formats. Employing technology developed for the 232-STS S-Video TV Tuner, the
VSCC provides digital 2-D adaptive Y/C separation for superior S-Video signals from a composite NTSC video input.
Front-panel settings can select eight Closed Caption modes and remote control operation. A captive-screw control port
accepts a closure for Captions On/Off, sends a logic-level output for sensing video presence, and allows remote DC power.
Designed for versatile installation, the compact VSCC can be operated on a tabletop, attached to a display, or rack-
mounted 3-across, mixed with other CR System Tools using the optional single-rack height RK3 Rack Kit.
Physical
Size: 5.5" [140mm] wide x 1.1" [28mm] height x 3.5" [86mm] deep
Weight: 8 oz [226g]
Enclosure: All aluminum with durable black powder coat paint
Mounting: Tabletop, mount up to 3 units in RK3 Rack Mount
Connections
Video Output: BNC composite NTSC output, 1V p-p at 75 ohm impedance
S-Video Output: Mini DIN 4-pin, Y - 1V p-p at 75 ohms, C - 0.286 V p-p at 75 ohms
Digital adaptive 2-D Y/C separation filtering, cross-color and cross-luminance reduction
Differential Phase .3° max, Differential Gain .2% max, Video bandwidth 10MHz, Luma S/N 77dB
Video Input: BNC composite NTSC input
Caption/Control: 4-position DIP switch sets caption and control operation
Control Port: 5-pin captive screw terminal for logic level closure control, alternate remote DC
Power LED: Green LED lights when DC power is active, flashes when no video is present
Power In: 2.1mm coaxial jack (inside center conductor positive), 100 mA maximum
11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
Includes
12 VDC power supply, 100 mA (North American shipments only), 5-pin captive screw terminal
RK3 Rack Kit
Size: 19.0" [483mm] wide x 1.73" [44mm] 1RU height x .437" [11mm] deep
Mounting: Three mounting spaces, each space accepts two 4-40 ¼” screws 4.25” apart to attach System Tool

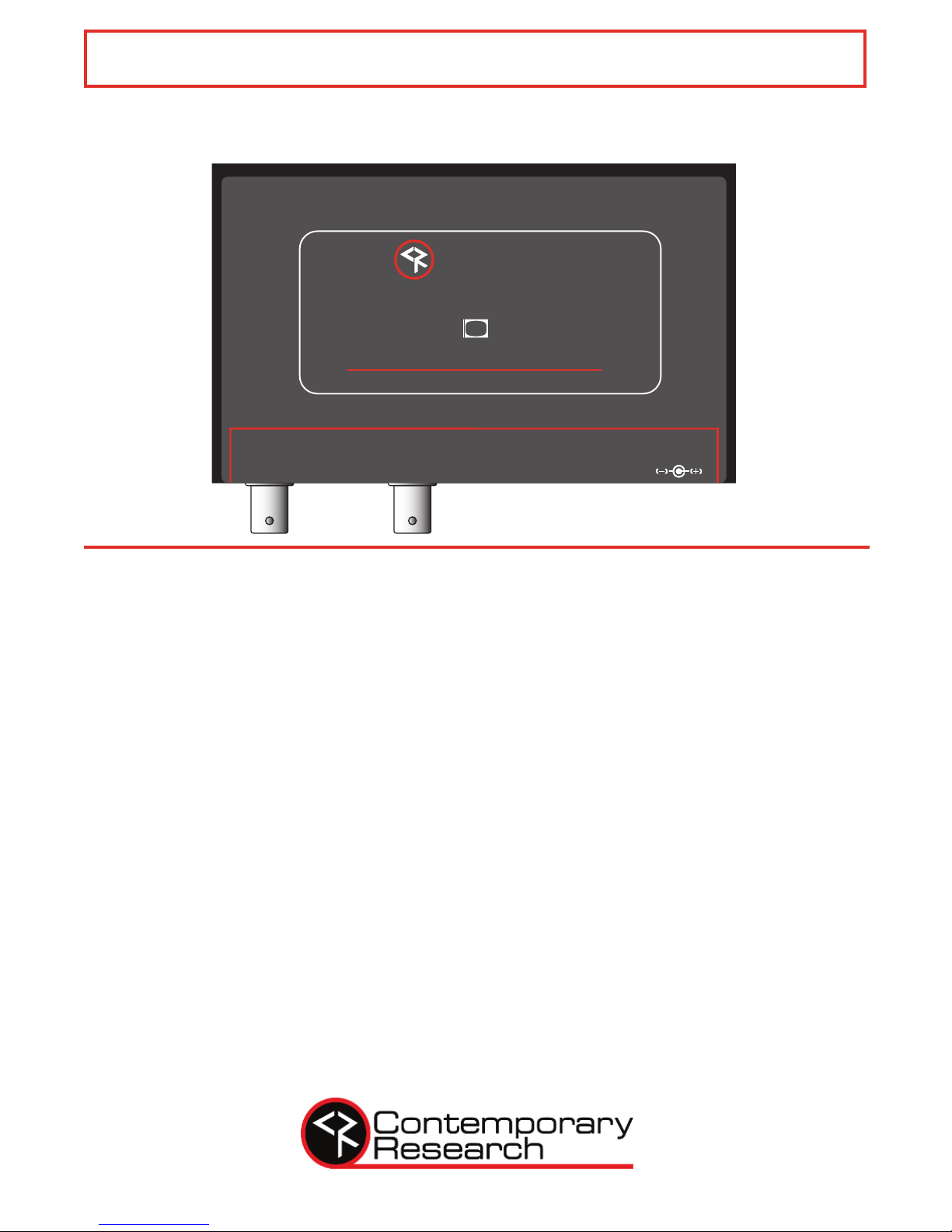

Video InVideo Out
Caption/Control
Settings 52 431
Control Port
S-Video Out
( ) ( )
12 VDC Pwr In
100 mA max
Pwr
LED
Contemporary
Research
VSCC
S-Video Closed Caption Decoder
CR System Tools
CC
www.contemporaryresearch.com

RK3 Rack Kit
Mounting: Use screws included with RK3 to bolt System Tool into one of 3 positions
Back of System Tool includes two pre-tapped 4-40 ¼” mounting holes
VSCC Installation
Video and Power Connections
Video In: Connect BNC composite NTSC video
S-Video Out: Connect S-Video cable (2-D Y/C processed video plus captions)
Video Out: Connect BNC composite NTSC video (input video plus captions)
DC Pwr: Connect DC power supply, Green Pwr LED lights when DC power is active
Operation: Video output should include captions, CC1 mode (default setting)
Caption/Control Settings
Caption/Control: 4-position DIP switch sets caption and control operation
Default setting is all switches off (up): CC1 caption type, Latching caption on/off control
1. Set Control Options by setting Switch 4 On, then Switch 1 On or Off.
2. Set Switch 4 to Off (Caption Mode)
3. Set Caption Options using switches 1 -3 for caption type CC1 - CC4 or TT1 - TT4
4. If you change Control Options, reset DIP switches to desired Caption Type
Control Port
Control Port: Wire captive-screw terminal as shown above
Pin 1: GND
Pin 2: Captions On/Off Input, latching or toggling, closure to GND, max 50 mA
Latching mode: Closure turns captions off, release to turn captioning on
Toggling mode: Momentary contact toggles between captions on and off
Pin 3: Captions Output, On = logic level low, max 50 mA, Off = Logic high, 5V through 10K pull-up resistor
Pin 4: Video Detect Output, On = logic level low, max 50 mA, Off = Logic high, 5V through 10K pull-up resistor
Pin 5: 12 VDC input, electrically identical to Pwr In
11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
Contemporary Research 17630 Davenport, Suite 113 Dallas, Texas 75252
Phone: [phone] Toll Free: [phone] Fax: [phone]
Doc 5051-020 0521 © 2006, specifications subject to change without notice
Video InVideo Out
Caption/Control
Settings 52
431
Control Port
S-Video Out
12 VDC Pwr In
100 mA max
Pwr
LED
Contemporary
Research
S-Video Closed Caption Decoder
CR System Tools
( ) ( )
CC
VSCC
DC Power
Control and Power
Video In
S-Video Out
Video Out
1 GND
5 DC Power
Control Port Wiring
1 2 3 4
ON
2 Captions On/Off Input
4 Video Detect Output
3 Captions On/Off Output
1234
Mounting Holes Mounting Holes
1 2 3 4
ON
CC1
1 2 3 4
ON
CC2
1 2 3 4
ON
CC3
1 2 3 4
ON
CC4
1 2 3 4
ON
TT1
1 2 3 4
ON
TT2
1 2 3 4
ON
TT3
1 2 3 4
ON
TT4
1 2 3 4
ON
Latching
4
ON
Toggling
1 2 31 2 3 4
ON
4
ON
Captions
1 2 3
Captions
