Continental Fireplaces CB30NTR User manual

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND EN
OPERATING INSTRUCTIONS
FR
PG
CONFORMS TO AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CERTIFIED TO CANADIAN CSA 2.22 FOR VENTED GAS FIREPLACES. 71
SAFETY INFORMATION
! WARNING
If the information in these instructions
are not followed exactly, a fi re or
explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use
any phone in your building.
•Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.
Decorative Product: Not for use as a heating
appliance.
CB30NTR / CB30NTRE
CB30PTR / CB30PTRE
NATURAL GAS MODEL
PROPANE GAS MODEL
! DANGER
HOT GLASS WILL CAUSE BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.continentalfi replaces.com • ask@continentalfi re.on.ca
$10.00 1.24D
W415-1398 / C / 06.15.17

2
EN
W415-1398 / C / 06.15.17
TABLE OF CONTENTS
NOTE: The camera icon indicates video tutorials are available as additional reference, visit
http://www.napoleonfireplaces.com/category/product-support/support-centre/
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 GENERAL INSTRUCTIONS 6
2.3 GENERAL INFORMATION 7 2.4 RATING PLATE INFORMATION 8
3.0 VENTING 9
3.1 VENTING LENGTHS AND COMPONENTS 10
3.2 TYPICAL VENT INSTALLATION 11
3.3 SPECIAL VENT INSTALLATIONS 13
3.3.1 PERISCOPE TERMINATION 13 3.3.2 CORNER TERMINATION 13
3.4 MINIMUM AIR TERMINAL LOCATION CLEARANCES 14
3.5 VENTING APPLICATION FLOW CHART 15
3.6 DEFINITIONS 16
3.7 ELBOW VENT LENGTH VALUES 16
3.8 TOP EXIT HORIZONTAL TERMINATION 17
3.9 REAR EXIT HORIZONTAL TERMINATION 19
3.10 TOP AND REAR EXIT VERTICAL TERMINATION 21
3.11 REAR EXIT 23
3.12 REAR EXIT SHIELD (FOR REAR VENT ONLY) 24
3.13 TOP EXIT 25 4.0 INSTALLATION 26
4.1 WALL AND CEILING PROTECTION 26
4.1.1 HORIZONTAL INSTALLATION 27 4.1.2 VERTICAL INSTALLATION 27 4.2.1 HORIZONTAL AIR TERMINAL
INSTALLATION 28
4.2 USING FLEXIBLE VENT COMPONENTS 28
4.2.2 VERTICAL AIR TERMINAL INSTALLATION 29 4.2.3 APPLIANCE VENT CONNECTION 30 4.3.1 HORIZONTAL AIR
TERMINAL INSTALLATION 30
4.3 USING RIGID VENT COMPONENTS 30
4.3.2 VERTICAL AIR TERMINAL INSTALLATION 31 4.3.3 RESTRICTING VERTICAL VENTS 32
4.4 VERTICAL THROUGH EXISTING CHIMNEY 33
4.5 MOBILE HOME INSTALLATION 34
4.6 GAS INSTALLATION 35 4.7 OPTIONAL WALL SWITCH 35
5.0 FRAMING 36
5.1 MINIMUM FRAMING DIMENSIONS 37
5.2 MINIMUM ENCLOSURE CLEARANCES 39
5.3 NON-COMBUSTIBLE FACING MATERIAL 43
5.4 ALCOVE CLEARANCES 43
5.5 RECESSED INSTALLATION 44 5.6 MINIMUM MANTEL CLEARANCES 45
6.0 FINISHING 46
6.1 SAFETY SCREEN / DOOR REMOVAL AND INSTALLATION 46
6.2 FRONT HOOD INSTALLATION 47
6.3 LOG PLACEMENT 48
6.4 CHARCOAL EMBERS 49 6.5 LOGO PLACEMENT 49
6.6 BATTERY BACK-UP INSTALLATION 50
7.0 WIRING DIAGRAM 51
8.0 OPERATION (ELECTRONIC) 52
9.0 OPERATION (MILLIVOLT) 53
10.0 ADJUSTMENT 54
10.1 PILOT BURNER ADJUSTMENT 54 10.2 VENTURI ADJUSTMENT 54
10.3 FLAME CHARACTERISTICS 55
10.4 OPTIONAL ANTI CONDENSATION SWITCH (MODELS CB30NTRE AND CB30PTRE ONLY) 55
11.0 MAINTENANCE 56
11.1 ANNUAL MAINTENANCE 57 11.2 DOOR GLASS REPLACEMENT 58
11.3 CARE OF GLASS 58 12.0 REPLACEMENTS 59
12.1 OVERVIEW 60
12.2 ELECTRONIC VALVE TRAIN ASSEMBLY 61 12.3 MILLIVOLT VALVE TRAIN ASSEMBLY 62
13.0 ACCESSORIES 63
14.0 TROUBLESHOOTING (ELECTRONIC) 64 15.0 TROUBLESHOOTING (MILLIVOLT) 66
16.0 WARRANTY 69
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

3
EN
W415-1398 / C / 06.15.17
1.0 INSTALLATION OVERVIEW
Batteries must be disposed of according to the local laws and regulations. Some batteries may be
recycled, and may be accepted for disposal at your local recycling center. Check with your
municipality for recycling instructions.

4
EN
W415-1398 / C / 06.15.17
2.0 INTRODUCTION
WARNING
•
THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
•
ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND ARE
PROHIBITED.
•
Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fi re or injury.
•
Risk of fi re or asphyxiation do not operate appliance with fi xed glass removed.
•
Do not connect 110 volts to the control valve.
•
Risk of burns. The appliance should be turned off and cooled before servicing.
•
Do not install damaged, incomplete or substitute components.
•
Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges
may be sharp.
•
Do not burn wood or other materials in this appliance.
•
Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
•
Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to an appliance
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
•
Clothing or other fl ammable material should not be placed on or near the appliance.
•
Due to high temperatures, the appliance should be located out of traffi c and away from furniture and
draperies.
•
Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
•
Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
•
Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the fl oor.
•
Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to
operating the appliance.
•
The appliance is a vented gas-fi red appliance. Do not burn wood or other materials in the appliance.
•
The appliance area must be kept clear and free from combustible materials, gasoline and other fl ammable
vapors and liquids.
•
Under no circumstances should this appliance be modifi ed.
•
This appliance must not be connected to a chimney fl ue pipe serving a separate solid fuel burning appliance.
•
Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
•
Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualifi ed service person.
•
Do not strike or slam shut the appliance glass door.
•
When equipped with pressure relief doors, they must be kept closed while the appliance is operating to
prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the
exhaust escaping through these openings can also cause the surrounding combustible materials to overheat
and catch fi re.Only doors / optional fronts certifi ed with the unit are to be installed on the appliance.
•
Only doors / optional fronts certifi ed with the unit are to be installed on the appliance.
•
Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
•
As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as
well as having a Carbon Monoxide Detector installed in the same area to defend you and your family against
Carbon Monoxide.
!

5
EN
W415-1398 / C / 06.15.17
•
Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.
•
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance and shall be installed.
•
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this
appliance.
•
Installation and repair should be done by a qualifi ed service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that
control compartments, burners and circulating air passageways of the appliance be kept clean.
•
The millivolt version of this appliance uses and requires a fast acting thermocouple. Replace only with a fast
acting thermocouple supplied by Wolf Steel Ltd. 3.1E

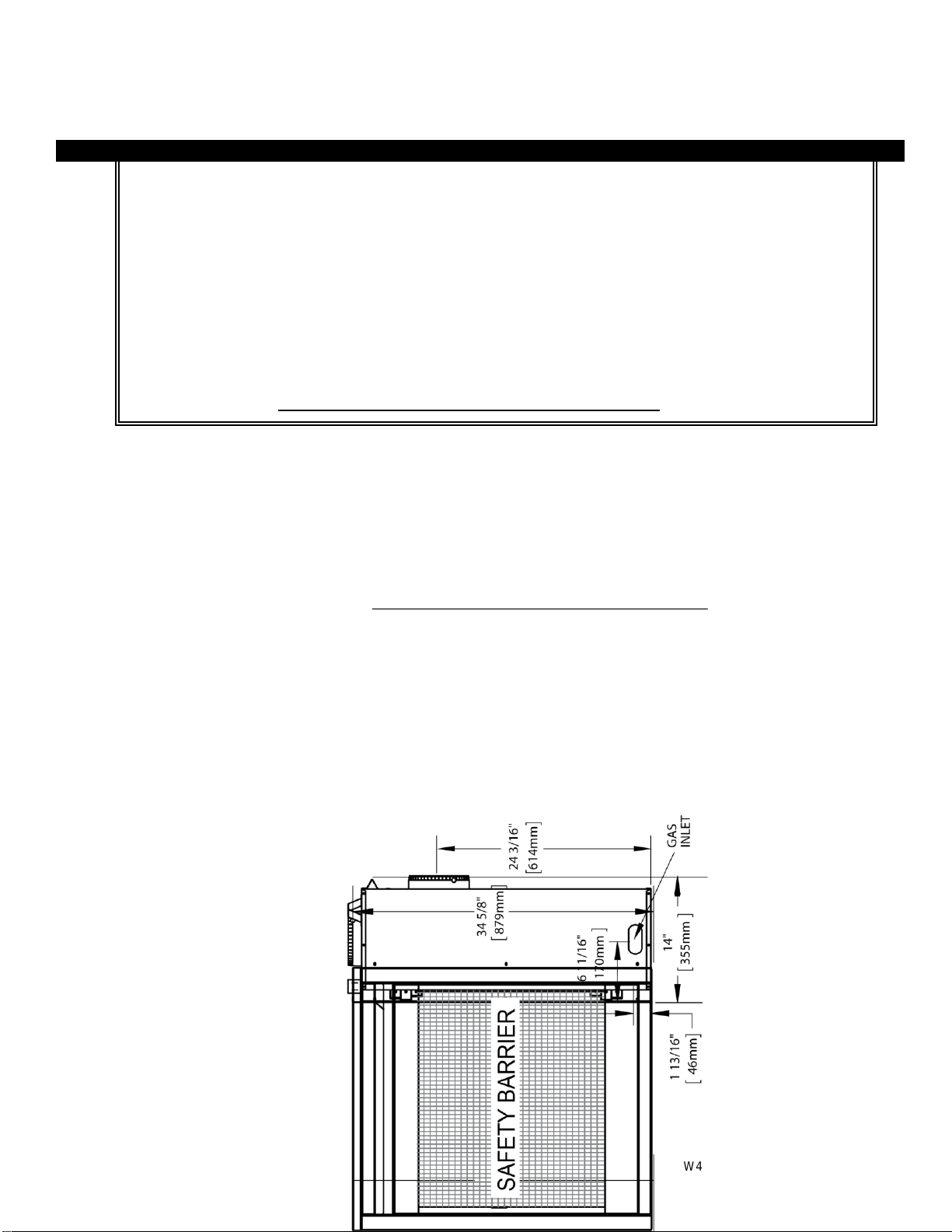

2.1 DIMENSIONS

6
EN
W415-1398 / C / 06.15.17
2.2 GENERAL INSTRUCTIONS
! WARNING
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48 INCHES
(121.9cm) FROM THE FRONT FACE OF THE APPLIANCE.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID
CONTACT WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE
BEFORE PRESSURE TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG
(35mb).
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS
APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS,
VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND
CERTIFICATION.
THE APPLIANCE MUST NOT BE OPERATED AT TEMPERATURES BELOW
FREEZING (32°F / 0°C). ALLOW THE APPLIANCE TO WARM TO ABOVE FREEZING
PRIOR TO OPERATION.
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the specifi
cs that apply to your area, for example in Massachusetts State:
•This product must be installed by a licensed plumber or gas fi tter when installed within the commonwealth of
Massachusetts.
•The appliance damper must be removed or welded in the open position prior to installation of an appliance
insert or gas log.
•The appliance off valve must be a “T” handle gas cock.
•The fl exible connector must not be longer than 3 feet (91.4cm).
•A Carbon Monoxide detector is required in all rooms containing gas fi red appliances.
•The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed
combustion product.
The installation must conform with local codes or, in We suggest that our gas
absence of local codes, the National Gas and Propane Installation Code CSA B149.1 in Canada, or the National hearth
products be installed
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United and serviced by professionals States. Suitable
for mobile home installation if installed who are certified in the U.S. in accordance with the current
standard CAN/CSA Z240MH Series, for gas equipped mobile homes, in by the National Fireplace

7
EN
W415-1398 / C / 06.15.17
Canada or ANSI Z223.1 and NFPA 54 in the United Institute® (NFI) as NFI Gas
States. Specialists
www.nficertified.org
As long as the required clearance to combustibles is
maintained, the most desirable and benefi cial location for an appliance is in the center of a building, thereby
allowing the most effi cient use of the heat created. The location of windows, doors and the traffi c fl ow in the
room where the appliance is to be located should be considered. If possible, you should choose a location where
the vent will pass through the house without cutting a fl oor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood fl
ooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must be
electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
4.1C
2.3 GENERAL INFORMATION
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY!
RATES AND EFFICIENCIES
CB30
NG
P
Altitude (FT)
0-4,500
0-4,500
Max. Input (BTU/HR)
15,000
15,000
Min. Inlet Gas Supply Pressure
4.5" (11mb) w.c.
11" (27mb) w.c.
Max. Inlet Gas Supply
Pressure
13" (32mb) w.c.
13" (32mb) w.c.
Manifold Pressure (Under Flow
Conditions)
3.5" (9mb) w.c.
10" (25mb) w.c.
CB30 MODEL
DESIGNATIONS
FUEL TYPE
OPERATING SYSTEM
CB30NTR
NATURAL
MILLIVOLT
CB30NTRE
NATURAL
ELECTRONIC IGNITION
CB30PTR
PROPANE
MILLIVOLT
CB30PTRE
PROPANE
ELECTRONIC IGNITION
This appliance is approved for bathroom, bedroom and bed-sitting room installations and is suitable for mobile
home installation.
No external electricity (110 volts or 24 volts) is required for the gas millivolt system operation.

8
EN
W415-1398 / C / 06.15.17
SAMPLE
Expansion / contraction noises during heating up and cooling down cycles are normal and are to be
expected.
2.4 RATING PLATE INFORMATION
CONFORMS TO / CONFORME AUX: ANSI Z21.50-2014, CERTIFIED TO / CERTIFIE CSA 2.22-2014 VENTEDGAS FIREPLACE / FOYER À GAZ VENTILÉ.
DIRECT VENT GAS FIREPLACE. SUITABLE FOR BEDROOM, BATHROOM AND BED-SITTING ROOM FOYER À GAZ VENTILÉ DIRECT. HOMOLOGUE POUR INSTALLATION DANS UNE CHAMBRE A COUCHER,
INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE UNE SALLE DE BAIN ET UN STUDIO. APPROPRIE POUR INSTALLATION DANS UNE MAISON MOBILE SI
WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SERIE DE MAISONS
IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONTRUCTION AND MOBILES EQUIPEES AU GAZ, EN VIGUEUR AU CANADA OU AUX ETATS-UNIS DE LA NORME DE SAFETY
STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US STANDARD IS NOT SECURITE ET DE CONSTRUCTION DE MAISONS MANUFACTUREES, TITRE 24 CFR, SECTION 3280.
APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED DANS LE CAS OU CETTE NORME D'ETATS-UNIS NE PEUT ETRE APPLIQUEE, SE REFERER A LA NORME
HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A. FOR USE WITH BARRIER RELATIVE AU CRITERE DE MESURES DE SECURITE CONTRE L'INCENDIE POUR LES INSTALLATIONS
W565-0154. FOLLOW THE INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL. DANS LES MAISONS MANUFACTURES, LESSITES ET LES COMMUNAUTES, ANSI/NFPA 501A. POUR
UNE UTILISER AVEC BARRIÈRE W565-0154. SUIVEZ LES INSTRUCTIONS
9700539 (WSL) 4001657 (NGZ)
D'INSTALLATION SE TROUVENT DANS LE MANUEL D'INSTALLATION
4001658 (NAC) 4001659 (WUSA)
B30NTR CB30NTR MODEL CB30PTR B30PTR
B30NTRE CB30NTRE CB30PTRE B30PTRE
0-4500FT (0-1370m) ALTITUDE / ELEVATION 0-4500FT (0-1370m)
15,000 BTU/h INPUT / ALIMENTATION 15,000 BTU/h
10,000 BTU/h REDUCED INPUT / ALIMENTATION REDUITE 11,500 BTU/h
MANIFOLD PRESSURE: 3.5" (9MB) WATER COLUMN MANIFOLD PRESSURE: 10" (25MB) WATER COLUMN
PRESSION AU COLLECTEUR: 3.5"(9 MB) D'UNE COLONNE D'EAU PRESSION AU COLLECTEUR: 10" (25MB) D'UNE COLONNE D'EAU
MINIMUM SUPPLY PRESSURE: 4.5" (11MB) WATER COLUMN MINIMUM SUPPLY PRESSURE: 11" (27MB) WATER COLUMN
PRESSION D'ALIMENTATION MINIMALE: 4.5" (11MB) D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MINIMALE: 11" (27MB) D'UNE COLONNE D'EAU
MAXIMUM SUPPLY PRESSURE: 7.0" (17MB) WATER COLUMN MAXIMUM SUPPLY PRESSURE: 13" (32MB) WATER COLUMN
PRESSION D'ALIMENTATION MAXIMALE: 7.0" (17MB) D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MAXIMALE: 13" (32MB) D'UNE COLONNE D'EAU
P4: 44% P4: 44%
NOT FOR USE WITH SOLID FUEL. FOR USE WITH GLASS DOORS UN COMBUSTIBLE SOLIDE NE DOIT PAS ETRE UTILISE AVEC CET
CERTIFIED WITH THIS UNIT ONLY. APPAREIL. UTILISER AVEC LES PORTES VITREES HOMOLOGUEES
WARNING: THIS FIREPLACE USES AND REQUIRES A FAST ACTING THERMOCOUPLE. REPLACE SEULEMENT AVEC CETTE UNITE.
ONLY WITH A FAST ACTING THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.
DO NOT ADD ANY MATERIAL TO THE APPLIANCE, WHICH WILL COME IN CONTACTWITH THE FLAMES, AVERTISSEMENT:CE FOYER UTILISE ET REQUIERT UN THERMOCOUPLE À ACTION RAPIDE.
OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE APPLIANCE. MINIMUM CLEARANCE REMPLACEZ UNIQUEMENT AVEC UN THERMOCOUPLE À ACTION RAPIDE DE WOLF STEEL LTÉE.
TO COMBUSTIBLE MATERIALS / N’AJOUTEZ PAS A CET APPAREIL AUCUN MATERIAU DEVANT ENTRER EN CONTACTAVEC LES FLAMMES DEGAGEMENTS MINIMAUX DES MATERIAUX
COMBUSTIBLES: AUTRE QUE CELUI QUI EST FOURNI AVEC CET APPAREIL PAR LE FABRICANT.
TOP/ DESSUS 0 RECESSED DEPTH / PROFONDEUR D'ENCASTRE 14 ½" THE APPLIANCEMUST BE VENTED USING THE APPROPRIATE
WOLF STEEL VENT KITS. SEE OWNERS FLOOR / PLANCHER 0 VENT SIDES / COTES DE L'EVENT 1" INSTALLATION MANUAL FOR VENTING
SPECIFICS. PROPER REINSTALLATION AND RESEALING IS SIDES / COTES 0 VENT TOP / EVENT SUPERIEUR 3" NECESSARY AFTER SERVICING THE VENT-AIR
INTAKE SYSTEM.
BACK / ARRIERE 0 VENT BOTTOM / EVENT INFERIEUR 1" L'APPAREIL DOIT EVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'EVACUATION PROPRE A NAPOLEON.
MANTEL / MANTEAU 12" * REFERER AU MANUEL D'INSTALLATION DE PROPRIETAIRE POURL'EVACUATION PRECISE. IL EST
* MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION HORIZONTALE MAXIMALE: 2". SEE INSTRUCTION IMPORTANT DE BIEN REINSTALLER ET RESCELLER L'EVENT APRES AVOIR ASSURE
LE MAINTIEN DU MANUAL FOR GREATER EXTENSIONS.REFERER AU MANUEL D'INSTRUCTION POUR DES SYSTEME DE PRISE D'AIR.
EXTENSIONS PLUS GRANDES. DECORATIVE PRODUCT: NOT FOR USE AS A HEATING
APPLIANCE SEE OWNER'S INSTRUCTIONMANUAL FORMINIMUM AND MAXIMUM VENT LENGTHS.
PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPPAREIL DE CHAUFFAGE.
REFERER AU MANUEL D'INSTALLATION DE PROPRIETAIRE POUR LES LONGUEURS
D'EVACUATION MINIMALE ET MAXIMALE. ELECTRICAL RATING / CLASSIFICATION: 115V 0.82AMP, 60HZ
OPTIONAL FAN KIT / ENSEMBLE DE VENTILATEUR FACULTATIF: EP35
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA SERIAL NUMBER/NO. DE SERIE:
B30
W385-1951
/ C
INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to
the model, venting and gas type of the appliance.
For rating plate location, see “INSTALLATION OVERVIEW” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
NOTE: The rating plate must remain with the appliance at all times. It must not be removed.
A barrier designed to reduce the risk of burns from the hot viewing glass, is provided with the
appliance and shall be installed.

9
W415-1398 / C / 06.15.17
3.0
T
H
IS APPLIANCE USES A 4” (102mm) EXHAUST / 7” (178mm) AIR INTAKE VENT PIPE SYSTEM.
Refer to the section applicable to your installation.
For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the
minimum vertical vent length can create diffi culty in burner start-up and/or carboning. Under extreme vent
confi gurations, allow several minutes (5-15) for the fl ame to stabilize after ignition. Although not a
requirement, it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl
spaces) be insulated with the insulation wrapped in a protective sleeve to minimize condensation. Provide
a means for visually checking the vent connection to the appliance after the appliance is installed. Use a fi
restop, vent pipe shield or attic insulation shield when penetrating interior walls, fl oor or ceiling.
The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor
paint suitable for 400°F (204°C). Application and performance of paint is the consumer’s responsibility. Spot
testing is recommended.
NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions
provided for the initial installation.
NOTE: This appliance must be installed with a continuous connection of exhaust and air intake vent
pipes. Utilizing alternate constructions such as a chimney as part of the vent system is not
permitted. 7.1F
3.1 VENTING LENGTHS AND COMPONENTS
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab
venting components. Minimum and maximum vent lengths, for both horizontal and vertical installations,
clearances from vent pipes to combustibles and air terminal locations as set out in this manual apply to
all vent systems and must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal
Amerivent and Metal-Fab follow the installation procedure provided with the venting components. A
starter adaptor must be used with the following vent systems and may be purchased from the
corresponding supplier:
VENT
MANUFACTURER
STARTER ADAPTER
PART NUMBER
SUPPLIER
WEBSITE
Duravent
W175-0053
Wolf Steel
www.duravent.com
Amerivent
4DSC-N2
American Metal
www.americanmetalproducts.com
Direct Temp
4DT-AAN
Selkirk
www.selkirkcorp.com
SuperSeal
4DNA
Metal-Fab
www.mtlfab.com
VENTING
EN
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT
(0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR
EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES
FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END
OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.
!

10
EN
W415-1398 / C / 06.15.17
For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the
installation procedure found on the website for your venting supplier.
For vent systems that provide seals on the inner exhaust fl ue, only the outer air intake joints must be sealed
using a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and
outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to
the appliance fl ue collar which must be sealed using the black high temperature sealant Mill Pac. High
temperature sealant must be ordered separately.
When using Wolf Steel venting components, use only approved Wolf Steel rigid / fl exible components with the
following termination kits: wall terminal kit GD-222, GD-222R, or 1/12 to 7/12 pitch roof terminal kit GD-110,
8/12 to 12/12 roof terminal kit GD-111, fl at roof terminal kit GD-112 or periscope kit GD-201 (for wall
penetration below grade). With fl exible venting, in conjunction with the various terminations, use either the 5
foot (1.5m) vent kit GD-220 or the 10 foot (3.1m) vent kit GD-330.
For optimum fl ame appearance and appliance performance, keep the vent length and number of
elbows to a minimum. The air terminal must remain unobstructed at all times. Examine the air terminal
at least once a year to verify that it is unobstructed and undamaged.
Rigid and fl exible venting systems must not be combined. Different venting manufacturer components
must not be combined.
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal
run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of
vent connections is two horizontally or three vertically (excluding the appliance and the air
terminal connections) when using fl exible venting. 8.1C

11
EN
W415-1398 / C / 06.15.17
3.2 TYPICAL VENT INSTALLATION

12
EN
W415-1398 / C / 06.15.17
* See "VENTING" section

13
EN
W415-1398 / C / 06.15.17
3.3 SPECIAL VENT INSTALLATIONS
3.3.1 PERISCOPE TERMINATION
Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when
fi nal grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade. The
maximum allowable vent length is 10’ (3.1m).
3.3.2 CORNER TERMINATION
The maximum vent length for a corner installation is 20" (50.8cm) of horizontal run, in addition to the 45°
offset. In this case zero rise is acceptable. When using rigid venting, it is required to maintain a 6" (152mm)
rise. When using flexible venting, see illustrations below.
6” (152mm)
20
” (50.8cm)
MAXIMUM
9.4
B
12
" (30.5CM)
MINIMUM
TO GRADE
30
" (76.2CM
)
MINIMUM
30
" (76.2CM
)
MINIMUM
34
5/8"
(87.9
CM
)
12
" (30.5CM)
MINIMUM
TO GRADE
RISE MINIMUM

14
EN
W415-1398 / C / 06.15.17
FLEXIBLE VENTING RIGID VENTING
3.4 MINIMUM AIR TERMINAL LOCATION CLEARANCES
The
terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.
**** This is a recommended distance. For additional requirements check local codes.
†3 feet above if within 10 feet horizontally.
‡A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.

15
EN
W415-1398 / C / 06.15.17
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the fl oor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.
††* Permitted only if the balcony is fully open on a minimum of one side.
NOTE: Clearances are in accordance with local installation codes and the requirements of the gas supplier.
12.1E
3.5 VENTING APPLICATION FLOW CHART
TOP EXIT
Horizontal Termination Vertical Termination
Vertical rito or grese is equal ater than Vertical rise is less Vertical rito or grese is equal ater than than horiVertical rzontal runise is less
than horizontal run
the horizontal run
Horizontal run + Horizontal run +
vertical rise to vertical rise to
maximum of maximum of 24.75
35 feet (10.7m) feet (7.5m)
4.2 times the
vertical rise equal to
or greater than the
horizontal run
the horizontal run
Horizontal run + Horizontal run +
vertical rise to vertical rise to
maximum of maximum of
35 feet (10.7m) 35 feet (10.7m)
3 times the vertical
rise equal to or
greater than the
horizontal run
13.3A
REAR EXIT
Horizontal Termination
Vertical Termination
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of 40 feet
(12m)
Horizontal run +
vertical rise to
maximum of
24.75 feet (7.5m)
Horizontal run +
vertical rise to
maximum of 40 feet
(12m)
Horizontal run +
vertical rise to
maximum of 40 feet
(12m)

16
EN
W415-1398 / C / 06.15.17
3.5 times the vertical
rise equal to
or greater than the
horizontal run
3 times the vertical
rise equal to or
greater than the
horizontal run
13.2A
3.6 DEFINITIONS
For the following symbols used in the venting calculations and examples are:
> - greater than
> - equal to or greater than
< - less than
< - equal to or less than
HT- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet
HR- combined horizontal vent lengths in feet
HO- offset factor: .03 (total degrees of offset - 90°*) in feet VT- combined vertical vent
lengths in feet 14.1
3.7 ELBOW VENT LENGTH VALUES
FEETINCHES MILLIMETERS
1° 0.03 0.5 12.7
15° 0.45 6.0 152.4 30° 0.9 11.0
279.4 45° 1.35 16.0 406.4
90°* 2.7 32.0 812.8
* The fi rst 90° offset has a zero value and is shown in the formula as - 90° 15.1A

17
EN
W415-1398 / C / 06.15.17
3.8 TOP EXIT HORIZONTAL TERMINATION
For vent confi gurations requiring more than one 90° elbow, the following formulas
apply:
Formula 1: HT< VT
Formula 2: HT+ VT< 40 feet (12.2m)
Example:
V1= 3 FT (0.9m)
V2= 8 FT (2.4m)
VT= V1+ V2= 3 FT (0.9m ) + 8 FT (2.4m) = 11 FT (3.4m)
H1= 2.5 FT (0.8m)
H2= 2 FT (0.6m)
HR= H1+ H2= 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m)
HO= .03 (three 90° elbows - 90°) = .03 (270° - 90°) = 5.4 FT
(1.7m)
HT= HR+ HO= 4.5 FT (1.4m) + 5.4 FT (1.6m) = 9.9 FT (3m)
HT+ VT= 9.9 FT (3m) + 11 FT (3.4m) = 20.9 FT (6.4m)

18
EN
W415-1398 / C / 06.15.17
Formula 1: HT<VT
9.9 FT (3m) <11 FT (3.4m)
Formula 2: HT+ VT<40 FT (12.2m)
20.9 FT (6.4m) < 40 FT (12.2m)
Since both formulas are met, this vent confi guration is acceptable.

19
EN
W415-1398 / C / 06.15.17
(H ) > (V )
T T
Simple venting configuration See graph to determine the required vertical rise VTfor the required horizontal run HT.
(only one 90° elbow) 150 (381)

20
W415-1398 / C / 06.15.17
EN
T T
Formula 1: HT < 4.2 VT
4.2 VT =4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m) Formula 2: HT + VT <
24.75 FT (7.5m)
16.7 FT (5.1m) < 24.75 FT (7.5m)
Since both formulas are met, this vent configuration is acceptable.
Example:
V1 = 4 FT (1.2m)
V2 = 1.5 FT (0.5m)
VT = V1 + V2 = 4 FT (1.2m) + 1.5 FT (0.5m) = 5.5 FT (1.7m)
H1 = 2 FT (0.6m)
