Contro l4 C4-DIN-BEG-V2 User manual

Requirements and specifications
Prior to installing this product, ensure that the Control4 5-Slot or 2-Slot Panel or
the cabinet to house the gateway has been installed.
Power input 48VDC
Power consumption 1.0W
Communications 10/100 Ethernet
Connections One Ethernet, RJ-45
Four RS-485 pluggable terminal blocks
36 AWG to 14 AWG (0.14 mm to 1.5 mm)
Operating temperature 32˚F to 104˚F (0˚C to 40˚C)
Humidity 5% to 95% non-condensing
Storage -4˚F to 158˚F
(-20˚C to 70˚C)
Dimensions (H × W × D) 4.28 × 4.48 × 2.15 in.
(108.6 mm × 113.9 mm × 54.6 mm)
DIN module width 6M
Weight 1.20 lbs (0.54 kg)
Shipping weight 1.55 lbs (0.70 kg)

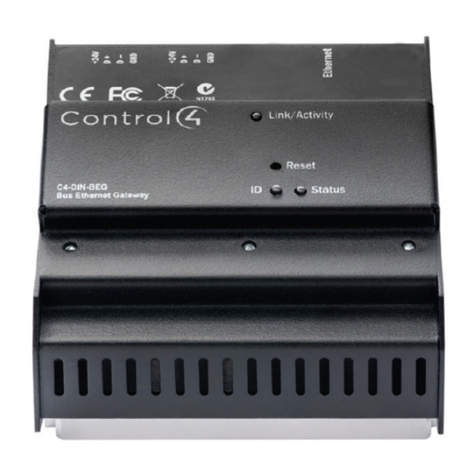

Front view
Figure 1: Front view
1 4 × RS-485 pluggable connectors
2 Link/Activity LED
3 Reset button (recessed)
4 Module ID button
5 Module Status LED
Pre-installation instructions
Before you install in a Control4 panel
1 Use Composer Pro to add the Bus Ethernet Gateway to a project, define its
location in a panel, and print the panel report. See the Composer Pro User
Guide ( ctrl4.co/cpro-ug ) for details.
2 Install the panel following the instructions in the 5-Slot and 2-Slot Panel
Installation Guide (
ctrl4.co/panelinstall ).
4
1
2
3
5
Bus Ethernet Gateway
Installation Guide
Introduction
The Control4® Bus Ethernet Gateway (C4-DIN-BEG-V2) is intended for use in a
Control4 system. This device installs in a Control4 Centralized Lighting panel or in
any standard DIN rail panel with 35 mm rails. The Bus Ethernet Gateway provides
the communication bridge between keypads on the RS-485 bus and the Control4
system. For RS-485 wiring topologies, refer to the Keypad Bus Wiring Guide
(
ctrl4.co/buswiring ).
Note: For optimal product and network security, we recommend using this
product with Control4 OS 3.2.2 or newer.
Box contents
• Bus Ethernet Gateway
• Four pluggable terminal blocks
Warnings and considerations
Warning! Improper use or installation can cause serious injury, death, or
loss/damage of property.
Attention ! Une mauvaise utilisation ou installation peut entraîner des
blessures graves, décès, ou perte / dommages à la propriété.
Warning! Disconnect the power for all lines feeding into the panel
before installing this device.
Attention ! Assurez-vous que tous les disjoncteurs d’alimentation dans
le panneau sont éteints avant d’installer l’appareil.
Important! Using this product in a manner other than outlined in
this document voids your warranty. Further, Control4 is not liable
for any damage incurred with the misuse of this product. See
“Troubleshooting.”
Important! This is an electronic device with intricate components.
Handle and install with care!

control4.com | 888.400.4070
Before you install in a third-party DIN rail panel
1 Install the third-party panel according to the third-party instructions.
Installation instructions
Install in a Control4 Panel
1 With the Ethernet port facing right, hold the Bus Ethernet Gateway upright
and angle it to the left so that the left side of the module fits onto the rail in
the panel (see Figure 2).
Figure 2: Snap on the Bus Ethernet Gateway - Control4 Panels
2 With the left side already in place, use a flat blade screwdriver to move the
latch.
3 While pressing forward on the right side of the Bus Ethernet Gateway,
release the latch to secure it onto the rail.
Note: To remove the module, use a flat blade screwdriver to move the
latch, pull it out from the right side, and remove it from the left side.
Installing the module horizontally in a third-party panel
Third-party DIN rails can be mounted in any orientation; however, these
instructions assume a horizontal orientation.
1 With the Ethernet port facing up, hold the module lengthwise and angle it
down so that the bottom side of the module fits onto the rail (see Figure 3).
2 With the bottom side already in place, use a flat blade screwdriver to move
the latch.
3 While rotating it upward, release the latch to secure it onto the rail.
Figure 3: Snap on the Bus Ethernet Gateway - third-party panels
Note: To remove the module, push the module toward the bottom,
rotate the module up, and lift it o.
Back view
2
1
3
Side view
4 On the top of the Bus Ethernet Gateway, connect the Ethernet Cat5 cable to
the RJ-45 port.
5 Install the other modules in the panel as defined in their respective
installation guides.
Wiring diagrams
For information about bus wiring details, refer to the Keypad Bus Wiring Guide.
Operations and configuration
Button taps
Function Button taps
Identify 4
Factory reset 9
Reboot 15
LED indicators
The indicator lights on the front of the Bus Ethernet Gateway communicate the
status of the device.
Indicator Color Status Notes
Status Blue Power on
Black No power
Link/Activity Solid green Link
Orange Activity
Flashing green Firmware is updating Flashing gets faster
as the update
proceeds
Flashing red No link
Reset button
Note: The Reset button is recessed and must be pressed using a
paperclip or similar device. A single press of the Reset button is
equivalent to powering the Bus Ethernet Gateway o and back on.
Warranty and legal information
Find details of the product’s Limited Warranty and other safety, patent, and legal
resources at
snapone.com/legal or request a paper copy from Customer Service
at
866.424.4489 .
Copyright ©2021, Snap One, LLC. All rights reserved. Snap One and its respective
logos are registered trademarks or trademarks of Snap One, LLC (formerly known as
Wirepath Home Systems, LLC), in the United States and/or other countries. Control4,
SnapAV, and Wirepath are also registered trademarks or trademarks of Snap One, LLC.
Other names and brands may be claimed as the property of their respective owners.
Snap One makes no claim that the information contained herein covers all installation
scenarios and contingencies, or product use risks. Information within this specification
subject to change without notice. 200-00510-C
20210802MS
C
Back view
2
3
1
Top view
