Contura 580 User manual

www.contura.eu
C 580
C 585
Installation
instruction

50
GB
Quality approval
The stove has been tested by the Swedish National Testing and Research Institute and meets the
applicable regulations for CE marking and the stricter requirements for P marking. Manufacture
of the product has taken place in accordance with those documents which are the basis for the
relevant type approval certification and the required manufacturing checks. The chimney must be
dimensioned for at least 350° C for both top connection directly upwards and connection directly
backwards from the rear of the stove.
Contura 580/585 is a Swan labelled stove.
NIBE was the first stove manufacturer in Sweden to commit to Swan labelling their stoves. The
Swan label is one aspect of our vision to be a company of the future, setting high quality standards
regarding the environment. Certification number 378-001.
CERTIFICATE
378 001
N
O
R
D
I
C
E
C
O
L
A
B
E
L
378 001
N
O
R
D
I
C
E
C
O
L
A
B
E
L
EC Declaration of
conformity
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10, SE-285 23 Markaryd
Place of manufacture Markaryd, Sweden
PRODUCT
Product type Stove fired by solid fuel
Type designation Contura 580/585
Standard EN 13240 annex ZA
Intended for use Heating of living accomodation
Fuels Wood logs
Special conditions None
CE-MARKING
Issued 2010
Nominal output 5 kW
Fuel type Wood logs
Flue gas temperature 290° C
Energy efficiency 79%
Emission of CO 0,06%
Appendix
Lighting and installation instructions
Niklas Gunnarsson
Business area manager NIBE STOVES

51
GB
List of Contents
Technical details 52
Removing the loose parts 52
Connection to chimney 54
Supply of combustion air 55
Installation distance 586 56
Installing 586 57
A warm welcome to Contura
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injury if touched. Also, take
heed of the strong heat radiated through the door glass.
Placing flammable material closer than the safe distance
indicated may cause a fire. Smoulder combustion can cause
quick gas ignition with the risk of damage to property and
personal injury.
NOTE: WARNING!
Report the installation of a stove to your
local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved by
a qualified inspector. Your local chimney sweep must also
be informed about the installation as this will affect the
routines for regular chimney-sweeping services.
CONTENTS

52
GB
FACTS
Effect 3-7kW
Nominal effect 5 kW
Efficiency up to 79%
Model 580
Height (mm) 1040
Width (mm) 496 (foot Ø510)
Depth (mm) 440 (foot Ø510)
Weight (kg) 100
Model 585
Height (mm) 1156
Width (mm) 496 (foot Ø510)
Depth (mm) 440 (foot Ø510)
Weight (kg) 100
Type approved in accordance with:
European standard EN-13240
Swedish environmental and quality marking,
P-marking cert. no. 220309
Norwegian standard NS 3059, SINTEF 043-140
German standard Plus, RRF-40 10 2253
Removing the loose
parts
Before the insert is put down for
installing the pillar foot, loose
components should be removed.
When the stove is installed reinstall
the components in reverse order.

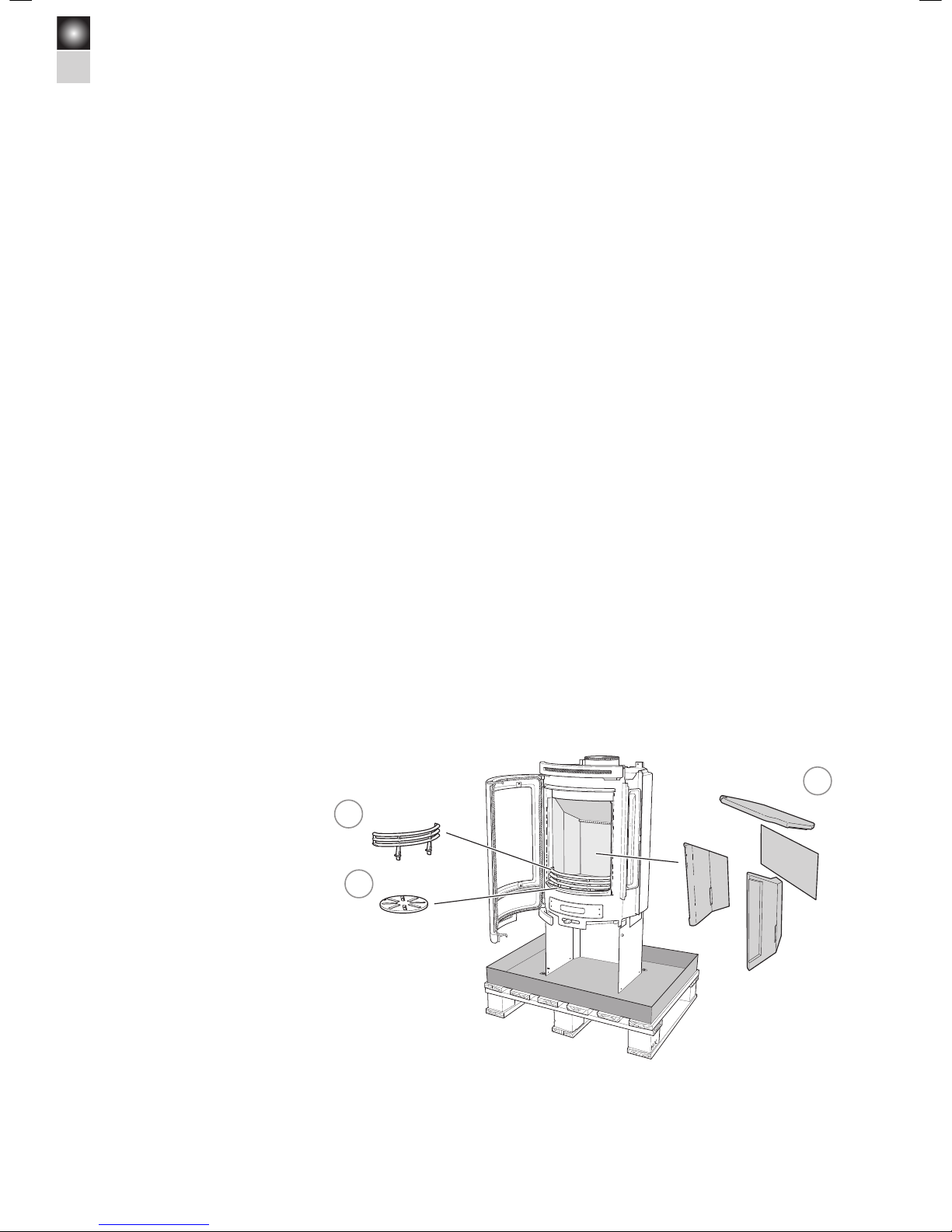

1 Fire bars
2 Grate disc
3 Hearth cladding (Vermiculite).
1
2
3
Important to remember!
Technical details
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove and
chimney. The stove and chimney can usually
be placed on a normal wooden joist in a
single occupancy house, if the total weight
does not exceed 400 kg.
Floor plate
Due to the risk of falling embers, a
combustible floor must be protected by a
hearth plate which covers at least 300 mm
to the front and 100 mm along each side.
The hearth plate can consist of natural
stone, concrete, metal or glass. A painted
metal or glass hearth plate is available as
an accessory for these models.
Installation by authorised
technician
This manual contains instructions about
how the stoves must be assembled and
installed. To ensure the function and safety
of the stove, we recommend that the
installation is carried out by an authorised
technician. Contact one of our dealers who
can recommend suitable fitters.
Building permission
These main insructions may give guidance
which would contravene national building
regulations. Please refer to supplementary
instructions or ask your local authority for
advice regarding building regulations.
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority.

53
GB
REMOVAL
How to remove the hearth surround (Vermiculite)
Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing
the sides pieces. Reinstall in reverse order
3

LEK
LEK
LEK
LEK
Ø
ca 180 mm
Ø
ca 180 mm
LEK
!
54
GB
CHIMNEY
Connection to chimney
Rear connection to a masonry chimney
Top connection to the chimney
Make sure that the connector
gasket does not work loose when
the connection pipe is placed
on the connector. If further
sealing material is required, heat-
resistant sealant may be used.

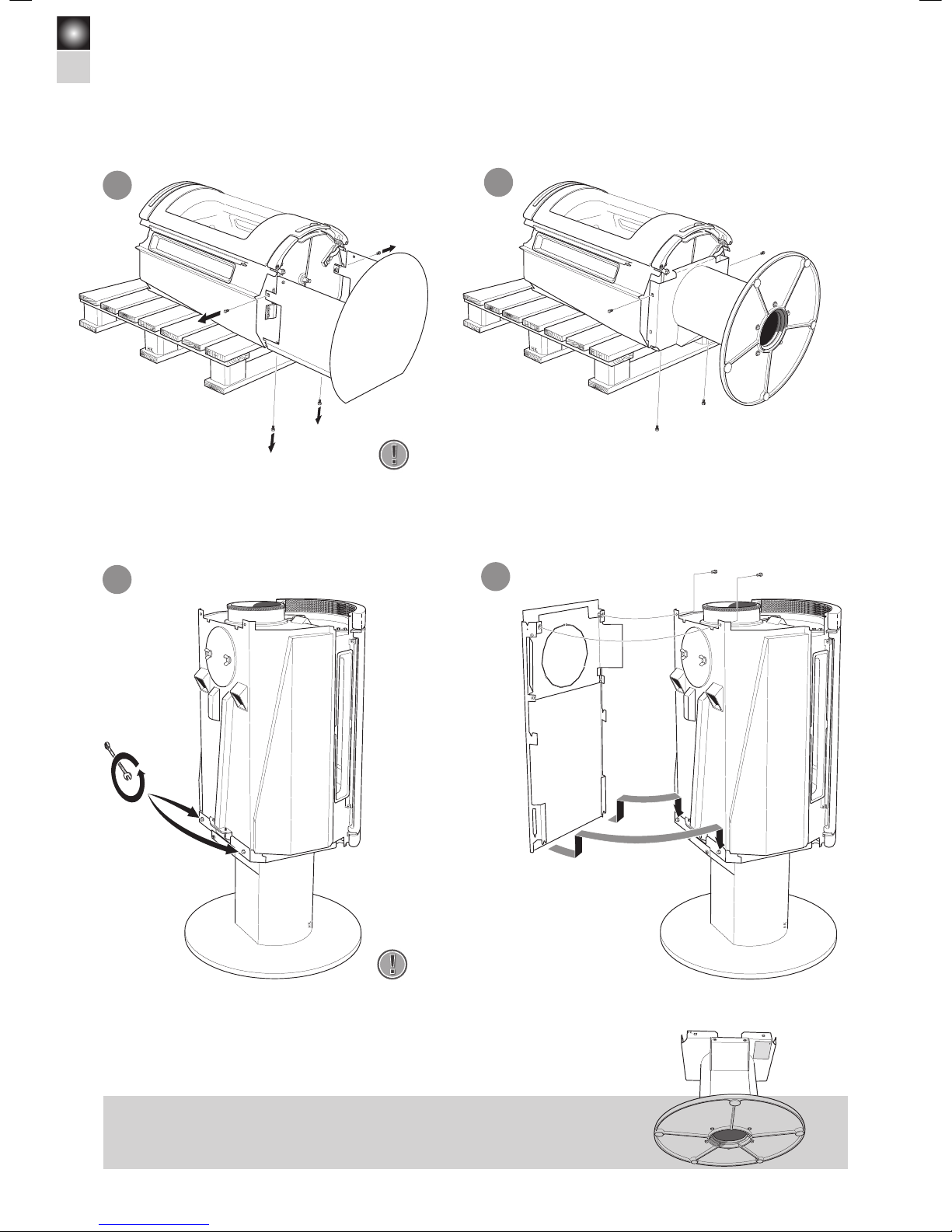

The back panel must be installed before the stove is rear connected.
The hot air grille must be installed before
chimney top connection.
• The stove meets the requirements for connecting to chimneys
dimensioned for 350°C flue gas temperature.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney, and
by how well sealed it is. The minimum recommended chimney
length is 3.5 m and suitable cross sectional area is 150-200 cm²
(140-160 mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m, on the
condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot doors and flue connections.
2 31
5 64
In the bag with these installation instructions
are two wing screws for the cover.

LEK
40 mm
30 mm
40 mm
!
LEK
55
GB
SUPPLY AIR/ACCESSORY
Supply of combustion air
When a stove is installed in a room, the demand for air supply to the
room increases. Air can be provided indirectly via a vent in the outer
wall or via a duct from the outside that is connected to the connector
on the underneath of the stove. The amount of air needed for
combustion is approx. 25m3/h.
The connector has an external diameter of 67 mm. When duct
routing further than 1 m the pipe diameter must be increased to 100
mm and a correspondingly larger wall vent must be selected.
In hot areas the duct should be insulated with 30 mm mineral wool
covered with a moisture inhibitor (plastic). It is important that the
lead-in between the pipe and the wall (or floor) is sealed using
jointing compound.
A 1 m length of condensation-insulated ducting for combustion air is
available as an accessory.
Indirect air supply through the external wall.
Through floor and foundation slab.
Through floor and wall-and-cavity
foundation.
C 580/585
There is a detachable cover on the reverse
of the pillar foot which is removed when
installing combustion air connection.
Installation variants
Leave a 40 mm gap between
the condensation insulation
and the bottom of the stove.

!
C 580
56
GB
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate. Also applies to
separate glass hearth plates (accessory).
** To prevent discolouration of painted non-flammable walls we recommend that the same side distance as to combustible walls is used.
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel flue,
please refer to the particular
manufacturer's installation
instructions. Observe the safety
distance to combustible material
that the steel flue requires.
Installation distances
WHEN INSTALLING TURNTABLE (OPTION) the
following installation distances do not apply.
See the separate installation instructions for
turntable.
A = height from floor to chimney
connection upwards
B = height from floor to c/c chimney
connection rear
C = height from floor to air inlet
D = height from floor to lower edge
of hatch
A separate glass hearth
plate (accessory)
increases the connection
height to the chimney
by 10 mm. The spacers
supplied with the hearth
plate are installed on the
stove before connection.
INSTALLATION DISTANCES
1040
496
2000
Ø 510 Air inlet Ø67
Combustible roof
D 330
190
B 880
A 972
C 370
30
139
438
Air inlet Ø67
Ø150
280
70
565
670
800
800
Fire-retardant wall of
brick or concrete
310
100
595
740
Combustible wall
320*
700
1100
70*
190
50
Fire-retardant wall of
brick or concrete
750
500
240
100
100
200
300
400
60
160
260
360
Combustible wall
Permitted
area for
combustible
parts of the
building

!
C 585
57
GB
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate. Also applies to
separate glass hearth plates (accessory).
** To prevent discolouration of painted non-flammable walls we recommend that the same side distance as to combustible walls is used.
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel flue,
please refer to the particular
manufacturer's installation
instructions. Observe the safety
distance to combustible material
that the steel flue requires.
Installation distances
WHEN INSTALLING TURNTABLE (OPTION) the
following installation distances do not apply.
See the separate installation instructions for
turntable.
A = height from floor to chimney
connection upwards
B = height from floor to c/c
chimney connection rear
C = height from floor to air inlet
D = height from floor to lower edge
of hatch
A separate glass hearth
plate (accessory)
increases the connection
height to the chimney
by 10 mm. The spacers
supplied with the hearth
plate are installed on the
stove before connection.
INSTALLATION DISTANCES
1156
496
2200
Ø 510
Air inlet Ø67
Combustible roof
D 446
190
B 996
A 1088
C 486
30
139
438
Air inlet Ø67
Ø150
310
100
595
740
Combustible wall
320*
700
1100
70*
190
50
Fire-retardant wall of
brick or concrete
280
70
565
670
800
800
Fire-retardant wall of
brick or concrete
750
500
240
100
100
200
300
400
60
160
260
360
Combustible wall
Permitted
area for
combustible
parts of the
building

10
10
VANADIUM
No.7
CHROME
x 3
CONTURA
EntsprichtfolgendenStandards:
BeachtenSiedieBedienungsanleitungundverwnden
SieausschließlichdenempfohlenenBrennstoff.
NIBEABBox134SE-295 23 MARKARYDSWEDEN
Festlegung:
EuropäischerStandardEN-13240,
DEundATStandars:DIN18.891 und
Art.15aB-VG:
Typ/Bezeichnung:
Nennwärmeleistung:
Brennstoff:
Förderdruck:
Rauchgastemperatur:
Wirkungsgrad:
CO-Emisson:
GeringsterAbstandzubrennbaren
Bauteilen:
2003
RO-9103529
Contura550
5kw
Scheitholz
12Pa
290°C
81%
<0,1%
Hinten100mm
Seite500mm
Ecke100mm
!
!
58
GB
Installing C 580/585
ASSEMBLY
34
2
1
Installing rating plates
The following rating plates must be placed on the underneath of the pillar frame.
Do not tighten the screws
until the stove has been
raised again.
To facilitate the installation of the side
panels, the screws for the back panel
must not be tightened before the side
panels are installed.

LEK
!
LEK
10
10
VANADIUM
No. 7
CHROME
1
1
2
LEK
59
GB
ASSEMBLY
Clean the side glass thoroughly
before installing the side
panels.
5
7
6

811108 IAV SE-EX C580/C585 -3
2013-01-14
60
GB
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.
Final inspection of the installation
8
ASSEMBLY
NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden
www.contura.eu
Contura reserves the right to change colours, materials,
dimensions and models at any time without special notice.
Your dealer can give you the most up to date information.
Stoves shown in brochures may have extra equipment.
