Contura C 32 User manual

Installation
Instructions
C 32
C 32A
www.contura.eu

GB
66
www.contura.eu
EC Declaration of
conformity
MANUFACTURER
Name NIBE AB/Contura
Address Box 134, Skulptörvägen 10, SE-285 23 Markaryd
Place of manufacture Markaryd, Sweden
PRODUCT
Product type Stove fired by solid fuel
Type designation Contura
Standard EN 13240 annex ZA
Intended for use Heating of living accommodation
Fuels Wood logs
Special conditions None
CE-MARKING C32 C32A
Issued 2009 2009
Nominal output 5 kW 5 kW
Fuel type Wood logs Wood logs
Flue gas temperature 270° C 270° C
Energy efficiency 80% 80%
Emission of CO 0,05% 0,05%
Appendix
Lighting and installation instructions
Niklas Gunnarsson
Business area manager NIBE STOVES
Manufacturer's declaration
The stove is approved by the Swedish National Testing and Research Institute, SP SITAC and
fulfils the applicable rules for CE labelling. Manufacture of the product has taken place in
accordance with those documents that are the basis for the relevant type approval certification
and the required manufacturing checks.
378 001
N
O
R
D
I
C
E
C
O
L
A
B
E
L
378 001
N
O
R
D
I
C
E
C
O
L
A
B
E
L
Contura 32/32A is a Swan-labelled wood burning stove.
NIBE was the first stove manufacturer in Sweden to commit to Swan labelling stoves. The Swan
label is one aspect of our vision to be a company of the future, setting high quality standards
regarding the environment. Certification number 378-001.
CERTIFICATE

GB
67
List of Contents
Technical details 68
Installation distance to walls and ceiling 69
Supply of combustion air 70
Self-closing door 71
Connection to chimney 72
Installation of surround 74
Installing accessories · base 76
Installing accessories · drawer 77
Installing accessories · log box 79
A warm welcome to Contura.
A warm welcome to the Contura family. We hope you will
get a great deal of pleasure from your new stove. As a new
owner of a Contura stove, you have secured a product with
timeless design and long service life. Contura also has a
combustion process that is both environmentally friendly
and efficient, for the best heat production.
Read through these installation instructions carefully before
installation. Read how to best light your stove in the lighting
instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injuries if touched. Also, take
heed of the strong heat radiated through the door glass.
Placing flammable material closer than the safe distance
indicated may cause a fire. Smoulder combustion can
cause quick gas ignition with the risk of damage to prop-
erty and personal injury.
NOTE! WARNING!
Report the installation of a stove
to your local authority.
The owner of the house is personally responsible for
ensuring compliance with the mandatory safety require-
ments and must have the installation approved by a
qualified inspector. Your local chimney sweep must also be
informed of the installation, as this will affect the routines
for regular chimney-sweeping services.
CONTENTS

GB
68
Eldstadsbeklädnad
Rosterreglage Asklåda
Förbränningsluftsreglage
Brasbegränsare
HANDÖL
Inaccordance with standards below
markingwas affixed:
EuropeanStandard:
SEQuality Certification, P-marked:
NOStandard NS 3059:
DEand AT Standard DIN 18.891 and
Art15a B-VG:
Type:
NominalOutput:
Fuel:
Minimundraught:
Fluegas temerature:
Energyefficiency:
Emissionof CO in cumbustion products:
Distanceto cumbustible wall (mm):
Followthe user’s instructions and use only recomended fuel
NIBEAB Box 134 SE-285 23 MARKARYD SWEDEN
2007
EN13240
Certno 0112/07
SINTEF110-0275
RRF-4007 13 90
Handöl31/31A/32/32A
5kW
Wood
12Pa
280°C
78%
0,14%
Behind150
Beside450
Corner150
HANDÖL
NIBE AB SE-85 21 Markaryd Sweden
Type:
Production no.
50-series
7090300236
Output 3-7 kW
Nominal effect 5 kW
Efficiency 80%
Model 32 32A
Weight (kg) 128 128
Width (mm) 480 480
Depth (mm) 450 450
Height (mm) 1025 1025
Installation by authorised
technician
This manual contains instructions about
how the stoves must be assembled and
installed. To ensure the function and
safety of the stove, we recommend
that the installation is carried out by an
authorised technician. Contact one of
our dealers who can recommend suitable
fitters.
Building permission
These main instructions may give
guidance which would contravene national
building regulations. Please refer to
supplementary instructions or ask your
local authority for advice regarding
building regulations.
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority.
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove
and chimney. The stove and chimney can
usually be placed on a normal wooden
joist in a single occupancy house, if the
total weight does not exceed 400 kg.
Floor plate
Due to the risk of falling embers, a
flammable floor must be protected by
a hearth plate. It must extend 300 mm
in front of the stove and 100 mm on
each side of the stove, or have a 200 mm
extension on each side of the opening.
The hearth plate can consist of natural
stone, concrete, metal plate or glass.
A painted metal or glass hearth plate
is available as an accessory for these
models.
Important to remember!Technical details
Type approved in accordance with:
European standard EN-13240
Swedish environmental and quality labelling,
P-labelling cert. no. 0112/07
Norwegian standard NS 3059,
SINTEF 110-0275
German standard DIN 18.891,
RRF-40 07 13 90
Rating plate
Combustion air control
Ash-pan
Hearth cladding
Grate control
Fire bars
FACTS

GB
69
480
1025
2000
Air inlet Ø64
Combustible roof
513
452
189
A 956
B 865
D 189
C 60
E 103
F 134
Air inlet Ø64
Hole in cast foot plate Ø115
Ø150
392
150
745
817
Combustible wall
289
100
450
400
300
100
300
200
100
690
Combustible wall
Permitted area for
combustible material
C32/C32A
*To prevent discolouration of painted fire walls, we recommend the same side distance as to combustible walls.
292
50
645
676
Fire-retardant wall of
brick or concrete
239
50*
50*
290*
Fire-retardant wall of
brick or concrete
A = height from floor to chimney connection
B = height from floor to c/c smoke outlet rear
C = distance from back to smoke outlet rear
D = height from floor to air inlet
E= distance from back to c/c air inlet
F= distance from back to c/c hole in cast foot plate
INSTALLATION DISTANCES
Place the stove on the hearth plate
and check that the installation
distances are not less than those
that are given in the figures below.
The minimum distance in front of the
stove opening to combustible parts
of the building or interior decoration
must be at least 1 m.
When top connecting a steel flue,
please refer to the particular
manufacturer's installation
instructions. Observe the safety
distance to combustible material
that the steel flue requires.
Installation distance to walls and ceiling

GB
70
HK HK
40 mm
HK
40 mm
HK
40 mm
Knockout
To insert the combustion air hose, tap out the knockout from the
floor panel and leg using a hammer, remember to protect the
floor.
Supply of combustion air
Combustion air can be provided directly via a duct from
outside, or indirectly via a vent in the outer wall of the room
where the stove is placed. The amount of combustion air
that is used for combustion is approx. 25 m3/h.
Some installation alternatives are shown to the right.
The air duct connector on the stove has an external diam-
eter of Ø64 mm.
In hot areas, the duct has to be insulated with 30 mm
mineral wool covered with a moisture barrier (plastic). It is
important that the lead-in, between the pipe and the wall (or
floor), is sealed using jointing compound. When duct routing
for further than 1 m, the pipe diameter must be increased
to 100 mm and a correspondingly larger wall vent must be
selected.
A 1 m length of condensation-insulated ducting for combus-
tion air is available as an accessory.
SUPPLY AIR/ACCESSORY

GB
71
SELF-CLOSING DOOR
Heat deflector
The heat deflector is removed by lifting the front edge and
then pulling it out slightly. Lower it so that it is below the
insert and then withdraw it. Assembly takes place in the
reverse order. Ensure that the rear lugs are secured in the
slits on the upper leg as illustrated above.
Self-closing door
The stove is equipped with a spring to close the door auto-
matically. The spring is situated above the heat deflector.
The closing force of the hatch can be adjusted by moving
the spring between the three notches on the lever. After
adjustment, the heat deflector must be reinstalled. The an-
gle of the stove also affects the closing force of the spring.
If the spring force seems weak despite the spring being
mounted at the end of the lever, the angle of the stove
should be checked.

GB
72 CHIMNEY
Rear connection to a masonry chimney
The back panel must be installed before the stove is connected at
the rear.
Connection to chimney
Make sure that the connector
gasket does not work loose when the
connection pipe is placed on the con-
nector. If further sealing material is
required, heat-resistant sealant may
be used.
!
• The stove meets the requirements for connecting to chimneys
dimensioned for flue gas temperatures of 350°C.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney,
and by how well sealed it is. The minimum recommended chimney
length is 3.5 m and suitable cross-sectional area is 150-200 cm²
(140-160 mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m, on
the condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot doors and flue connections.
Ø ca 180 mm
Ø ca 180 mm
In the bag with these installation instructions
are two wing screws for the lid.

GB
73
CHIMNEY
Top connection to the chimney
The hot air grille must be installed before chimney top
connection.
Sweeping
When sweeping, the smoke baffle must be removed; on the
Contura 30 series this can be done by lifting the smoke baffle
and removing the side piece. Lift the smoke baffle out and
remove the remaining sections. Handle the parts with care.

GB
74
Installation of surround
ASSEMBLY
Clean the side glass thoroughly
before installing the side panels
Hold the plates so that they do not
tip and become damaged.
!
!
2
1
The aluminium
model
Important: Remove the
protective plastic from along
the bent edge before install-
ing the back panel.
Remove the protective plas-
tic when the stove is assembled. It is important to remove
all the protective plastic.
Ensure that your hands are clean to avoid leaving marks on
the aluminium sides.
Cleaning
Cleaning must always be carried out with care and on cold
panels. Wipe with a damp cloth and dishwashing detergent
and wipe dry using a clean and dry cotton cloth. For tougher
marks, stainless steel cleaning agent can be used.
Rating plate
Place the rating plates on the lower heat deflector
as illustrated. On the model with the drawer, the
type plates can be mounted inside the drawer.

GB
75
ASSEMBLY
6
4
5
3
10
10
VANADIUM
No.7
CHROME
10
10
VANADIUM
No.7
CHROME
2 1
Final inspection of the installation
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.

GB
76

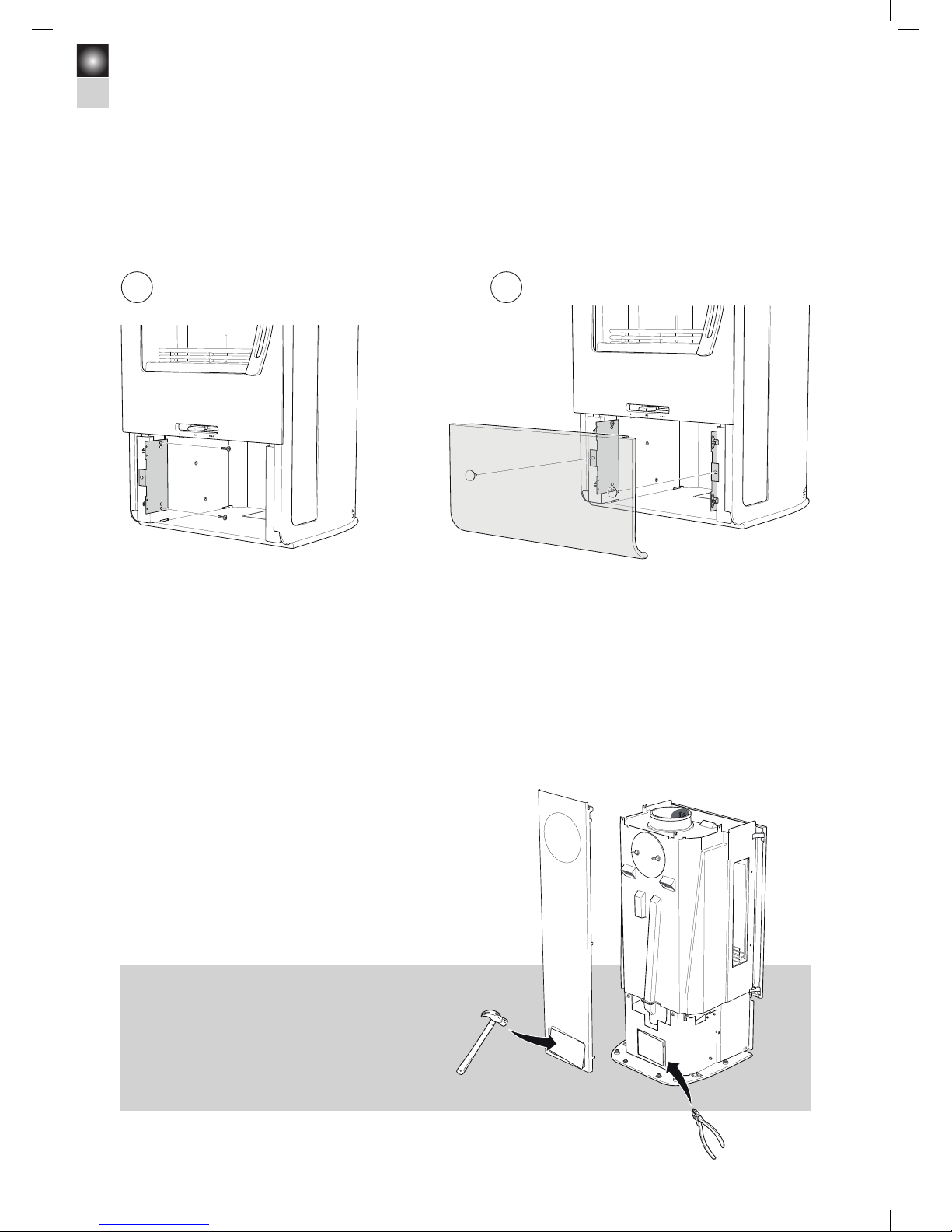

When installing the base, the lower
knockout in the back panel must always be
removed for the supply of convection air.
Installing accessories · Base
Base
ASSEMBLY
21

GB
77
Installing accessories · Drawer
Drawer
ASSEMBLY
1

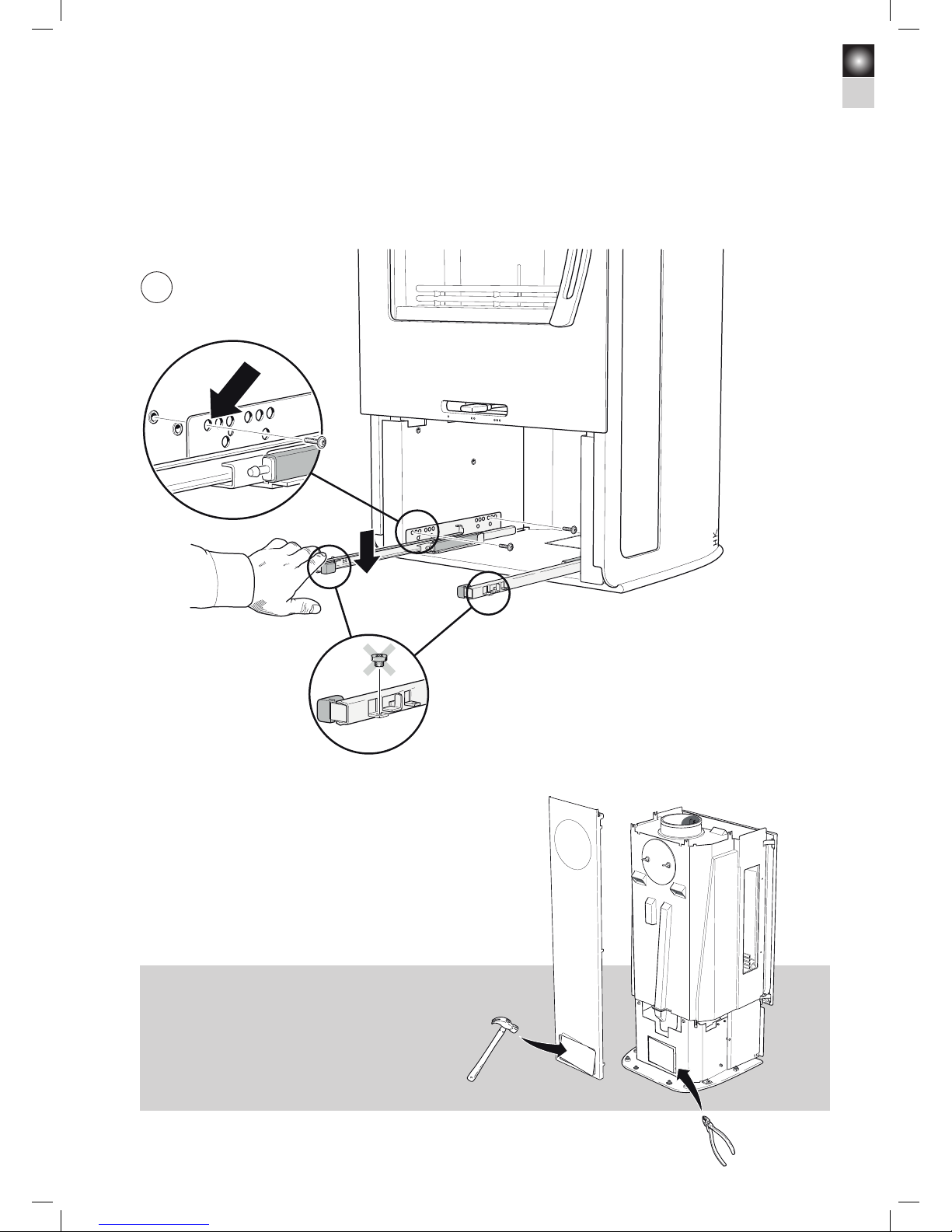

Remove the front plastic screws in the drawer
rails and discard them. Insert the screws in the
hole of the rail as illustrated. The second screw
is inserted in the rear section. Hold the rail as
far out as possible and angle the front section
downwards whilst you tighten the screws.
When installing the drawer, the lower
knockout in the back panel must always be
removed for the supply of convection air.

GB
78
2 3
45
ASSEMBLY
Adjust the drawer so that it is centrally positioned in relation to
the hatch and then tighten the screws.

GB
79
ASSEMBLY
Adjust the pieces with the Allen screws so that they are
in line with the hatch.
Installing accessories · Log box
Log box

811095 IAV SE-EX C32/C32A 1114-1
NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden
www.contura.eu
Contura reserves the right to change colours, materials,
dimensions and models at any time without special notice.
Your dealer can provide you with the latest information.
