Convaid Vivo User manual

Vivo
User’s Guide
888-Convaid (266-8243)
www.convaid.com
If you have any questions concerning the Vivo, please call your Convaid Representative
Toll free in the US: 888 CONVAID (266-8243)
Phone: [phone] • Fax: [phone]
IN0020-ENG-03092016 Printed in U.S.A.
………………………………………………………………………………………………………………....
SET-UP AND ADJUSTMENTS
Unfolding
1. Lay chair flat on the ground and unbuckle closure strap. Fig. 1
2. Stand chair on front casters, grasp on to the side of Push Handle and push down on
Seat Tube. Fig. 2
3. Press down firmly on seat tubes to ensure the chair is completely unfolded. Fig. 3
4. Push down on Rear Lock Brace until it locks into a straight position. Fig. 4
5. Swing Footplates down into position. Fig. 5
Fig. 1 Fig. 2 Fig. 3
Fig. 4 Fig. 5

2
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
………………………………………………………………………………………………………………....
Folding
1. Apply Wheel Locks. Fig. 6
2. Swing Footplates to the side. Fig. 7
3. Pull up on the Rear Lock Brace to unlock. Fig. 8
4. Grasp on to the Push Handle and simultaneously pull the Seat Tubes up. Fig. 9
5. Lay chair flat on the ground with seat facing forward and push down on front leg
tubes to complete fold. Fig. 10
6. Buckle Closure Strap to keep chair securely closed. Fig. 11
Fig. 6 Fig. 7 Fig. 8
Fig. 9 Fig. 10 Fig. 11
………………………………………………………………………………………………………………....
LOCKING AND UNLOCKING WHEELS
To lock: Pull down on handle.To release lock: Pull up on handle.

3
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
………………………………………………………………………………………………………………....
RECLINE
1. To recline seat back, loosen the Seat Back Knobs. Fig. 12
2. Pull seat back and retighten the Back Seat Knobs. Fig. 13
Fig. 12 Fig. 13
………………………………………………………………………………………………………………....
SEAT DEPTH
To Adjust:
3. Push-in and hold the Grey Locking Pin on both sides of seat. Grasp tubes and push in
or pull out to desired length. Fig. 14a & 14b

4
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
Fig. 14a Fig. 14b

5
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
………………………………………………………………………………………………………………....
HEADREAST EXTENSION
To Attach:
1. Insert Headrest Extension Tube into Seat Back Tubes. Fig. 15a & 15b
2. Attach Velcro® to Headrest Extension to each side of the Seat Back. Fig. 16
Fig. 15a Fig. 15b Fig. 16
………………………………………………………………………………………………………………....
OCCI-HEADWING
To Attach:
1. Insert string through grommet hole and tie to secure. Repeat on opposite side.
Fig. 17a & 17b
Fig. 17a Fig. 17b

6
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
………………………………………………………………………………………………………………....

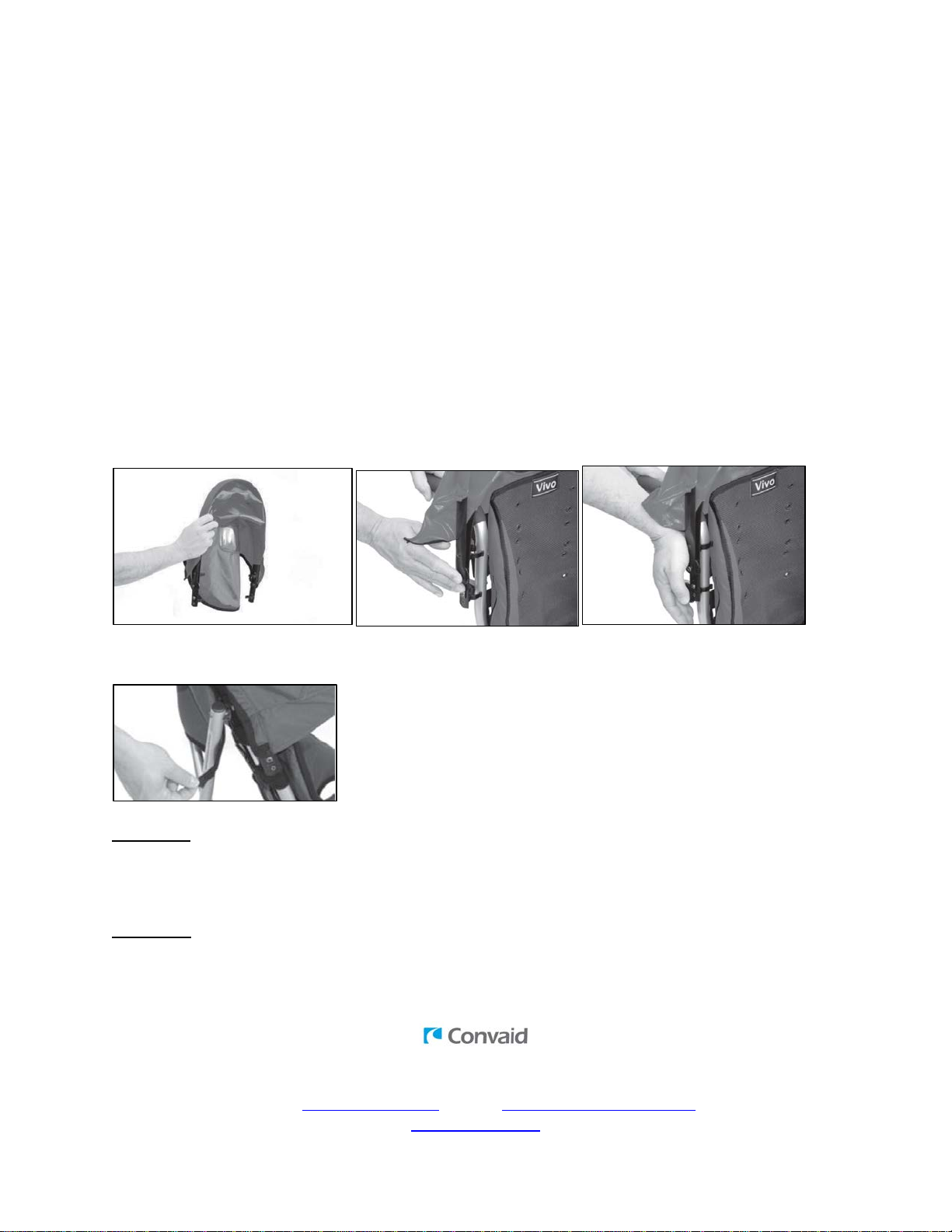

Headrest Cover (Canopy)
To Attach:
1. Remove Canopy from box. Fig. 18
2. Align plastic Canopy clips with upper tubing on the back of the chair. Fig. 19
3. Push clips until they snap into place. Fig. 20
4. Secure the Canopy to the frame by using the Velcro® Straps on the bottom of the
Canopy Fig. 21
Fig. 18a Fig. 19b Fig. 20
Fig. 21
To Open:
1. Grasp top of Canopy and push forward and rotate downward.
Fig. 22a, 23b, & 24c
To Close:
1. Push Canopy back and rotate upward.
Reverse Canopy Opening Steps: Fig. 22a, 23b, & 24c

7
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
Fig. 22a Fig. 23b Fig. 24c
………………………………………………………………………………………………………………....
TRUNK SUPPORT
To Attach Anterior Vest:
1. Insert harness strap with bolt end through the desired height grommet hole on the
seat back upholstery. Fig. 25
2. Attach strap to Seat Back by tightly securing knob to the harness bolt on the seat
back upholstery. Fig. 26
3. Fasten buckle and adjust straps to secure the user. Fig. 27
To Attach H-Harness:
Note: See instructions 1-2 listed above before
3. Attach each H-Harness clip to the metal claps on the Lap Belt and clip H-Harness
buckle together. Fig. 28a & 28b
Fig. 25 Fig. 26 Fig. 27

8
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
Fig. 28a
Fig. 28b
………………………………………………………………………………………………………………....
PELVIC SUPPORT
Three Point Positioning Belt
To Buckle: Insert metal clasp into the sides of the buckle. Fig. 29
To Release: Press the grey button on the buckle and pull out the clasps. Fig. 30
Fig. 29 Fig. 30

9
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
………………………………………………………………………………………………………………....
Height Adjustable Flip-up Armrest
WARNING: APPLY WHEEL LOCKS BEFORE ATTACHING ARMREST
To Attach:
1. Insert Armrest tube to Armrest attaching bracket. Fig. 31
2. Adjust Armrest height by pushing the Grey Locking Pin and release Grey Locking Pin to
desired height. Fig. 32
3. Secure Armrest into attaching bracket with Grey Locking Pin. Fig. 33
Fig. 31 Fig. 32 Fig. 33
………………………………………………………………………………………………………………....

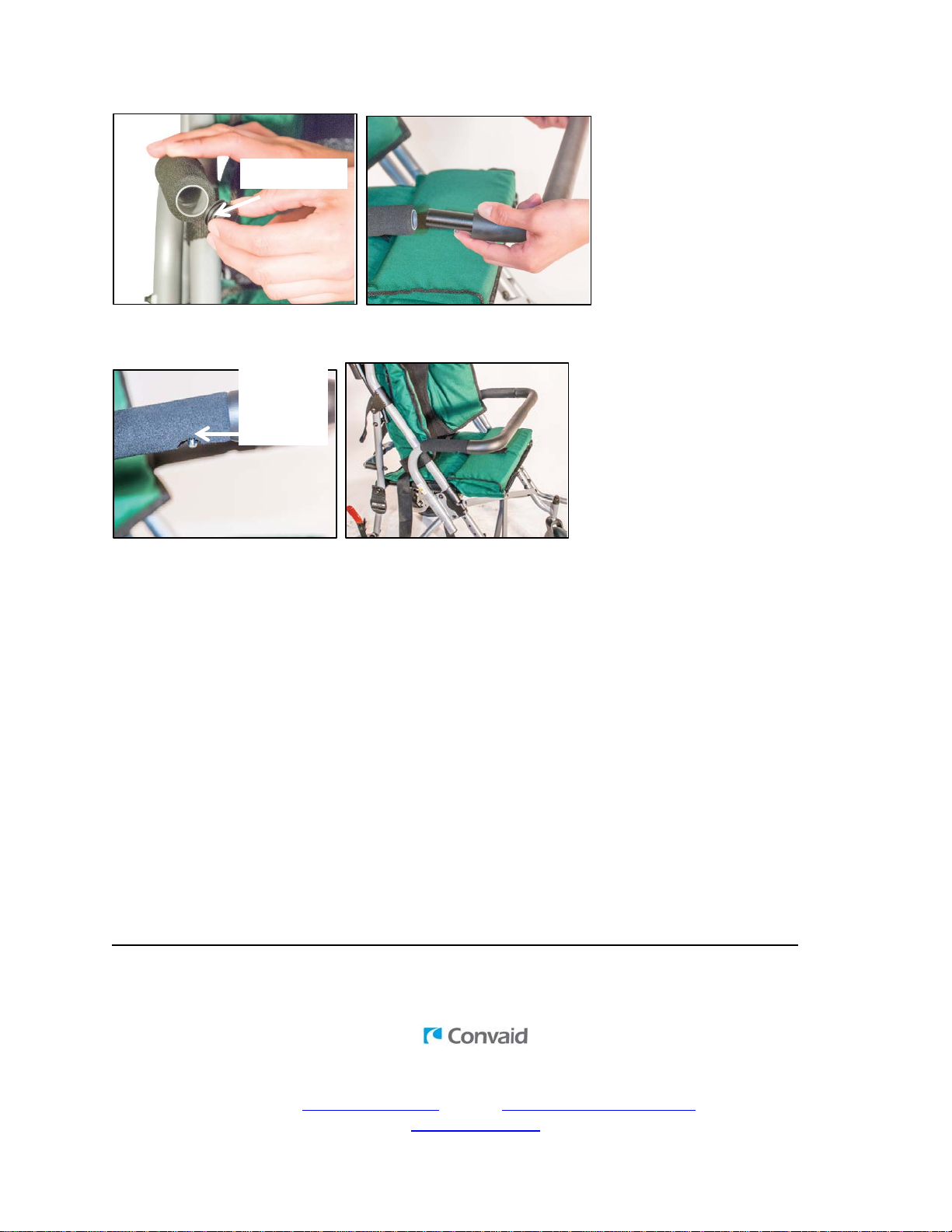

GRAB BAR
To Attach (Requires Height Adjustable Armrest):
1. Remove Armrest cap cover. Fig. 34
2. Align the Grab bar tubes with the Armrest tubes and push the Grey Locking Pins in, while
simultaneously pushing Grab Bar into the Armrest tubes. Fig. 35
3. Push Grey Locking Pins into Armrest until the locking pins lock into place. Fig. 36
4. Grab Bar Attached to Armrest. Fig.37

10
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
Fig. 34 Fig. 35
Fig. 36 Fig. 37
…………………………………………………………………………………………………
Upper Extremity Support Surface Tray (Padded Tray)
To Attach (Requires Height Adjustable Armrest and Mounting Tray Hardware):
1. Unfasten the Velcro® located on the bottom of the padded tray. Fig. 38
Cap Cover
Grey
Locking
Pin

11
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
2. Align the Tray Mounting Bar with the Armrest tubes and push the Grey Locking Pins
in, while simultaneously pushing Tray into the Armrest tubes. Fig. 39
3. Push Grey Locking Pins into Armrest until the locking pins lock into place. Fig. 40
4. Secure the Tray by wrapping the Velcro® strap around the Armrest. Fig. 41
Fig. 38 Fig. 39
Fig. 40 Fig. 41

12
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16

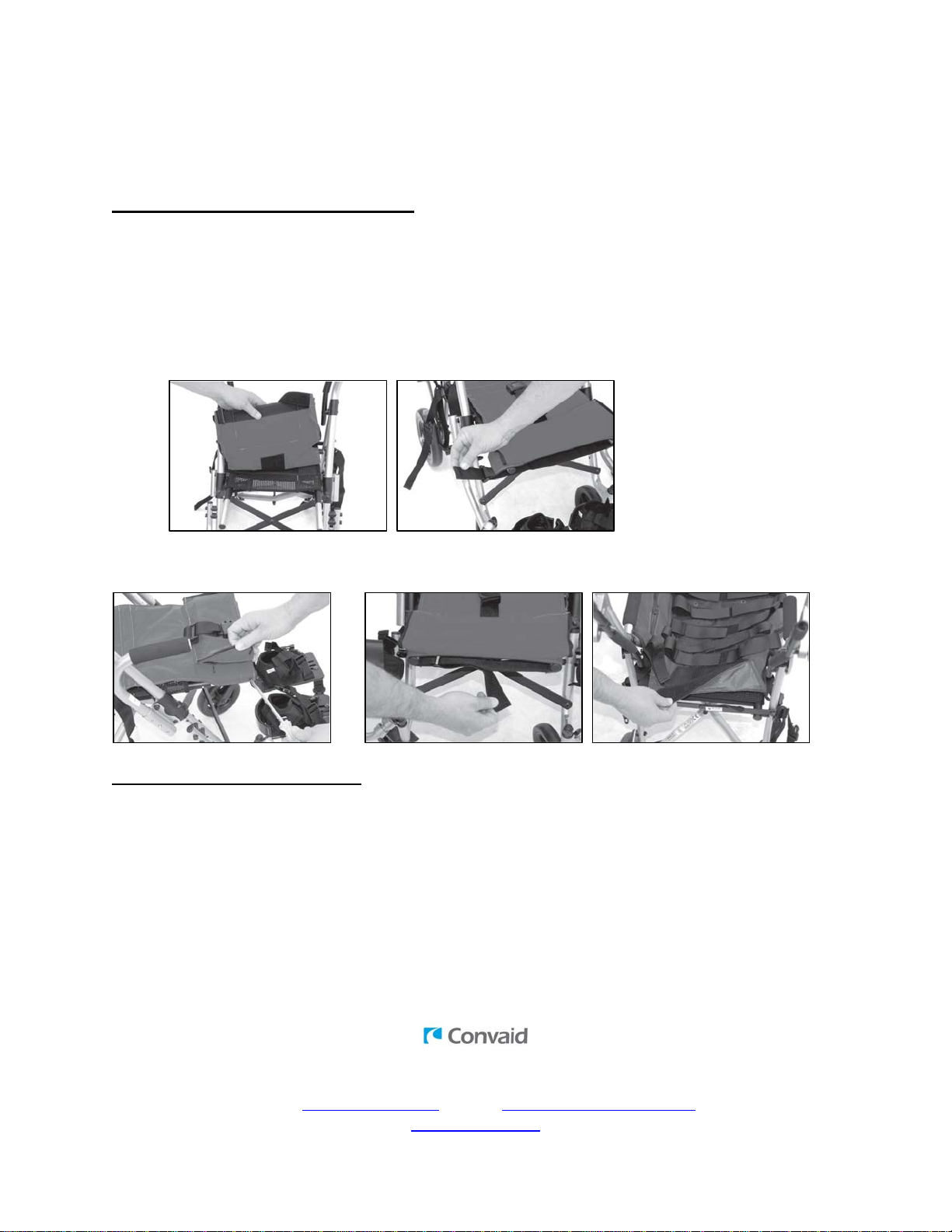

UPHOLSTER
………………………………………………………………………………………………………………....
Seat Upholstery Installation:
1. Place seat flat onto the mesh retaining strap. Fig. 42
2. Thread Velcro® strap through eyelet and fasten. Fig. 43a & 43b
3. Using a Phillips screw driver attach strap into the seat depth hole, based on seat
depth adjustment required, on both sides of the seat tube. Fig. 44
4. Tightly wrap the bottom Velcro® straps around the bottom of the seat. Fig. 45
Note: To remove seat upholstery repeat instructions in reverse order.
Fig. 42 Fig. 43a
Fig. 43b Fig. 44 Fig. 45
Upholstery Installation:
1. To attach and adjust the Tension Back, fasten all Velcro® straps around the back of the
frame, starting from the top and fasten Velcro Side Straps on each side.
Fig. 47a & 47b
Note: To remove back upholstery repeat instructions in reverse order.

13
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
Fig. 47a Fig. 47b

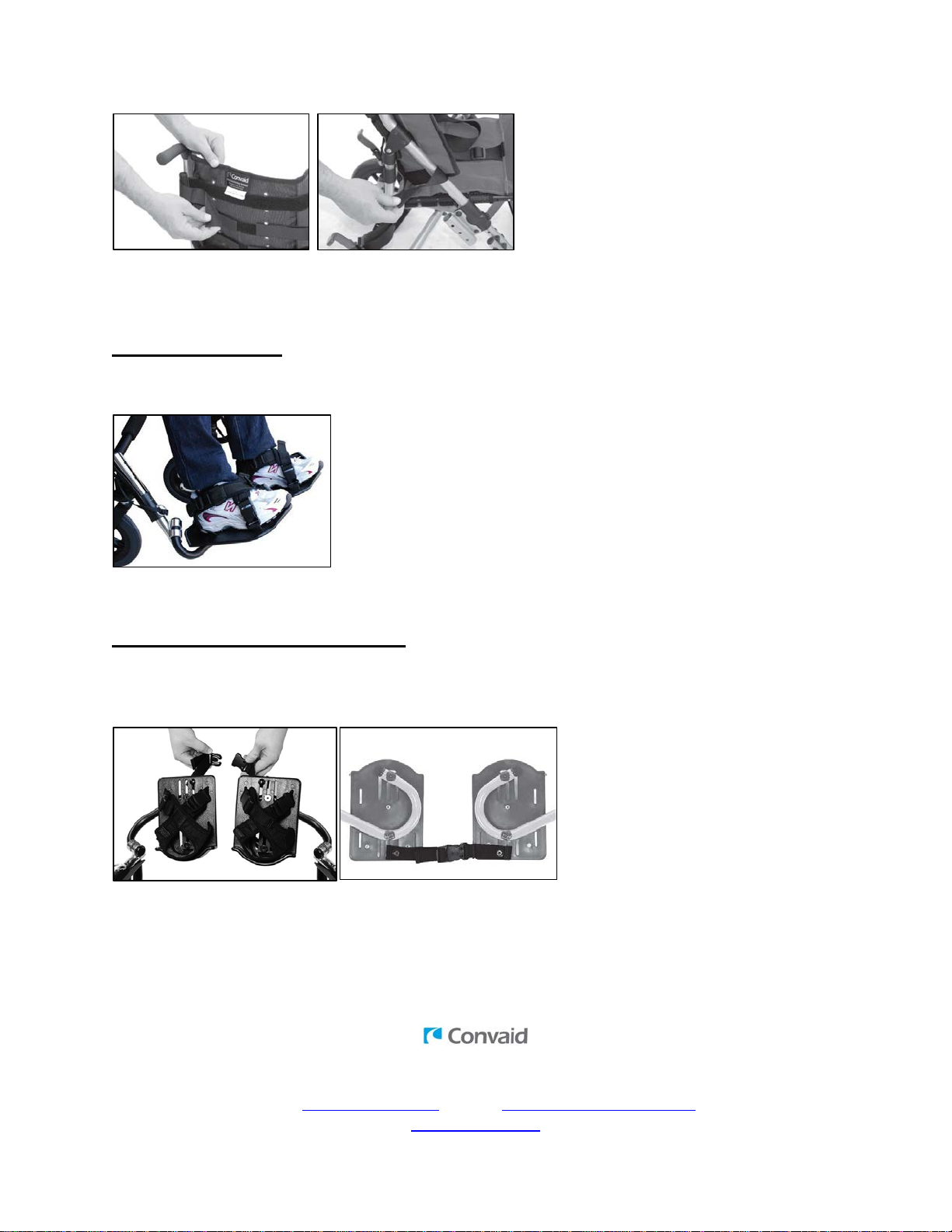

FOOT & LEG POSITIONING
………………………………………………………………………………………………………………....
Foot Positioners
Criss-cross straps over foot and fasten Velcro® Fig. 48
………………………………………………………………………………………………………………....
Footplate Securement Strap
To secure floorplates together and prevent them from flipping up and down, buckle the left
and right side together. Fig. 49a & 49b
Fig. 49a Fig. 49b
………………………………………………………………………………………………………………....

14
2830 California Street, Torrance, CA 90503
Toll free in the US: 1-888-CONVAID (266-8243) • Phone: [phone] • Fax: [phone]
Email: [email protected] • Email: [email protected]
www.convaid.com
………………………………………………………………………………………………………………………………………………………………
UG0025-ENG-VIVO-03-15-16
Footplate Depth Adjustment
Using a hex wrench to loosen the two bolts located on the top of the footplate and slide
footplate forward or rearward to desired depth and retighten bolts. Fig. 50
Fig. 50
