Convaid Rodeo RD12 User manual
ENGLISH
User’s Guide
Rodeo
Lightweight Tilt-In-Space Wheelchair
SAVE THIS BOOK FOR FUTURE REFERENCE
READ INSTRUCTION BEFORE USING
i
Customer Service Support
Toll Free: 1-844-US-Mobility (844-876-6245)
Phone: (310) 618-0111
Fax: (310) 618-8811
Email: [email protected]
Website: www.convaid.com
Technical assistance or repair information hours are:
Monday-Friday, 6 a.m. to 4:30 p.m. PST
Notice:
The information contained in this document is subject to change without notice.
No part of this document may be photocopied, reproduced, transmitted, transcribed,
stored in a retrieval system or translated to another language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual
or otherwise without the prior written consent of Convaid.
© Copyright 2017 by Convaid. All rights reserved.
Before Calling:
Please ll in the following. Customer Service will be able to help you
more quickly if the information indicated below is readily available.
Serial number of chair:_________________________________
Model of chair:_______________________________________
Date purchased:______________________________________
ii
Product Overview
DenitionofSymbols………………………………………………… 1
Warnings………………………………………………………………… 3

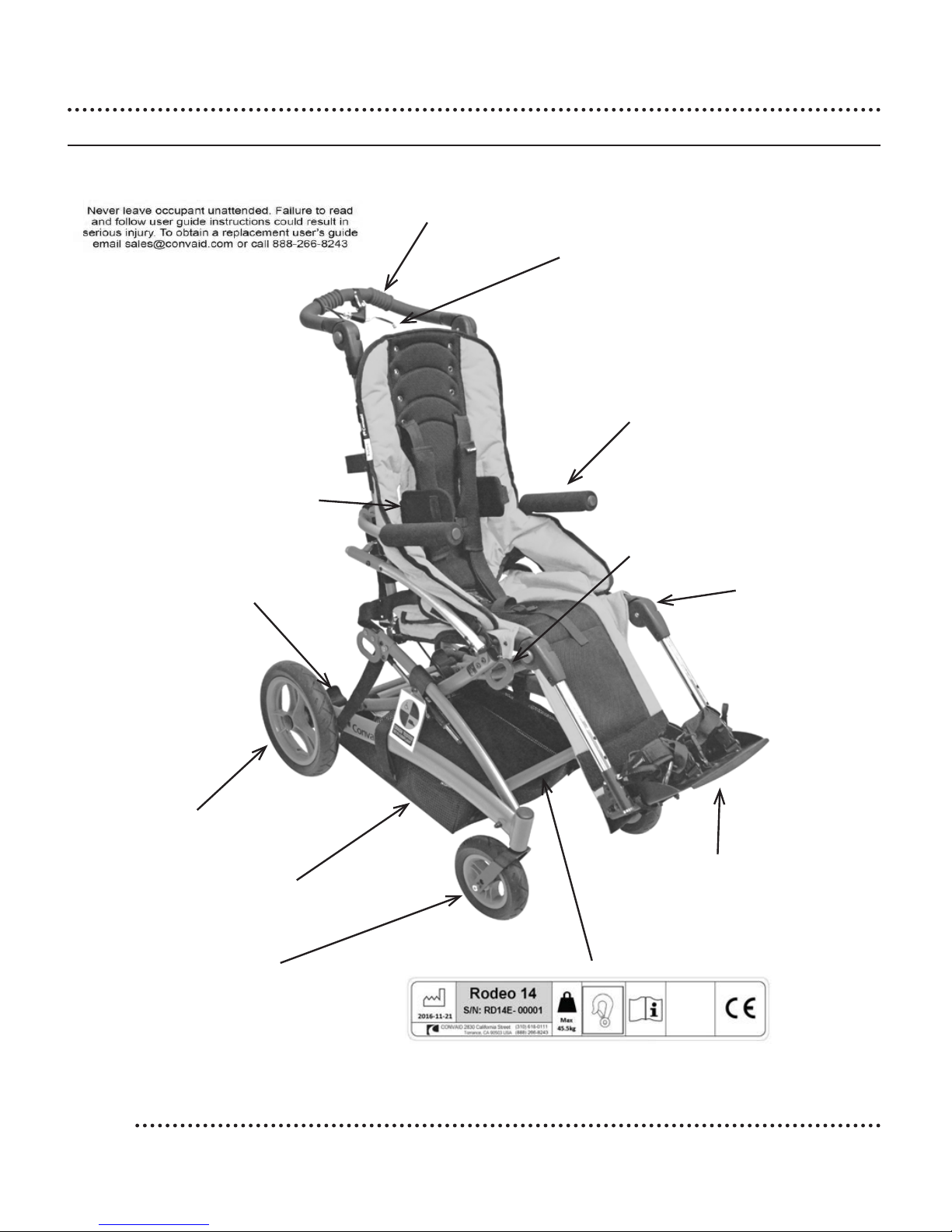

RodeoWithSeatingOverview………………………………………. 6
RodeoWithoutSeatingOverview………………………………….. 7
SpecicationsWithSeating………………………………………..... 8
SpecicationsWithoutSeating……………………………………… 9
SettingUp
Contentsinthebox……………………………………………………… 10
HowToRemoveChairfrombox……………………………………... 10
PreparingtheChairforUse…………………………………………… 10
PushHandleAdjustment………………………………………………. 11
WheelLockOperation………………………………………………...... 11

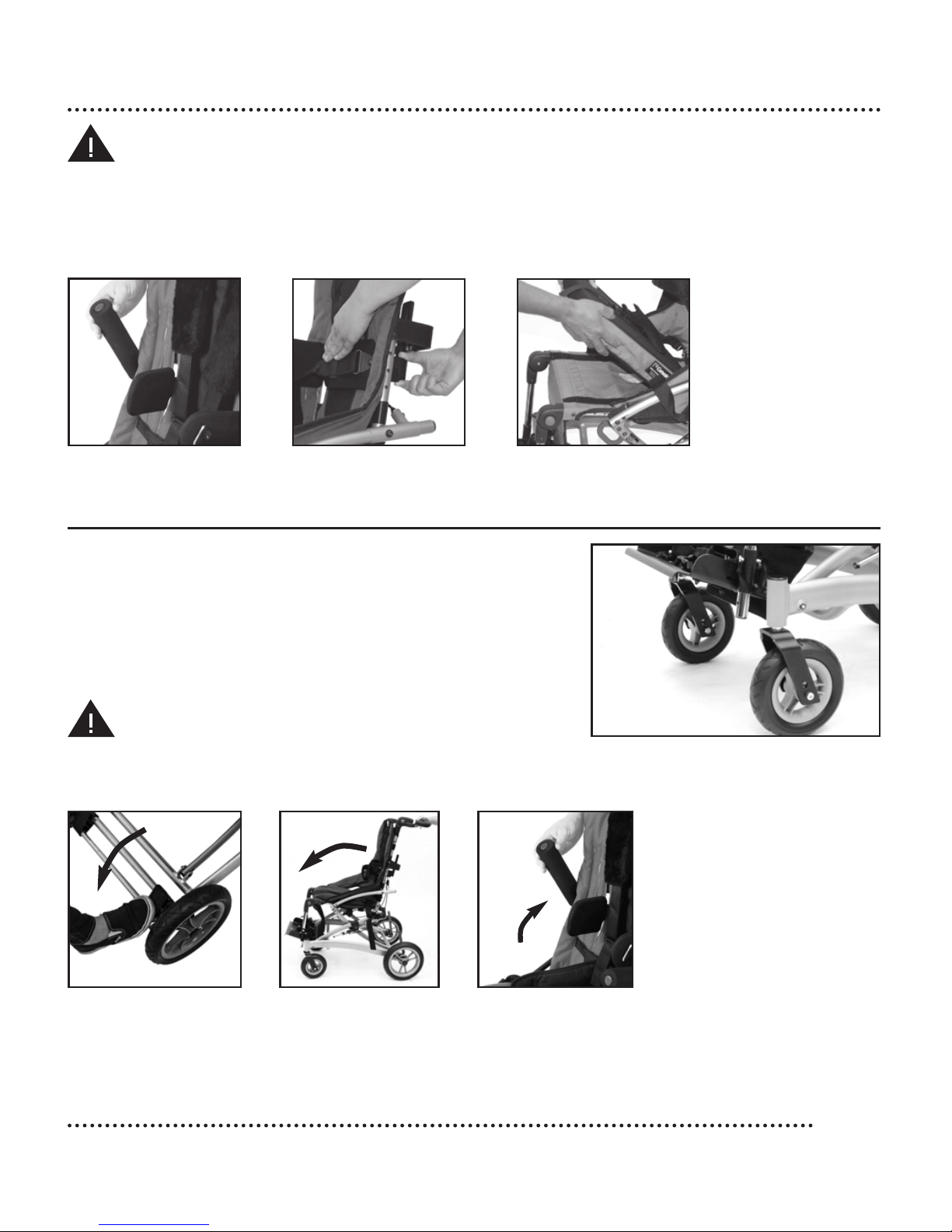

UnfoldingtheChair……………………………………………………… 12
FoldingtheChair…………………………………………………………. 13
FittingGuide

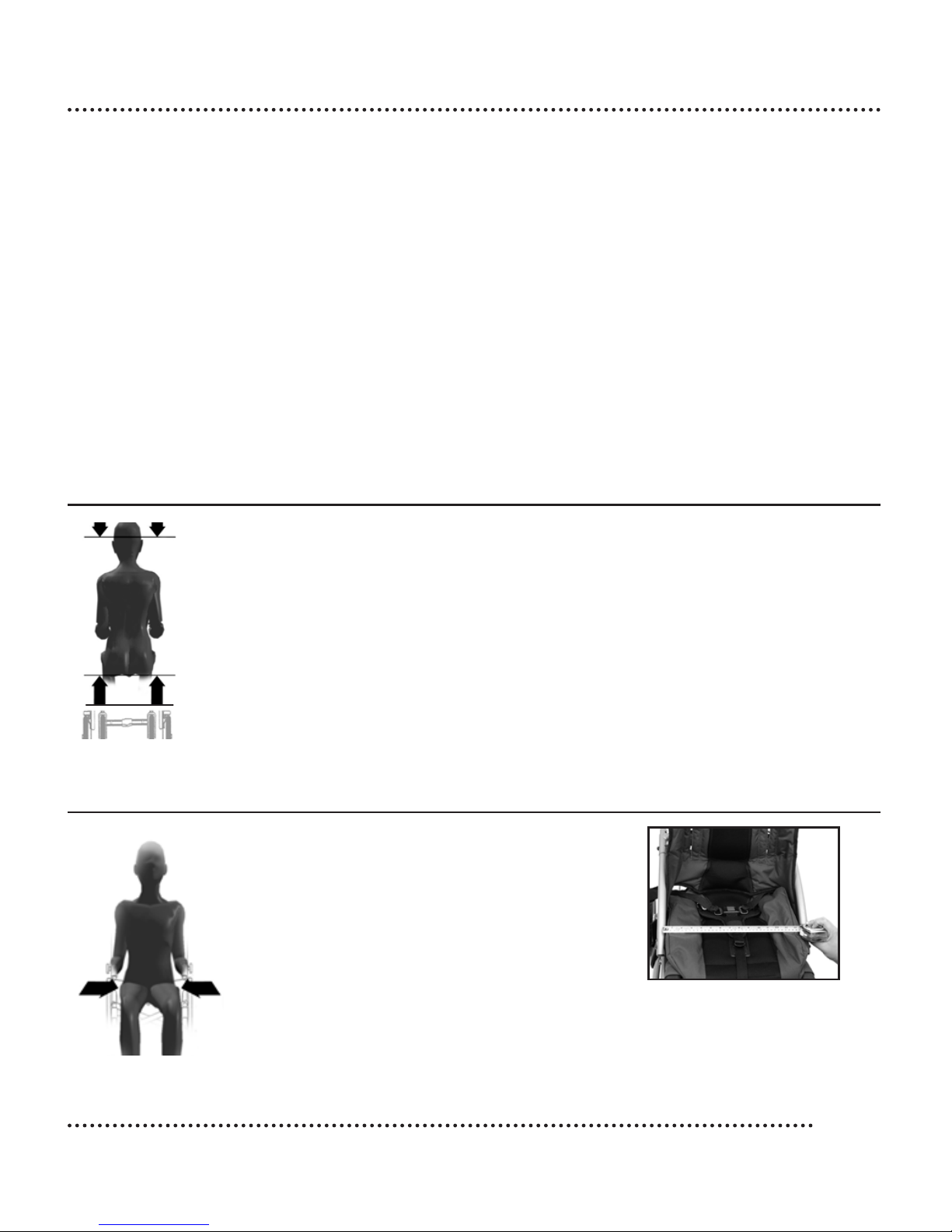

SeatBackHeight……………………………......................................... 15
SeatWidth…………………………………............................................ 15
SeatDepth……………………………………........................................ 16

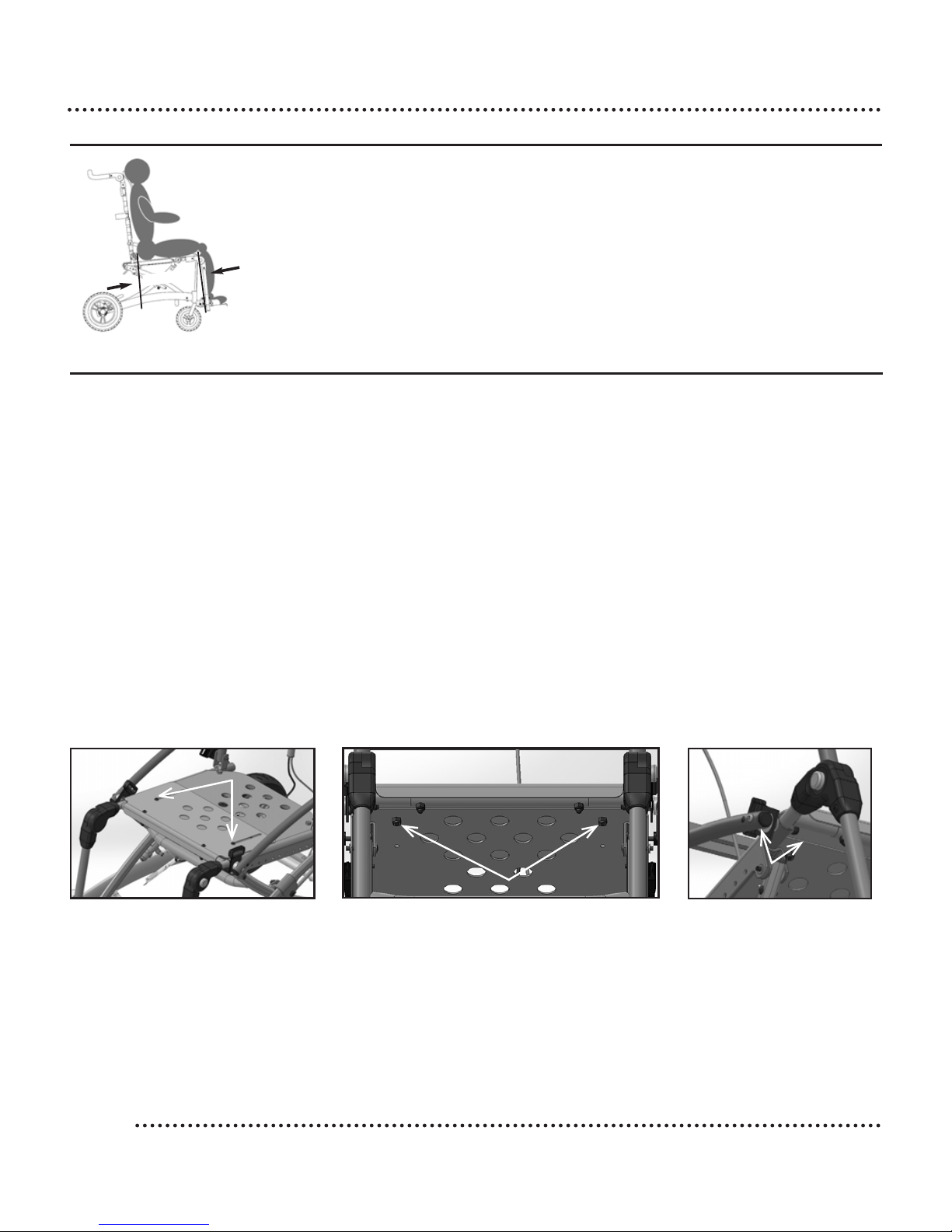

SeatDepthAdjustmentWithoutSeating…………………………...... 16
SeatDepthAdjustmentWithSeating……………………………….... 17
TiltAdjustment……………………………………………...................... 17
ReclineFunction…………………………………………….................... 18
FabricRemoval……………………………………………………........... 19
SeatUpholsteryAttachment…………………………………………… 20
PelvicPositioningBelt……………………………………………......... 20
Two-PointPositioningBelt…………………………………………….. 20
Three-PointPositioningBelt…………………………………………… 21
H-HarnesswithPaddedCovers………………................................... 21
FootplateAdjustment……………....................................................... 22
IndividualFootplates…………………………………………………….. 23
FootPositioners…………………………………………………….......... 24
FootboxCover……………………………………………………............. 25
Wheels
Specications……………………………………..................................... 26
RearTireRemoval………………………………………………………..... 26
RearTireInstallation………………………………………………………. 27
Anti-Shimmy……………………………………………………………....... 27
Accessories
HeavyDutyUnderStorageBasket….…………………………………... 28
FullTorsoSwing-AwaySupportVest….………………………………... 28
AdjustableFirmTrunkSupport….………………………………............. 29
Table of Contents
iii
HeadrestExtension……………………………………….......................... 30
PaddedHeadwing…………………………………………………………… 30
OcciHeadwing……………………………………….................................. 31
AdjustableCanopy………………………………….................................. 32
OxygenTankBag………………………………………………………….... 32
I.V.Pole…………………………………………………………..................... 33
ElevatingLegRest………………………………………………………….. 33
MedialThighSupport(Abductor)………………………………………... 34
LateralThighSupport(Adductor)………………………………………... 35
Anti-TipTubes......................................................................................... 36
CasterLocks………………………………………………………………..... 36
UtilityBag…………………………………………………………………...... 36
ShoeHolders……………………………………………………………….... 37
OptionalAttendantHandBrake………………………………………....... 37
UpperExtremitySupportSurface(Tray)……………………………….... 38
CalfPanel…………………………………………………………………....... 39
HeightAdjustableFlip-UpArmrests………………………………………. 39
Solid&MeshSidePanels……………………………………….................. 40
SeatCushions…………………………………………………………………. 41
Fitting…………………………………………………………………............... 42
Caution…………………………………………………………………............. 43
TransitModels
TransitOption……………………………………………………………......... 44
TransitModeInstructions……………………………………...................... 45
RecommendedClearZonesinVehicle……………………………........... 47
ProvidingClearSpace&Padding……………………………………......... 47
ProperUseofEquipment……………………………………...................... 48
RestrainingtheWheelchairOccupant……………………………........... 51
UsingPosturalBelts&Supports…………………………………….......... 52
Trays&OtherWheelchairComponents…………………………….......... 53
WTORSManufacturers………………………………………………............ 53
ImportantInformation
Maintenance,Operating&SafetyInstructions………………............. 54
Warranty……………………………………………………………..BackCover
1
CONVAID USER’S GUIDE
READBEFOREUSE
Read user’s guide completely before use and fully understand its content. Familiarize
yourself with the handling and functions of the product before use and practice them. Any
caregiver that is going to operate this chair should also read the user’s guide in full.
You are responsible for the safety of the user. The safety of the user could be affected
if you do not follow the instructions in this user’s guide. Nevertheless, not all possible
circumstances and unpredictable situations can be covered by this user’s guide. Reason,
care, and circumspection are not features of the product; they are required of persons who
use the product. If instructions are not clear and further explanation is necessary, please
contact your Convaid provider. If you do not follow all instructions and warnings, damage
to the chair or serious injury may occur. The latest version of all instructions and product
safety notice are available on the Convaid website (www.convaid.com) and can be printed
in larger sizes. Additional video instructions are also available for reference purposes.
DEFINITION OF SYMBOLS
WARNING!
The word “WARNING” and/or the symbol shown above indicates
practices that are unsafe or dangerous and could result in serious injury or
death to the occupant of this chair or others.
WARNING! READ USER’S GUIDE!
Additionalsymbolsaredenedthroughoutthisuser’sguidealongwith
operating instructions.
Thissymbolindicatespotentialngerentrapment.
This symbol indicates correct lifting points for safe moving and handling.
This symbol indicates manufactured date.
This symbol indicates maximum user's weight.
2
CONVAID USER’S GUIDE
This symbol indicates a wheelchair which cannot be used in motor vehicle as
vehicle seat. This wheelchair does not comply with WC19 (RESNAWC-4:2012 or
ISO7176-19:2008) and cannot be used as a vehicle seat to transport the user in
a vehicle.
This symbol indicates a wheelchair which can be used in motor vehicle as
vehicle seat. This wheelchair complies with WC19 (RESNAWC-4:2012 and
ISO7176-19:2008) and can be used as a vehicle seat to transport the user in
a vehicle.
This symbol indicates the position of an anchor point when using a 4-point
tiedown system (WTORS) during transit.
CHOOSETHERIGHTCHAIR&SAFETYOPTIONS
There are several options available to meet the needs of the wheelchair user. Make sure
that your (and your health care provider’s) choice of chair and other added options takes
into account the user’s comfort, positioning, physical limitations, and hazards that may be
encountered during daily use. Operating the user’s guide wheelchair outside of the
recommendations provided by the manufacturer can lead to a dangerous situation.
The wheelchair is not suitable for jogging, running, skating or similar activities. Swiveling
front wheels tend to wobble at higher speeds and can cause a sudden stop, and the
wheelchair can tip over. Use the wheelchair only at regular walking speed. Under no
circumstance should you let go of the push handle while pushing.
3
CONVAID USER’S GUIDE
GeneralWarnings
WARNING:The operator/caregiver must read and understand this user’s
guide prior to operating this equipment. If you are unable to understand any
part of the m, contact your supplier for assistance.
WARNING:The weight carried by the Rodeo chair must never exceed the
total weight capacity of maximum occupant size plus any items
carried. When using the chair in transit, all accessories must be removed
from the chair and secured separately.
WARNING: To reduce the risk of an accident:
• ALWAYS carefully read the User’s Guide and get comfortable operating
the chair.
• ALWAYS watch for obstacles and avoid them as often as possible.
• MAKE SURE that the chair operates properly. Repair any problems
before use.
• ALWAYS verify that the quick release axles are locked so that the back
wheels do not come off.
• ALWAYS secure the user into the chair during use.
WARNING: Positioning belts should never be used as a safety restraint
device in a motor vehicle when transporting chair with occupant. An addi-
tional WC19 compliant automotive type seat belt is required when the chair
is used in transport vehicles.
WARNING: Changes & Adjustments
Adjustments made to the chair will change the balance and function of the
chair and may increase risk of tip over. Consult your Convaid Service Deal-
erbeforemakingadjustments.Warrantywillbevoidedifmodicationsthat
change the structure of frame of the chair are made without manufacturer’s
authorization.
WARNING:Thechairshouldonlybeusedonat,rmterrain.
4
CONVAID USER’S GUIDE
WARNING: Do not go up or down stairs without the assistance of
another person or with user in the chair. If devices such as ramps or ele-
vators are available, please use them. If they are not available, then the
chair should be carried over the obstacle by two people without the user
in the chair.
WARNING: Pay particular attention when on slopes and inclines to
prevent:
• The user from falling out of the chair.
• The chair from tipping over.
• The chair from rolling away.
WARNING: Accessories that can be removed without any tools will not
cause adverse effects on the chair.
WARNING: Before removing the user from the chair and before returning
the user to it, always engage the wheel lock. Never remove or place user
without engaging the wheel lock.
WARNING: Never leave the user unattended in the chair even when
they are strapped in and the wheel lock are engaged.
WARNING:Do not stand on the foot support when getting into or out of
the chair.
WARNING: When the user reaches for objects in front, to the side, or be-
hind the chair, be sure that they do not lean out of the chair too far since
the shift in the center of gravity might cause the chair to tilt or tip over.
WARNING: Please keep packaging material away from children. Plastic
packaging presents the danger of suffocation.
WARNING: The chair is only intended to carry one user at a time. Do not
carry more than one user at a time.
5
CONVAID USER’S GUIDE
WARNING: Whenever you change a setting on the chair, make sure that
yourmlytightenanyscrewsorknobsthathavebeenloosenedpriorto
placing the user in the chair.
WARNING: Motor vehicle safety – The seating module is not designed,
tested or intended to be used as a car seat. Never use the seating mod-
ule as a car seat. Transfer the user from the chair to an approved motor
vehicle adaptive car seat. If your chair is equipped with the transit option,
refer to the transit section in this user’s guide regarding use of this chair
for transit.
WARNING: Never use this chair on an escalator because the chair may
tip over.
WARNING: Many of the screws, bolts, and nuts used on this chair are
specialized or high-strength fasteners. Only use fasteners purchased
through Convaid or a Convaid service dealer.
WARNING: Do not use the chair unless it has proper tire pressure.
(Front 36 psi/ Rear 30 psi, 248kPa/200kPa, 2.5BAR/2.0BAR) Do not
overinatethetires.Failuretofollowtheseinstructionsmaycausethe
tire to explode and cause harm. Tire size and maximum pressure as
listed on the wheels.
WARNING:Thechaircouldloseitsameresistantcharacteristicswhen
using aftermarket seating or cushion.
WARNING: Do not leave/store the chair in direct sun/heat over a long
period of time. Check the temperature of the chair prior to usage.
6
CONVAID USER’S GUIDE
RodeoWithSeatingOverview
Serial Number Label
Fig. 1
Chair Warning Label One Piece Height Adjustable Push Handle
Tilt Adjustment Lever
Single Foot Activated
Wheel Lock Bar
11.5” x 2.5” Rear Solid Wheels
Medical Necessity Storage Basket (Option) One Piece Angle
Adjustable Footplate
7.5” x 2” Front Solid Wheels
Elevating Leg rest
Transit Anchor (Option)
Height Adjustable Flip-Up Armrest (Option)
Swing Away Laterals (Option)
7
CONVAID USER’S GUIDE
Fig. 2
RodeoWithoutSeatingOverview
Chair Warning Label
11.5” x 2.5” Rear Solid Wheels
Release Strap Recline
Tilt Adjustment Lever
7.5” x 2” Front Solid Wheels
One Piece Angle Adjustable Footplate
Depth Adjustable Solid Seat Pan (Option)
Back Canes
8
CONVAID USER’S GUIDE
RODEO SPECIFICATIONS WITH SEATING
Model Size RD 10 RD 12 RD 14 RD 16
Seat Width** 10” 12” 14” 16”
Seat Depth** 7” - 12” 9” - 14” 11” - 16” 13” - 18”
Seat Back Height 21” 22” 24” 25”
Seat to Floor Height 20” 21” 22” 22”
Recline Adjustment 90° or 110° 90° or 110° 90° or 110° 90° or 110°
Tilt Adjustment 5 - 45° 5 - 45° 5 - 45° 5 - 45°
Overall Height 43” 43” 44” 45”
Overall Length 30.5” 35” 35” 36”
Overall Width 21” 23” 25” 27”
Folded Length 33.5” 34” 34” 40”
Folded Width 21” 23” 25” 27”
Folded Height 17.5” 17” 18” 18”
Headrest Extension 6” 8” 8” 8”
Shoulder Strap Height 13” - 19” 15” - 21” 16” - 22” 18” - 24”
Footplate Adjustment Angle^ ±20° ±20° ±20° ±20°
Seat to Footplate^ 9” - 14” 9” - 14” 11” - 16” 13” - 18”
Seat to Footplate^^ 7” - 13” 7” - 13” 9.5” - 15.5” 12” - 18”
Weight Capacity Regular/Transit 75/66 lbs 75/66 lbs 100/100 lbs 170/140 lbs
Weight of Chair ∆29 lbs 33 lbs 37 lbs 39 lbs
Push Handle Adjustment 32” - 48.5” 34.5” - 51” 35” - 52” 36” - 53.5”
Material (Mobility Base) Steel / Aluminum
Material (Plasc Parts) Fiber glass strengthened polyamide
Material (Cushion) Fire-resistance foam*
Material (Fabrics) Fire-resistance nylon, polyester*
*Resistance to ignion of upholstered parts complies to BS-EN 1021-1 and -2
** Plus or minus .5 inches due to fabric
∆ Weight of chair is without front rigging
^ One Piece Angle Adjustable Footplate
^^ Individual Angle Adjustable Footplate
9
CONVAID USER’S GUIDE
RODEO SPECIFICATIONS WITHOUT SEATING
Model Size RD 10 RD 12 RD 14 RD 16
Seat Width** 10” 12” 14” 16”
Seat Depth** 9.5” - 13.5” 11” - 15” 13” - 17” 15” - 19”
Seat Back Height 21” 22” 24” 25”
Seat to Floor Height 20” 21” 22” 22”
Recline Adjustment 90° or 110° 90° or 110° 90° or 110° 90° or 110°
Tilt Adjustment 5 - 45° 5 - 45° 5 - 45° 5 - 45°
Overall Height 43” 43” 44” 45”
Overall Length 30.5” 35” 35” 36”
Overall Width 21” 23” 25” 27”
Folded Length 33.5” 34” 34” 40”
Folded Width 21” 23” 25” 27”
Folded Height 17.5” 17” 18” 18”
Headrest Extension 6” 8” 8” 8”
Shoulder Strap Height 13” - 19” 15” - 21” 16” - 22” 18” - 24”
Footplate Adjustment Angle^ ±20° ±20° ±20° ±20°
Seat to Footplate^ 9” - 14” 9” - 14” 11” - 16” 13” - 18”
Seat to Footplate^^ 7” - 13” 7” - 13” 9.5” - 15.5” 12” - 18”
Weight Capacity Regular/Transit 75/66 lbs 75/66 lbs 100/100 lbs 170/130 lbs
Weight of Chair ∆29 lbs 33 lbs 37 lbs 39 lbs
Push Handle Adjustment 32” - 48.5” 34.5” - 51” 35” - 52” 36” - 53.5”
Material (Mobility Base) Steel / Aluminum
Material (Plasc Parts) Fiber glass strengthened polyamide
Material (Cushion) Fire-resistance foam*
Material (Fabrics) Fire-resistance nylon, polyester*
*Resistance to ignion of upholstered parts complies to BS-EN 1021-1 and -2
** Plus or minus .5 inches due to fabric
∆ Weight of chair is without front rigging
^ One Piece Angle Adjustable Footplate
^^ Individual Angle Adjustable Footplate
10
CONVAID USER’S GUIDE
Chair Set Up & Adjustment
ContentsintheBox
Listofitemsincludedinthebox:
• Chair
• Rear wheels (pair)
• User’s Guide
• Accessories as ordered
Toolsneeded:
• 5/32” Allen wrench
• 7/16” Wrench
• 3/8” Wrench
• Phillips Screwdriver
HowtoRemoveChairfromBox
1. Placeboxatontheoor.
2. Verify that package is in good shape and that no damage has occurred during
shipping.
3. Remove the chair from the packaging material.
4. Check to make sure that your order is complete.
PreparingtheChairforUse
Once you have all components as ordered, the directions for use in this User’s Guide will guide
you through the process of preparing the chair for use:
Convaidrecommendstheinitialtting,adjustments,andsetuptakeplacewiththehelpofyour
Convaid Representative and/or Convaid Service Dealer. However, if the instructions contained in
this user’s guide are followed carefully, a caregiver or attendant will be able to set up and assem-
ble the chair.
11
CONVAID USER’S GUIDE
Setting Up
WARNING:Improper use may cause premature brake failure, which could
damage wheel lock. Never use excessive force. This could damage the
quick release plunger pins and the wheels could fall off and cause injury.
Fig. 5 Locking Fig. 6 Unlocking
WheelLockOperation
1. Lock the wheels by pushing the wheel lock bar downward. Fig. 5
2. Disengage the wheel lock by pulling the wheel lock bar upwards with the top of your foot.
Fig. 6
DOWN UP
1. Press both gray buttons on the outside of the pivot joints of the push handle simultaneously.
Fig. 3
2. While holding the buttons down, move the push handle up or down to the desired position.
Fig. 4
3. Release the gray buttons on the push handle.
Fig. 3 Fig. 4
PushHandleAdjustment
12
CONVAID USER’S GUIDE
5. Apply wheel lock. Fig. 12
6. Push in gray buttons on push handle, and lift upward until handle is at a 90-degree angle with
chair. Fig. 13
7. Place foot on the caster tube and push against back tubes using both hands. Make sure the
safety lock clicks into place by visual inspection on both sides. Fig. 14 & 15
Fig. 12 Fig. 14 Fig. 15Fig. 13
WARNING:Make sure the safety lock clicks into place. Two clicks will be
heard. (Fig. 14)
UnfoldingtheChair
Fig. 7
1. Lay chair down with seat facing upward. Fig. 7
2. Unbuckle closure strap. Fig. 8
3. Push in gray buttons on leg rest extensions and swing them out and upward until parallel with
the ground. Fig. 9 & 10
4. Open folded footplate and attach calf support to footplate with Velcro. Fig 11
Fig. 8
Fig. 10 Fig. 11
Fig. 9
13
CONVAID USER’S GUIDE
8. Adjust push handle and footplate into desired position.
9. If applicable, lower armrests, unfold lateral trunk supports and place seat cushion onto seat
upholstery. Fig. 16, 17 & 18
Fig. 17 Fig. 18Fig. 16
WARNING:Look to see that safety lock pins are visible and fully exposed
on both sides. (Fig. 15)
FoldingtheChair
Fig. 19
Fig. 20 Fig. 21 Fig. 22
1. Before folding, front wheels of chair should be in a
forward facing position. Fig. 19
2. Apply wheel lock by pushing wheel lock bar downwards.
Fig. 20
3. Position chair in a full upright position (not tilted or
reclined). Fig. 21
WARNING:Keepngersfreeoffolding
mechanism.
Ifapplicable,ipuparmrestfoldlateraltrunksupportsandremoveseatcushion.Fig.22,23,24,
25
14
CONVAID USER’S GUIDE
Fig. 23
Fig. 26
Fig. 29
Fig. 32
Fig. 27
Fig. 30
Fig. 33
Fig. 28
Fig. 31
Fig. 34
Fig. 24 Fig. 25
4. Push in gray buttons on leg rest extensions, swing them upward until parallel with the
ground. (Fig. 26) Detach the calf panel and fold up footplate. Fig. 27
5. To disengage safety lock, grasp red levers and simultaneously squeeze them together with
one hand. With the other hand hold top of push handle pulling towards you. Fig. 28 & 29
6. Push chair downward into the folded position. Fig. 30
7. Push in gray buttons on the push handle, and rotate handle back on to chair. Fig. 31
8. Secure closure strap to hold the chair in the folded position. Fig. 32
9. Push in gray buttons on leg rest, and rotate leg rest under chair. Fig. 33
10. With a straight back, bend knees and lift chair as shown in photo. Fig. 34
Fig. 14
WARNING:Apply lubricant to safety lock as needed.
15
CONVAID USER’S GUIDE
Seat width is measured
from the inside edge of the
seat frame. Fig. 37
Fig. 37
Fig. 36
Proper seat width enables the user to sit
comfortably and prevents problems from
developing.Whileuserisseatedonaat
surface, measure from hip to hip. Fig. 36
The user should have enough room to pre-
vent hips and thighs from rubbing against
the frame. However, the chair should not be
too wide or the user will slide around and
posture could be affected.
Seat Width
Fig. 35
The back height varies according to chair size. Headrest extensions are
available when extra height is needed to support the head.
To determine the back height, measure from the seat to the upper part of the
head. Fig. 35
SeatBackHeight
Seat back height
Correct seating and positioning encourages good posture, which in turn aids circulation,
breathing and digestion.
Pleasetakethetimetoproperlyadjustthechairtottheuser.Iftheuserisnotcorrectly
positioned, check the accessories section of this user’s guide to see if one or more of our acces-
sories would help to facilitate posture or consult a physical therapist.
Improper seating can cause problems. Please consult a physical therapist or doctor for additional
guidance.
Whenproperlytted,Convaidchairswillprovideyearsofcomfortableuse.Astheusergrows,
refer back to this Fitting Guide to adjust the dimensions of the chair.
Fitting Guide
16
CONVAID USER’S GUIDE
Measure from the most posterior portion of the buttocks to
the back of the knee. Subtract from that measurement 1-2”
(25mm-51mm) to allow adequate clearance between the seat
and the back of the knee. Fig. 38
Seat Depth
Fig. 38
Fig. 39 Fig. 40 Fig. 41
SeatDepthAdjustmentWithoutSeating
1. Loosen the two bolts located within the adjustment slot on the top seat pan using a 5/32”
Allen wrench on top for the bolt and a 7/16” wrench for the nut on the bottom of the seat pan.
Do not remove nut from bolt. Fig. 39
2. Using the same tools from step 1, remove the horizontal facing nut located under the seat
pan from both the right and left side. Fig. Fig. 40
3. After the nut is removed, loosen the horizontal facing bolt on each side until the seat tubes
slide freely. Do not remove the bolt entirely. Fig. 41
4. Adjust seat tubes to desired depth by aligning holes on the stationary seat base with the
incremental holes on the seat tubes. Retighten the bolt from step 3 through the aligned holes
to secure seat depth. Reattach nut removed in step 2.
5. Retighten the nut and bolt from step 1 to secure seat pans.
This manual suits for next models
3
