Converters.TV 633 User manual

PC/HDTV Pattern Generator
- ID# 633
Operation Manual

Introduction
A Video Pattern Generator with a wide variety of PC/HDTV pattern options which provide
stable test signals. t provides over 27 different test patterns that can be used as an industrial-
standard signal source for testing, broadcasting and troubleshooting. Output format is analog
RGBHV/YPbPr via HD-15 VGA connector.
Features
●- The output format is analog RGBHV/YPbPr via HD-15 VG connector
●- Provides a wide range of PC/HDTV output resolutions
●- Generates 27 test patterns including most useful test patterns in Video/PC
industry, such as Color bar, Multiburst, Circle, Crosshatch
●- OSD indicates output resolution and refresh rate
●- Output can be reset to one of the two factory default modes : 1024x768 or
720p
●- Selectable output refresh rate up to 85 Hz
●- Compact size, sturdy metal case
●- Easy to operate push buttons

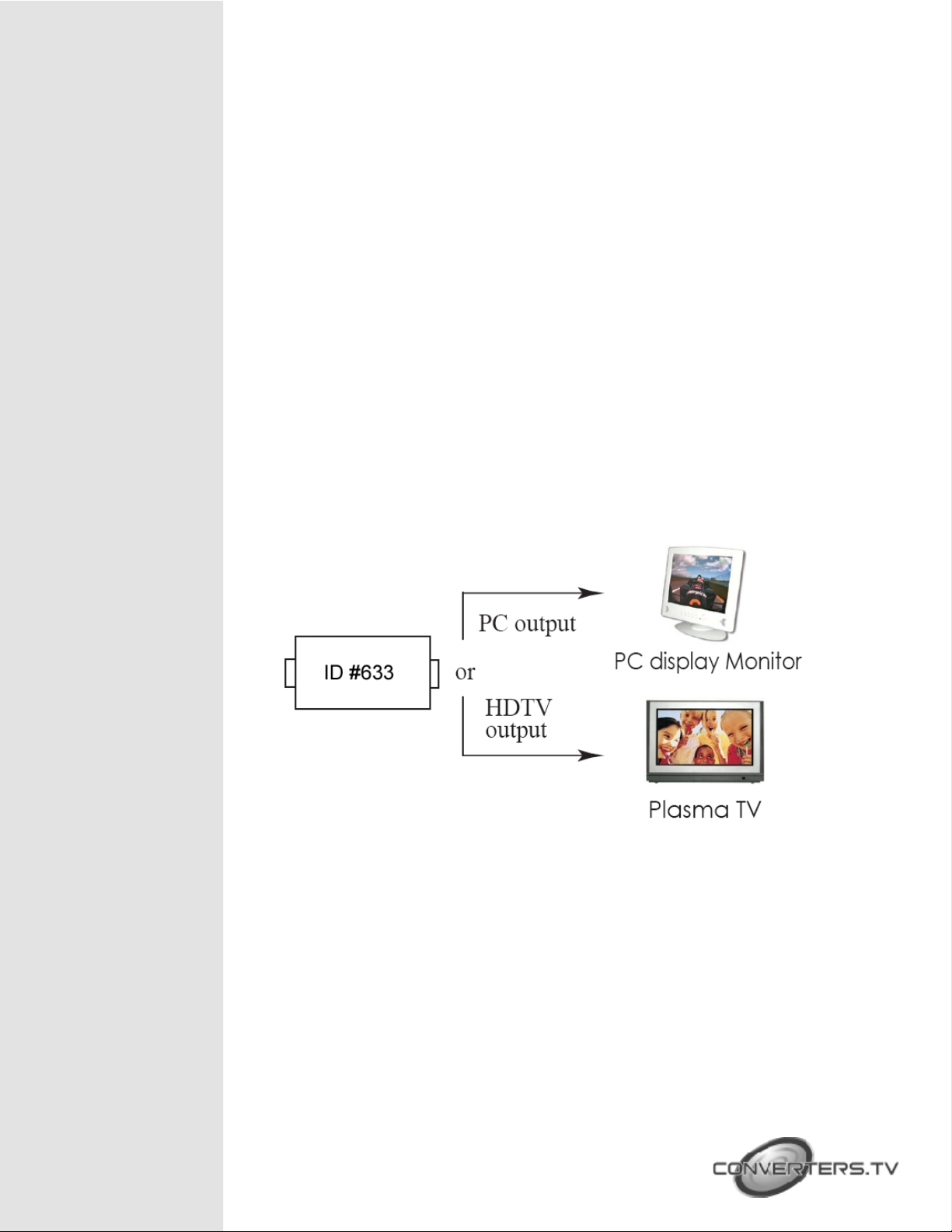

Connector Block
Diagram

Operation Controls
and Functions
Mode: Select the output resolution.
+ or - : Select the test pattern signal such as color bar, staiscase, multiburst.
Press " mode, - " : Reset the output resolution to 480p / color bar.
Press " - , + " : Reset the output to XG / color bar.
Output pattern

Specifications
Specifications:
- Output Format: RGBHV, YPbPr
- Output Connector: HD 15 Female
- Output Signal: RGB @ 0.7Vp-p, H&V Sync @ 3Vp-p, Y @ 1Vp-p, Pb,Pr @ 0.7Vp- p
75 ohm
- Weight (g): 400
- Dimensions (mm): 77 (W) x 30 (D) x 146 (H)
- Power Source: 5VDC @ 2
Output Signal
Specifications
