INSTRUCTION MANUAL

Model No: 820906
220-240V, 50/60Hz 1700W
FOR HOUSEHOLD USE ONLY
1
PLEASE READ AND RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
5.8l AIR FRYER

2
Congratulations on the purchase of this high-quality product. Your new Air Fryer oers
you the health benefits of air frying (virtually no oil) but, also, has some useful additional
features (see below). The easy clean non-stick coating greatly assists the removal of food
residues.
Used and cared for in line with the guidance provided within this Instruction Manual it
should provide you with many years of trouble-free service.
Key Features
• Touch Digital Control with a large User Display
• Large Capacity (5.8l)
• Easy Clean Surfaces
• One touch Pre-Heat function
• One touch Defrost feature
• Manual Mode with memory function
• Useful 30 min. Keep Warm function.
Product Overview

KEY COMPONENTS
1. Top Cover
2. Upper Body
3. Lower Body
4. Base
5. Cooking Tray Handle
6. Handle Trim
7. Handle Cover
8. Tray Panel
9. Tray Opening
10. Control Panel
11. Cooking Tray
12. Air Outlet
13. Grill Rack
14. Mains Cord & Plug
At a glance
3

4
The use of any electrical appliance requires the application of the following common sense
safety rules.
WARNING: Fire Risk – Most people are aware of the risks of Electrical Fires. Probably
we all know someone who has experienced an issue of this kind, be it major or minor. The
most common causes of these issues are Tumble Dryers, Washing Machines and to a lesser
degree refrigerators. However, as a responsible Supplier we want to provide you with the
best advice to try an avoid a problem of this kind with any product you buy from us, no
matter how small the risk. Therefore, please take particular note of any warnings in these
Operating Instructions that are followed by “Risk of Fire.”
Failure to observe these safety rules exposes the user to the risk of personal injury or the
product itself to the risk of damage. These two categories are denoted by the following
conventions:
WARNING: Danger to the person!
IMPORTANT: Damage to the appliance!
Please therefore note the following safety advice.
Location
• This appliance is intended for domestic use only. It should NOT be used for commercial
purposes. Such use may damage the product and will invalidate your warranty.
• Always locate your appliance away from the edge of a worktop.
• Ensure that the appliance is used on a rm, at, heat resistant surface.
• Do not use the appliance outdoors, or near water.
Power Cord
• The power cord should reach from the socket to the unit without straining the
connections.
• Do not let the power cord hang over the edge of a worktop where a child could reach it.
• Do not let the cable run across an open space e.g., between a low socket and table.
• Do not let the cable run across a cooker or toaster or other hot or sharp areas which may
damage the cable.
Health and Safety

5
• If the supply cable is damaged, DO NOT USE THE APPLIANCE. The cable must be
replaced by a suitably qualified person with a special cable assembly available from the
manufacturer or its service agent.
Personal Safety
• WARNING: To protect against fire, electric shock, and personal injury, do not immerse
the cord, plug and / or the body of the appliance in water or any other liquid.
• The use of accessory attachments not recommended by the manufacturer may cause
damage to the unit and a risk of personal injury. It will also invalidate your warranty.
• WARNING. This appliance contains no user-serviceable parts. All repairs must only
be carried out by a qualified engineer. Improper repairs may place the user at risk of
harm.
• WARNING. Do not use the appliance after a malfunction or if it has been dropped or
damaged in any way.
• WARNING. Do not use the appliance for any purpose other than its intended use.
• WARNING. Extreme caution must be observed when moving an appliance with hot
contents.
• WARNING. Do not use the product with wet or moist hands.
• Only clean your Product after it has been disconnected from the Mains Supply and
allowed to fully cool down.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety.
• Children shall not carry out maintenance or cleaning of this appliance.
Children
• Never allow a child to operate this appliance.
• Childrenare vulnerablein thekitchen,particularlywhenunsupervised andifappliances
are being used or cooking is being carried out.
• Teach children to be aware of dangers in the kitchen, warn them of the dangers of
reaching up to areas where the child cannot see properly or should not be reaching.
Safety Considerations Specifically for this Product
• IMPORTANT. When operating this Air Fryer, keep at least 4 inches (10 centimetres)
of free space on all sides and 12 inches (30 centimetres) above the appliance as it
becomes very hot in use.

6
• WARNING. Never place anything on top of your Air Fryer when in use. Risk of fire.
• WARNING. NEVER overfill your Cooking Trays. Risk of contacting heating
elements.
• Ensure that there is sucient ventilation around the appliance to allow the escape of
heat and steam.
• WARNING. DO NOT place your Air Fryer under cupboards, blinds, or curtains. Risk
of overheating / fire.
• To disconnect, turn o at the wall socket before removing the plug from the mains outlet.
• The appliance must be unplugged from the power supply after use and whilst any
maintenance such as cleaning is carried out.
• ALWAYS unplug from the wall outlet when not in use and before cleaning. Always hold
and pull the plug, never pull the cord.
• Allow the appliance to cool before putting on or taking o parts, and before cleaning.
• WARNING. Do not cover any part of the Air Fryer with a cloth or similar, it will cause
overheating. Risk of fire.
• Do not use any accessories other than those recommended by the manufacturer in this
appliance.
• DO NOT use any Cooking Trays other than those supplied with the appliance.
• NEVER fill the Cooking Trays with oil. Risk of fire.
• DO NOT use metal kitchen tools or utensils in the Cooking Trays. These may cause
irreparable damage to the non-stick surface.
• ALWAYS use non-metallic long handled spoons or tongs when checking the progress of
the cooking.
• NEVER cook meat, poultry, or seafood from frozen. ALWAYS thaw completely first.
• WARNING: No part of this appliance including the Cooking Trays is dishwasher safe.
• Before placing your Cooking Trays into the Air Fryer check that no foreign bodies
have fallen into the apertures. Cook only in the Cooking Tray (11) supplied.
• NEVER cook in the Cooking Tray aperture, cook only in the Cooking Tray provided.
Risk of electrocution / fire.
• NEVER cover the Air Vent (12). Risk of fire.
• The appliance must be used on a level, stable and heat-resistant surface.
• WARNING. The temperature on the surface of this appliance is high during cooking
and for some time after it has been in use. Do not touch with bare hands.
• NEVER touch the inside surfaces of the appliance whilst it is operating. Risk of burns
or electric shock.

7
• WARNING. Do not use this appliance in conjunction with an external timer or remote
control.
• The first time you use your Air Fryer there may be a slight odour, or a small amount of
smoke given o. This is normal and is just the manufacturing residues burning o.
• Do not overll your Air Fryer,the maximum practical capacity is around 5.8l.
• WARNING. This is a CLASS I Product and as such needs to be connected to an
EARTHED supply.
• DO NOT use this appliance if it has been dropped or if the Power Cord (14) is damaged.
Contact your service agent for advice.
Electrical Requirements
When using electrical appliances basic safety precautions should always be followed.
Check that the voltage indicated on the rating plate corresponds with that of your local
network before connecting the appliance to the mains power supply.
If your appliance is supplied with a non-rewirable plug fitted to the mains lead and should
the fuse need replacing, you must use an ASTA or BS approved type conforming to BS1362
and of the same rating. If in doubt consult a qualified electrician for advice or assistance.
If you need to remove the plug - DISCONNECT IT FROM THE MAINS and cut it o the
mains lead. You must then dispose of it IMMEDIATELY and SAFELY. Never attempt
to re-use the plug or insert it into a socket outlet as there is a serious danger of an
electric shock.
How to use your Air Fryer
To begin using your Air Fryer, first, carefully unpack it and check that it has not sustained
any damage during transportation. Also check that all the items shown in the PRODUCT
OVERVIEW are present. We recommend that you retain your packaging so that, in the
unlikely event of a fault developing, you are able to return the product in the correct
packaging to ensure best protection.
Before first use
1. Remove all packaging material.
2. Remove any stickers or labels from the appliance. DO NOT remove the Product Rating
Plate.
3. Thoroughly wash the Cooking Tray (11) and Grill Rack (13), in hot soapy water using
a non-abrasive sponge. Rinse and dry.

NOTE: Accessories having a non-stick coating will, over time, suer damage from
harsh detergents (including dishwashing) so we suggest hand washing.
WARNING. DO NOT use abrasive, caustic, or solvent cleaners on your appliance.
These may damage the surface finishes.
4. Wipe the outside of the Top Cover (1) and Upper / Lower Body (2-3) with a moist cloth.
5. Dry thoroughly with a soft cloth.
6. Next, take the time to familiarise yourself with the Control Panel. See below outlining
the functions available.
WARNING: DO NOT immerse the Body (2-3), Power Cord or Mains Plug (14) in
water or any other liquid.
Control Panel Functions
Explanation of Control Panel Keys.
Your Control Panel (CP) is touch sensitive making function selection very easy indeed.
To avoid any confusion with the General Description numbering on PAGE 3 all your
Function Keys in this manual will be suxed with C P.
Icon Explanation.
Key 1CP – Power Key

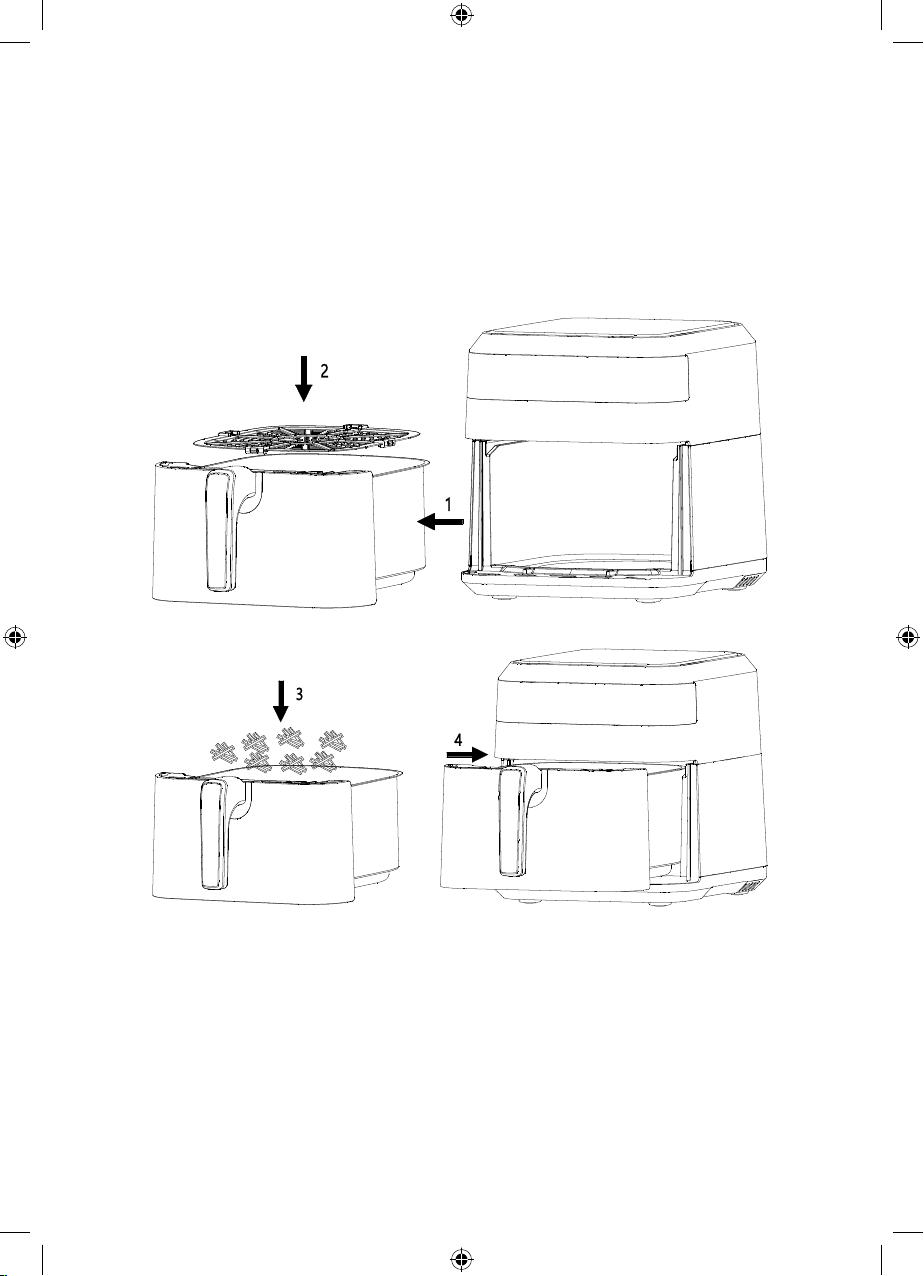

With power connected, insert the Cooking Tray into the Tray Opening (9) ensuring it
is pushed fully home. Selecting the Power Key for 0.5 seconds will turn the unit to the
default mode of Chips the temperature is set to 180°C, and a cooking time of 20 minutes.
Selecting the Power Key, a second time will start the cooking process based on those
settings. When operating, pressingthe Power Key for 2seconds will “Beep” once and turn
OFF the Air fryer. The Display (9CP will show OFF. After 10 seconds the Air Fryer will
then return to Standby.
8

NOTE: During cooking, you can touch this key to pause and restart cooking.
Key 2CP – Preset Key
Selecting the “ ” Preset Key enables you to scroll through the 8 popular food choices
plus the Defrost, Preheat and Manual options (11CP-20CP). Press sequentially to move
through your choices. Once selected, the Power (1CP) Key needs to be pressed again, the
cooking process will then start.
Key 3 - 4 CP – Temperature Control Keys
The Key 3CP and Key 4CP symbols enable you to increase or decrease cooking temperature
in 5°C increments. Keeping the Key held down will rapidly change the temperature.
Temperature Control range: 80°C—200°C.
Key 5CP & Key 6CP – Time Control Keys
The Key 5CP and Key 6CP symbols enable you to increase or decrease the cooking time
in, one minute per press. Keeping the Key depressed will rapidly change the time. Time
Control range:1min-60min.
7CP Temperature Indicator Light.
8CP Time Indicator Light.
9CP Temperature Display
10CP Time Display
11CP Defrost Function
12CP Preheat Function
13CP Vegetable Programme
14CP Chicken Programme
15CP Frozen Pizza Programme
16CP French Fry / Chip Programme
17CP Steak Programme
18CP Fish Programme
19CP Baking Programme
20CP Manual Programme
9

10
Menu Programme
Number
Approx.
Food
Weight
Temp.
(°C)
Time
(min.)
Temp
range
Time
frame Shake
French Fries 16CP 500 180 20 80-
200°C 1-60min YES
Steak 17CP 170 200 15 80-
200°C 1-60min YES
Fish 18CP 350 180 20 80-
200°C 1-60min YES
Baking 19CP 300 150 25 80-
200°C 1-60min -
Manual 20CP -160 20 80-
200°C 1-60min -
Frozen Pizza 15CP 300 180 10 80-
200°C 1-60min -
Chicken 14CP 500 180 20 80-
200°C 1-60min YES
Vegetables 13CP 500 160 15 80-
200°C 1-60min -
Preheat 12CP -200 580-
200°C 1-60min -
Defrost 11CP -175 10 80-
200°C 1-60min -
Keep Warm
Mode Automatic -80 30 Fixed Fixed -
Preset Programme Settings
NOTE 1: Add 3 minutes to the preparation time when you start frying while the
Hot-air fryer is still cold.
NOTE 2: Where SHAKING is required a “3 Beeps” will sound about halfway
through the cooking process. Pulling out the Cooking Tray long enough to shake
the food will not impact the cooking process.
NOTE 3: The “Keep Warm Mode” is not available in Preheat and Defrost.

11
Cooking with your Air Fryer
1. Place the appliance on a stable, level and heat resistant surface away from the edge of the
work surface. When moving it lift by holding it with both hands underneath the base.
NOTE: Avoid lifting when hot. If this is essential, then as a precaution use Oven Gloves
or similar. Ensure the Cooking Tray (11) is located before moving the Air Fryer.
2. Remove the Cooking Tray (11) from the Air Fryer by holding the Cooking Tray
Handle (5) and pulling the Cooking Tray towards you. See Fig 1-1
3. Place the Grill Rack (13) inside the Cooking Tray. Locate it with the “convex” side
facing upwards and the arrow pointing towards the back of the Air Fryer. See Fig 1-2.
4. Your Air Fryer is now ready for use. Do not re-insert the Cooking Tray at this point.
Refer to the Detailed Instructions in the following section.
Fig 1.

12
Detailed Operation Instructions
1. Standby Mode
Insert your Cooking Tray into the Tray Opening (9) and push fully home into the Air
Fryer. Firstly, to confirm that the Cooking Tray is correctly installed into the appliance,
insert the Mains Plug (14) into the wall socket and switch the socket on. The appliance
will be powered on and beep once. Concurrently, all the lights are lit for one second and
then extinguished, the Power Key will remain illuminated, and the Air Fryer enters
Standby mode.
2. Operation Mode
2.1 Preheat Function: If you wish to use the Preheat Function then follow these
instructions, if not then remember you may need to add 3 minutes to your overall cooking time.
(i) Insert the Cooking Tray and connect Power.
(ii) Use the (2CP) Preset Key to select the Preheat function (12CP). Once selected,
the Power (1CP) Key needs to be pressed again, the Preheat process will then start.
2.2 Remove the Cooking Tray and add your food,
WARNING: Do not overll the Cooking Tray.
2.3 From StandbyMode, touch the (1CP) Power Key Icon once, the Air Fryer switches to
the Chips mode 180C / 20min. which are the default settings for temperature and cooking
time. These settings will be displayed in the (9CP) and (10CP) Displays respectively and
the Chips Icon ashes.
NOTE: If you are cooking Chips then you will need to press the (1CP) Power Key
a second time to start the cooking process. All other programme selections also
require a second press of the (1CP) to start.
2.4 From this point all adjustments are available to you. The following instructions
assume you have either preheated the Cooking Tray or will be adding 3 minutes to your
cooking time. So, you can;
(i) Press the 2CP Preset Key to select a Preset programme. Press sequentially to step
through your options. The associated indicator lights as you make the selection.
(ii) From the default mode adjust the Temperature using 3CP and 4CP and or the
Time using 5CP and 6 CP keys.
NOTE: Don’t forget to add the 3 minutes to your cooking time if required.
(iii) When you have chosen or adjusted your Programme you will need to press the
(1CP) Power Key once more to start the cooking process.
NOTE: If your food requires shaking a “Beep” will sound 3 times.

13
(iv) At the end of the cooking time the Air Fryer will “Beep” 3 times and enter the
“Keep Warm” mode which lasts for 30 minutes at 80°C. The Temperature
Display (9CP) shows 80°C and the Time Display begins incrementing from “0” to
“30” in 1 min. steps. When it reaches 30min. the Air Fryer “Beeps” 5 times and
shuts down after approximately 10 seconds.
NOTE: Pulling out the Cooking Tray at any point during the “Keep Warm”
period will cancel it. Pushing the Tray back in will not restart it.
NOTE: You can switch o the Air Fryer at any point during the “Keep Warm”
period by pressing and holding the Power (1CP) Key.
3. Actions During Cooking:
(i) You can press the Power (1CP) Key to pause the cooking process for up to 1
minute. If it is left in pause for greater than this the Air Fryer will switch o.
(ii) You can make adjustments to time or temperature at any point during the cooking
process. Simply press the (3CP), (4CP) keys for Temperature or the (5CP), (6CP)
for Time.
(iii) You can change the programme you were running. Press the Power (1CP) Key
briey to pause the cooking process. Next Press thePreset(2CP)Keysequentially
until the programme you now wish to use is selected. Press the Power (1CP) Key
to start cooking. Remember if you were part way through a programme you may
need to reduce the cooking time to avoid overcooking.
(iv) If there is a power outage whilst you are cooking your air Fryer will remember the
programme you were on and where you were timewise within that programme
when power is reconnected. Similarly, any adjustments you made to time or
temperature will also be remembered. These will be cleared when the programme
completes, and the Air Fryer shuts down.
4. Manual Programme (with Memory):
(i) To select the Manual Programme, use the Preset (2CP) Key.
(ii) The default Temperature is 160°C and the Time 20mins. Use the (3CP), (4CP)
keys to adjust Temperature and the (5CP), (6CP) keys for Time.
(iii) Your settings will be remembered even after Power O so that if you have
favourites settings for a particular recipe this will keep them for you.

14
5. Defrost Programme:
(i) To select the Defrost Programme use the Preset (2CP) Key
(ii) The defaults for Defrost are 175°C for Temperature and 10 mins. for Time.
WARNING: Defrosting should always be used with caution. This is particularly
true of chicken and fish. ALWAYS make sure food is thoroughly defrosted before
cooking. We recommend the use of a thermometer to check core temperature of
foods.
(iii) Press the Power (1CP) Key to start the Programme.
Tips
• Smaller ingredients usually require a slightly shorter cooking time than larger
ingredients.
• A larger amount of ingredients only requires a slightly longer cooking time, a smaller
amount of ingredients only requires a slightly shorter cooking time.
• Shaking smaller ingredients halfway through the preparation time optimizes the end
result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Air Fryer
within a few minutes after you added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the Air Fryer.
• Snacks that can be prepared in an oven can also be prepared in the Air Fryer
• The optimal amount for preparing crispy fries is 500 grams.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also
requires a shorter cooking time than home-made dough.
• Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or
quiche or if you want to fry fragile ingredients or filled ingredients.
Cleaning and Storage
Cleaning
We recommend that the Air Fryer is cleaned as soon as it has cooled down after use to
prevent the build-up of any residues. Proceed as follows:
1. Disconnect the appliance from the Mains Supply and allow to cool down completely.
2. Remove the two Cooking Trays and lift out the Grill Rack. Wash them in hot soapy
water, rinse and dry thoroughly.

15
NOTE: If any residues do remain in the Cooking Tray, add a little washing up liquid,
fill with hot water and leave to soak for a couple of hours or overnight.
3. Wipe the outside of the Body unit with a moist cloth. Rub dry with a soft cloth.
WARNING. DO NOT use abrasive, caustic, or solvent cleaners on your appliance.
These may damage the surface finishes.
NOTE: Accessories having a non-stick coating will, over time, suer damage from
harsh detergents (including dishwashing) so we suggest hand washing.
Storage
Once the appliance has been thoroughly cleaned and dried it can be stored in a dry location
out of the reach of children.
To ensure it is dust free and ready for use the next time you need it we recommend you keep
it in its original packaging.
Troubleshooting
PROBLEM POSSIBLE CAUSES SOLUTION
No Power.
Faulty Wall Socket. Try another socket.
The Cooking Tray is not
properly located. Reseat the Cooking Tray.
Chips are not
cooking evenly.
Overloaded Cooking Tray. Do not overload the trays.
Chips have not been shaken part
way through the Cooking time.
There is an automatic “3 Beep”
reminder to shake aproximately
halfway through the cooking time
and then repeat. Please note.
Slight smell of
burning on first
use
This is normal and is just
manufacturing residues
dissipating.
This will pass after a few uses.
E1 is showing in
the Display. Faulty NTC.Open Circuit. Contact your Service Agent.
E2 is showing in
the Display. Faulty NTC.Open Circuit. Contact your Service Agent.
In the unlikely event that you experience a problem with your Air Fryer and Cooker please
take a couple of minutes to check these possible causes before you contact the Help Line.

16
Technical Specification
Model / Model Number Air Fryer 820906
Operating Voltage / Frequency 220-240V 50/60Hz
Power Consumption 1700W
Fuse Type / Value BS1362 10A
Protection Class I (This Product must be earthed)
Total Capacity (maximum) 6.1l (Maximum), 5.8l (Usable)
Recycling
Approvals
At the end of its useful life or at any time in the future you need to dispose of this product
please note that waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local Authority or retailer
for recycling advice.
This product complies with LVD (European Low Voltage Directive), RoHS (Restriction
of Harmful Substances) and EMC (Electromagnetic Compatibility) Directives when
installed and used in accordance with this instruction manual.
Imported by: QVCUK, W4 5XU
Manufactured by: Sourcing Boutique HK Ltd, 21st Floor,
The Phoenix, 23 Luard Road, Wan Chai, Hong Kong
