Cooke & Lewis CLDH-14 User manual

90 cm Downdraft Chimney Hood
WHTD90CL - Version: 01
GB IE 90 cm Downdraft Chimney Hood - Barcode: 5052931258819
WARNING: Read the instructions before using the appliance.
WHTD90CL-C&L-A5 GB-IM-06.indd 1 11/20/13 10:03 AM

WHTD90CL-C&L-A5 GB-IM-06.indd 2 11/20/13 10:03 AM
Warning
This appliance is intended only to be used
with an electric hob. DO NOT use this
appliance with a gas hob

[01] x 1 [02] x 1
[03] x 4 [04] x 2
[05] x 1
WHTD90CL 90 cm Downdraft Chimney Hood
[06] x 8 (3.5 x 16mm)
[07] x 12 (3.5 x 9.5mm)
1 : 1
WHTD90CL-C&L-A5 GB-IM-06.indd 3 11/20/13 10:03 AM

4
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 05
Your product 05
Before you start 05
Safety 06
In more detail… 11
Operation 11
Care and maintenance 12
Troubleshooting 13
Recycling and disposal 14
Technical and legal information 14
Guarantee 17
CE Declaration of conformity 19
Appendix...
20
Installation
GB
IE
WHTD90CL-C&L-A5 GB-IM-06.indd 4 11/20/13 10:03 AM

5
Getting started...
WHTD90CL 90 cm Downdraft Chimney Hood GB
IE

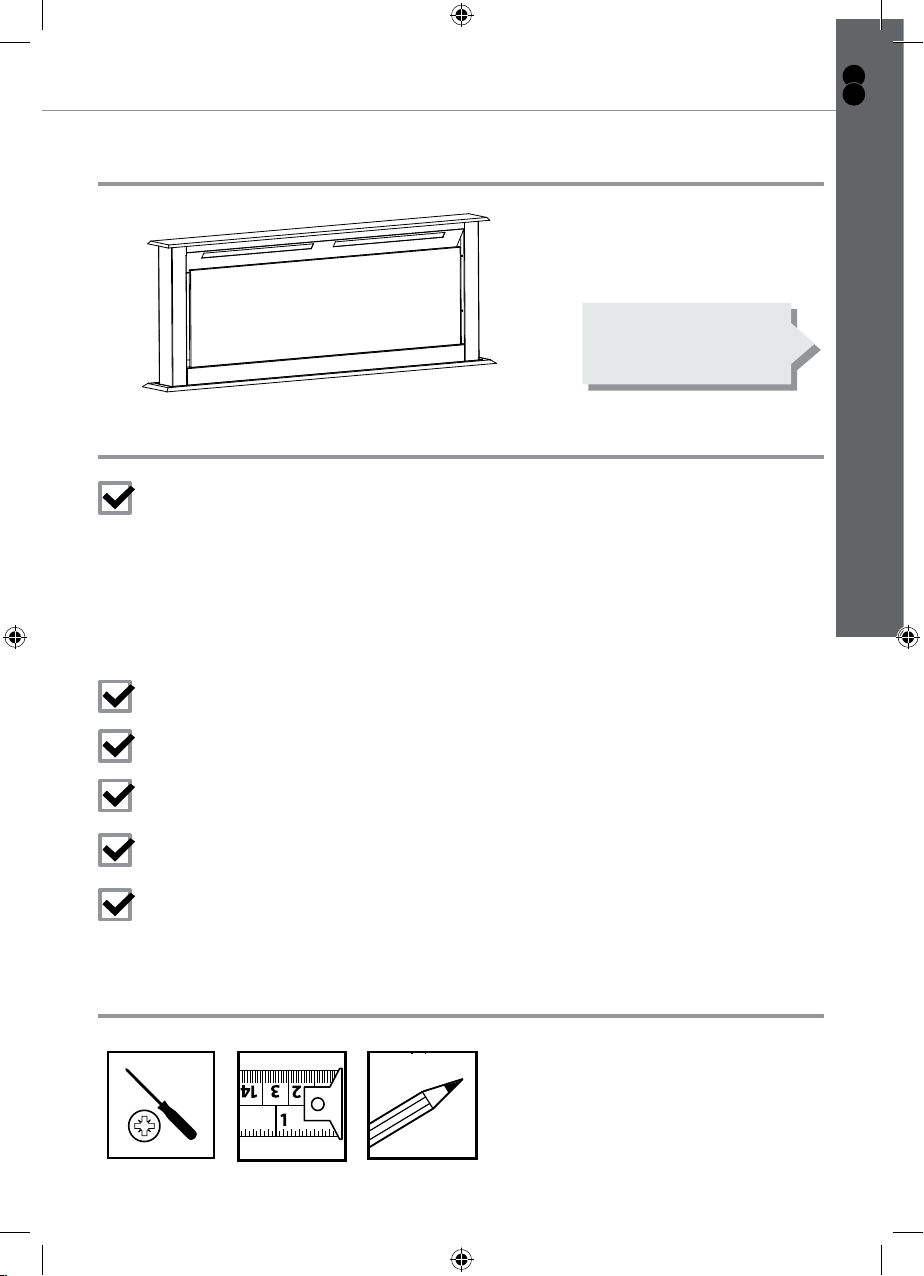

Your product
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this cooker hood is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference
and pass it on to any future owners. After unpacking the cooker hood
please check that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0844 800 1128 (UK) and 0144 75261
(Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
If this product contains glass please take care when tting or handling to
prevent personal injury or damage to the product.
The specications plate is available on this appliance. This plate displays
all the necessary identication information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
You will need
Your product
Before you start
Installation guide
located at the end of
the guidebook
WHTD90CL-C&L-A5 GB-IM-06.indd 5 11/20/13 10:03 AM

6
WHTD90CL 90 cm Downdraft Chimney Hood
Getting started...
GB
IE Safety
Before you start

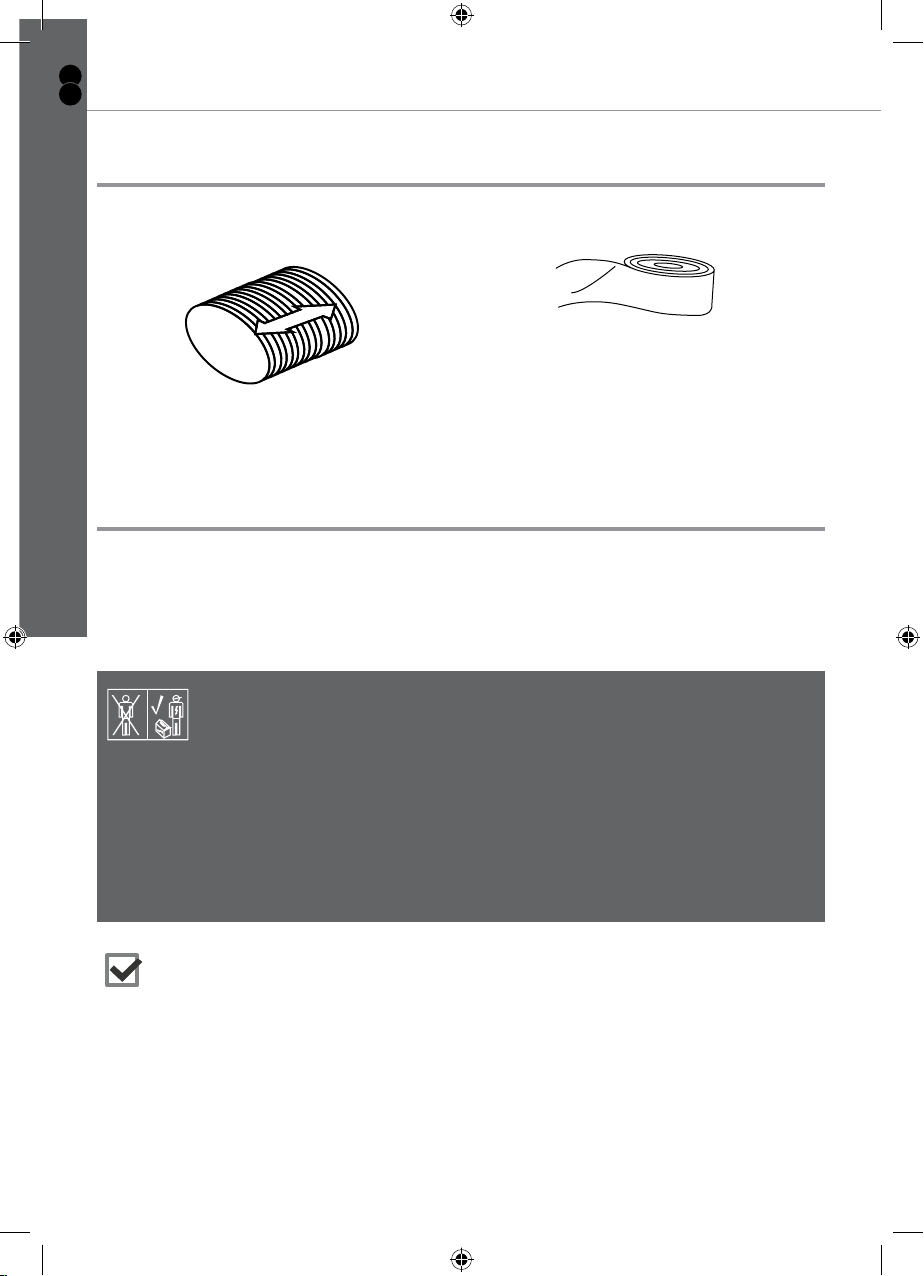

Accessories not supplied
Ø150mm
VENT PACK 2 (UK & IE)
SELF ADHESIVE
ALUMINIUM TAPE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
• All installation work must be carried
out by a competent person or qualied
electrician.
• This appliance must be installed correctly
by a suitably qualied person, strictly
following the manufacturer’s instructions.
This appliance complies with all current
European safety legislation, however, the
Manufacturer must emphasise that this
compliance does not prevent the surfaces of
the appliance from heating up during use and
remaining hot during its operation.
WHTD90CL-C&L-A5 GB-IM-06.indd 6 11/20/13 10:03 AM

7
Getting started...
WHTD90CL 90 cm Downdraft Chimney Hood GB
IE
Safety
Accessible parts may become hot during use.
Young children should be kept away. Care
should be taken to avoid touching the appliance
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies and
small children.
Thisappliancecanbeusedby children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of the appliance in a safe way and understand
the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance
shall not be made by children unless they are
older than 8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.

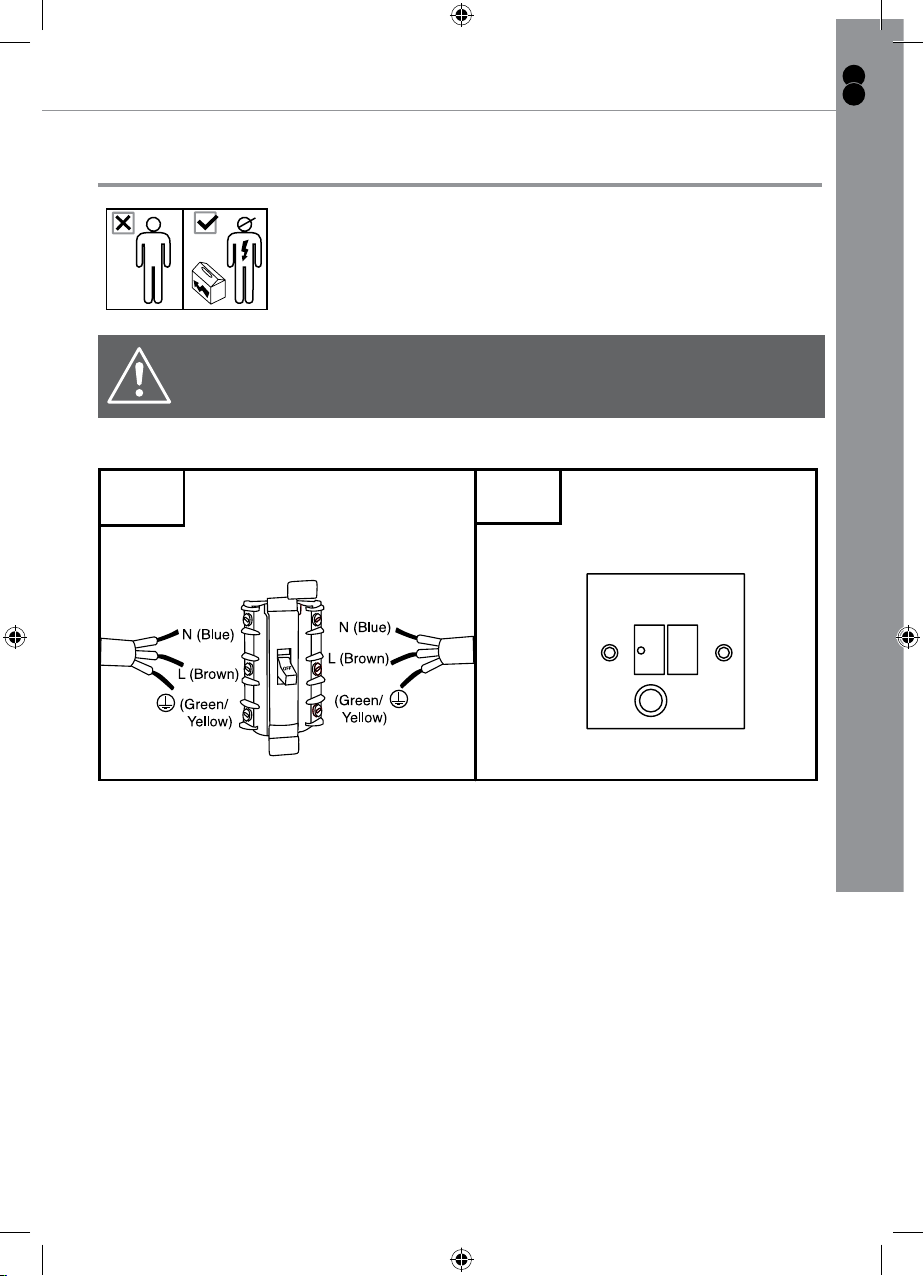

Means for disconnection must be incorporated
in the xed wiring in accordance with the wiring
rules. An all-pole disconnection switch having a
contact separation of at least 3 mm in all poles
should be connected in xed wiring.
WHTD90CL-C&L-A5 GB-IM-06.indd 7 11/20/13 10:03 AM

8
WHTD90CL 90 cm Downdraft Chimney Hood
Getting started...
GB
IE
Safety
Regularly check the power plug and power cord
for damage. If the supply cord is damaged,
it must be replaced by the manufacturer, its
service agent or similarly qualied persons in
order to avoid a hazard.
Do not allow the electric cables to touch the
hot parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
Do not use ammable sprays in close vicinity
to the appliance.
Please dispose of the packing material
carefully.
Do not use ammable sprays in close vicinity
to the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning
and maintenance sections for this appliance
carefully.
A steam cleaner is not to be used.
WHTD90CL-C&L-A5 GB-IM-06.indd 8 11/20/13 10:03 AM

9
Getting started...
WHTD90CL 90 cm Downdraft Chimney HoodGB
IE
Safety
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
Warning: Consult local regulations regarding
fumes outlets. Do not connect the hood to
that room ventilation is appropriate with the
local authorities. Make sure the maximum air
room does not exceed 4 Pa (0.04 mbar).
The air must not be discharged into a flue that
is used for exhausting fumes from appliances
burning gas or other fuels. Regulations
regarding air extraction must be complied with.
Warning: Before connecting the hood: switch
off the electricity supply and check that the
supplied voltage and frequency coincide with
that indicated on the appliance nameplate.
WHTD90CL-C&L-A5 GB-IM-06.indd 9 11/20/13 10:03 AM

10
WHTD90CL 90 cm Downdraft Chimney Hood
Getting started...
GB
IE
Safety
Warning: The hood may stop working during
an electrostatic discharge (e.g. lightning). This
involves no risk of damage. Switch off the
electricity supply to the hood and reconnect
after one minute.
Warning: This appliance is not intended to be
used with gas hobs.
regularly and closely watch and regulate pans
containing hot oil.
Do not use the hood if it shows signs of
damage or imperfection. Contact customer
services.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Warning
cleaning is not carried out in accordance with
the instructions.
WHTD90CL-C&L-A5 GB-IM-06.indd 10 11/20/13 10:03 AM

11
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood GB
IE
Operation
Product functions
• This appliance extracts the air of the kitchen to remove the odours and keep
an optimum level of the air quality inside the room, it also allows you to
illuminate the cooking area.
Switching on/off
• Switch on the appliance at the switched fused connection unit. The appliance
is ready for operation functions.
Touch control panel
This panel is located on the front part of the hood and includes:
Lighting on and off.
Extractor fan speed "-" control: 4 speed settings.
Digital display.
Extractor fan speed "+" control: 4 speed settings.
Lift button: press for 1.5 seconds, the extraction outlet will lift or
go down depending on the starting position.
The light and extractor only can operate when the extraction outlet is in the
extended position.
To obtain the best results from your cooker hood it is recommended that you
leave it switched on for 15 minutes after you have nished cooking.
WHTD90CL-C&L-A5 GB-IM-06.indd 11 11/20/13 10:03 AM

12
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood
GB
IE
Aluminium lter replacement
Aluminium lters:
Use non-corrosive, liquid detergent or a stainless steel cleaner.
1 MONTH
MAX. 65˚C
Aluminium lters: to avoid res, clean thoroughly once a month. To do so,
remove the lters and wash with hot water and detergent. If using a dishwasher,
position the lters vertically to improve the cleaning process.
Important: Increase the lter cleaning/replacement frequency if the hood
is used for more than 2 hours a day. Always use genuine lters from the
manufacturer.
Care and maintenance
NOTE
This product cannot be re-circulated.
WHTD90CL-C&L-A5 GB-IM-06.indd 12 11/20/13 10:03 AM

13
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood GB
IE
Troubleshooting
Troubleshooting
Fault Cause Solution
Hood doesn’t
work.
No power supply. Check the plug.
Check the main switch.
Poor airow. Aluminum grease lters
are dirty.
Clean the lters. See Care and
maintenance section.
Motor running,
but no airow.
Buttery valve jammed. Repair to be carried out by
qualied service personnel only.
After running for
a while, motor
stop working.
High temperature safety
device activated.
Ensure that the vent kit is tted to
the manufactures instructions.
Distance between the
cooker hood and the hob
is too small.
Readjust the distance to:
Electric hobs: 650mm
Whirring sound. Fan blade probelm. Repair to be carried out by
qualied service personnel only.
NOTE
If the lamp is failed please contact the after-sales care.
WHTD90CL-C&L-A5 GB-IM-06.indd 13 11/20/13 10:03 AM

14
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood
GB
IE
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Technical specications
Supply voltage 220-240V~, 50Hz
Power consumption - Fan 198W
Power consumption - Luminary 2x 2W Max
Power consumption - Total 202 W
Protection class I
Light bulb Max. 2 W (LED)
Recycling and disposal
Technical and legal information
WHTD90CL-C&L-A5 GB-IM-06.indd 14 11/20/13 10:03 AM

15
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood GB
IE
Technical and legal information
Wiring
All installation work must be carried out by a competent
person or qualied electrician.
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct Connection
USE A 3AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
FUSE ON
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an omnipolar circuit-
breaker must be installed with a minimum opening of 3mm between contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies with wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is
damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
WHTD90CL-C&L-A5 GB-IM-06.indd 15 11/20/13 10:03 AM

16
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood
GB
IE
Technical and legal information
The Manufacturer declines all liability for damage caused to persons and objects
due to incorrect or improper installation of the appliance.
Electrical Requirements
Any permanent electrical installation must comply with the latest I.E.E. regulations
and local electricity company regulations. For your own safety a qualied
electrician or contractor who is on the roll of the National Inspection Council
for Electrical Installation Contracting (NICEIC) should undertake the electrical
installation.
Electrical Connection
Before connecting the mains supply ensure that the mains voltage corresponds to
the voltage on the rating plate inside the appliance.
WARNING: THIS APPLIANCE MUST BE EARTHED
The appliance is supplied with a 3-core mains cable and must be connected to
the electricity supply via a double pole switch having a 3mm minimum contact gap
on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the following code:
Brown = L - Live
Blue = N - Neutral
Green/Yellow = - Earth
The connection point must be placed in a position adjacent to the appliance so as
to be readily accessible for an engineer in the event of a breakdown.
Technical and legal information
WHTD90CL-C&L-A5 GB-IM-06.indd 16 11/20/13 10:03 AM

17
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood GB
IE
Guarantee
Guarantee
This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
All claims must be supported with the original receipt or other reasonable proof of
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed
by the engineer approved by GAA then we reserve the right, at our discretion, to
exchange the defective product with a replacement appliance at GAA’s sole cost.
If the same product is no longer available an alternative will be offered with the
same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance of the
GAA guarantee will be valid and any further call outs during this prescribed period
will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to repair
the appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and France but
is not transferable between EU countries.
This guarantee is non-transferable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not diminish
your legal rights.
Extended parts only warranty
As testimony to our commitment to you as a valued customer of Cooke & Lewis,
we will offer you an additional 3 years parts warranty absolutely free.
If during the extended parts warranty period the appliance fails and it is considered
uneconomical to repair our Customer Service Department will offer you the
opportunity to purchase the same or equivalent model at a discounted price.
All parts supplied free of charge under the extended warranty must be tted by
our approved engineers and will be subject to a call out charge to t the part.
WHTD90CL-C&L-A5 GB-IM-06.indd 17 11/20/13 10:03 AM

18
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood
GB
IE
Guarantee
Guarantee
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install, use or care of the products in accordance with the
manufacturer’s instructions - GAA will not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse, neglect,
wilful or accidental damage or act of god.
Normal wear and tear.
Consumable items such as carbon lters and bulbs.
Claims arising from non-domestic use or commercial environment.
Any gas appliance not tted by a gas safe qualied installer.
If no fault is found then GAA reserves the right to charge for the call out at the
going rate.
In the course of the service work carried out it may be necessary to remove the
built in appliance from its tted position. If the appliance is glued, grouted or
tiled in such a manner that it cannot be removed, it is the responsibility of the
customer/installer to remove and reinstall the appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAA Ltd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contact customer services on the
following numbers.
UK & Northern Ireland Republic of Ireland (Eire)
Phone: [phone] Phone: [phone]
Email: [email protected]
Web: www.myspareparts.co.uk
WHTD90CL-C&L-A5 GB-IM-06.indd 18 11/20/13 10:03 AM

19
In more detail...
WHTD90CL 90 cm Downdraft Chimney Hood GB
IE
CE Declaration of Conformity
CE Declaration of Conformity
90 cm Downdraft Chimney Hood
David Sala
Technical Manager
WHTD90CL
APPLIED INTERNATIONAL TECHNICAL
STANDARDS AND SPECIFICATIONS: ISO9001.2008
PLACE: Torelló
MACHINE APPLICATION:
TYPE:
EC DIRECTIVES APPLIED:
APPLIED HARMONIZED
STANDARDS:
We hereby certify that the mentioned accessory complies with the essential requirements of the
European Directives applicable, including their modifications and the corresponding transpositions
from the national law.
Standard EN 60335-1 Safety of household and similar electrical appliances
Standard EN 60335 part 2-31, particular requirements for range hoods
Standard EN 55014 Limits and methods of measurement of radio disturbance
Standard EN 61000-3-2 Electromagnetic compatibility limits for harmonic
Standard EN 61000-4-5 Electromagnetic compatibility (EMC)
Comply with the European Directives 2006/95/CE: LVD and
the 2004/108/CE: EMC
2011/65/EU:RoHS
MANUFACTURER: CATA
ADDRESS:
C/ Ter nº 2, Torelló 08570 - Barcelona (Spain)
This appliance respects laws of the suppression of radiointerference.
As the Manufacturer has a policy of continuous product improvement, it reserves
the right to adapt and carry out any modication considered necessary without
prior warning.
B&Q plc,
Chandlers Ford, Hants,
SO53 3LE United Kingdom
www.diy.com
WHTD90CL-C&L-A5 GB-IM-06.indd 19 11/20/13 10:03 AM

20

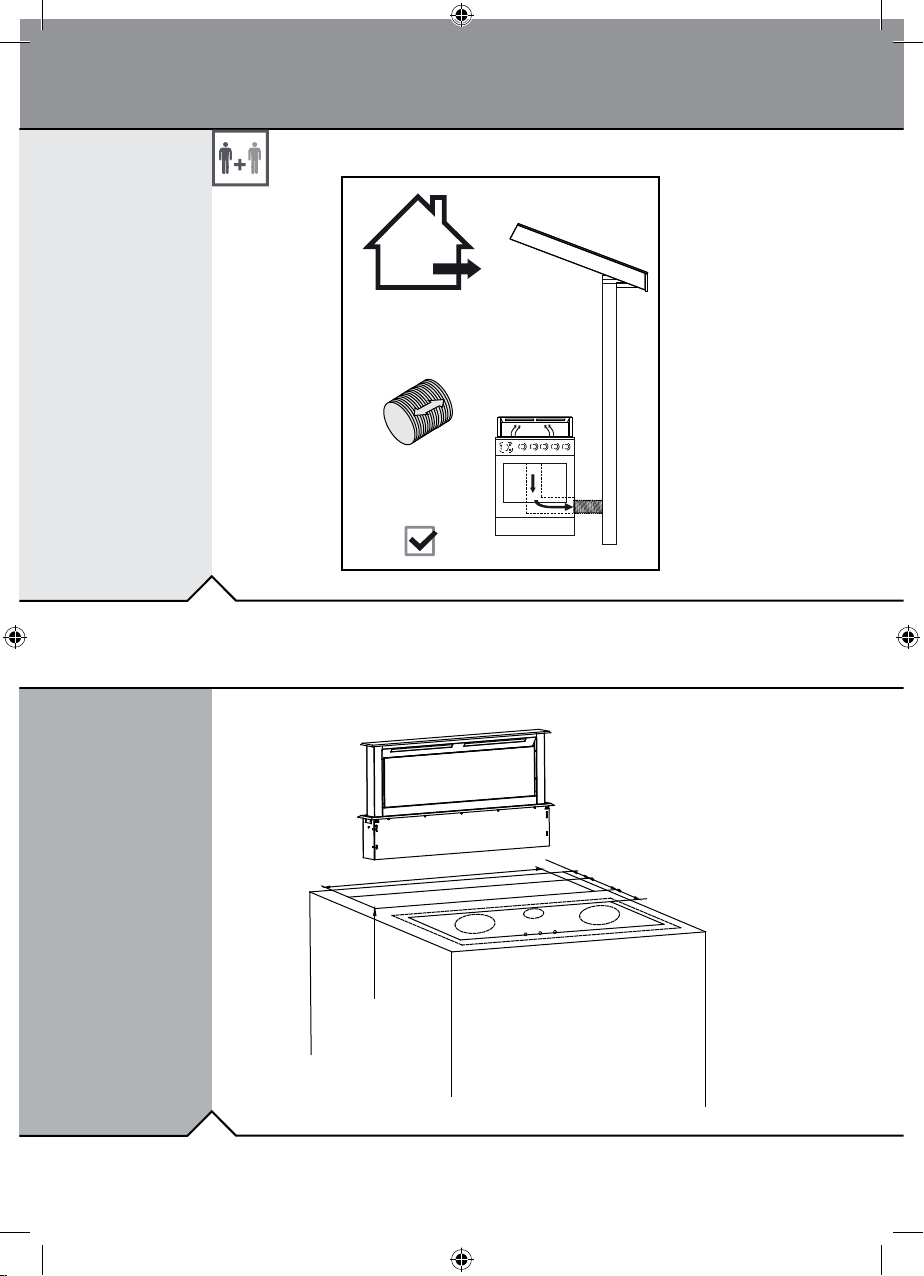

Installation
01
You can only choose the ducted option as the type of installation.
DUCTED OPTION
(UK + IE)
VENT PACK 2
02
Mark and cut a hole in the worktop using the dimensions shown above.
868
min 10 98 40
Depth: 750-800
WHTD90CL-C&L-A5 GB-IM-06.indd 20 11/20/13 10:03 AM
