Cooke & Lewis IHB40CL Instruction Manual

42cm Box Island Hood
IHB40CL - Version: 03
GB IE 42cm Box Island Hood - Barcode: 5052931258697
WARNING: Read the instructions before using the appliance.

[01] x 1 [02] x 1
[03] x 1
IHB40CL 42cm Box Island Hood

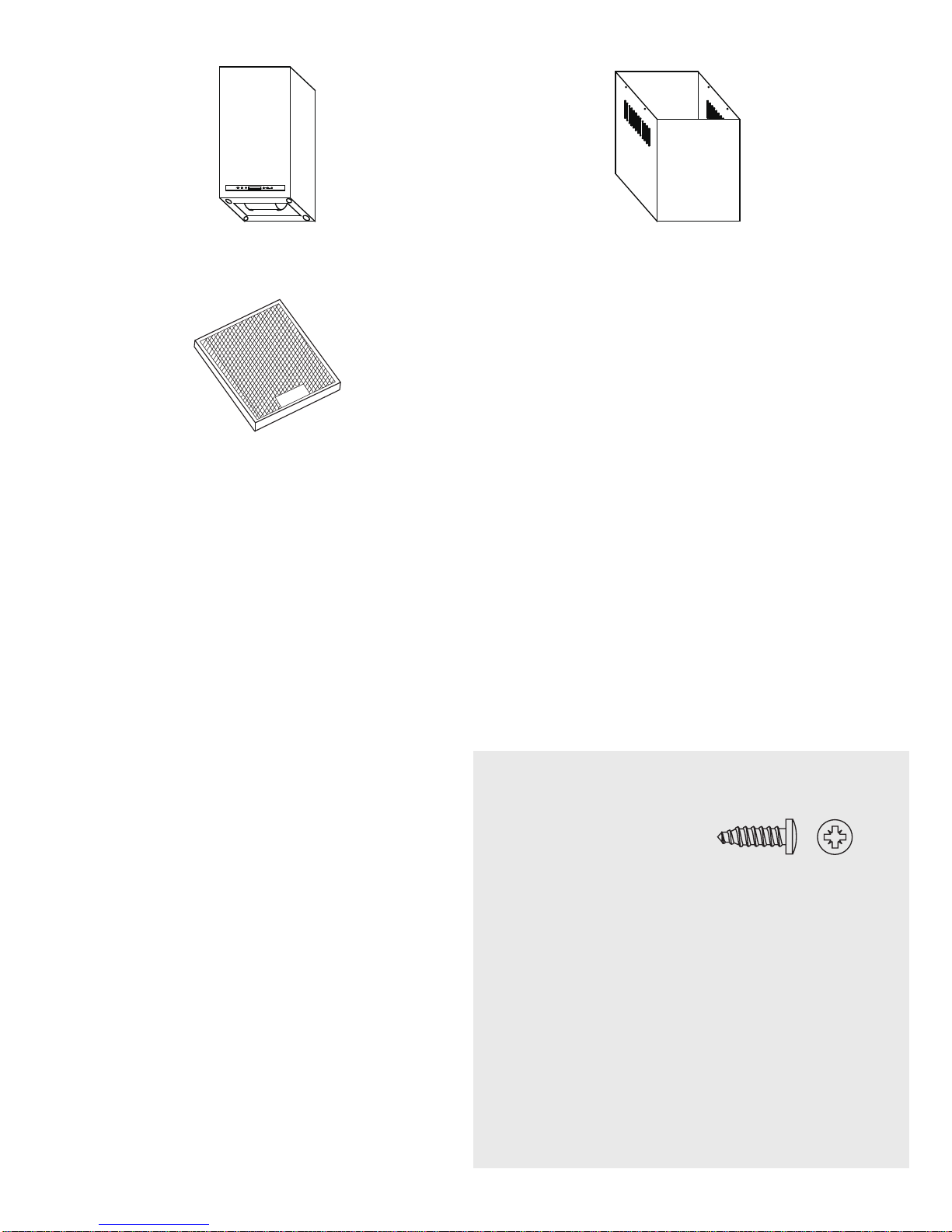

[04] x 12 (3.5 x 9.5mm)
1 : 1

4
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 04
Your product 05
Before you start 05
Safety 06
In more detail… 11
Operation 11
Care and maintenance 13
Troubleshooting 15
Recycling and disposal 16
Technical and legal information 16
Guarantee 19
CE Declaration of conformity 21
Appendix...
GB
IE
Installation 22
Information for EU66 27

5
Getting started...
IHB40CL 42cm Box Island Hood GB
IE
Your product
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this cooker hood is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards. We
recommend that you keep this instruction booklet for future reference and
pass it on to any future owners. After unpacking the cooker hood please
check that it is not damaged. If in doubt, do not use the appliance but
contact Customer Services on 0344 800 1128 (UK), 0144 75261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
prevent personal injury or damage to the product.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
You will need
Your product
Before you start
Installation guide
located at the end of
the guidebook

6
IHB40CL 42cm Box Island Hood
Getting started...
GB
IE Safety
Before you start

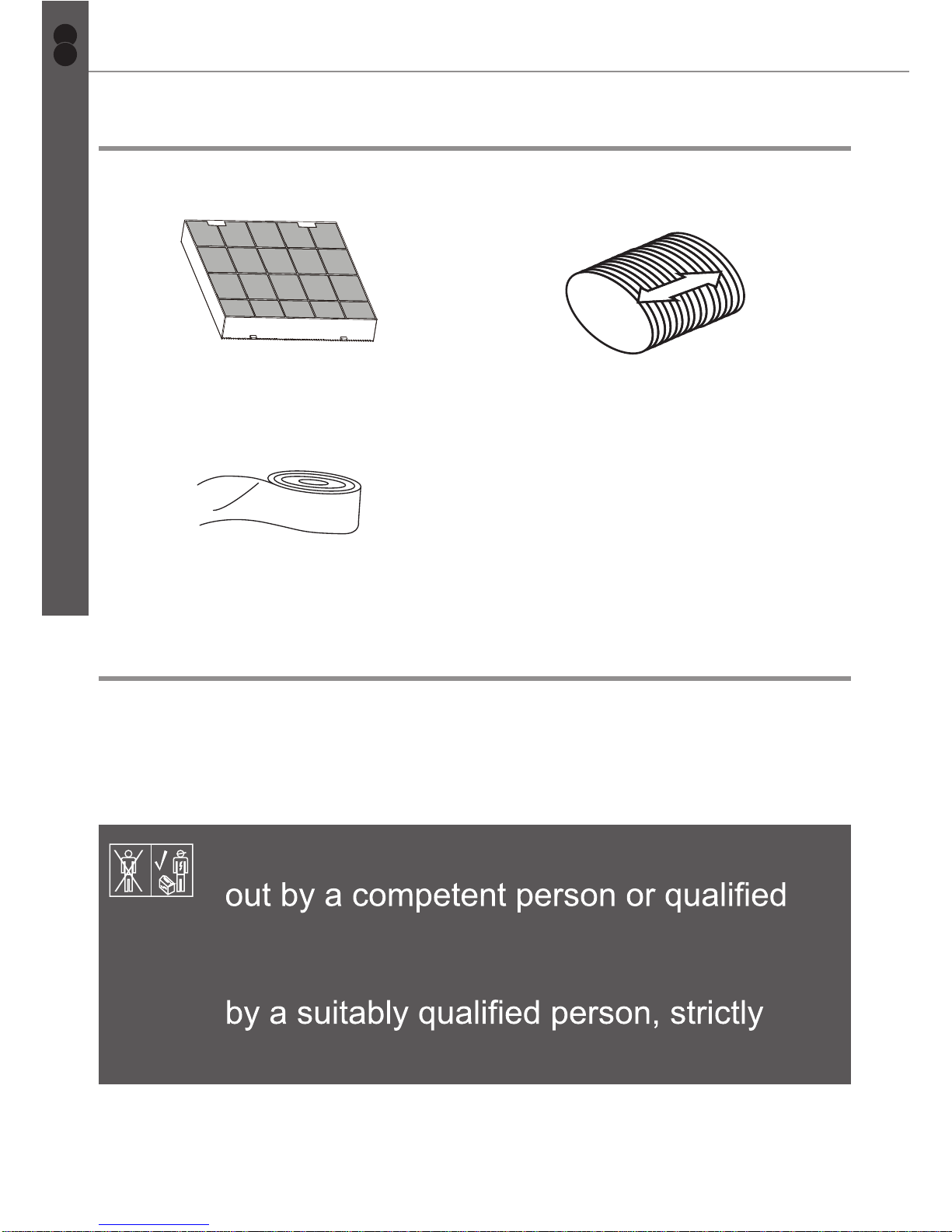

Accessories not supplied
Recirculation Extraction
CARBFILT 6 (UK & IE) Ø150mm
VENT PACK 2 (UK & IE)
SELF ADHESIVE
ALUMINIUM TAPE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
•All installation work must be carried
electrician.
•This appliance must be installed correctly
following the manufacturer’s instructions.

7
Getting started...
IHB40CL 42cm Box Island Hood GB
IE
Safety
Thisappliancecomplies withall currentEuropean
safetylegislation,however,theManufacturermust
emphasise that this compliance does not prevent
the surfaces of the appliance from heating up
during use and remaining hotduring itsoperation.
Accessible parts may become hot during use.
Young children should be kept away. Care should
be taken to avoid touching the appliance.
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies and
small children.
Thisappliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children unless they are older
than 8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.
Means for disconnection must be incorporated
rules. An all-pole disconnection switch having a
contact separation of at least 3 mm in all poles

8
IHB40CL 42cm Box Island Hood
Getting started...
GB
IE Safety
Regularly check the power plug and power cord
for damage. If the supply cord is damaged,
it must be replaced by the manufacturer, its
order to avoid a danger or injury.
Do not allow the electric cables to touch the
hot parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
to the appliance.
Please dispose of the packing material
carefully.
to the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning
and maintenance sections for this appliance
carefully.
A steam cleaner is not to be used.

9
Getting started...
IHB40CL 42cm Box Island Hood GB
IE
Safety
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
Warning: Consult local regulations regarding
fumes outlets. Do not connect the hood to
that room ventilation is appropriate with the
local authorities. Make sure the maximum air
room does not exceed 4 Pa (0.04 mbar). The
room must have adequate ventilation if an
extractor hood is used simultaneously with
appliances that run on gas or other fuels. The
used for exhausting fumes fromappliances
burning gas or other fuels. Regulations
regarding air extraction must be complied with.
Warning: Before connecting the hood: switch
off the electricity supply and check that the
supplied voltage and frequency coincide with
that indicated on the appliance nameplate.

10
IHB40CL 42cm Box Island Hood
Getting started...
GB
IE Safety
Safety
Warning: The hood may stop working during
an electrostatic discharge (e.g. lightning). This
involves no risk of damage. Switch off the
electricity supply to the hood and reconnect
after one minute.
regularly and closely watch and regulate pans
containing hot oil.
Do not use the hood if it shows signs of
damage or imperfection. Contact customer
services.
Flambe cooking must not be carried out
underneath this appliance.
When installing the appliance, make sure
that the following distances between the top
of cooker or hob and the lowest part of the
cooker hood must be observed:
> Gas hobs: 750mm.
> Electric hobs: 650mm.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Warning
cleaning is not carried out in accordance with
the instructions.

11
In more detail...
IHB40CL 42cm Box Island Hood GB
IE
Operation
Product functions
•This appliance extracts the air of the kitchen to remove the odours and keep
an optimum level of the air quality inside the room, it also allows you to
illuminate the cooking area.
Switching on/off
•Switch on the appliance at the switched fused connection unit. The appliance
is ready for operation functions.

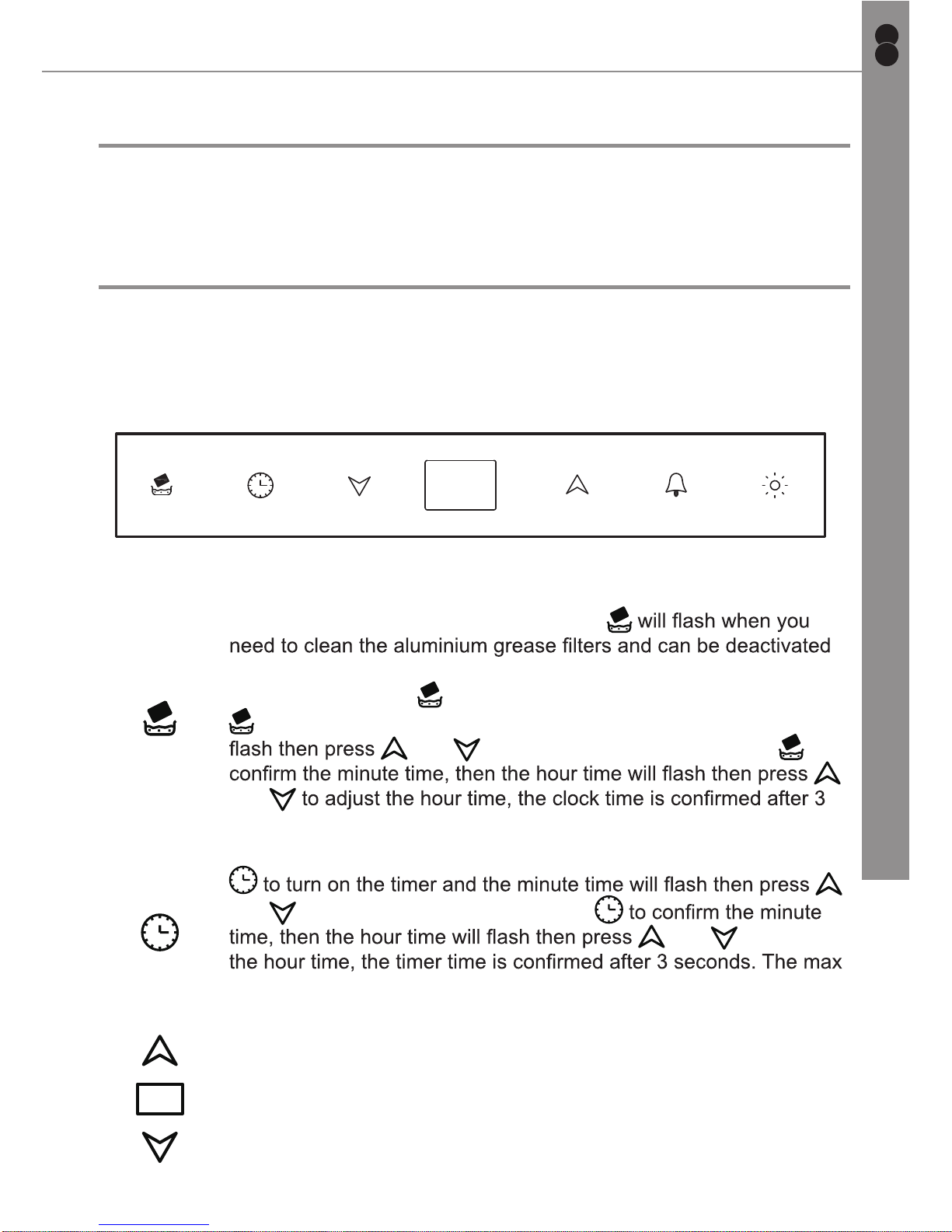

Touch control panel
This panel is located on the front part of the hood and includes:
Filter cleaning alert indicator/switch. Icon
with a single press.
Clock setting. Press to turn on the LED display and then press
for 3 seconds, the clock will be on and the minute time will
and to adjust the minute time, press to
and
seconds. The max clock setting time is 23:59.
Control for setting the timer of motor. When the motor is on, press
and to adjust the minute time, press and to adjust
setting time is 9:59. The extractor will operate at current speed for
the duration set on the timer.
Extractor fan speed and time "-" control: 4 speed setting.
Digital display.
Extractor fan speed and time "+" control: 4 speed setting.

12
In more detail...
IHB40CL 42cm Box Island Hood
GB
IE Operation
Switching on/off

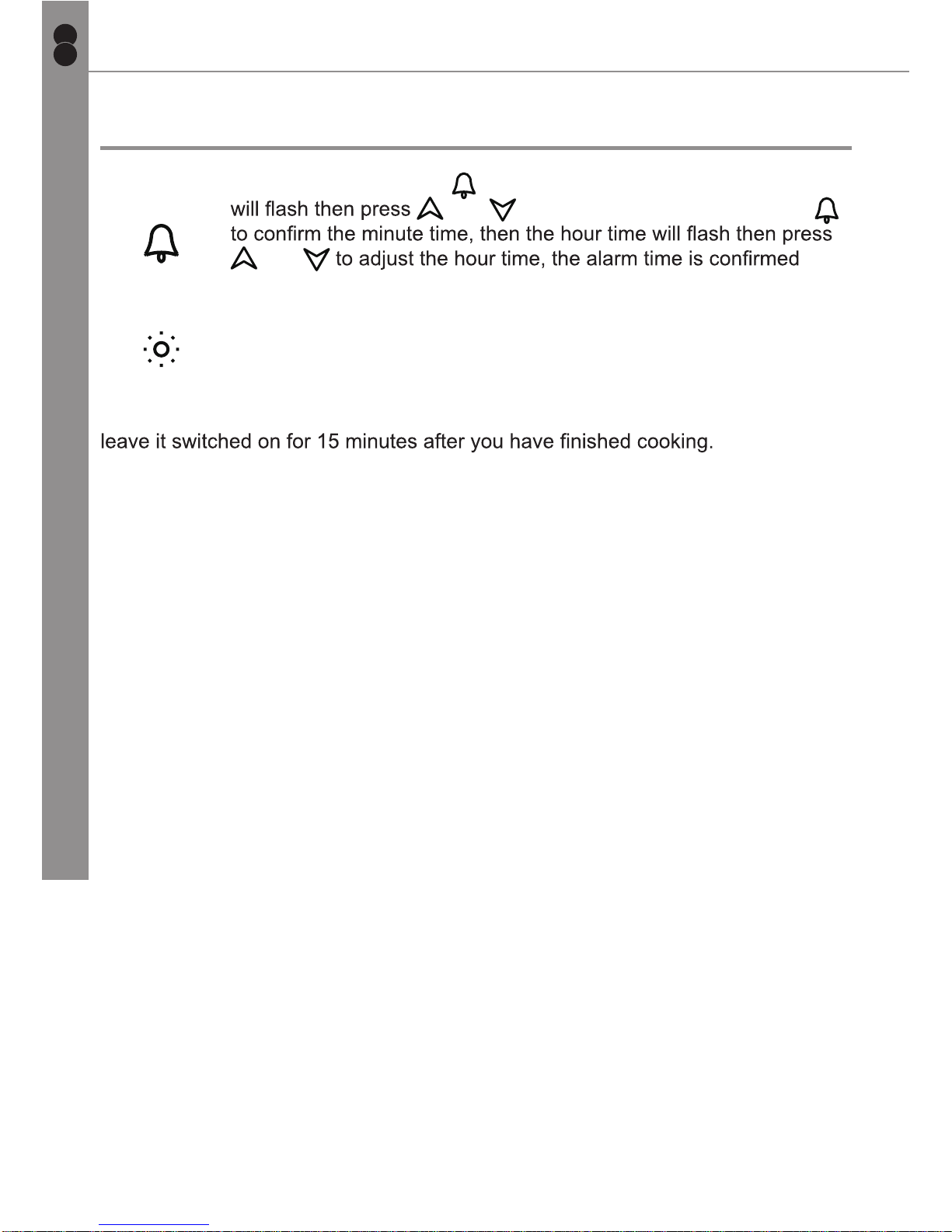

Alarm on and off. Press to turn on alarm and the minute time
and to adjust the minute time, press
and
after 3 seconds. The max setting time is 9:59. Press for 3 seconds
can cancel the alarm setting.
Lighting on and off.

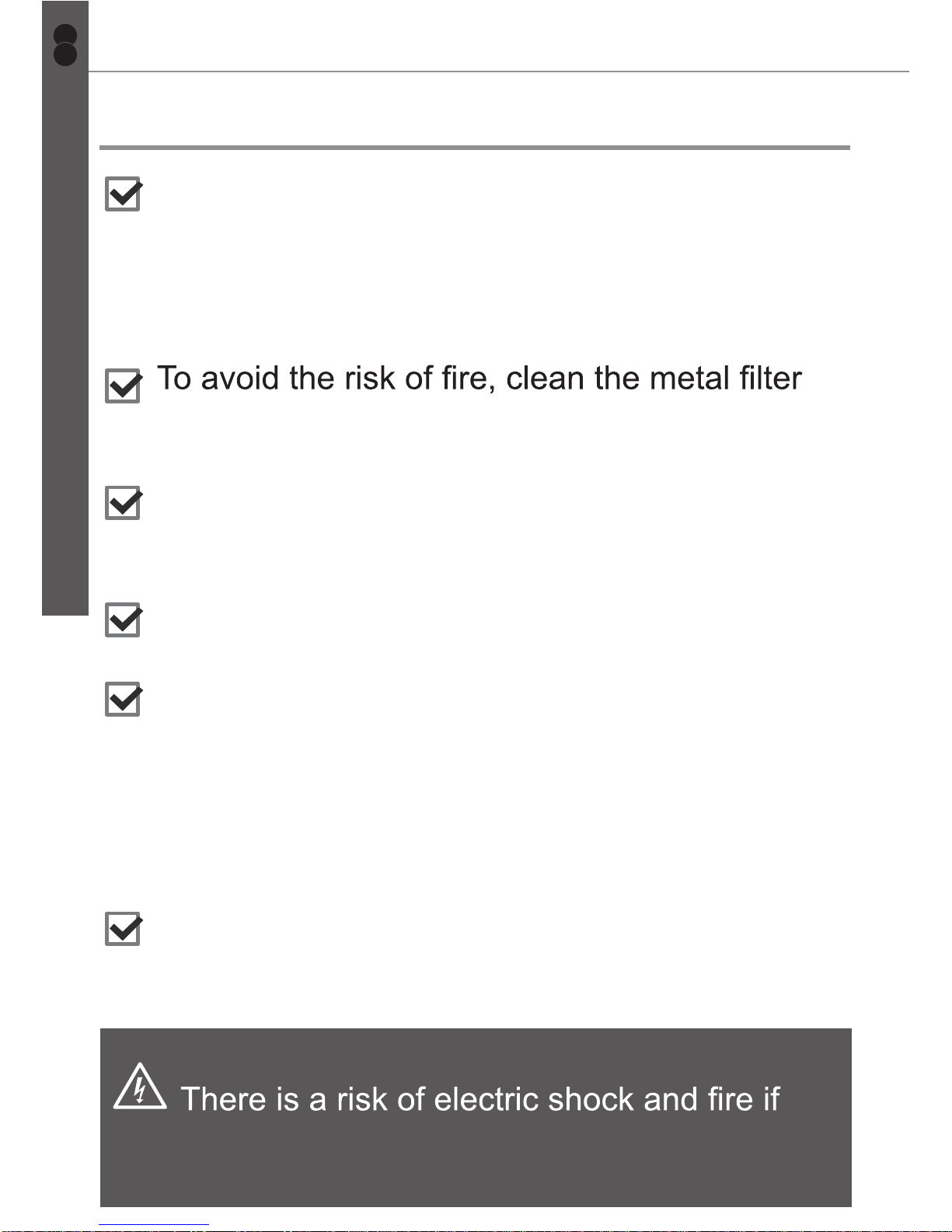

To obtain the best results from your cooker hood it is recommended that you

13
In more detail...
IHB40CL 42cm Box Island Hood GB
IE
Care and maintenance
Care and maintenance
OFF
Warning
always switch off the electricity supply before carrying
out maintenance work on the hood. In the event of a
fault, contact customer services.
FUSE

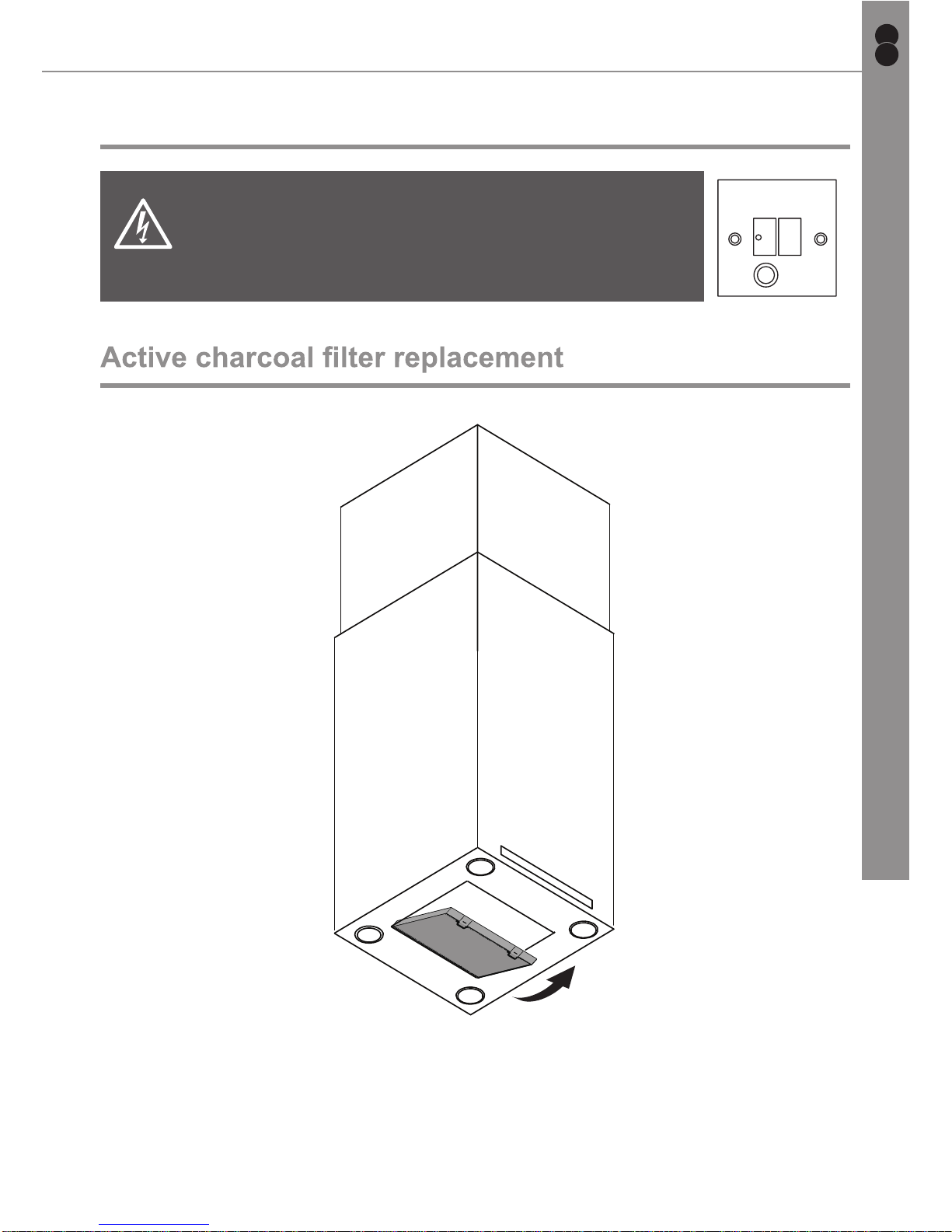

1 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED)
MODEL NUMBER CARBFILT 6 (UK & IE)
CARBON FILTER ORDERING HOTLINE
0344 800 1128 (UK), 0144 75261 (IE)

14
In more detail...
IHB40CL 42cm Box Island Hood
GB
IE

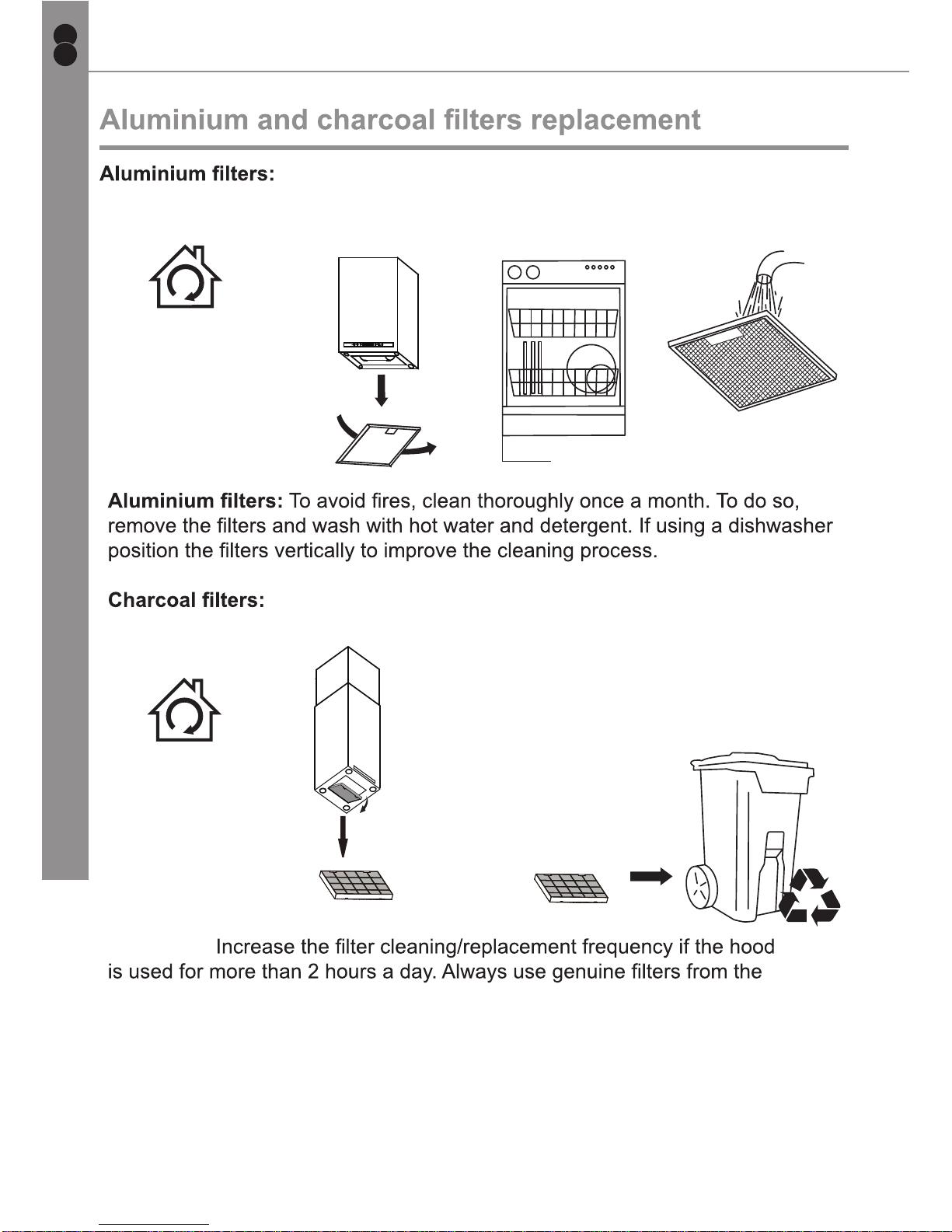

Use non-corrosive, liquid detergent or a stainless steel cleaner.
1 MONTH
MAX. 65˚C
,
replace every 3 months.
3 MONTHS
Important:
manufacturer.
Care and maintenance

15
In more detail...
IHB40CL 42cm Box Island Hood GB
IE
Troubleshooting
Troubleshooting

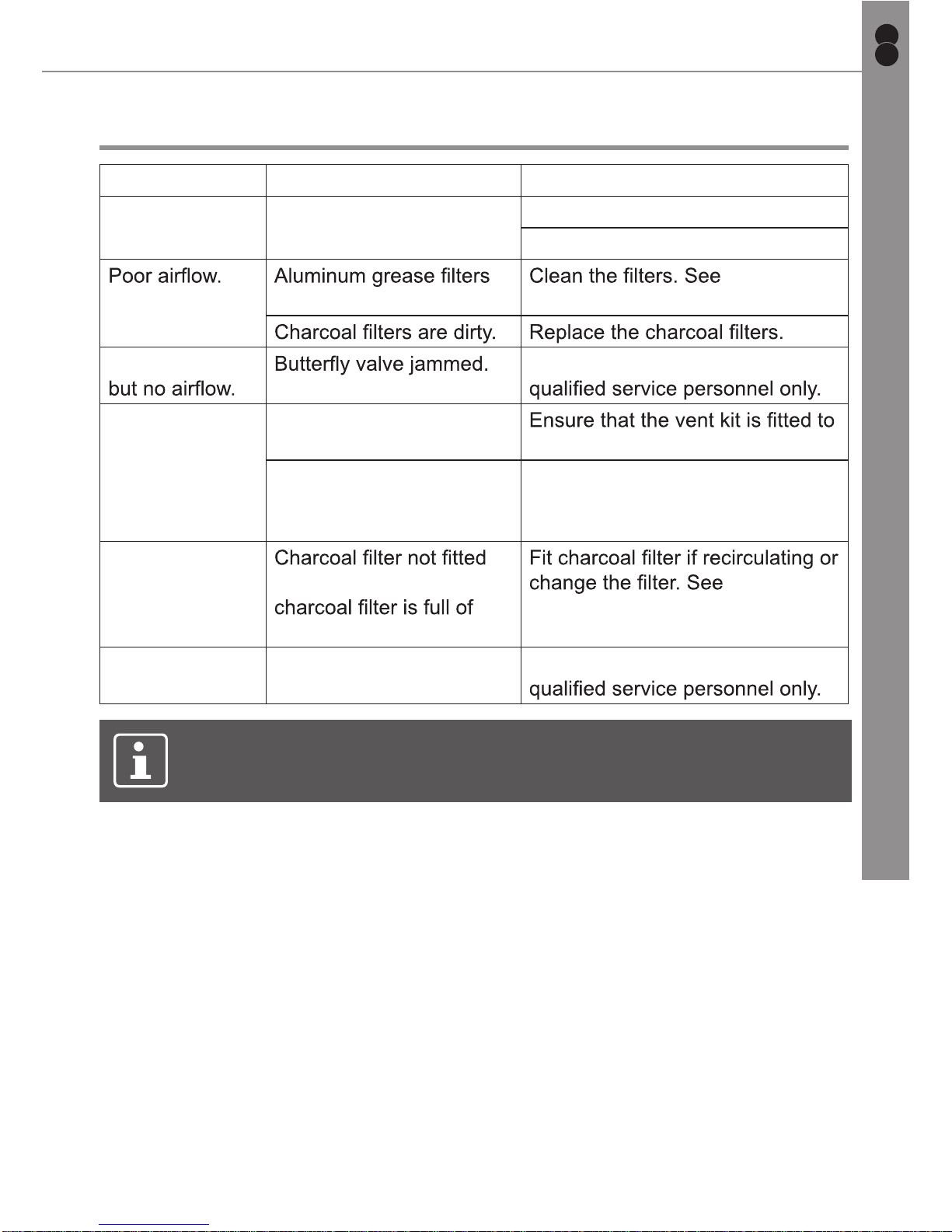

Fault Cause Solution
Hood doesn’t
work. No power supply. Check the plug.
Check the main switch.
are dirty. Care and maintenance section.
Motor running, Repair to be carried out by
After running for
a while, motor
stop working.
High temperature safety
device activated. the manufactures instructions.
Distance between the
cooker hood and the hob
is too small.
Readjust the distance to:
Gas hobs: 750mm
Electric hobs: 650mm
Works normally
but cooking
smells linger. in recirculation mode or
grease.
Care and
maintenance section.
Whirring sound. Fan blade probelm. Repair to be carried out by
NOTE
If the lamp is failed please contact the after-sales care.

16
In more detail...
IHB40CL 42cm Box Island Hood
GB
IE
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Supply voltage 220-240V~, 50Hz
Power consumption - Fan 198W
Power consumption - Luminary 4x 1W Max
Power consumption - Total 202 W
Protection class I
Light bulb Max. 1 W (LED)
Recycling and disposal
Technical and legal information

17
In more detail...
IHB40CL 42cm Box Island Hood GB
IE
Technical and legal information

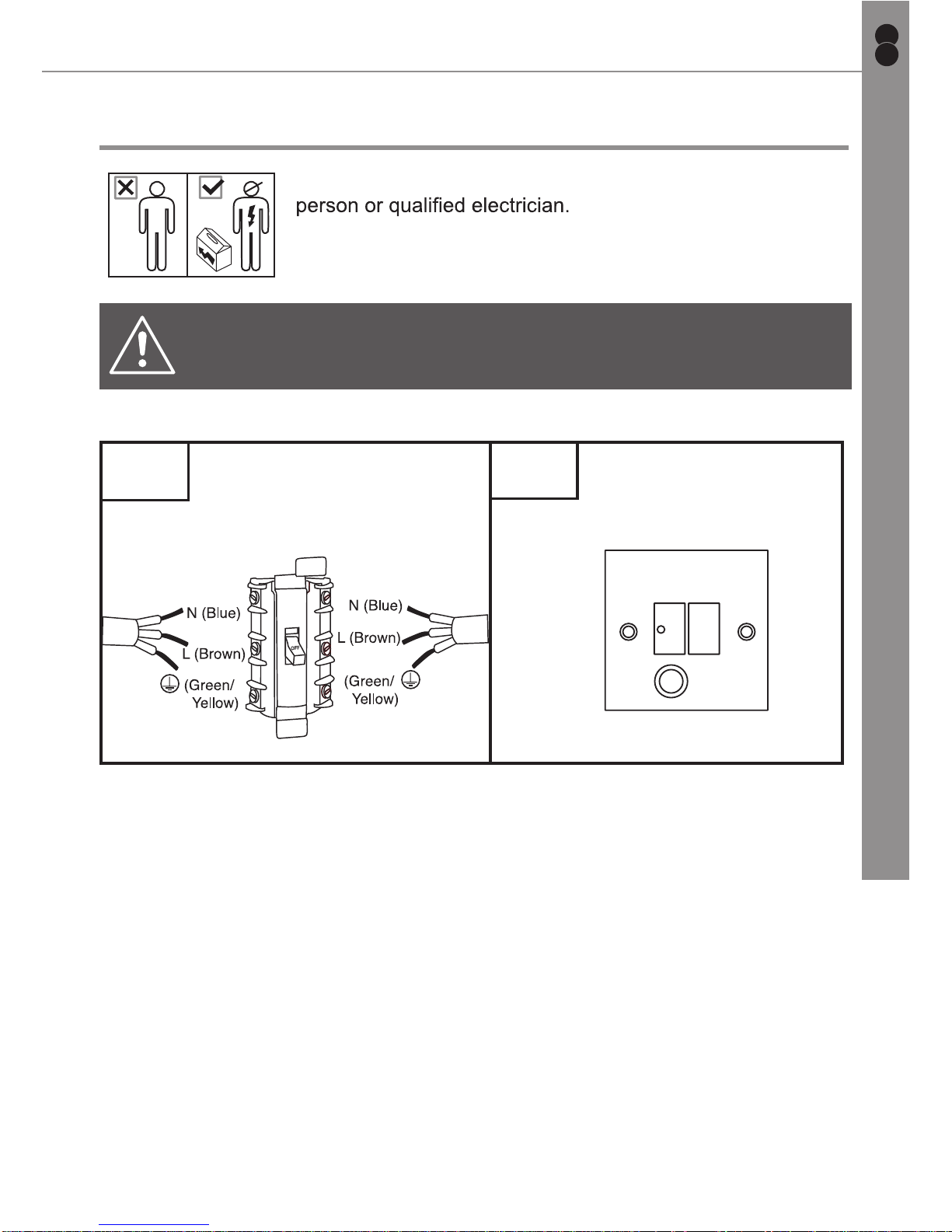

Wiring
All installation work must be carried out by a competent
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct Connection
USE A 3AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
FUSE ON
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an omnipolar circuit-
breaker must be installed with a minimum opening of 3mm between contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies with wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is
damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.

18
In more detail...
IHB40CL 42cm Box Island Hood
GB
IE
Technical and legal information
The Manufacturer declines all liability for damage caused to persons and objects
due to incorrect or improper installation of the appliance.
Electrical Requirements
Any permanent electrical installation must comply with the latest I.E.E. regulations
electrician or contractor who is on the roll of the National Inspection Council
for Electrical Installation Contracting (NICEIC) should undertake the electrical
installation.
Electrical Connection
Before connecting the mains supply ensure that the mains voltage corresponds to
the voltage on the rating plate inside the appliance.
WARNING: THIS APPLIANCE MUST BE EARTHED
The appliance is supplied with a 3-core mains cable and must be connected to
the electricity supply via a double pole switch having a 3mm minimum contact gap
on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the following code:
Brown = L - Live
Blue = N - Neutral
Green/Yellow = - Earth
The connection point must be placed in a position adjacent to the appliance so as
to be readily accessible for an engineer in the event of a breakdown.
Technical and legal information

19
In more detail...
IHB40CL 42cm Box Island Hood GB
IE
Guarantee
Guarantee
This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
All claims must be supported with the original receipt or other reasonable proof of
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed
by the engineer approved by GAA then we reserve the right, at our discretion, to
exchange the defective product with a replacement appliance at GAA’s sole cost.
If the same product is no longer available an alternative will be offered with the
same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance of the
GAA guarantee will be valid and any further call outs during this prescribed period
will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to repair
the appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and France but
is not transferable between EU countries.
This guarantee is non-transferable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not diminish
your legal rights.
Extended parts only warranty
As testimony to our commitment to you as a valued customer of Cooke & Lewis,
we will offer you an additional 3 years parts warranty absolutely free.
If during the extended parts warranty period the appliance fails and it is considered
uneconomical to repair our Customer Service Department will offer you the
opportunity to purchase the same or equivalent model at a discounted price.

20
In more detail...
IHB40CL 42cm Box Island Hood
GB
IE Guarantee
Guarantee
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install, use or care of the products in accordance with the
manufacturer’s instructions - GAA will not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse, neglect,
wilful or accidental damage or act of god.
Normal wear and tear.
Claims arising from non-domestic use or commercial environment.
If no fault is found then GAA reserves the right to charge for the call out at the
going rate.
In the course of the service work carried out it may be necessary to remove the
tiled in such a manner that it cannot be removed, it is the responsibility of the
customer/installer to remove and reinstall the appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAALtd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contactcustomer services on the
following numbers.
UK & Northern Ireland Republic of Ireland (Eire)
410:enohP*82110084430:enohP 475261
Email: [e-mail]
Web: www.spareszone.co.uk * Local call rates apply
