Cookworks MS3001AM Manual

Issue 2 27/08/2021 1
White Food Slicer
Model No.
M S 3001 A M
Care & Instruction Manual
For household and indoor use only
Please read these instructions before use and retain for
future reference

`
Issue 2 27/08/2021 2
ELECTRICAL SAFETY
•You should only plug the appliance into a 220V‐240V
AC, 50/60Hz supply. Connecting it to other power
sources may damage the appliance and will invalidate
the guarantee.
•Switch off and unplug when not in use and before
assembling, disassembling or cleaning the appliance.
•This appliance shall not be used by children Keep the
appliance and its cord out of reach of children.
•This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
•Children shall not play with the appliance.
•Keep motor housing, cable, and plug dry and away
from areas where it is likely to get splashed. Never
immerse in water.
•Do not pull on the cable to disconnect from the mains
supply.
•Do not operate the appliance if damaged or after it
malfunctions. In the event the supply cord is damaged,
in order to avoid a hazard it must only be replaced by
a qualified service engineer, with a suitably approved
part.
•This appliance must be positioned so that the plug is
accessible and the plug socket is within easy reach of
the power cord.
•Do not cover or block the ventilation holes.

`
Issue 2 27/08/2021 3
WARNING!
•This appliance is intended exclusively for use in
domestic households. It is not suitable for commercial
use.
•Keep hands away from the blade. This appliance must
only be used with the protective guide and the feed
tray fitted in position.
•Ensure all loose articles (e.g. necklaces etc.), clothing
(ties, scarves, sleeves etc.) and long hair are removed,
made secure or tied back when using the slicer.
•Any blade can be dangerous if misused. The slicer
blade is sharp, take care when assembling, using,
dismantling and cleaning.
•For storage and if left unattended for short intervals,
align the face plate to 0 on the thickness guide and
fold the base to protect against accidental contact
with blade.
•Only use with the parts supplied and for the intended
purpose of slicing food stuffs.
•Allow the motor housing it to cool fully before storing.
•For food safety, if using the food slicer with raw, cured
and cooked food dismantle and wash the slicer
thoroughly between uses.
•Do not try to slice bones, hard seeds or stones or food
in wrappers.

Issue 2 27/08/2021 4
PARTS
A. Motor h o u s in g
B. Adjustment knob
C. Face p l a t e
D. Slice thickness ga u g e
E. On/Off sw itc h
F. S a f e t y b u tt o n
G. Rotating blad e
H. Base
I. Power
c o r d
J. Feed tray with thumb
gu ard
K. Protective guide with
hand re s t
L. Blade
lo ck

`
Issue 2 27/08/2021 5

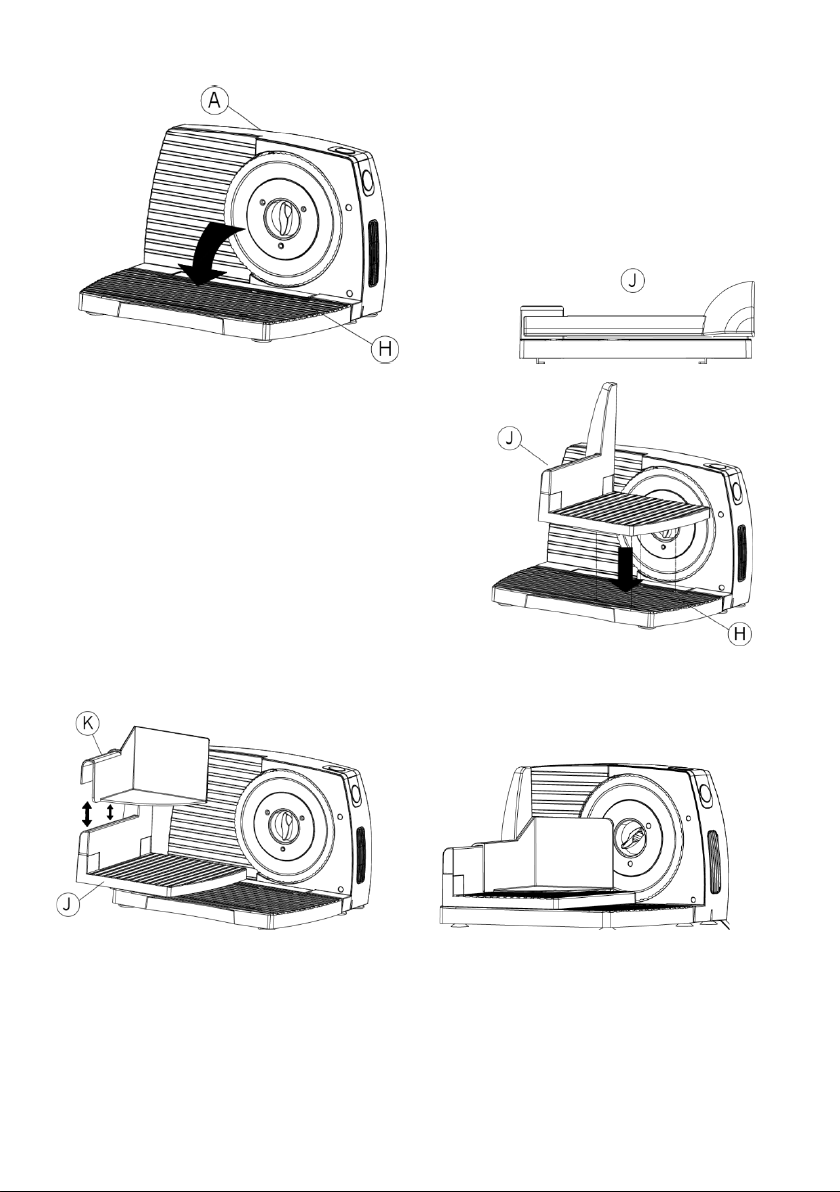

ASSEMBLY
1. Clean all parts of the food slicer
thoroughly before assembly.
2. Unfold the base (fig.1) and the
feed tray (fig. 1a).
3. Align the black arrow on the feed
tray with the arrow on the base
(fig.2) and slot the base into the
base. When correctly fitted the
feed tray will sit flush with the
base.
4. Fit the protective guide onto the feed tray as shown (fig.3)
5. The food slicer is now assembled for use (fig.4)
fig. 1a
fig.1
fig.2
fig.3
fig.4

`
Issue 2 27/08/2021 6
SLICING HINTS
•Before slicing meat or chicken, remove any bones, string or
skewers.
•Chilled meat will give neater slices than warm meat.
•For best results when slicing warm meat and poultry, allow
cooked meat to stand for at least 10 minutes before slicing.
This allows the juices to set and make slicing easier and
neater.
•If slicing raw fish or thin steaks, slice when partially frozen
(not frozen solid)
TO USE
1. Clean the slicer thoroughly before use.
2. Position the slicer so that it is at right angle to your body
with the adjustment knob end closest to you.
3. Check that the On/Off switch is set at the off (0) position.
4. Fully unwind the cable and plug in.
5. Turn the adjustment knob (fig. 5) to select the desired slice
thickness. Turning the knob will move the position of the
face plate. Turn the knob clockwise for thicker slices and
anticlockwise for thinner slices. The thickness can be set to
a specific width by aligning the edge of the face plate with
the thickness gauge marked on the top of the slicer.
6. Slide the feed tray away from the blade and slide the
protective guard away from the face plate (fig. 6)
fig.5
fig.6
Food location

`
Issue 2 27/08/2021 7
TO USE (CONTINUED)
7. Taking care not to touch the blade, place the food to be
sliced onto the feed tray between the protective guide and
he face plate (fig. 6).
8. Place a tray or some food wrap to the left hand side of the
slicer to catch the food as it is sliced (fig. 9).
9. Press the On/Off switch，the blade will not start to rotate
until the safety switch is pressed (fig.7).
10. With your right hand, hold the hand rest (fig. 8) of the
protective guide and apply a slight pressure onto the guide
to keep the food pressed against the face plate.
11. With your left hand to press the On/Off switch and safety
switch at the same time, the blade will now start to operate.
12. To slice the food, move the feed tray forward and backwards
across the blade in the direction shown in (fig. 9).
fig.7
fig.8
Thumb Guard
fig.9

`
Issue 2 27/08/2021 8
TO USE (CONTINUED)
13. Use the slicer for a maximum of 3 minutes. If further use is
required, wait 5 minutes before restarting the slicer.
14. To stop the slicer working, release the safety button and
ON/OFF switch allow the blade to come to a complete stop.
15. After use, unplug from the mains and place out of the reach
of children.
CLEANING
Clean the Food slicer thoroughly after every use.
1. Switch off and unplug the food slicer.
2. Reverse the assembly steps and lift off the protective guide
and feed tray.

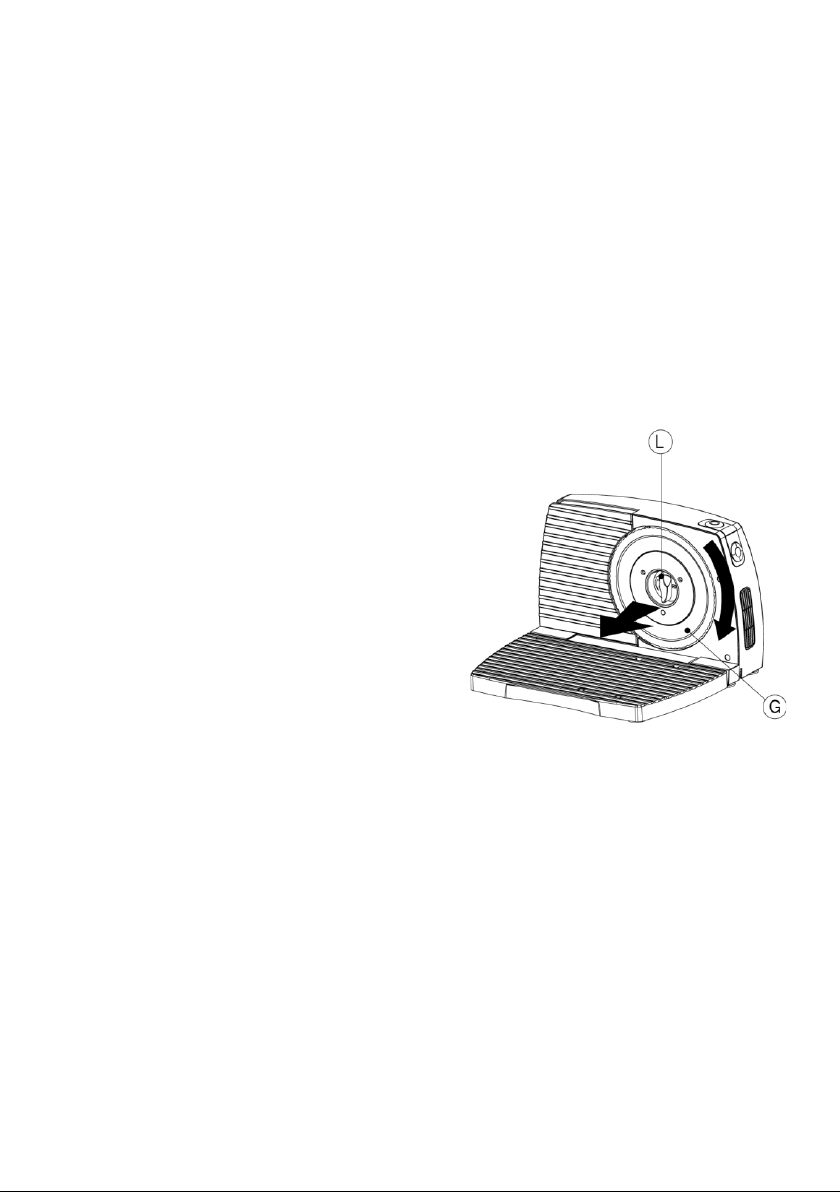

3. Turn the blade lock
CLOCKWISE to release and
then holding the blade lock
lift out the blade assembly.
4. The blade and all loose
parts (protective guide and
feed tray) may be washed
in hot water with a little
washing up liquid. Rinse
and wipe dry, taking care
not to handle touch the
edge of the blade. Not
suitable for dishwashers.
5. Wipe the outside of the motor housing and base with a
damp cloth, do not use detergent or abrasives as these may
scratch the surface.
6. Never immerse the motor housing, cable or plug in water.
7. Refit the blade (fig.11), line up the tabs on the blade
assembly with the slots in the small gear and once the
blade sits flush turn the blade lock ANTICLOCKWISE to
secure.
Fig.10
fig.10

`
Issue 2 27/08/2021 9
CLEANING (CONTINUED)
8. For storage align the face plate to 0 on the thickness guide
and fold the base (fig. 12) to protect against accidental
contact with blade. Place out of the reach of children.
fig.11 fig.12
Small Gear

`
Issue 2 27/08/2021 10
TECHNICAL SPECIFICATION
Cookworks White Food Slicer
Model
MS3001AM
Cat No
9375633
Rated Voltage & Frequency
220 –240V AC 50/60 Hz
Rated Power Input
150W
Maximum work time
3 minutes
Class rating
II (double insulated)
BS 1362 fuse
3A
Product dimensions (external)
32.4 x 28.6 x 21.5 cm
Product weight (net)
2.09 kg approx.
RECYCLING ELECTRICAL PRODUCTS
You should now recycle your waste electrical goods and
in doing so help the environment.
This symbol means an electrical product should not be
disposed of with normal household waste. Please
ensure it is taken to a suitable facility for disposal when
finished with.
Visit www.recycle-more.co.uk, click on “bank locator”
and enter your postcode to find your nearest recycling
site.

`
Issue 2 27/08/2021 11
PLUG / WIRING ADVICE
The wires in this mains lead are coloured in accordance with the
following UK electrical code: BLUE = NEUTRAL
BROWN = LIVE
Non-rewireable plug
This appliance may be fitted with a “non‐rewireable” plug. If you
need to change the fuse in a “non‐rewireable” plug, the fuse
cover must be refitted. If the fuse cover is lost or damaged, the
appliance must not be used.
Rewireable plug
The colours of the wires in the mains lead of this appliance may
not correspond with the coloured markings identifying the
terminals in a rewireable plug. Rewireable plugs should only be
replaced by a suitably competent person. If in doubt, consult a
qualified electrician.
The BLUE wire must be connected
to the terminal marked with the
letter N
The BROWN wire must be
connected to the terminal marked
with the letter L
Produced in China.
Argos Limited, 489-499 Avebury Boulevard, Milton
Keynes, MK9 2NW.
Argos (N.I.) Ltd, Forestside Shopping Centre, Upper
Galwally, Belfast, United Kingdom, BT8 6FX.
Argos Distributors (Ireland) Limited, Unit 7,
Ashbourne Retail Park, Ballybin Road, Ashbourne,
County Meath, Ireland
www.argos.co.uk/cookworks
