CoolGear CG-G1M4PHT User manual

4 Port Mini USB 3.2 Gen 1 Industrial Wide
Temperature Range Hub
Model Number: CG-G1M4PHT
Product Manual
Coolgear, Inc.
Version: 1
Date: 2023-12-06

Wide Temperature Range Hub – Product Manual
2
Table of Contents
1. Introduction 2
2. Connector Layout 3
3. Hardware Installation 4
4. Environmental Specifications 5
Revision History
Revision
Date
Comments
1.0
2023-12-06
First Release
1. Introduction
Thank you for purchasing the Coolgear 4 Port Mini USB 3.2 Gen 1 Industrial Wide
Temperature Range Hub, a cutting-edge solution designed to thrive in extreme
environments. Engineered to withstand temperatures ranging from -40 to 85 degrees
Celsius, this industrial-grade USB hub ensures uninterrupted connectivity in the
harshest conditions. Whether you’re in Arctic exploration, metal casting operations, or
any industry facing extreme temperature challenges, our hub delivers reliable and
resilient performance, making it an indispensable tool for mission-critical applications.
Features:
✔Temperature Resilience: Withstands an operating temperature range from -40 to
85 degrees Celsius, providing robust performance even in diverse environmental
conditions.
✔Industrial-Grade Durability: Constructed with a rugged steel shell, ensuring
durability and longevity in challenging settings such as manufacturing plants,
military applications, and more.
✔4 Port Connectivity: Offers four USB 3.2 Gen 1 ports, providing ample connectivity
for a variety of devices, instruments, and peripherals simultaneously.
✔Plug-and-Play Convenience: Simple and hassle-free installation, allowing for quick
integration into your existing setup without the need for complex configurations.
✔Reliable Data Transfer: Maintains consistent and reliable data transfer even in
extreme temperature fluctuations, ensuring seamless communication between
connected devices.
Need help? Visit: coolgear.com/support

Wide Temperature Range Hub – Product Manual
3
✔Versatile Industry Applications: Ideal for use in oil and gas operations, military
applications, mining, aerospace, and other industries where extreme temperature
resistance is paramount.
✔Compact and Space-Efficient Design: Streamlined form factor makes it suitable
for space-restricted environments while maintaining high-performance
standards.
✔LED Power Indicator: An Intuitive LED indicator provides a visual cue for power
status, enhancing user convenience and troubleshooting capabilities.
✔Optional surface mounting and DIN-Rail brackets included to mount it your way.

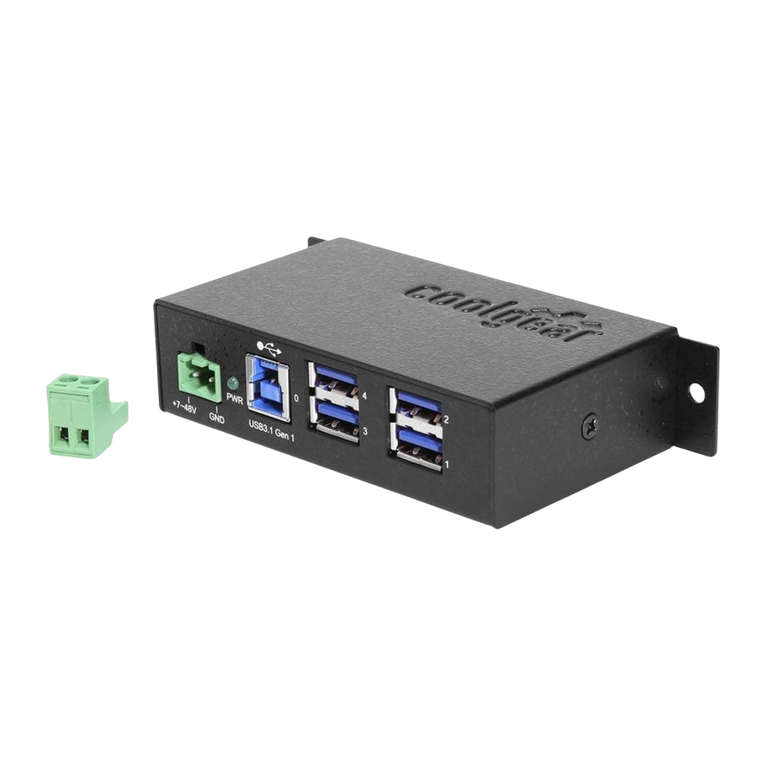

2. Connector Layout
1
Downstream Device Ports
4x USB 3.2 Gen 1 Female Type-A
2
Surface Mounting Bracket
Fixed Non-Removable
3
Power Connector
2-Pin Terminal Block
4
Upstream Host Port
USB 3.2 Gen 1 Female Type-B
5
Heat Sink
Removable
6
DIN-Rail Clip
Optional
Need help? Visit: coolgear.com/support

Wide Temperature Range Hub – Product Manual
4
3. Hardware Installation
1. Use static electricity discharge precautions. Remove possible static
discharge potential from any objects that the hub may come in contact with
before installation. This can be accomplished by touching a bare metal chassis
rail after you have turned off the power.
2. Apply DC power via the 2-Pin Terminal Block. +7~48V DC Input.
3. Connect USB Host cable: The host cable is a standard Screw-Locking A-to-B
USB 2.0 cable. Please connect the Type-A end connector of the cable to your
USB Host or PC, then connect the Type-B end connector to this hub. Since the
USB hub is plug-and-play, you don’t have to turn off your host computer when
installing the hub.
4. Connect USB devices to the downstream ports of this hub.
5. (OPTIONAL) Mount your hub on the desired surface using the optional surface
mounting plate. Or, mount your hon on a DIN-Rail using the included clips.
3.1 Surface Mounting
1. Attach the included mounting plate to the backside of the hub.
2. Mount your hub where needed through the included mounting plate. *Screws
for surface mounting not included
Need help? Visit: coolgear.com/support

Wide Temperature Range Hub – Product Manual
5
3.2 DIN-Rail Mounting
1. Attach DIN-Rail clip with the included screws.
2. Clip hub onto DIN-Rail.
4. Environmental Specifications
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% ~ 95% (non-condensing)
Notes
This product requires an external power source to function. If the
power LED is not illuminating after connecting, check that the power
source is connected to the hub correctly, and is powered on.
Safety
●Read the entire Product Manual before implementing this
product for your application. This manual contains important
information about electrical connections that must be followed
for safe and proper operation.
●Inspect the product closely for visual defects before putting it
to use.
●Keep away from areas where moisture builds, this product
contains electrical components that can be damaged by
moisture build up, this can adversely affect your equipment
connected to it.
●Do not disassemble the product. Handling the product’s
internal components can expose it to ESD (Electro-Static
Discharge) hazards that can affect the function of the device.
●If this product is not functioning properly, email our support
team at [e-mail].
