Cooling Edge CE98045C User manual

0
The Ozone Generator
Part Number: CE98045C
Please read all of the information provided in this
owner’s manual before operating your new Ozone Generator.
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
OWNER’S MANUAL

1
CAUTION
RISK OF ELECTRICAL
SHOCK DO NOT OPEN
ATTENTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVCE PERSONNEL.
This “bolt of lightning” indicates that uninsulated material
within your unit may cause an electrical shock. For the
safety of everyone, do not remove product covering.
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

2
Read ALL instructions carefully before using this product.
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

3
Model:
58888-4G
Rated Voltage:
DC 12V
Power Consumption:
40W
Ceramic Plate Size(1plate):
95X50MM
Air Volume:
Max 80 CFM(2.24 M3/min)
Active Oxygen(on) ：
4000 mg/h
Sound Level(DB):
30 dB
Product size(mm):
D 202 x W 148 x H 150 mm
Gross Weight:
2.5Kg
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

4
Operating the Commercial Purifier
(Front View)
Timer Control Knob Turn clockwise to set the
timer for timed operation up
to three hours.
Indicator Light Illuminates when unit is in
operation.
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

5
(Back View)
Power Cord
Pre-filter
CE98045CPC Car Cigarette ( 1.5 meter length)
CE98045CP AC adapter for 110-230v
Stainless steel pre-filter for filtration
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

6

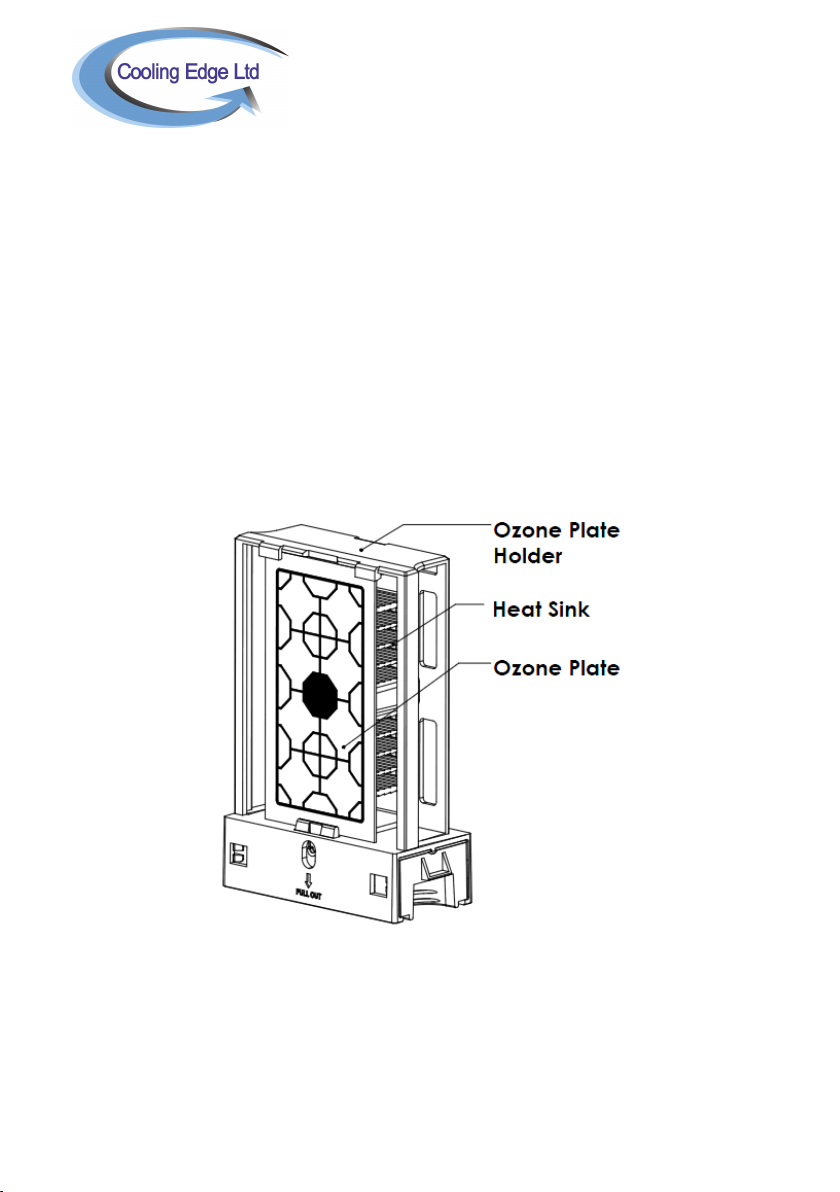

( Replugable Ozone module in the bottom of machine )
➢New design for replugable ozone module,
➢Ozone plate, heat sink, plastic holder all in one part.
➢No any screws, easy to clean and replace it only by hand.
➢Utilizing controlled corona discharge ozone technology
developed.
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
CE98045P Ozone Plate
Vehicle Air Conditioning
Equipment and Training Services

7
The Commercial Air Purifier is designed:
1. Remove bacteria and viruses, formaldehyde, benzene, toluene,
heavy metal pollution etc.
2. Remove the smoke smell, dog smell, molds etc.
3. After disinfection the ozone can be automatically decompose, no
smell, no residue. It does not contain chemicals harmful to humans,
and has no effect to the environment; Does not remain any harmful
substance, no second pollution caused by cars. Because ozone
can be decomposed into oxygen soon.
4. Car ozone disinfection machine let you to breathe again fresh air.
To operate the Car Air Purifier:
➢Park the car, ensures the car is unoccupied.
➢Close off the car windows
➢Open the car air conditioner
➢Connect the power cord to car cigarette plug of the car.
➢Set timer to desired time and leave the car
➢Keep the car door closed for 10-30 minute after the machine
stop working, the disinfection will be better
➢Return and open the window.
➢Turn off the machine and unplug the power cord from the
cigarette plug.
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

8
Warning: For high concentration ozone can damage to human
body, people shouldn’tstay in car when the ozone machine is
working. If people have to get on the car urgently, please turn off
the machine and open all the car windows for 5-10 minutes before
go into the car.
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

9
When the air purifier no longer produces enough ozone to be
effective, the ozone module should be replaced.(Usually it should
be replaced after working 6000 hours)
How to replace the ozone module:
➢Turn off the local power supply.
➢Pull out the ozone plate module directly by hand.
➢Install new ozone plate module
(Be careful not to drop the plate module).
Unit 9 Stanley Court, Edison Close, Waterwells Business Park Gloucester GL2 2AE
Tel: [phone] Email:[email protected]
Vehicle Air Conditioning
Equipment and Training Services

10
The commercial air purifier comes with a 2 Year Limited Warranty.
This device is warranted to be free from all defects in material in
normal use for a period of 1 year from date of purchasing. The
warranty is granted only to the original purchaser. This warranty
provides for the repair or replacement of the unit, replacement
product or parts may include re-manufactured or refurbished
parts or components.
This warranty does not cover part of the unit that requires
replacement under normal use. Any damages or malfunctions
caused by negligence, abuse, or use not in accordance with the
owner’s manual are not covered by this warranty. Likewise, any
defects or damages caused by unauthorized service.
