COP-USA AU40M User manual

3 Axis Joystick Keyboard
Manual
V1.0

- 1 -
CONTENTS
1. SUMMARY -------------------------------------------------------------------------------------------------------3
2. SPECFICATION --------------------------------------------------------------------------------------------------3
3. TECHNICAL PARAMETER -----------------------------------------------------------------------------------3
4. REAR PANEL -----------------------------------------------------------------------------------------------------3
5. FRONT PANEL-------- -------------------------------------------------------------------------------------------4
6. EXTERNAL CONNECTION -----------------------------------------------------------------------------------4
7. OPERATION SPECIFICATION---------------------------------------------------------------------------------4
8. KEYBOARD OPERATION -------------------------------------------------------------------------------------5
9. TROUBLESHOOTING -----------------------------------------------------------------------------------------14

- 2 -
IMPORTANT SAFETYGUARDS
Please observe the following safety measures, when install and use such product:
1. Please read and keep this manual.
2. The installation and maintenance of such product should be operate under the operation regulations by
professional.
3. Please do not install the product on the table or bracket unstably.
4. Please read carefully and understand the all information of this manual before install and use this product, and
keep it as a reference.
5. Please do not let any object fall into the product.
6. Use this product according to the warning sign and the direction.
7. Please pull out the power supply, before clear such product. Do not use the liquid or spray cleaner.
8. Only use the power supply style marked on the product: DC 12V/2.0A.

1. SUMMARY
Such Keyboard is a product supporting with Intelligence Dome Camera, decoder and other terminal
receivers. It connects to the receiver by EIA/RS-485 electric interface. Without the bus driver, one keyboard at
most to control 32 domes or decoders, and the longest communication distance is 1.2Km. the intelligence dome
camera can be controlled and setup expediently by such control keyboard, and it can also control the terminal
decoder directly, achieve the control to the Pan/Tilt, lens, light, wiper and other front equipments.
2. SPECFICATION
z5” color LCD screen, display the front four channel images directly
zBuild in four multiplexer, switch the image optionally
z3 Axis shift gears joystick
zOSD menu function
zIntegrated 16 protocols, baud rate range: 2400bps ~ 19200 bps
zRS-485 and RS-232 output, can control the many front equipments, including the intelligence dome camera,
decoder, Multiplex etc.
3. TECHNIQUE PARAMETER
zThe communication mode from dome camera to keyboard: Asynchronous Interface Half Duplex Serial
Communication
zBaud rate: 2400bps, 4800bps, 9600bps, 19200bps
zCommunication distance:: at most 1200 meters
zPower supply: DC12V/2.0A
zMeasure: 390×165×80 (mm)
zWeight: 2 Kg
zThe amount to control the Pan/Tilt or Dome: at most 32 pcs.
4. BACK PANEL
32:(5
*1''&9 7;'
,1
56287
*1' 
56
287
  
021
'&9
ķĸĹ
ĺ
Ļļ
Ľ
ľĿ
Figure 1
ķ DC power supply input: DC12V/2.0A.
ĸ RS232 output: to control the external Multiplexer
Ĺ RS485 output: to control the dome camera or the Pan/Tilt.
ĺ Video input: 4 video input port , to connect four camera or other standard video signal source.
- 3 -

Ļ 4-channel Looping camera video output: to connect to the assistant monitor
ļ Monitor output: to connect to the output end of the monitor
Ľ Impedance matching switcher: the corresponding impedance matching switcher should be switched to
the , when there is load of the looping output endĝ
ľ The adjust knob of the image brightness
Ŀ The adjust knob of the image color
5. FRONT PANEL
Figure 2
6. EXTERNAL CONNECTION
Do not cross connect the keyboard and other equipments, they should be connect by anode to anode and
cathode to cathode.
Figure 3
7. OPERATION SPECIFICATION
When the keyboard is powered on, there will be displayed the address of current dome, baud rate, protocol code
and version code, such information will be displayed for 10 seconds. If the user has known the information, can
operate the keyboard directly, such information will be disappeared automatically. If there are displaying the
information as follows:
CAMERA ID˖001
BAUD RATE˖2400BPS
PROTOCOL ˖P003
TV FORMAT˖PAL
VERSION ˖V1.2
- 4 -

It means the current address is 001, the baud rate is 2400bps, the protocol code is P003˄the corresponding
relations of the protocol code with the protocol will be listed in Table 2˅,the video format is PAL, the version code
is V1.2 After 10 seconds, it will be displayed to keyboard operation interface, the content of input data buffer ,the
control mode ,and the current address will be displayed at the furthest bottom of the screen. As the following
picture, the input data is 0000, keyboard is under speed dome mode(detail explain refer as CONTROL MODE
item in page 10 ), and the current address is 001.
- 5 -
! : Please setup the address, protocol and the baud rate of the keyboard same to the dome or Pan/Tilt,
before control it, or the dome or Pan/Tilt will out of control by communication failure.
DATA˖0000 DOME ID˖001
8. KEYBOARD OPERATION
8.1. SPPED DOME OPERATION
8.1.1. modify the dome camera address CAM
zpress number: “1-1024”
zpress key: CAM
After modify, the area of current address will display the address inputted
8.1.2. lens become wide: WIDE
8.1.3. lens become tele: TELE
8.1.4. focus become far: FAR
8.1.5. focus become near: NEAR
8.1.6. aperture become opening: OPEN
8.1.7. aperture become closing: CLOSE
8.1.8. setup the preset position: PRESET
zpress number: “1-128”
zpress: PRESET
8.1.9. call preset position CALL
zpress number: “1-128”
zpress: CALL
8.1.10. start up tracking
zpress number: “1-6”
zpress: SHOT
8.1.11. setup the left point of the line scanning
zpress: AUTO
zpress: ON
8.1.12. setup the right point of the line scanning
zpress: AUTO
zpress: OFF
8.1.13. running the line scanning

- 6 -
zpress: AUTO
zpress: SHOT
Explain: some protocols do not need to setup the line scanning, just run the line scanning directly. After running, if
the dome or Pan/Tilt is out of control, probably the protocol adopted doses not support line scanning
8.1.14. switch on the auxiliary function
zpress: FUNC
zpress number: “1-10” the function of different number refer the Table 1
zpress ON
Table 1喈if the function is out of control, probably such protocol is not support such operation喉
KEYBOARD OPERATION
NUM CONTROL OBJECT
FUNC+N+ON FUNC+N+OFF
0 Camera Power Supply/Reset On/ Off Switchable
Renew the Initial
Value of the Camera
1 Backlight Compensation On Off
2Zero Lux˄refer to camera function˅On Off
3Menu/Screen˄refer to camera function˅On Off
4 Digital Magnification On Off
5 reserved reserved reserved
6 Focus Auto Manual
7 Iris Auto Manual
8 Auto Manual
9 Indoor Outdoor
10
White Balance
ATW One Push WB
8.1.15. switch off the auxiliary function
zpress: FUNC
zpress: “1-10” the function of different number refer the Table 1
zpress: OFF
8.1.16. control of the dome / Pan/Tilt
Move the joystick until the camera reaches desired position. To reach the fastest spin of camera, move the
joystick utmost from center. Twist the joystick clockwise to zoom in and counterclockwise to zoom out.
8.1.17. the operation of keyboard menu
Press MENU to enter menu press and again to exit menu. After enter the menu, move the joystick up or down
to move the cursor up or down; move the joystick left or right to adjust the content of current menu. If the
option of PASSWORD is ON, the screen will display: ENTER PASSWORD:[ ], to tip user input the
6-digit password; If the option of PASSWORD is OFF, press MENU, to enter the MAIN MENU directly: The
factory default password is 111111. If you modify the password, please remember the new password firmly.

SYSTEM SETTING At “SYSTEM SETTING” item, move the joystick to right, display the submenu
“SYSTEM SETTING”. Move the joystick up or down to choose the menu item, and move the joystick right or
left to setup the parameter.
¾PROTOCOL At such item, move the joystick right or left to display: P000—P001—P002—P003—P004—
P005—P006—P007—P008—P009—P010—P011—P012—P013—P014—P015 16 kinds of protocols. The
corresponding of the protocol code and protocol name as following:
Table 2
CODE NAME
P000 A01
P001 B01
P002 SANTACHI
P003 PELCO-D
P004 PELCO-P
P005 PANASONIC
P006 LONGCOMITY
P007 HD600
P008 LILIN
P009 VICON
P010 MOLYNX
P011 KALATE
P012 VCL
P013 RESERVED
P014 ALEC
P015 ULTRAK
- 7 -

¾BAUD RATE At such item, move the joystick right or left to choice the four baud rates:
2400bps—4800bps—9600bps—19200bps

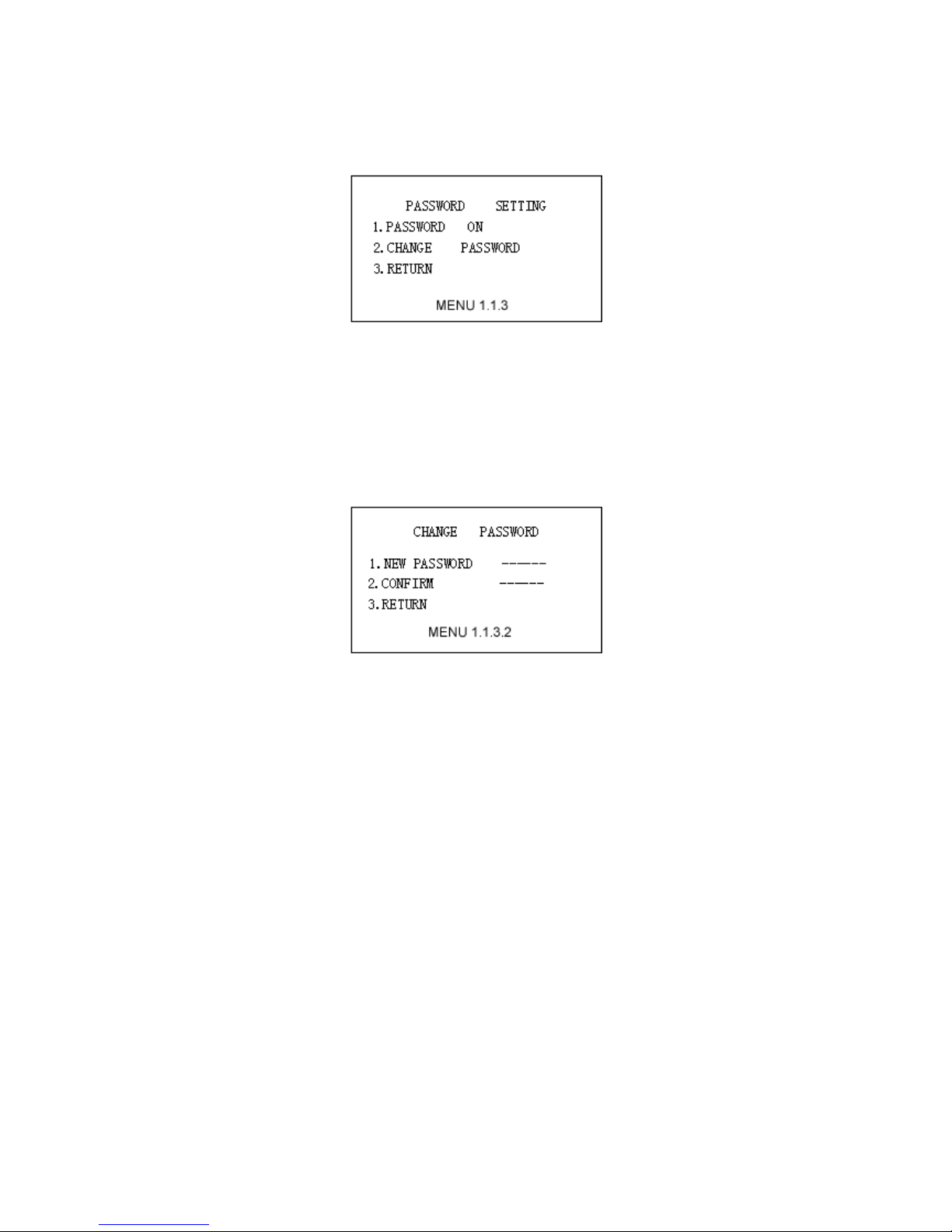

¾PASSWORD At such item, move the joystick right or left to display the submenu as following:
PASSWORD SETTING
¾PASSWORD ON/OFF At menu item “CHANGE PASSWORD”, move the joystick right, to switch the
ON/OFF of PASSWORD. If switch to ON, the user should input the 6-digit password to enter the menu next
time.
¾CHANGE PASSWORD At menu item “CHANGE PASSWORD”, move the joystick right, to display the
submenu as following:
CHANGE PASSWORD
¾NEW PASSWORD input the 6-digit password
¾CONFIRM confirm the 6-digit password at such item, press OPEN to confirm the password after input. If
the input 6-digit password same to the NEW PASSWORD, to display “PASSWORD CHANGED!”, or to
display “INVALID PASSWORD!” for 3 seconds.
¾RETURN move the joystick at such item, return to the menu (PASSWORD SETTING)
¾RETURN move the joystick at such item, return to the menu (SYSTEM SETTING)
¾RETURN move the joystick at such item, return to the menu (MAIN MENU)
CAMERA SETTUP At the main menu item “CAMERA SETTUP”, move the joystick right to display the
submenu “CAMERA SETTUP”. Move the joystick up or down to choice the menu item and move the joystick
right or left to setup the parameter.
- 8 -

¾BACK LIGHT ON move the joystick at such item right or left to switch the back light ON/OFF.
¾ICR SHOT AUTO move the joystick at such item right or left to switch the ICR SHOT ON/OFF.
¾IRIS AUTO move the joystick at such item right or left to switch the IRIS AUTO/MANUAL.
¾D-ZOOM ON move the joystick at such item right or left to switch the Digital ZOOM ON/OFF.
¾FOCUS AUTO move the joystick at such item right or left to switch the FOCUS AUTO/MANUAL.
¾WB SET AUTO move the joystick at such item right or left to switch the WHITE BALANCE SET
among AUTO—MANUAL—OUTDOOR—INDOOR—ATW—ONEPUSH.
¾COLOR OF CAM move the joystick at such item right or left to switch the camera image BW/COLOR.
¾MENU OF CAM switch the menu or screen ON/OFF.
¾RETURN move the joystick at such item right or left to return MAIN MENU
PROGRAM At the main menu item “PROGRAM”, move the joystick right to display the submenu
“PROGRAM”. Move the joystick up or down to choice the menu item, and move the joystick right or left to setup
the parameter.
¾AUTO PAN START POS move the joystick at such item right or left to set the current position of Pan/Tilt
or dome as the start point of the line scanning.
¾AUTO PAN END POS move the joystick at such item right or left to set the current position of Pan/Tilt or
dome as the end point of the line scanning.
¾RUN AUTO PAN NORMAL move the joystick at such item right or left to run the line scanning from the
start point to the end point.
¾SET PATROL move the joystick at such item right or left to change the tracking number among 01-06. To
- 9 -

press OPEN to enter the submenu of tracking edit. At such submenu, move the joystick right or left to move
the active cursor right or left, and move the joystick up or down to add or reduce the content of current menu
item. SEQ˖XX˄XX is the current editing tracking number˅, after edit the tracking, press CLOSE to exit and
save the current setup.
¾RUN PATROL move the joystick at such item right or left to change the tracking number among 01- 06.
And press OPEN to run the tracking.
¾RECORD PATTERN move the joystick at such item right or left to enter the RECORD PATTERN.
¾RUN PATTERN move the joystick at such item right or left to run PATTERN.
¾RETURN move the joystick at such item right or left to return the MAIN MENU.
CONTROL MODE At the main menu item “CONTROL MODE”, move the joystick right, and the keyboard
control will be switched between DOME and multiplexer. Such function aims to the two key: ON/LIVE and
OFF/TAPE. Or press FUNC+NEXT˄press such two keys tegether˅to switching between DOME and
multipelxer too. When the keyboard is powered on , the default state is CONTROL MODE.
8.2. the operation of image processor
8.2.1. full screen
8.2.2. picture in picture ˄invalid˅
8.2.3. four images
8.2.4. nine images ˄invalid˅
8.2.5. sixteen images ˄invalid˅
8.2.6. display the former image PREV
8.2.7. display the after image NEXT
8.2.8. auto jumping SEQ press again to cancel it
8.2.9. the menu operation of multiplexer
Notice: we setup the contents of menu before left factory, It is better do not change it. Especially the
PROTOCOL and BAUD of SYSTEM SET, or such behavior will lead the image processor out of control
( refer to SYSTEM SET option)
DŽ
8.2.9.1. the basic operation of menu
- 10 -

enter/ exit menu press FUNC & together˄for short FUNC+ ˅
move the menu cursor up press FUNC &
<
together˄for short FUNC+
<
˅
move the menu cursor down press FUNC &
<
together˄for short FUNC+
<
˅
enter the submenu SEQ
adjust the content of current menu TAPE
the operation of entering password as input 1-------- input number 1, and press CAM
as input 2-------- input number 2, and press CAM
as input 3-------- input number 3, and press CAM
as input 4-------- input number 4, and press CAM
8.2.9.2 the operation of menu
press “FUNC+ ”, display to input the purview password, the image is as following:
PASSWORD: [_ ]
Input the password: 1111, to enter the main menu:
MAIN MENU
1. SYSTEM SET
 &$0(5$6(7
 6&5((16(7
 (9(17/,67
 5(6(7'()$8/7
The system will exit the menu and return to the image before, after no operation for 3 mins.
SYSTEM SET select the item “SYSTEM SET” in main menu, and press “SEQ”, to display the submenu
“SYSTEM SET”. Use FUNC+
<
˅˄FUNC+
<
˅to move and choice the menu item, and use˄TAPE˅
to setup the parameter.
- 11 -
SYSTEM SET
TIME: 2006/03/04 16:43:16
FORMAT: ASIA [YYYY/MM/DD]
LIVE TIME DISP: TOP
BORDER DISP: GRAY
BACK COLOR: BLUE
BUZZER: OFF
ALARM TIME: 020 SEC
FREEZE TIME: 010 SEC
PASSWORD: 1111
TV FORMAT: PAL
PROTOCOL: PTC1 BAUD:9600(BPS) Do not modify this item , please!
DEVICE ID: 01(HEX)
QUTPUTFORMAT:CVBS

¾TIME˖system dateˈYYYY/MM/DD system timeˈHH/MM/SS.
¾FORMAT˖[ASIA˗U.S.˗EURO].
¾LIVE TIME DISP: the position of live time displaying [TOP˗TOP_LEFT˗TOP_RIGHT˗NON]
¾BORDER DISP˖border color [GRAY ˈWHITEˈBLACK ˈOFF].
¾BACK COLOR˖background color [BLUEˈBLACK].
¾VFILTER˖vision filter [ON: gentlenessˈOFF: clear].
¾BUZZER˖buzzer alert[ONˈOFF].
¾ALARM TIME˖the holding time for alarm outputDŽ[003ʊ255] seconds.
¾FREEZE TIME˖[000ʊ255] seconds, 000 second is mean freeze for unlimited time.
¾PASSWORD˖manager password [1111ʊ4444]ˈcan setup any four-digit among 1ʊ4.
¾FORMAT˖video format [PALˈNTSC]ˈPAL is the default.
¾PROTOCOL˖[PTC1,PTC2,PTC3,PTC4].
¾BUAD˖baud rate [1200,2400,4800,9600,19200]Bps.
CAMERA SET At main menu, choice the item “CAMERA SET”, and press “SEQ”, to display the
submenu “CAMERA SET”. Use˄FUNC+
<
˅˄FUNC+
<
˅to move and choice the menu item, and use
˄TAPE˅to setup the parameter.
CAMERA MENU
CAM1
PICTURE DISPLAY: YES
TITLE DISPLAY: YES
CAMERA TITLE: CAM1
AUTO TIME: 02 SEC
MIRROR: OFF
PICTURE QUALITY [ ]
SENSOR SWITCH: ON
SENSOR LEVEL: LOW
DETECT TIME: 00:00 – 23:59
MOTION SWITCH: OFF
MOTION SET: [ ]
DETECT TIME: 00:00 – 23:59
ALARM OUT
LOSS NO SENSOR:YES MOTION:YES
¾CAM˖the serial number of the camera image [1ʊ4].
¾PICTURE DISPLAY˖[YES ˈNO] .
¾TITLE DISPLAY˖the switcher of the camera name [YES: displayˈNO: disappear].
¾CAMERA TITLE˖edit the camera name, can use any 10 letters, digits or symbol.
¾AUTO TIME˖time of auto jumping [0ʊ99] seconds.
¾PICTURE QUALITY ˖[refer to “ setup the picture quality”].
¾SENSOR SWITCH˖[ON ˈOFF ].
- 12 -

¾SENSOR LEVEL˖the effective sensor level [HIGH: for high levelˈLOW: for low level].
¾DETECT TIME˖the detect time of sensor alarm.
¾MOTION SWITCH˖motion alarm switcher [ONˈOFF].
¾MOTION SET ˖the setup of motion alarm [refer to 䆺㾕“the setup of motion alarm”].
¾DETECT TIME˖the detect time of motion alarm.
¾ALARM OUT: (non)
¾LOSS˖the alarm output of the camera signal losing [YES ˈNO ]. (non)
¾SENSOR˖the alarm output of the sensor [YES ˈNO ] (non)
¾MOTION˖the alarm output of the motion [YES ˈNO ]. (non)
SCREEN SET(don’t need to adjust such item)
- 13 -
EVENT SET(don’t need to adjust such item)
SCREEN SET
OSD HORIZONTAL SET : 03
OSD VERTICAL SET : 01
PICTURE HORIZONTAL SET : 07
PICTURE VERTICAL SET : 03
PICTURE SCALE SET : 05
(DEFAULT)
EVENTLOG
NO CAM DATE TIME EVENT
001 :: 2006-3-1 14:07:01 P_ON
002 -- ------------ ---------- --------
003 -- ------------ ---------- --------
004 -- ------------ ---------- --------
005 -- ------------ ---------- --------
006 -- ------------ ---------- --------
007 -- ------------ ---------- --------
008 -- ------------ ---------- --------
009 -- ------------ ---------- --------
010 -- ------------ ---------- --------
PREVIOUS NEXT ERASE
¾NO: the recorder number of the alarm eventˈ001ʊ100, amount 100.
¾CAM: the camera image number of the alarm event.
¾DATE: the date of the alarm event.
¾TIME: the time of the alarm event.
¾EVENT: the reason of the alarm event.[P_ON, boot-strap alarm˗LOSSˈcamera signal losing alarm˗
MOTIONˈmotion alarm˗SENSORˈsensor alarm]
¾PREVIOUS: previous page. Ten recorders one page, amount 10 pages. Press “SEQ” to turn over the page.

NEXT: next page. Ten recorders one page, amount 10 pages. Press “SEQ” to turn over the page.
ERASE: erase all the alarm recorders, and record from 001 newly.
RESET DEFAULT press “SEQ” to confirm the YES to resume the setup left factory. And press “SEQ” to
confirm the NO to cancel it.
CONFIRM RESET
YES NO
9. TROUBLESHOOTING
Problem REASONS
PROBABLY Possible Solution
No Video No power supply
1 Check the connection of power line
2 If the power supply is DC12V
3Check the video connection
Can not control the appoint dome
I forgot my Password Use the Master Password : " 760824"
or Pan/Tilt
1Incorrect protocol
2Incorrect baud rate
3 Incorrect address
1 The protocol is same between keyboard and
dome or Pan/Tilt?
2The baud rate is same between keyboard and
dome or Pan/Tilt?
- 14 -
