Copernicus E3IN1 User manual

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
ŸThis product is meant to be assembled by an adult.
ŸIn its unassembled state, small parts present a hazard.
ŸTo be used under direct supervision of an adult.
WARNING
3 in 1 Interactive Easel
Please Recycle
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
E3IN1
Assembly Guide
E3IN1_2018_A
Check out our other products online at
www.copernicused.com

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a draw to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Jim Phillips
Chief Cook and Bottle Washer
Dear Educator,
Thank you for purchasing one of our products. I hope the 3 in 1 Interactive Easel is useful in your classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at
[e-mail].
Enjoy using your new product and happy teaching.
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
Tub
Warranty
Life
Time
E3IN1
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
3 in 1 Interactive Easel
Tech Tub,
Plastic Tub
Warranty
Life
Time
1
Year
Component
Warranty
2
5
Year
Frame
Warranty
Assembly Guide
E3IN1_2018_A
Check out our other products online at
www.copernicused.com

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.

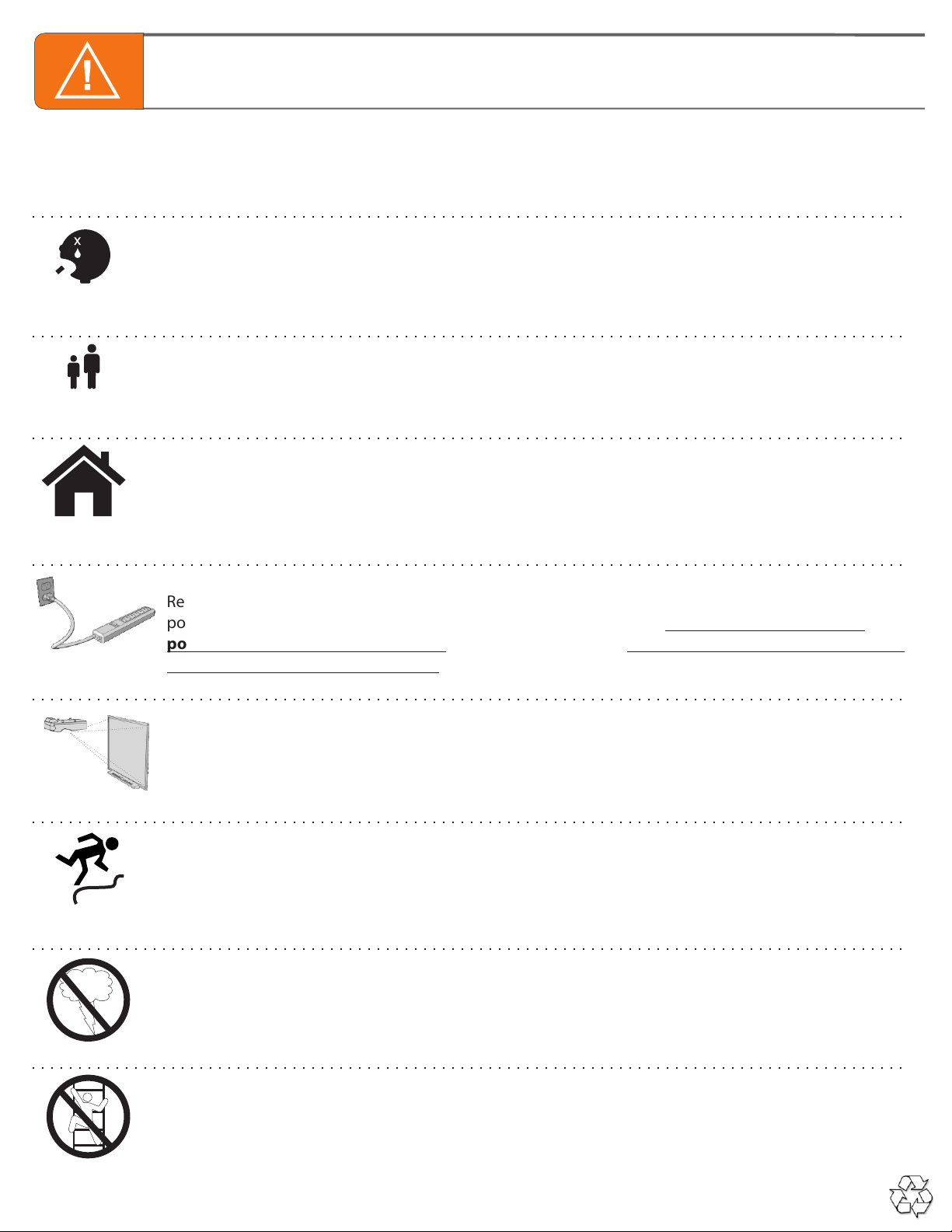

Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.
3

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
Tabletop
1x
(23000A)
Gas Cylinder
1x
(255087)
Split Black Wire Loom
1x
(25505)
Vertical Stretcher
1x
(33121)
Screwdriver
OR
Before beginning, you should have:
Additional tools required:

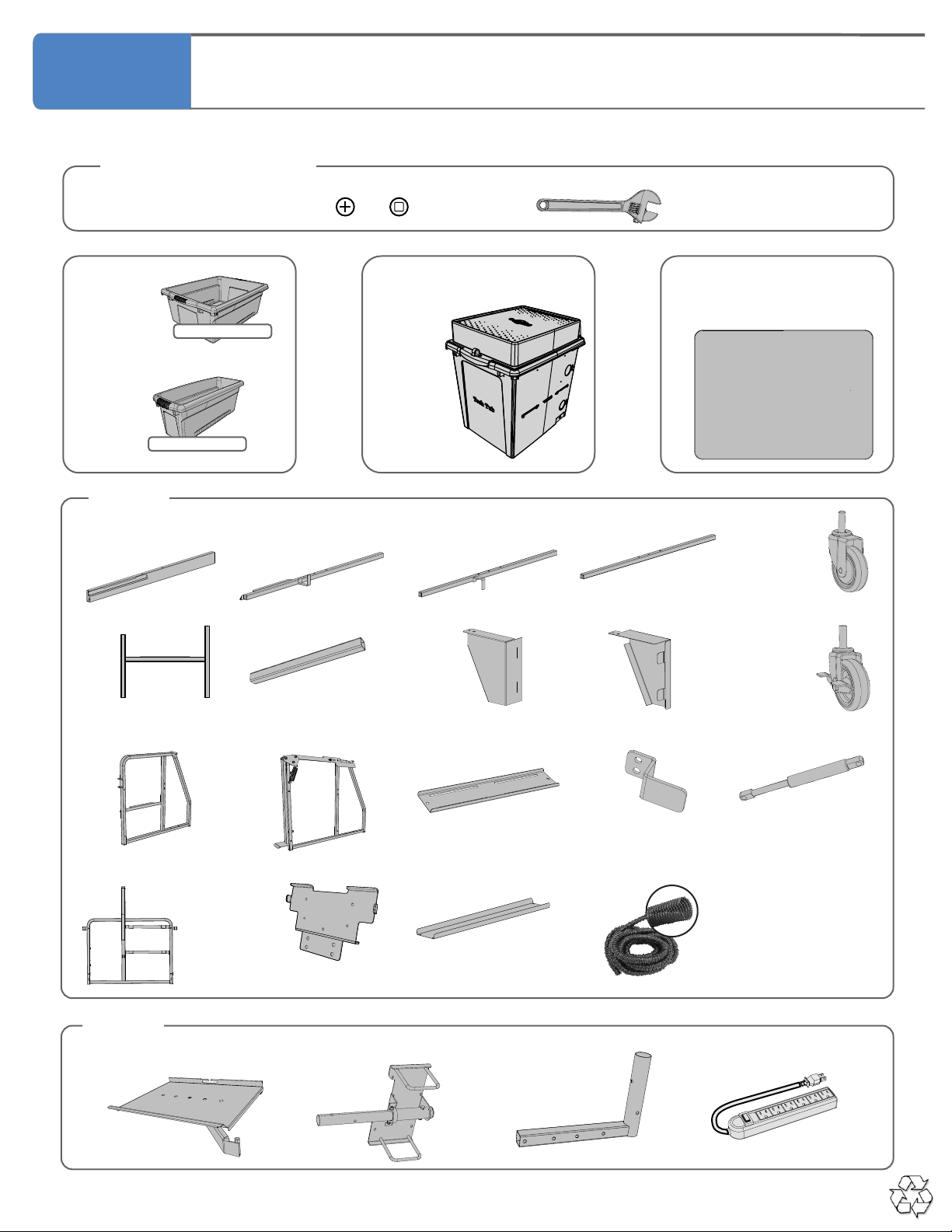

3 in 1 Interactive Easel - Parts
Open Tub
1x
(CC4068)
Small Tub
2x
(CC4070)
TM
Base Tech Tub
1x
(TEC57)
E3IN1
Projector Mount
1x
(51092)
Laptop Tray
1x
(32070)
E3IN1- 0:
E3IN1-1:
Adjustable wrench
2x
Hex Wrench
7/16”, ½”, 9/16”
&OR
5 lbs Weight Limit
10 lbs Weight Limit
Top Crossbar with
Hook
1x
(33103)
Front Cross Cylinder
Support
1x
(33120)
Bottom Crossbar
1x
(33096)
Bottom Crossbar with
Hook
1x
(33104)
Non-Locking
Caster
2x
(41004)
H-Vertical Stretcher
1x
(33097)
Tabletop Bracket
2x
(34077)
Spring Cover
Lid
1x
(320731)
Tabletop Frame
1x
(51091)
Touch Bracket
1x
(340641)
Power Strip Tray
1x
(32066)
Tub Tray
1x
(32062)
Locking Caster
2x
(41003)
Side Frame - Right
1x
(51090R)
Side Frame Assembly -
Left
1x
(51090L)
6 outlet Power Strip
1x
(25515)
Spring Cover
1x
(32073)
4
Projector Arm
1x
(33100)

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
Before beginning, you should have:
HARDWARE IS PACKED INSIDE BOX LABELLED E3IN1- 0
E3IN1
1/4” Lock Washer
(43010)
28x
1/4” - 1.75”
(43007)
18x
1/4” - 1.0”
(43004)
6x 5/16” Lock Nut
(430104)
7x
5/16-18 x 3”
(430239)
2x
5/16” Large Nylon
Flat Washer
(430322)
2x
5/16” Small Nylon
Flat Washer
(430321)
6x
3/8” Lock Nut
(430122)
2x
3/8” - 1.75”
(430204)
2x
1/4” - 0.75”
(430039)
8x
5/16-18 x 2.5”
(4302381)
1x
M4 x 10mm
(43210)
4x
5/16” - 1.75”
(430235)
4x
Cable Tie
(70012)
2x
9/16”Flat Washer
(4301902)
4x
5/16” Flat Washer
(430196)
6x
Hook & Loop
Straps
(43321)
2x
N
M4 Lock Washer
(430100)
4x
Hardware
Actual Size
10-24 x ½”
(43013)
2x
1/4” Lock Nut
(430101)
6x
T
S
R
Q
P
O
M
L
K
J
A
B
C
D
H
G
F
E
1/4” - 3”
(430085)
2x
5
3 in 1 Interactive Easel - Hardware

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
Tips for Assembly
This symbol denotes a 2- or 3- Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware is packed in one bag.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
2-Person Task
?
?
?
Customer Service - FAQ’s
For missing parts and other issues regarding this product:
- The height adjust system is not working.
- The projector mount cannot be rotated.
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [email protected]
My projector isn’t working, who should I call?
Please call the reseller that you bought the product from first
(reseller information can be found on your packing slip).
E3IN1
DO NOT LEAVE THIS PRODUCT PLUGGED IN AND RUNNING FOR MORE THAN 72 HOURS AT ONE TIME.
REMEMBER TO TURN OFF POWER TO POWER STRIP BEFORE UNPLUGGING FROM OUTLET.
IMPORTANT PRODUCT ADVISORY
6
Need Tech Support?
Have a Question?
Email our Tech Support Service www.copernicused.com
Check out some of our
other great products!

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
A
AB
B
B
B
K
K
K
K
K
K
1
You will need: (Not to Scale)
Actual Size:
A
2x
K
6x
B
4x

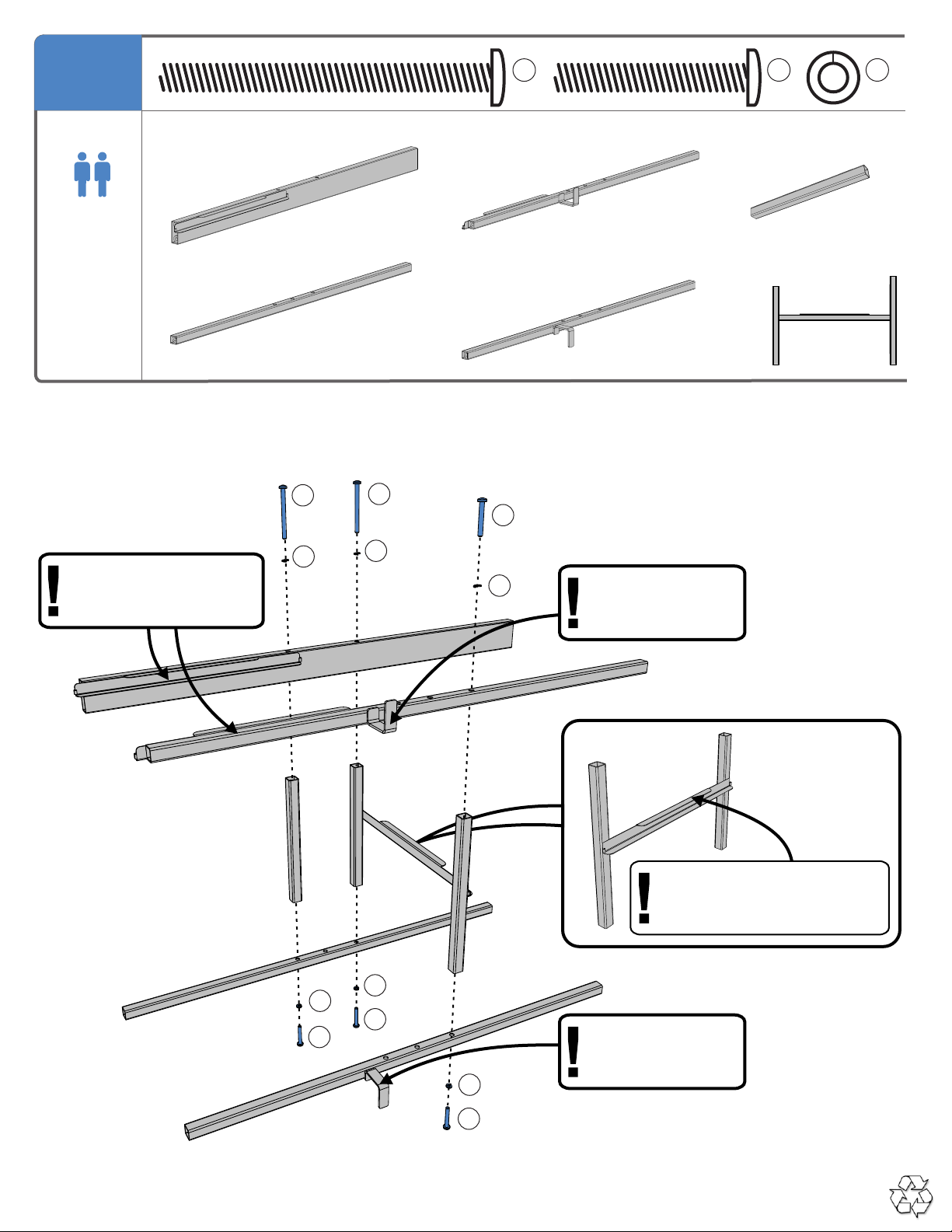

Attach center components together.
Note orientation of
Cable Hook
Note Tub Channels face in
toward each other Note orientation of
Cable Hook
Note the orientation of Tub
Channel with small tab on top
2-Person Task
Top Crossbar with
Hook
1x
(33103)
Front Cross Cylinder
Support
1x
(33120)
Bottom Crossbar
1x
(33096)
Bottom Crossbar with
Hook
1x
(33104)
H-Vertical Stretcher
1x
(33097)
Vertical Stretcher
1x
(33121)
7

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
2
You will need: (Not to Scale)
Actual Size:
BB
B
B
KK
K
K
BK
5x 5x

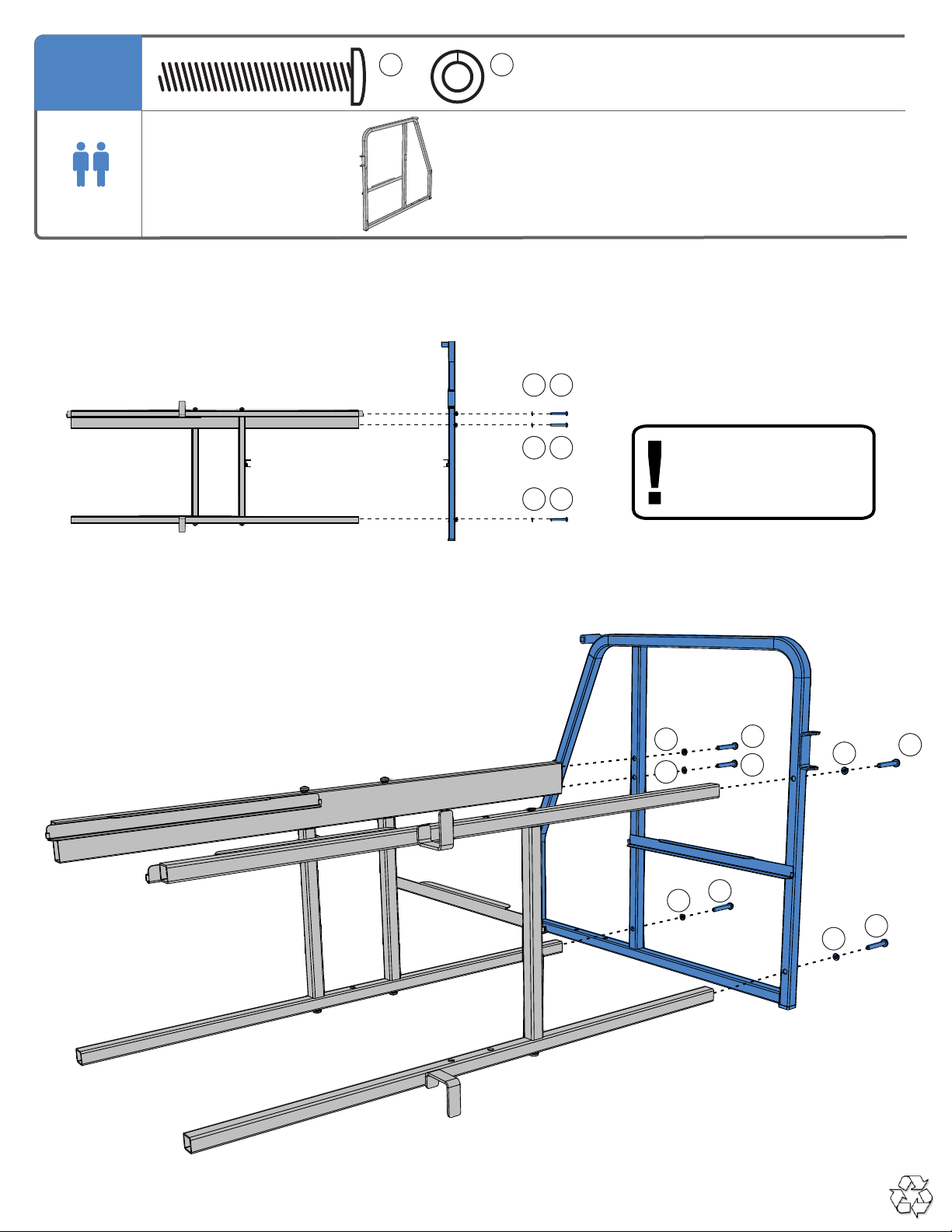

Attach the Side Frame - Right to the assembly components from Step 1
B K
B K
B K
2-Person Task
Note: Do not fully
tighten hardware
B
K
Side Frame - Right
1x
(51090R)
8

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
3
You will need: (Not to Scale)
Actual Size:
BK
B
B
B
K
K
BKK
BK
BK
BK
BK
5x 5x

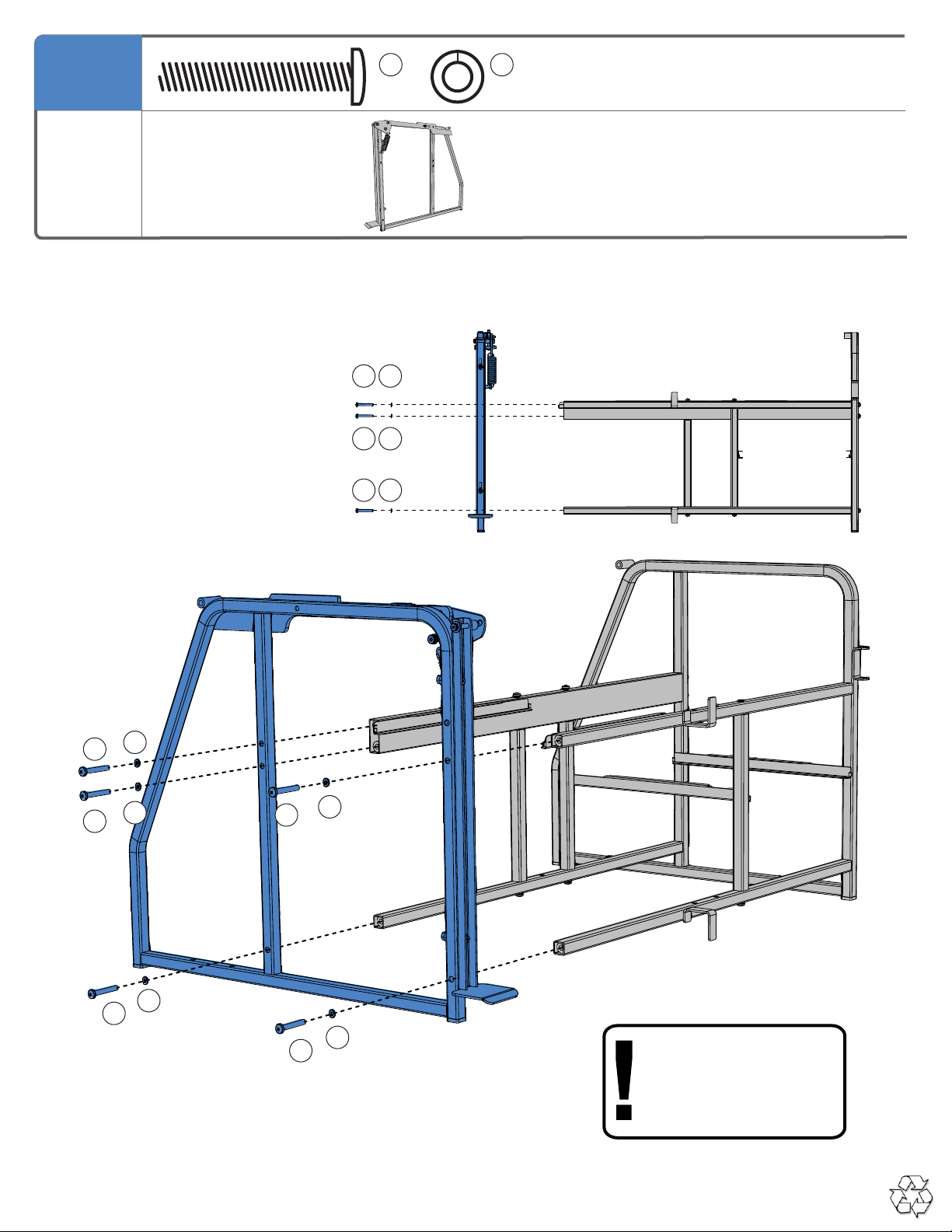

Attach the Side Frame Assembly - Left to the assembly components from Step 2
Fully tighten hardware.
Note:
Tighten all hardware
from previous steps
Side Frame Assembly -
Left
1x
(51090L)
9

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
2
4
You will need: (Not to Scale)
Actual Size:
Add Spring Cover to Left Side Frame Assembly
Fit Spring Cover Lid and Spring Cover Together
1
3
5
S
2x
Screwdriver
OR
4Push Spring Cover Lid into Closed Position
S
S
Align Holes on Cover with Holes on Frame
Fit Cover Over Corner of Frame with Spring
Fasten Covers to Frame in Closed Position
Spring Cover
Lid
1x
(320731)
Spring Cover
1x
(32073)
10

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
5
You will need: (Not to Scale)
Actual Size:
Place Assembled Unit on Front Face and Push in Casters
Note Position of Locking Casters versus Non-Locking Casters.
FRONT
Ensure Locking Casters
are installed on the
back of unit
Non-Locking Caster
2x
(41004)
Locking Caster
2x
(41003)
Push Casters in until
you hear a SNAP!
11

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
6
You will need: (Not to Scale)
Actual Size:
CC
C
4x 4x

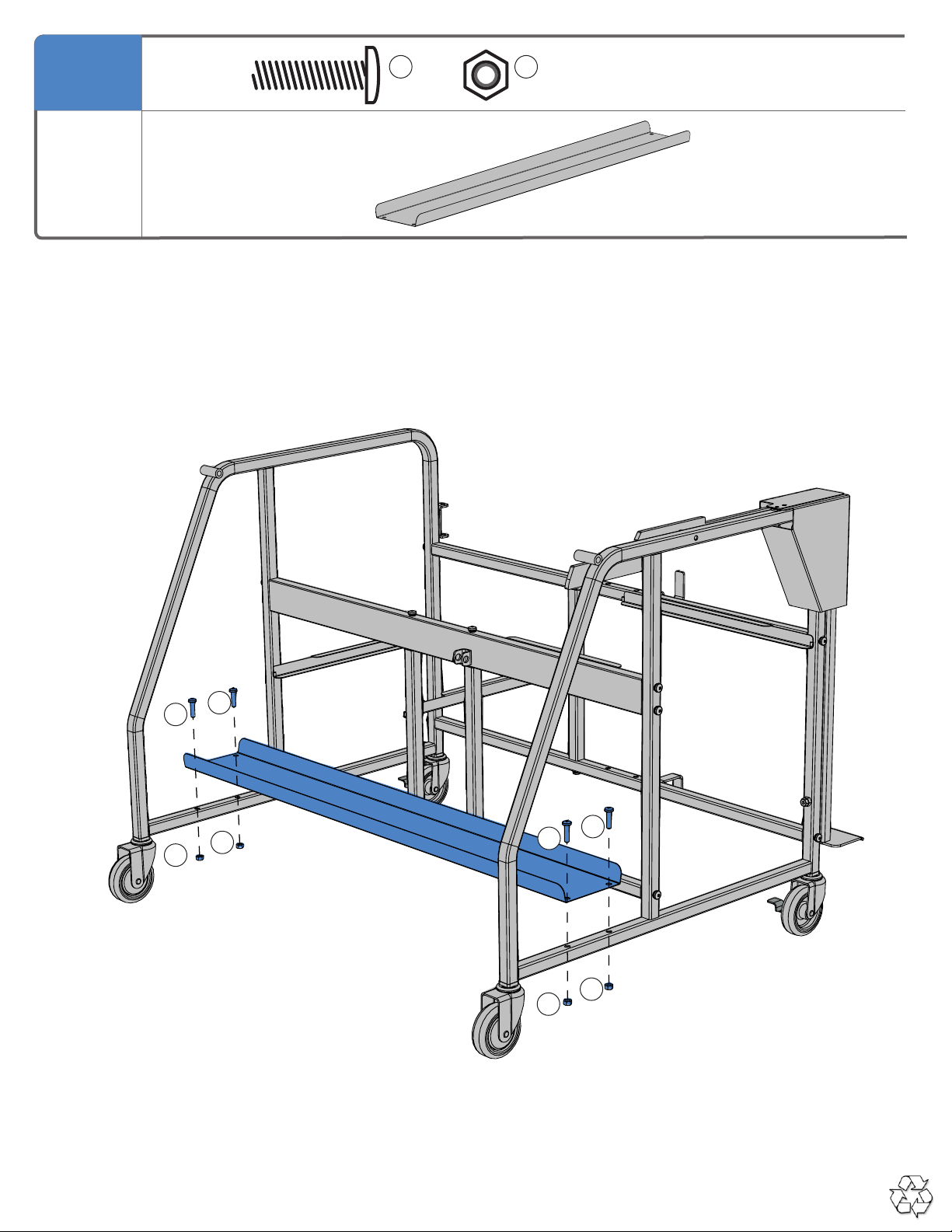

Attach Tub Tray to Front of Frame
Fully tighten hardware.
CC
T
Tub Tray
1x
(32062)
T
T
12
T
T

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
7
You will need: (Not to Scale)
Actual Size:
C
2x 2x
Attach Power Strip Tray to Frame
Fully tighten hardware.
8
You will need: (Not to Scale)
Actual Size:
C
C
L
2x
N
4x
M
2x
D
2x

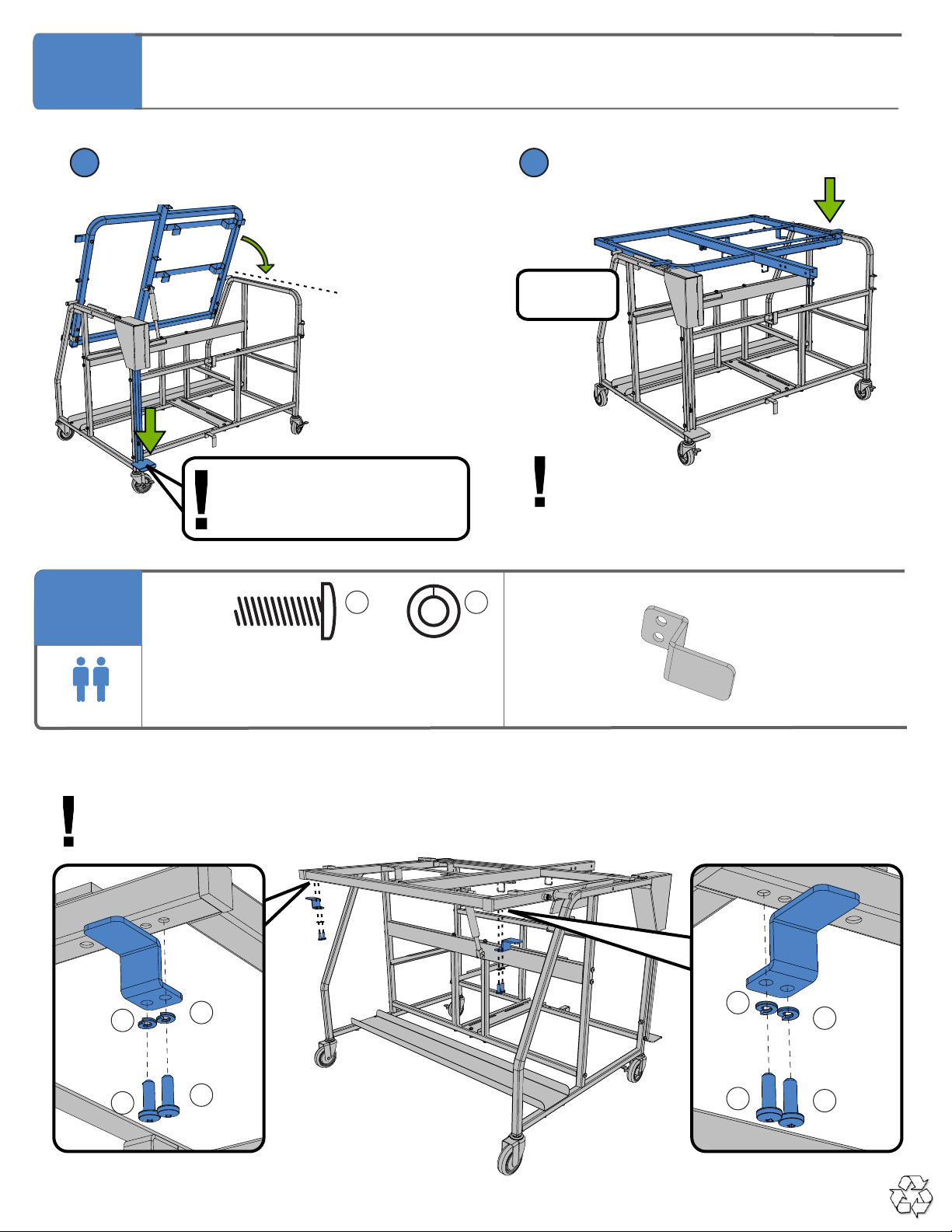

Install Tabletop Frame to Pivots on Side Frames
Fully tighten hardware.
2-Person Task
Tabletop Frame
1x Adjustable wrench
or ½” wrench
2x
LN ND L
M
NN
D
M
Power Strip Tray
1x
(32066)
T
T
T
13

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
9
You will need: (Not to Scale)
Actual Size:
E
1x
O
1x
Attach Gas Cylinder to Table Top Frame
Fully tighten hardware.
EOEO
Note orientation of Gas Cylinder
During Assembly Assembled Hardware
SIDE VIEW
EO
Adjustable wrench
or ½” wrench
2x
Gas Cylinder
1x
(255087)
14
Note:
For the next step you will need to change
between Table and Easel mode. You can
do this by pressing down on foot pedal.

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
10
You will need: (Not to Scale)
Actual Size:
E
O
During Assembly Assembled Hardware
Lift Tabletop Frame into Easel Mode and Attach Gas Cylinder to Frame
Fully tighten hardware.
E
1x
O
1x
E
O
WARNING: Tabletop Frame will be under pressure once the gas cylinder is installed
and the table is pressed down into tabletop mode! The Tabletop will spring up when
the foot pedal is pressed, until the projector is installed.
Adjustable wrench
½” wrench
2x
EO
Hint: Press in on the bottom of
Tabletop Frame to help align the
bottom of Cylinder for installation.
SIDE VIEW
Attaching
bottom of
Gas Cylinder
15

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
12 You will need: (Not to Scale)
Actual Size:
Attach Tabletop Brackets
Fully tighten hardware.
K
4x
F
4x
LEFT SIDE RIGHT SIDE
2-Person Task
WARNING:
Tabletop Frame is under pressure and will spring up when the foot pedal is pressed.
K
F
K
F
K
F
K
F
Move 3 in 1 Easel Mode to Table Mode
Push down on foot pedal and
lower table frame with both hands.
11
1 2 Press down on Table Top Frame until
it clicks into position.
CLICK!
WARNING:
Tabletop Frame is under pressure and will spring up when the foot pedal is pressed.
WARNING:
Tabletop Frame is under pressure
and will spring up when the foot
pedal is pressed.
Tabletop Bracket
2x
(34077)
Press Pedal down to change
between Table and Easel mode.
Ensure back casters are locked.
16

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
13
You will need: (Not to Scale)
Attach Tabletop to Frame
B
Actual Size:
4x
K
4x
Screwdriver
OR
2-Person Task
Line up holes on tabletop with frame and install
B
K
B
K
B
K
B
K
WARNING:
Tabletop Frame is under pressure and will spring up when the foot pedal is pressed.
Tabletop
1x
(23000A)
17

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
14
You will need: (Not to Scale)
Actual Size:
Put Tabletop Frame into Easel Mode using Foot Pedal, Attach Laptop Tray
Fully tighten hardware.
G
1x
N
2x
L
1x
Laptop Tray
1x
2-Person Task
WARNING:
Tabletop Frame is under pressure and will spring up when the foot pedal is pressed.
Hold on to the Table Frame when
pressing the foot pedal and slowly
raise the tabletop into easel mode.
18
Press Pedal down to change
between Table and Easel Mode
Ensure back casters are locked.

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
15
You will need: (Not to Scale)
Actual Size:

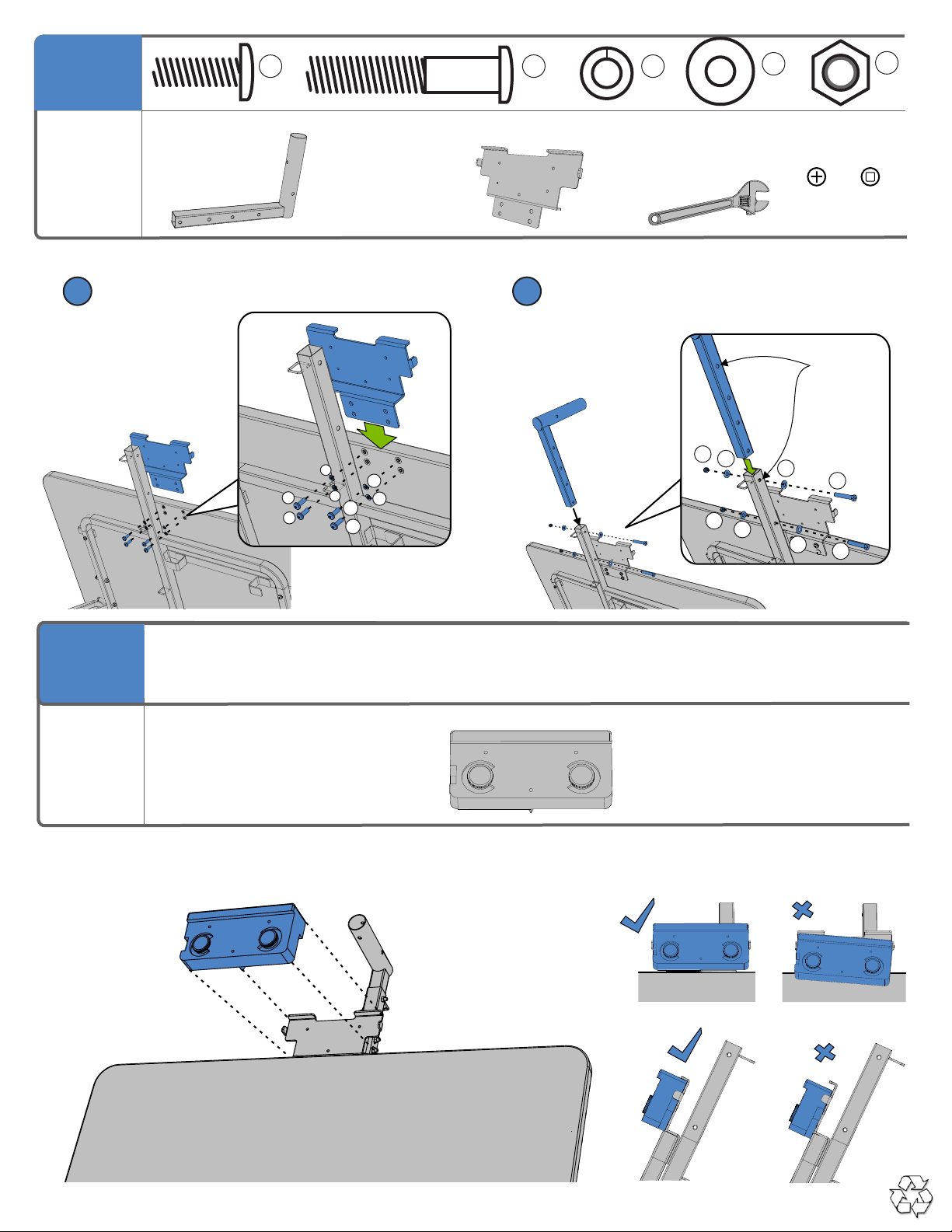

Attach Touch Bracket Mount and Projector Arm
Fasten Touch Bracket onto back of Table Top.
4x2x2x
Install Touch Module
Attach the Epson Touch Module to the magnetic bracket face
16
You will need: (Not to Scale)
Actual Size:
Epson 595 Wi Touch Module
1x
(Not supplied with E3IN1)
Adjustable wrench
½” wrench
2x
Touch Bracket
1x
(34062)
Projector Arm
1x
(33100)
H
L
Q
19
4x
K
4x
F
Insert Projector Arm into Tabletop Frame
and Fasten Together.
1 2
K
K
F
F
K
K
F
F
ALIGN
HOLES
H
Q
L
LQ
H
Q
Q
Screwdriver
OR

E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
17 4x

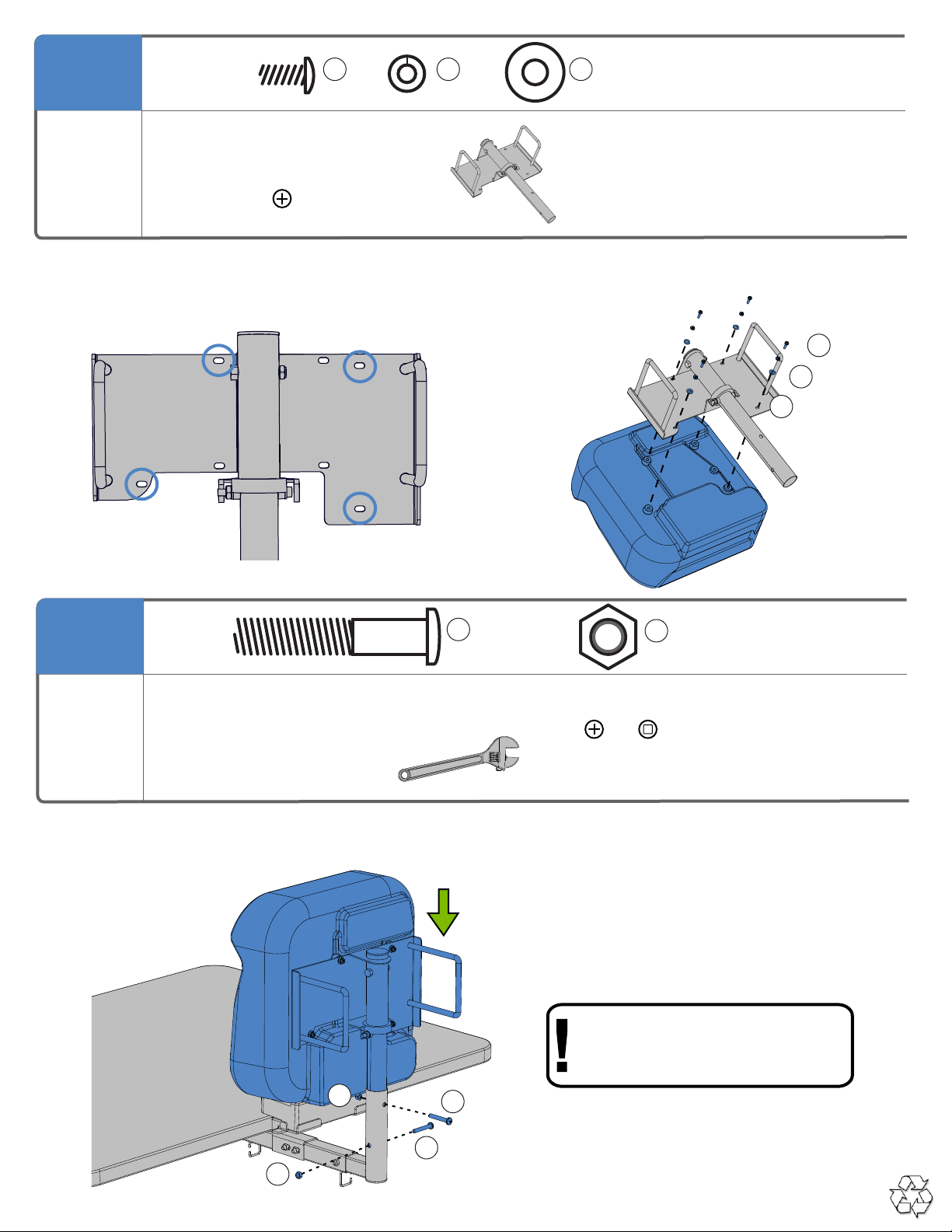

Attach the Projector to the Projector Mount
You will need: (Not to Scale)
Actual Size:
Lay projector on a flat surface, then attach the Projector Mount, tighten hardware
P
4x
R
4x
Screwdriver
Projector Mount
1x
J
18
Secure the Projector Mount to the Projector Arm on the Frame
You will need: (Not to Scale)
Actual Size:
Lower the Table Top Frame into Table Top Mode then fasten the Projector Mount to Projector Arm
2x
HL
2x
H
L
L
H
After completing this step, raise the Table
Top Frame into Easel mode for NEXT STEP
J
R
P
Adjustable wrench
½” wrench
1x
Press Pedal down to change
between Table and Easel Mode
Ensure back casters are locked.
20
Screwdriver
OR
