Copernicus Royal RC005 User manual

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
ŸThis product is meant to be assembled by an adult.
ŸIn its unassembled state, small parts present a hazard.
ŸTo be used under direct supervision of an adult.
WARNING
®
Royal Reading / Writing Center
RC005
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
Assembly Guide
RC005_2017_A
Check out our other products online at
www.copernicused.com

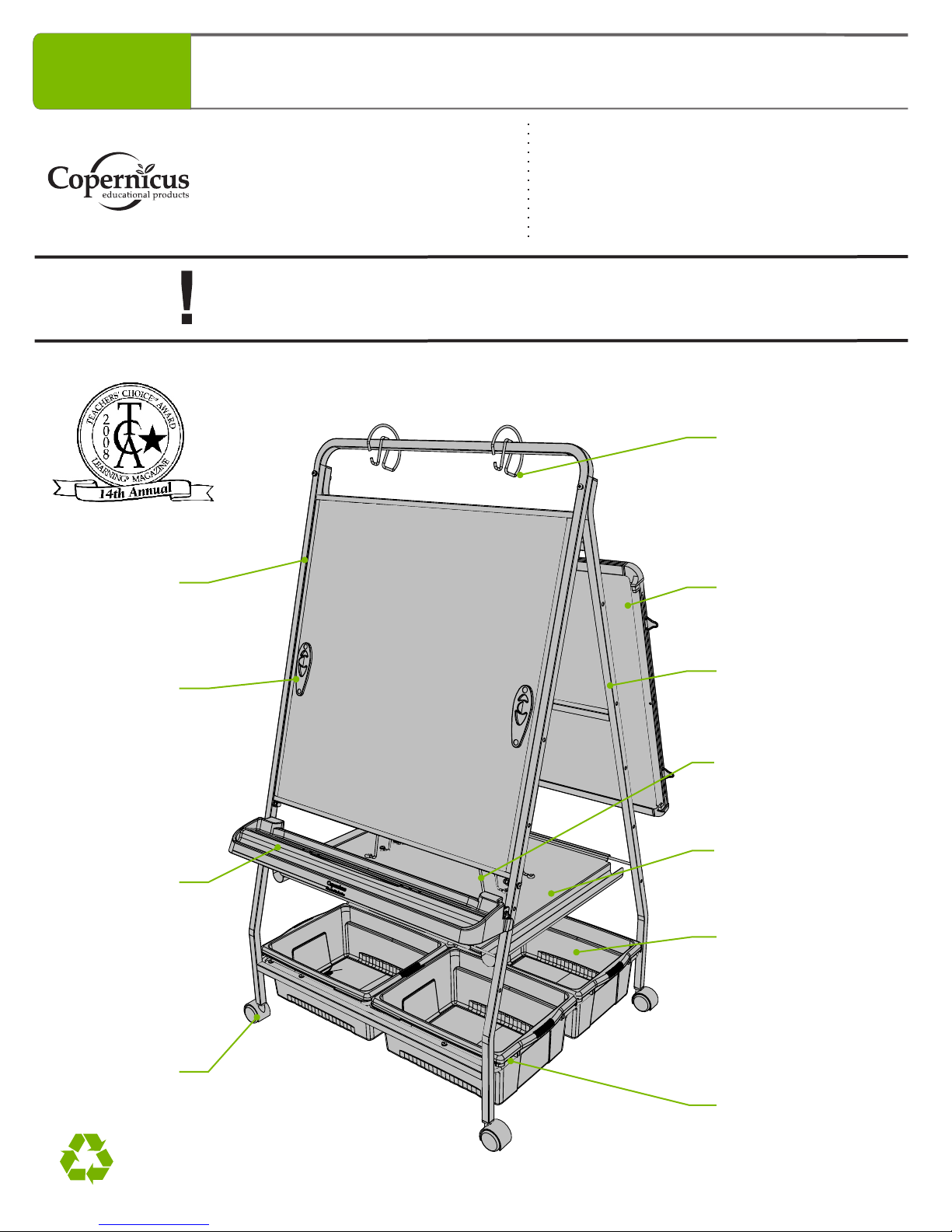

Chart Loop Hook (2)
Rear Frame (1)
Big Book Divider (4)
Metal Shelf (1)
Tub (4)
Tub Rack (2)
Page Paw (2)
Ultra Safe
Book Ledge (1)
Caster (4)
Front Frame (1)
‘S’ Chart Hook (2) Not Shown
Rear Whiteboard (1)

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
Life
Frame
Warranty
Time To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a draw to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Tub
Warranty
Life
Time
Jim Phillips
Chief Cook and Bottle Washer
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
Dear Educator,
Thank you for purchasing one of our products. I hope that your Royal Reading Writing Center is useful in your
classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at
[e-mail].
Enjoy using your new product and happy teaching.
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
®
Royal Reading / Writing Center
RC005
2
Assembly Guide
RC005_2017_A
Check out our other products online at
www.copernicused.com

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.
3

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.

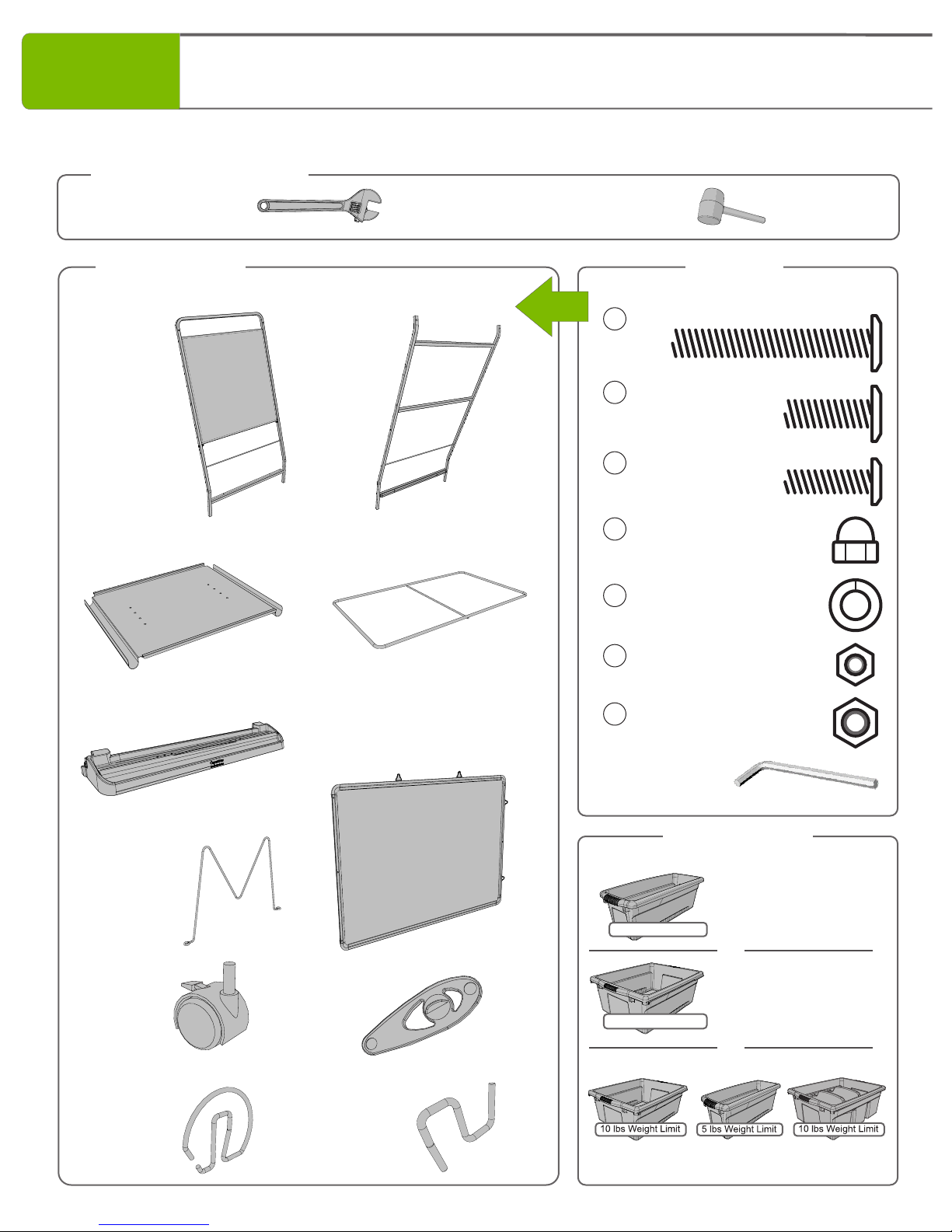

Hardware
Actual Size
Contents - Box 1
In Box 1
Front Frame
Assembly
x1
Rear Frame
x1
Allen Key
(Not to Scale)
x1
Contents - Box 2
OR
Metal Shelf
x1
Tub Rack
x2
Lined Magnetic
Dry Erase Board
x1
(AC455)
Ultra Safe Book Ledge
x1
Big Book Divider
x4
2” Twin Wheel
Locking Caster
x4
Page Paw
x2
Chart Loop Hooks
x2
‘S’ Chart Hook
x2
Open Tub
x4
Small Tub
x8
Open Tub
x1
Small Tub
x2
Divided Tub
x2
PTP1
PTP2
5 lbs Weight Limit
10 lbs Weight Limit
®
Royal Reading / Writing Center - Parts
A
C
M6 x 45mm Screw
x2
M5 Lock Nut
x8
M5 x 19mm Screw
x8
BM6 x 19mm Screw
x8
D
E
M6 Acorn Nut
x2
M6 Lock Washer
x2
E
M6 Lock Nut
x8
D
Before beginning, you should have:
Additional tools required:
Adjustable wrench x2 Rubber Mallet x1
OR 7mm(x2),
10mm(x2),+
OR
RC005
4

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
This symbol denotes a 2- or 3- Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.

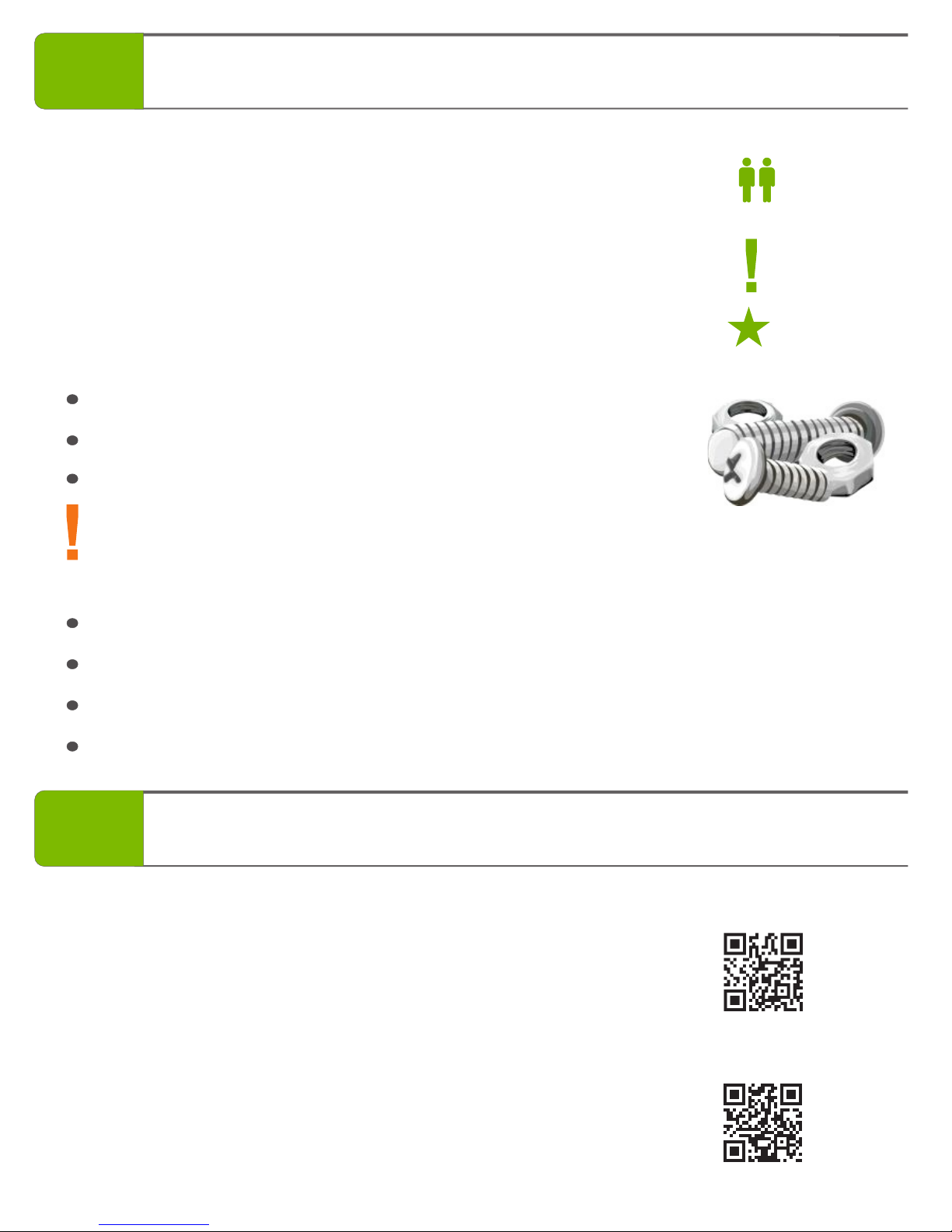

Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
?
?
?
2-Person Task
Tips for Assembly
Customer Service - FAQ’s
For missing parts and other issues regarding this product:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at inf[email protected]om
Need Tech Support?
Have a Question?
Email our Tech Support Service
www.copernicused.com
Check out some of our
other great products!
5

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
1
You will need: (Not to Scale)
Actual Size:

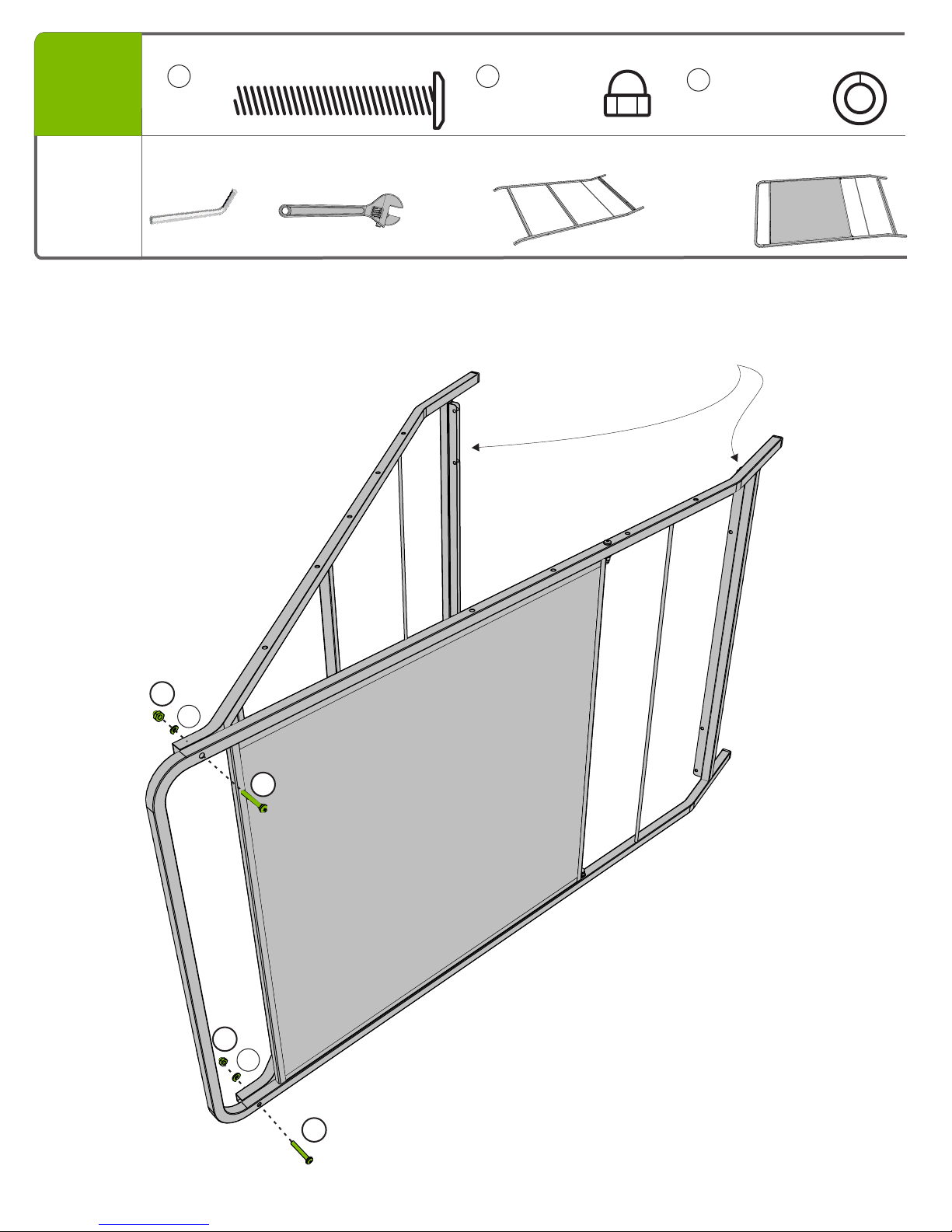

Fasten Front Frame Assembly & Rear Frame Together
!Note:
Placing the unit on its side will make
this assembly easier.
Front Frame Assembly
x1
Rear Frame
x1
ADM6 Acorn Nut
x2
D
D
A
A
!Note:
Ensure bottom channels are facing in
towards each other.
6
EM6 Lock Washer
x2
E
E
M6 x 45mm Screw
x2
Allen Key
x1
Adjustable Wrench
x1

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
3
Install Bottom Racks into Frame Channels
You will need: (Not to Scale)
Actual Size:
2 Person Task
!Note:
Install Bottom Racks before fastening screws.
Do not over tighten or Tub Racks will not slide.
2
Install Casters
You will need: (Not to Scale)
If you cannot push the casters in
by hand, try placing an adjustable
wrench between caster wheels and
then tapping with a rubber mallet.
2” Twin Wheel
Locking Caster
x4
Adjustable wrench
x2
Rubber Mallet
x1
Optional
CM5 x 19mm Screw
x8
M5 Lock Nut
x8
E
Tub Rack
x2
C
C
E
E
C
E
E
C
Repeat on the
other side with
remaining fasteners.
7
Allen Key
x1
Adjustable Wrench
x1

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
4
Attach Big Book Dividers to Metal Shelf
You will need: (Not to Scale)
Actual Size:
NOTE:
The Big Book Dividers provided are
optional. If you prefer to leave your
shelf open you can skip this step.
!
Install Book Shelf onto Assembled Frame
Metal Shelf
x1
Big Book Divider
x4
BM6 x 19mm Screw
x8
M6 Lock Nut
x8
D
B
D
x 8
x 8
2Hook Shelf onto Front and Back Frames
Pass Shelf Through
Back Frame
1
5
8
Allen Key
x1
Adjustable Wrench
x1

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.

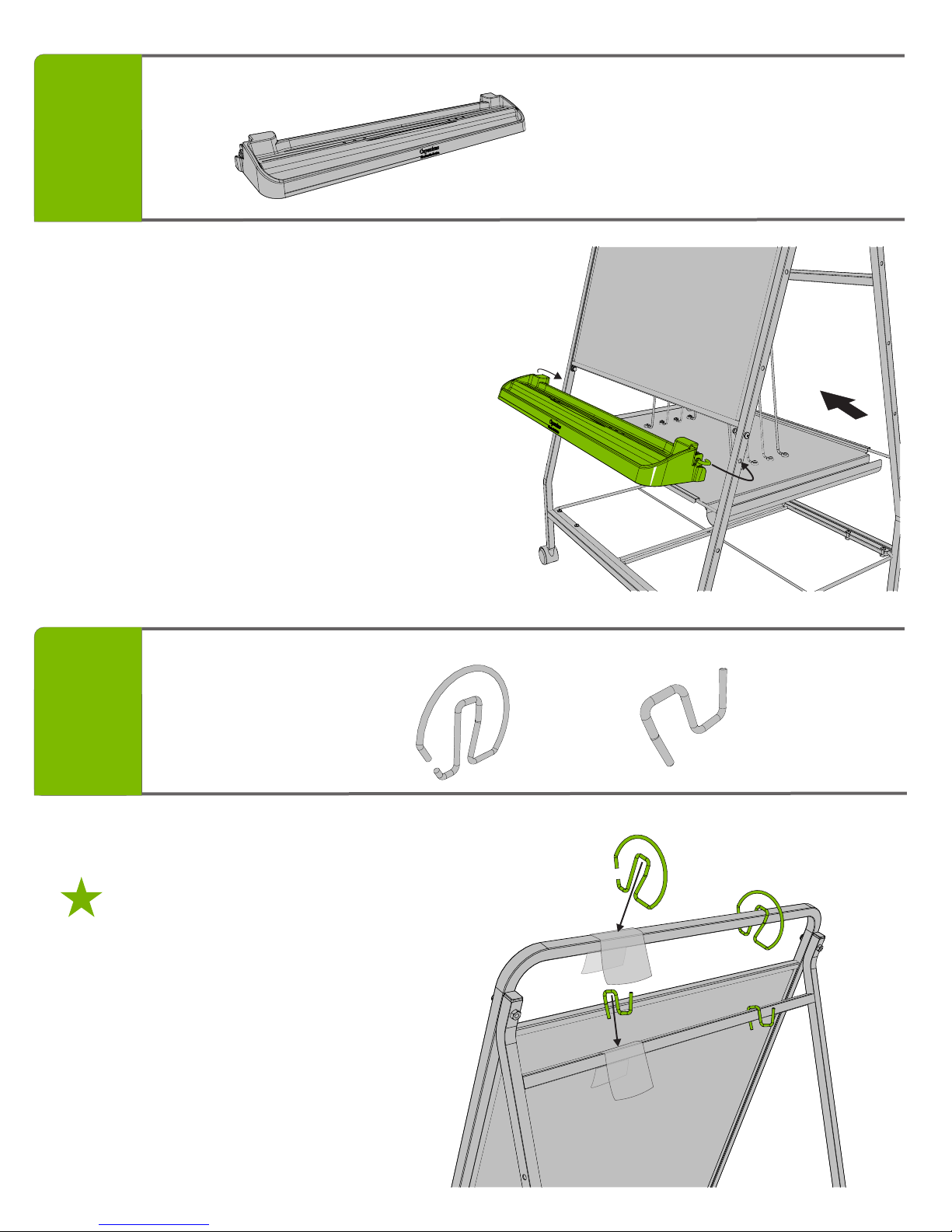

Install Book Ledge
There are four (4) positions on the front and five
(5) on the back of the unit for your convenience.
Choose the one that works best for your
classroom.
1) Insert one hook into the appropriate hole on one
side of the Whiteboard Frame
2) Pull out opposite hook & snap into place
Note: The spring tension is designed to discourage
children from unhooking the Book Ledge.
You will need: (Not to Scale)
Attach ‘S’ Chart Hooks & Chart Loop Hooks
You will need: (Not to Scale)
Tip: place empty hardware bags over the
frame to prevent scratching.
Ultra Safe Book
Ledge
x1
Chart Loop Hooks
x2
‘S’ Chart Hook
x2
6
7
9

RC005 - Version A - Released May 29th, 2017 - Copernicus Educational Products Inc.
You will need: (Not to Scale) Lined Magnetic
Dry Erase Board
x1
(Ac455)
Install Lined magnetic Dry Erase Board
You will need: (Not to Scale)
9Contents - Box 2
OR
Page Paw
x2
Open Tub
x4
Small Tub
x8
Open Tub
x1
Small Tub
x2
Divided Tub
x2
PTP1
PTP2
5 lbs Weight Limit
10 lbs Weight Limit
OR
Use hooks on frame of Lined Magnetic
Dry Erase Board to hang it on the back
of the easel. You can hang it in landscape
or portrait orientation.
Install Page Paws on Front Whiteboard
Install Tubs into Tub Frames
8
10
