CORAB HA-6400 User manual

1
.C..
.I
HA−6400
CôrHome Automation Panel
Advanced Installation Instructions

2
.C...
.I
About navigating this electronic document:
Throughout this document there are navigational links.
Wherever you see this symbol ...C.... you can click on it to return to the table of contents.
Wherever you see this symbol ...... I..... you can click on it to return to the index.
Wherever you see underlined blue text you can click on it to navigate to that reference.
Whenever you navigate to a new page, you can go back using Alt + (left arrow)
CONTENTS
WELCOME! 7........................................................................
Features & Benefits 7..................................................................
INCLUDED IN BOX 8..................................................................
Optional Accessories 8.................................................................
Front of CôrPanel 9.................................................................
Back of CôrPanel 10.................................................................
1 HARDWARE INSTALLATION 11.......................................................
What You Need 11....................................................................
Choose a Location 11..................................................................
1.1 Install the Battery 12...............................................................
1.2 Connect Power Lead to Panel 12......................................................
1.3 Install CôrPanel 12..............................................................
1.4 Connect Power 13.................................................................
2 SET UP CONNECTIONS 14...........................................................
2.1 Select a Permanent Connection Mode 14...............................................
2.2 Ethernet Setup 15.................................................................
2.3 Check Ethernet Connection to CôrApp 16.............................................
2.4 Option 2 Wi−Fi Setup 17............................................................
2.5 Set Up a Web Access Passcode for CôrApp 19.........................................
2.6 Set Up a Download Access Code for DLX900 19........................................
2.7 Scan for Wireless Networks 20.......................................................
2.8 Troubleshooting Wi Fi Setup 21......................................................
2.9 Check Wi Fi connection to CôrPanel 22..............................................
3 THE COR SMART HOME APP 23..................................................
3.1 Install CôrApp 23...............................................................
3.2 Using the App 24..................................................................
3.3 Troubleshooting Setup 28...........................................................
4 SYSTEM SETTINGS 29..............................................................
4.1 Learn Sensors into CôrHub 29......................................................
4.2 Learn in a Keyfob 34...............................................................
4.3 Programming Areas 37.............................................................
4.4 Programming the System 39.........................................................
4.5 Programming Channels 42...........................................................
4.6 Programming the Network 44........................................................
4.7 Programming Scenes 47.............................................................

3
.C..
.I
4.8 Programming Schedules 50..........................................................
4.9 Programming Holidays 52...........................................................
4.10 Programming Z−Wave Devices 54...................................................
4.11 Programming Camera 54...........................................................
Z−Wave Room Names 54..............................................................
Add a Z−Wave Device 54..............................................................
Z−Wave Device Association 55..........................................................
Z−Wave Maintenance 55...............................................................
4.11 Programming Cameras 57..........................................................
4.12 Check Event History 63............................................................
4.13 Check Connection Status 64........................................................
4.14 Check Details 64.................................................................
5 ADVANCED INSTALLATION USING WEB SERVER 65.................................
5.1 Advanced Programming, System 66...................................................
5.2 Advanced Programming, Sensors 75...................................................
5.3 Advanced Programming, Areas 79....................................................
Notes on Force Arming, Bypass, and Auto−Bypass 81........................................
5.4 Advanced Programming, Channels 87..................................................
Configure Email Reporting 89...........................................................
5.5 Advanced Programming, Communicator 90.............................................
5.6 Advanced Programming, Schedules 96.................................................
5.7 Advanced Programming, Actions 98...................................................
5.8 Advanced Programming, Arm−Disarm 103.............................................
5.9 Advanced Programming, Devices 105..................................................
5.10 Advanced Programming, Permissions 109.............................................
5.11 Advanced Programming, Area Groups 113.............................................
5.12 Advanced Programming, Menus 114..................................................
5.13 Advanced Programming, Holidays 115................................................
5.14 Advanced Programming, Sensor Types 116............................................
Sensor Types Table 119................................................................
5.15 Advanced Programming, Sensor Options 120...........................................
Sensor Options Table 123..............................................................
5.16 Advanced Programming, Event Lists 124..............................................
5.17 Advanced Programming, Channel Groups 125..........................................
Customize Reporting Codes 127.........................................................
Reporting Fixed Codes in Contact I.D. 129.................................................
5.18 Advanced Programming, Scenes 130.................................................
5.19 Advanced Programming, Speech Tokens 132...........................................
5.20 Advanced Programming, Cameras 134................................................
Add a Camera Method – Manual Entry 134................................................
Removing a Camera 134...............................................................
5.21 Advanced Programming, CôrHome Automation 142...................................
6 USERS AND PERMISSIONS 143−145...................................................

4
.C...
.I
6.1 Add Users 143....................................................................
6.2 Users Submenus 145...............................................................
6.3 Permissions 146...................................................................
7 CELLULAR RADIO SETUP 150−154...................................................
7.1 Install Optional Cellular Radio 150....................................................
7.2 Connect Power 151................................................................
7.3 Check Signal Strength 151...........................................................
7.4 Install External Antenna – Optional 152................................................
7.5 Check Cellular Connection to CôrApp 154...........................................
8 CAMERA SETUP INSTRUCTIONS 156−166.............................................
8.1 Quick Setup 156...................................................................
8.2 Setting up Ethernet/Wi Fi transmission 156..............................................
8.3 Wi Fi Signal Strength 157...........................................................
8.4 Add Camera via Wi Fi for iOS Device 158..............................................
8.5 Add Camera via Wi Fi for Windows PC 158.............................................
8.6 Add Camera via Ethernet for iOS Device (non DHCP) 159.................................
8.7 Add Camera via Ethernet for Windows PC (non DHCP) 160................................
8.8 Add Camera via Ethernet (DHCP) 160.................................................
8.9 Add Camera to CôrApp 161........................................................
8.10 View Live Stream and Latest Clip 162................................................
8.11 Program event triggered camera clips 162..............................................
8.12 View event triggered clips in History 164..............................................
Remove Camera from Côr(if needed) 165...............................................
8.13 Change Default Camera Settings (Via TruVision Navigator) 165............................
8.14 Camera Troubleshooting 166........................................................
9 INSTALLATION USING KEYPAD 167−173..............................................
9.1 Basic Installation 167...............................................................
9.2 Learning Sensors into Côr167......................................................
Sensor Types Presets 167...............................................................
9.3 Configure Sensor Names (optional) 168................................................
9.4 Record Sensor Names (optional) 170..................................................
9.5 Test Sensor Signal Strength 170......................................................
9.6 Remove a Sensor 171...............................................................
9.7 Change the User Type (optional) 171..................................................
9.8 Add a User / Keyfob 171............................................................
9.9 Record User Names (optional) 172....................................................
9.10 Remove a User 172...............................................................
9.11 Add a Keyfob 173................................................................
9.12 Remove a Keyfob 173
.............................................................
PERSONALIZE YOUR CÔRPANEL 173−179............................................
9.13 Volume Level 173................................................................
9.14 Voice Annunciation 174............................................................
9.15 Full Menu Annunciation 174........................................................

5
.C..
.I
9.16 Backlight Level 174...............................................................
9.17 Change Time and Date 175.........................................................
9.18 Adjust Area Entry or Exit Times 175..................................................
9.19 Reset Installer Account 176.........................................................
9.20 Reset to Factory Default (optional) 176................................................
9.21 Table Mount (Optional) 176.........................................................
9.22 Wall Tamper Option 177...........................................................
9.23 Connecting Inputs 177.............................................................
9.24 Connecting Outputs 179............................................................
10 TESTING THE SYSTEM 180−181....................................................
10.1 Perform a Walk Test 180...........................................................
10.2 Perform a Siren Test 180...........................................................
10.3 Perform a Battery Test 180.........................................................
10.4 Perform a Communicator Test 181...................................................
10.5 Event History 181................................................................
11 GLOSSARY 182.....................................................................
Appendices 185−200..................................................................
A.1 DLX900 Software 185.............................................................
A.2 Troubleshooting DLX900 187.......................................................
A.3 Firmware upgrade using DLX900 188.................................................
A.4 Firmware upgrade using USBUP 189..................................................
A.5 System Status Messages 190.........................................................
A.6 App and Web Error Messages 191....................................................
A.7 Z−Wave Messages 192.............................................................
A.8 History Events 193................................................................
Event ID Table 193...................................................................
A.9 Event Reporting Class Table 196.....................................................
A.10 Action Events: Category and Types 197...............................................
A.11 Action Results Category and Action Results Event Types 198..............................
A.12 CôrHub Building Blocks 199.....................................................
A.13 CôrHub Web Server Tree 200.....................................................
Specifications 201....................................................................
UL SPECIFICATION 202−207...........................................................
Electrical: 202.......................................................................
Software Version: 202.................................................................
Installation Notes: 202.................................................................
Compatible Receivers: 202.............................................................
Listings and Approvals: 203............................................................
Minimum System Configuration: 203.....................................................
Abort: 203..........................................................................
Quick exit: 203.......................................................................
Exit delay extension: 203...............................................................
Exit Progress Annunciation: 204.........................................................

6
.C...
.I
Entry Progress Annunciation: 204........................................................
Keyfob operation / System Acknowledgement: 204..........................................
Canceling and preventing accidental alarms: 204............................................
Recent Closing: 205...................................................................
Sensor Tripping Instructions: 205........................................................
SIA CP−01−2010 Programmable Features 206..............................................
Smoke and heat detector locations: 207....................................................
PRODUCT WARNINGS 208.............................................................
WARRANTY DISCLAIMERS 208.........................................................
Disclaimer 208.......................................................................
Intended Use 209.....................................................................
Copyright 209.......................................................................
Trademarks and Patents 209............................................................
Regulatory Notices for USA 209.........................................................
Regulatory Notices for Canada 210.......................................................
INDEX CLICK ON ENTRIES TO NAVIGATE 211..........................................

7
.C..
.I
WELCOME!
Thank you for purchasing CôrHome Automation!
Please read through this document before starting the installation.
Features & Benefits
256 Users – enough for even moderate sized businesses
64 wireless sensors + 20 Keyfobs
4 Areas/Partitions – split your system into smaller parts you can protect individually
Personal Voice Guided setup and menu prompts
2 Hardwired inputs (can be doubled to total 4)
2 Programmable Outputs
85db piezo siren
24 hour battery backup
Wi Fi 802.11 b/g
Wi Fi direct for setup
IEEE 802.3 Compliant Ethernet
3G Cellular Radio Module, optional

8
.C...
.I
INCLUDED IN BOX
Check contents before beginning your installation.
Côr™ Panel
Wall Bracket
Transformer
Backup Baery Pack
Installaon
Manual
Full
Reference Guide
Available Online
Input/Output Lead
A160028
Optional Accessories
Cellular Radio Modem ZW−HSPA
Desk Stand ZW−DS01
Extension Antenna ZW−ANT3M
Battery ZW−BAT23A
Power Supply ZW−PS9V
Ultra Secure IP Camera ZW−USW−3120
(Only works with Côr)
A list of available accessories is available online at www.CorHomeAutomation.com.

9
.C..
.I
FRONT OF CÔRPANEL

10
.C...
.I
BACK OF CÔRPANEL
Connections for the cellular radio module are located under the cover on the right.

11
.C..
.I
1 HARDWARE INSTALLATION
What You Need
CôrPanel
CôrAccessories (Door/Window sensors, Motion sensors, Lighting modules, Door Locks, etc.)
Devices, lights locks etc.)
A mobile or smart device, or computer for programming
List of homeowner users and PIN codes homeowner wish to add
Small Phillips screwdriver
Small Flathead screwdriver
Router supporting 802.11 b or 802.11g if using homeowner Wi Fi features
IP access for optional cell module
Wi Fi/Ethernet access
Choose a Location
When choosing a location for your Côr Panel there are a number of appliances and areas to avoid which could interfere with the security
system.
Choose a central location that optimizes signal strength (Wi Fi, 319.5, Z−Wave)
Avoid TV and other electronic appliances
Avoid microwave ovens
Avoid wet and moist areas such as bathrooms and toilets
Avoid cordless telephones
Avoid computers and wireless equipment

12
.C...
.I
1.1 Install the Battery
1.2 Connect Power Lead to Panel
Connect power lead from power supply to the back of the panel. The connector is keyed and fits only one way.
1.3 Install CôrPanel
Panel may be mounted on a wall (recommended) or on a table.
For table mount information please reference Section 9.21
Install the bracket on a wall by using the supplied screws. Make sure the power lead can reach the panel when plugged in to a power source.
NOTE: Holes in the wall supplying Ethernet, power, antenna or I/O connector must be in the shaded area to ensure the unit mounts flat on
the wall; See the drawing on the next page.

13
.C..
.I
Align the CôrPanel with the top clips on the wall bracket, and then push the CôrPanel so it sits flat against the wall.
NOTE: Ensure the screw on the underside of the panel is loosened enough so that the wall bracket clears the screw head; if not the panel may
not fit flush against the wall. Then retighten the screw to ensure a secure fit.
A160088
1.4 Connect Power
Connect the power supply to receptacle.
PERSONAL INJURY AND UNIT DAMAGE
HAZARD
Failure to follow this warning could result in personal
injury or death and unit component damage.
Do not connect to a receptacle controlled by a switch.
!WARNING

14
.C...
.I

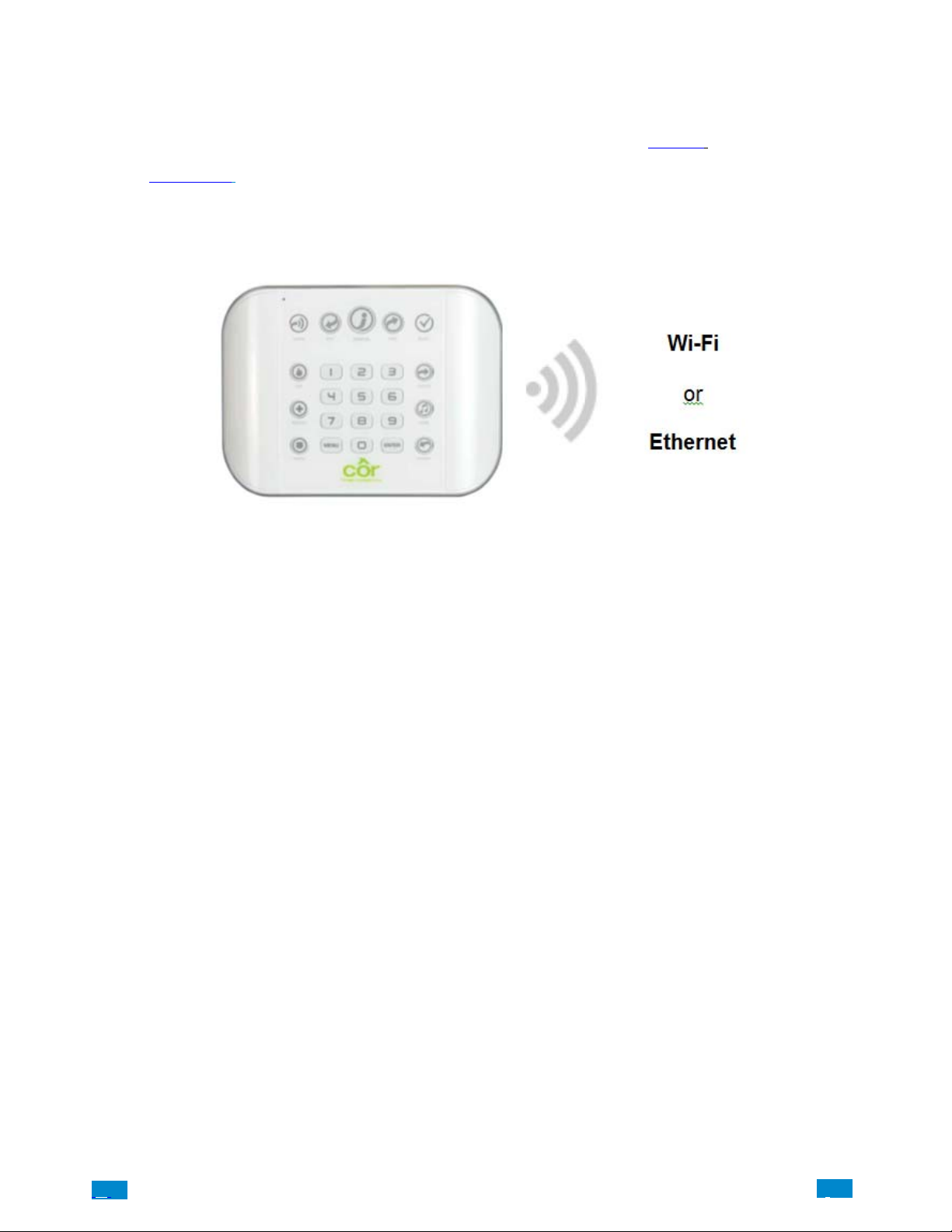

2 SET UP CONNECTIONS
2.1 Select a Permanent Connection Mode
Select a method to connect your Côrpanel to a network so it can report events via Cloud, and allow you to configure settings using the
built−in Web Server or Côr app. The recommended installation for security monitoring is to use IP as primary reporting with cellular
backup. However IP only or cellular only installations may be used. For cellular radio setup reference Section 7.
Option 1 −Ethernet Setup – This is the easiest to set up. The Côrpanel is set to use Ethernet by default. It requires a hardwired Ethernet
connection to the panel. You will need to provide an Ethernet router and an internet connection for reporting and remote access.
Option 2 −Wi Fi Setup −This connects the Côrto a local Wi Fi network. You will need to provide a wireless router and a secure internet
connection for reporting and remote access.

15
.C..
.I
2.2 Ethernet Setup
Connect power to your Côrpanel.
If this panel was previously connected via Wi Fi, switch connection to Ethernet:
MENU 9
1. Select main menu - Option 9, Advanced system conguration
2. INSTALLER CODE ENTER Enter Installer code (By default thisis 9 7 1 3)
3. 7Toggles between WiFi or Ethernet connection unit Ethernet is on
4. MENU
MENU Exits from Advanced system conguration menu
A160042
Connect an Ethernet cable to the rear of the panel and wait 10 sec for the local router to assign the panel an IP address.
On the panel press Menu – 8 – [PIN] – 6 and note the IP address announced. This is the IP address of your Côr panel. If you hear “IP
address is not ready” then wait a further 30s and repeat this step. Open your web browser. Enter IP address (For example:192.168.1.6). The
Côrlogin screen should appear:
Enter your username and password. By default this is : installer and 9 7 1 3.
You should now see a screen similar to one of the below.:
Your Côrpanel is now successfully connected to your Ethernet network.

16
.C...
.I
2.3 Check Ethernet Connection to CôrApp
Login to the CôrWeb Server from your laptop using the IP address announced. Press or click Settings.
Select Connection Status in the drop down menu.
Check that:
a. LAN Status should display Connected.
b. LAN Media should display Ethernet.
c. UltraSync−Status should display Connected.
d. UltraSync−Media should display LAN.
Settings Selector
Reload
Up Down
Connection Status
Connection Status
LAN Status
LAN Media
Cell State
Connected
Ethernet
Idle
UltraSync Status
UltraSync Media
Connected
LAN
Radio Details
Cell Service
Signal Strength
Operator ID
Radio Technology
No service
0
GSM
WiFi Details
WiFi SSID
WiFi Security Type
None
A160043
If it does not:
e. Check cable connection.
f. Check router settings.

17
.C..
.I
2.4 Option 2 −Wi Fi Setup
Turn on Wi Fi Discovery Mode −this creates a local hot spot and provides direct access to the Côrpanel from a mobile device such as a
tablet, or laptop computer.
Enable Wi Fi on your tablet or laptop computer.
On your mobile device, browse for available Wi Fi networks and select the ZeroWire_xxxx network to connect to it.
NOTE: Note: Only a single user can connect at any time and there is no Wi Fi password.
Once connected, the Côr will be assigned a fixed IP address of 192.168.1.3.
Use your tablet or laptop computer to connect to Côr.
NOTE: Note: The wireless router must support 802.11 b or 802.11g.
Open your web browser and enter 192.168.1.3. The Côr. login screen should appear.
Enter your username and password, by default this is: installer and 9 7 1 3.
Press Sign In.

18
.C...
.I
You should now see a screen similar to one of the below:
Your Côris now successfully connected to your Wi Fi network.

19
.C..
.I
2.5 Set Up a Web Access Passcode for CôrApp
For security, initial remote access via the Côrapp is disabled by default. Follow these steps to enable it:
Select Network from the drop down menu. Enable remote access for the CôrApp by changing the Web Access Passcode (WAP) with a
unique eight digit code provided by the homeowner. This is an eight digit code that permits the homeowner remote access from their Côr
mobile app. The default Web Access Passcode of 00000000 prevents remote access.
NOTE: If you are connecting to the system via the Local Area Network (LAN) the WAP is not required.
Press Save. “Program Success” will appear.
For a detailed explanation of the function of the Web Access Passcode please see section 4.6 Programming the Network.
2.6 Set Up a Download Access Code for DLX900
Remote access using the DLX900 software will require you to set up a Download Access Code.
Select Network from the Settings drop down menu. Enable remote access to the Côr panel programming by changing the Download Access
Code with a unique eight digit code. The default Download Access Code of 00000000 prevents remote access.
Press Save when Finished.

20
.C...
.I
2.7 Scan for Wireless Networks
Press Settings
Select Wi Fi Setup form the drop down menu.
Press Scan for Wireless Networks:
Press the Wi Fi network name you wish Côrpanel to connect to. Enter Wi Fi passcode then press OK. “Network Successfully selected” will
appear as shown below. Upon connection to the Wi Fi network, the system will automatically logoff from the web browser.
On your mobile device, connect to the same Wi Fi network found by the scan.
On the panel press Menu – 8 – [PIN] – 6 and write down the IP address announced. This is the IP address of your Côrpanel. If you hear
“IP address is not ready” then wait a further 30 seconds and repeat this step.
Open your web browser.
Enter announced IP address. The login screen should appear:
Your Côrpanel is now successfully connected to your Wi Fi network.
