Coredy OI-320 Smart Oral Irrigator
GET STARTED

IMPORTANT SAFEGUARDS ....................................................
DANGERS ......................................................................................
WARNINGS ....................................................................................
Configuration .....................................................................................
How to use .........................................................................................
Charging the OI-320 ...................................................................
Use the Oral Irrigator ..................................................................
After using the appliance ...........................................................
Maintenance ......................................................................................
Main unit .....................................................................................
Water tank cap ...........................................................................
Nozzle .........................................................................................
Water suction tube .....................................................................
Tank ............................................................................................
Troubleshooting ................................................................................
Disposal .............................................................................................
1
1
1
2
3
3
4
5
5
5
6
6
6
6
6
7

-1-
All information in this section is provided to instruct you in the
correct and safe operation of this OI-320 so that you can avoid
injures to yourself and others as well as damage to property.
READ ALL INSTRUCTIONS BEFORE USING
DANGERS
Toddlers, infants, people who are unable to operate should not
allowed use this appliance. Please keep it out of reach of children.
Never alter the appliance. Also, do not try to disassemble or
repair it.
Do not place or store the product where it can fall or be pulled
into tub or sink.
Do not reach for the product that has fallen into water. Unplug
immediately.
Do not use the product while bathing.
IMPORTANT SAFEGUARDS
WARNINGS
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision
The appliance is only to be used with the power supply unit
provided with the appliance.
The battery must be removed from the appliance before it is
scrapped.
The appliance must be disconnected from the supply mains
when removing the battery;
The battery is to be disposed of safely.
Regarding how to remove the battery, please to see “Disposal”
in page 7.
Do not fill the tank with water warmer than 40 ºC.

-2-
Configuration
SAVE THESE INSTRUCTIONS
If the external flexible cable or cord of this transformer is
damaged, it shall be replaced by the manufacturer or his service
agent or a similar qualified person in order to avoid a Hazard.
Keep the cord away from heated surfaces.
Please do not use it if you lost the nozzle.
Do not submerge the OI-320 in water.
Do not use for any purpose other than oral cleaning.
Keep nozzle away from small children. The nozzle is small
enough to be swallowed and can be become lodged in the throat.
Certain types of mouthwash may damage the
equipment by causing the housing or water reservoir to crack.
Therefore, do not use mouthwash in the water reservoir.
People who experience tooth or gum pain may not be able to
use this OI-320 a nd should consult their dentist.
Do not press the nozzle too firmly against your teeth or gums.
Doing so may injure your gums.
b
c
d
k
i
g
h
j
e
f
a
l

-3-
Note:
There may be some liquid remaining inside the main appliance before
use (tank, water suction tube, etc), this is the remaining distilled water
that was used for the performance (water flow) test, so there are no
health concerns.
How to use

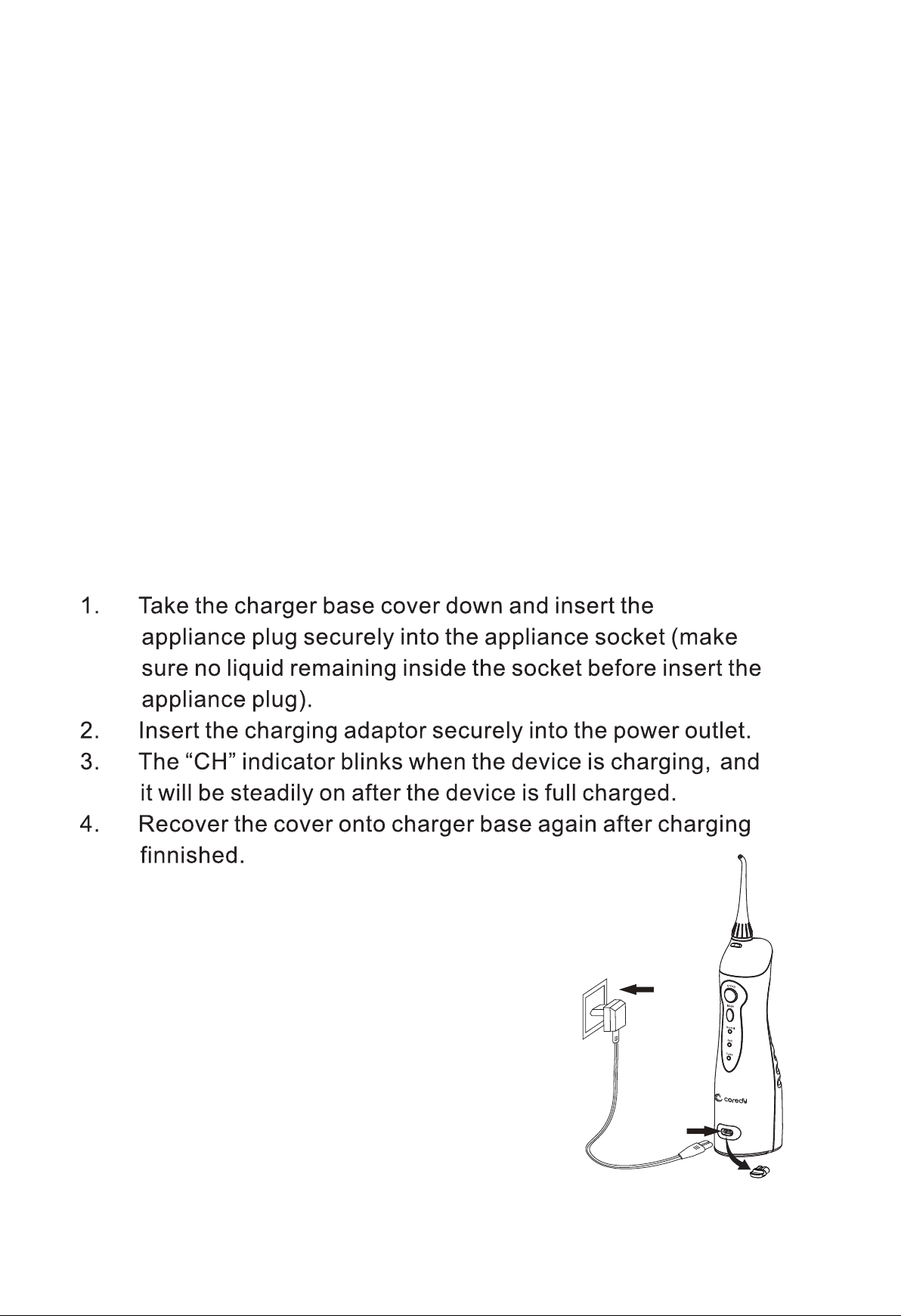

Charging the OI-320 (Fig. 1)
Note:
If the “CH” indicator is blinking during or
after an irrigating, that means the battery
need to be recharged. An full recharging
will take about 8 hours.
CH
Fig.1
a. Nozzle release button
b. On/Off button
c. Mode button
d. Mode indicator
e. Charging base
f. Charging base cover
g. Nozzle
h. Identification ring
i. Nozzle suction tube
j. Filter
k. Water tank
l. Water tank cap

-4-
Use the Oral Irrigator

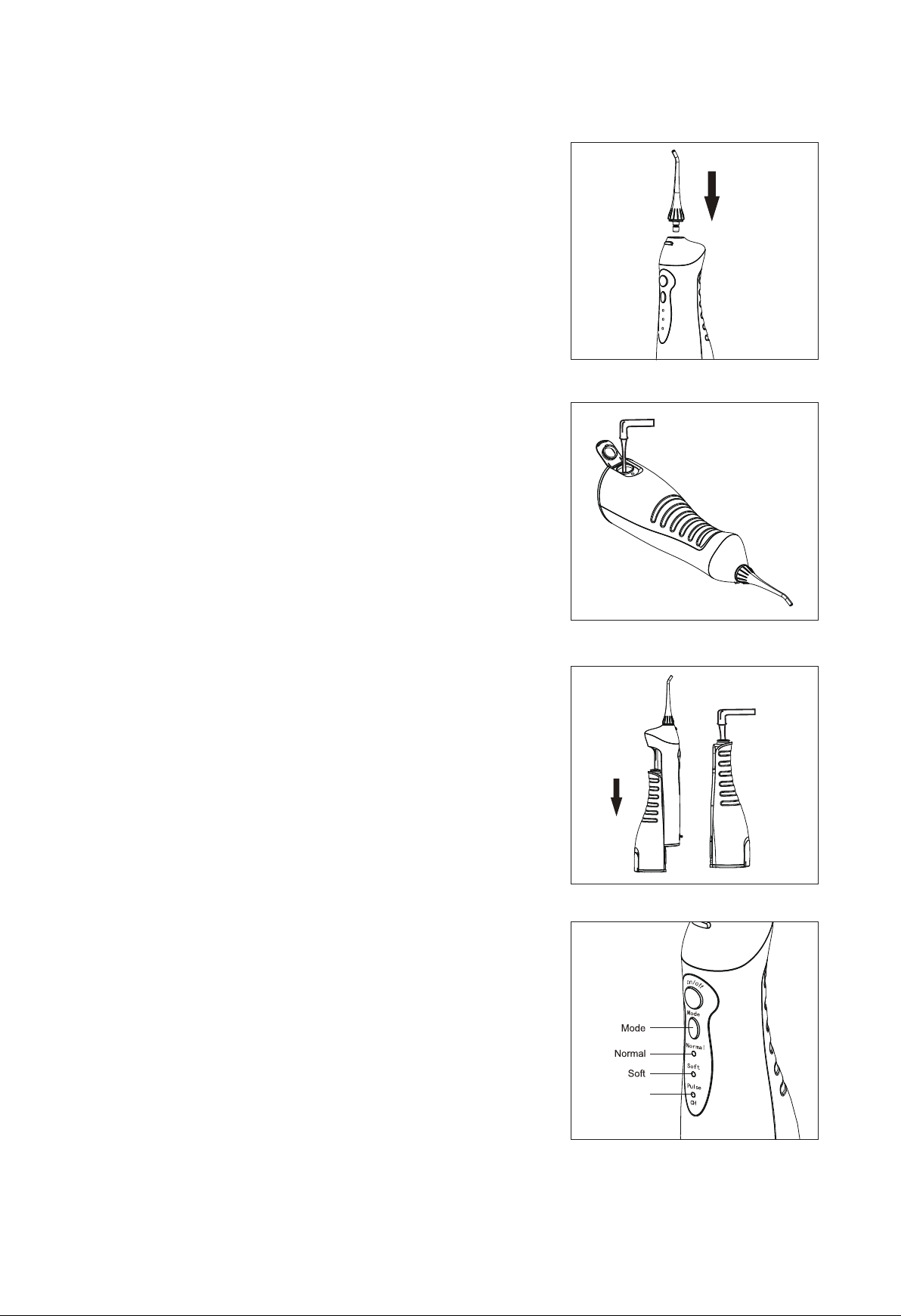

1. Attach nozzle onto the unit. (Fig. 2)
2. Open the water tank cap to fill the
tank with water which temperature
not exceed 40ºC, then close the cap.
(Fig. 3)
3. Or, Slide the water tank down off the
unit, fill the tank with water which
temperature not exceed 40ºC, then
attach the tank onto the unit. (Fig. 4)
4. Press “Mode” key to select the mode
you desired. During irrigating, you
can change the working mode.
(Fig. 5)
Normal: for normal cleaning.
Soft: for gentle cleaning of
sensitive gums.
Pulse: for cleaning and massaging
the gums.
5. Hold the unit in an upright position
with nozzle tip point toward your
teeth.
6. Keep your mouth opened slightly so
that the water can flow out.
7. Press “On/Off” key to start irrigating.
(Fig. 6)

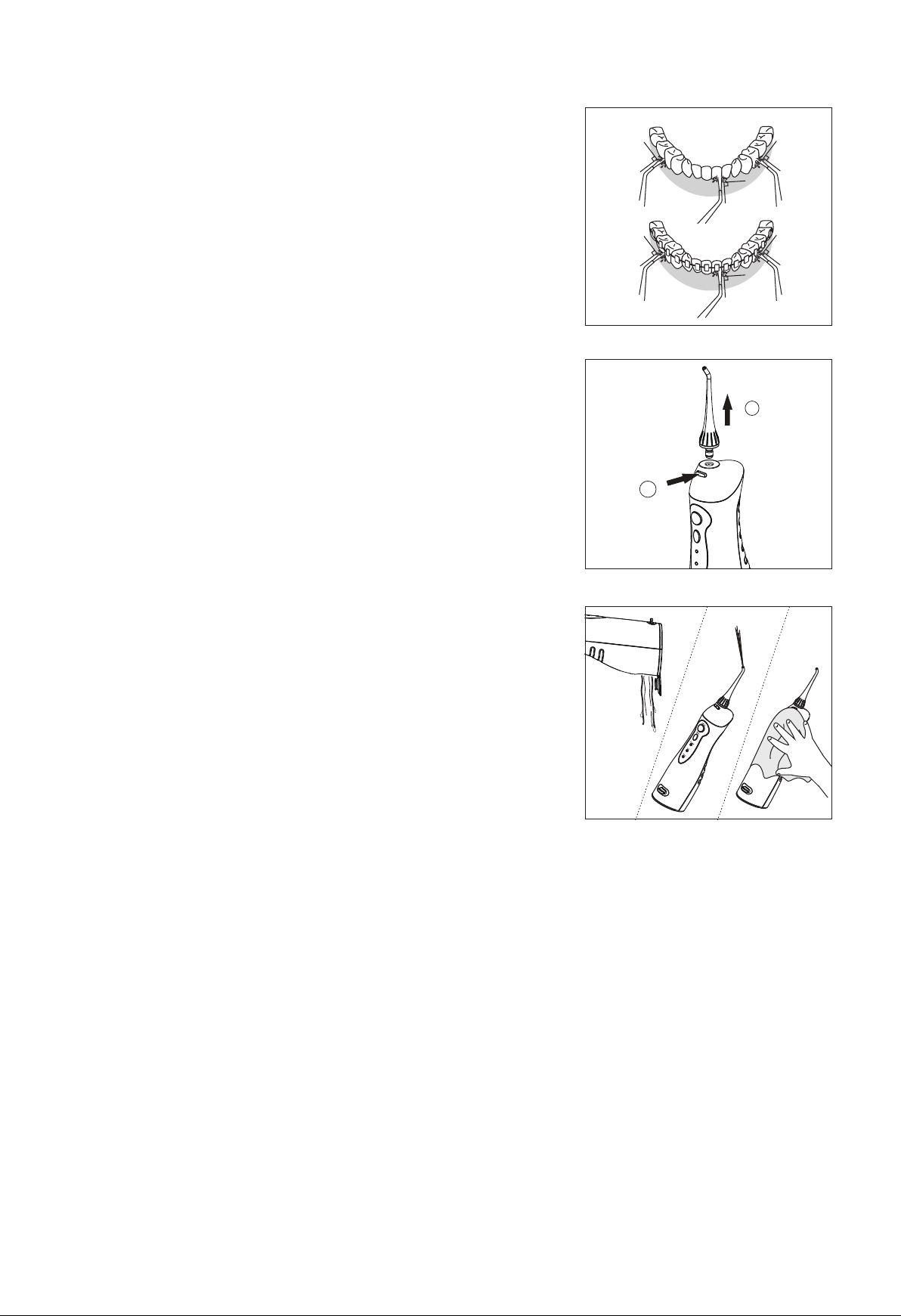

1). Directing the water jet flow at a
90-degree angle to the teeth
and gums
2). Directing the water jet slowly
along the teeth
3). Directing the water jet along the
gum line with the nozzle tip at a
90-degree angle to the gum
tissue
4). Cleaning between the teeth and
around any braces, crowns or
bridgework thoroughly.
Pulse / CH
Insert
Slide
Down
Fig. 2
Fig. 3
Fig. 4
Fig. 5

-5-
CH
CH
Press the button
2
1
Unplug the nozzle
8. Press “On/Off” key and then press the
nozzle release button to replace other
nozzle when you need.(Fig.7)
9. Once irrigating complete, press
“On/Off” key again to turn off the
OI-320 .
Fig. 6
Fig. 7
Use only water or neutral cleaning agent to clean the OI-320 . Never use
caustic or abrasive agents (e.g., vinegar or lime scale removers), since
they may damage the OI-320 . Do not wash using hot water of over
50ºC. Keep the OI-320 away from high temperature area and avoid
direct sunlight.
After using the appliance (Fig. 8)
Maintenance
Note:
To prevent bacteria propagating, make sure
there is no remaining water inside the unit. If
you’re not going to use this appliance for
long time, be sure wipe and dry the
appliance ASAP before store it.
1. Open the water tank cap and
dispose of the water in the tank.
2. Press “On/Off” key to turn on the unit,
and drain the water inside the
appliance.
3. Press “On/Off” key again to turn off
the unit, and close the water tank cap.
4. Wipe the OI-320 with dry cloth.
Fig. 8
Main unit
1. Remove the dirt by wiping using a cloth with liquid soap and
wipe off using a dry cloth.
2. Do not submerge the main unit in water to clean.
3. Dry after washing with water.

-6-
Water tank cap
Wipe off any grime and dirt with a cloth.
Nozzle
1. Wash with water and wipe with soft cloth.
2. Replace the nozzle every 6 months.
Water suction tube
1. Wash with water and wipe with soft cloth.
2. Do not bend, pull or twist the water suction tube.
Tank
1. Wash with water and wipe with soft cloth.
2. Dry the tank when not using for a long period.
Troubleshooting
Problem Possible Cause Solution
It does not work
You’ve just purchased
the product or it has
been left unused for
more than 3 months.
The battery has reached
the end of its lift cycle.
Charge the unit for
at least 8 hours.
Contact service
center for support.
It only works for
a few minutes
even after
charging Charging time was
insufficient.
Charge the unit for
at least 8 hours.
Water pressure
is very low
There is dirt stuck in
the nozzle
The nozzle is deformed
Replace the nozzle
There is dirt stuck in the
filter Clean the filter
Water does not
come out
The tank is empty Fill up tank
The appliance is tilted
too much while in use
Use with the appliance
in a vertical state

-7-
Disposal
The rechargeable battery inside your appliance is easy to remove for
recycling. At the end of the product’s life and prior to disposal, please

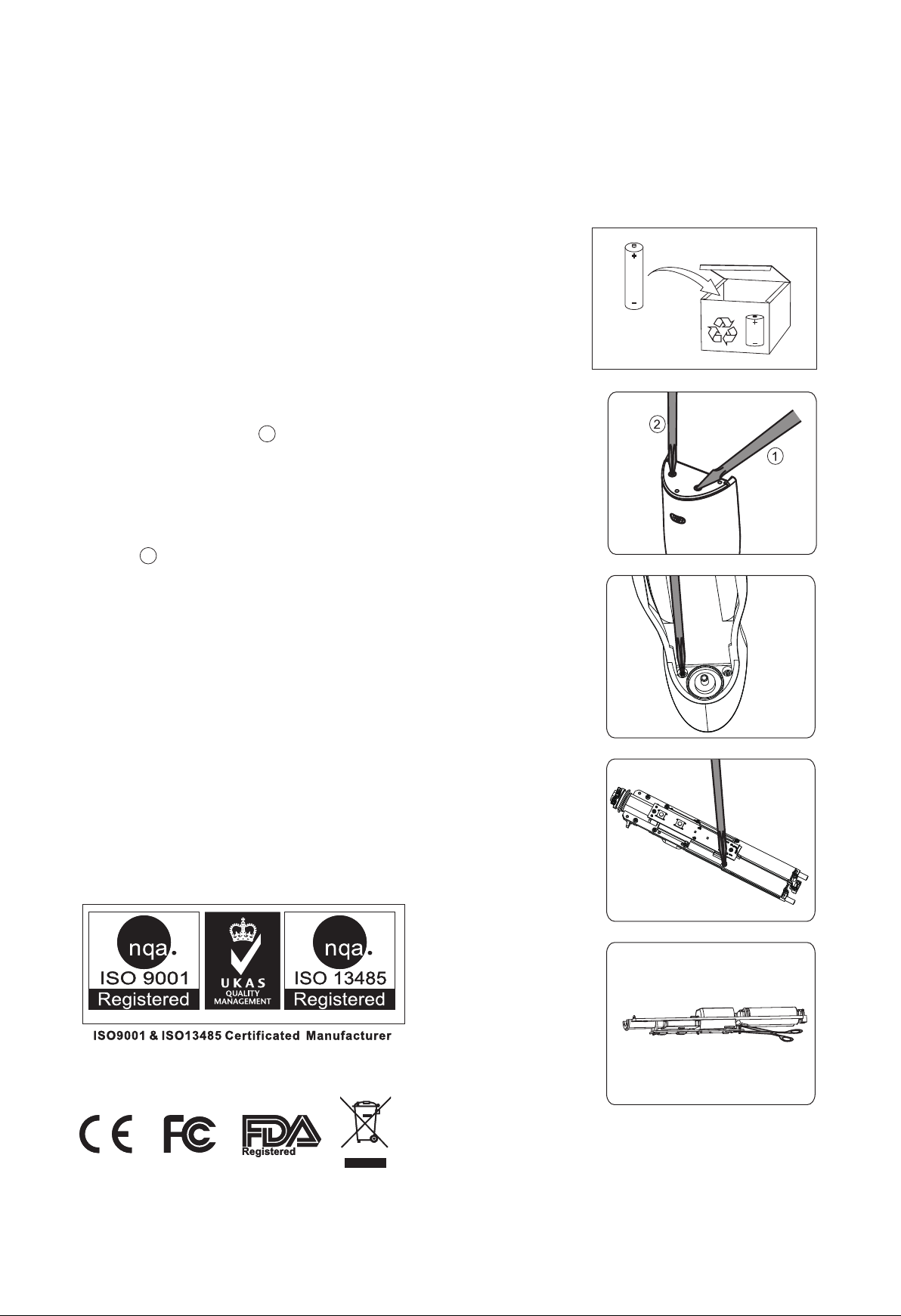

1. Remove 2pcs rubber feet on the bottom
the handle.(Like on Fig. 9)
2. Insert a screwdriver into the slot located
at the bottom of the handle and turn counter-
clockwise to release the bottom cap.
(Like on Fig. 9)
3. Slide the water tank down off the OI-320
and unscrew the two screws beside of the
suction tube.(Fig. 10)
4. Open the top cover and put the inner out
of the unit, then unscrew all the screws of the
inner.(Fig. 11)
5. Cut off the battery line and pull out the
batteries from the inner.(Fig. 12)
If you have recycling questions, please
contact your local waste management office.
