CORN MACDON C HARVESTEC 6000 User manual

CORNCORN
INSTALLATION MANUAL
HEADSIGHT.COM
|574.546.5022
MACDON CMACDON C
HARVESTECHARVESTEC
60006000
09021002d

Copyright Headsight, Inc. 2020
About Headsight
Headsight Contact Info
Headsight, Inc.
4845 3B Road
Bremen, IN 46506
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.headsight.com
Technical Assistance
Phone: [phone]
About this Manual
How to use this manual
The instructions in this manual are in the order that they should be completed for new installations.
Complete all applicable instructions in each section before proceeding. Note that some sections
are labeled to indicate they only apply to certain machines or applications. An index is available
in the front of the manual to help find technical information for previously installed systems.
This icon designates information
of which you should take note.
This icon indicates a special tool
needed for a given task.
This icon designates an
important instruction.
Suggestions
If you have any suggestions to improve this manual please call 574-546-5022 or email [e-mail].
Disclaimers
HEADSIGHT, HORIZON, PINPOINT, FORESIGHT, FEATHERSIGHT, TRUESENSE, TERRAHAWK,
INSIGHT, the Headsight logo, the Horizon logo, and Terrahawk logo are trademarks of
Headsight, Inc. All other trademarks are property of their respective owners.
Protected by one or more of the following patents and published applications:
US6883299; US7310931; US7647753; US9609806; US9609806; US10222410;
US10244680; EP2955993(DE,ES,FR,IT,UK); EP2956851 AU2004203614;
BR112015019262; BR112015019286; CA2900987; CA2900994; WO20180152266

Table of Contents
Installation�������������������������������������������������������������������������������� 01
Mounting Sensors �������������������������������������������������������������������������������02
CenterRows ����������������������������������������������������������������������������� 02
OuterRows������������������������������������������������������������������������������ 03
Install Wiring Guard - Narrow Rows Only �������������������������������������������������������04
20"Rows�������������������������������������������������������������������������������� 04
22"Rows�������������������������������������������������������������������������������� 05
Sensor Wiring ����������������������������������������������������������������������������������06
HarnessLengthTable��������������������������������������������������������������������� 06
RemovingWiresforTightAccess����������������������������������������������������������� 06
RoutingWiring-CenterRows-MacDon30”��������������������������������������� 07
RoutingWiring-EndRows-MacDon������������������������������������������������������� 10
WireRouting–AllOthers ����������������������������������������������������������������� 11
Install Horizon or Insight Controller (if equipped) ������������������������������������������������13
Install Light Wiring (Optional) ������������������������������������������������������������������ 13
Sensor Adjustment ������������������������������������������������������������������������� 14
Changing Swing ���������������������������������������������������������������������������������14
Increasing or Decreasing Voltage ����������������������������������������������������������������14
Sensor Extensions ������������������������������������������������������������������������������� 15
Parts�������������������������������������������������������������������������������������� 16
Mounting Brackets and Harnesses ��������������������������������������������������������������� 16
Sensor Parts ������������������������������������������������������������������������������������ 17
Statement of Limited Warranty ������������������������������������������������������������� 19
iv

Installation
Before working on combine or under header always:
1. Perform all combine and header manufacturer
safety precautions for servicing header.
2. Insert stop to prevent movement of header.
3. Turn off combine and remove key from ignition.
4. Set combine parking brake.
5. Disconnect all drive shafts from the header.
Complete the header installation in this manual before proceeding
to the installation in the Combine or Horizon Manuals.
JD combines and heads 2016have the check valve for the deck plate circuit
moved to the head. Older heads may need to have this block added to prevent
deck plate drift on newer combines. Older combines may need the check valve
removed to prevent jerky motion with newer heads. See your JD dealer.
01
Installation

Mounting Sensors
Center Rows
Headsight recommends mounting all sensors to center rows due to the
amount of poly that must be removed from outer row snouts to install the
sensor. If outer row mounting is prefered, see Outer rows below
1. Mount sensor to HT2217 bracket and tighten bolts.
2. Loosely bolt rear U bracket to the HT2217 rear hole
as shown.
• 20”- use HT2218
• 30” - use HT2216
• Use M8-16 carriage bolt and flange nut
• Nut must be on underside of bracket
3. Remove OEM bolt holding snoot tip in place.
4. Install sensor assembly onto bolt and
reinstall loosely into snout.
5. Attach rear U bracket to threaded inserts.
6. Tighten all hardware.
Harvestec 6000 Corn Bracket
M8x16 Flange Bolt
M10x25 Carriage Bolt
Bolt supplied with
Harvestec snout tip
M10x16 Flange Bolt
M10 Flange Nut
M8x16 Carriage Bolt
M8 Flange Nut
HT2217
HT2216
02
Installation

Outer Rows
1. Assemble Sensor & brackets similar to Center Rows
• Use HT2215 (Left) or HT2219 (Right) snout bracket in place of HT2217
• Use HT2218 rear U
2. If your header already has the poly pocket molded to accept the Headsight sensor, Skip step 3.
3. Mark and cut out snout similar to shown in pictures.
• Remove only material necessary to
allow bracket to fit into snout.
4. Follow “Routing Wiring, Outer Rows to route
extension cable up through snout.
5. Connect the extension cable to the sensor
6. Install sensor assembly onto front bolt
and reinstall loosely into snout.
7. Attach rear U bracket to threaded inserts.
• Use a bolt & washer inside the poly if no thread inserts.
8. Tighten all hardware.
03
Installation

Install Wiring Guard - Narrow Rows Only
20" Rows
1. Use HT2310 Wire guard
2. Remove snout from header.
3. Remove the two bolts holding the cover
4. Position wire guard so that tube is as close to
the wall of the welded triangle as possible.
• Mark location of wire guard tube
5. Drill 1/2” hole through cover & sheet metal inside triangle.
• New heads may already have the hole in place
• De-burr hole for wire protection
6. Install wire guard so that tube is as close to the
wall of the welded triangle as possible.
7. Secure wire guard to header using preexisting
hardware (bolts indicated by arrows).
8. Reattach snout to header.
9. Mark underside of snout directly above
tube when snout is lowered.
10. Drill 1-1/4” hole through sheet metal and poly of snoot.
04
Installation

22" Rows
1. Use HT2312 Wire guard
2. Raise snout.
3. Remove the two bolts holding the cover
4. Position wire guard so that tube is as far from the gathering
chain as possible without interfering with snout rotation.
• Mark location of wire guard tube
5. Drill 1/2” hole through cover & sheet metal.
• New heads may already have the hole in place
• De-burr hole for wire protection
6. Secure wire guard to header using preexisting
hardware (bolts indicated by arrows).
7. Lower Snout
8. Mark underside of snout directly above
tube when snout is lowered.
9. Drill 1-1/4” hole through sheet metal and poly of snoot.
05
Installation

Sensor Wiring
Properly routing the wiring is the most critical part of the installation process.
Please take time to ensure that you have allowed sufficient slack for motion
as well as sufficient clearance from moving header parts or crop flow.
Harness Length Table
1. Select appropriate wiring from chart below and mark blue connector with sensor position.
Standard Sensor Routing
Header Width Left Left Center Center Right Center Right
Up to 20'17'17'33'
21–30'23'17'17'23'38'
31–40'38'17'17'33'33' and 10'
41' and up 38'23'17'38'33' and 17'
Removing Wires for Tight Access
When routing the wiring, there may be times when you would like to route the wiring
through a small hole. You may remove the Weatherpack connector by using the following
procedure. This step is NOT required; it is only shown to aid installation as needed.
1. Release wire retaining clip on each connector. Insert
removal tool and pull each wire out of connector.
2. Flare connector terminal tabs using removal tool.
3. Reinstall wires in connector body:
• Black or Blue into A
• White into B
• Green or Pink into C
4. Latch wire retaining clip.
5. Connect wiring harness to sensor.
06
Installation

Routing Wiring - Center Rows - MacDon 30”
1. Drill a 1¼” hole in the center of the back wall of the
sensor pocket.
2. Raise the snout to transport position and locate the
hole on the left side at the back of the snout.
• Mark 4¼ inches
3. Mark 5-3/8inches off steel hood bracket.
• Drill a 1¼” hole at location and route
PFB6harness through the snout
4. Install grommet in the hole drilled in the sensor pocket.
07
Installation

5. Bolt sensor to bracket.
6. Bolt bracket assembly to snout.
7. Tuck sensor wire behind leg of bracket and zip tie.
• Keep sensor pigtail up in sensor pocket so it is not
worn by material thrown forward by chopper
8. Install grommet in hole drilled at back of snout.
9. Install clamp as shown.
• Direction of clamp is critical to avoid it
catching on the hood when folding
08
Installation

10. Drill hole in front of hood in position shown.
11. Drill hole in rear of hood in position shown.
• Fish wire through hood
• Install grommet and clamp in rear of hood as shown
12. Install grommet and clamps at front of hood as shown.
13. Route sensor extension from the main harness
(near the single point) to the back of the hood.
• Connect harnesses at rear of hood
• Screw clamp to poly just behind connector (A)
• Install clamp on hinge bracket bolt (B)
• Install grommet (C)
14. Move snout through full range.
• Check the wire does not have any pinch or stretch points
• Verify that the wire is clear of all moving parts
B
A
C
09
Installation

Routing Wiring - End Rows - MacDon
1. Lay out wiring to appropriate snout.
• Wiring will run from the sensor to the rear of the header near the combine’s
feederhouse connection
• See the Harness Length Table
• Use a PFB6& an extension harness for each snout.

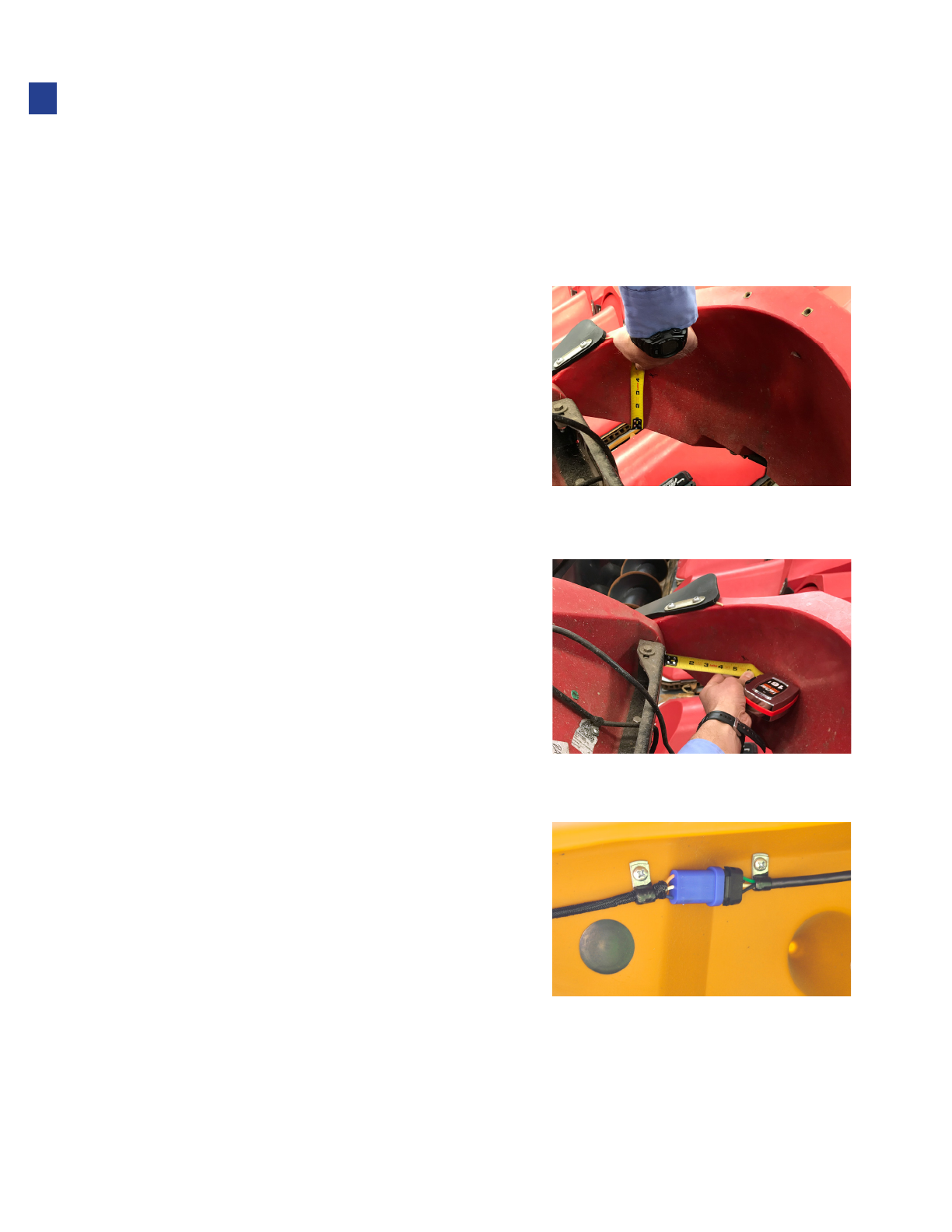

2. If routing wire thru snout, raise the snout to
transport position and locate the hole on
the left side at the back of the snout.
• Mark 4¼ inches
• Mark 5-3/8inches off steel hood bracket.
• Drill a 1¼” hole at location and route
PFB6harness through the snout
3. Connect PFB6to the sensor.
• Ensure connection is properly aligned and seated
• Push gently but firmly until you hear or feel a slight click
4. If routing wire along bottom of snout, fasten wiring
with cable clamps on both sides of the connection.
• Allow slight (½”) slack near sensor
• Fasten off to side of snout to prevent damage
from sensor arm movement
10
Installation

5. Install clamps as shown.
• Positioning of clamps is critical to avoid it
catching on the hood when folding
• Make sure to leave enough slack
allow snout to fold and raise
• Make sure cable will not catch in gathering chains.
6. Drill a 1-1/4” hole thru rear of end shield in location shown.
7. Connect extension cable to PFB6
• Route cable back under and thru rear of end shield
• Route to left of combine feederhouse
8. Secure wiring with cable clamps and zip ties
approximately every 12–24” as needed
9. Wrap and fasten excess wiring in secure location.
Wire Routing – All Others
1. Lay out wiring to appropriate snout.
• Wiring will run from the sensor to the rear of the header near
the combine’s
feederhouse connection
• See the Harness Length Table
• Use a PFB6& an extension harness for
each snout on center rows
1. Connect PFB6to the sensor.
• Ensure connection is properly aligned and seated
• Push gently but firmly until you hear or feel a slight click
2. Fasten wiring with cable clamps on both sides of
the connection.
• Allow slight (½”) slack near sensor
• Fasten off to side of snout to prevent damage
from sensor arm movement
11
Installation

3. For narrow row heads, drill a 1-1/4” hole in front of hood
• May also be used on wide row heads if desired
4. Route PFB6through center of hood
• Place clamp holding wire at front of hood
• Connector should hang out of hole at rear of hood
• Install grommet in front hole
5. For narrow row heads, remove black Weatherpack connector from extension harness.
6. From under head, route up thru wire guard installed above.
• Pull 12” or so thru the guard
7. Reinstall the plug on extension harness.
• Make sure to install the wires into the correct positions.
8. Connect extension harness to PFB6
• Ensure connection is properly aligned and
seated until you hear or feel a slight click
• Run zip-tie around connection and pull tight
• Tuck connection inside hood
9. Route wiring to rear of header
• For wide row heads, route wiring through
existing hole to rear of header
• Make sure to adequately clamp wiring
to prevent rubbing or pinching
• If necessary, route wiring through a steel conduit to
protect it from debris–especially on chopping headers
• Route to left of combine feederhouse
• Secure wiring with cable clamps and zip ties
approximately every 12–24” as needed
10. Repeat steps above for each sensor.
11. Wrap and fasten excess wiring in secure location.
12
Installation

Install Horizon or Insight Controller (if equipped)
1. Connect the Horizon or Insight box to the main
Headsight harness.
2. Hold the box at rear of header as shown and
make sure Headsight harness can reach feeder
house electrical connection of combine.
• Mark mounting hole locations
3. Drill mounting holes using ½” drill bit.
4. Secure box to header using hardware provided.
Install Light Wiring (Optional)
This step is only necessary for headers without lights pre-wired to OEM header connector.
1. Connect Headsight black wire (Ground)
to grounds of all lights.
2. Connect Headsight Yellow (Left Hazard)
to left warning lamp wire.
3. Connect Headsight Green (Right Hazard)
to right warning lamp wire.
4. Connect Headsight Brown (Stubble) to
stubble light lamp wire (if equipped).
See the Headsight combine manual for more details about how to install the
remaining wiring harness or control box and then connect each individual sensor.
13
Installation

Sensor Adjustment
Insert header stop to prevent movement.
Changing Swing
1. Loosen the bolt A holding downstop.
2. Slide the downstop to new position in slotted hole.
• Raising downstop will increase voltage swing
and allow higher maximum cutting height
• Lowering the downstop will decrease total voltage
swing and help prevent arm from stabbing
the ground when the headers is lowered
Increasing or Decreasing Voltage
1. Loosen sensor mounting nuts B.
2. Twist the sensor to new position using
the slotted mounting holes.
• Twisting sensor clockwise will lower voltage
• Twisting sensor counterclockwise will increase voltage
3. Re-tighten the nuts B.
A
BB
14
Sensor Adjustment

Sensor Extensions
Headsight recommends using the lowest setting that allows you to run as high as you
desire. Increasing the length of the extension will reduce header control sensitivity.
1. Remove flange lock nut then remove arm and spring.
2. Install extension to sensor assembly with
previously removed spring and flange locknut.
3. Install arm in extension with two bolts and
nuts as pictured at desired length.
• Headsight does not recommend extensions
unless you need to run higher
• If you desire to operate header higher then
sensors will allows, you may add extensions
15
Sensor Adjustment

Parts
Mounting Brackets and Harnesses
ITEM QTY. PART NUMBER DESCRIPTION
1AR HT2215 Mounting Strap - Left
2AR HT2217 Mounting Strap - Center
3AR HT2219 Mounting Strap - Right
4AR HT2216 Mounting Bracket - Wide
AR HT2218 Mounting Bracket - Narrow
5AR PFBxx (xx=length) Extension Harness
(6,10,17,23,33,38)
6AR HT2310 20” row guard
AR HT2312 22” row guard
4
1
5
6
2 3
16
Parts
