Cornwell Tools CTBT30KB User manual

CTBT30KB / CTBT30KMK / CTBT30KMS 1 02/04/2020
PLEASE NOTE: Loading work table beyond rated capacity may cause structural damage to the work table as well as personal and/
or property damage. Please educate your customers to the "dangers of overloading". Do not attempt to push work table with items
on the work table tray.
• Read and follow all instructions in User’s Manual.
• Do not load work table beyond rated capacity (75 lbs.)
• Work table is designed to roll easily on flat surfaces and should not be used on uneven or inclined surfaces.
• Do not pull work table.
• Work table can tip or fall causing damage or injury.
• Keep children away from work table.
• Wear gloves when lifting by edges.
• Failure to heed these warnings may result in personal injury and/or property damage.
WARNING: This product can expose you to chemicals including nickel, which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
OPERATING MANUAL •WARNING INFORMATION •PARTS LIST
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of the
device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost or not
legible, contact Cornwell Tools for replacements. If the operator is not fluent in English, the product and safety instructions shall be read
and discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator
comprehends its contents. PLEASE NOTE: Loading work table beyond rated capacity may cause structural damage to the work table as
well as personal and /or property damage. Please educate your customers to the dangers of overloading.
CTBT30KB (CORPORATE BLUE)
CTBT30KMK (MATTE BLACK)
CTBT30KMS (MATTE SILVER)
Premium Rolling Work Table
Copyright © Professional Tool Products, 2020
All rights reserved
WARNING

CTBT30KB / CTBT30KMK / CTBT30KMS 2 02/04/2020
ASSEMBLY INSTRUCTIONS
CTBT30KB (CORPORATE BLUE)
CTBT30KMK (MATTE BLACK)
CTBT30KMS (MATTE SILVER)
Premium Rolling Work Table
2. Place Galvanized Tube Assembly onto
the Four Hole Mount Plate of the Table Top
5. Insert and tighten the Threaded Knob Assembly
4. Place Painted Tube Assembly onto the
Galvanized Tube Assembly
6. Hold the Two Bent Arms & Bottom Plate
onto the Painted Tube Assembly
3. Assemble the Four Hex Head Bolts
M8-16 to the Table Top
1. Place Table Top, Top Downwards

CTBT30KB / CTBT30KMK / CTBT30KMS 3 02/04/2020
ASSEMBLY INSTRUCTIONS (continued)
7. Insert the four M8-65 Hex Head Bolts through the
Lower Tube Assembly, into each Leg, into the bottom
plate and then the four Hex Head Flange Nuts.
CTBT30KB (CORPORATE BLUE)
CTBT30KMK (MATTE BLACK)
CTBT30KMS (MATTE SILVER)
Premium Rolling Work Table
Height ................................... 50 3/8"Max, 34 9/16"Min
Table............................................................... 21"W, 30"L
Wheel Base.............................................21.7"W x 27.7"L
Compartments .................................... (3) 6.5"W x 4.9"L
(1) 19.9"W x 21.9"L
(1) 19.9"W x 1.9"L
Tool Holes............................................... Pry Bars: (2) 1"
Extensions: (2) 3/4"
Large Screwdriver: (4) 1/2"
Medium/Small Screwdrivers: (4) 3/8"
PVC Black Mats ................................... (3) 6.2"W x 4.6"L
(1) 19.6"W x 21.7"L
Casters............................ (3) 3" x 1"Caster Non-locking
(1) 3" x 1"Caster Locking
Capacity...............75 lbs. Evenly Spaced on Worktable
SPECIFICATIONS
10. Flip over the Work Table Assembly and place the
Mats on the Table Top.
8. On each Caster, thread on a Jam Nut. Then insert
the Caster into the leg hole. Repeat for the
remaining three Casters.
9. Place each of the four Leg End Covers onto each
leg. Place each of the four drill hole covers into
each drill hole.

CTBT30KB / CTBT30KMK / CTBT30KMS 4 02/04/2020
CTBT30KB (CORPORATE BLUE)
CTBT30KMK (MATTE BLACK)
CTBT30KMS (MATTE SILVER)
Premium Rolling Work Table

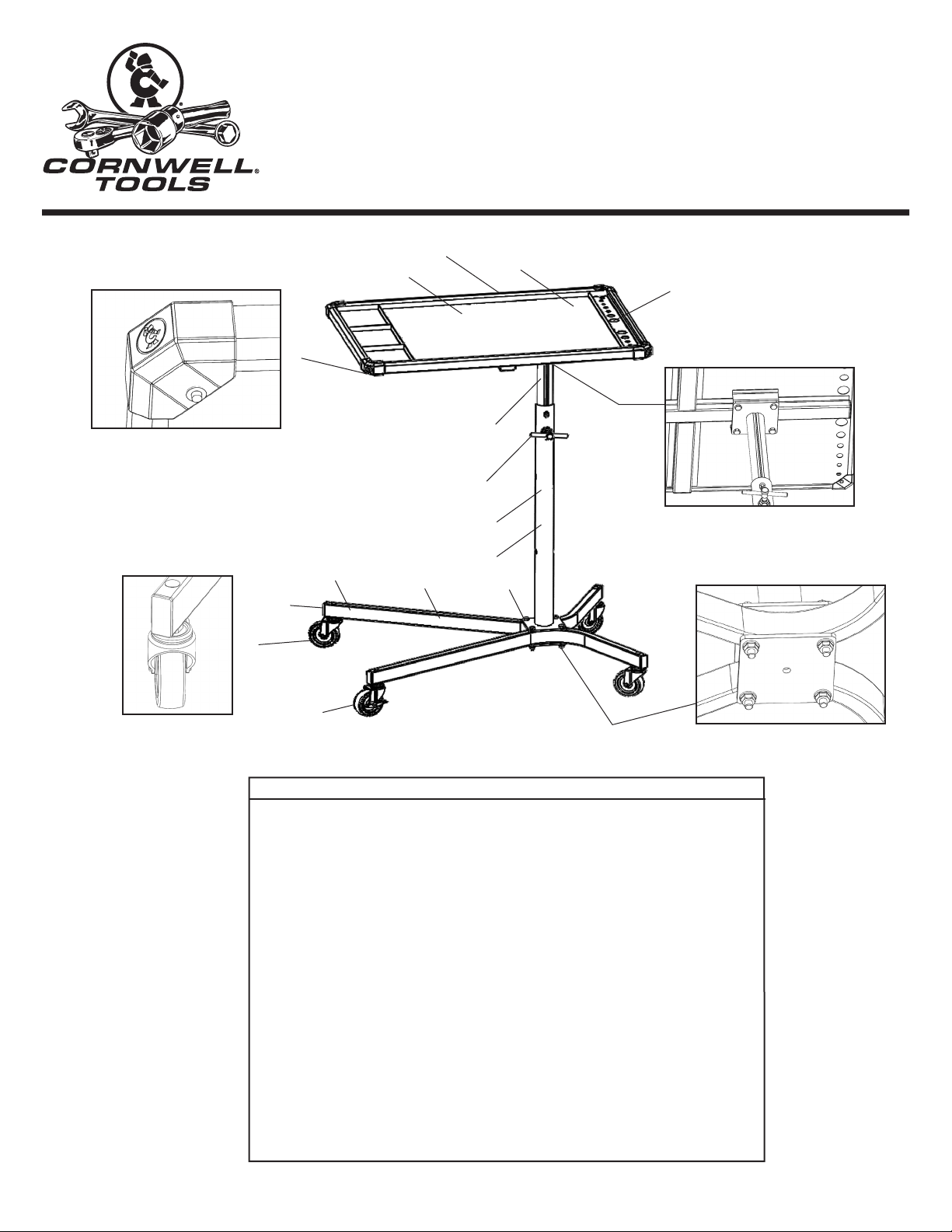

Item # Part # Description QTY.
1 Table Top Assembly 1
2 RSBUMPWT4PK Rubber Bumper, 4 Pc. - Black 1 set
3 RSLINERWT4PK Mat (Set of 4) - Black 1 set
4 RSCTBT30CORBK Corner Pieces w/Rivets (8 Pc.) - Black 1 set
5 RSCOVWT4PK Cover (4 Pc.) For Table Top Supports - Black 1 set
6 RSCTBT30KCTT Galvanized Center Tube Top w/Plate 1
7 RSKNOBWTBK Threaded Knob - Black 1
8 RSCTBT30KCTBMS Center Tube Bottom - Matte Silver 1
RSCTBT30KCTBMK Center Tube Bottom - Matte Black 1
RSCTBT30KCTBB Center Tube Bottom - Corporate Blue 1
9 RSCTBT30LOGO Cornwell Logo Label 1
10 RSWTHDW24KBK Hardware (24 Pc.) - Black 1 set
11 RSCTBT30KLMS Single Bend Leg - Matte Silver 2
RSCTBT30KLMK Single Bend Leg - Matte Black 2
RSCTBT30KLB Single Bend Leg - Corporate Blue 2
12 RSCOVLC4PK Caster Hole Covers (4 Pc.) - Black 1 set
13 RSCOVLE4PK Leg End Covers (4 Pc.) - Black 1 set
14 RSCAST31LBK Locking Casters (3"x1") w/Hardware - Black 1
15 RSCAST31BK Non-Locking Casters, (3"x1") w/Hardware - Black 3
16 RSCTBT30KPBMS Bottom Plate, 4 Holes - Matte Silver 1
17 RSCTBT30KPBMK Bottom Plate, 4 Holes - Matte Black 1
18 RSCTBT30KPBB Bottom Plate, 4 Holes - Corporate Blue 1
not shown RSCTBT30KMSPL Product Label Kit - Matte Silver 1
not shown RSCTBT30KMKPL Product Label Kit - Matte Black 1
not shown RSCTBT30KBPL Product Label Kit - Corporate Blue 1
8
9
10
11
12
13
14
15
16
17
7
6
2
3
4
5
1
