CorroVenta CTR 10 000 User manual

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
1 (18)
Table of Contents
Intended use........................................................................................................................................ 2
Waiver of Liability................................................................................................................................ 3
Safety information............................................................................................................................... 4
How the dehumidifier works............................................................................................................... 5
Product Overview................................................................................................................................ 6
Installation........................................................................................................................................... 7
Installation Instructions................................................................................................................... 8
Accessories and consumables........................................................................................................... 16
Troubleshooting ................................................................................................................................ 17
Technical data ................................................................................................................................... 18

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
2 (18)
User Manual CTR 10000
Intended use
The CTR 10000, a trailer based high capacity adsorption dryer, is developed and intended for
construction drying and water damage restoration. Through use of adsorption drying, it does not
have the same dependency on ambient temperature as condensation dryers have and functions even
well below the freezing point. The trailer allows both crane lift as well as forklift transportation, and
as it can be used both indoors and outdoors, the CTR 10000 is truly deployable, readily and easily
used where ever required.
As all other Corroventa machines, the CTR 10000 is very energy efficient.
Features
•Energy efficient
•Service friendly
•High Capacity
•Hour counter
•Robust

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
3 (18)
Waiver of Liability
•Faulty, incorrect installations and/or incorrect use can cause damage to property and human
injury.
•The manufacturer assumes no responsibility or liability for damages or injuries caused by
non-compliance with the instructions herein, use for other purposes than the intended, or
failure to observe its warnings. Such damage, injuries or liabilities are not covered by the
product warranty.
•The product warranty does not cover consumables or normal wear and tear.
•It is the responsibility of the buyer to inspect the product at time of delivery and before use
to ensure its good function. The product warranty does not cover damage resulting from use
of faulty products.
•Changes or modifications to the equipment must not be made without written consent by
Corroventa Avfuktning AB.
•The product, technical data and/or installation and operation instructions can be changed
without prior notice.
•This manual contains information that is protected by the Intellectual Property laws. No part
of this manual may be copied, stored in an information system or transferred in any form or
in any way without the written consent of Corroventa Avfuktning AB.
Any comments on the contents of this document shall be sent or addressed to:
Corroventa Avfuktning AB Tel: [phone]
Mekanikervägen 3 E-mail: [email protected]e
564 35 Bankeryd
SWEDEN

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
4 (18)
Safety information
This equipment is not intended to be used by individuals with physical or mental disabilities impeding
their operation or understanding of it or by individuals lacking required knowledge or experience
unless they are supervised and instructed by another person with responsibility for their safety.
Children must only use this equipment under supervision of an adult to ensure that it is not used as a
toy, something that it is not designed for.
Electrical installations made in connection with the installation of the dehumidifier or the CTR 500XT
shall be made by authorized personnel in accordance with local and national regulations.
Furthermore, the following warnings and instructions shall be read and observed:
1. The dryer must not be powered until the installation is finished in accordance with this
manual.
2. The powered dryer must not be covered as this can lead to overheating and fire hazard.
3. The dryer must not be used to sit, step or stand on.
4. Never use the dryer without the filter installed as this can cause damage to it. Ensure that
the filter is clean. A cluttered filter can cause the dryer to overheat.
5. Bases or organic material with high boiling point such as oil, fat, solvents, boracol or similar
substances must not be drawn into the dryer. It may damage the rotor.
6. The dryer must not be used in spaces where explosive gases can be present.
7. Do not stick objects into the air outlets or intakes as this can cause damage to the machinery
as well as human injury.
8. Install the dryer steadily and leveled, lower the rear stabilizer and apply parking brake and
wheel chocks so that the trailer remains in place.
9. Keep children, animals and spectators away from the workplace while installation is
undertaken.
10. If the dryer is broken, if the power connector or the cable is damaged, contact the authorized
service technician. Do not repair the equipment if you have not received specific training by
the manufacturer.
11. Be careful not to damage the power cable. The cable must not go through water or pass
sharp edges.
12. Never tow the dryer by its cable.
13. To use electrical equipment in humid or wet environment can be dangerous. Never power
the dryer if it is standing in water.
14. A residual-current device / ground fault circuit interrupter should be used to minimize the
risk of electric shocks.
15. Water must not come in contact with the electrical components of the equipment. If this has
happened, ensure that the equipment is dry before it is used again.
16. The power must always be disconnected before the electric cabinet is opened.
17. If the dryer is set to emergency mode, one or several alarms deactivated, it must never be
left operating unattended.
18. Repairs to the electronics/electrical system of the CTR 10000 must only be made by qualified
electrician.
19. The dryer must never be used with any other accessories than those listed in this manual or
those specifically approved by Corroventa Avfuktning AB.
For further advice on product safety and use, please contact the supplier.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
5 (18)
How the dehumidifier works
Although much larger and with much higher capacity, the CTR 10000 works according to the same
principles as the portable adsorption dryers of the Corroventa product range. The rotor is coated
with Silica Gel, a crystal with enormous amounts of microscopic pores which makes its total
surface very large. A single gram has an active surface of 500 to 700m2and the material can
absorb water corresponding up to 40% of its own weight. Silica gel is not water soluble and can
therefore not be washed away nor dissipate into the passing air.
The process air fan draws the process air through the filter and the rotor, letting the Silica Gel dry
it and then leaves the machine through the dry air outlets on the rear right door. Meanwhile,
another fan is drawing regeneration air through the regeneration air hatch on the rear. This air is
heated by the regeneration heater before it moves through a sector segment of the rotor. The
water in the rotor is carried as vapor by the wet air that is evacuated from the area to be dried
through the wet air hose.
Process air
intake through
heat exchanger,
equipped with
filter
Wet Air Hose
Dry Air Outlet
(hose for dry air
is included for
use when
required
Regeneration
Air Hatch on
the left door

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
6 (18)

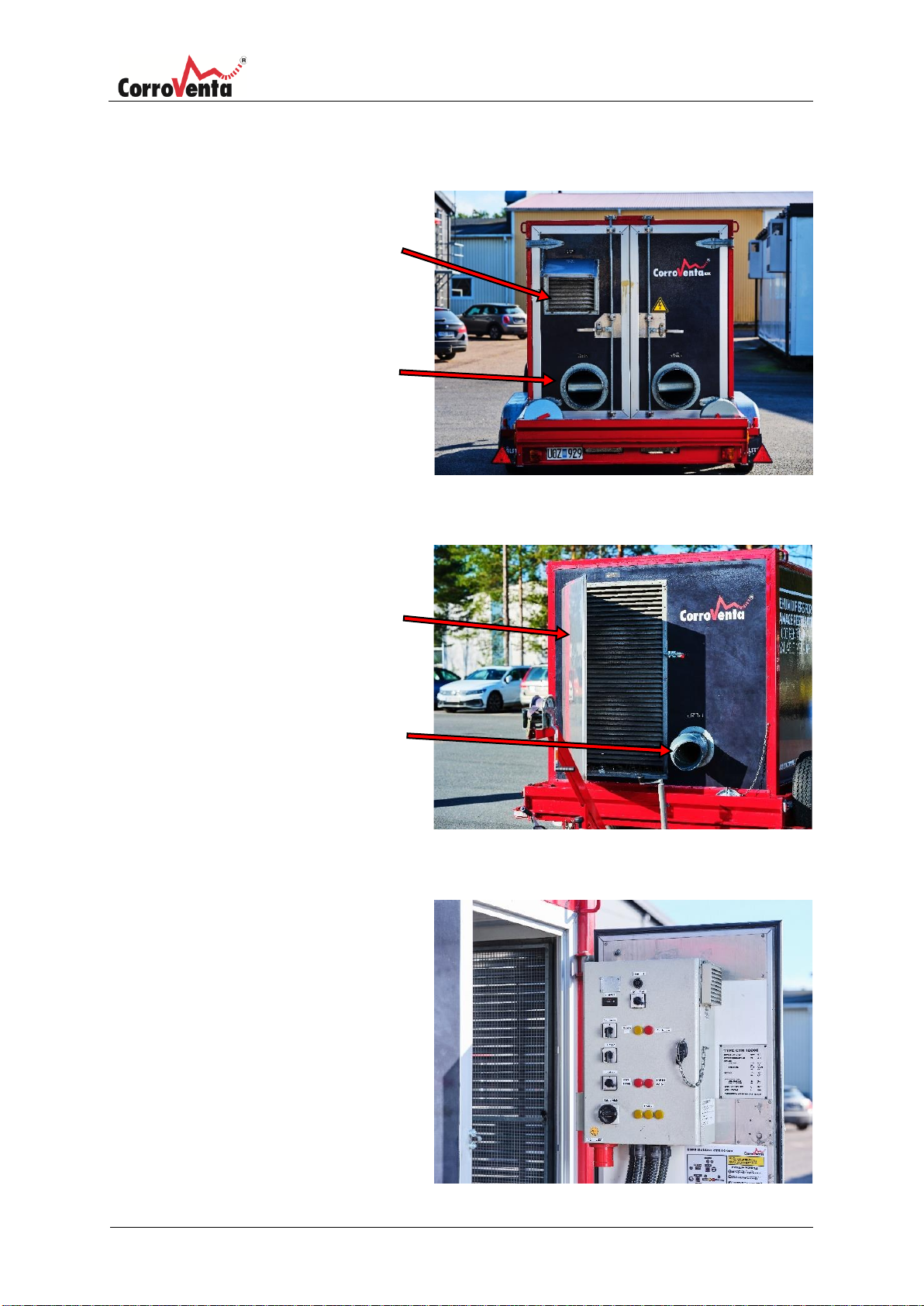

Product Overview
Control panel located on side door. Air
hoses together with power cables are
stored in this compartment.
Process Air Intake
Wet Air Outlet
Regeneration Air
Inlet Hatch
Dry Air Outlet

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
7 (18)

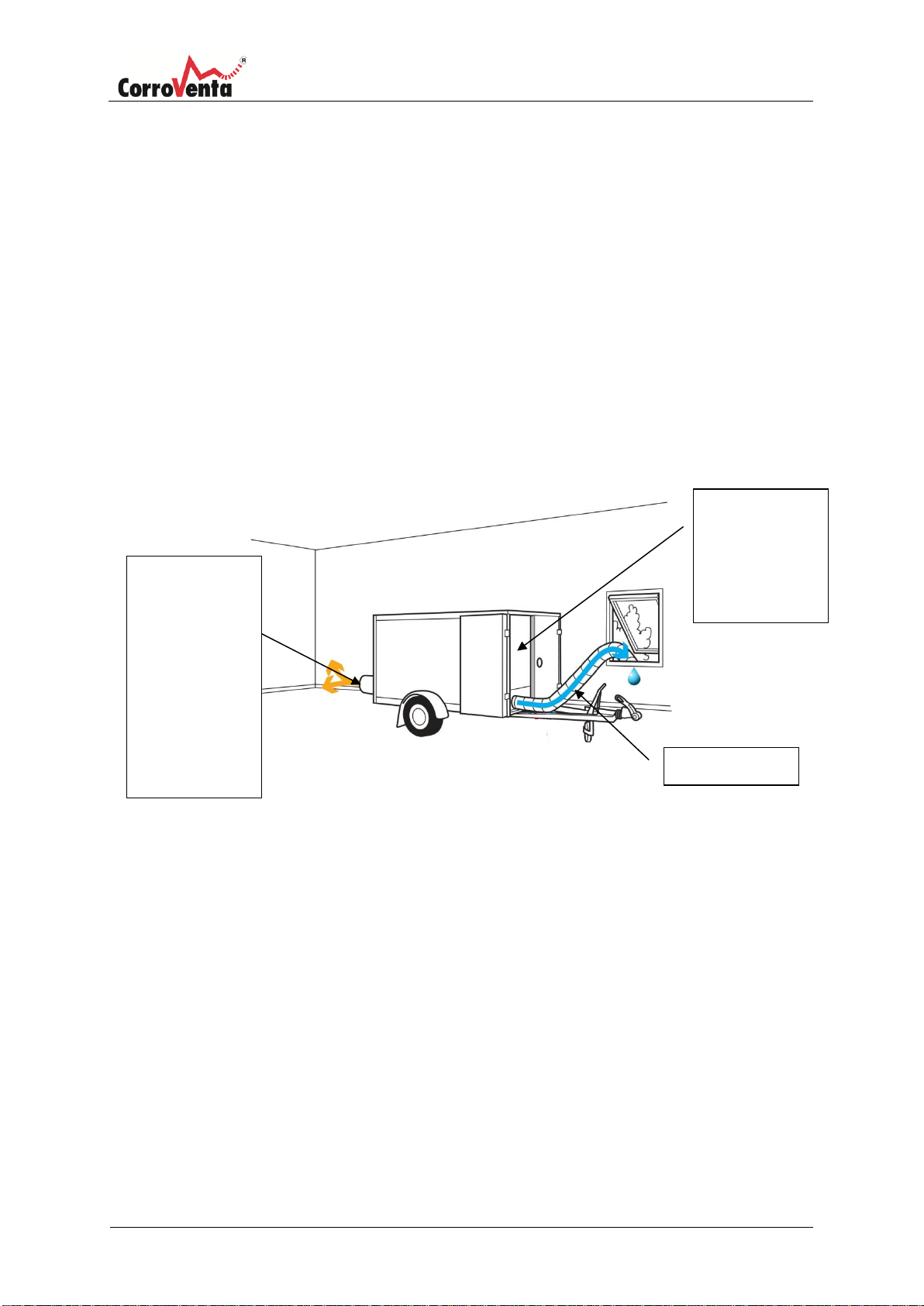

Installation
The CTR 10000 can be used and positioned both indoors and outdoors as depicted below. When the
machine is positioned outdoors, the generated dry air is led into the building to be dried through the
dry air hose.
When used indoors, the wet air is evacuated through a wet air hose led through window or other
opening.
The condensate hose depicted in illustrations below is only valid for the A50 TD2.
Outdoor use Indoor use

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
8 (18)
Installation Instructions
Open reg air hatch and remove sleeves
for dry air.
Connect dryer to 400V 63A with 63A cable.
Open hatch for process air and
remove sleeve for wet air.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
9 (18)

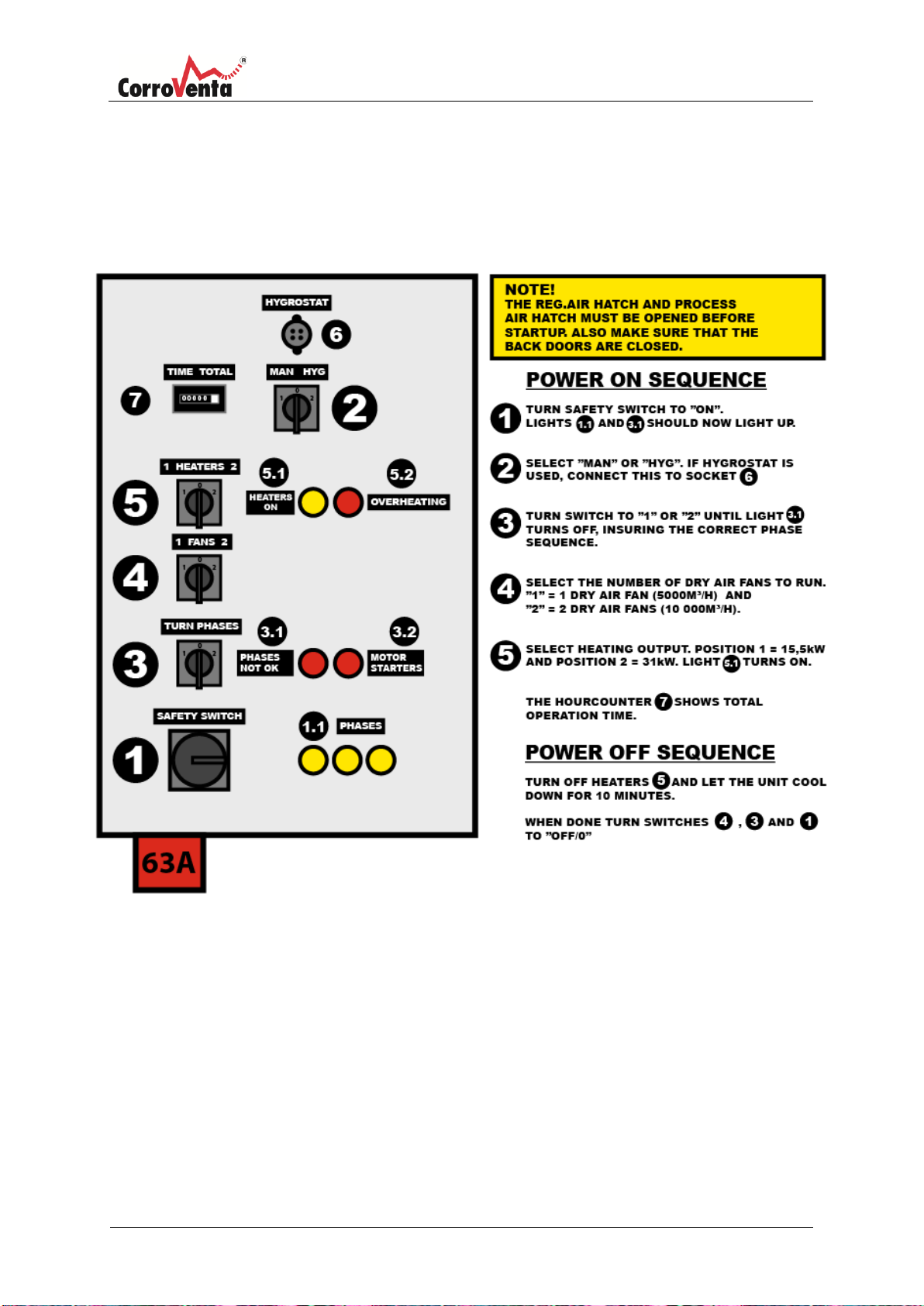

For startup, follow the instructions below (this information can also be found on a sticker
inside the unit, below the control panel)

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
10 (18)

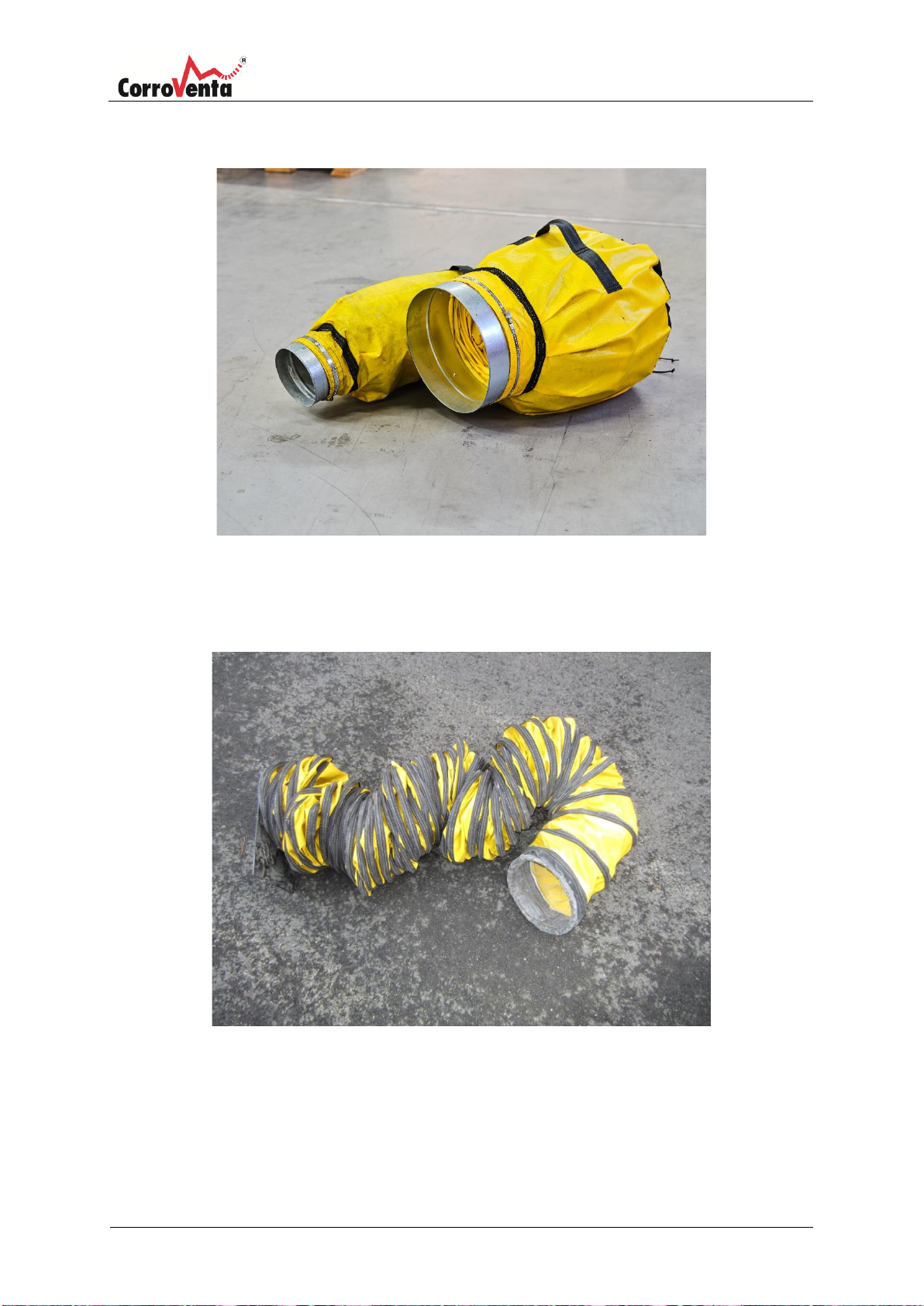

If you need, connect dry air hoses. Try to create rotation in dry air at the place you will dry, use the
hoses.
Connect wet air hose. IMPORTANT! If dryer is placed indoor, you must lead out the wet air outdoor.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
11 (18)
Make sure to change filter at regular intervals depending on where the dryer operates. This is
process air filter. (Art no. 05111).
Make sure to change filter at regular intervals depending on where the dryer operates. This is the reg
air filter. (Art no. 05110).

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
12 (18)
The CTR 10000 allows for transportation with a forklift. Follow the steps below to unload it from the
trailer.
1. There are four container locks, one in each corner. Unscrew all of them until they fall to the
unlocked position.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
13 (18)

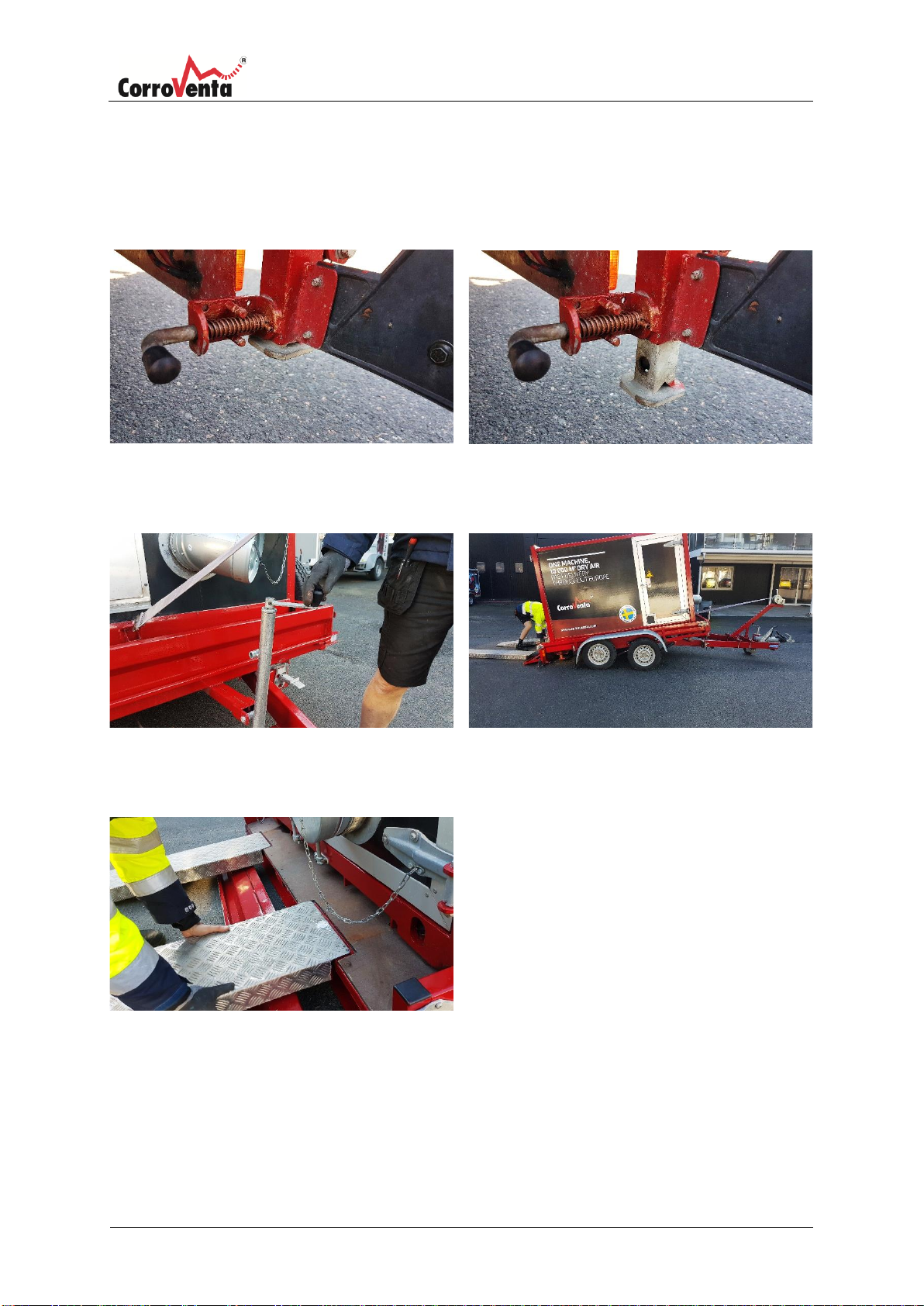

2. Make sure that the container locks are all the way down. They should be flush with the
trailer bed.
3:
3. Open the back gate and pull out the ramps.
4. Unhook the two latches in the front. This enables the trailer to be tilted.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
14 (18)
5. Pull out the two support legs in the rear.
6. Tilt the trailer until the support legs touch the ground.
7. Place the ramps in the designated cutouts on the trailer.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
15 (18)
8. Unlock the pulley and start unloading the CTR 10 000. It might need a light push to get
started.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
16 (18)
Accessories and consumables
The following articles are available as accessories and consumables to the CTR 10000:
Article number
Name
01100
Humidistat, HR1-5
05111
Process air filter
05110
Regeneration Air Filter

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
17 (18)
Troubleshooting
OVERHEATING
If the dryer overheats act according to the list below:
•Check process air door and reg air door, they must be open.
•Check filters, process air and reg air.
•Check if the dryer was disconnected from 400V without cooling (it overheats).
•Check wet air hose. The wet air must have free flow.
•After resetting the heater and you have restarted the CTR 10000. Check that the rotor is
turning clockwise.
If the machine is overheated it stops and the red lamp (no. 11 on electric cabin) will light up. Let the
machine cool, make sure hatches are open, change filters. Open the back doors and reset the red
buttons.

User Manual CTR 10000
© Corroventa Avfuktning AB
2020.12
18 (18)
Technical Data
Power supply
3 ~ 400 V 63 A
Power consumption
36,2 kW
Dry air - 1 fan
5000 m3/h 2,2 kW
Dry air - 2 fans
10000 m3/h 4,4 kW
Reg-air
1800 m3/h 0,75 kW
Reg-power - one heater
15,5 kW
Reg-power - two heaters
31,0 kW
Capacity +20°C, 80% RF
875 l/day
Size
H 1,80 x B 1,70 x L 3,00 m
Weight
1080 kg
Weight with trailer
1560 kg
Size incl. trailer
H 2,20 x W 2,33 x L 4,85 m
