Corsair RM750x User manual

POWER SUPPLY
MANUAL
FULLY-MODULAR ATX POWER SUPPLY
ENGLISH
EN
FRANÇAIS (EURO)
FR
FRANÇAIS (CAN)
CF
DEUTSCH
DE
ITALIANO
IT
ESPAÑOL (EURO)
ES
ESPAÑOL (LATIN AMERICA)
LA
PORTUGUÊS (EURO)
PT
PORTUGUÊS (BRAZIL)
BP
POLSKI
PL
繁體中文
TC
简体中文
SC
日本語
JA
󽋸󺬉󼍐
KO

ENGLISHENGLISH
TABLE OF CONTENTS
CORSAIR RMx SHIFT Series fully modular power supplies deliver reliable 80 PLUS Gold efficient power to your system.
CONGRATULATIONS ON THE PURCHASE OF YOUR
NEW CORSAIR RMx SHIFT SERIES ATX POWER SUPPLY!
SAFETY AND PROTECTION
• Over-Voltage Protection (OVP)
Over-voltage protection for the 12V, 5V, and 3.3V DC outputs is required to comply with the ATX specification.
OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU
manufacturer.
• Over-Current Protection (OCP)
OCP is featured on the 3.3V, 5V, and 12V rails. OCP ensures that the output of the DC voltage rails remains within
safe operating limits.
• Over-Temperature Protection (OTP)
OTP ensures that the PSU will shut down when the internal temperature reaches a set point. This is usually as a
result of internal current overloading or a fan failure.
• Short-Circuit Protection (SCP)
A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures
that the PSU shuts down should the 3.3V, 5V, and 12V rails short to any other rail, or to ground. It also ensures
that no damage should occur to the unit, or your PC’s components in the event of a short.
• Over Power Protection (OPP)
Over power protection shuts off the PSU when the power drawn is between 115% and 135% of the rated power.
• Catastrophic Failure Protection
PSU must have protection circuitry to shut down safely to prevent damage from any catastrophic failures such
as flame, excessive smoke, charred PCB, fused PCB conductor, startling noise, emission of molten material, etc.
RM750x SHIFT
RM850x SHIFT
RM1000x SHIFT
RM1200x SHIFT
INSTALLATION

ENGLISH
1
ENGLISH
Dimensions: 160mm(L) x 150mm(W) x 86mm(H)
Package Contents: Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet

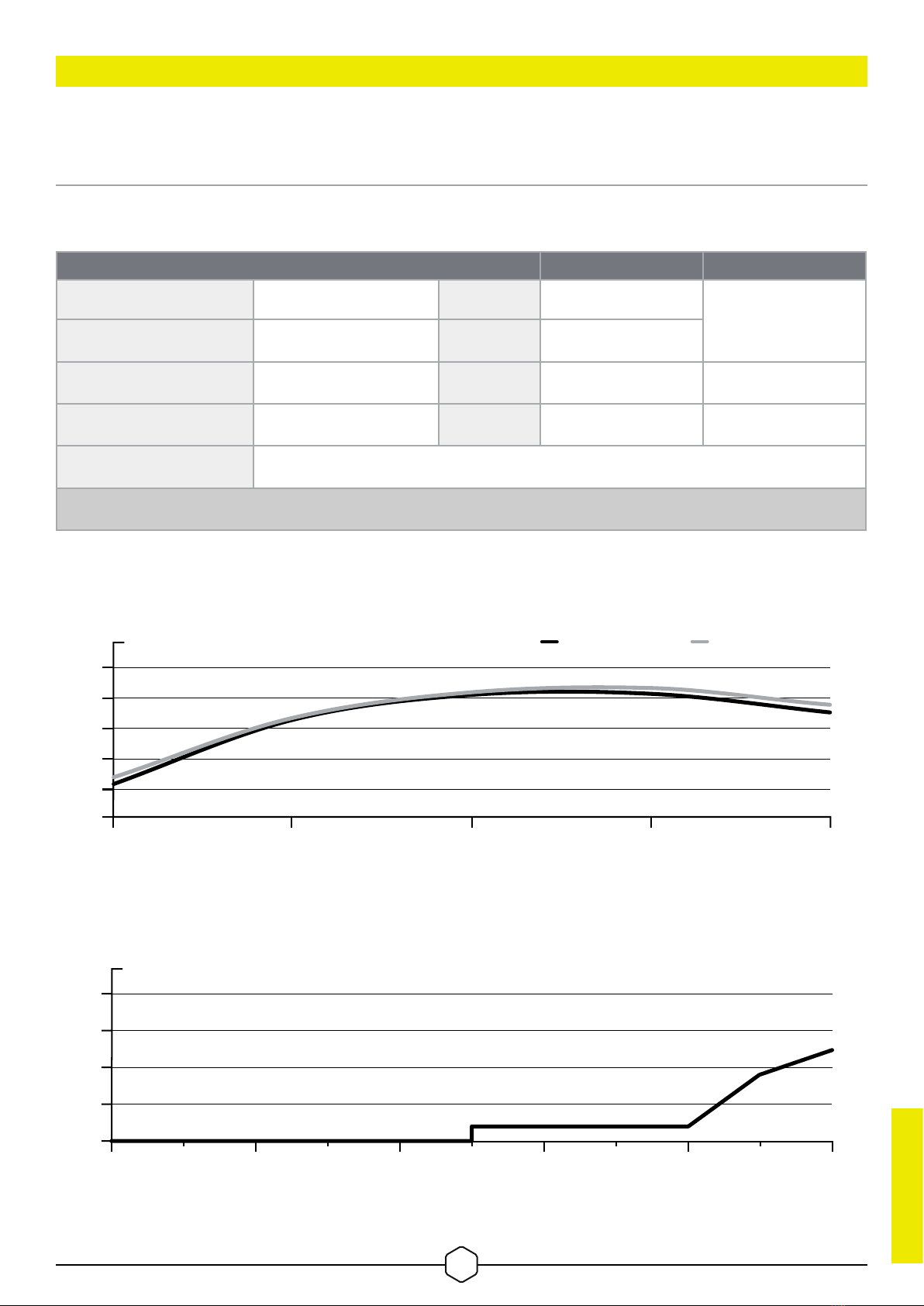

RM750x SHIFT INCLUDED HARDWARE AND SPECIFICATIONS
CORSAIR RM750x SHIFT POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0159 +3.3V 20A
150W
PART NO. 75-005190 +5V 20A
FREQUENCY 47 - 63Hz +12V 62.5A 750W
INPUT CURRENT 10 - 5A +5Vsb 3A 15W
AC INPUT RATING 100 - 240V a.c.
TOTAL POWER: 750W
CORSAIR RM750x SHIFT POWER SUPPLY EFFICIENCY
10021050
20
95
90
85
80
75
70
input 115V a.c. input 230V a.c.EFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR RM750x SHIFT POWER SUPPLY FAN NOISE CURVE
0
750
150 300 450 600
40
30
20
10
0
FAN NOISE (dB)
POWER OUTPUT (W)

ENGLISH
2
ENGLISH
Dimensions: 160mm(L) x 150mm(W) x 86mm(H)
Package Contents: Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet
RM850x SHIFT INCLUDED HARDWARE AND SPECIFICATIONS
CORSAIR RM850x SHIFT POWER SUPPLY EFFICIENCY
10021050
20
95
90
85
80
75
70
input 115V a.c. input 230V a.c.EFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR RM850x SHIFT POWER SUPPLY FAN NOISE CURVE
0 85
0
170 340510 680
40
30
20
10
0
FAN NOISE (dB)
POWER OUTPUT (W)
CORSAIR RM850x SHIFT POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0160 +3.3V 20A
150W
PART NO. 75-005191 +5V 20A
FREQUENCY 47 - 63Hz +12V 70.8A 849.6W
INPUT CURRENT 10 - 5A +5Vsb 3A 15W
AC INPUT RATING 100 - 240V a.c.
TOTAL POWER: 850W

ENGLISH
3
ENGLISH
Dimensions: 180mm(L) x 150mm(W) x 86mm(H)
Package Contents: Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet
RM1000x SHIFT INCLUDED HARDWARE AND SPECIFICATIONS
CORSAIR RM1000x SHIFT POWER SUPPLY EFFICIENCY
10021050
20
95
90
85
80
75
70
input 115V a.c. input 230V a.c.EFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR RM1000x SHIFT POWER SUPPLY FAN NOISE CURVE
0
1000
200 400 600 800
40
30
20
10
0
FAN NOISE (dB)
POWER OUTPUT (W)
CORSAIR RM1000x SHIFT POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0161 +3.3V 20A
150W
PART NO. 75-005192 +5V 20A
FREQUENCY 47 - 63Hz +12V 83.3A 1000W
INPUT CURRENT 12 - 6A +5Vsb 3A 15W
AC INPUT RATING 100 - 240V a.c.
TOTAL POWER: 1000W

ENGLISH
4
ENGLISH
Dimensions: 180mm(L) x 150mm(W) x 86mm(H)
Package Contents: Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet
RM1200x SHIFT INCLUDED HARDWARE AND SPECIFICATIONS
CORSAIR RM1200x SHIFT POWER SUPPLY EFFICIENCY
10021050
20
95
90
85
80
75
70
input 115V a.c. input 230V a.c.EFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR RM1200x SHIFT POWER SUPPLY FAN NOISE CURVE
0
1200
240 480 720 960
40
30
20
10
0
FAN NOISE (dB)
POWER OUTPUT (W)
CORSAIR RM1200x SHIFT POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0162 +3.3V 20A
150W
PART NO. 75-005193 +5V 20A
FREQUENCY 47 - 63Hz +12V 100A 1200W
INPUT CURRENT 15 - 7.5A +5Vsb 3A 15W
AC INPUT RATING 100 - 240V a.c.
TOTAL POWER: 1200W

ENGLISH
5
ENGLISH

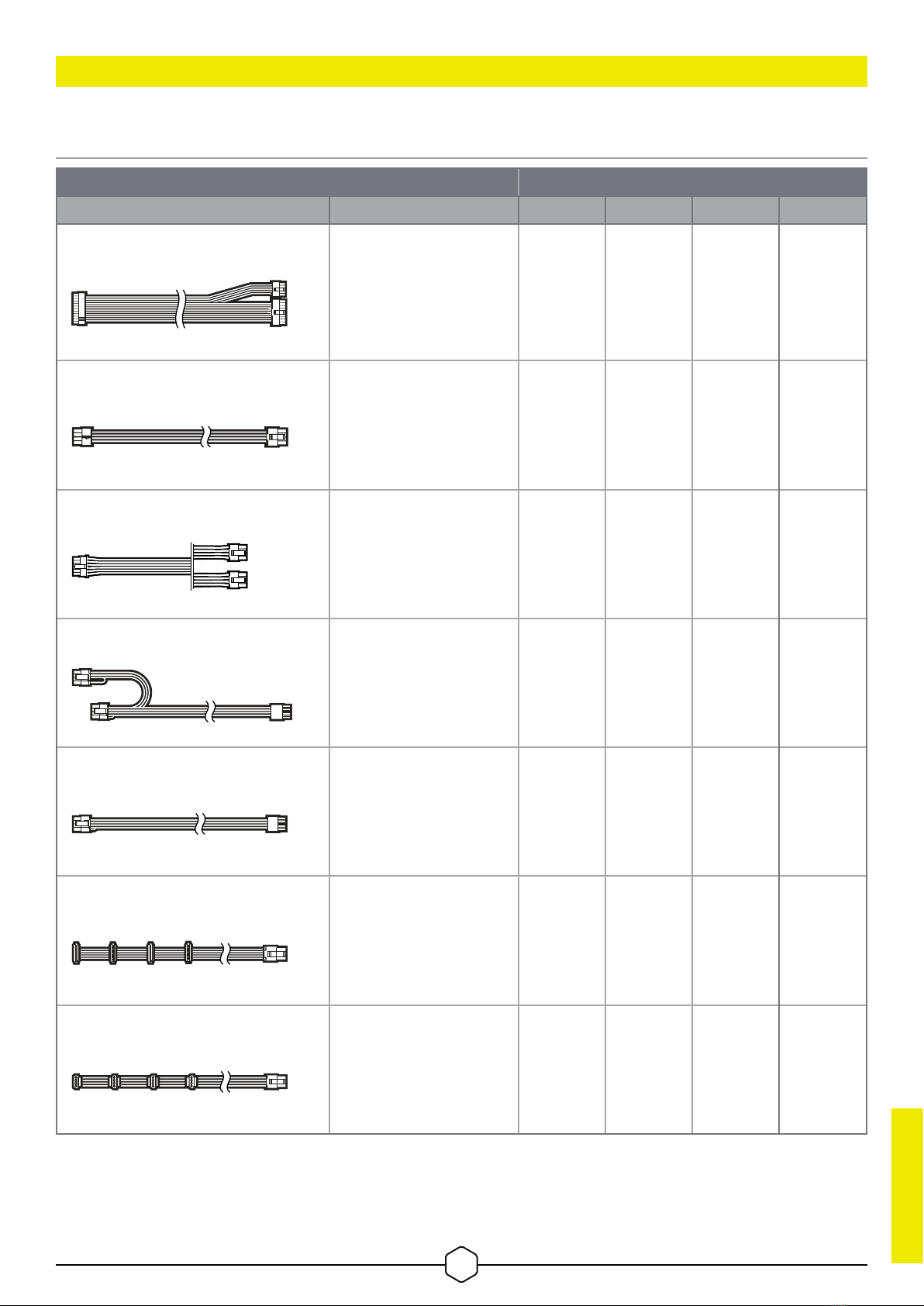

CORSAIR RMx SHIFT SERIES CABLE INFORMATION
DESCRIPTION QTY
CONNECTORS TOTAL LENGTH 750W 850W 1000W 1200W
ATX Cable (24-pin)
610mm ± 10mm 1111
EPS/ATX12V Cable 8-pin (4+4)
650mm ± 10mm 2 2 2 2
12VHPWR Cable (12+4) pin
650mm ± 10mm 1 1 1 1
PCIe Cable 8-pin (6+2)
750mm ± 10mm 1 1 2 2
PCIe Cable 8-pin (6+2)
650mm ± 10mm 1 2 3 4
SATA Cable (4 SATA)
800mm ± 10mm 3 3 4 4
PATA Cable (4-pin)
750mm ± 10mm 1 2 2 2

ENGLISH
6
ENGLISH
STEP 1: REMOVING YOUR EXISTING PSU
Warning! To ensure proper function, only use the DC cables included with your new PSU, unless your old cables are
genuine CORSAIR cables of the same type. Please confirm your existing cables’ type before using them!
If you are building a new system, skip to Step 2:
1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
3. Follow the directions in your chassis manual and uninstall your existing PSU.
4. Proceed to Step 2.
STEP 2: INSTALLING THE NEW POWER SUPPLY
1. Make sure the power supply’s AC power cable is not connected.
2. Follow the directions in your chassis manual and install the power supply with the screws provided.
3. Connect the 24-pin (ATX) cable to the motherboard. Connect the 8-pin +12V (EPS12V) cable
to the motherboard.
a. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
b. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this
four-pin cable directly to your motherboard.
c. Some motherboards will require a mix of 8+4 pins, use as many EPS12V cables as necessary and do not
mistake them for PCIe cables.
4. Connect the peripheral cables, PCI-Express cables, and SATA cables.
a. Connect the SATA cables to your SATA SSD or hard drive’s power sockets.
b. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required.
c. Connect the peripheral cables to any peripherals requiring a 4-pin connector.
d. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future
component additions.
5. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position
(marked with “I”).
INSTALLING YOUR NEW RMx SHIFT SERIES POWER SUPPLY

TABLE DES MATIÈRES
FRANÇAIS (EURO)
• Protection contre la surtension (OVP)
La conformité à la spécification ATX requiert une protection contre la surtension au niveau des sorties CC 12V,
5V et 3,3V. Cette protection coupe l’alimentation lorsque les sorties CC dépassent un seuil établi, déterminé
par le constructeur de l’alimentation.
• Protection contre les surintensités (OCP)
L’OCP est intégrée sur les rails 3,3V, 5V et 12V. Cette protection garantit que la sortie en tension des rails
CC s’inscrit dans les limites d’une exploitation sûre.
• Protection contre les surchauffes (OTP)
La protection contre les surchauffes (OTP) garantit que l’alimentation s’arrête lorsque sa température interne
atteint un seuil défini. Cette situation résulte généralement d’une surcharge électrique interne ou de la défaillance
du ventilateur.
• Protection contre les courts-circuits (SCP)
Un court-circuit se définit par toute impédance de sortie inférieure à 0,1ohm. Entre autres opérations, la fonction
SCP s’assure que le bloc d’alimentation s’arrête si les rails 3,3V, 5V et 12V entrent en court-circuit les uns
avec les autres ou avec la masse. La fonction SCP garantit également qu’en cas de court-circuit, l’unité et les
composants de votre PC ne subissent aucun dommage.
• Protection contre la surpuissance (OPP)
La protection contre la surpuissance arrête l’alimentation lorsque la puissance prélevée est comprise entre
115% et 135% de la puissance nominale.
• Protection contre les défaillances catastrophiques
L’alimentation doit être équipée d’un circuit de protection pour s’arrêter en toute sécurité afin d’éviter tout
dommage dû à une défaillance catastrophique (flamme, fumée excessive, circuit imprimé carbonisé, conducteur
de circuit imprimé fondu, bruit surprenant, émission de matière fondue, etc.).
SÉCURITÉ ET PROTECTION
Les blocs d’alimentation entièrement modulaires CORSAIR RMx SHIFT Series sont conçus pour délivrer une
alimentation fiable 80 PLUS Gold à votre système.
FÉLICITATIONS POUR L’ACHAT DE VOTRE NOUVELLE ALIMENTATION
ATX CORSAIR RMx SHIFT SERIES!
RM750x SHIFT
RM850x SHIFT
RM1000x SHIFT
RM1200x SHIFT
INSTALLATION

1
FRANÇAIS (EURO)
FRANÇAIS (EURO)
TABLEAU DE PUISSANCE CORSAIR RM750x SHIFT MAX LOAD MAX OUTPUT
MODÈLE RPS0159 +3.3V 20A
150W
RÉFÉRENCE PIÈCE 75-005190 +5V 20A
FRÉQUENCE 47 - 63Hz +12V 62.5A 750W
COURANT EN ENTRÉE 10 - 5A +5Vsb 3A 15W
ENTRÉE CA NOMINALE 100 - 240V a.c.
PUISSANCE TOTALE: 750W
COURBE SONORE DU VENTILATEUR DU BLOC D'ALIMENTATION
CORSAIR RM750x SHIFT
0
750
150 300 450 600
40
30
20
10
0
NIVEAU DE BRUIT DU VENTILATEUR (dB)
PUISSANCE D’ALIMENTATION (W)
EFFICACITÉ DE L’ALIMENTATION CORSAIR RM750x SHIFT
10021050
20
95
90
85
80
75
70
entrée 115V a.c. entrée 230V a.c.
RENDEMENT (%)
CHARGE SYSTÈME (%)
Dimensions: 160mm(L) x 150mm(l) x 86mm(H)
Contenu de l’emballage: Alimentation, câble CA, câbles CC, attaches de câble, vis de montage, notice de sécurité
CARACTÉRISTIQUES TECHNIQUES ET MATÉRIEL FOURNI
DU MODÈLE RM750x SHIFT
