Cosmo COS-MWD3012GSS User manual

MICROWAVE DRAWER
COS-MWD3012GSS
IMPORTANT:
INSTALLER:
OWNER:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS
UNIT FOR THE OWNER.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
30 in. BUILT-IN MICROWAVE DRAWER
Rev. 23.07
USER MANUAL

2
THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and products
to choose from and we are honored to know that you have decided to take one of
our products into your home and hope that you enjoy it.
COSMO Appliances are designed according to the strictest safety and performance
standard for the North American market. We follow the most advanced manufacturing
philosophy. Each appliance leaves the factory after thorough quality inspection and
testing. Our distributors and our service partners are ready to answer any questions
you may have regarding how to install, use and care for your products. We hope that
this manual will help you learn to use the product in the safest and most effective
manner.
Before using this product, please read through this manual carefully. Keep this user
manual in a safe place for future reference. Please ensure that other persons using this
product are familiar with these instructions as well.
If you have any questions or concerns, please contact the dealer from whom you
purchased the product, or contact our Customer Support at:
1-888-784-3108
Reach us online at:
www.cosmoappliances.com

3
TABLE OF CONTENTS
MICROWAVE DRAWER SAFETY .................................................................................... 4
Important Safety Instructions ......................................................................................... 5
PRODUCT OVERVIEW .................................................................................................... 9
Microwave Drawer Layout .............................................................................................. 9
Control Panel....................................................................................................................10
FEATURES .......................................................................................................................11
Clock ................................................................................................................................... 11
Timer................................................................................................................................... 11
USING THE MICROWAVE DRAWER .............................................................................12
Control Lock...................................................................................................................... 12
Mute .................................................................................................................................. 12
Cookware and Dinnerware............................................................................................ 13
Manual Cook (Time Cook).............................................................................................. 14
Melt.................................................................................................................................... 15
Soften ................................................................................................................................ 15
Popcorn ............................................................................................................................. 16
Beverage........................................................................................................................... 16
Sensor Reheat/Cook ....................................................................................................... 17
Sensor Reheat............................................................................................................. 17
Sensor Cook ................................................................................................................ 18
Weight Defrost................................................................................................................. 18
Time Defrost .................................................................................................................... 20
MICROWAVE DRAWER CARE .......................................................................................21
General Cleaning ............................................................................................................ 21
TROUBLESHOOTING.................................................................................................... 23
LIMITED WARRANTY ................................................................................................... 25

4
MICROWAVE DRAWER SAFETY
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt
you and others.
All safety messages will follow the safety alert symbol and
either the word "WARNING" or "CAUTION." These words mean:
You can be killed or seriously injured if you don't follow
instructions.
A potentially hazardous situation which, if not avoided, could
result in minor or moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce
the chance of injury, and tell you what can happen if the instructions are not
followed.
WARNING
CAUTION
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
This device complies with Part 18 of the FCC Rules.

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING If the information in this manual is not followed exactly, a fire or
electrical shock may result that could cause property damage,
personal injury or death.
•Read all instructions before using
the microwave oven.
•Read and follow the specific
"PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" found in this
section.
•The microwave oven must be
grounded. Connect only to properly
grounded outlet. See "GROUNDING
INSTRUCTIONS" found in this
section and in the provided
Installation Instructions.
•Install or locate the microwave
oven only in accordance with the
provided Installation Instructions.
•Some products such as whole eggs
in the shell and sealed containers –
for example, closed glass jars – are
able to explode and should not be
heated in the microwave oven.
•Use the microwave oven only for its
intended use as described in the
manual. Do not use corrosive
chemicals or vapors in the
microwave oven. This type of oven
is specifically designed to heat,
cook, or dry food. It is not designed
for industrial or laboratory use.
•As with any appliance, close
supervision is necessary when used
by children.
•Do not operate the microwave
oven if it has a damaged cord or
plug, if it is not working properly, or
if it has been damaged or dropped.
•The microwave oven should be
serviced only by qualified service
personnel. Call an authorized
service company for examination,
repair, or adjustment.
•Do not cover or block any openings
on the microwave oven.
•Do not store this microwave oven
outdoors. Do not use the
microwave oven near water - for
example, near a kitchen sink, in a
wet basement, near a swimming
pool, or similar locations.
•Do not immerse cord or plug in
water.
•Keep cord away from heated
surfaces.
•Do not let cord hang over edge of
table or counter.
•See cleaning instructions in the
"Microwave Drawer Care" section.
READ AND SAVE THESE INSTRUCTIONS

6
IMPORTANT SAFETY INSTRUCTIONS
•To reduce the risk of fire in the oven
cavity:
-Do not overcook food.
Carefully attend the
microwave oven when paper,
plastic, or other combustible
materials are placed inside
the oven to facilitate cooking.
-Remove wire twist-ties from
paper or plastic bags before
placing bags in oven.
-If materials inside the oven
ignite, keep oven door closed,
turn oven off, and disconnect
the power cord, or shut off
power at the fuse or circuit
breaker panel.
-Do not use the cavity for
storage purposes. Do not
leave paper products, cooking
utensils, or food in the cavity
when not in use.
•Do not mount over a sink.
•Do not store anything directly on
top of the microwave oven when
the microwave oven is in operation.
•Liquids, such as water, coffee, or
tea are able to be overheated
beyond the boiling point without
appearing to be boiling. Visible
bubbling or boiling when the
container is removed from the
microwave oven is not always
present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A
SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
•To reduce the risk of injury to
persons:
-Do not overheat the liquid.
-Stir the liquid both before and
halfway through heating it.
-Do not use straight-sided
containers with narrow necks.
-After heating, allow the
container to stand in the
microwave oven for a short
time before removing the
container.
-Use extreme care when
inserting a spoon or other
utensil into the container.
READ AND SAVE THESE INSTRUCTIONS

7
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
•Use care when cleaning the vent-
hood filter. Corrosive cleaning
agents, such as lye-based oven
cleaners, may damage the filter.
•Do not attempt to operate this
oven with the door open since
open-door operation can result in
harmful exposure to microwave
energy. It is important not to defeat
or tamper with the safety
interlocks.
•Do not place any object between
the oven front face and the door or
allow soil or cleaner residue to
accumulate on sealing surfaces.
•Do not operate the oven if it is
damaged. It is particularly
important that the oven door close
properly and that there is no
damage to the:
a. Door (bent),
b. Hinges and latches (broken or
loosened),
c. Door seals and sealing
surfaces.
•The oven should not be adjusted or
repaired by anyone except
properly qualified service
personnel.
RADIO INTERFERENCE
1. Operation of the microwave oven may cause interference to your radio, TV or
similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the
following measures:
a. Clean door and sealing surface of the oven.
b. Reorient the receiving antenna of radio or television.
c. Relocate the microwave oven with respect to the receiver.
d. Move the microwave oven away from the receiver.
e. Plug the microwave oven into a different outlet so that microwave oven
and receiver are on different branch circuits.
READ AND SAVE THESE INSTRUCTIONS

8
GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
WARNING ELECTRIC SHOCK HAZARD
Observe all governing codes and ordinances.
Required:
•Plug into a grounded 3 prong outlet.
•Do not remove ground prong.
•Do not use an adapter or an extension cord.
•Failure to following these instructions can result in death, fire, or electrical
shock.
Recommended:
•A 120 V, 60 Hz, AC only, 15 or 20 A electrical supply with a fuse or circuit
breaker.
READ AND SAVE THESE INSTRUCTIONS
•A time-delay fuse or time-delay circuit breaker.
•A separate circuit serving only this microwave oven.
For all cord connected appliances:
The microwave oven must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. The microwave oven is equipped with a cord having a grounding
wire with a grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood, or if doubt exists as to whether the microwave oven is
properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician or serviceman install an outlet near the microwave oven.

9
PRODUCT OVERVIEW
MICROWAVE DRAWER LAYOUT
A. Control Panel
B. Rating Plate
C. Microwave Oven Cavity
D. Drawer Handle
E. Drawer Window
F. Drawer Guide
G. Vent
H. Mounting Flange
ACCESSORIES
•
•
•
Defrosting Rack
Only to be used in defrosting
function.
Do not use for cooking.
Do not use without food.

10

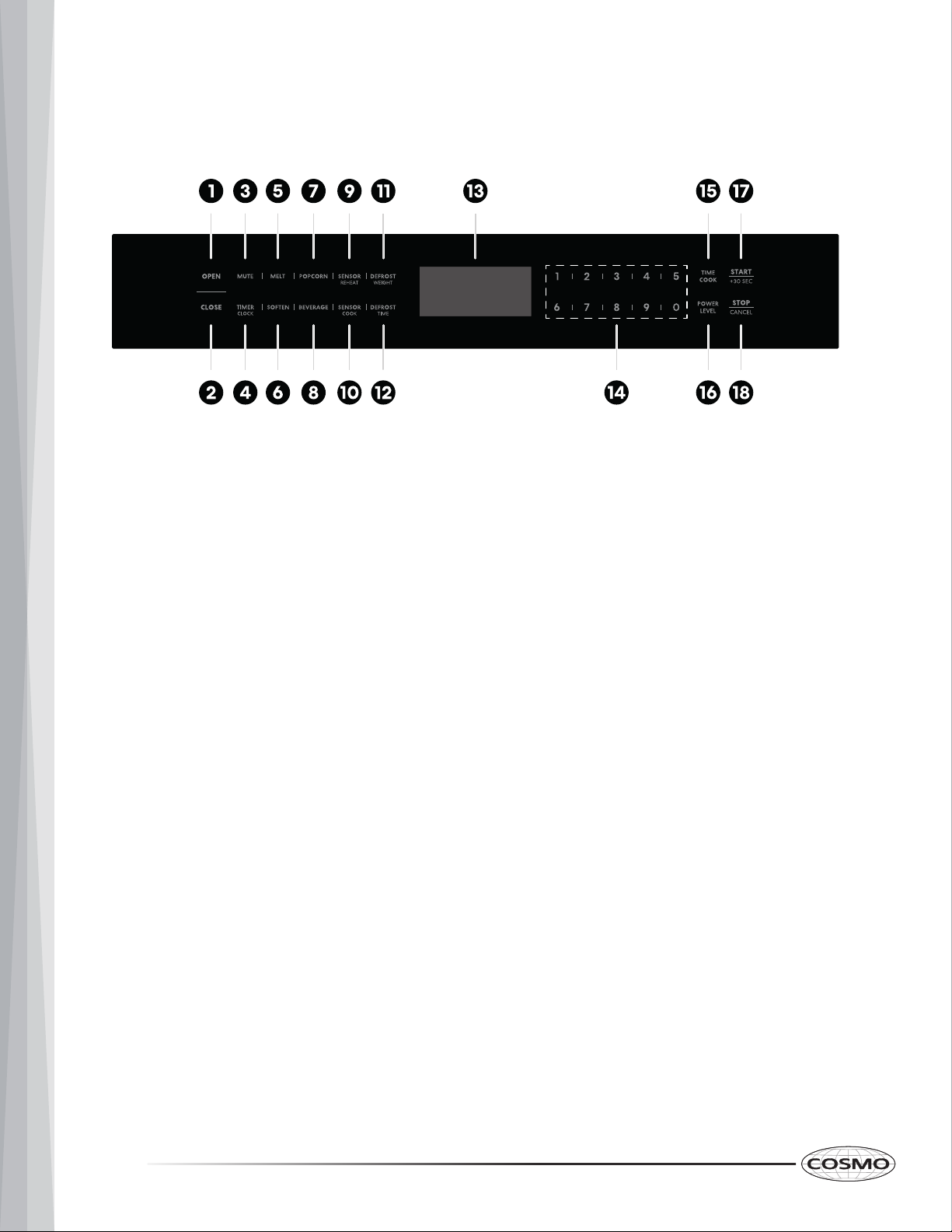

CONTROL PANEL
1. OPEN
2. CLOSE
3. MUTE
4. TIMER/CLOCK
5. MELT
6. SOFTEN
7. POPCORN
8. BEVERAGE
9. SENSOR REHEAT
10.SENSOR COOK
11.DEFROSTWEIGHT
12. DEFROST TIME
13. DISPLAY
14. NUMBER PADS
15. TIME COOK
16. POWER LEVEL
17. START/+30 SEC
18. STOP/CANCEL

11
FEATURES
CLOCK
The clock is a 12-hour clock (01:00 – 12:59). In the process of clock setting, if the
STOP/CANCEL keypad is pressed or if there is no operation within 1 minute, the
microwave drawer will go back to former setting automatically.
Setting the Clock
1. Press TIMER/CLOCK twice. The default time "12:00" flashes in the display.
2. Press the numbers to enter the correct time of day. For example, to set 12:34,
press the numbers 1, 2, 3, and 4.
3. Press START or TIMER/CLOCK to accept the time entered and start the clock.
NOTE:
•When the microwave drawer is running, pressing TIMER/CLOCK will recall the
current clock in the display for 3 seconds.
TIMER
The timer serves as an extra timer in the kitchen that beeps when the set time has
run out. When the timer is running, cooking functions cannot be operated.
Setting the Timer (Up to 99 minutes and 99 seconds)
1. Press TIMER/CLOCK once. The default time "00:00" flashes in the display.
2. Press the numbers to enter the length of time. For example, to set a 30-minute
timer, press the numbers 3, 0, 0, and 0.
3. Press START to start the timer.
4. When the set time has run out, the alarm rings 5 times.
Cancelling the Timer
1. Press STOP/CANCEL. When the microwave drawer is in standby state, the
display returns to the time of day.

12
USING THE MICROWAVE DRAWER
CONTROL LOCK
The control panel can be locked to avoid unintended use of the microwave drawer.
NOTE:
•The control lock can only be activated while the microwave drawer or the
timer is idle or inactive.
To Lock Control Panel:
•Press and hold STOP/CANCEL for 3 seconds or until "Loc" appears in the
display.
NOTE:
•When locked, touching any keypad on the control panel (except
STOP/CANCEL) will not work.
To Unlock Control Panel:
•Press and hold STOP/CANCEL for 3 seconds or until "UnLo" disappears in the
display.
MUTE
Pressing MUTE keypad turns the control panel keypad tone on or off. When the
keypad tone is turned off, Mute icon shows in the display.

13
COOKWARE AND DINNERWARE
Microwave-Safe
•Browning dish (Follow manufacturer recommendations)
•Ceramic glass, glass
•Earthenware (Follow manufacturer recommendations)
•Melamine (Follow manufacturer recommendations)
•Paper towels, paper plates, napkins (Use non-recycled paper)
•Plastic wraps, bags, covers, dinnerware, containers (Follow manufacturer
recommendations)
•Pottery and clay (Follow manufacturer recommendations)
•Silicone bakeware (Follow manufacturer recommendations)
•Wax paper
Do Not Use
•Metal cookware and bakeware
•Straw or wicker
•Gold, silver, or pewter
•Non-approved meat thermometers, skewers
•Twist ties
•Foil liners, such as sandwich wrappers
•Staples
•Objects with gold or silver trim or with metallic glaze
To Test Cookware/Dinnerware:
Place dish in microwave drawer with 1 cup (250 mL) of water beside it. Program 1
minute of cook time at 100%. If dish becomes hot and the water stays cool, do not
use the dish in the microwave drawer.
CAUTION:
•Tightly-closed utensils could explode. Closed containers should be opened
and plastic pouches should be pierced before cooking.

14
MANUAL COOK (TIME COOK)
The microwave drawer can accept cooking time up to 99 minutes and 99 seconds
(99:99). Always enter the seconds even if they are both zeros.
Power Level Touch POWER LEVEL Shortcut Number Key Display
100% 1 time 1 0 L10
90% 2 times 9 L09
80% 3 times 8 L08
70% 4 times 7 L07
60% 5 times 6 L06
50% 6 times 5 L05
40% 7 times 4 L04
30% 8 times 3 L03
20% 9 times 2 L02
10% 10 times 1 L01
NOTE:
1. Press TIME COOK after placing food and closing the drawer.
2. Press the numbers to enter the length of cooking time.
For example, to set a 3-minute cooking, press the numbers 3, 0, and 0.
3. (Optional) Press POWER LEVEL once. Then press the corresponding power level
number key or POWER LEVEL repeatedly to select the power level desired. The
default power level is 100% (L10) if POWER LEVEL is not pressed. Refer to the
Power Level table below.
For example, to select 90% power, Press 9 or POWER LEVEL twice.
4. Press START.
•If "Food" is shown in the display after START is pressed, open and close the
drawer once and press START again. The microwave drawer uses a 5-minute
timer from last closing of the drawer to help avoid running without any food
inside.

15
MELT
Touch MELT Melt Options Preset Portion Size Display
1 time Butter/Margarine Select:
1
2
3
=
=
=
1 stick
2 sticks
3 sticks
1 buTT
2 buTT
3 buTT
2 times Chocolate Select: 1
2
=
=
4 oz
8 oz
4 oz Choc
8 oz Choc
3 times Cheese Select: 1
2
=
=
8 oz
16 oz
8 oz CHEE
16 oz CHEE
To Use Melt Program:
SOFTEN
Touch SOFTEN Soften Options Preset Portion Size Display
1 time Butter Select:
1
2
3
=
=
=
1 stick
2 sticks
3 sticks
1 buTT
2 buTT
3 buTT
2 times Ice Cream / Frozen Juice Select:
1
2
3
=
=
=
8 oz
16 oz
32 oz
8 oz ICE
16 oz ICE
32 oz ICE
3 times Cream Cheese Select: 1
2
=
=
3 oz
8 oz
3 oz CHEE
8 oz CHEE
1. Place food and close the drawer.
2. Press MELT repeatedly to toggle and select different Melt options.
3. Press the number within the preset range to select the best matching portion
size. (e.g. Enter 2 for 2 sticks of butter or 8 oz of chocolate.)
4. Press START.

16
To Use Soften Program:
POPCORN
Pop only 1 package of popcorn at a time. Cooking results may vary by brand and fat
content.
Touch POPCORN Popcorn Options Preset Portion Size Display
1 time Popcorn 1 package POP
To Use Popcorn Program:
BEVERAGE
Touch BEVERAGE Beverage Options Preset Portion Size Display
1 time Beverage Select: 1 = 1 cup 1 01:30
2 times Beverage Select: 2 = 2 cups 2 02:10
To Use Beverage Program:
1. Place food and close the drawer.
2. Press SOFTEN repeatedly to toggle and select different Soften options.
3. Press the number within the preset range to select the best matching portion
size. (e.g. Enter 2 for 2 sticks of butter or 16 oz of ice cream.)
4. Press START.
1. Place food and close the drawer.
2. Press POPCORN to start. Listen for popping to slow to 1 pop every 1 or 2
seconds, then press STOP/CANCEL to stop the cycle.
1. Place food and close the drawer.
2. Press BEVERAGE repeatedly to toggle and select the best matching portion
size. (Or press the number within the preset range after pressing BEVERAGE
once.)
3. Press START.

17
SENSOR REHEAT/COOK
The built-in sensor detects the vapor (moisture and humidity) emitted from the food
as it heats, and adjusts the cooking times and power levels for various foods and
quantities. You can reheat many foods weighted from 4 oz. to 36 oz. and don’t need
to calculate cooking time or power level.
NOTE:
•Check food temperature after cooking. If additional time is needed, continue
to cook manually.
•Do not open the microwave drawer or press STOP/CANCEL during the first
part of sensor use when the remainder of cooking/reheating time is not
shown. The measurement of vapor will be interrupted. To continue cooking,
cook manually.
•When the sensor detects the vapor emitted from the food, the remainder of
cooking/reheating time will appear. The microwave drawer may be opened
when the remaining time appears on the display. At this time, you may stir or
season food, as desired.
•Be sure the exterior of the cooking container and the interior of the
microwave drawer are dry. Wipe off any moisture with a dry cloth or paper
towel.
•To cook/reheat foods above 36 oz. or below 4 oz., use Cook Time to cook
manually.
SENSOR REHEAT
Touch SENSOR REHEAT Sensor Reheat Options Display
1 time Select: 1 = Pasta Sr1
2 times Select: 2 = Pizza Sr2
3 times Select: 3 = Meal Plate Sr3
4 times Select: 4 = Soup Sr4

18
To Use Sensor Reheat Program:
SENSOR COOK
Touch SENSOR COOK Sensor Cook Options Display
1 time Select: 1 = Potato Sc1
2 times Select: 2 = Chicken Sc2
3 times Select: 3 = Fish Sc3
4 times Select: 4 = Ground Meat Sc4
2 times Select: 5 = Fresh Vegetables Sc2
3 times Select: 6 = Frozen Vegetables Sc3
4 times Select: 7 = Canned Vegetables Sc4
To Use Sensor Cook Program:
WEIGHT DEFROST
Automatically sets the defrosting times and power levels to give even defrosting
results for meats, poultry and fish up to 6 pounds in weight.
1. Place food and close the drawer.
2. Press SENSOR REHEAT repeatedly to toggle and select different Sensor Reheat
options. (Or press the number within the options range after pressing SENSOR
REHEAT once.)
3. Press START.
1. Place food and close the drawer.
2. Press SENSOR COOK repeatedly to toggle and select different Sensor Cook
options. (Or press the number within the options range after pressing SENSOR
COOK once.)
3. Press START.

19
To Use Weight Defrost Program: (Between 0.1 and 6.0 pounds)
Manual Cook (Cook Time) may be added in sequence after Weight Defrost.
To Set a Weight Defrost Followed by a Manual Cook (Cook Time):
1. Press DEFROST WEIGHT after placing food and closing the drawer.
2. Press the numbers to enter the food weight in tenths of a pound.
For examples:
-To enter 0.5 pounds, press the numbers 0 and 5.
-To enter 3.0 pounds, press the numbers 3 and 0.
3. Press START.
4. Midway through the defrost cycle, the microwave drawer will signal as a
reminder to turn over or stir the food. After turning over or stirring the food,
close the microwave drawer and press START again.
1. Press DEFROST WEIGHT after placing food and closing the drawer.
2. Press the numbers to enter the food weight in tenths of a pound.
For examples:
-To enter 0.5 pounds, press the numbers 0 and 5.
-To enter 3.0 pounds, press the numbers 3 and 0.
3. Press TIME COOK.
4. Press the numbers to enter the length of cooking time.
For example, to set a 3-minute cooking, press the numbers 3, 0, and 0.
5. (Optional) Press POWER LEVEL once. Then press the corresponding power level
number key or POWER LEVEL repeatedly to select the power level desired. The
default power level is 100% (L10) if POWER LEVEL is not pressed.
For example, to select 90% power, Press 9 or POWER LEVEL twice.
6. Press START.
7. Midway through the defrost cycle, the microwave drawer will signal as a
reminder to turn over or stir the food. After turning over or stirring the food,
close the microwave drawer and press START again.
8. When the defrost cycle is completed, the microwave drawer will start the set
manual cook automatically.

20
TIME DEFROST
Uses reduced power (30% power level) to defrost food without cooking it, and allows
thawing frozen food quicker than in the fridge.
To Use Time Defrost Program: (Up to 99 minutes and 99 seconds)
Manual Cook (Cook Time) may be added in sequence after Time Defrost.
To Set a Time Defrost Followed by a Manual Cook (Cook Time):
1. Press DEFROST TIME after placing food and closing the drawer.
2. Press the numbers to enter the length of defrosting time.
3. Press START.
4. Midway through the defrost cycle, the microwave drawer will signal as a
reminder to turn over or stir the food. After turning over or stirring the food,
close the microwave drawer and press START again.
1. Press DEFROST TIME after placing food and closing the drawer.
2. Press the numbers to enter the length of defrosting time.
3. Press TIME COOK.
4. Press the numbers to enter the length of cooking time.
For example, to set a 3-minute cooking, press the numbers 3, 0, and 0.
5. (Optional) Press POWER LEVEL once. Then press the corresponding power level
number key or POWER LEVEL repeatedly to select the power level desired. The
default power level is 100% (L10) if POWER LEVEL is not pressed.
For example, to select 90% power, Press 9 or POWER LEVEL twice.
6. Press START.
7. Midway through the defrost cycle, the microwave drawer will signal as a
reminder to turn over or stir the food. After turning over or stirring the food,
close the microwave drawer and press START again.
8. When the defrost cycle is completed, the microwave drawer will start the set
manual cook automatically.
