Cosmo COS-MWD3012GSS User manual

MICROWAVE DRAWER
COS-MWD3012GSS
INSTALLATION INSTRUCTIONS
IMPORTANT:
INSTALLER:
OWNER:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS
UNIT FOR THE OWNER.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
30 in. BUILT-IN MICROWAVE DRAWER
Rev. 23.07

2
THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and products
to choose from and we are honored to know that you have decided to take one of
our products into your home and hope that you enjoy it.
COSMO Appliances are designed according to the strictest safety and performance
standard for the North American market. We follow the most advanced manufacturing
philosophy. Each appliance leaves the factory after thorough quality inspection and
testing. Our distributors and our service partners are ready to answer any questions
you may have regarding how to install, use and care for your products. We hope that
this manual will help you learn to use the product in the safest and most effective
manner.
Before using this product, please read through this manual carefully. Keep this user
manual in a safe place for future reference. Please ensure that other persons using this
product are familiar with these instructions as well.
If you have any questions or concerns, please contact the dealer from whom you
purchased the product, or contact our Customer Support at:
1-888-784-3108
Reach us online at:
www.cosmoappliances.com

3
TABLE OF CONTENTS
MICROWAVE DRAWER SAFETY .................................................................................... 4
Important Safety Instructions ......................................................................................... 5
INSTALLATION REQUIREMENTS ................................................................................... 6
Location Requirements .................................................................................................... 6
Clearance............................................................................................................................7
Product Dimensions.......................................................................................................... 8
INSTALLATION INSTRUCTIONS..................................................................................... 9
Unpack Microwave Drawer ............................................................................................ 9
Install Anti-tip Block ........................................................................................................10
Grounding Instructions ....................................................................................................11
Install Microwave Drawer .............................................................................................. 12

4
MICROWAVE DRAWER SAFETY
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt
you and others.
All safety messages will follow the safety alert symbol and
either the word "WARNING" or "CAUTION." These words mean:
You can be killed or seriously injured if you don't follow
instructions.
A potentially hazardous situation which, if not avoided, could
result in minor or moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce
the chance of injury, and tell you what can happen if the instructions are not
followed.
WARNING
CAUTION
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
This device complies with Part 18 of the FCC Rules.

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING If the information in this manual is not followed exactly, a fire or
electrical shock may result that could cause property damage,
personal injury or death.
•Installation and service must be
performed by a qualified installer.
•Save this installation manual for
local electrical inspector's use.
•To reduce the risk of tipping, the
microwave drawer must be secured
by a properly installed Anti-Tip
block.
•Do not install microwave drawer in
any combustible cabinetry.
•Make sure the wall coverings and
the cabinets around the microwave
drawer can withstand the heat
generated by the microwave
drawer.
•This microwave drawer must be
electrically grounded in accordance
with local codes.
•Check the drawer for any damage,
such as misaligned or bent drawer,
damaged drawer seals and sealing
surfaces, broken or loose
microwave drawer guides and
dents inside the cavity or on the
front side of the drawer. If there is
any damage, do not operate the
microwave drawer and contact
your dealer or an authorized
servicer.
•Remove allpacking materials from
inside the microwave drawer.
•Stepping, leaning or sitting on the
drawer may result in serious injuries
and can also cause damage to the
microwave drawer.
•Do NOT remove the waveguide
cover located on the top of the
microwave drawer.
•Remove the feature sticker if there
is one.
• NOTES TO INSTALLER:
-Read all of the installation
manual before installing the
microwave drawer.
-Remove all packing material
before connecting the
electrical supply.
-Observe all governing codes
and ordinances.
-Be sure to leave these
instructions with the
consumer.
•NOTES TO CONSUMER:
-Keep this manual with your
operation manual for future
reference.
-Be sure your microwave
drawer is installed and
grounded properly by a
qualified installer or service
technician.

6
INSTALLATION REQUIREMENTS
LOCATION REQUIREMENTS
IMPORTANT: Check the opening where the microwave drawer will be installed. The
location must provide:
•Contact surface must be solid and level.
•Pay special attention to the floor on which the microwave drawer will sit. The
floor of the opening should be constructed of plywood strong enough to
support the weight of the drawer (about 100 pounds).
•Check installation location for proper electrical supply.
•Your microwave drawer can be built into a cabinet or wall by itself or under a
gas or electric wall oven. Be sure that the clearance of the floor between the
wall oven and the microwave drawer is a minimum of 2 inches.
•The microwave drawer can also be installed using an electrical outlet in an
adjacent cabinet within the area where the provided electrical cord can reach.
Power cord access hole in cabinet should be a minimum 1 1/2" diameter hole
and debarred of all sharp edges.
•Always allow sufficient power cord length to the electrical outlet to prevent
tension.
•Always check electrical codes for requirements.
•Make sure the wall coverings and the cabinets around the microwave drawer
can withstand the heat generated by the microwave drawer.

7
CLEARANCE
GIVEN DIMENSIONS ARE MINIMUM CLEARANCES.
23 ¹⁄₂"
(597 mm)
opening
depth
4"
5"
3 ¹⁄₂"
6"
14 ¹³⁄₁₆"
(376 mm)
to bottom of
anti-tip block
14 ¹³⁄₁₆"
(376 mm)
opening
height
Allow
³⁄₁₆" (5 mm)
overlap
Allow
⁷⁄₁₆" (11 mm)
drawer
opening
clearance
Allow
³⁄₁₆" (5 mm)
overlap
22 1/8" - 28 7/16"
(562 mm - 722 mm)
opening width
Allow
³⁄₁₆" (5 mm)
overlap
Cabinet floor must
support 100 lbs
Suggested electrical
outlet location
Anti-tip
block
36"
(915 mm)
countertop
height
30"
(762 mm)
cabinet
width

8
PRODUCT DIMENSIONS
21 ⁵⁄₈"
(550 mm)
1 ⁹⁄₁₆"
(40 mm)
16"
mm)(406
15 ⁵⁄₈"
(371 mm)
21 ⁵⁄₈"
(550 mm)
29 ¹⁵/₁₆"
(760 mm)
2 ³⁄₈"
(60 mm)
1 ⁷⁄₁₆"
(37 mm)

9
INSTALLATION INSTRUCTIONS
UNPACK MICROWAVE DRAWER
IMPORTANT: To avoid damage to the microwave drawer, do not grip or use the
door or door handle while the microwave drawer is being handled.
MODEL AND SERIAL NUMBER LOCATION
The rating plate includes model and serial number. Open the Microwave Drawer
fully. The rating label is located on the door frame behind the door of the microwave
drawer.
WARNING EXCESSIVE WEIGHT HAZARD
•Use two or more people to move and install microwave drawer.
•Failure to do so can result in back or other injury.
•Remove all packing materials from inside the microwave drawer.
•Do NOT remove the waveguide cover located on the top of the microwave
drawer.
•Remove the feature sticker if there is one.
•Check the drawer for any damage, such as misaligned or bent drawer,
damaged drawer seals and sealing surfaces, broken or loose microwave
drawer guides and dents inside the cavity or on the front side of the drawer. If
there is any damage, do not operate the microwave drawer and contact your
dealer or an authorized servicer.

10

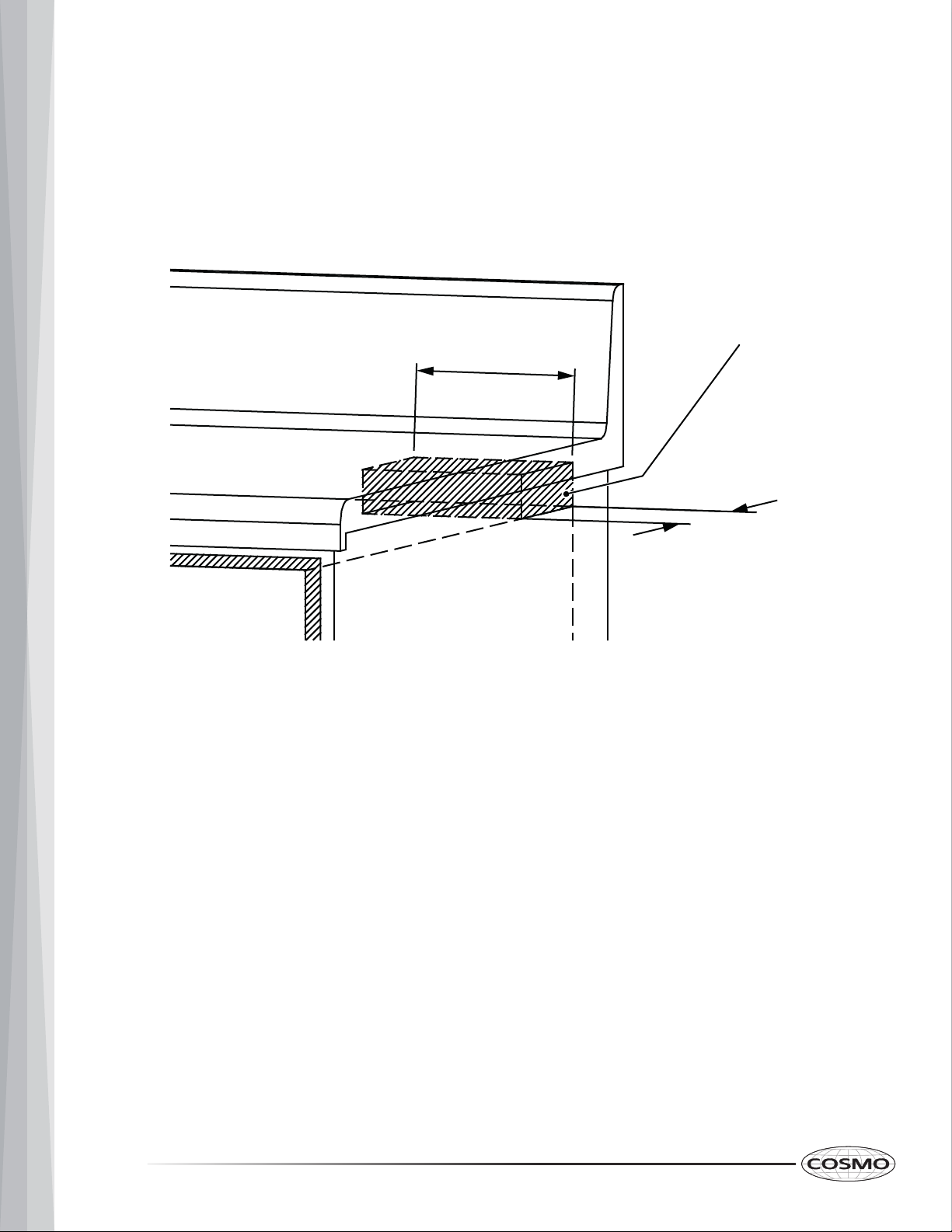

INSTALL ANTI-TIP BLOCK
To reduce the risk of tipping of the drawer, the anti-tip block must be provided and
properly installed by the installer. The anti-tip block prevents serious injury that
might result from spilled hot liquids.
The anti-tip block must be installed near the rear of the microwave drawer top
surface, which is 14 13/16 inches above the floor on which the microwave drawer will
sit.
NOTE:
3 ¹⁄₂"
block
Anti-tip
6"
•If the Microwave Drawer is ever moved to a different location, the anti-tip
block must also be moved and installed.
•When installed to the wall, make sure that the screws completely penetrate the
dry wall and are secured in wood or metal so that the block is totally stable.
•When fastening, be sure that the screws do not penetrate electrical wiring or
plumbing.

11
GROUNDING INSTRUCTIONS
IMPORTANT:
WARNING ELECTRIC SHOCK HAZARD
5"
Suggested electrical
outlet location
4"
•Plug into a grounded 3-prong outlet.
•Do not remove the ground prong.
•Do not use an adapter or an extension cord.
•Failure to do so can result in death, fire, or electrical shock.
•This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the
electric current.
•The microwave drawer is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle that is properly
installed and grounded in accordance with the National Electrical Code and
local codes and ordinances.
•Do not, under any circumstances, cut, deform, or remove any of the prongs
from the power cord.
•Where a standard two-prong wall receptacle is encountered, have it replaced
with a properly grounded three-prong wall receptacle by a qualified
electrician.
•If the power supply cord is too short, have a qualified electrician or service
person install an outlet near the appliance.

12
The electrical requirements are a 120 Volt, 60 Hz, AC only, 15 amp or more protected
electrical supply. It is recommended that a separate circuit serving only this
appliance be provided.
NOTE: If you have any questions about the grounding or electrical instructions,
consult a qualified electrician or service person.

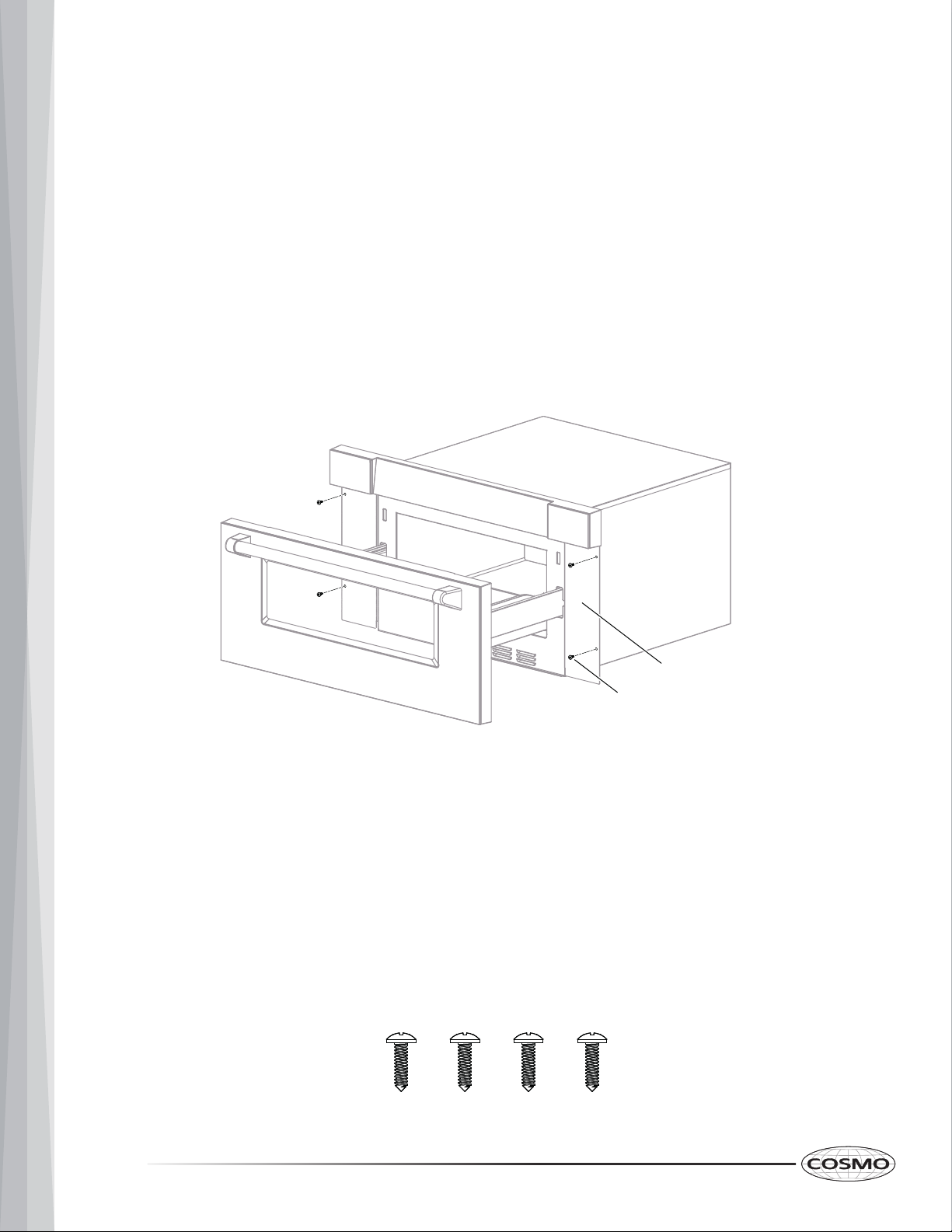

INSTALL MICROWAVE DRAWER
Mounting flange
Screw
1. Place the microwave drawer adjacent to the wall or cabinet opening. Plug the
power supply cord into the electrical outlet.
2. Carefully guide the microwave drawer into the prepared opening. Avoid
pinching the cord between the back of microwave drawer and the wall.
3. Slide in the microwave drawer until the mounting flange is flush with the face
of the cabinet.
4. Open the drawer. Using the 4 holes on the drawer frame as a template, pre-
drill the cabinet using a 1/16" bit.
5. Secure the microwave drawer with the cabinet using the 4 screws supplied.

13
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact COSMO Customer Support at
[phone]
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY
SERVICE.
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
consommateurs Cosmo Customer Support au
[phone]
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el ayuda al cliente
COSMO al
[phone]
(Válido solo en E.U.A.)
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE MODELO Y DE SERIE
PARA EL SERVICIO DE LA GARANTÍA.
Correct disposal of this product:
This marking indicates that this appliance should not be
disposed with other household wastes. To prevent possible
harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.

MEMO

MEMO

Cosmo is constantly making efforts to improve the
quality and performance of our products, so we may
make changes to our appliances without updating
this manual.
Electronic version of this manual is available at:
www.cosmoappliances.com
APPLIANCES
