Cosmo COS-3019ORM2SS User manual

COS-3019ORM2SS
INSTALLATION GUIDE
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following Important information regarding installation
safety and maintenance. Keep these instruction for future reference.
COS-3019ORM2SS INSTALL GUIDE
I N S P I R I N G T H E W O R L D ’ S K I T C H E N
OVER THE RANGE
MICROWAVE

2 3
THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and
products to choose from and we are honored to know that you have decided
to take one of our products into your home and hope that you enjoy it.
COSMO appliances are designed according to the strictest safety and performance
standard for the North American market. We follow the most advanced
manufacturing philosophy. Each appliance leaves the factory after thorough
quality inspection and testing. Our distributors and our service partners are
ready to answer any questions you may have regarding how to install, use and
care for your products. We hope that this manual will help you learn to use the
product in the safest and most effective manner .
If you have any questions or concerns, please contact the dealer from whom you
purchased it, or contact our Customer Support at:
1-888-784-3108.
COS-3019ORM2SS
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Approx. 57.3 lbs
120V~60Hz
1550W
1000W
53L / 1.9 cu ft
345mm / 13.6 "
29.8" x 16.4" x 15.4"
Specifications
Before You Use Your Microwave
CONTENTS
General information
Important Safety Instructions .................................. 3
Electrical Requirements .......................................... 3
Damage – Shipment/Installation.............................. 4
Parts Included.......................................................... 4
Tools You Will Need ................................................ 5
Mounting Space ...................................................... 5
Step-by-step installation guide
6–8
Removing the Mounting Plate ...................... 6
Finding the Wall Studs.................................. 6
Determining Wall Plate Location.................. 7
Aligning the Wall Plate ................................ 8
Outside Top Exhaust
Attach Mounting Plate to Wall............12
Preparation of Top Cabinet................13
Checking for Proper Damper
Adapting Microwave Blower
A
B
C
Installation Instructions
21
20
20
Recirculating ........................................
Mount the Microwave Oven ................19
Preparation of Top Cabinet ................17
Attach Mounting Plate to Wall ............17
Outside Back Exhaust..........................16
Connecting Ductwork..........................15
Adjust the Exhaust Adaptor ................15
Operation............................................14
Outside Back Exhaust............................ 16–19
Adapting Microwave Blower for
Outside top Exhaust .......... 13–14........
Placement of The Mounting Plate ......................
............................ 12–15
Preparing Rear Wall for
Remove Blower Plate ...................... 16...... ..
Charcoal Filter
Installing or Change the
22
Preparation of Top Cabinet ................2
Check Blower Plate ............................
.......................... 24
....................................22
Attach Mounting Plate to Wall ............
22
–
Installation Types............................................... 9–22
for Outside Back Exhaust................17 18
–
Mount the Microwave Oven ..........21–
Hood Exhaust.................................................. 10 11
–
Mount the Microwave Oven ..........14 15
–
.......................... 2Template Information...................
1
5

4 5
This product requires a three-prong grounded outlet.
The installer must perform a ground continuity check
on the power outlet box before beginning the
installation to ensure that the outlet box is properly
grounded. If not properly grounded, or if the outlet
box does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified
electrician should be employed to correct any
deficiencies. CAUTION: For personal
safety, remove house fuse
or open circuit breaker
before beginning
installation to avoid severe
or fatal shock injury.
CAUTION: For personal safety, the mounting surface
must be capable of supporting the cabinet load, in
addition to the added weight of this 63–85 pound
(28.5–38.5 kg) product, plus additional oven loads of
up to 50 pounds (22.7 kg) or a total weight of
113–135 pounds (51.3–61.2 kg).
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an island or
a peninsula. It must be mounted to BOTH a top cabinet
AND a wall.
NOTE: For easier installation and personal safety, it is
recommended that two people install this product.
IMPORTANT – PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
The power cord of this
appliance is equipped with a
three-prong (grounding)
plug which mates with a
standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
You should have the wall receptacle and circuit checked
by a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is very important to have it replaced
with a properly grounded three-prong wall receptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
IMPORTANT SAFETY INSTRUCTIONS
Ensure proper
ground exists
before use
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 15 amps and
1.6 kilowatts. This product must be connected to a
The power supply cord and plug should be brought to a
the prevailing local code for this kilowatt rating.
the requirements of the National Electrical Code or
voltage and frequency. Wire size must conform to
seperate and dedicated supply circuit of the proper
seperate and dedicated 20 ampere branch
National Electrical Code or the prevailing local code.
by a qualifed electrician and conform to the
The outler box and supply circuit should be installed
be located in the cabinet above the microwave oven.
circuit single grounded outlet. The outlet box should
PART QUANTITY
Wood Screws 2
(1⁄4“ x 2“)
Toggle Bolts (and
wing nuts) (3⁄16“ x 3“)
Self-Aligning Machine 3
Screws (1⁄4“-28 x 31⁄4“)
Nylon Grommet
(for metal cabinets) 1
•If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
•If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
•If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer
and installer.
DAMAGE—SHIPMENT/
INSTALLATION
PARTS INCLUDED
You will find the installation hardware contained in
a packet with the unit. Check to make sure you have
all these parts.
NOTE: Some extra parts are included.
HARDWARE PACKET
PART QUANTITY
Template 1
Template
Installation
1
Instructions
Separately
2
Packed
Filters
PARTS INCLUDED (CONT.)
INSTALLATION
INSTRUCTIONS
ADDITIONAL PARTS
1
adaptor
Grease
Exhaust
Glass
1
Tray
1
Ring
T ru ntable
CabinetTop
Rear Wall
2
1
Use & Care
1
Shelf 1
1
USE & CARE
MANUAL
Manual
For some models
Convection
wire rack
For some models
For some models
1
PureAir@
Microwave
Filter

6 7
MOUNTING SPACE NOTES:
•The space between the cabinets must be
30“(76.2 cm)wide and free of obstructions.
•If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
•When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
Bottom Edge of
Cabinet Needs to
be 30w(76.2 cm)
or More from the
Cooking Surface
Backsplash
66w(167.6 cm)
or More from
the Floor to the
Topofthe
Microwave
30“(76.2 cm)
2
“ (5.1 cm)
30“
(76.2 cm)
min.
161⁄2“(41.9 cm)
13 Maximum (33 cm)
“
As a guide to installation, see page 25 for Mounting
Template Information.
•
•If the cabinet depth including the cabinet doors
is more th n 13'"" ' th n the unit must be spaced
out from wall using adequate materials supporting
150 Ibs to allow proper top vent air exhaust/intake.
a e
Find the studs, using one of the following
methods:
A. Stud finder – a magnetic device which
locates nails.
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs should
be 16w(40.6 cm) or 24w(61 cm) from this mark.
Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO
AT LEAST ONE WALL STUD.
1
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
REMOVING THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
FINDING THE WALL STUDS
B.
A.
2
Wall
Studs
Center
3
Pull the carton up and off the oven.
2
3
5
4Cut the middle of the outer protective plastic bag to
remove the ounting late
mp
Remove the screws from each end of the mounting
plate. This plate will be used as the rear wall template
and for mounting. Reinstall the screws into the holes
where they were removed.
1
Exhaust Adapter
Filters and Turntable Ring below glass tray
Small Hardware Bag
Shelf (For
some models)
Remove the top cover board, installation
instructions, use and care, exhaust adapter,
turntable ring, shelf, filters, glass tray and the
Do not remove the
Styrofoam protecting the front of the oven.
bag.
small hardware
Top Cover Board
EPE Pad
Carton
Styrofoam
Screws Screws
Mounting Plate
Installation Instructions
Installation Instructions
1PLACEMENT OF THE MOUNTING PLATE
TOOLS YOU WILL NEED
# 1 Phillips screwdriver Pencil Ruler or tape measure and
straight edge Carpenter square
(optional)
Tin snips (for cutting
damper, if required) Electric drill with 3⁄16“, 1⁄2“and 5⁄8“
drill bits
Hammer (optional)
Stud finder or
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
Gloves
Saw (saber, hole or keyhole)
Level Duct and masking tape
Scissors
(to cut template, if necessary)
Safety goggles

8 9
DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
C.
Wall Plate Location
Plate position flat bottom
cabinet
Draw a line on the
back wall equal to the
depth of the front
overhang.
to Cooktop
C
3/8"TOEDGE





NOTE:ITISVERYIMPORTANTTO
READANDFOLLOWTHEDIRECTIONS
INTHEINSTALLATIONINSTRUCTIONS
BEFOREPROCEEDINGWITHTHIS
REARWALLTEMPLATE.
ThisRearWallTemplateservestopositionthebottom
mountingplateandtolocatethehorizontalexhaust
outlet.
1.Usealeveltocheckthatthetemplateispositioned
accurately.
2.Locateandmarkatleastonestudontheleftor
rightsideof thecenterline.

Itisimportanttouseatleastonewood
screwmountedfirmlyinastudtosupporttheweight
ofthemicrowave.Marktwoadditional,evenlyspaced
locationsforthesuppliedtogglebolts.
3.Drillholesinthemarkedlocations.Wherethereis
astud,drill a3/16"hole for wood screws.For holes
thatdonot lineup witha stud,drill 5/8"holesfor
togglebolts.

DONOTINSTALLTHEMOUNTINGPLATE
ATTHISTIME.
4.Removethetemplatefromtherearwall.
5.ReviewtheInstallationInstructionbookforyour
installationsituation.
Locateandmarkholestoalign withholesinthe
mountingplate.
IMPORTANT:
LOCATEATLEASTONESTUDONEITHERSIDE OF
THECENTERLINE.
MARKTHELOCATIONFOR2ADDITIONAL,EVENLY
SPACEDTOGGLEBOLTSINTHE MOUNTING PLATE
AREA.
Locateandmarkholestoalign with holes in the
mountingplate.
IMPORTANT:
LOCATEATLEASTONESTUDON EITHER SIDE OF
THECENTERLINE.
MARKTHELOCATIONFOR2 ADDITIONAL,EVENLY
SPACEDTOGGLEBOLTSINTHEMOUNTING PLATE
AREA.
Trimtherearwalltemplatealongthe dottedline.
Trimtherearwalltemplate alongthedottedline.







12"
4"
Darlevueltaalahojaparaconsultarla
versiónenEspañol.
3/8"TOEDGE





NOTE:ITISVERY IMPORTANT TO
READANDFOLLOWTHE DIRECTIONS
INTHEINSTALLATIONINSTRUCTIONS
BEFOREPROCEEDINGWITHTHIS
REARWALLTEMPLATE.
ThisRearWallTemplate servesto positionthebottom
mountingplateandto locatethe horizontal exhaust
outlet.
1.Usealevelto checkthatthetemplate is positioned
accurately.
2.Locateandmarkatleastonestudonthe left or
rightsideofthecenterline.

Itisimportant touse at least one wood
screwmountedfirmlyin a studto support theweight
ofthemicrowave.Marktwoadditional,evenlyspaced
locationsforthesuppliedtogglebolts.
3.Drillholesin the markedlocations. Where thereis
astud,drilla3/16" hole forwood screws.Forholes
thatdonotlineupwith a stud, drill 5/8" holes for
togglebolts.

DONOTINSTALLTHEMOUNTINGPLATE
ATTHISTIME.
4.Removethetemplatefromtherearwall.
5.ReviewtheInstallationInstructionbookforyour
installationsituation.
Locateandmarkholes to align withholes in the
mountingplate.
IMPORTANT:
LOCATEATLEAST ONE STUDON EITHER SIDE OF
THECENTERLINE.
MARKTHELOCATIONFOR2 ADDITIONAL,EVENLY
SPACEDTOGGLEBOLTS INTHE MOUNTINGPLATE
AREA.
Locateandmarkholes to align withholes in the
mountingplate.
IMPORTANT:
LOCATEATLEAST ONE STUDON EITHER SIDEOF
THECENTERLINE.
MARKTHELOCATIONFOR2ADDITIONAL, EVENLY
SPACEDTOGGLEBOLTSINTHE MOUNTINGPLAT
AREA.
Trimtherearwall template along thedotted line.
Trimtherearwalltemplate along thedotted line.





12"
4"
Darlevueltaalahoja paraconsultarla
versiónenEspañol.
²
Atleast30
″
C
3/8"TOEDGE





NOTE:ITISVERY IMPORTANT TO
READANDFOLLOW THE DIRECTIONS
INTHEINSTALLATION INSTRUCTIONS
BEFOREPROCEEDINGWITH THIS
REARWALLTEMPLATE.
ThisRearWall Templateservesto positionthe bottom
mountingplateandto locate thehorizontal exhaust
outlet.
1.Usea level to check that thetemplate is positioned
accurately.
2.Locateand mark at least one studon theleft or
rightsideofthecenterline.

Itisimportant to use at least one wood
screwmountedfirmlyina studto support theweight
ofthemicrowave.Mark two additional, evenly spaced
locationsforthesupplied toggle bolts.
3.Drillholesinthemarked locations.Where thereis
astud,drilla3/16" hole for woodscrews. Forholes
thatdonotlineupwith astud, drill 5/8" holes for
togglebolts.

DONOTINSTALLTHE MOUNTING PLATE
ATTHISTIME.
4.Removethetemplate fromtherear wall.
5.Reviewthe InstallationInstruction book foryour
installationsituation.
Locateandmark holes toalign with holes in the
mountingplate.
IMPORTANT:
LOCATEATLEAST ONE STUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHELOCATION FOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLEBOLTS IN THE MOUNTING PLATE
AREA.
Locateandmark holes to align with holes in the
mountingplate.
IMPORTANT:
LOCATEATLEAST ONE STUDON EITHER SIDE OF
THECENTERLINE.
MARKTHELOCATION FOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLEBOLTS IN THE MOUNTING PLATE
AREA.
Trimtherear walltemplate alongthe dotted line.
Trimtherear walltemplate along the dottedline.







12"
4"
Darlevueltaa la hoja para consultarla
versiónenEspañol.
Your cabinets may have decorative trim that
interferes with the microwave installation. Remove
the decorative trim to install the microwave properly
and to make it level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the microwave level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
For this type of installation with front overhang
only, align the mounting tabs with this horizontal
line, not touching the cabinet bottom as described
in Step D.
Draw a vertical line on
the wall at the center of
the 30″wide space.
Tape the Rear Wall
Template onto the wall
matching the centerline
and touching the
bottom of the cabinet.
to Cooktop
Draw a vertical line on the wall at the center of the
30″space.
Tape the Rear Wall Template onto the wall
matching the centerline and touching the bottom
C
3/8"TOEDGE





NOTE:ITISVERY IMPORTANT TO
READANDFOLLOW THE DIRECTIONS
INTHEINSTALLATION INSTRUCTIONS
BEFOREPROCEEDINGWITHTHIS
REARWALLTEMPLATE.
ThisRearWallTemplateserves to position the bottom
mountingplateandtolocate thehorizontal exhaust
outlet.
1.Usealeveltocheck that thetemplate ispositioned
accurately.
2.Locateand mark at least onestudon the left or
rightsideofthecenterline.

Itisimportant touse at least one wood
screwmountedfirmly ina studto support the weight
ofthemicrowave. Mark twoadditional, evenly spaced
locationsforthe suppliedtoggle bolts.
3.Drillholes inthemarkedlocations. Wherethere is
astud,drilla 3/16" hole for wood screws. For holes
thatdonotlineupwithastud, drill 5/8" holes for
togglebolts.

DONOTINSTALLTHE MOUNTING PLATE
ATTHISTIME.
4.Removethetemplate from the rear wall.
5.ReviewtheInstallationInstruction book foryour
installationsituation.
Locateandmark holes to align with holes in the
mountingplate.
IMPORTANT:
LOCATEATLEASTONE STUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHELOCATIONFOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLEBOLTSIN THEMOUNTING PLATE
AREA.
Locateandmark holes toalign with holes in the
mountingplate.
IMPORTANT:
LOCATEATLEASTONESTUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHELOCATION FOR 2ADDITIONAL, EVENLY
SPACEDTOGGLEBOLTS IN THE MOUNTING PLATE
AREA.
Trimtherear wall template along the dottedline.
Trimtherearwall template along the dotted line.







12"
4"
Darlevueltaa la hoja para consultarla
versiónenEspañol.
cabinet bottom
with front overhang
Plate position framed
recessed
Plate position
bottom
1
3
2
300″0
30
cabinet frame.
300″0
30
2″
16-1/2
-beneath
-beneath
-beneath recessed
cabinet
Installation Instructions
ALIGNING THE WALL PLATE
D.
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
Area E Hole A
Hole B
Centerline
notches Draw a Vertical Line
on Wall from Center
of Top Cabinet
Draw a horizontal line on wall at the
bottom of “Rear Wall Template”.
Horizontal Line
Horizontal Line
C
L
3/8"TO EDGE
%#76+10Ä+(':*#756#&#2614+5215+6+10'&1765+&'
4'%1//'0&'&&+/'05+10)4'#5'Ä.#&'0#+49+..
&+5%*#4)'+061*175'5647%674'
/+0+/7/9+&6*4'37+4'&
4'#49#..6'/2.#6'
NOTE:IT IS VERY IMPORTANT TO
READAND FOLLOW THE DIRECTIONS
INTHE INSTALLATION INSTRUCTIONS
BEFOREPROCEEDING WITH THIS
REARWALL TEMPLATE.
ThisRear Wall Template serves to position the bottom
mountingplate and to locate the horizontal exhaust
outlet.
1.Use a level to check that the template is positioned
accurately.
2.Locate and mark at least one stud on the left or
rightside of the centerline.
016'
Itis important to use at least one wood
screwmounted firmly in a stud to support the weight
ofthe microwave. Mark two additional, evenly spaced
locationsfor the supplied toggle bolts.
3.Drill holes in the marked locations. Where there is
astud, drill a 3/16" hole for wood screws. For holes
thatdo not line up with a stud, drill 5/8" holes for
togglebolts.
016' DONOT INSTALL THE MOUNTING PLATE
ATTHIS TIME.
4.Remove the template from the rear wall.
5.Review the Installation Instruction book for your
installationsituation.
Locateand mark holes to align with holes in the
mountingplate.
IMPORTANT:
LOCATEAT LEAST ONE STUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Locateand mark holes to align with holes in the
mountingplate.
IMPORTANT:
LOCATEAT LEAST ONE STUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Trimthe rear wall template along the dotted line.
%
#
$%
&
(%76176(14*14+<106#.
1765+&'':*#756
%76*1.'6*417)*4'#49#..(14':*#756#&#2614
12"
4"
Darlevuelta a la hoja para consultar la
versiónen Español.
Draw a vertical line on the wall at the center of the
30" wide space.
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
NOTE: Holes A and B are inside area E. If neither of
important to have at least one wood screw mounted
firmly in a stud to support the weight of the
microwave. Set the mounting plate aside.
1
2Draw a horizontal line on the wall at the bottom of
“Rear Wall Template”.
Holes A and B are not in a stud, find a stud somewhere
in area E and draw a circle to line up with the stud. It is
3Find a wall stud in area "E" of mounting plate
Refer to section 1B. Finding the wall studs.
For attaching the mounting plate into stud drill
a 3/16" hole into wood stud. Drill a 5/8" hole for
toggle bolt in 1 other location (Hole A or Hole B)
4

10 11
A

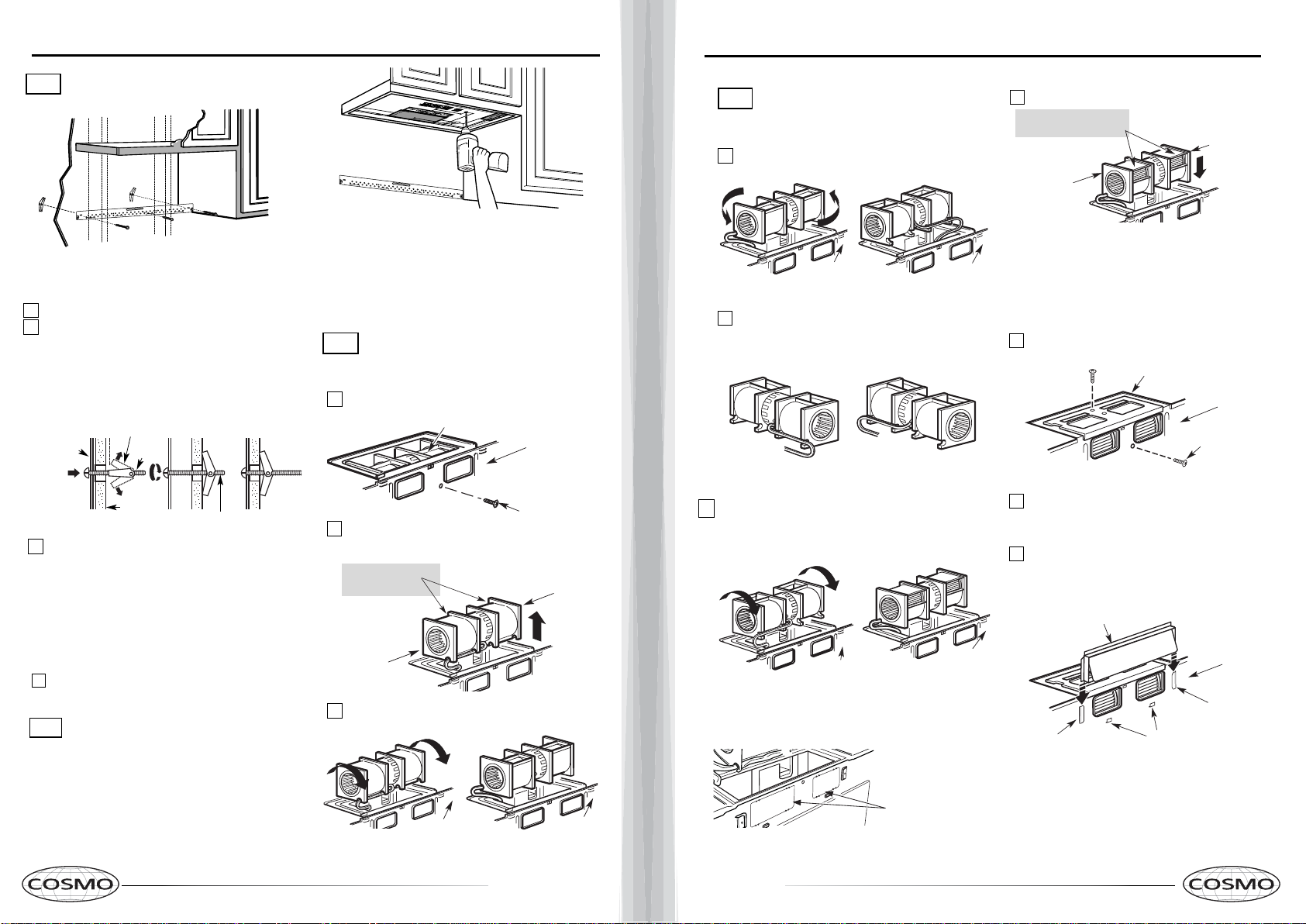

INSTALLATION TYPES
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C.Recirculating (Non-Vented Ductless)
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
RECIRCULATING
(NON-VENTED DUCTLESS)
Adaptor in Place for
Outside Top Exhaust
2
B
C
Adaptor Must Be
Moved to the Back for
Outside Back Exhaust
(Choose A, B or C)
Installation Instructions
NOTE: Read the next two pages only if you plan to vent your
exhaust to the outside. If you plan to recirculate the air back
into the room, proceed to page 20.
Models are shipped for
recirculating exhaust.
Some models have a
disposable charcoal filter
installed to help remove
smoke and odors.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. (1.5 m) x ( ) = Ft. or m
Transition Adaptor*
Wall Cap 40 Ft. (12.2 m) x ( ) = Ft. or m
90° Elbow 10 Ft. (3 m) x ( ) = Ft. or m
45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
90° Elbow 25 Ft. (7.6 m) x ( ) = Ft. or m
45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
Roof Cap 24 Ft. (7.3 m) x ( ) = Ft. or m
Straight Duct 6“ (15.2 cm) 1 Ft. (0.3 m) x ( ) = Ft. or m
Round or 31⁄4“ x 10“
(8.2 x 25.4 cm Rectangular)
Total Ductwork = Ft. or m
Equivalent lengths of duct pieces are based on actual tests
and reflect requirements for good venting performance with
any vent hood.
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order
to allow free movement of the damper
.
NOTE: If you need to install ducts, note that the total
duct length of 31⁄4”x 10”(8.2 x 25.4 cm) rectangular or
”(15.2 cm) diameter round duct
Outside ventilation requires an EXTERNAL EXHAUST
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The exhaust adaptor has been designed to mate with
a standard 31⁄4”x 10”(8.2 x 25.4 cm) rectangular duct.
If a round duct is required, a rectangular-to-round
Maximum duct length:
For satisfactory air movement, the total duct length of
31⁄4”x 10”(8.2 x 25.4 cm) rectangular or
6 ”(15.2 cm) diameter round duct should not
exceed 120 equivalentfeet (36.5 m).
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the total
duct length, add the equivalent lengths of all transitions
and adaptors plus the length of all straight duct sections.
The chart below shows you how to calculate total
equivalent ductwork length using the approximate feet
of equivalent length of some typical ducts.
Installation Instructions
INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING
DUCT.Read the following carefully.
(12.5”
should not exceed 120 equivalent feet (36.5 m).
diameter/ 6 (12.5”
diameter/ 7 cm)
7 cm)
transition adaptor must be used.
diameter duct is acceptable to use. "
A 5"""'''''" (12.7cm)/ 6" (15.2cm)
"
NOTE: This microwave is shipped assembled for Recirculating.
Select the type of ventilation required for your installation and
proceed to that section.
See page 12 See page 17
See page 21

12 13
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Roof Cap 24 Ft. (7.3 m) x (1) = 24 Ft. (7.3 m)
12 Ft. (3.6 m) Straight Duct 12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m)
(6”/15.2 cm Round)
Rectangular-to-Round 5 Ft. (1.5 m) x (1) = 5 Ft. (1.5 m)
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood. Total Length = 41 Ft. (12.4 m)
The following chart describes an example of one possible
ductwork installation.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible
ductwork installation.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* x USED = LENGTH
Wall Cap 40 Ft. (12.2 m) x (1) = 40 Ft. (12.2 m)
3 Ft. Straight Duct 3 Ft. (0.9 m) x (1) = 3 Ft. (0.9 m)
(3
1
⁄ 4 ” x 10”/8.2 x 25.4 cm
Rectangular)
90° Elbow 10 Ft. (3 m) x (2) = 20 Ft. (6 m)
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood. Total Length = 63 Ft. (19.1 m)
EXTERNAL EXHAUST DUCTING
Installation Instructions
OUTSIDE TOP EXHAUST
A(Vertical Duct)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to wall
A2. Prepare Top Cabinet
A3. Configure Microwave Blower
for Outside / Top Exhaust
A4. Check Damper Operation
A5. Mount Microwave Oven
A6. Adjust Exhaust Adapter
A7. Connect Duct-work
◾Make sure the screws for the Blower
Motor and Blower Plate are securely tight-
ened when they are installed. This will help
to prevent excessive vibration.
◾Make sure the Motor wiring has been
properly routed and secured, and that the
wires are not pinched.
IMPORTANT NOTE
A1. ATTACH THE MOUNTING PLATE
TO THE WALL
◾Attach the plate to the wall using toggle bolts.
◾At least one wood screw must be used to attach
the plate to a wall stud.
[1] Remove the toggle wings from the bolts
[2] Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to 3/4" (19mm) onto each bolt.
To use toggle bolts:
[3] Place the mounting plate against the wall and insert the
toggle wings into the holes in the wall to mount the plate.
NOTE: Before tightening toggle bolts and wood screw, make
sure the bottom of the mounting plate touches the bottom of
the cabinet when pushed flush against the wall and the plate is
properly centered under the cabinet.
CAUTION: Be careful and avoid pinching fingers between the
back of the mounting plate and the wall.
[4] Tighten all bolts. Pull the plate away from the wall to help
tighten the bolts.

14 15
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
A2.
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
A3.
Remove the screw that holds the blower plate
to the microwave. Remove and save the screw
holding the blower motor to the microwave.
Blower Plate
Blower Motor
Screw
Back of
Microwave
2Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
1
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
TOP EXHAUST
Roll the blower unit 90° so that fan blade
microwave.
3
Back of
Microwave
Before Rotation After Rotation
Back of
Microwave
openings are facing out the top of the
Back of
Microwave
AFTER: Fan Blade
Place the blower unit back into the opening.
Openings Facing Top
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched, and that they are properly secured.
4
with the top of the unit facing up.
Place the microwave in its upright position,
End B
End A
Back of
Microwave
3
MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
2Rotate front of oven
up against cabinet
bottom.
NOTE: When mounting the
microwave oven, thread
power cord through hole in
bottom of top cabinet. Keep
it tight throughout Steps
1–3. Do not pinch cord or
lift oven by pulling cord. Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
1
CHECK FOR PROPER
DAMPER OPERATION
Back of
Microwave
•Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
•You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave is installed.
A3.
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
TOP EXHAUST
Secure blower unit to microwave with the screw
5removed in Step 1. Make sure the screw is tight.
Replace blower plate with the screw removed in
Step 1. Make sure the screw is tight.
Back of
Microwave
6
7
Back of
Microwave
Guide
Adaptor
Locking Tab
damper swings freely.
Attach the exhaust adaptor to the top of the
blower plate by sliding it into the guides of the
blower plate.
Push in securely until it is in the locking tabs.
Take care to assure that the damper hinge is
installed so that the
A4.
A5.
IMPORTANT: Do not grip or use the handle
or heat shield during installation. Do not
remove the cardboard spacers between the
heat shield and door.
Exhaust Adaptor
Blower Plate
Damper

16 17
Attach the microwave oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall
and the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent to
Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet holes.
Turn two full turns on each screw.
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adapter
to connect to the house duct.
For Front-to-Back or Side-
to-Side Adjustment, Slide
the Exhaust Adapter as
Needed
Back of
Blower Plate Damper Microwave
Self-Aligning Screw
5
A5.
CONNECTING DUCTWORK
1
2
A7.
House Duct
MOUNT THE MICROWAVE
(cont.)
A6.
Install grease filters. See the Use & Care
Guide packed with the microwave.
8
Extend the house duct down to connect to the
exhaust adapter.
Seal exhaust duct joints using furnace duct tape
for high temperature applications
BOUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Remove Blower Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven
IMPORTANT NOTES
• Make sure the screws for the
blower motor and blower plate
are securely tightened when they
are reinstalled. This will help pre-
vent excessive vibration.
•Make sure the motor wiring has
been properly routed and se-
cured and that the wires are not
pinched.
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall
for outside exhaust.
REMOVE BLOWER PLATE
Remove and save the screw that holds the blower
plate to the microwave. Lift off the blower plate.
Read the instructions on the REAR WALL TEMPLATE.
Tape it to the rear wall.
Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
4
7

18 19
ATTACH THE MOUNTING
PLATE TO THE WALL
B3.
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
Wall
Mounting
Plate
Spacing for Toggles More
Than Wall Thickness
Toggle
Bolt
Toggle Wings
To use toggle bolts:
Bolt End
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3⁄4″(19 mm) onto each bolt.
1
2
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the bottom of the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
4
2
1Remove and save screw that holds blower motor
to microwave.
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
B5.
End B
End A
will extend far enough to allow you to adjust
the blower unit.
Back of
Microwave
Blower Motor
Blower Motor
Screw
Forward
Openings Facing
Carefully pull out the blower unit. The wires
Before: Fan Blade
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
B4.
You need to drill holes for the top sup-
port screws and a hole large enough
for the power cord to fit through. Back of
Microwave
Roll the blower unit 90°
Back of
Microwave
3Before Rotation After Rotation
Attach the exhaust adaptor to the rear of the
oven by sliding it into the guides at the top
center of the back of the oven.
AFTER: Fan Blade
Openings Facing Back
Place the blower unit back into the opening.
Replace the blower plate in the same position
as before with the screw. Make sure the screw
is tight.
Rotate the blower unit 90° so that fan blade
openings are facing out the back of the mi-
crowave.
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
B5.
Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Gently remove the wires from the grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed Through Right Side Wires Routed Through Left Side
Back of
Microwave Back of
Microwave
Blower Plate
Blower Motor
Screw
Secure the blower unit to the microwave with
the original screw.
Before Rolling After Rolling
Back of
Microwave
End A
End B
Back of
Microwave
Back of
Microwave
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched, and that they are properly secured.
NOTE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
Push in securely until it is in the lower locking
tabs. Take care to assure that the damper hinge
is installed so that it is at the top and that the
damper swings freely.
Guide
Guide
Adaptor
Locking Tabs
Back of
Microwave
4
5
6
11
8
9
10
Back of Microwave
Knockout Plates:
Snip all 4 webs on
each knockout panel
and remove the metal
knockouts for rear airflow.
Please take care to
remove any sharp edges
created from removing
the knockout plates.
7Remove the knockout plates in the back of the
unit with snips. (for some models)
B. Outside Back Exhaust (Horizontal Duct) B. Outside Back Exhaust (Horizontal Duct)

20 21

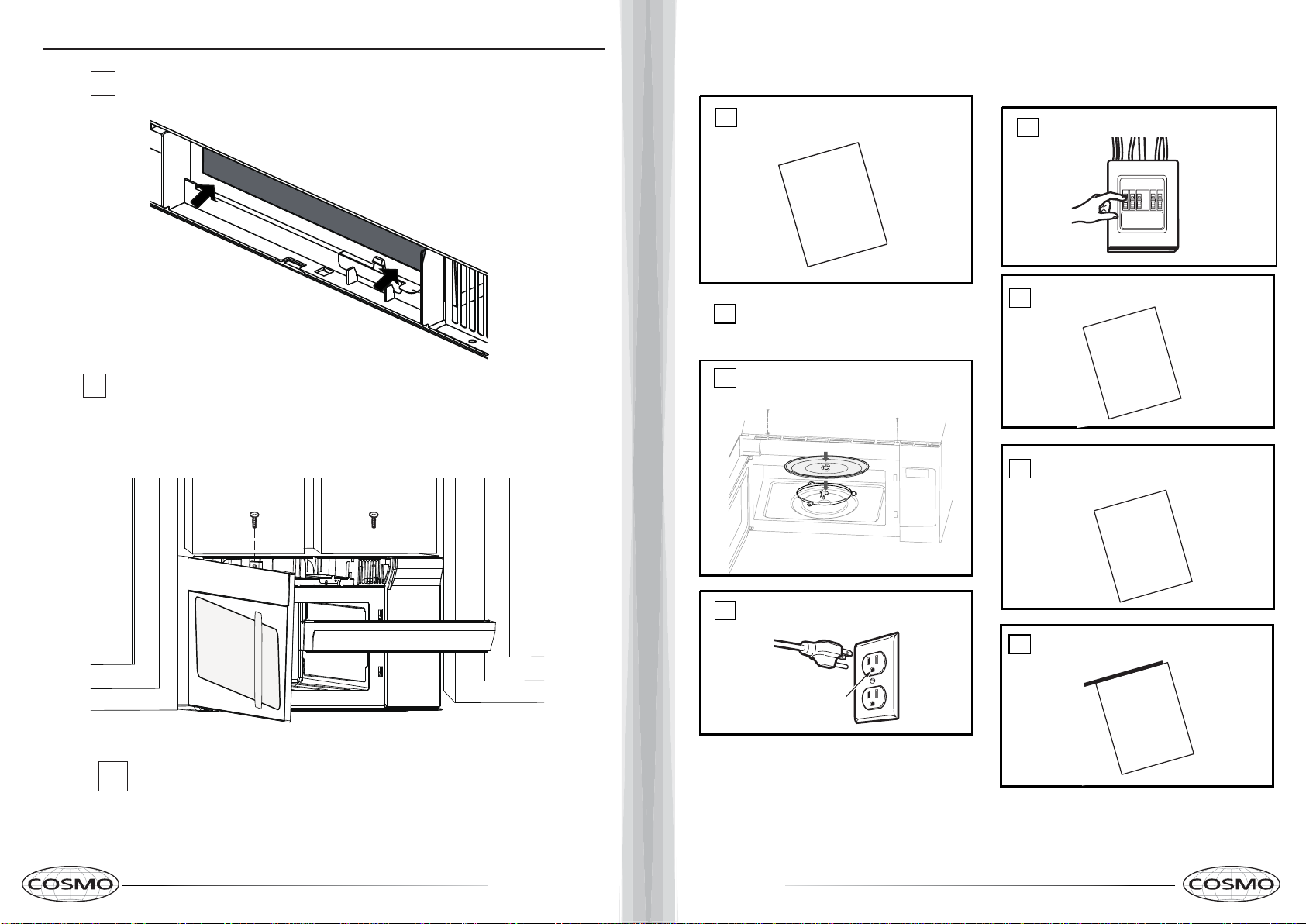

Attach the microwave oven
to the top cabinet.
B6.
FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE
RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.
5
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of
the microwave oven. (While tightening
screws, hold the microwave oven in place
against the wall and the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet holes.
Turn two full turns on each screw.
Self-Aligning Screw
4
Install grease filters. See the
Use & Care Guide that came
with the microwave for more
information.
4
3
ATTACH THE MOUNTING PLATE TO
THE WALL
1
Wall
Mounting
Plate
Spacing for Toggles
More Than Wall
Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2
CRECIRCULATING (non vented ductless)
Cabinet Cabinet
If the cabinet depth including the cabinet doors
is more than 13", then the unit must be spaced
out from wall using adequate materials supporting
150 Ibs to allow proper top vent air exhaust/intake.
IMPORTANT: Do not grip or use the handle or heat shield during in-
stallation. Do not remove the cardboard spacers between the heat
shield and door.
NOTE: If your cabinet is metal, use the nylon grommet around the
power cord hole to prevent cutting of the cord.
NOTE: We recommend using filler blocks of the cabinet front hangs
below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case damage may occur
from over tightening screws.
NOTE: When mounting the microwave oven, thread power cord
through hole in bottom of top cabinet. Keep it tight throughout
steps 1-3. Do not pinch cord or lift oven by pulling cord.
Lift microwave, tilt it forward, and hook slots at
back bottom edge onto four lower tabs of mount-
ing plate.
1
2Rotate front of oven
up against bottom.
3Insert self-aligning screw through top center cabi-
net hole. Temporarily secure the oven by turning
the screw at least two full turns after the threads
have engaged (it will be completely tightened
later). Be sure to keep the power cord tight. Be
careful not to pinch the cord, especially when
mounting flush to bottom of cabinet.
6
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Blower Plate
C4. Mount the Microwave Oven
C5. Install or change Charcoal Filter
IMPORTANT NOTES
• Make sure the screws for the blower motor and
blower plate are securely tightened when they are
reinstalled. This will help prevent excessive vibration.
•Make sure the motor wiring has been properly
routed and secured and that the wires are not
pinched.
C1
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach
the toggle wings 3/4" to (19mm) onto each bolt.
7
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the bottom of the mounting plate
touch the bottom of the cabinet when pushed flush against
the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall to
help tighten the bolts.
12"
4"
NOTE:I
TI
SVER Y I
MPOR TA NT TO
READAN D F OLLOWTHEDIRECTIONS
I
NTHE
INSTALLAT ION
I
NSTR UCTIONS
BEFOREPROCEE DI
NG WITHTHIS
REARW ALL TE MPLATE.
Thi
s
RearWall
Templ
at
e
serves
t
oposi
t
io
nt
he
bot
t
om
mounti
ngpl
ateand
t
ol
ocat
et
hehori
zontal
exhaust
out
le
t
.
1.Usea
lev
elt
ocheck
that
t
he
t
empla
t
e
i
spositi
oned
accurat
el
y.
2.
Locat
e
and
mark
atl
east
onestudont
he
l
ef
t
or
ri
ght
si
de
oft
hecent
erl
i
ne.
I
tisi
mport
antt
o
use
at
l
eastone
wood
screwmounted
f
i
rml
y
in
astudt
osupport
t
he
wei
ght
oft
hemi
crowave.Markt
wo
addi
t
io
nal,
evenlyspaced
l
ocatio
nsf
or
thesuppl
i
edt
oggl
e
bol
t
s.
3.
Dri
l
l
hol
es
i
nthemarked lo
cat
io
ns.Wheret
herei
s
a
st
ud,dri
ll
a
3/
16"hol
ef
or
wood
screws.
Forhole
s
t
hatdonotli
ne
upwit
h
ast
ud,
dril
l5/
8"hol
esf
or
t
oggl
ebolt
s.
DO
NOTI
NSTALLTHEMOUNTIN GPLATE
ATTHIS
TI
ME.
4.
Remove
t
he
t
empl
atef
romt
he
rear
wal
l
.
5.R
evie
wtheI
nst
al
la
t
i
onI
nst
ruct
i
onbook
f
oryour
i
nst
alla
t
io
nsi
tuat
i
on.
Locat
eandmarkhol
esto
al
i
gnwit
hhol
esin
t
he
mounti
ng
pl
ate.
I
MPORT ANT:
LOCA TEAT LEAST ONE STUD
ONEI
THERSIDEOF
THECENTERLI
NE.
MARKT HE LOCA TI
ONF OR2ADDITIONAL,EVEN LY
SPACE DTOGGLE BOLTSIN
THEMO UNTING PLAT E
AREA.
Locat
eandmarkhole
s
t
oal
i
gnwit
hhol
esint
he
mountin
g
pl
at
e.
I
MPORTANT:
LOCATE AT LEAST ONE STUDON EI
THERSIDE
OF
THECENTERLI
NE.
MARK THELOCATIONF OR2
ADDITIONAL ,
EVENL Y
SPACEDTO GGLE BOLTSI N
THEMO UNT I
NGPLATE
AREA.
Trim
the
rearwall t
emplat
eal
ongt
hedottedli
ne.
Darlevuel
taalahojaparaconsul
tarla
versiónenEspañol.
3/
8"TOEDG E
Trim t
he rear wall
t
em platealongthe dotted lin
e.
MOUNT THE MICROWAVE OVEN
B. Outside Back Exhaust (Horizontal Duct)

22 23
Attach the microwave oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Microwave Oven Top
Equivalent to Depth
of Cabinet Recess
MOUNT THE MICROWAVE OVEN
Self-Aligning Screw
4
C3.
CHECK BLOWER PLATE
Blower Plate
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
C2.
You need to drill holes for the top support screws and a
hole large enough for the power cord to fit through.
5
MOUNT THE MICROWAVE OVEN
(cont.)
7
6
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall
and the top cabinet.)
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
C4.
1 Unplug microwave oven or disconnect power.
3
Open the microwave door and remove the two
vent mounting screws located on top of the
microwave using a #1 Phillips screwdriver.
2
4
Remove the charcoal filter by pushing the
top of the filter inwards,then pull it forward
out from the unit.
Slide the top of the new charcoal filter
into the top of the filter cavity.
Charcoal
Filter
Read the instructions on the TOP CABINET TEMPLATE.
Tape it underneath the top cabinet.
•
•
NOTE: Adjust top template accordingly if the microwave
is being spaced out from the wall due to cabinet depth
(including cabinet doors) of more than 13".
Drill the holes following instructions on the TOP CABINET
TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
Place the microwave in its upright position,
with the top of the unit facing up.
Check to see that the blower plate is cor-
rectly installed on the unit.
C. Recirculating (Non Vented Ductless) C. Recirculating (Non Vented Ductless)
C4.
FOR EASIER INSTALLATION AND PERSONAL SAFETY,
WE RECOMMEND THAT TWO PEOPLE INSTALL THIS
MICROWAVE OVEN.
IMPORTANT: Do not grip or use the handle
or heat shield during installation. Do not remove the
cardboard spacers between the heat shield and door.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the cabi-
net front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case dam-
age may occur from over tightening screws.
NOTE: When mounting the microwave oven, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch cord
or lift oven by pulling cord.
[1] Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
[2] Rotate front of oven up
against cabinet bottom.
[3] Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the screw at
least two full turns after the threads have engaged (It will be
completely tightened later.) Be sure to keep power cord tight.
Be careful not to pinch the cord, especially when mounting
flush to bottom of cabinet.
Install grease filters. See the Use & Care
Guide packed with the microwave.
INSTALLING OR CHANGING THE
CHARCOAL FILTER (Some Models)
C5.
NOTE: The charcoal filter is factory installed
in some models. Refer to the Use & Care
Guide to see if yours is factory installed and
for replacement information.
For models without the recirculation filter
access door, follow these steps to replace
or install a charcoal filter:

24 25
Reinstall the vent by sliding the bottom of the
vent into place. Push the vent top into position
and slide right into place. Replace the two vent
mounting screws located on top of the microwave
using a #1 Phillips screwdriver.
Press the bottom of charcoal filter to place it
into the correct position.
5
6
7
Remove all packing material from the
microwave oven.
2.
Make sure the microwave oven has been
installed according to instructions.
1.
BEFORE YOU USE YOUR MICROWAVE
Ensure proper
ground exists
before use
INSTALLATION
INSTRUCTIONS
3. ring and glass tray in cavity.
Install turntable
4.
KEEP INSTALLATION INSTRUCTIONS
FOR THE LOCAL INSPECTOR’S
USE.
7.
6.
INSTALLATION
INSTRUCTIONS
MANUAL
USE
|++&=
CARE
+
&
PRODUCT
CARD
Read the Manual.
&
REGISTRATION
USE CARE
FILL OUT PRODUCT REGISTRATION CARD
.
8
AN SEND IN.
Plug power cord into a seperate and dedicated
15- to 20-amp electrical outlet.
Close the microwave door. Plug in microwave oven
or reconnect power.
Replace house fuse or turn breaker back on.
5.

26 27
Operational check
1. Make sure the unit has been installed according to these instructions.
2. Remove all packing materials from the oven.
3. Replace house fuse or turn circuit breaker back on.
4. Plug power cord into receptacle .
5. Read operating instructions before testing the product.
6. Turn on the exhaust fan at Turbo speed and confirm it is operating
by using a tissue (it will stick to the filter). 7. Confirm the outdoor ex-
haust flapper has opened.
8. Set the microwave oven for 1 minute and confirm the oven is operat-
ing normally using a cup of water.
9. Keep these installation instruction for the local electrical inspector’s
use.

28 29
WARRANTY AND SERVICE
For full warranty details on this product please visit:
http://www.cosmoappliances.com/warranty
TO RECEIVE WARRANTY SERVICE, YOUR
PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT:
WWW.COSMOAPPLIANCES.COM/WARRANTY
Correct Disposal of this product:
This marking indicates that this appliance should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
IMPORTANT
Do Not Return This Product To The Store If
you have a problem with this product, please contact
Cosmo Customer Support at
[phone]
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL #
REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter
le service des consommateurs Cosmo Customer Support au
[phone]
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE
LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el
AYUDA AL CLIENTE COSMO al
[phone]
(Válido solo en E.U.A).
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE
MODELO Y DE SERIE PARA EL SERVICIO DE LA GARANTÍA
SCAN TO REGISTER

Electronic version of this manual is available at:
www.cosmoappliances.com
Cosmo is constantly making efforts to improve the quality and
performance of our products, so we may make changes to our
appliances without updating this manual.
