Cossiga LINEAR Series User manual

LSCK LINEAR SERIES COUNTER KIT ASSEMBLY
Download C.A.D models or contact us on COSSIGA.COM
Page 1
Date Modied: 07/08/23 Check website for latest version
FLAT PACK FRAME
END PANEL FRONT PANEL BASE SHELF
PIECE
TRAY RACE
OPTIONAL FIXED
FEET ( SEE PAGE 4)
END PANEL WITH
VENT
b
b
b
a
a
d
d
c
c
e
e
f
f
PARTS AND SHIPPING
* base shelf pieces not available for RF units due to venting requirments
PART
KEY
PARTS MODEL AND NUMBER OF PARTS AND CODE
LSCK3
CKFF3
LSCK4
CKFF4
LSCK5
CKFF5
LSCK6
CKFF6
aFLAT PACK
FRAME
1 1 1 1
CKFF3 CKFF4 CKFF5 CKFF6
bTRAYRACE 2 2 2 2
CKTR3 CKTR4 CKTR5 CKTR6
c END PANEL CKPN
dEND PANEL
WITH VENT CKEP
eFRONT
PANELS
4 4 6 6
CKFP3 CKFP4 CKFP5 CKFP6
fBASE SHELF
PIECES *
2 3 4 5
CKBS3 CKBS4 CKBS5 CKBS6

Remove the base frame parts from
the box.
Note the labels on the top and bottom of the posts.
these correspond to the post position label
on the FRAME.
Locate bag of frame boltes.
Position posts in bottom frame and bolt in place.
Position top frame on posts and bolt in place.
1. 2.
3. 4.
BASE FRAME
POSTS
ATTACH POSTS TOP FRAME
LSCK LINEAR SERIES COUNTER KIT ASSEMBLY
Download C.A.D models or contact us on COSSIGA.COM
Page 2
Date Modied: 07/08/23 Check website for latest version
Labels are on the INSIDE
of posts
Label on inside
of post
Label on inside
of post
Label on top frame
denotes position of
post in the frame.
ie. A1 top inside post
to A1 on frame.
Label on bottom frame
denotes position of
post in the frame.
ie. A2 top inside post
to A2 on frame.

Locate the bag of panel screws. screw in
half way so panels can slide in. ( may need adjusting )
Use the screws to attach tray race to posts.
If using base panels place in frame
base. Center in frame to have spaces
each end.
Slide panels into place on panels
screws and rotate panel up to close
against magnets in frame top.
5. 6.
7. 8.
PANEL SCREWS TRAY RACE
BASE PANELS PANELS
LSCK LINEAR SERIES COUNTER KIT ASSEMBLY
Download C.A.D models or contact us on COSSIGA.COM
Page 3
Date Modied: 07/08/23 Check website for latest version
Gap each end

Extendable xed feet replace castors.
Before frame assembly, remove castors
and replace with feet using bolts on the under side.
( to be tted by others )
EXTENDABLE FEET
ORDERED SEPARATELY AS AN OPTION
( NOT AVAILABLE AUS /NZ )
145200
LSCK LINEAR SERIES COUNTER KIT ASSEMBLY
Download C.A.D models or contact us on COSSIGA.COM
Page 4
Date Modied: 07/08/23 Check website for latest version

LSCK LINEAR SERIES COUNTER KIT ASSEMBLY
Download C.A.D models or contact us on COSSIGA.COM
Page 5
Date Modied: 07/08/23 Check website for latest version

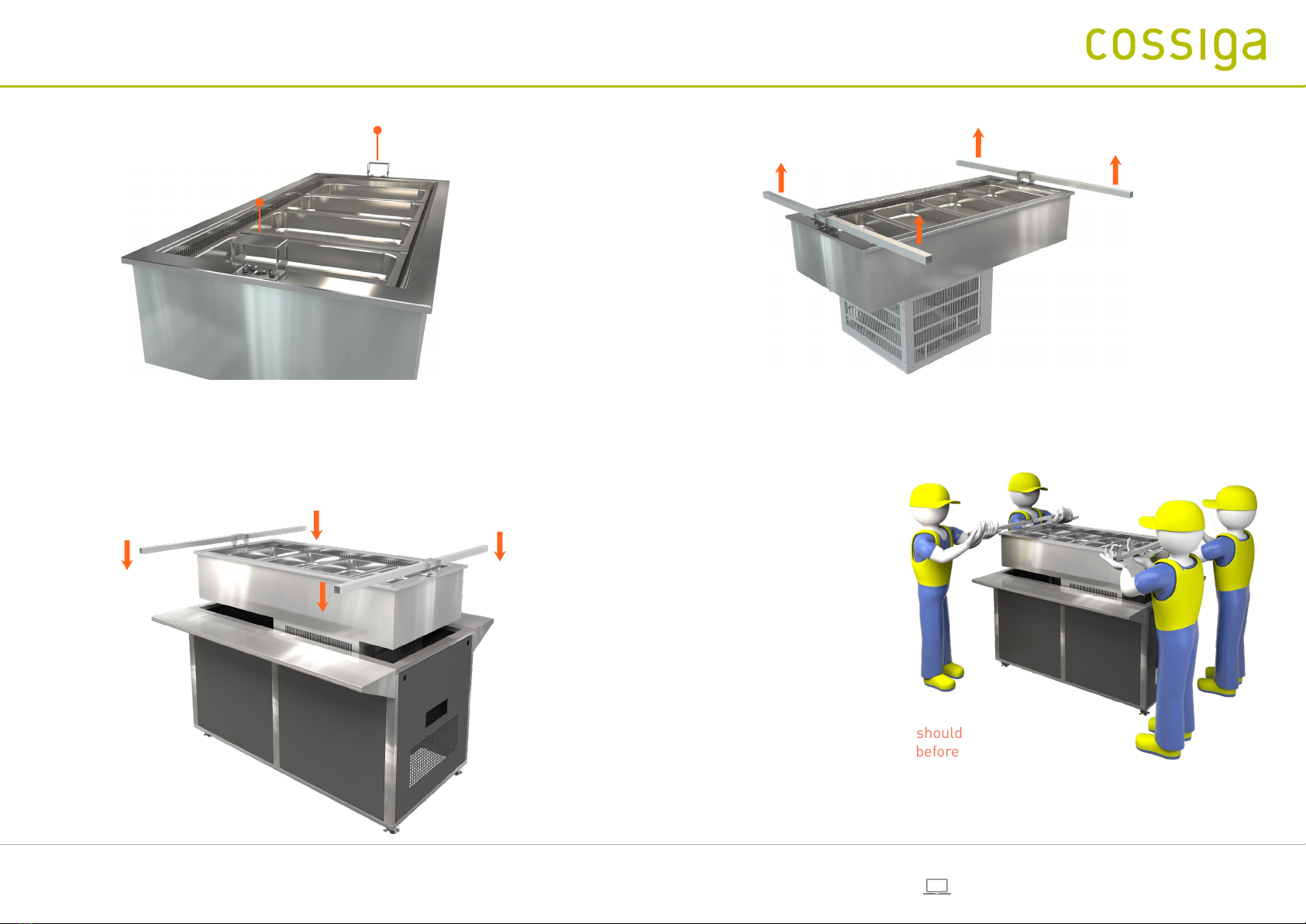

PLACING LS UNITS IN COUNTER Bolts retained for
xing gantry post.
1. 2.
3.
Lifting brackets are tted to assist removing the
unit from the packaging and placing in cabinetry.
Use a lift bar that can t through the 35 x 35mm
square hole. ( Bar not supplied )
Use four people lifting each corner.
After unit has been placed in the required
position remove the lifting bracket bolts and
retain for xing the gantry posts.
All accepted local safety work wear and standards should
be adhered to with a safety programme developed before
undertaking of this kind of lifting work.
