Portable Air Conditioner
ES10114US-WH/ES10114CA-WH
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
EN FR
US:[e-mail]
UK:[e-mail]
AU:[email protected]
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville PL office: Gdańsk

Before You Start
CONTENTS
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
Read this Use & Care Guide carefully before product use.
Keep the Use & Care Guide for later review.
02 03
Safety Instructions
Features and Components
Installation
Control Setting
Drainage Instructions

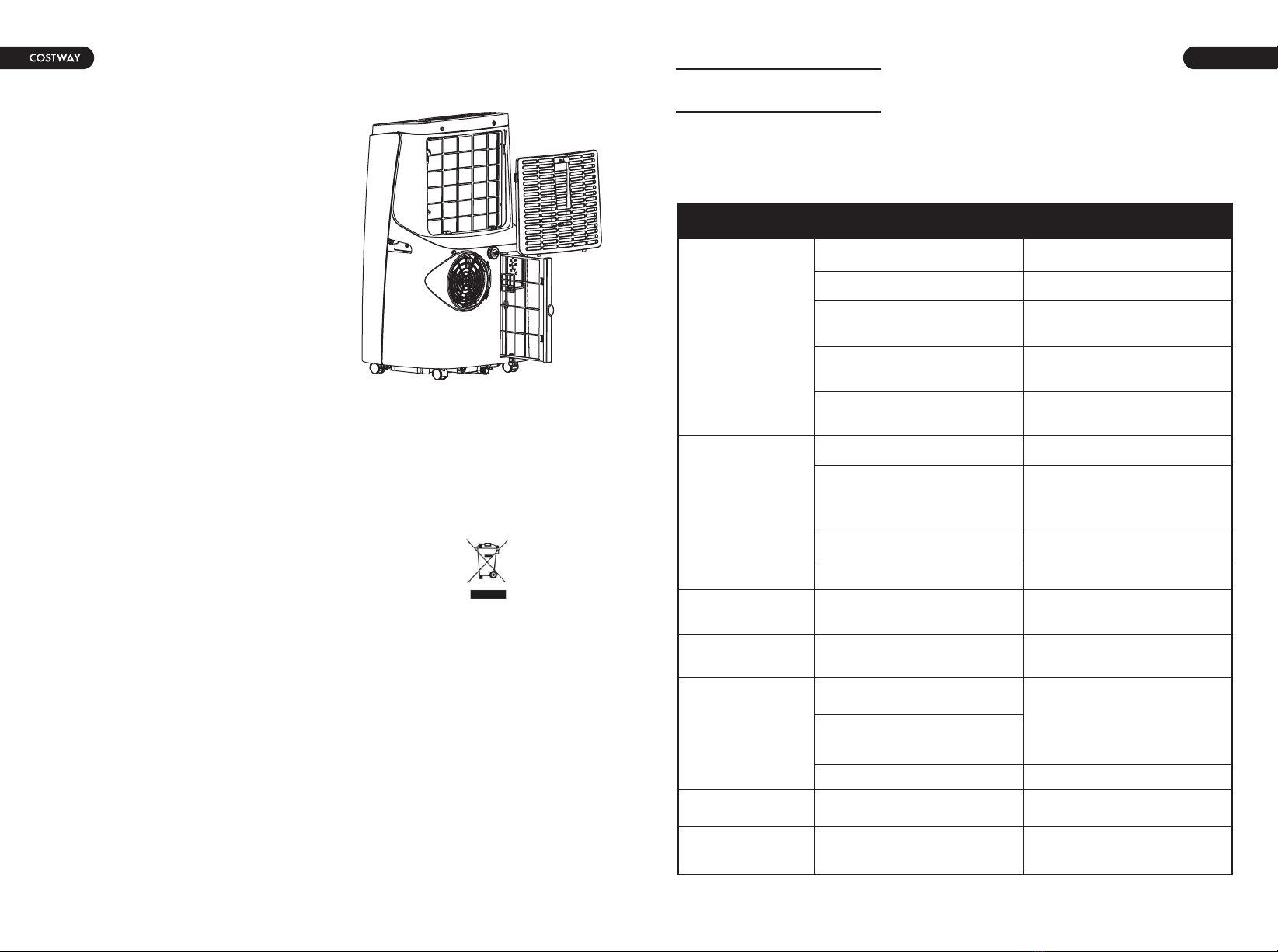

Maintenance
Troubleshooting
Warranty
Service
EN

IMPORTANT SAFETY
INSTRUCTIONS
04 05
1.This air conditioner must be connected to proper electrical outlet with the correct
electrical supply.
2.Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT
OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric
receptacle outlet in the wall, have a certified electrician install the proper receptacle.
The wall receptacle MUST be properly grounded.
3.Do not operate air conditioner if power cord is frayed or otherwise damaged. Avoid
using it if there are any cracks or abrasion damage along the length, plug connector or
if the unit malfunctions or is damaged in any manner. Contact an authorized service
technician for examination and repairs.
4.DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5.Do not block airflow around the air conditioner. The exhaust hose should be free of
any obstructions.
6.Always unplug the air conditioner before servicing it or moving it.
7.Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere is oily or sulfurous. Avoid any chemical
coming in contact with your air conditioner.
8.Do not place any object on the top of the unit.
9.Never operate the air conditioner without filters in place.
10.Do not use the air conditioner in a bathroom or other highly humid environment.
11.Always unplug air conditioner when not in use.
12.Do not operate air conditioner with any safety devices removed.
13.Do not run power cord under carpeting. Do not cover cord with throw rugs, runners,
or the like. Arrange cord away from traffic area where it will not be tripped over.
14.Do not block air openings or place air conditioner on a soft surface such as a bed or
sofa.
15.Do not place the air conditioner on a small, unlevel, uneven or any other surface
which might allow the unit to tip or fall.
16.For proper operation, air conditioner should be placed on a smooth, noncombustible
surface. Always place this air conditioner on a level surface at least 20w (50 cm) away
from any wall or object.
17.This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
18.Always insert the filters securely. Clean the filters every two weeks.
19.Operating with clogged filters may cause failures.
20.When moving the unit, make sure that it is in an upright position.
21.Keep the unit away from gasoline, flammable gas, stoves and other heat sources.
22.Don't disassemble, overhaul or modify the air conditioner, otherwise it will cause a
malfunction or possibly bring harm to persons and properties. To avoid hazard,
if a unit failure occurs, have the unit repaired before attempting to use it.
23.Do not install and use the air conditioning in the bathroom or other humid
environments.
24.Do not pull the plug to turn off the unit operation.
25.Do not place cups or other objects on the body to prevent water or other liquids
from spilling into the air conditioner.
26.Do not use insecticide sprays or other flammable substances near the air
conditioning.
27.Do not wipe or wash the air conditioner with chemical solvents such as gasoline and
alcohol. When you need to clean the air conditioner; you must disconnect the power
supply, and clean it with a half-wet soft cloth. If the unit is very dirty, scrub with a mild
detergent.
28.The appliance can be used by children aged from 8 years and above if they have
been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
29.This appliance is intended for indoor residential use only, not for industrial or other
commercial applications.
30.This appliance is intended for private household use only!
WARNING! When using electrical appliances, basic safety precautions should be
followed, including the following:
EN

FEATURES AND
COMPONENTS
SAVE THESE
INSTRUCTIONS
06 07
This air conditioner features cooling, dehumidification, fan-only, and continuous water
drainage functions.
The air louvers in top of the unit have an automatic air swing function that is activated
from the remote control
The remote control can be placed on the back of the body for convenient out of the
way storage.
Handles on both sides make unit easier to carry.
The plug storage plate enables the plug to be inserted into the back of the unit during
storage.
Operation of the unit provides continuous air filtration.
The Timer function provides for automatic shutoff and delayed starting.
The unit is equipped with a variety of protection functions, such as automatic
defrosting and a water pan overflow signal.
The unit features thermostatic operation. The thermostat senses the temperature of
the air surrounding the unit. When the air reaches the set cooling temperature, the
compressor shuts off and the fan continues to run at low speed. When the surrounding
air temperature increases by approximately 2℉/-17℃the compressor restarts to cool
the air to the set temperature.
The dehumidification mode combines compressor operation and low fan speed to
reduce humidity in damp rooms. Keep room doors and windows closed for effective
dehumidification. The fan speed cannot be varied when the unit is set to dehumidify.
The display screen will not show the relative humidity percentage of the air.
The power plug contains a device that senses damage to the power
cord. To test the power cord:
1.Plug in the air conditioner. The plug has a Test and a Reset
button.
2.Press the TEST button and notice a click as the RESET button
pops out.
3.Press the RESET button. You will also hear a click as the RESET
button engages.
4.The power cord will now supply electricity to the unit.
5.Always make sure the RESET button in pushed in for correct
operation. The power cord must be replaced if it fails to reset after
this test.
Power Plug
EN

08 09
INSTALLATION
AND ADJUSTMENT
INSTALLATION
The couplers for the inlet and outlet ends of the air exhaust hose are shipped preattached
to the hose. Ensure that they are securely screwed into place on the hose before hose
installation.
1.Insert the hose inlet end coupler into the air exhaust vent. Turn coupler in the direction
of the Lock arrows (counterclockwise) to secure the coupler in place. See Fig. 1.
2.Position the flared opening of the hose outlet over the elliptical opening in slider piece 1.
3.Push the tabs at the top of the flared outlet into the slots on slider piece 1. Slide the
hose outlet to the side so that the tabs engage in the slots.
1.Cut a length of foam seal (adhesive type) to
the proper window opening width and attach it
to the window sash.
2.Extend the air exhaust hose to necessary
length. Place the window slider kit (with flared
outlet attached) onto the window sash.
3.Cut a length of foam seal (adhesive type) to
the proper width and attach it to the bottom
(horizontally hung) or side (vertically hung) of
the window.
4.Close the window securely onto the window
slider kit.
5.Cut the foam seal (non-adhesive type) to an
appropriate length and seal the open gap at
the top of the window frame.
4.Use a screw to secure the flared outlet to slider piece 1 on the side of the elliptical
opening that will be nearest to the window frame.
5.Insert slider piece 2 into piece 1 and push until tight against the flared outlet ridge
protruding through the elliptical opening. You may need to trim material off of the inner
end of piece 2 to fit the width of the window opening.
NOTE: If the window is narrower than 20.5”/52cm；use only slider piece 1. Shorten the
piece by cutting material from the end that is furthest from the hole. Do not cut from the
end that is nearest to the hole.
IMPORTANT! Before using the air conditioner, keep it upright for at least two hours.
The four casters on the air conditioner base allow it to be easily pushed in an upright
position across a level floor. There are handles on each side of the unit to allow it to be
lifted straight up if necessary.
CAUTION! To avoid injury, use proper lifting technique when lifting the unit by its
handles. Do not bend over from waist with legs straight. Bend knees down to lift with back
straight.
Air Exhaust Hose Installation
Position Unit Near Window
20.5”-59”/52cm-150cm
20.5”-59”/52cm-150cm
EN

10 11
CONTROL SETTINGS
NOTE: You may use one of the supplied L brackets
to secure the window closed (see figure to the right).
Also, you may use the two supplied straight brackets
to secure the top side of the slider kit to the window,
and the other two L brackets to secure the bottom
side of the slider kit to the window frame.
NOTE: The length of the exhaust hose can be extended to 59 inches/150cm, but it
is best to keep the length to a minimum. Make sure that the hose does not have any
sharp bends. Do not use extension tubes or replace the supplied exhaust hose with a
different hose, or a malfunction may result.There must be no obstructions within the
hose, or the unit may overheat.
Plug the power cord of the unit into a 3-prong wall receptacle. You will hear a beep
and the display screen will illuminate, showing digits for the surrounding air
temperature. Press the Power Key. The air louvers on the front of the unit will open
and the unit will begin operating in Cool mode. Press Up or Down key to adjust Cool
temperature setting. Press Mode key to toggle from Cool to Dry (dehumidification) to
Fan (fan-only) operation mode.
1 Timer Key-TheTimer can be set from 1 to 24 hours in one-hour increments.
Shutoff Time - With power on, press the Timer key. Digits will start to flash in the
display and the Hr indicator will light. While display is flashing, press the up and down
keys to select the desired number of run time hours. After a few seconds the
temperature digits will display and the Hr indicator will remain lit. The unit will run for
the set time and then shut off.
Delayed StartTime-With the power off; press the Timer key. Digits will start to flash in
the display and the Hr indicator will light. While the display is flashing, press the up
and down keys to select the desired number of hours before startup. After a few
seconds the temperature digits will display and the Hr indicator will remain lit. The
unit will begin to run after the set number of hours has passed.
To cancel Timer settings press the Timer key twice in quick succession. The Hr
indicator will turn off.
The Timer can be set from 1 to 24 hours and the amount of time is adjustable by
one-hour increments.
2 Fan Speed Selection Key - In Cool and Fan mode, press the Fan key to select
high (F2) or low (Fl) fan speed. In Dehum mode, the fan defaults to the lowest speed
(Fl).
3,4 Up and Down Keys - Press the up or down key to adjust the desired cooling
temperature. While pressing Timer key, press up or down key to select the desired
shutoff or delayed start time span. Simultaneously press both keys to switch between
Celsius (°C) and Fahrenheit (°F).
5 Mode Selection Button - Press Mode key to switch between modes. With each
press, the mode indicator will light up in sequence from Cool ---> Dehum ---> Fan.
6 Power Key - Press the key to turn unit operation on or off. With key off the
display shows surrounding air temperature.
7 Sleep Mode - In Cool mode, press the up key and fan key at same time to turn
on Sleep mode. After one hour the temperature setting will increase by one degree,
and by one more degree after another hour; to accord with how your body naturally
cools while asleep. Fan speed is low for quiet operation. Press up and fan key at same
time to turn Sleep mode off. The temperature will return to original setting.
Point the remote control at the unit control panel when pressing remote control keys.
You will hear the unit beep to confirm remote control key activation.
LED Control Panel
Remote Control
EN

12 13
DRAINAGE
INSTRUCTIONS
MAINTENANCE
Frost Protection - In Cool and Dry modes, if the temperature of the compressor
becomes too low, the unit will automatically enter protection status. Once coil rises to
a sufficient temperature, the unit will automatically revert to normal operation.
Overflow Protection - When water in the water pan exceeds the maximum level, the
unit will beep, stop running, and the display screen will show FL. The water in the pan
must be drained empty before the unit will resume operation. See the Drainage
Instructions in the next section of this Use & Care Guide.
Automatic Defrosting - The air conditioner has automatic defrosting. During
defrosting, the compressor will stop working for about 3-5 minutes, during which
time the fan continues to run.
Automatic Thermal Protection - The air conditioner has automatic thermal protection
to protect against overheating. When thermal protection is activated, the compressor
and motor will stop. Once cooled to a safe operation temperature, the unit can be
restarted.
Before cleaning and maintenance, press the power key is pressed to offand unplug
the power cord from the electrical outlet.
Clean with surface of machine with a wet soft cloth. Don't use chemicals such as
alcohol, gasoline, etc.; otherwise, the surface of the air conditioning will be damaged
or even the whole machine will be damaged.
If the filter screens become clogged with dust the effectiveness of the air conditioner
is reduced. Be sure to clean the filter screens once every two weeks.
1. When the unit stops after the water pan is full,
press the power key to turn off power to the unit, and
then unplug the power plug. Note: Move the unit
carefully so as not to spill the water in the water pan at
the base.
2. Place a water container below the bottom drainage
port of the unit.
3. Unscrew the drain cap and remove the water plug.
Water will automatically flow into the water container.
1. Unscrew the drain cap and remove the water
plug from the drainage tube port in the middle
back of the unit.
2. Push one end of the drainage tube into the
drainage port.
3. Set the other end of the drainage tube into a
water container or floor drain. Allow water pan
to drain.
Note: If your water container becomes full, a
water backup may occur that will fill the unit
water pan and result in unit shutdown. Remove
the adapter end and place into another empty
container or floor drain. Allow water pan to
drain.
4. When the all the water is drained from the
unit, insert the water plug and retighten the
drain cap.
Notes
• During drainage, tilt the unit slightly backwards.
• If you see that your water container will not hold
all the water, before it is full insert the water plug
back into the drain port to prevent water from
spilling onto the floor.
4. When the all the water is drained from the unit, insert the water plug and retighten
the drain cap.
Peotective Functions
Manual drainage
Cleaning
Clean the exterior surface
Clean the filter screens
Continuous drainage
EN

14 15
TROUBLESHOOTING
1. Grasp the tab in the middle of the lower filter screen and pull outward gently to
remove it.
2. Place the filter screen into warm water (about 104°F/40°C) with mild detergent
and allow it to air dry after rinsing clean.
3. Once screen is completely dry, insert back into place in unit.
If problems not listed in the table occur or recommended solutions do not work, contact
a qualified technician for repair. Do not disassemble the air conditioner. Unqualified repair
will cause injury to users or damage to property.
1. If unit is hooked up for continuous drainage, unscrew the middle drain cap,
unplug the water plug, and discharge the water into other water containers or floor
drain. If unit is not connected for continuous drainage, empty the pan according to
the manual drainage instructions.
2. Turn on the air conditioner, adjust it to low-low fan speed, and run unit until
for a period of time so as to dry out moisture from inside the unit to prevent
formation of mildew during storage.
3. Turn off the air conditioner, unplug the power plug from wall receptacle and
insert the power plug prongs into the plug storage plate on the back of the unit.
Reinstall the water plug and the drainage cap.
4. Remove the air exhaust hose and store in a secure place.
5. Cover the air conditioner with a plastic bag. Store the unit in a dry place, keep it
out of the reach of children, and take dust control measures.
1. Remove Remote Control from storage slot
in upper filter grille.
2. Insert fingertips beneath PULL tab at top of
screen grille and pull outward
to remove.
3. Remove upper filter screen. Place the
screen into warm water (about 104°F/40°C)
with mild detergent and allow it to air dry
after rinsing clean.
4. Once screen is completely dry, insert back
into place in unit.
5. To reinstall grille, insert tabs at bottom of
grille into slots in unit frame. Push grille
forward to snap into place.
To clean upper filter screen
To clean the lower filter screen
Postseason Storage
Ask help from certified technician.
Ask help from certified technician.
EN
Treatment:
Don't put the abandoned machine with other unsorted waste together.
Such waste shall be placed separately for other special use.

EN FR
VEUILLEZ NOUS DONNER L’OCCASION DE L’AMÉLIORER !
Contactez d’abord notre service à la clientèle amical pour l’aide.
Les replacements pour les pièces manquantes ou endommagées seront envoyés
le plus vite possible!
Contactez-nous !
Ne retournez pas cet article. FR:[email protected]
Climatiseur Portatif
ES10114US-WH/ES10114CA-WH
MANUEL DE L’UTILISATEUR
Contactez notre service à la clientèle pour obtenir de l’aide.
CE MANUEL CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LE LIRE ET LE CONSERVER POUR TOUTE RÉFÉRENCE FUTURE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville PL office: Gdańsk

CONTENU
Lisez attentivement ce Guide d'utilisation & d'entretien avant d'utiliser le
produit.
Conservez ce Guide d'utilisation & d'entretien pour un examen ultérieur.
02 03
Consignes de Sécurité
Caractéristiques et Composants
Installation
Réglage de Contrôle
Instructions de Vidange
Maintenance
Dépannage
Garantie
Service
Avant de Commencer
Veuillez lire attentivement toutes les instructions.
Conservez les instructions pour vous y référer ultérieurement.
Vérifiez toutes les pièces et les accessoires.
Lisez attentivement chaque étape et suivez l’ordre correct.
Nous recommandons que, dans la mesure du possible, tous les
produits soient assemblés à proximité de la zone où ils seront
utilisés, afin d’éviter tout déplacement inutile du produit une fois
assemblé.
Placez toujours le produit sur une surface plane et stable.
Conservez toutes les petites pièces de ce produit et les matériaux
d’emballage hors de portée des bébés et des enfants, car ils
pourraient présenter un risque d’étouffement.
FR
