Portable Air Conditioner
FP10123US
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville PL office: Gdańsk
US:[e-mail]
UK:[e-mail]
AU:[email protected]

Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
1. BEFORE YOU BEGIN
1.1 PRODUCT DESCRIPTION
Our powerful portable air conditioners are great cooling solutions for
single rooms, creating a comfortable atmosphere in your space. It
also has ventilation and dehumidifying function for circulating air and
removal of moisture. They're self-contained systems that do not
require any permanent installation allowing you to move to the space
in which it is most needed. They're commonly used in kitchen,
temporary residence, computer rooms, garages, and many other
places where installation of Air-conditioner Outdoor Unit is limited.
2. FOR YOUR SAFETY
Your safety is the most important thing we are concerned!
2.1 OPERATIONAL PRECAUTIONS
WARNING- to reduce the risk of fire, electric shock or injury to
persons or property:
■ Please let the portable air conditioner stand upright for at least 24
hours before plugging in.
■ If the supply cord is damaged, it must be replaced by the
manufacturer, or similarly qualified persons in order to avoid a
hazard.
Please read this manual carefully and fully
understand before operating your appliance.
WARNING
02 03

■The appliance shall be disconnected from its power source during
service.
■Always operate the unit from a power source of equal voltage,
frequency and rating as indicated on the product identification plate.
■Always use a power outlet that is grounded.
■Unplug the power cord when cleaning or when not in use.
■Do not operate with wet hands. Prevent water from spilling onto
the unit.
■Do not immerse or expose the unit to rain, moisture or any other
liquid.
■Do not leave the unit running unattended. Do not tilt or turn
over the unit.
■Do not unplug while the unit is operating.
■Do not unplug by pulling on the power cord.
■Do not use an extension cord or an adapter plug.
■Do not put objects on the unit.
■Do not climb or sit on the unit.
■Do not insert fingers or other objects into the air outlet.
■Do not touch the air inlet or the aluminum fins of the unit.
■Do not operate the unit if it is dropped, damaged or showing
signs of product malfunction.
■Do not clean the appliance with any chemicals.
■Ensure the unit is far away from fire, inflammable, or explosive
objects.
■The unit shall be installed in accordance with national wiring
regulations.
■Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
■The appliance shall be stored in a room without continuously
operation sources (for example: open flames, an operating gas
appliance or an operating electric heater).
■The appliance shall be stored so as to prevent from mechanical
damage occurring.
■Do not piece or burn, even after use.
■Be aware that refrigerants may not contain an odour.
■Compliance with national gas regulations shall be observed.
■Keep any required ventilation openings clear of obstruction.
■The appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for operation.
If you don't understand something or need help, please
contact the customer services.
04 05

3.2 FEATURES
√ High Capacity in a compact size with cooling, dehumidifying and
fan function.
√ Temperature setting and display
√ LED Digital display
√ Electronic control with built-in timer, sleep mode
√ Self-evaporating system for better efficient
√ Auto shut off when tank full
√ Automatic restart in the event of power outage
√ Auto defrosting function at low ambient temperatures
√ Remote control
√ 2-speed fan
√ Casters for easy mobility
4.1 UNPACKING
● Unpack the carton and take the appliance and accessories out.
● Check the device after unpacking for any damage or scratches on it.
● Accessories:
Note: The appearance is only for reference. Please see the real
product for detailed information.
4. INSTALLATION
1
2
3
4
5
6
7
Control panel
Air outlet with adjustable louver
Handle
Air inlet with air filter
Caster
Drainage Hole
Air Exhaust
■1. Exhaust hose
■2. Hose connector
■ 3. Window kit adapter
■4. Remote control
■ 5. Window kit
123
5
4
06 07
3. PRODUCT OVERVIEW
3.1 PRODUCT DIAGRAM
4
1
2
3
5
6
7

4.2 Choose your location
4.3 ATTACH THE EXHAUST HOSE
The air conditioner requires being vented outside so that the exhaust
air can escape the room which coming from the appliance contains
waste heat and moisture.
Do not replace or extend exhaust hose which will result in decreased
efficiency, even worse shut down the unit due to low backpressure.
● If tipped more than 45°, allow the unit to
set upright for at least 24 hours before start
up.
● Place the unit on a firm, level surface in an
area with at least 50cm (20’’) of free space
around it to allow for proper air circulation.
● Do not operate in close proximity to walls,
curtains, or other objects that may block air
inlet and outlet. Keep the air inlet and
outlet free of obstacles.
● Never install the unit where it could be
subject to:
★ Heat sources such as radiators, heat registers, stoves or other
products that produce heat.
★ Direct sunlight
★ Mechanical vibration or shock
★ Excessive dust
★ Lack of ventilation, such as cabinet or bookcase
★ Uneven surface
Step 1:
Connect the hose connector to one
end of the exhaust hose.
Step 2:
Connect the windows kit
adapter to the other end
of the exhaust hose.
Step 3:
Extend the adjustable window
kit to the length of your
window. Connect the exhaust
hose to the window kit.
Step 4:
Close your window to secure the
kit in place. It needs to hold the
windows kit firmly in place,
secure the window kit with duct
tape if required. It is
recommended that the gap
between the adapter and the
sides of the window should be
sealed off for maximum
efficiency.
08 09
r=20 inch

Step 7:
Adjust the louver at the air outlet, and then switch on the unit.
Step 5:
Attach the hose connector to the exhaust air
outlet of unit.
Step 6:
Adjust the length of the flexible
exhaust hose, and avoid bends in the
hose. Then place AC near an electrical
outlet.
5. OPERATION
5.1 CONTROL PANEL AND DISPLAY
SPEED Press to switch the fan speed between
HIGH and LOW
6
FAN SPEED
Indicator Display high fan speed & low fan speed7
MODE
Indicator
The Mode Display between Cooling,
Dehumidifying and fan.
8
POWER Press to switch the machine on or off.1
MODE
Press Mode button to switch the operation
mode between fan, cooling, and
dehumidifier.
2
TIMER Set a time for the unit to automatically
start or stop.
3
UP
Increase the desired temperature
(60.8℉-89.6℉/16℃～32℃) or timer
setting.
4
DOWN Decrease the desired temperature or
timer setting.
5
10 11
1
2
7
635 4
8

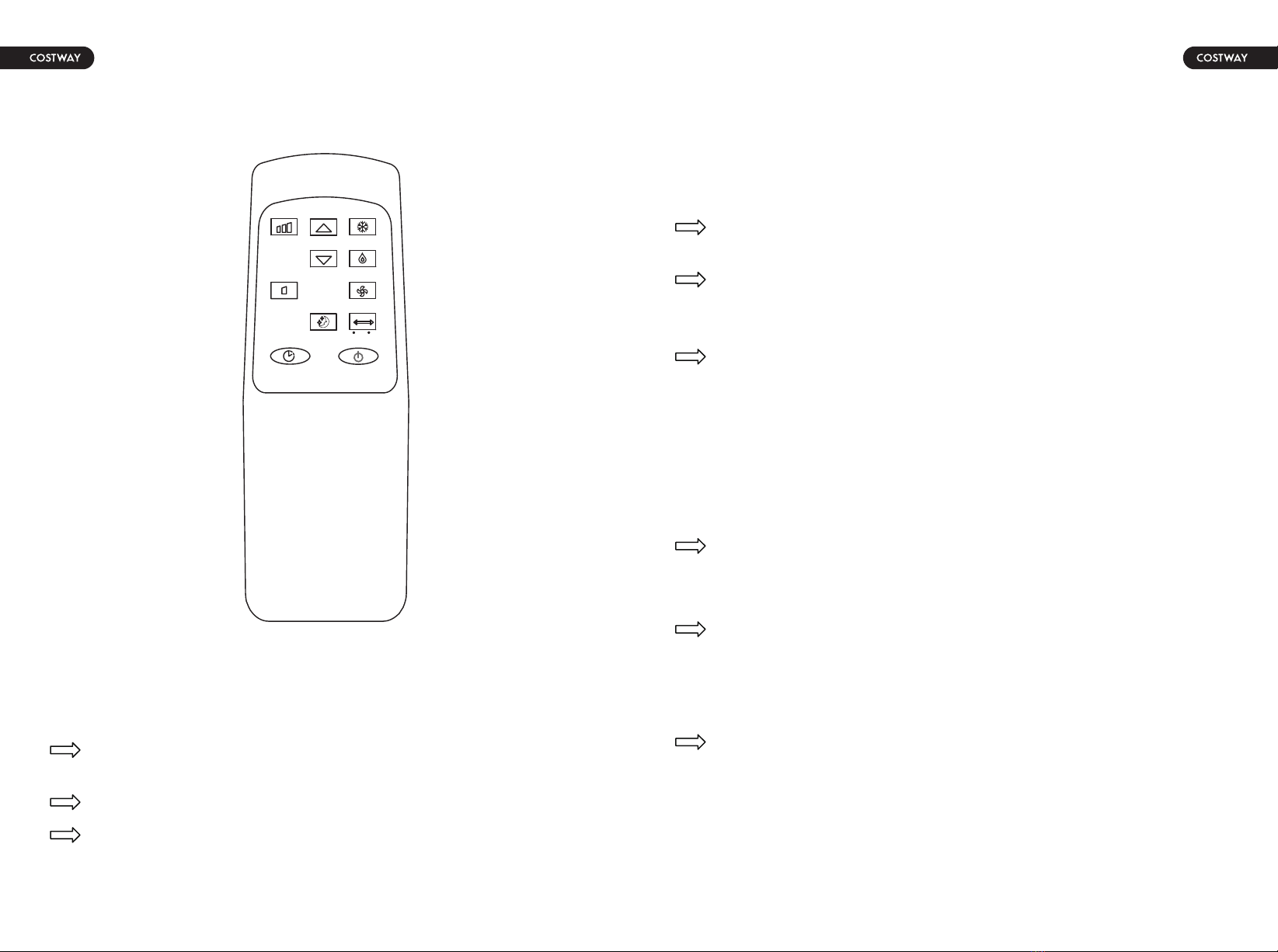

5.2 REMOTE CONTROL 5.3.2 Operation mode
The unit has four operation modes: Cool, dry, fan, sleep.
A. Cooling your room
Select the cool mode to lower the temperature in your room.
Press MODE button repeatedly until the LED of COOL operation
lights up.
Press Up/Down button to adjust the temperature which is
displayed on the screen. The temperature can be set between 60.8℉
(16℃) and 89.6℉(32℃).
Press SPEED button repeatedly until the desired fan speed
indicator lights up.
To control the direction of the air flow horizontally, please adjust the
inner louver by hand.
Note: The air conditioner stops if the room temperature is lower than
selected temperature.
B. Ventilating your room
Press MODE button repeatedly until the LED of FAN operation
lights up.
In ventilation mode the room air is circulated, but not cooled.
Press SPEED button repeatedly to select the fan speed as
desired.
C. Drying your room
Press MODE button on the control panel or remote control, the
LED of DRY operation lights up. The fan speed is unable to select.
User should connect the hose to the drain outlet at the bottom of the
unit.
Note: In this mode, the fan speed switches over to low speed and
cannot be selected.
5.3 SETTINGS
5.3.1 Start-up and Shutdown
Press POWER to turn the unit on.
The unit runs in in FAN as default.
Press MODE button to select the desired operation mode.
Press POWER again to turn off the power.
12 13
High Up Cool
Low Fan
Timer Power
Down Dry
Sleep ℃/℉

5.4 DRAINAGE
Self- evaporating system
The self-evaporating system uses the collected water to cool the
condenser coils for better efficient performance. It is no need to
empty the drainage tank in cooling operation except in drying
operation and high humidity conditions. The condensate water
evaporates at the condenser and evacuated through the exhaust
hose.
For continuous operation or unattended operating in drying operation,
please connect the attached drain hose to the unit. Condensate water
can be automatically flow into a bucket or drain by gravity.
5.3.4 Automatic Defrost
At low room temperatures, frost may build up at the evaporator
during operation. The unit will automatically start defrosting and the
POWER LED blinking. The defrost control sequence is as follows:
A. When the unit operates in the cooling operation, drying operation,
the ambient temperature sensor senses the evaporator coil
temperature is below 30.2℉(-1℃), after the compressor will stop
operating for 10 minutes or the coil temperature up to 44.6℉(7℃),
the unit restart to cool operating mode.
5.3.5 Overload Protection
In the event of a power loss, to protect the compressor there is a
3-minute delay until the compressor restarting.
The timer has two ways of operation:
To turn off
(When power
on)
D. Sleep mode (this function can only be used with a remote
control)
The sleep mode can be activated when in cool mode.
After 1 hour the preset temperature is increased by 33.8℉(1℃), after
another hour the preset temperature will again be increased by
33.8℉(1℃).
Press Timer key
to turn on the
timer function.
Press Up /Down
repeatedly to set
the delay OFF time.
To turn on
(When power
off)
Press Timer key
to turn on the
timer function.
Press Up /Down
repeatedly to set
the delay OFF time.
Cancel timer
Press Up/Down repeatedly until the LED
shows ‘00’.
Note: Pressing POWER will also exit the timer
setting.
5.3.3 TIMER SETTING (1hour-24hours) :
14 15

● Switch off the unit before
operating.
● Remove the plug of the water
outlet opening, and keep it in safe
area.
● Securely and properly connect the
drain hose and make sure it is not
kinked and clear of obstruction.
● Place the outlet of hose over a
drain or bucket and ensure that water
could freely flow out of the unit.
● Do not submerge the end of hose
into water; otherwise it can cause "Air
Lock" in the hose.
To avoid water spillage:
● As the negative pressure of condensate drain pan is large, tilt the
drain hose downward toward the floor. It is appropriate that the
degree of inclination should exceed 20 degrees.
● Straighten the hose to avoid a trap existing in the hose.
The air filter requires regular cleaning. The air filter is removable for
easy cleaning. Do not operate the unit without an air filter, or the
evaporator may be contaminated.
1. Press POWER button to switch off the unit and unplug the power
cord.
2. Remove the filter mesh from the unit.
3. Use a vacuum cleaner to suck dust from the filter.
4. Turn the filter over and rinse the air filter under running water. Let
the water run through the filter in the opposite direction of air flow.
Set aside and allow the filter to air dry completely before reinstalling.
6. CLEANING AND CARE
6.1 CLEANING THE AIR FILTER (every two weeks)
Dust collects on the filter and restricts the airflow. The restricted
airflow reduces the efficiency of the system and if it becomes blocked
it can cause damage to the unit.

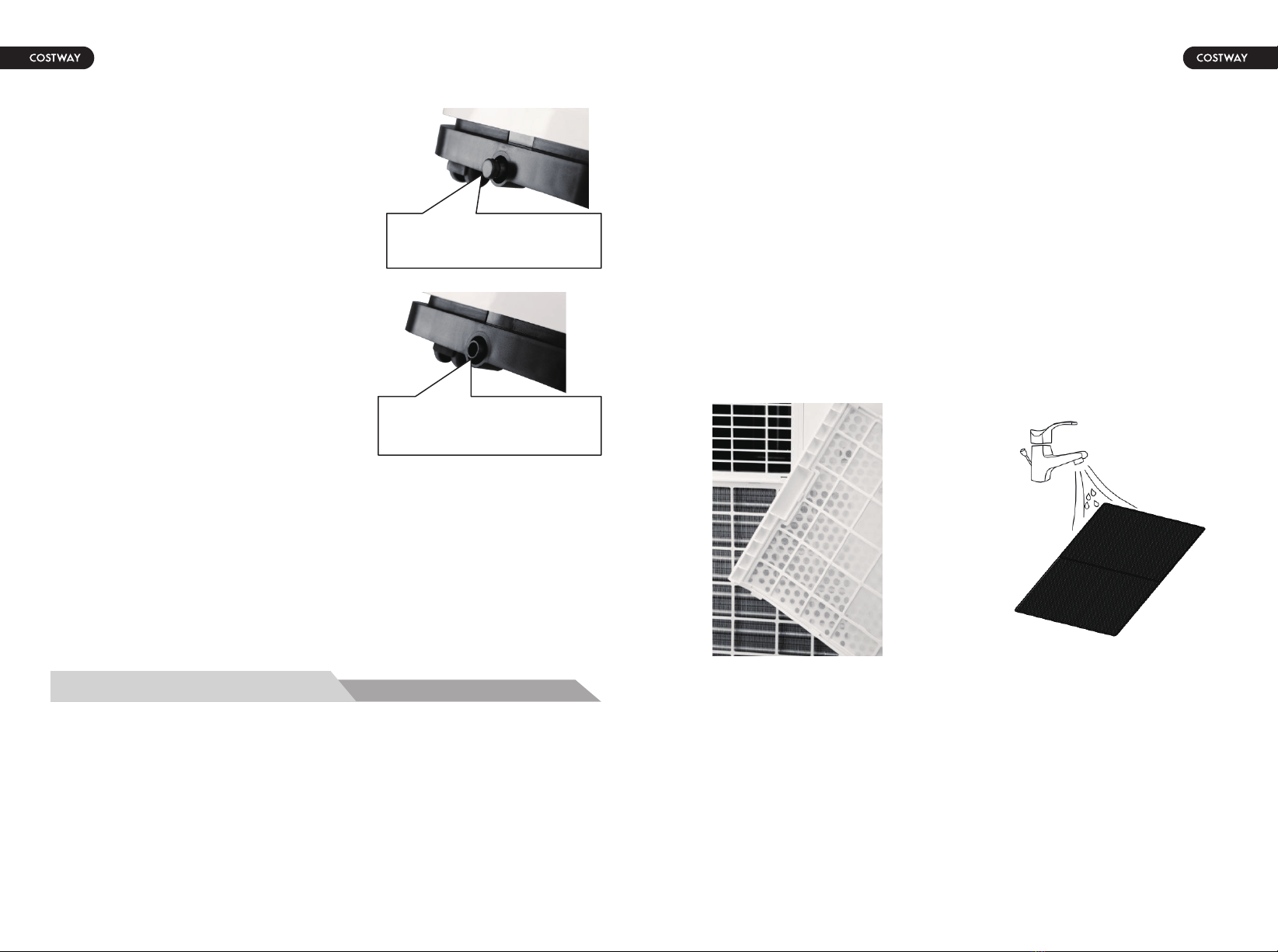

Pic 1. Switch off the unit and
remove the two air filters.
Pic 2. Rinse the air filter under
running water.
Warning!!!
Do not touch the evaporator surface with bare hands, or it could
cause injury of your fingers.
16 17
Remove the rubber
sealing plug.
Continuous drain hose

6.2 CLEANING UP OF REFRIGERANT
General Measures:
1. Gas/vapor heavier than air. It may be accumulated in confined
spaces, particularly at or below ground level.
2. Eliminate every possible source of ignition.
3. Use appropriate personal protection equipment (PPE).
4. Evacuate unnecessary personnel, isolate, and ventilate area.
5. Do not get in eyes, on skin, or on clothing. Do not breathe vapors
or gas.
6. Prevent entry to sewers and public waters.
7. Stop the source of the release, if safe to do so. Consider the use of
water spray to disperse vapors.
8. Isolate the area until gas has dispersed. Ventilate and gas test
area before entering. Contact competent authorities after a spill.
Water
Leakage
√ Overflow while
moving the unit.
■ Empty the water tank
before transport.
Excessive
Noise
√ Check if there are
any loose or vibrating
parts.
■Secure and tighten
the parts.
√ Check if there are
any loose or vibrating
parts.
■Secure and tighten
the parts.
√ Noise sounds like
water flowing.
■Noise comes from
flowing refrigerant. This
is normal.
√ Check if the drain
hose is kinked or bent.
■Straighten the hose
to avoid a trap existing.
The unit
works with
reduced
capacity.
√ Check the air filter
for dirt.
■Clean the air filter
as necessary.
√ Check if the air duct
is blocked.
■To clear the obstacle.
√ Check if the room
door or window is open.
■Keep the door and
windows closed.
√ Check if the desired
operating mode is
selected and the
temperature is properly
set.
■Set the mode and
temperature at proper
set-point according
the manual.
√ The exhaust hose is
detached.
■ Make sure the
exhaust hose is securely
attached.
7. TROUBLESHOOTING
Symptom Inspection Solution
The unit is
not
operating.
√ Check the power
connection in securely.
■Insert the power
cord securely into the
wall outlet.
√ Check if the water
level indicator lights up?
■Empty the drain pan
by removing the rubber
plug.
√ Check the room
temperature.
■The range of
operating temperature is
41℉-95℉(5℃-35℃).
18 19

8. DECOMMISSIONING
8.1 STORAGE
Long-Term Storage - If you will not be using the unit for an extended
period of time (more than a few weeks) it is best to clean the unit
and dry it out completely. Please store the unit as per the following
steps:
1. Unplug the unit and remove exhaust hose and window kit, store
with the unit.
2. Drain the remaining water from the unit.
3. Clean the filter and let the filter dry completely in a shaded area.
4. Re-install the filter at its position.
5. The unit must be kept in upright position when in storage.
6. Preserving the machine in ventilating, dry, non- corrosive gas and
safe place indoors.
ATTENTION:
The evaporator inside the machine has to be dried out before the unit
is packed to avoid component damage and molds. Unplug the unit
and place it in a dry open area for days to dry it out. Another way to
dry the unit is turn on the machine, adjust it to low-wind ventilation
mode, and maintain this state until the drainage pipe becomes dry, so
as to keep the inside of the body in a dry state and prevent it from
mildewing.
Error
Codes E0
√ Communication
faults between main
PCB and display PCB.
■ Check the wire
harness of the display
PCB for damage.
E1
√ Ambient
temperature sensor
failure.
■ Check connection or
replace it. To clean or
replace the temperature
sensor.
E2
√ Coil temperature
sensor failure.
■ Check connection or
replace it. To clean or
replace the temperature
sensor.
Ft
√ Condensate water
high level alarm.
■Empty the drain pan
by removing the rubber
plug.
20 21
8.2 DISPOSAL
Releasing refrigerant into atmosphere is strictly
forbidden!
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact your local government for information
regarding the collection systems available. If
electrical appliances are disposed of in landfill or
dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging
your health and well-being.
WARNING!!!
