Costway EP24041 User manual

1
Content
I. Safety Instructions............................................................................................ 2
II. Functions and Technical Specification............................................................. 3
III. Features and Identification of Parts............................................................... 3
IV. Operation and Settings.................................................................................. 4
V. Multiple Protection Functions........................................................................... 8
VI. Handling and Transportation ......................................................................... 9
VII. Installation & Adjustment............................................................................... 9
VIII. Drainage Instruction .................................................................................... 12
IX. Maintenance and Service............................................................................ 13
X. End of Season Storage .................................................................................. 14
XI. Troubleshooting........................................................................................... 15
XII. Appendix...................................................................................................... 16

2
I. Safety Instructions
1.This machine uses the standard voltage: 115V/60Hz。If you have any questions regarding to the following
instructions, please contact a qualified electrician.
2.The unit must be installed in accordance with national wiring regulations. Check available power supply and
resolve any wiring problems before installation and operation of this unit - voltage standard: 115V/60Hz.
3.For your safety and protection, this unit will be grounded through the power cord plug when plugging into a
matching wall outlet. If you are not sure whether the wall outlet at your home are properly grounded, please
consult an electrician. If supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid any hazards.
4.This appliance is not intended for people（including children）with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Young children should be supervised to
ensure that they do not play with the appliance.
WARNING：
To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow up these basic
precautions:
※Indoor use only, it is prohibited to use this unit outdoors or in humid environment such as bathroom etc.
※Do not remove ground prong.
※Do not use an adapter.
※Do not use an extension code.
※Never share the power outlet with other appliances.
※Never connect or disconnect the power plug with wet hands to avoid electric shocks.
※Never turn off the unit by unplugging.
※Unplug air conditioner before servicing.
※Never dismantle, repair or modify the unit without authorization to avoid body injury or property damage, be
sure it repaired by manufacturer or professionals.
※Never put any objects into the unit.
※Never cover or obstruct air inlet or outlet to prevent overheating.
※Never hit or shake the unit to prevent damage.
※Never spray water or place the unit near water to prevent electric shocks.
※Never place the unit near gas appliances, fire or flammable liquids.
※Move and install the unit by two or more people.
※Keep children away from the unit.
※This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.

3
Cautions
※Keep the unit at least 1 meter away from TV or radios to avoid electromagnetic interference.
※Do not expose the unit under direct sun light to avoid surface color fading.
※Do not tilt the unit for more than 35 degrees or upside-down while transporting.
※Place the unit on a flat surface and upright with less than 5 degrees inclination.
※The unit operates more efficiently in certain room locations (see Installation andAdjustment)
※Keep the drain hose in good condition without flexure then connect with unit.
※Manually adjust the vertical and horizontal louvers slightly to protect louvers from any damage.
※Empty the condensed drainage pan before putting the unit in storage to prolong the unit lifetime end of the
season.
※Do not use chemical solvents (e.g. Benzene, alcohol-glazer) to clean the unit surface, do not scratch or
damage the unit.
※Make sure to cut off the power before disassembling or installing the filter.
Suggestion:
The best ambient temperature for the use of this machine is 17°C - 35°C（62-95℉）.
This machine’s fuse specifications: φ3.6x10mm 3.15A 250V
II. Functions and Technical Specification
※This unit offers cooling, dry, fan and sleep modes.
※This unit is with two fan-speed level accessible by panel control and remote control.
※Temperature setting range of this unit is 17-30℃（62-86℉）.
※This unit is designed with various protection functions such as 24-hour programmable timer, auto
condensate circle, super intelligent temperature sensor and water-full control and warning etc.
III. Features and Identification of Parts
1. Features
※New appearance and compact.
※Both horizontal and vertical louvers can be manually adjusted to enhance cooling performance.
※Integrated design of humanized handle and remote control compartment.
※Simple LED control panel, more visualized.
※Universal plug fixing holes can well protect the power cord.
※High position of exhaust air outlet, easy assembly and exhaust venting quickly.
※24-hour Timer function, unique on/off reminding music.
※3-minute re-start delay protection to compressor and other multiple protection functions.
※Unique exhaust hose and fasteners, convenient installation.

4

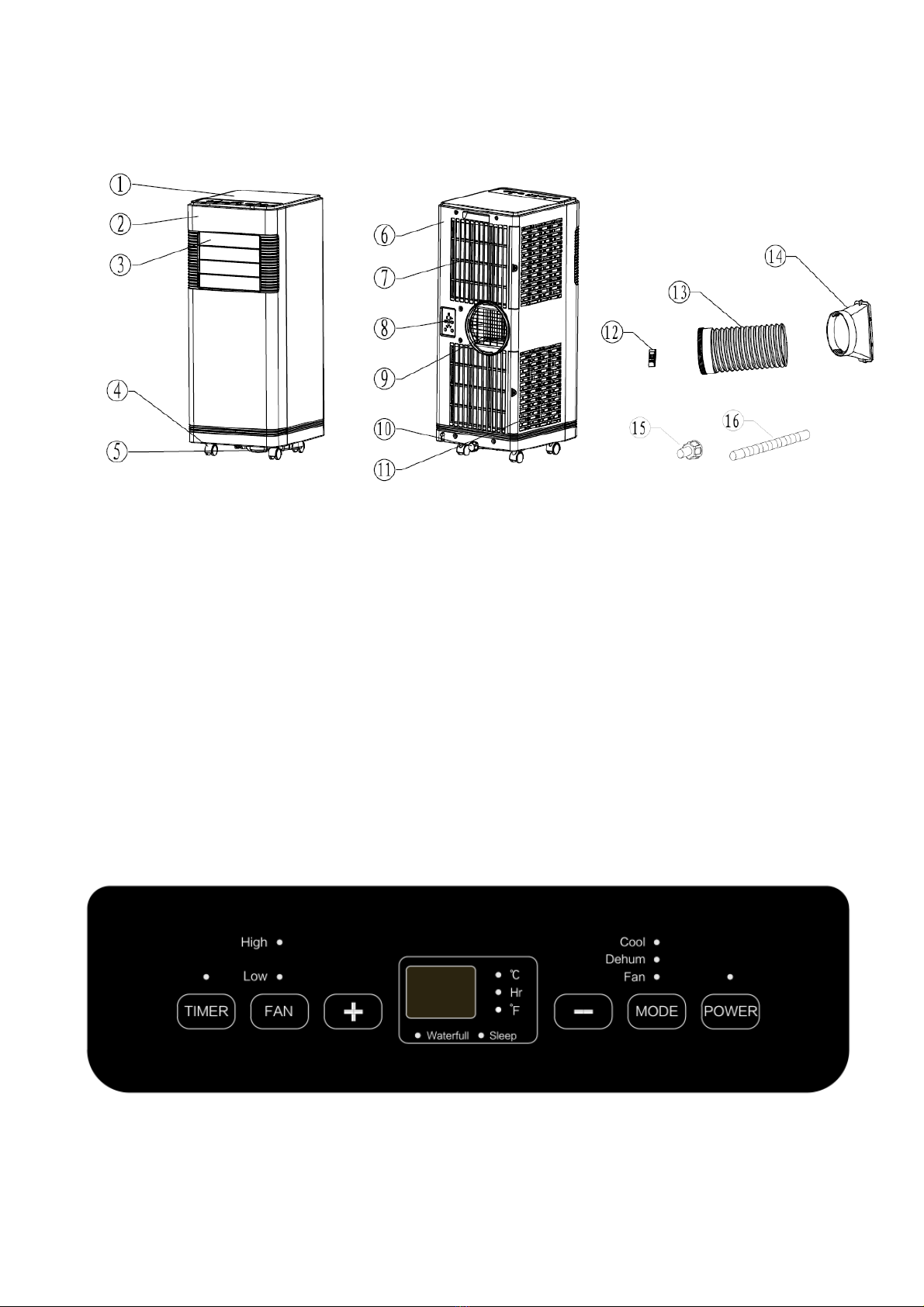

2. Identification of Parts:
1. Top panel
2. Front shell
3. Horizontal louvers
4. Universal wheel
5. Chassis
6. Back shell
7. Back filter
8. Universal plug fixing holes
9. Protective net
10. Drain hole
11. Side filter
12. Remote control
13. Exhaust hose
14. Exhaust hose adapter
15. Drain cover connector
16. Drainage pipe
IV. Operation and Settings
1. Control Panel:

5
2. Control panel list:
On/Off button
Mode button
Up button
Timer button
Fan speed button
Down button
Timer indicator
Fan speed
indicator
Water-full indicator
Cool mode
Fan mode
indicator
Dehumidify mode
indicator
Sleep mode
indicator
Power indicator
Fahrenheit temperature
indicator
LED display
window
Timer indicator
Celsius temperature
indicator
3. Control Panel Operation
A. Turn on the unit:
a) Connect the power supply and all indicators on the control panel will light up with reminding music; LED
display window will show ambient temperature ranging from 10- 35℃（50-95℉）. On/Off button will be in red color,
and the unit is standby for operation.
b) Press the On/Off button, the unit turns on with reminding music sounded, On/Off button will in green color,
and operate in Cool Mode automatically, temperature set at 24℃（75℉）, and fan runs at high speed.
B. Select operating mode
Press the Mode button to toggle among the operating options: Cool –Dehum –Fan. The corresponding indicator
will illuminate:
C. To Set the Temperature:
The temperature can be set between 17ºC（62℉）and 30ºC （86℉）when the air conditioner is in Cool mode.
D. Fan speed button
The fan speed can be adjusted from Low speed to High speed when the air conditioner is in operation.
NOTE: Thefan speed cannot be adjusted when the unit is in Dehum mode.
E. Stand-by
Press On/Off button again, the unit will stop working with reminding music, and On/Off button will be in red color.
Working principle for each mode and function
1. Cool mode:
When room temperature is 1℃（2℉）higher than setting temperature, the compressor and fan will start
working.
When room temperature is 1℃（2℉）lower than setting temperature, the compressor will stop working
and fan keep working at original speed.

6
Room temperature can be set within a range of 17-30℃（62-86℉）and fan speed can be adjusted to
high or low level.
On/Off time can be set.
E1, E2 & E4 protection (see Troubleshooting).
Water-full warning protection.
2. Fan mode:
Fan runs at set speed, and compressor will not work.
Fan speed can be adjusted to high or low level.
Room temperature will automatically show on LED display with range 10-35℃（50-95℉）.
Room temperature can’t be adjusted.
On/Off time can be set.
3. Dehumidify mode:
Fan will run at low speed automatically, and the speed can’t be adjusted.
Room temperature can’t be adjusted.
Room temperature will automatically show on LED display with range 10-35℃（50-95℉）
On/Off time can be set.
E1, E2 & E4 protection (see Troubleshooting).
Water-full warning protection.
4. Sleep mode:
Under cooling mode, press “Timer” + “Down” buttons together, the unit auto enter into “Sleep” mode.
Fan will turn to low speed automatically and can’t be adjusted.
Set temperature will increase 1℃（2℉）when unit running in 2 hours, increase 1℃（2℉）again in
another 2-hour working, then keep set temperature unchanged further.
Room temperature will automatically show in LED display with range 10-35℃（50-95℉）.
On/Off time can be set.
E1, E2 & E4 protection (see Troubleshooting).
Water-full warning protection.
5. Timer Operation
Press “Timer” button to set automatic OFF time while unit is running, “Timer” will light up.
The unit will be off automatically when the set time is off, and “Timer” will be off, room temperature is
shown on LED display window.
Press “Timer” button to set automatic ON time while unit is off, “Timer” will light up.
The unit will turn on automatically and working at original mode when the set time is over, “Timer” will be
off, room temperature is shown on LED display window.
When press “Timer”, “Timer”& “Hr” will light up, LED display window will flash under half second
frequency, press “Up” or “Down” buttons within 5 seconds to finish timer setting, set time will flash 5
seconds for confirmation and “Hr” will turn off, then room temperature will be shown on LED display
window.
Under “Timer” function, press “Timer” once to check time remained. Timer indicator keep light up; press
“Timer” twice within 5 seconds to cancel timer, “Timer” will turn off.

7
Only final setting is effective if repeated setting.
The time can be adjusted within a range of 1-24 hours, press “Up” or “Down” button to increase or
decrease 1 hour.
Unit will not change working mode after timer setting. Timer will not stop by other functions.
Timer will be ineffective if any operation from control panel or remote control to turn on or turn off the
unit.
Remote Control Operation
Button: press this button to start unit when it is energized or stop the unit when it is in operation.
Button: press this button to set unit automatic on and off time
Button: press this button to select high speed of fan running (except dry and sleep modes)
Button: press this button to select low speed of fan running.
Button: press this button to increase temperature or timer setting.
Button: press this button decrease temperature or timer setting.
Button: press this button to make Celsius degrees and Fahrenheit degrees interchange.
Button: press this button to select “Cool” mode.
Button: press this button to select “Fan” mode
Button: press this button to select “Dry” or “dehumidifying” mode
Button: press this button to select “Sleep” function under cooling mode.
Swing Button:
Before using your remote, install the AAA batteries into remote control.

8

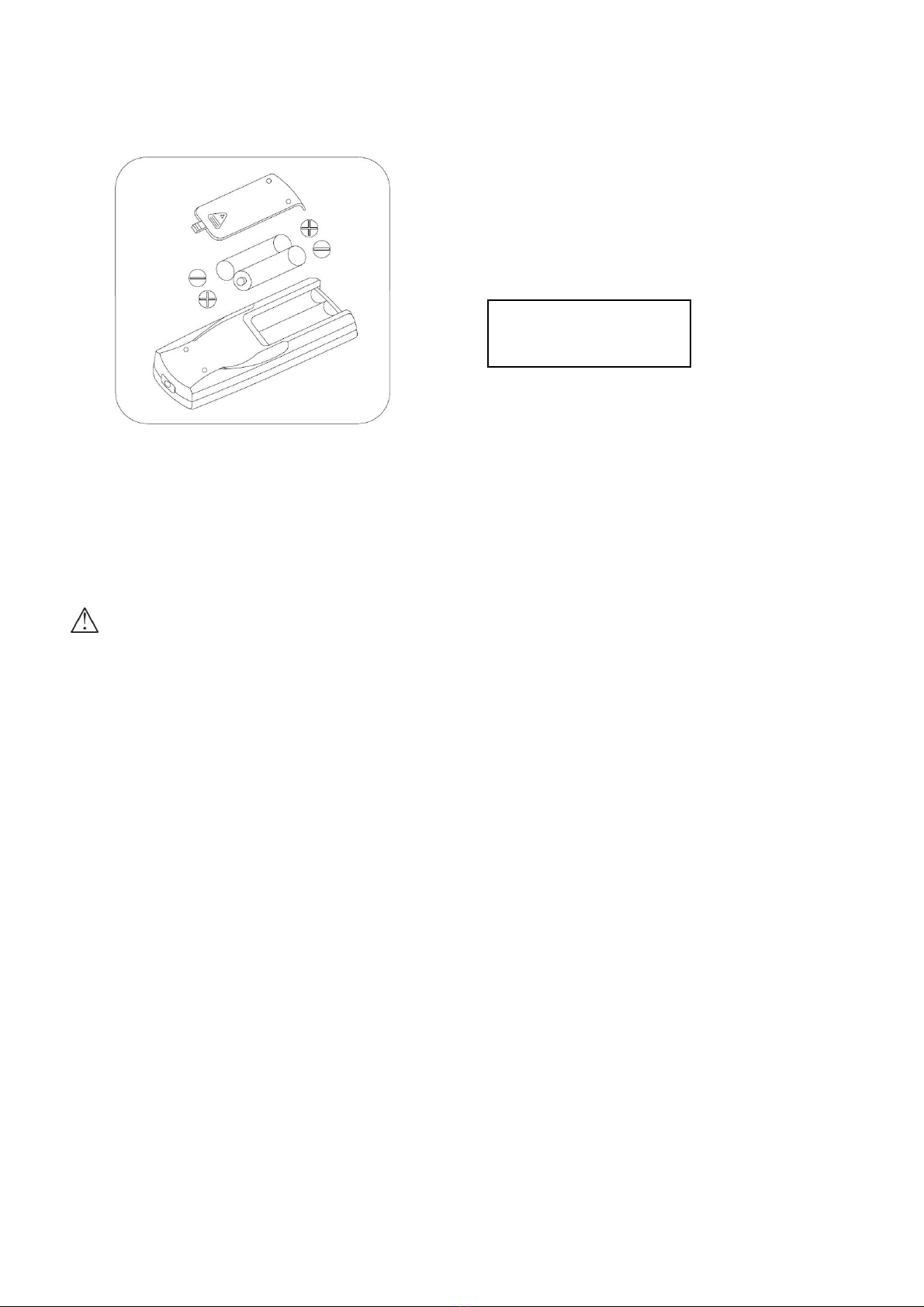

1. Press and glide the battery cover on the back of the remote control, then you can remove the cover.
2. Insert two new alkaline AAAbatteries into the battery compartment. Be sure to note the proper polarity.
3. Reattach the battery cover and make sure the locking tab clicks into place.
Notes:
Use alkaline batteries only. Do not use rechargeable batteries.
When replace batteries, always replace both batteries with new batteries, do not mix old and new batteries.
If the air conditioner will not be used for an extended period of time, remove the batteries from the remote
control.
CAUTION
If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water, do not use the
remote control if the batteries have any leakage.
If you eat the liquid from the batteries, brush your teeth and see doctor. The chemicals in batteries could
cause burns or other health hazards.
V. Multiple Protection Functions
1. Anti-freeze protection function
Compressor, water spraying motor will turn off when compressors running over 10 minutes and tube temperature
(Tp) is continuously ≦2℃（35℉）for 20 seconds under cooling mode, E4will showon LED display window, the
unit initiates the anti-frost protection and all buttons on control panel (except for power button) are inactive.
Once the tube temperature ≧8℃（46℉）, the protection is relieved to recover into original status, and
compressor apply to 3-minute delay protection.
2. Water-full safety alarm and shut –off protection function:
Warning sounds when the water volume reached its alarm level in water tank, and unit is automatically stop
working, both water-full indicator and “FL” on LED window is flashing. You need to drain the condensate for unit
to automatically recover operation. (For more information about how to drain, refer to the “Drainage Instruction”
please).
3. Delay protection function of compressor
This unit offers restart protection to compressor. Except that the compressor may start immediately when the unit
is energized at first time, there is 3-minute start delay after compressor is shut down.
Be sure to note proper
polarity of batteries

9
Handling Position
Air Outlet
VI. Handling and Transportation

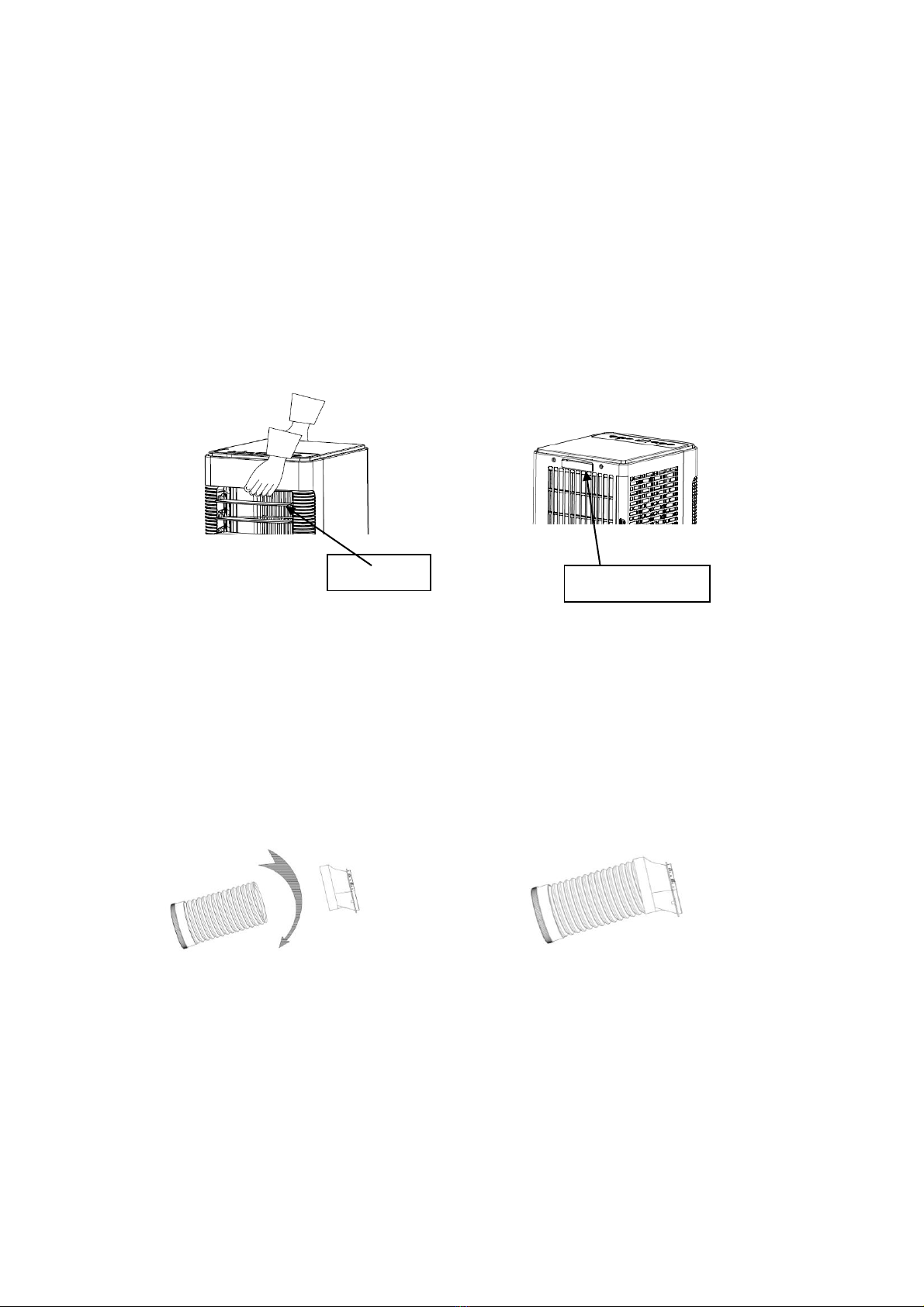

1. Handle and move the unit
Hold the top of the air outlet window in front panel with one hand and the handle at the top of back panel with
another hand, then move the unit in upright position (As shown in Photo below).
Note:
Do not hold the horizontal louvers by hand.
Make the unit in the upright position whatever handling or moving it.
Drain the water in the unit completely to prevent water leakage and wet the floor or carpet before handling
or moving the unit.
Take away the remote control before handling or moving the unit
图5
VII. Installation & Adjustment
Warning:
Keep this mobile air-conditioner in upright position at least 2 hours before first installation.
This air-conditioner may be moved indoors conveniently; keep the unit in upright position while moving it.
The air-conditioner shall be placed on flat surface.
Do not install or operate this air-conditioner in bathroom or other wet environments.
1.1 Installation of exhaust hose assembly and its adapter
1) Take out the exhaust hose assembly and its adapter from plastic bag.
2) Extend the exhaust hose at one end, screw the round end of adapter into exhaust hose at anticlockwise
direction
Note: Screw adapter into right position, at least 3 laps, to keep good connection of exhaust hose assembly and
its adapter

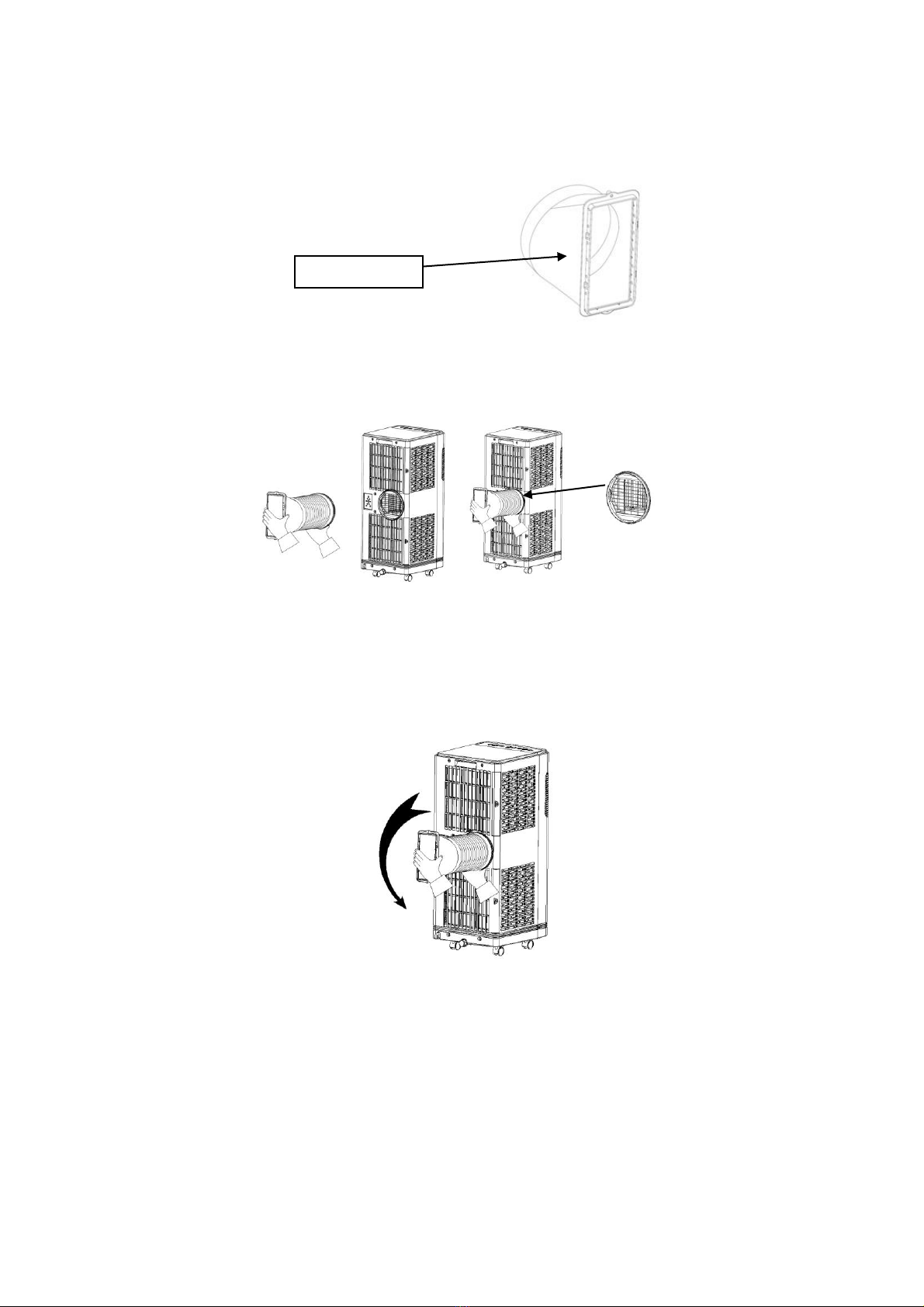

1.2 Installation of the exhaust hose assembly into unit
1) Determine window seal-plate position, vertical or horizontal direction.
2) If window seal-plate will be in horizontal position, the slant panel Aof adapter should be upwards.

10
3) If window seal-plate will be in vertical position, and will be at left side of window, the slant panel A of adapter
should be at right direction.
4) If window seal-plate will be in vertical position, and will be at right side of window, the slant panel A of
adapter should be at left direction.
1. Take two ends of exhaust hose and its adapter assembly
2. Put front end of exhaust hose assembly onto jugged position of exhaust outlet of back panel.
Remark: Keep the right direction of slant side A of adapter, for ease installation of window seal-plate.
3. Hold the unit by one hand, carry the exhaust hose assembly with another hand and push it into unit gently,
for good lock of two parts.
Remarks:
1) Keep the right direction of slant sideA of adapter, for ease installation of window seal-plate.
2) Keep exhaust hose assembly be strongly locked by fasteners in exhaust outlet to avoid its fall off.
1.3 Installation of window seal-plate
1) Open the window in half, put the seal-plate into window, determine in vertical or horizontal position
according to window open direction.
2) Extend seal plate parts, adjust it to the length of window and fix it with screws then.
Remarks:
Keep two ends of window seal-plate to meet the window edges well, to assure seal effect.
Fix the screw in good position.
Slant Panel A

11
1.4 Installation of the unit
1. Move the unit together with its exhaust hose assembly infront of the window and keep the unit at least 50cm
away from the walls or other objects. (As Photo).
2. Install the rectangle end of exhaust hose adapter into the corresponding rectangle hole in window seal-plate
assembly, fix it with screw and close the window (as Photo).
A. Align the 4 openings on window seal-plate with corresponding 4 openings on exhaust hose adapter
and set them together, then slide adapter downwards, to make 2 set of openings locked for 2 parts
good connection.
B. Lock self-tapping screw φ4mm into adapter hole.
Remarks:
Slide the adapter downwards and assure the adapter installed in good position.
Lock the screw tightly to avoid fall off.
Exhaust hose can’t be bent or with flexure higher than 45°, in order to keep good ventilation of exhaust
hose.

12
Important notes:
The exhaust hose is 280mm-1500mm long and which is determined by the specification of the
air-conditioner (s). Do not use prolonged the hose or replace it with other different hoses as this may affect the
functions of the air-conditioner. The exhaust hose must be smooth or it may lead air-conditioner overheat and
trip because exhaust hose is obstructed.
VIII. Drainage Instruction
This portable air conditioner has two drain ports - an upper drain port and a lower drain port. It also has two
drainage methods that can be used - manual drainage and continuous drainage.
1. Manual drain:
This unit is designed with a highly efficient self-evaporative system and it is suggested to use manual drainage in
cooling mode. Condensate will recycle in the unit to cool the condenser and enhance cooling performance.
However in extreme humidity, the water tank in the chassis will fill up and “FL” will show on the LED display. When
this happens the water tank needs to be drained manually from lower drain port.
Put a shallow tray below the lower drain port at the back of the unit.
Screw off the drain port cover and then remove the water stopper to allow water flow into the tray.
After water has stopped flowing, plug in the water stopper back in and screw the drain port cover back onto
the drain port tightly.
NOTE:
To avoid leaks, if it is necessary to move the unit always turn off the unit and make sure it is drained properly
before moving.
If the drain port cover or water stopper are damaged during use, they should be replaced with new ones.
Tilt the unit slightly backwards when draining.
If the shallow tray has insufficient capacity to hold all the water that is draining, block the drain port with the
water stopper before the tray is full, empty the tray, and then restart the draining process.
The water stopper and drain port cover must be fitted properly to avoid leakages.

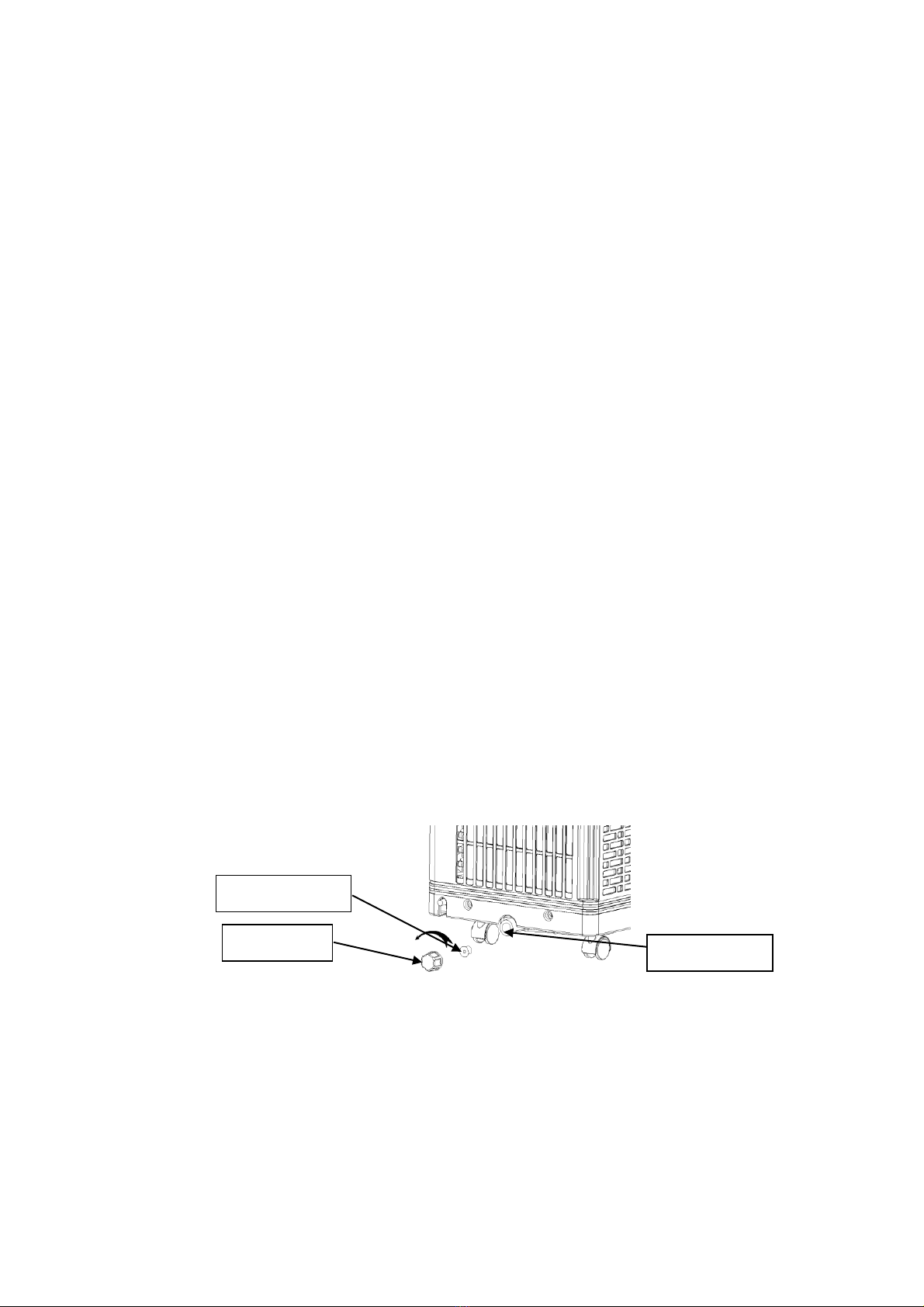

2. Continuous drain:
1) Screw off the drain cover and unplug the water stopper.
2) Connect drain-hole drain hose
3) Pull the drain hose to bathroom or outdoor.
Notes:
Dain Cover
Water Outlet
Water Stopper

13
Handle position
Handle position
Handle position
Handle position
Drain hose must be installed before unit starts working.
When unit is operating in cooling mode, to ensure enough water to recycle in the unit to cool condenser and
enhance cooling performance, so it is not suggested to use continuous drainage
Put the drain hose in an inaccessible place, not higher than drainage hole and keep drain hose straight
without any flexure.
Keep the drain cover and its stopper properly installed when continuous drainage is adopted.
IX. Maintenance and Service
Turn off the unit and pull out the plug before maintain or send the unit to service center.
1. Surface cleaning
Clean the unit surface with wet and soft cloth, but do not use chemical solvents such as alcohol and gasoline to
avoid any damage to unit.
2. Filter cleaning
Clean the filter every two weeks, otherwise it would influence the unit performance if filter clogged with dust.
2.1 How to clean filter
Grip the filter handle and take it out gently in correct direction shown by the arrow.
Take out filters of back panel at first then side panel.
Clean the filters gently in warm water (about 40℃(104℉)) mixed with detergent, and dry in the shade
Use even force to take out the filter to avoid any twist or damage to filter.
Notes:
Do not squash the mesh.
Do not hit the mesh with sharp objects or brush.
Drainage pipe
Cover Connector
Water Outlet
Drain Cover
Water stopper

14
2.2 Installation of the filter
Special note: Be sure to install the filters to side panel at first then the filter into back panel.
1. Aim the end of the filter toward slot then push filter in even force gently into slot.
Notes:
Install the filter with opposite direction of removal.
Install the filter into place gently to avoid any damage.
2. Clean of handle position and remote control storage area.
1) Take out the remote control
2) Clean the handle position and remote control storage area with wet and soft cloth.
Note: Do not drip water into the unit.
X. End of Season Storage
1. Screw off the drain cover, and then pull out the stopper to drain water completely.
Note: the tilt angle of the unit must be≦30.
2. Keep the unit running in fan mode half day to dry inside of unit completely to prevent from going mouldy.
3. Turn off the unit, pull out plug then wrap the power cord around the wire-winding pillar, insert the plug into the
universal fixing hole at the back panel of the unit, install the water plug and drain cap.
4. Remove the heat exhaust hose assembly, clean and keep it properly.
Notes:
Hold the exhaust hose assembly with both hands when removal.
Push the fasteners aside on exhaust air outlet using your thumbs, then pull out exhaust hose assembly.
5. Pack the air-conditioner properly with soft plastic bag and put it in dry place with appropriate dust-proof
measures and keep the unit away from children.
6. Take out the batteries from the remote control and keep it properly.
Note: Assure the unit is stored in a dry place.All accessories of the unit shall be properly protected together.

15
XI. Troubleshooting
Please check the unit and suggestions below before asking for professional service, but never dismantle or
repair the unit by yourself, it may cause harm to you and your property.
Trouble
Cause
Remedy
The unit fails to start up
Power supply failure
Connect the unit to a live socket and
turn it on.
Water-full and its indicator lighting up
Drain the water stored in the unit.
Ambient temperature too low or too
high
It is recommended to use this unit
between 10-35℃（50-95℉.）
The room temperature is lower than
the set temperature in cooling mode.
Change the set temperature
Bad cooling effects
There is direct sunlight
Close the curtain
The doors and windows are open, the
room is crowded or there are other
heat sources
Close the door and window, remove
other heat sources, and add new
air-conditioners
Dirty filter
Clean or replace the filter.
Air inlet or air outlet clogged
Remove the obstruction
High noise level
The unit is being placed at uneven
surface.
Put the unit at a flat and firm place
(may reduce noise)
The compressor does
not work
Initiation of overheat protection.
Wait until the temperature decrease,
the unit will re-start automatically
The remote control
does not work
Too long distance
Bring the remote control close to the
air-conditioner and ensure airs at
signal receptor on unit.
The remote control didn’t aim at
signal receptor on unit.
The batteries have no electricity
Replace the batteries
LED displays error
code “E1”
Tube temperature sensor failure
Check the tube temperature sensor
and related circuits
LED displays error
code “E2”
Room temperature sensor failure
Check the room temperature sensor
and related circuits
LED displays error
code “E4”
Anti-freeze protection
Restore the functions automatically
once anti-freeze protection is over.
Water-full indicator
lights
The water in chassis is full
Drain the water and re-start the unit

16
XII. Appendix
Fuse parameters
Model: FSD or 50F
Voltage: 250V
Current: 3.15A
Schematic diagram of the air conditioner
For specific technical parameters of the model, refer to rating label on the product.
Correct Disposal of this product
This marking indicates that the product should not be disposed with other household wastes
throughout the world. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Condenser
Compressor
Evaporator
Capillary

17
Welcome to visit our website and purchase our quality products!
Reward Points
Exclusive Customer Service
Permanent Shopping Cart
Order History
this product and giving us valuable feedbacks.
www.costway.com
Your suggestions and comments for COSTWAY are really important to us!
We sincerely solicit you to go back to our shop and leave a good rating in just a
simple click. It would be quite encouraging if you could kindly do so like below:
February 24, 2019
Great products so far. Fast delivery, easy setup, and working without any issues.
Great products so far
With your inspiring rating, COSTWAY will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
US office: Fontana, California
UK office: Ipswich

18
