Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
www.costway.com
02

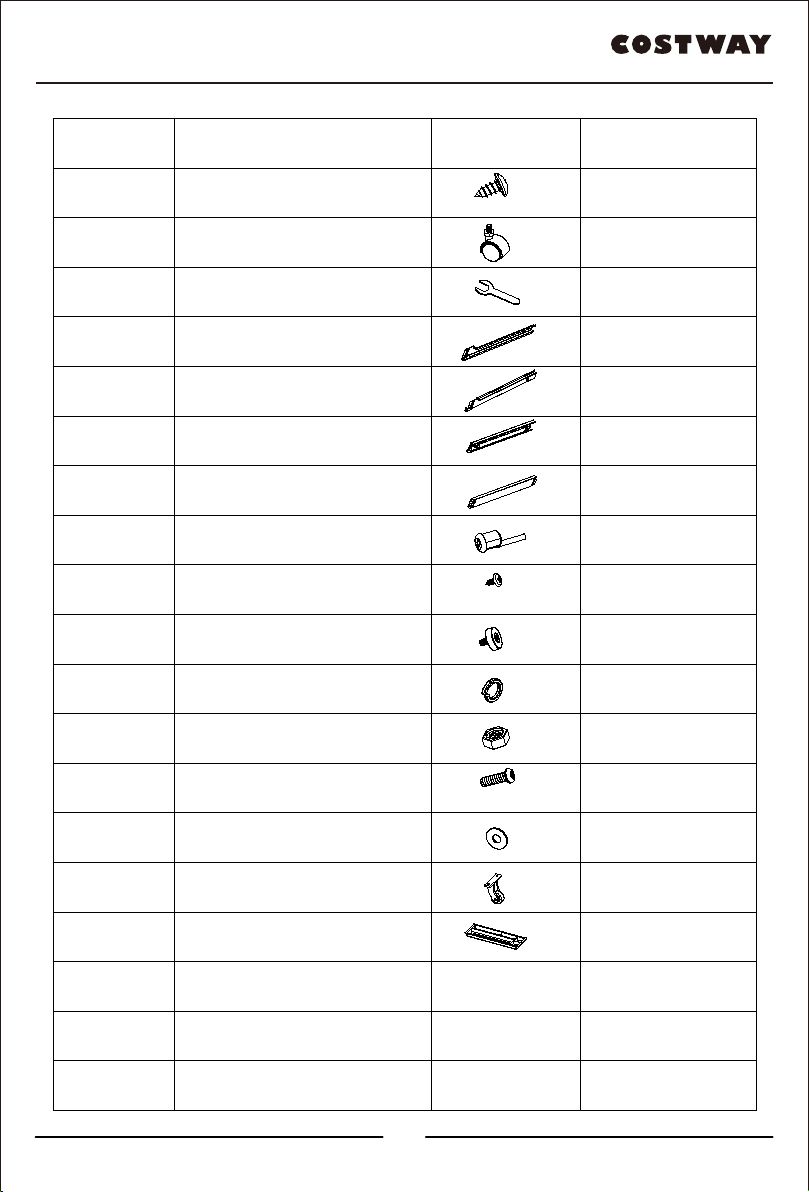

Serial Number Part Name Part Quantity
A
B
C
D
E
F
G
I
J
K
L
M
N
H
O
P
M5*12MM X22
Self-tapping screw
Caster
Wrench
Left slide way
Right slide way
Left slide rail
Right slide rail
Lock
Self-tapping screw
Pulley
Non-slip gasket
Cap nut
Round head screw
Spacer
Bottom wheel
Pencil case
X4
X1
X2
X2
X1
X1
X1
X10
X8
X4
X4
X4
X4
X1
X1
M4*10MM
M5*18MM
www.costway.com
03

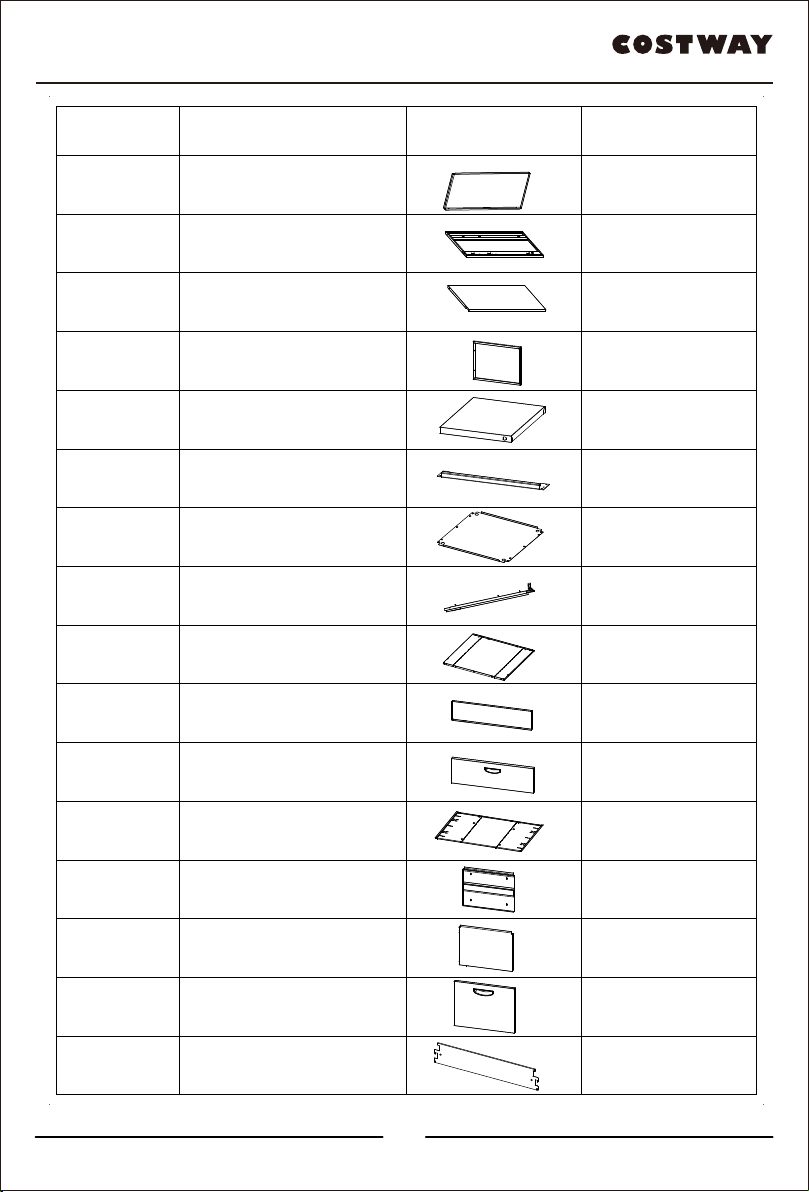

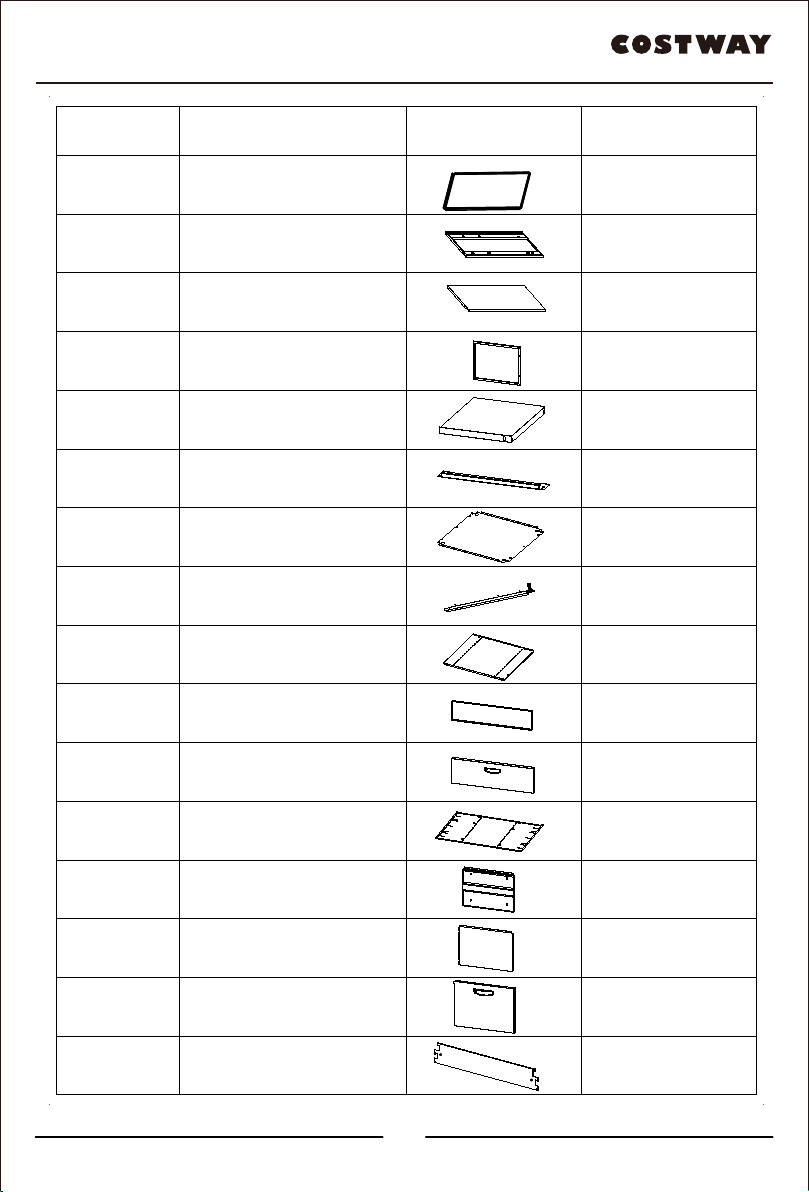

Serial Number Part Name Part Quantity
1
2
3
4
5
6
7
9
10
11
12
13
14
8
15
16
X1
X1
X1
X1
X1
X2
X1
X1
X2
X2
X2
X1
X1
X1
X1
X1
www.costway.com
Back panel
Left panel
Right panel
Inner frame
Top panel
Foot stand
Bottom panel
Locking bar
Small drawer panel
Rear block of small drawer
Front panel of small drawer
Big drawer panel
Front block of big drawer
Rear block of big drawer
Front panel of big drawer
Iron baffle
04

5
2
67
3
1
48
2
3
1
1
4
23
5
4
6
7
56
7
8
89
D Left X2 E Right X2
6
X4
X 4
A-M5*12 X 6
A-M5*12
X10
A-M5*12
X 4
A-M5*12
B-4 C-1
J
www.costway.com

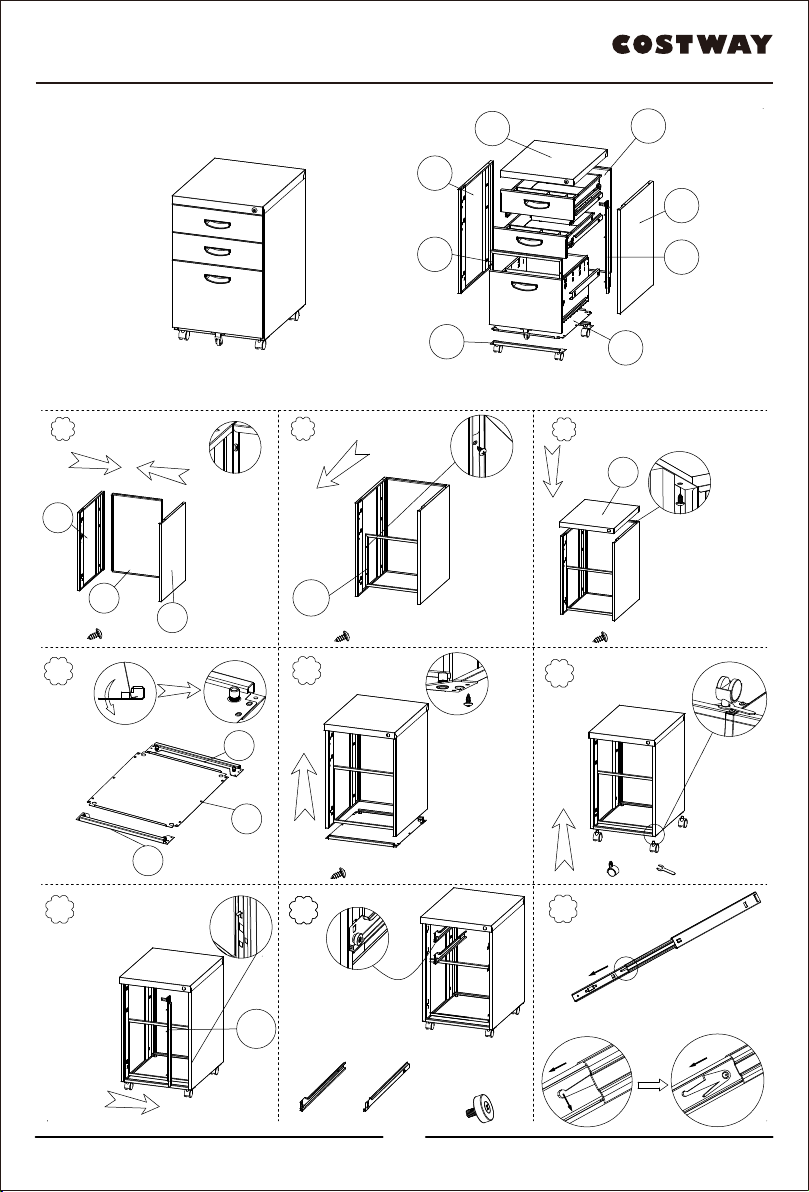

1.Fix the left
panel (2) and
the right panel
(3) to the back
panel (1) with
screws.
2.Fix the
inner frame
(4) to the
left and
right panels
(2 and 3)
with screws.
3. Install the top
panel (5) from
top to bottom,
and fix it to the
left and right
panels (2 and 3)
with screws.
4. Install 2
foot stands
(6) to the
bottom
panel (7).
5. Install the
assembled
bottom panel
(7) to the the
left panel (2)
and the right
panel (3), and
fix them with
screws.
6. Install 4
castors (B)
to the left
panel (2)
and the
right panel
(3), and
then tighten
them with a
wrench.
7. Install
the locking
bar (8) into
the right
panel (3),
and insert
the lower
part of the
locking bar
into the
right panel.
8. Install the left and
right slide ways (D
and E) to the left and
right panels (2 and 3)
respectively, and
install the pulleys (J).
9. As shown in
the figure,
disassemble the
left and right
slide rails (F and
G) respectively.
05

10 11 12
13 14 15
17 18
20 21
16
19
9
10
9
11
X2
13
14
12
15
9
12
12
9
14
X5
X4
F Left X1 G Right X1
X2
I-M4*8
M-M5*18
H-1
X2L
K
X2
J
X4
N-M6
www.costway.com

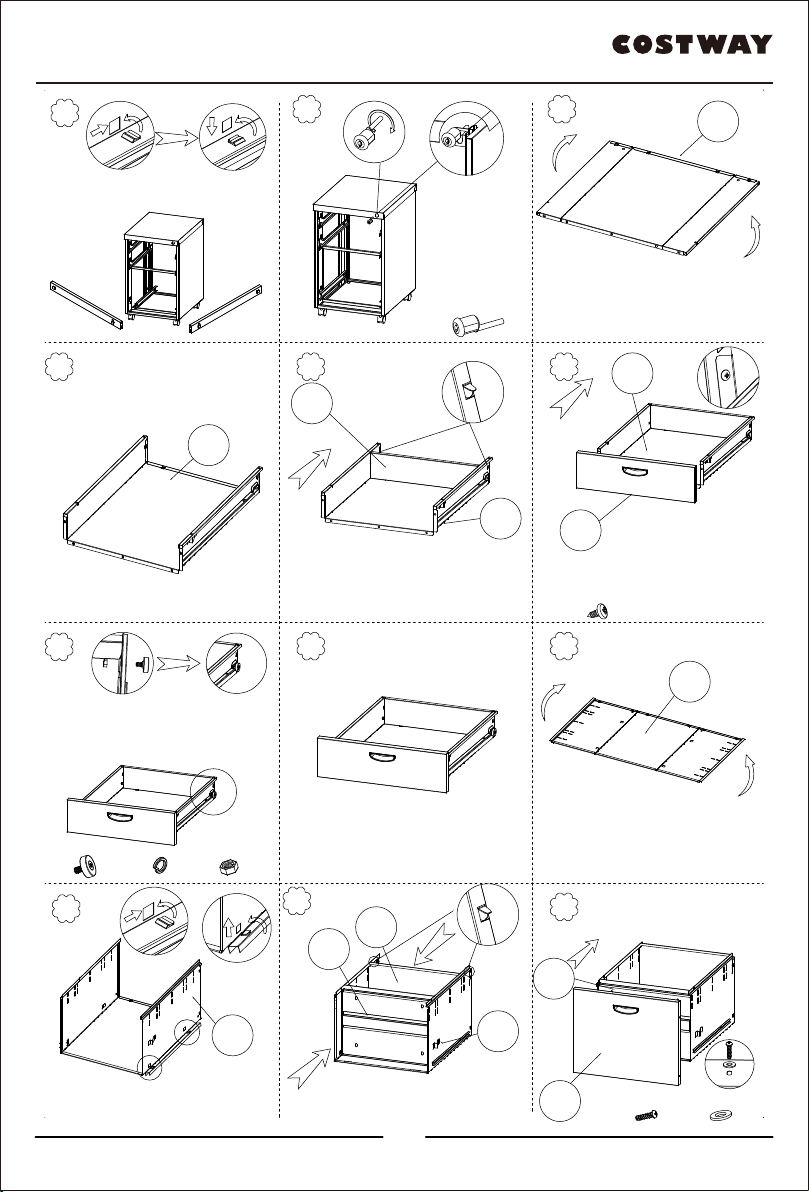

10. Install the left and right slide rails
(F and G) to the left and right panels (2
and 3) respectively.
11. As shown in
the figure, turn the
lock(H) clockwise
and install it on
the top panel (5)
after turning. Note
that the locking
bar (8) needs to be
installed on the
lock. 12. As shown in the figure, fold up the
left and right sides of the small drawer
panel (9) to 90 degrees as shown in
Figure 13.
14. As shown in the figure, install the
rear block of small drawer (10) to the
small drawer panel (9) and fasten it in
place.
15. As shown in the
figure, connect the front
panel of small drawer (11)
to the small drawer panel
(9) with screws.
16. As shown in the figure, fix pulleys
(J) to the left and right sides of the
small drawer panel (9) with gaskets and
cap nuts.
17. Repeat steps 12-16 to
complete the installation of 2
small drawers.
18. As shown in the figure, fold up
the left and right sides of the big
drawer panel (12) to 90 degrees as
shown in Figure 19.
19. As shown in the figure, install the
disassembled left and right inner rails on
the left and right sides of the big drawer
panel (12) respectively.
20. As shown in the figure, install the
front block and rear block (13 and
14) to the big drawer panel (12) and
fasten the front block of big drawer
(13) in place.
21. As shown in the figure,
connect the front panel (15) to
the front block of big drawer
(14) with screws.
06

22 23 24
25 26 27
28 29
16
16
16
15
12
12
12
30
31
X2
A-M5*12
X1
O
PX1
www.costway.com
22. As shown in the figure, fix the
bottom wheel (O) to the front panel of
drawer (15) with screws. 23. Install the iron baffle (16) to the big
drawer panel (12).
24. Install one side of iron baffle (16) to
the big drawer panel (12) first.
25. Install the other side of iron baffle
(16) to the big drawer panel (12) first. 26. The large drawer assembly is
completed. 27. Install the large drawer on the
cabinet.
28. When the big drawer is drawn out,
the bottom wheel will fall to the ground
to prevent tipping.
29. Install 2 small drawers.
30. In the
first small
drawer,
install the
pencil case
(P).
07
