Fire Pit
NP10495GR
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville PL office: Gdańsk
US:[e-mail]
UK:[e-mail]
AU:[email protected]

Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
DANGER
CARBON MONOXIDE HAZARD
● This appliance can produce
carbonmonoxide which has no
odor. Using it inan enclosed space
can kill you.
● For outdoor use only.
● Never use in the unventilated
orenclosed areas.
IF YOU SMELL GAS:
● Shut off gas to the appliance.
● Extinguish any open flame.
● If odor continues, keep away
fromthe appliance and
immediately callyour gas supplier
or fire departmentfor help.
WARNING
● WARNING indicates
animminently hazardous
situationwhich, if not
avoided, will resultin
death or serious injury.
● Do not store or use
gasolineor other
flammable vapors
andliquids in the vicinity
of this orany other
appliance. An LP-cylinder
not connected for
useshall not be stored in
thevicinity of this or any
otherappliance.
● If the propane gas tank is leaking gas,you may hear, see, or
smell a hiss. Dothe following:
1.Disconnect the propane gas tank.2.Do not attempt to fix the
problem byyourself.3.Contact your gas supplier or
firedepartment for help.
● Do not use a flame to check forgas leaks.
● Keep gas tank at least 5 ft away fromunit when lit. (if
external tank)
● The maximum gas supply pressure is250psi.
WARNING
Assembly InstructionsWARNING
02 03

● Improper installation,adjustment, alteration, service
ormaintenance can cause injury orproperty damage.
● Read the owners manualthoroughly before installing orservicing
this equipment. If theinformation in this manual is notfollowed
exactly, a fire orexplosion may result causingproperty damage,
personalinjury, or loss of life.
WARNING
● The installation of this unit must adhere to local codes or
either theNational Fuel Gas Code, ANSI Z223. 1/NFPA54, OR
CAN/CGA- B149.1,National Gas and Propane Installation Code.
● This unit is to be used with propane gas only! (sold
separately), isnot intended for natural gas.
● Do not use any solid fuel or charcoal for this unit.
● Do not use any more than 1/4in depth lava rocks/ pumice
stones/Lava Glass above the burner holes. Doing so will
suffocate the flame.
●Applying too much propane may result in gas pooling and will
not burn.Allow fresh air into the unit so that the remaining gas
may escape.
●Use LP propane tanks with the following dimensions:
diameter 12inch,height 18inch, capacity 20lbs.
●You must use a propane tank that has a collar to protect the
gas valve.
WARNING
WARNING
● DO NOT fill tank over 80 Percent full.
● The LP gas tank must have a listed overfilling prevention
device and aQCCI or Type I, (CGA810) LP gas tank connection.
● The gas supply tank should be constructed and marked with
thespecifications for the LP gas tanks of the U.S. Department
of Transportationor the National Standard of Canada
CAN/CSA-B339, LP gas tanks, spheresand tubes for
Transportation of Dangerous Goods and Commission.
● Discontinue use if any part of the propane tank is damaged.
Rust anddents may be hazardous and should be inspected by a
gas supplier.
● DO NOT add water into the unit.DO NOT disconnect any part while
the unit is in use.
● DO NOT operate on a boat or vehicle.DO NOT set the Protective
Cover over the unit until the Fire Table /Column is turned off and
completely cooled down (where applicable).
● Check for leaks after not using the unit for long periods of time.
WARNING
● All installation and repair should be done by a Qualified
ServiceTechnician. This unit should be inspected annually and
cleaned regularly.
● Inspect all elements of this Fire Table / Column before each
use.If there is damage, the Burner must be replaced.
● The LP Gas tank must have a listed overfilling prevention
device and aQCCI or Type I, LP Gas tank connection.
WARNING
04 05

● Keep the appliance aera clear and free from combustible
material,gasoline and other flammable vapors and liquids.
● Be aware of the hazards of high temperatures and stay away
from theunit to avoid any burns or injury.
● This heating appliance should NOT be used on plastic,
artificial wooddesks or any desk.
● Do not operate unit until all parts are fully assembled.
●Do not attempt to move it while in use.
● This unit is not intended for cooking.
● Young children should be carefully supervised when they are
in thearea of the appliance.
● Keep away from the unit for the first 20 minutes after
igniting for thefirst time, as lava rock /pumice stones could
pop out and cause injury.
● Do not set the protective cover over the unit until it is
turnedoff and completely cooled down.
● Combustible material should not be within 72 inches of the
top ofthe unit, or within 48 inches around the entire unit.
● If the flame goes out while burning, turn the gas valve off.
Wait 5minutes before repeating the initial lighting procedure.
Once youhave a flame started, hold down the control knob for
1 minute.
WARNING
● Inspect all elements of this heating unit before each use. If
there isdamage, the burner must be replaced.
● Keep the hose out from any pathways to eliminate any
accidentaldamage. (if external tank)
● Installation and repair should be done by a qualified service
person.The appliance should be inspected before use and at
least annually by aqualified service person. More frequent
cleaning may be required asnecessary.
● You must follow all steps to properly assemble this heating
item. Makesure the gas valve is turned “OFF” before
assembling. Do NOT attemptto assemble without proper tools.
WARNING
06 07

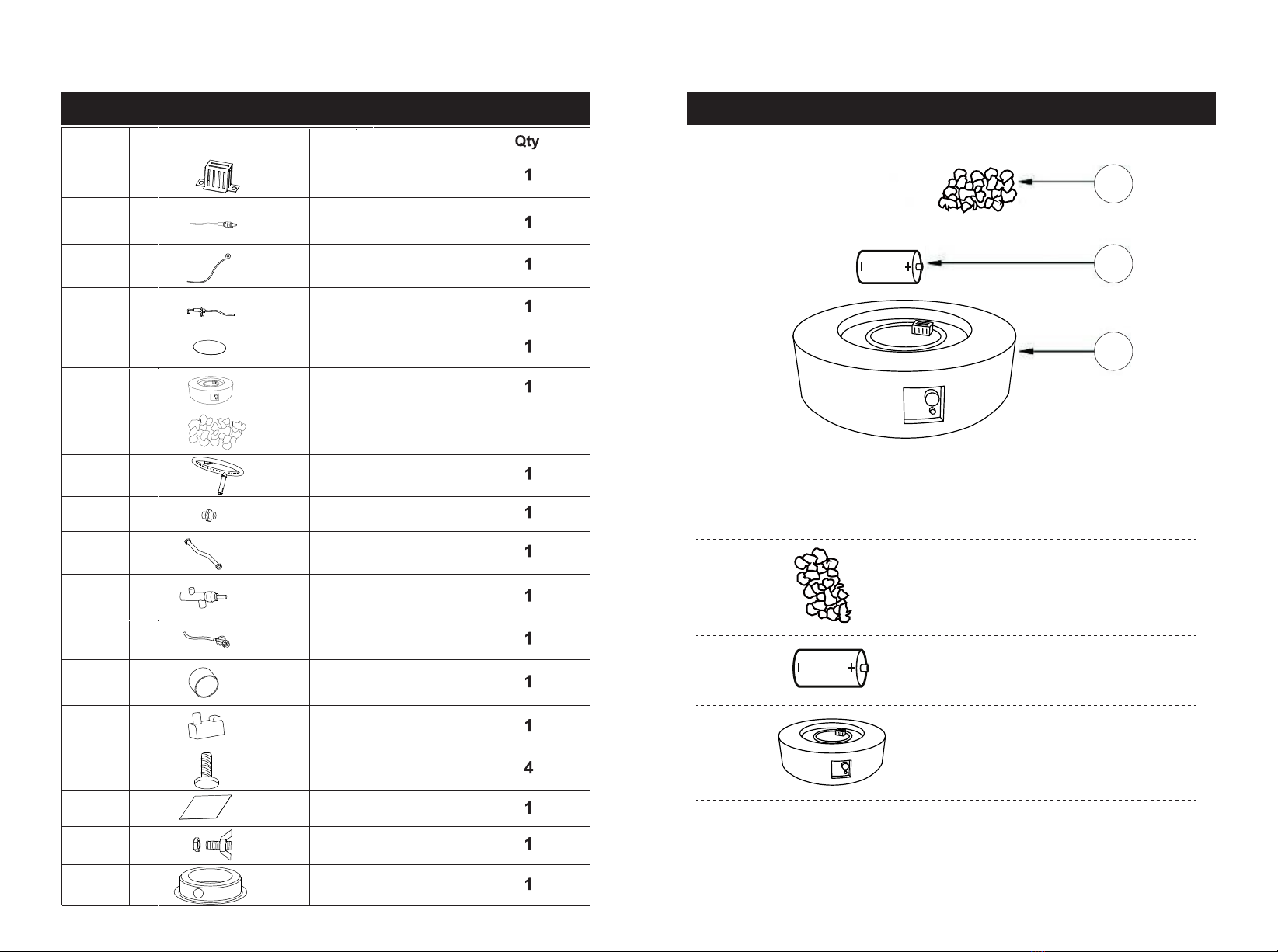

Parts Diagram
Item
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
Picture Description
Guard
Thermocouple
Ground Wire
Ignition Pin
Burner Plate
Main Frame of
Fire Pit
Lava Rock
Burner
Nozzle
Corrugated Pipe
Switching Valve
Regulator Valve
with Gas Hose
Control Knob
Igniter
Foot Pad
CSA Warning Label
Wing Screw with Nut
Metal Stand
Parts Diagram
Item Picture
A
B
C
Description Qty
Lava Rocks
AA Battery
Main Frame of Fire Pit
4boxes
1 pc
1 pc
Notice: The battery is not included, you need to purchase the
corresponding type of battery by yourself.
A
B
C
08 09
2

5

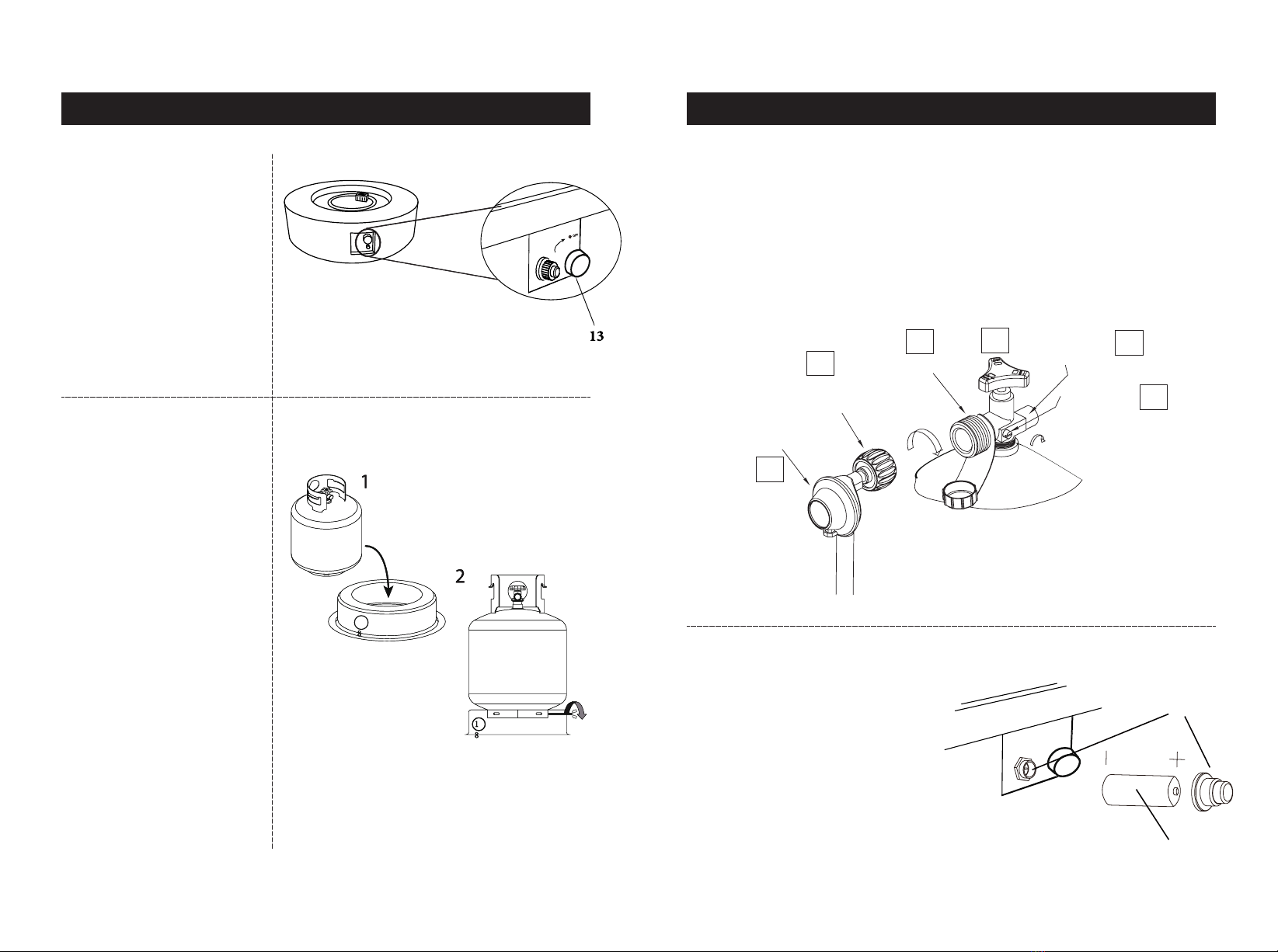

Assembly Instructions
Step 1: Check that the
control knob (13) for
the gas supply system
is turned to the “OFF”
position before starting
any assembly.
Step 2: Place a 20 lbs
Propane Gas Tank (not
included) into the Metal
Stand (18).Make sure
the Propane Gas Tank is
placed completely into
the Metal Stand.Turn
the preassembled Wing
Screw (17) in a
clockwise direction in to
the Nut to secure the
Propane Gas Tank
tightly.
5
Assembly Instructions
Step 1: Check that the
control knob (13) for
the gas supply system
is turned to the “OFF”
position before starting
any assembly.
Step 2: Place a 20 lbs
Propane Gas Tank (not
included) into the Metal
Stand (18).Make sure
the Propane Gas Tank is
placed completely into
the Metal Stand.Turn
the preassembled Wing
Screw (17) in a
clockwise direction in to
the Nut to secure the
Propane Gas Tank
tightly.
Assembly Instructions
Step 3: Turn the Cylinder Valve (21) on the tank clockwise
direction to TURN OFF SUPPLY of the LP Gas supply.Attach the
pressembled Regulator (12/19) from the Fire Pit to the Cylinder
Valve(21) by turning the Black Regulator CouplingNut (20)
clockwise. Make sure it is fastened securely and tighten
connections-by HAND only.
Step 4: Remove the Electronic
igniter Cap on the Electronic
igniter (14) by unscrewing and
slide the Battery (B) into the
battery slot. Make sure the
positive side of the Battery (B)
faces outwards. Screw the
Electronic Igniter Cap (14) over
the battery,tightly.
Assembly Instructions
10 11
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
REGULATOR
CYLINDER VALVE
BLACK COUPLING NUT
turn clockwise to connect
turn clockwise
to reseal
14
B
19
20
21 22 23
24

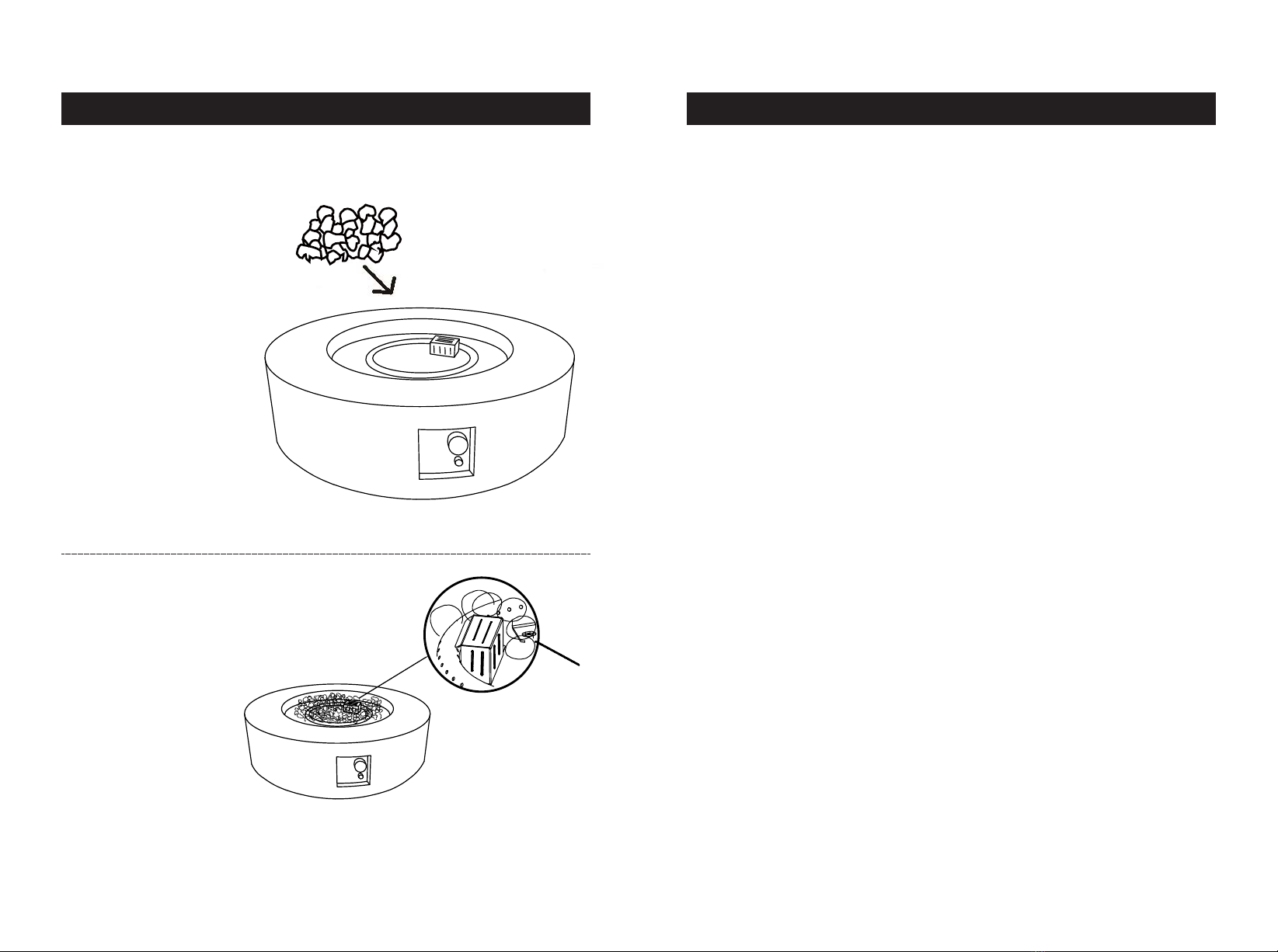

Step 5: Place Lava
Rocks over the Burner
Ring.The Guard MUST
NOT BE BLOCKED.Do
not place more than 1/4
inch depth of lava rocks
above the burner holes.
Do not place more than
26.5lbs of lava rocks
above the burner holes.
WARNING: Fire Pit and
LP-Cylinder must be at
a minimum of 60 inches
apart.
WARNING: To
ensure proper
function, the Guard
(01) on the Burner
(08) should never
have lava rocks(07)
covered over it.
Assembly InstructionsAssembly Instructions Assembly InstructionsOperation
FOR YOUR SAFETY, READ BEFORE LIGHTING
•Before performing a leak test, make sure that no sparks can
occur and youare in a spacious outdoor area.
• Connect the propane gas tank to the regulator and turn the
valve on theunit to the “off” position.
• Brush a soap and water mixture on all connections.
• Make sure the igniter battery has been installed properly. The
igniter willnot operate otherwise.
• Before operating, smell around the appliance and next to the
ground forgas odors. If you smell gas or a leak is discovered turn
the gas valve off,disconnect propane gas tank and do not use the
appliance until the leak isrepaired.
• The Fire Pit has a Door. Open the door and inspect the Gas
Hosebefore use the Fire Pit.
• If there are signs of wear or abrasion on the hose, you must
replace theGas Hose. And the Gas Hose must be supplied directly
by manufacturer.
• Stand away from the Fire Pit / Column for the initial 20 minutes
afterigniting.
• Lava rocks / pumice stones could pop up and strike somebody’s
faceduring the process of lighting this unit.
• Pumice stones/lava rocks/Lava Glass could pop up and strike
somebody’sface during the process of lighting this unit; Wait 10
minutes afterextinguishing flame prior to replacing a lid (if
applicable) or protectivecover onto the Fire Pit.
12 13
01

Assembly InstructionsOperation

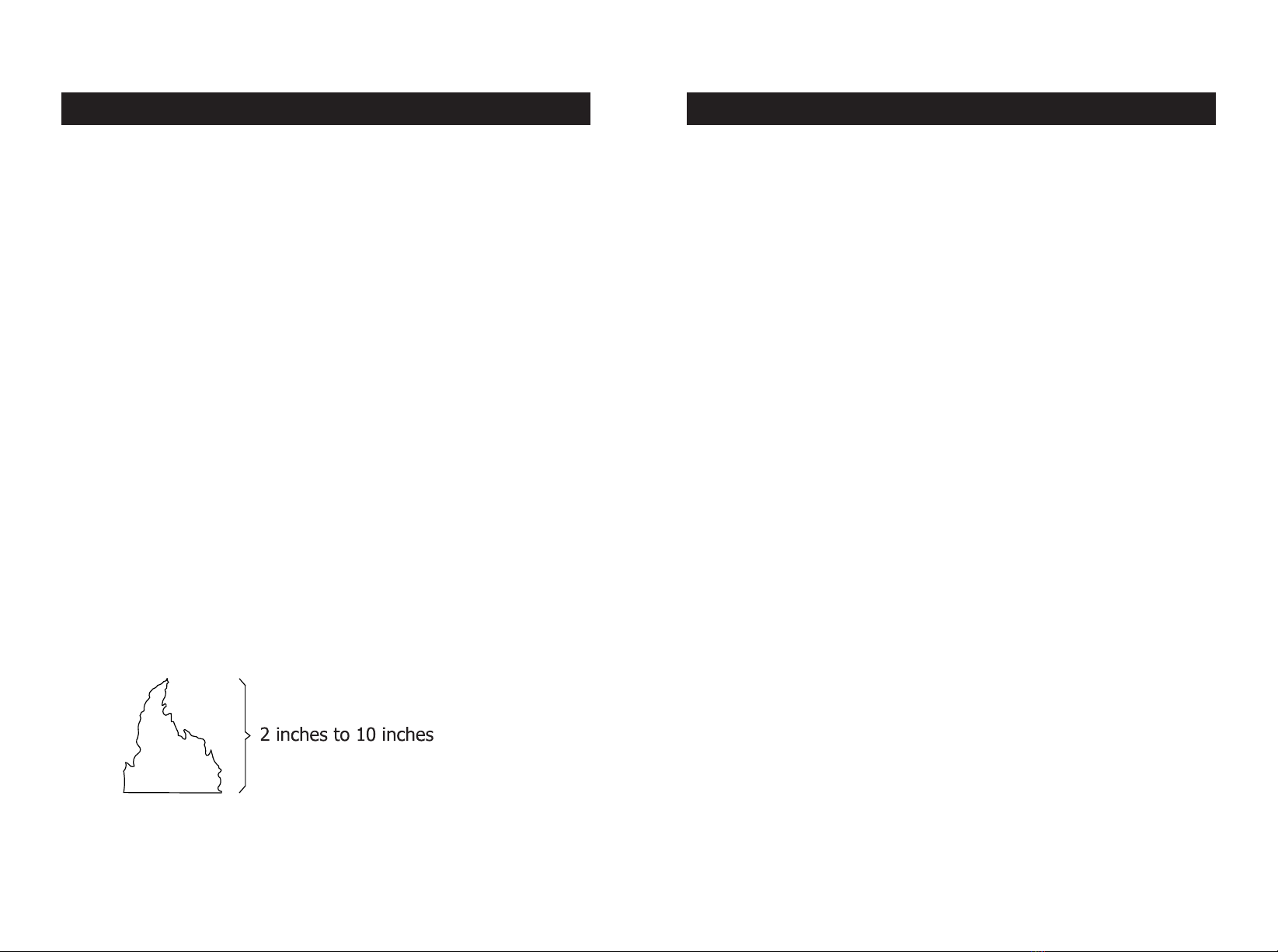

Using Your Fire Pit
1.Make sure the Control Knob (13) is in the “OFF” position.
2.Open the Door and slowly open the Valve (22) on the Propane
GasTank by turning the Control Knob (13) counterclockwise.
3.Close the Door on the Main Frame (06) of the Fire Pit.
4.Push and hold in the Electronic Ignition to create sparks within
theelectrode continue to hold.
5.Push in the Control Knob (13) and turn to the “LOW”
position.Keep holding down the Control Knob (13) to allow gas to
flow for 15seconds.
6.If ignition doesn’t occur within a few seconds release the Control
Knob(13)and rotate to the “OFF” position.Wait for 5 minutes for
gas to clear and then repeat the above lightinginstructions.
7.Once the Fire Pit / Column is lit, the flame intensity may
becontrolled by turning the Control Knob (13) between the “LOW”
and“HIGH” positions.
8. Observe flame height when lit:
1) Flame color should be yellow / blue.
2) Flame height burns at 2 - 10 inches high.
NOTE: Whenever gas connections are loosened or removed, you
must perform a complete leak test. Complete installation.
Assembly InstructionsMaintenance & Storage
To enjoy years of outstanding performance from your heater,
make sure you perform the following maintenance activities on a
regular basis:
• Before performing any maintenance, always disconnect propane
gastank.
• Use warm soapy water for cleaning. Never use flammable or
corrosivecleaning agents.
• DO NOT use petroleum-based or abrasive cleaning products.
• DO NOT use any harsh brushes/rough sponges when cleaning
the FireTable/Column surface.
• DO NOT place any food on the surface of the Fire Pit.
• DO NOT eat from the surface of the Fire Pit surface.
• Blotany liquid spills with a clean, dry cloth to avoid spreading of
thespill to the rest of the table. Immediate cleaning of
stains/blotting ofspills also prevent absorption of such stains/spills
into the surfaces,compared to if such stains are left for extended
periods on thesesurfaces.
• Cover your product with an outdoor Protective Cover when not
in useto protect it from the elements.
• Avoid extreme cold temperatures, as extreme cold
temperaturesmay cause cracking of the table top.
• Always place lid ( if applicable) or protective cover on heating
itemwhen not in use. Turn control knob OFF.
NOTE: In a salt-air environment (such as near to ocean),
corrosion occurs more quickly than normal. Frequently check for
corroded areas and repair them promptly.
Maintenance & Storage
14 15

Assembly InstructionsTrouble Shooting
PROBLEM CAUSE SOLUTION
Burner will
not be lit
with the
igniter.
Burner will
not light
with match
Electrode and burners
are wet
Wipe dry with cloth.
Igniter Pin cracked or
broken
- sparks a crack
Residue on Igniter Pin
No Gas Flow
Coupling nut and
regulator not
fully connected
Please contact us to
request the parts.
Check for residue on the
igniter pin or
Thermocouple. If
dirty,thoroughly clean
the area.
Check that the electronic
Ignitor Cap is tightly
fitted to the spring.If
loose, please adjust the
spring accordingly.
Check if the LP gas tank
is empty. If empty,
replace and refill. If the
propane tank is not
empty, refer to Problem:
Sudden drop in gas flow
on the following page.
Turn the coupling nut
about one half to three
fourths a turn, until you
feel a solid stop. Do not
use tools, tighten by
hand only.
Burner will
not light
with match
The fire pit
emits a lot
of black
smoke
when in
use
Obstruction of
gas flow
Spider webs or
insect nest in
the venturi
Check for bent or kinked hose.
Clean the venturi.
Burner ports
clogged or
blocked
Reference Problem: Irregular
flame pattern on the following
page. Clean the burner ports as
described there.
Hose from gas
fire pit is
pinched
Make sure the hose is not
pinched between the fire pit
and the source of the gas.
Flame is being
obstructed at
burner ports or
mixing chamber
of the burn
tube is blocked
or obstructed
Make sure that the gas ports
on the burner are free of any
lava rocks/fire glass so that the
flame can flow naturally. Clear
out the mixing chamber located
before the Venturi.
Sudden drop
in gas flow,
or a reduced
flame height
Out of Gas Check for gas in the LP gas
tank.
Excess flow
safety device
may have been
activated
Turn control knob to OFF, wait 30
seconds and light outdoor fire
pit.If flames are still too low,
reset the excessive flow safety
device by turning off the control
knob and LP gas tank valve.
Disconnect regulator. Turn
burner control knob to HIGH.
Wait at least 5 minutes. Turn
burner control knob off.
Reconnect regulator and perform
a leak check at tank connection.
Turn LP gas tank valve on slowly,
wait 30 seconds and then light
outdoor fire pit.
Igniter battery is dead
or
backwards
Check that the battery is
inserted correctly in the
igniter or replace the
battery. Make sure the
plastic wrap on the
battery has been
removed.
Assembly InstructionsTrouble Shooting
16 17

1. The thermocouple will be under the Pilot Guard on the top of the unit.
Please remove the Pilot guard by unscrewing it from the metal bowl with
a screw driver.
2. Once the Pilot Guard has been removed, you will have two components
exposed; the copper one is your
thermocouple. Please unscrew the nut holding the thermocouple in place.
3.Inside the unit, you will notice that the end of the thermocouple line is
directly screwed to the gas valve. Please unscrew
the thermocouple from the back end of the gas valve. Do not take off the
valve’s silver backing, only unscrew the small
nut as shown above.
4.Screw the end of the thermocouple to the back end of the gas valve
with the silver backing.
Once this has been done, please test the unit. You may have to reset the
gas valve once again as the safety mechanism may
have been set off by the new components introduced:
Completely detach the propane tank from the fire pit. Do not forget to
turn the propane tank valve down. Turn the
heat knob to high and leave it on that setting for about two to three
minutes.
Once you have done propane tank and turn the propane tank’s valve a
this, please turn the knob back to off. Hook up the quarter of a turn at a
time.
NOTE: When reattaching the propane tank, please turn the valve to
release the gas back into the unit VERY SLOWLY. We want the unit to
register gas coming through but not too much at once, this will flood the
unit and you will have to start all over!
This is so that the gas valve can register the gas coming through a little
at a time. Once you have turned the gas on all the way, please go ahead
and try to light fire pit again. This should reset your fire pit’s safety
mechanism.
Irregular
flame
pattern,
flame does
not run the
full length of
the burner
Flame blows
out
High or gusting
winds
Low on LP gas
Excess flow
valve tripped
Increase flame to HIGH setting.
Replace or refill LP gas tank.
Refer to Problem: Sudden drop
in gas flow.
Burner ports
are clogged or
blocked
Clean burner ports.Do this by
inserting a paperclip into each
of the burner ports to ensure
they are not clogged.
WARNING: Make sure burner is
not on, and has had sufficient
time to cool before touching it.
Flame seems
to lose heat
when burning
in cold
weather -
temperature
below 50°F
Ice has built up
on the outside
of the LP gas
tank because
the vaporization
process is too
low
Turn the control knob and the
LP gas tank to OFF.
Replace with a spare LP gas
tank and resume
burning. Store the spare LP gas
tank in a well
ventilated area, away from
children.
Assembly InstructionsTrouble Shooting
Problem: Problem: The burner only lights up for a few
seconds, then it automatically turns off.
Assembly InstructionsTrouble Shooting
Resetting Your Gas Valve
18 19
