Propane Fire Pit Table / Kit de Brasero Extérieur

Contact Us!
Do NOT return this item.
Contact our friendly customer
service department for help first.
Before You Startefore You Start
• Please read all instructions carefully. Retain
instructions for future reference. Seperate and count
all parts and hardware. Read through each step
carefully and follow the proper order.
• We recommend that, where possible, all items are
assembled near to the area in which they will be placed
in use, to avoid moving the product unnecessarily once
assembled.
• Always place the product on a flat, steady and stable
surface.
• Keep all small parts and packaging materials for this
product away from babies and children as they
potentially pose a serious choking hazard.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage,personal injury,or loss of life.
WARNING
FIRE OR EXPLOSION HAZARD If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call professional or fire
department.
Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death.
DANGER
EN
02

INSTALLER:
Leave this manual with
the appliance.
CONSUMER:
Retain this manual for
future reference.
WARNING For outdoor use only.
Installation and service must be performed
by a qualified installer, and qualified technician.
WARNING
WARNING
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
Before you assemble or operate this unit, please carefully read this
entire manual. Failure to do so may result in a fire, explosion,
injury or death.
DANGER
• The installation of this unit must adhere to local codes or Propane
Storage and Handling Code, CSA B149.2.
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to the owner's
information manual provided with this appliance.
For assistance or additional information consult a
qualified installer, and qualified technician.
CARBON MONOXIDE HAZA RD
EN
03

• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product
shall be used outdoors, in a ventilated space and shall not be used
in any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
• Solid fuels shall not be burned in this appliance.
• When igniting this unit, stay away from the burner as the flame
will light up and may cause injury.
● LP GAS WARNING: Do not use any more than 1/4in（0.635 cm）
depth lava rocks/pumice stones/L avaGlass® above the burner
holes. Doing so will suffocate the flame.
● If the propane gas tank is leaking gas, you may hear, see, or
smell a hiss. Do the following:
1. Disconnect the propane gas tank. 2. Do not attempt to fix the
problem yourself. 3. Contact professional or fire department for
help.
● Applying too much propane may result in gas pooling and will not
burn. Allow fresh air into the unit so that the remaining gas may
escape.
● Do not use a flame to check for gas leaks.
● Manifold pressure: 11 inch w.c. (2.74kPa).
● Use LP propane tanks with the following dimensions: diameter 12
in/ 30 cm, height 18 in/ 46 cm - capacity 20 lbs/ 9 kg.
● You must use a propane tank that has a collar to protect the gas
valve.
● DO NOT fill tank over 80 percent full.
● The tank system must be set up for vapor withdrawal.
● Discontinue use if any part of the propane tank is damaged. Rust
and dents may be hazardous and should be inspected by a gas
supplier.
● Do not burn anything other than the provided materials for this
fire table.
EN
04

● Keep away from the unit for the first 20 minutes after igniting
your unit for the first time, as lava rocks/pumice stones/L
avaGlass@ could pop out and cause injury. Should any rocks pop
out, discard them.
● Always ensure that lava rocks/pumice stones/L _avaGlass are
completely dry before use. Failure to do so will cause them to crack
or pop.
● Do not operate unit until all parts are fully assembled.
● Do not paint or color any part of this heating unit.
● Unit may be hot while in use, do not attempt to move it while in
use.
● Never leave this heating unit unattended while in use.
● This unit is not intended for cooking.
● Keep any flammable items away and do not use any other
fireplace cover for this unit.
● Keep a safe distance to avoid burning skin or clothing.
● Do not sit or rest hands or feet on this heating unit.
● Never place hands or fingers on upper portion of this unit while in
use.
● Keep all electrical cords and fuel supply hose away from heated
surfaces.
● Combustible material should not be within 60 inches/ 152.4 cm
of the top of the unit, or within 48 inches/ 121.9 cm around the
entire unit.
● Keep the appliance area clear and free from combustible
material, gasoline and other flammable vapors and liquids.
● If the flame goes out while burning, turn the gas valve off. Wait 5
minutes before repeating the initial lighting procedure. Once you
have a flame started, hold down the control knob for 1 minute.
● Do not add water into the unit.
● Do not operate unit if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and replace any part of the control system and any gas
control that has been under water.
EN
05

● Do not disconnect any part while unit is in use.
● Do not store a spare propane tank on or near this unit.
● If the heating unit is indoors, detach the propane tank and leave
outdoors.
● Do not operate on a boat or vehicle. This unit must be used on a
flat surface and outdoors ONLY.
● Always remove protective cover before operating (f applicable).
● Do not set the protective cover over the unit until it is turned off
and completely cooled down.
● Check for leaks after not using the unit for long periods of time.
● Children should never operate this unit. Children must be
supervised while near this unit.
● Keep gas tank at least 5 feet/ 152.4 cm away from unit when lit.
(if external tank)
● Maximum gas supply: 250 psi; Min. gas supply: 10 psi.
● All installation and repair should be done by a qualified
professional. This unit should be inspected annually and cleaned
regularly.
● Inspect all elements of this heating unit before each use. If there
is damage, the burner must be replaced.
● Keep the hose out from any pathways to eliminate any accidental
damage. (f external tank)
● Be aware of the hazards of high temperatures and stay away
from the unit to avoid any burns or injury.
● The gas supply tank should be constructed and marked with the
specifications for the LP gas tanks of the U.S. Department of
Transportation or the National Standard of Canada CAN/CSA-
B339, LP gas tanks, spheres and tubes for Transportation of
Dangerous Goods; and Commission.
● The LP gas tank must have a listed overilling prevention device
and a QCCI or Type , (CGA791) LP gas tank connection.
● This heating appliance should not be used on plastic or artificial
wood decks.
EN
06

NOTE: You must follow all steps to properly assemble this
heating item. Make sure the gas valve is turned“OFF”before
assembling. Do NOT attempt to assemble without proper tools.
● Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns or
clothing ignition.
● Young children should be carefully supervised when they are in
the area of the appliance.
● Clothing or other flammable materials should not be hung from
the appliance or placed on or near the appliance.
● Any guard or other protective device removed for servicing the
appliance shall be replaced prior to operating the appliance.
● Installation and repair should be done by a qualified service
person. The appliance should be inspected before use and at least
annually by a qualified service person. More frequent cleaning may
be required as necessary. It is imperative that the control
compartment, burners and circulating airways of the appliance are
kept clean.
Only use the regulator and hose assembly provided with this unit.
Inspect the bumer before use of this unit. If the burmer shows any
kind of damage, do not operate the appliance.
Combustible materials
should not be within 60
inches of the top of the
unit, or within 48 inches
around the entire unit.
72 in. (182.8 cm)
48 in. (121.9 cm)48 in. (121.9 cm)
EN
07

ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
ITEM
1
1
1
1
1
1
1
1
1
1
1
1
1
SPECIFICATION
Body
Metal lid
Guard
Thermocouple
Ignition Pin
Corrugated Pipe
Gas valve
Burner
Regulator
Reducing Nipple
Control Knob
Ignitor
Groundwire
EN
08

ITEM
A
B
C
D
H
E
F
G
Description
Metal lid
AA Battery
Panel C
Panel D
Storage cover
Panel E
Table top
Adjustable foot
QTY.
1
1
2
1
1
1
1
4
PARTS LIST
A B C
D E
G H
F
EN
09

Attach panel (D) and the panel (E) to the table top (F)
using 4pcs of Bolts (1) and 4pcs M6 washer (4) with
Allen Wrench (5). Do no fully tighten.
1
ITEM#
1
2
3
4
5
6

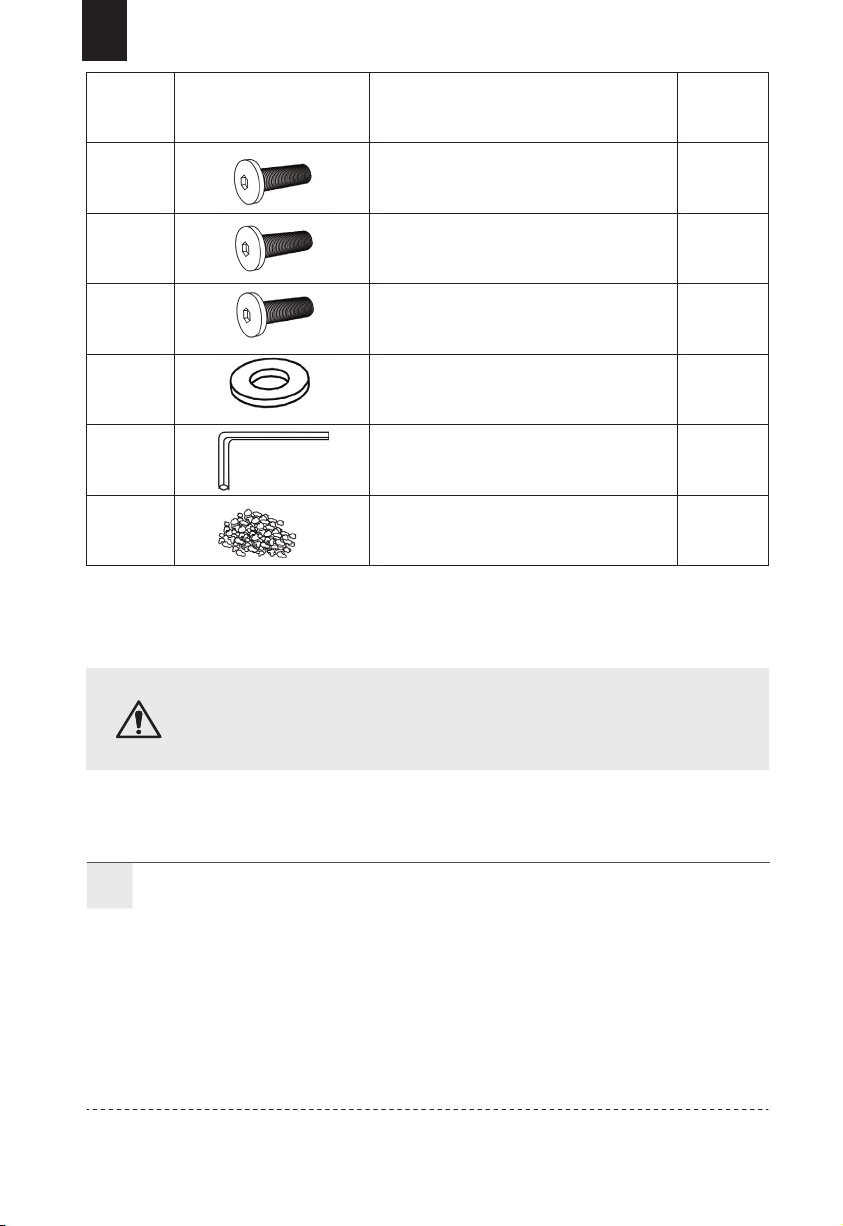

PICTURE PICTURE
Bolt (M6* 35MM)
Bolt (M6* 40MM)
Bolt (M6* 16MM)
M6 washer
Allen Wrench
lava rocks
QTY
4
8
8
12
1
1
Do not tighten the screws until the assembly is
complete.
EN
10

EN
11
Attach panel (C) with Panel (D) and Panel (E) together using
8pcs Bolts (2) and 8pcs M6 washer (4) with Allen Wrench
(5). Do not fully tighten.
2

3
4Put the metal lid (A) on the
table top of the fire pit. Then
tighten all the bolts with the
allen wrench.
5
EN
12

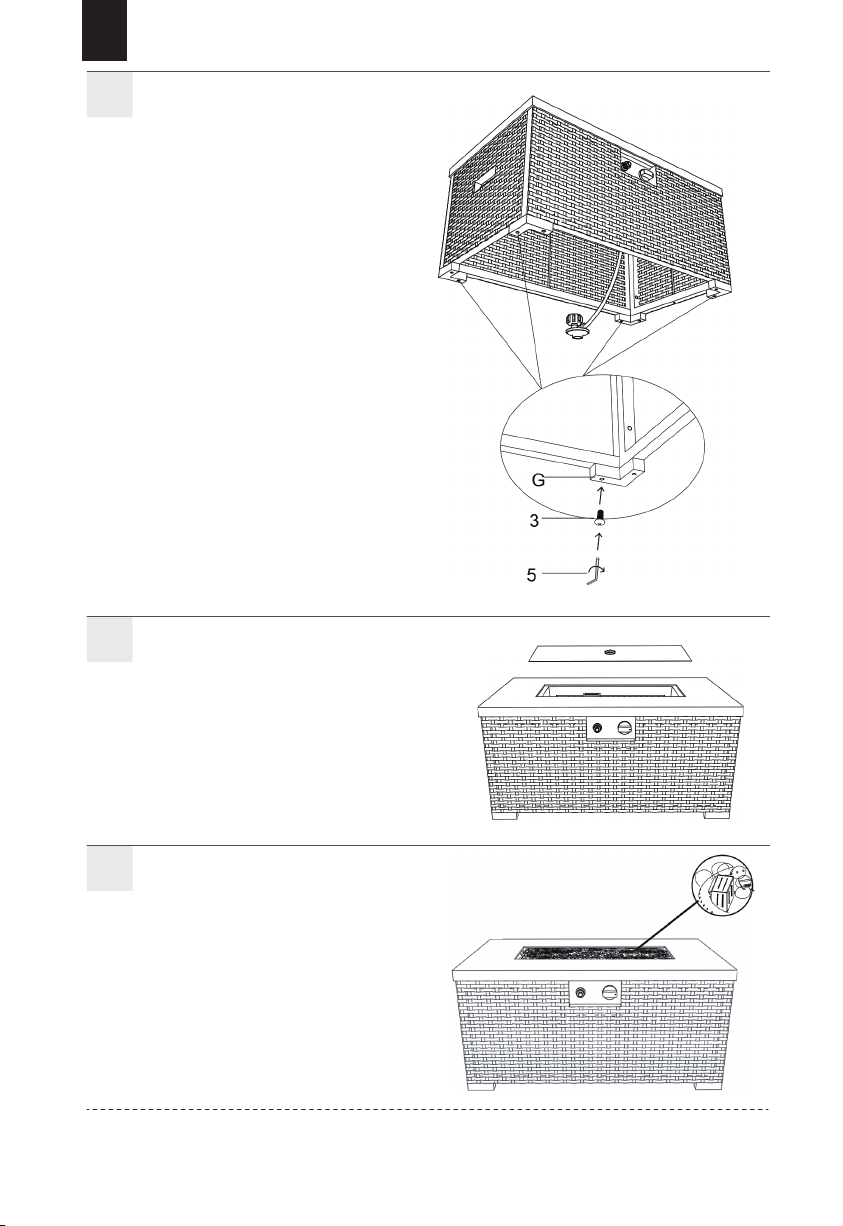

Pour the box of lava rocks into
the body of the fire place.
DANGER: To ensure proper
function, the guard on this
burner should be free of lava
rocks at all times.
Attach advjustable foot (G) to the
bottom of fire pit using 8pcs of
Bolts (3) with Allen Wrench (5).
Tighten the bolts.

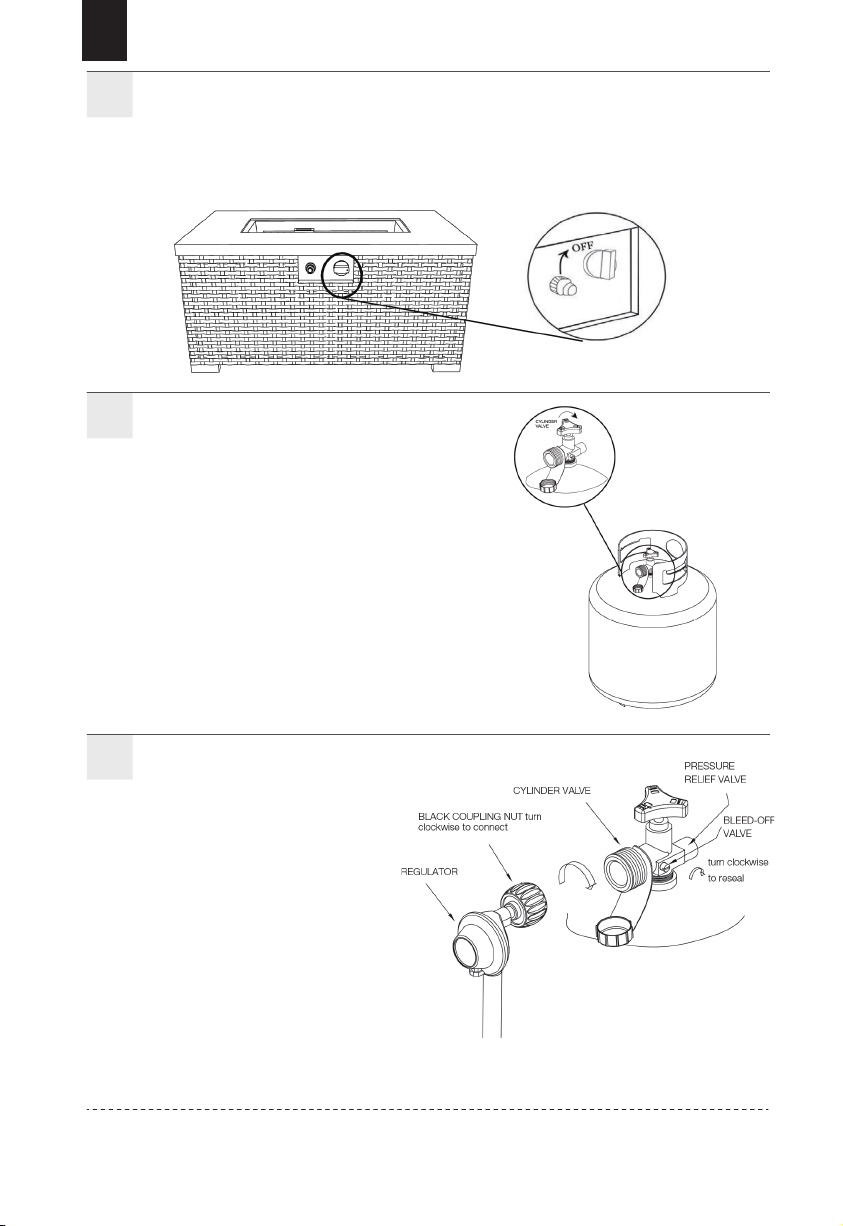

6Remove the rubber cap on the electronic igniter by
unscrewing and slide battery (B) into the battery slot. Make
sure the positive side of the battery faces outwards. Screw the
electronic igniter cap over the battery tightly.
6Turn the cylinder valve on
the tank clockwise to close
the propane tank.
7
EN
13
Attach the pre-
assembled regulator from
the body to cylinder
valve by turning the
regulator coupling nut
clockwise. Make sure it is
fastened securely and
tighten connections by
hand only.

Before performing a leak test, be sure that no sparks can occur
and you are in a spacious outdoor area. Connect the propane gas
tank to the regulator and turn the valve on the unit to the “off”
position. Brush a soap and water mixture on all connections. Turn
the gas supply on; if bubbles occur on any connection there may
be a leak. If you smell gas or a leak is discovered turn the gas
valve off, disconnect propane gas tank and do not use the
appliance until the leak is repaired.
Do not use the heating unit without inspecting the gas hose. If
there are signs of wear or abrasion you must replace the hose (if
applicable). Pumice stones/lava rocks/LavaGlass® could pop up
and strike somebody’s face during the process of lighting this unit;
stand away from the unit for the first 20 minutes after igniting.
Flame height should be a yellow/blue color between 2 - 10
inches(5.08 - 25.4 cm) in height.
Wait 50 minutes after extinguishing flame prior to placing a lid (if
applicable) or protective cover on heating item.
1. Make sure the control knob is in the "OFF" position.
2. slowly open the valve on the propane gas tank by turning the
knob counterclockwise.
3. Push and hold the electronic igniter to create sparks within the
electrode, continue to hold.
4. Push in the control knob and turn to the "low" position. Keep
holding the control knob to allow gags to flow for 45 seconds.
5. If ignition doesn't occur within a few seconds, release the
control knob and rotate to the "OFF" position. Wait for 5 minutes
for gas to clear and then repeat the above lighting instructions.
To Light
EN
14

6. To adjust the flame, turn the control knob either clockwise or
counterclockwise depending on whether you want to lower or raise
the flame.
1. Turn control knob clockwise to the "HIGH" position; push and
continue turning the control knob to the "OFF" position.
2. Close the cylinder valve on the propane gas tank if you don't
intend to use it for a long time.
• Before performing any maintenance always disconnect propane
gas tank.
• Store your product indoors during winter months. Avoiding
extreme cold temperatures will prevent from exposure damage.
• Keep the heating item free and clear from combustible materials.
• Visually inspect burner for obstructions and keep tank enclosure
free and clear from debris.
• Use a soft brush to get rid of the mild stains, loose dirt and soil
after the burner and pumice stones/lava rocks/LavaGlass® are
completely cooled down. Wipe down with a soft cloth.
• Harsh weather conditions may cause stubborn stains,
discoloration and possibly rust pitting.
• Permanent damage may occur if powder or solvent comes in
contact with painted or plastic components on this heating unit.
• Keep the heating unit stored away from direct sunlight.
• If storing this unit inside, disconnect the propane gas tank from
the gas valve.
●Always place lid (if applicable) or protective cover on heating item
when not in use.
To Extinguish
EN
15

Attach panel (A) and panel (B) to the panel (C) using 4pcs
of Bolts (2) and 4pcs M6 washer (3) with Allen Wrench
(4). Do not fully tighten.
1
ITEM
1
2
3
4
PICTURE PICTURE
Bolt (M6*15MM)
Bolt (M6*35MM)
M6 Washer
Allen Wrench
QTY
4
12
12
1
EN
16

Attach panel (D)
to the panel (A)
and the panel (B)
using 4pcs of
Bolts (2) and
4pcs M6 washer
(3) with Allen
wrench (4). Fully
tighten.
2
Attach metal stand (E) to
bottom of gas tank cover
using 4pcs of Bolts (2) and
4pcs M6 washer (3) with Allen
wrench (4). Fully tighten.
3
EN
17

Propane tank must be a minimum
of 60 inches / 152.4 cm away
from the fire table at all times
DANGER
After all bolts are
tightened, you can use it!
Place the 20 lb/ 9 kg.
propane gas tank (not
included) into the tank
holder. Turn the wing
screw on the outside of
the tank holder clockwise
to tighten the tank into
the tank holder.
Attach panel (F) to the
panel (C) using 4pcs of
Bolts (1) with Allen
Wrench (4). Fully
tighten.
4 5
6
EN
18

Problem
Heating
unit won’t
light
Burner
won’t light
while using
a match
Check that
all burner
ports are
free of any
small lava
rocks/pumice
stones/LavaG
lass® pieces
Cause
Heating unit won’t light
No gas flow
Gas flow is obstructed
Burner ports are clogged
Igniter battery is
incorrectly inserted
Regulator isn’t connected
securely to the tank
Check that the gas tank isn’t empty
Check all hoses for kinks and bends
Dry off with a soft cloth
Check that all burner ports are
free of any small lava
rocks/pumice
stones/LavaGlass® pieces
Igniter pin is broken
Check that the gas tank isn’t empty
No gas flow
Straighten hose of all bends or kinks
Regulator hose is kinked
Flame is obstructed at
burner ports
Electrode wire is loose or
disconnected
Ask qualified technician for help
Electrode wire is shorting
between valve and igniter pin
Ask qualified technician for help
Check which direction the
battery is inserted
Tighten regulator connection
to the gas tank
Reconnect wire to the igniter box
located inside the fire pit behind
the igniter box
Turn all gas flow connections off.
Insert an opened paperclip (or
similar item) into each of the
burner ports to clear them out.
Solution
EN
19

Flame
blows out
easily
Sudden
drop in gas
flow
See ‘sudden drop in gas
flow’ above
Turn the control knob to the
‘off’ posi-tion. Close the tank
valve and disconnect propane
gas tank. Turn the control knob
to ‘high’; wait 1 minute. Turn
the control knob back to the
‘off’ position. Recon-nect
propane gas tank. Light the fire
unit as indicated in the ‘To
Light’ section of this manual.
Check that the gas tank isn’t
empty
No gas flow
Increase flame to ‘high’
High or gusting winds
Excess flow safety valve
has been activated
Excess flow safety valve
has been activated
EN
20
