COUGAR MARS 120 User manual

MARS
120
GAMING DESK
ASSEMBLY DRAWING
●DesignDiseño ergonómico de bordes curvos y esquinas redondeadas.
●Wing Ala lateral doble: RGB efectos de retroiluminación.
●Soporte para conexiones de placa madre de 5V RGB (ASUS, ASRock, Gigabyte o MSI).
●USB pass-through x2 y conectores de audio.
●DesignDiseño de textura de fibra de carbono.
●Frame Bastidor de acero soldado de alta resistencia para una máxima estabilidad.
ESPAÑOL
●Edges Design de bordas curvas ergonómicas e cantos arredondados.
●SideA asa lateral dupla: RGB efeitos de luz de fundo.
●Suporte para conexões de placa-mãe de 5V RGB (ASUS, ASRock, Gigabyte ou MSI).
●USB pass-through x2 e tomadas de áudio.
●DesignDesign de textura de fibra de carbono.
●Estrutura de aço soldada de alta resistência para máxima estabilidade.
PORTUGUÊS
●Design ergonomico dei bordi curvi e angoli arrotondati.
●Ala laterale doppia: RGB effetti di retroilluminazione.
●Supporto per connessioni della scheda madre RGB 5V (ASUS, ASRock, Gigabyte o MSI).
●USB pass-through x2 e prese audio.
●Design della trama in fibra di carbonio.
●Telaio in acciaio saldato ad alta resistenza per la massima stabilità.
ITALIANO
●Ergonomic curved edges design and rounded corners.
●Dual side wing: RGB backlight effects.
●Support for 5V RGB motherboard connections (ASUS,ASRock,Gigabyte or MSI).
●USB pass-through x2 & Audio Jacks.
●Carbon fiber texture design.
●High-strength welded steel frame for maximum stability.
ENGLISH
D
D
G
E
F
A
C
B
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
●Например, AG = 17 = 2017 год
A B C D E F G H I J
1234567890
A
B
Desk Dimension
Desk Height
I/O Panel
Model No.
Product Name COUGAR MARS 120 Gaming Desk
CGR-MARS 120
125 (W) x 74 (D) mm / 49.2 (W) x 29.1 (D) inch
81 (H) cm / 31.9 (H) inch
USB 3.0 x 1 / USB 2.0 x 1 / Audio Jacks x 2 / RGB button
SPECIFICATIONS
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg България QR код
ACCESSORY KIT
COUGAR MARS 120 gaming desk provides ergonomic design with dazzling
RGB lighting effects for enhancing your superior gaming experiences.
It’s how we make your gaming dreams come true and present a unique gaming
desk for you!
●更舒适的人体工学造型桌面设计
●可调控式RGB侧翼灯效设计
●支持主机板RGB灯效同步功能 (ASUS,ASRock,Gigabyte 或 MSI)
●桌面具有USB/Audio接口设计
●类碳纤维表面防刮处理
●高强度与高耐用度钢制桌脚设计
中 文
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MARS 120
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.
A
B
C
x1
x4
x4
x8
x12
x12
x4
x4
x1
x1
x4
x1
A
B
x8
x4
14
4 6 75
2 3
Make sure the 12 screws are positioned
and then lock solidly truly.
!
Please make sure the side is right
while mounting Part C
!
12 Screws
F
E
x4
When the control stands are uneven on the gaming desk,
they will be automatically corrected when locking the screws.
To avoid the screw bosses are damaged,please do not lock
the screws too tight.
!
G

x1
x1
DISCLAIMERS
● COUGAR products should not be used as critical components in life support devices.
● COUGAR is not liable for any damage of life and limb or damage or loss of property caused by or during
COUGAR products’ use as or with medical equipment, military equipment, traffic equipment and disaster
prevention systems.
● COUGAR's warranty liability is limited to repair or replacement. The decision on whether to repair
or replace belongs exclusively to COUGAR.
● COUGAR is, to the extent not prohibited by law, not liable for any damages; expenses; lost data,
revenues, savings or profits; or any incidental or consequential damages happened while the use
of a defective product from COUGAR or due to its use.
WARRANTY AGREEMENT
● If the product has defects in material or manufacture, COUGAR will provide product repair and
replacement service within the warranty period.
● Our warranty service is based on the date of the invoice or warranty card.
CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED
● Any fault or damage caused by natural disasters (including storm, fire, flood, thunder, earthquake, etc).
● Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash,
moving, compression, stain, corrosion, riot, misuse, malicious damage, etc).
● Use in an improper operating environment (including high temperature, high humidity, water inflow, etc).
● Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still
within the warranty period and the shipping date of the product is out of warranty.
● The warranty card has been altered or its number is hard to identify.
● The warranty period has expired.
● Any fault or damage caused by non-compliance with regulations stated on the user manual or improper,
rough and careless treatment.
● Any fault or damage caused by use of parts not certified by COUGAR original manufacturer.
● The problem is caused by improper repair or adjustment by the buyer or any manufacturer without
authorization from COUGAR.
● The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.
● Paper carton, instruction and other accessories are not warranted.
facebook.com/cougargaming
youtube.com/user/COUGARGLOBAL
www.cougargaming.com
EF
MIC SPK
Left wing RGB connector
Side wing connector RGB connector
Controller
Left wing RGB connector
(Line length 150cm) A
Controller connector
(Line length 120cm)
Controller connector
B
USB 2.0 (Line length 125cm)
Power supply
(Line length 125cm)
USB 3.0 (Line length 120cm)
Right wing RGB connector
(Line length 25cm)
Right wing RGB connector
H
Mic connector (Line length 230cm)
Spk connector (Line length 230cm)

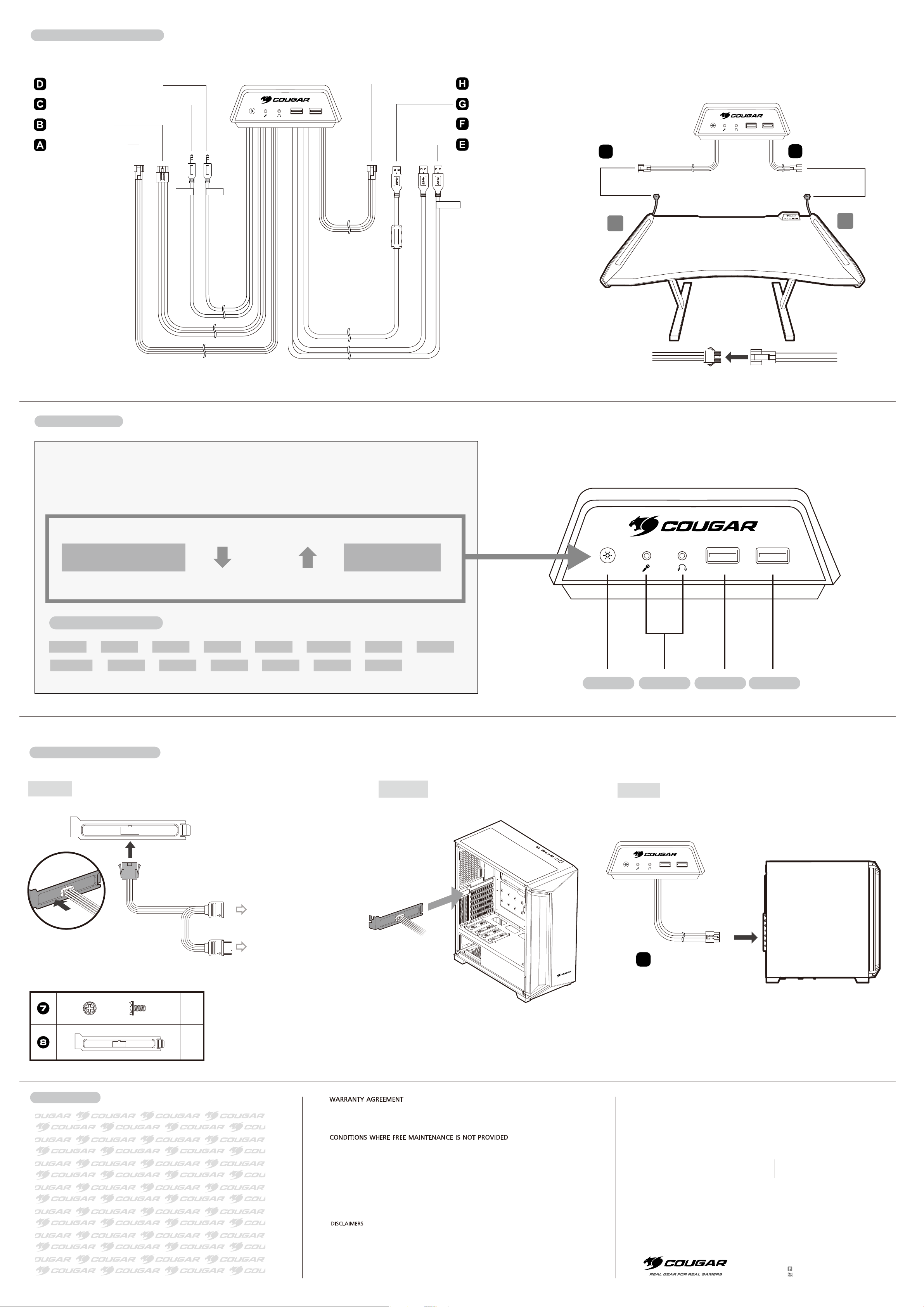

Controller Function
Mars Gaming Desk Connector
Connecting Controller to PC
DISTRIBUTOR
Expand other devices
5V Addressable RGB Header:
for Compatible ASUS, MSI ,
Gigabyte or ASRock Motherboards
STEP .1 STEP .2 STEP .3
Default : RGB Button Switch Mode
Flow >Swift >Breathing >Red >Orange >Light orange >Yellow >Green >
Yellow-green >Sky-blue >Purple >Fuchsia >Pink >White >Lighting Off Blue >
HOW TO SWITCH BETWEEN RGB CONTROL MODES
Press and hold the RGB button for three seconds inth Motherboard Driver RGB Control mode, and the RGB button’s LED
will be turn off.
If you need to return to defalt mode, just press the RGB button for one second.
Default: Control by RGB button
Motherboard Driver RGB Control
Press the RGB button for
one second
Press and hold the RGB button for
three seconds
RGB button Audio Jacks USB 2.0 USB 3.0
LEGAL NOTICES
This manual was created by Compucase Enterprise and may not be completely or partially
copied, passed on, distributed or stored without written consent by Compucase Enterprise.
COUGAR® is a registered brand of Compucase Enterprise Other product and company names
mentioned in this documentation may be brands or trademarks of their respective owners.
Compucase Enterprise reserves the right to make changes concerning the contents of the
manual and the technical data of the product without previous announcement.
MANUFACTURER CONTACT
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C
Tel:[phone]
Compucase Enterprise Co.,Ltd. All rights reserved. Made in China
COUGAR USA Technical Service
Tel: [phone]
Mail: [email protected]
Service email : https://cougargaming.com/support/contact/upload/
